GIGAIPC QBiX-DR-EHLA6412H-A1 User manual

System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
1www.gigaipc.com
QBiX-DR-EHLA6412H-A1
(DR-6412A-SI)
Industrial Embedded System
Quick Start Guide

2
www.gigaipc.com
Copyright Notice
This document is copyrighted, 2022. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for any
infringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its accuracy,
Beijer assumes no liabilities resulting from errors or omissions in this
document, or from the use of the information contained herein.
GIGAIPC reserves the right to make changes in the product design
without notice to its users.

System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
3www.gigaipc.com
Acknowledgement
All other products’ name or trademarks are properties of their
respective owners.
• AMD is trademark of Advanced Micro Devices.
• Microsoft Windows is a registered trademark of Microsoft Corp.
• Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
• Core, Atom are trademarks of Intel Corporation
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

4
www.gigaipc.com
Packing List
Before setting up your product, please make sure the following items
have been shipped:
Item Quantity
System 1
Terminal Blocks 1 x 3P (P/N: 25IO0-5ESDV0-D2R ) 1
Terminal Blocks 1 x 2P (P/N: 25IO0-EC3500-D2R) 1
Terminal Blocks 1 x 10P (P/N: 25IO0-EC3810-D2R) 1
SATA cable (P/N: 25CF4-500500-S9R) 1
SATA power cable (P/N: 25CRI-190920-S9R) 1
HDD screw M3x4L (P/N : 25984G-1C014-S00) 4
If any of these items are missing or damaged, please contact your
distributor or sales representative immediately.

System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
5www.gigaipc.com
About this Document
This User’s Manual contains all the essential information, such as
detailed descriptions and explanations on the product’s hardware
and software features (if any), its specifications, dimensions, jumper/
connector settings/definitions, and driver installation instructions (if
any), to facilitate users in setting up their product.

6
www.gigaipc.com
Safety Precautions
Please read the following safety instructions carefully. It is advised that
you keep this manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the
device.
3. Position the power cord so that people cannot step on it. Do
not place anything over the power cord.
4. Always completely disconnect the power before working on the
system’s hardware.
5. No connections should be made when the system is powered
as a sudden rush of power may damage sensitive electronic
components.
6. If the device is not to be used for a long time, disconnect it from
the power supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before
cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray
detergents.
9. Make sure the device is installed near a power outlet and is
easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent
falls
12. Do not cover the openings on the device to ensure optimal heat
dissipation.

System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
7www.gigaipc.com
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is
running
15. Never pour any liquid into the openings. This could cause fire or
electric shock.
16. As most electronic components are sensitive to static electrical
charge, be sure to ground yourself to prevent static charge
when installing the internal components. Use a grounding
wrist strap and contain all electronic components in any static-
shielded containers.
17. If any of the following situations arises, please the contact our
service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described
in this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED
ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S
PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO
PREVENT DAMAGE.

8
www.gigaipc.com
FCC Statement
This device complies with Part 15 FCC Rules. Operation
is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received including
interference that may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions and your local government’s
recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant
et les directives gouvernementales de recyclage.
High Temperature Warning
(1) This equipment is intended to be used in
Restrict Access Location. The access can only be
gained by Skilled person or by Instructed person
who have been instructed about the metal chassis
of the equipment is so hot that Skilled person have
to pay special attention or take special protection.
Only authorized by well trained professional person can access the
restrict access location.
(2) External metal parts are hot!! Before touching it, special attention
or protection is necessary

System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
9www.gigaipc.com
Table Contents
Industrial Embedded System 1
Quick Start Guide
Copyright Notice .......................................................................... 2
Acknowledgement ....................................................................... 3
Packing List................................................................................... 4
About this Document ................................................................... 5
Safety Precautions ....................................................................... 6
FCC Statement.............................................................................. 8
High Temperature Warning ......................................................... 8
Chapter 1 - Product Specifications 12
1.1 Specifications ............................................................... 14
Chapter 2 – QBiX-DR-EHLA6412H-A1 (DR-6412A-SI) 16

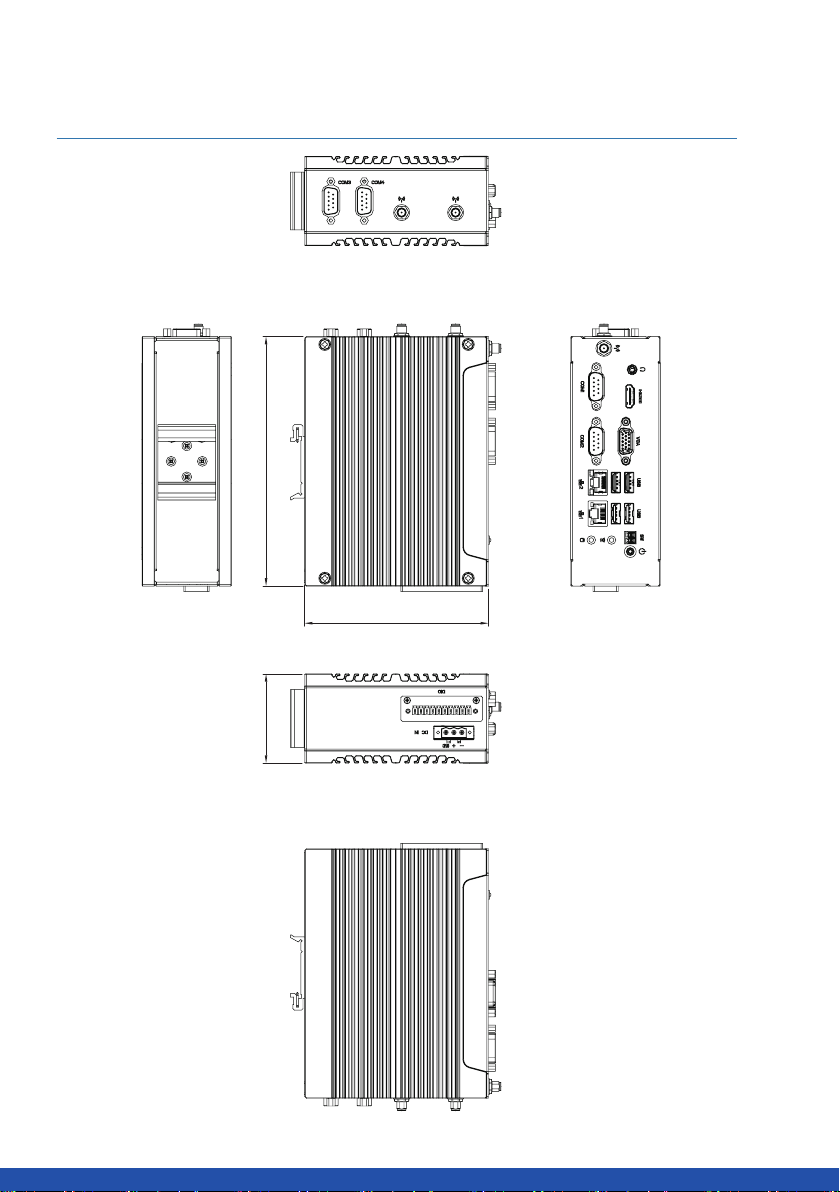

2.1 Dimension .................................................................... 17
2.1 Dimension - including wall mount brackets.................. 18
2.2 Getting Familiar with Your Unit..................................... 19
2.3 A) Wireless Module : How to safely install the Module
(Wireless Module inclusion may vary based on local
distribution) .................................................................. 21
2.4 B) 5G module Installation: How to safely install the
module (5G Module inclusion may vary based on local
distribution)................................................................... 22

10
www.gigaipc.com
2.5 C) M.2 SSD Installation: How to safely install the
M.2 2280 SSD ............................................................... 23
2.6 D) Memory Installation: DDR4 SO-DIMM .................... 24
2.7 HDD Installation ........................................................... 25
2.8 Antenna Installation (Antenna inclusion may vary based
on local distribution) .................................................... 26
2.9 Din Rail Bracket Installation .......................................... 27
2.10 Wall mount Bracket Installation.................................... 28
2.11 Cable Pin-define ........................................................... 29
2.12 Safety and Regulatory Information............................... 30
Chapter 3 – Motherboard Pin Define 31
3.1 Jumpers and Connectors ............................................. 32
3.2.1 DC_IN (DC IN 1x3-pin Terminal Block).......................... 35
3.2.2 GPIO_CN (General Purpose input/output header )...... 36
3.2.3 COM3, COM4 (Serial port header, RS-232/422/485 &
RI/5V/12V) ..................................................................... 37
3.2.4 JCOM3, JCOM4 (RI# pin RI#/5V/12V Select jumper for
COM3 & COM4 Port) .................................................... 38
3.2.5 AT_CN (AT/ATX mode select jumper)............................ 39
3.2.6 SYS_PANEL (Front panel header) .................................. 40
3.2.7 M2B (M.2 Slot, B-Key, NGFF 3052/3042)......................41
3.2.8 SODIMM (DDR4 SO-DIMM Slot) ................................... 42
3.2.9 USB_V (Vertical USB2.0 connector) ............................. 43
3.2.10 SATAPW (SATA power connector) ................................. 44
3.2.11 SATA0 (SATA 6Gb/s Connector) ..................................... 45

System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
11 www.gigaipc.com
3.2.12 BAT (Battery cable connector)...................................... 46
3.2.13 M2M (M.2 Slot, M-Key, NGFF2280).............................. 47
3.2.14 M2E (M.2 Slot, E-key, NGFF2230) ................................. 48
3.2.15 COM1 (Serial Port connector (RS-232/422/485 &
RI/5V/12V)) .................................................................... 49
3.2.16 COM2 (Serial Port connector (RS-232/422/485 &
RI/5V/12V)) .................................................................... 50
3.2.17 USB_LAN2 (LAN Connector (top) + USB 2.0 Connector
(bottom)) ....................................................................... 51
3.2.18 USB_LAN1 (LAN Connector (top) + USB 3.2 Gen 1
Connector (bottom))..................................................... 52
3.2.19 HP (Headphone Jack) .................................................... 53
3.2.20 HDMI (HDMI Connector)............................................... 54
3.2.21 VGA (DB-15 VGA Connector) ........................................ 55
3.2.22 PWR_SW (Remote Control connector) ........................ 56
3.2.23 PWR_BUTTON (Power button with LED)...................... 56
Chapter 4 – BIOS 57
4.1 Introduction .................................................................. 58
4.2 The Main Menu............................................................. 59
4.3 Advanced ...................................................................... 60
4.3.1 TPM Configuration........................................................ 61
4.3.2 IT8786 Super IO Configuration ..................................... 63
4.3.3 Hardware Monitor ........................................................ 64
4.3.4 S5 RTC Wake Settings ................................................... 65
4.3.5 CPU Configuration ........................................................ 66

12
www.gigaipc.com
4.3.6 SATA Configuration ....................................................... 67
4.3.7 Network Stack Configuration........................................ 68
4.3.8 Digital IO Port Configuration ........................................ 69
4.4 Chipset .......................................................................... 70
4.5 Security ......................................................................... 71
4.6 Boot................................................................................74
4.7 Save & Exit .................................................................... 75

13 www.gigaipc.com
System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
Chapter 1
Chapter 1 - Product Specifications

14
www.gigaipc.com
160
118
57.2

15 www.gigaipc.com
System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
1.1 Specifications
System QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
Dimension System Size : 160W x 118D x 62.6H(mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Memory 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB
Support Single Channel DDR4 3200 MHz memory modules
Ethernet 2 x GbE LAN Ports (Intel® I210AT)
Graphic
support
Integrated Graphics Processor-
Intel® UHD Graphics for 10th Gen Intel® Processors:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160
@60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200
@60Hz
(2 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion
Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B key with SIM Slot – 4G/5G Support
1 x Vertical USB 2.0
Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x Power button with LED
1 x WiFi/HDD LED
1 x Remote control connector
1 x Headphone Jack
1 x External Antenna Hole (Optional)
Rear I/O 1 x Din Rail Mounting Support

16
www.gigaipc.com
System QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
Side I/O
1 x GPIO (8 bits)
1 x 3-pin Terminal Block
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x External Antenna Holes (Optional)
Power +9V~36VDC (Full Range)
Operation
temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration
During
Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per
Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1
hr / Per Axis
Shock During
Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With
SSD
Packaging
Content
Carton size: 416 x 409 x 347 (mm)
Packing Capacity: 6pcs
Including:
Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R)
Terminal Blocks 1*2P x 1 (P/N: 25IO0-EC3500-D2R)
Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R)
SATA cable x 1 (P/N: 25CF4-500500-S9R)
SATA power cable x 1 (P/N: 25CRI-190920-S9R)
HDD screw M3x4L x 4 (P/N: 25984G-1C014-S00)
Order
Information System: 6BDR6412AMR-SI (Box packing)

17 www.gigaipc.com
System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
Chapter 2
Chapter 2 – QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)

18
www.gigaipc.com
2.1 Dimension
160
118
57.2

19 www.gigaipc.com
System - QBiX DIN Rail Series QBiX-DR-EHLA6412H-A1 (DR-6412A-SI)
2.1 Dimension - including wall mount brackets
160
190.6
92
116.7
57.2
62.15
NOTE : The wall mount brackets are
the optional parts, and will not be
shipped with system.
Above dimension drawing including
wall mount backets is for reference
only.

20
www.gigaipc.com
2.2 Getting Familiar with Your Unit
[Rear I/O Port on Board]
[Side IO Top Side]
[Side IO Down side]
[Front Side]
2 x COM Ports
(RS-232/422/485 & RI/5V/12V)
2 x RJ45 LAN Ports
HDD LED
WiFi LED
Headphone Jack
HDMI VGA
2 x USB 2.0 Power button with LED
2 x USB 3.2 Gen 1
Remote control
connector
DC IN
DIO
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x External Antenna Holes
Din Rail
External Antenna Holes
*NOTE : COM1 & COM2 RI/5V/12V setting are supported by
BIOS selection. (please refer to Page 63)
*NOTE : COM3 & COM4 RI/5V/12V setting are supported by
jumper setting. (please refer to Page 38)
