IEI Technology iSDV-200CTR User manual

iSDV-200CTR
Page I
User Manual
System
MODEL:
iSDV-200CTR
SDVoE Transmitter/Receiver, Semtech BlueRiver® AVP2000T,
Dual 128Mx16 DDR3, 1GbE RJ-45, 10GbE RJ-45/SFP+, Audio,
IR In/Out, Two HDMI 2.0, USB-HID, RS-232, RoHS Compliant
Rev. 1.00 –August 2, 2022

iSDV-200CTR
Page II
Revision
Date
Version
Changes
August 2, 2022
1.00
Initial release

iSDV-200CTR
Page III
Copyright
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.

iSDV-200CTR
Page IV
Manual Conventions
WARNING
Warnings appear where overlooked details may cause damage to the
equipment or result in personal injury. Warnings should be taken
seriously.
CAUTION
Cautionary messages should be heeded to help reduce the chance of
losing data or damaging the product.
NOTE
These messages inform the reader of essential but non-critical
information. These messages should be read carefully as any directions
or instructions contained therein can help avoid making mistakes.
HOT SURFACE
This symbol indicates a hot surface that should not be touched without
taking care.

iSDV-200CTR
Page V
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 FEATURES................................................................................................................... 2
1.3 FRONT PANEL............................................................................................................. 3
1.3.1 LED Indicators................................................................................................... 3
1.4 REAR PANEL .............................................................................................................. 5
1.5 TECHNICAL SPECIFICATIONS ...................................................................................... 5
2 UNPACKING ................................................................................................................. 7
2.1 UNPACKING ................................................................................................................ 8
2.2 PACKING LIST ............................................................................................................ 8
3 HARDWARE INSTALLATION................................................................................. 10
3.1 ANTI-STATIC PRECAUTIONS.......................................................................................11
3.2 INSTALLATION PRECAUTIONS ....................................................................................11
3.3 USB HID MODE SELECTION.................................................................................... 12
3.4 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................... 13
3.4.1 HDMI Connectors............................................................................................ 13
3.4.2 Infrared Connectors......................................................................................... 14
3.4.3 LAN Connector – 1GbE................................................................................... 15
3.4.4 LAN Connector - 10GbE.................................................................................. 16
3.4.4.1 10GbE SFP+ ............................................................................................. 16
3.4.4.2 10GbE RJ-45............................................................................................. 17
3.4.5 Power Connector ............................................................................................. 18
3.4.6 RS-232 Serial Port Connectors........................................................................ 18
3.5 POWER-ON PROCEDURE........................................................................................... 19
3.6 RESET THE SYSTEM .................................................................................................. 19
3.7 CONFIGURATION EXAMPLES..................................................................................... 20
3.7.1 Video Wall ........................................................................................................ 20
3.7.2 Matrix............................................................................................................... 21
3.7.3 Multiview.......................................................................................................... 21

iSDV-200CTR
Page VI
4 SOFTWARE APPLICATION..................................................................................... 22
4.1 INTRODUCTION......................................................................................................... 23
4.2 SOFTWARE INSTALLATION ........................................................................................ 23
4.2.1 Microsoft Windows 10/11................................................................................. 24
4.2.2 Ubuntu 18.04.................................................................................................... 27
4.2.3 QNAP QTS 5.0 ................................................................................................. 28
4.3 MAIN MENU............................................................................................................. 29
4.4 OPERATION MODE.................................................................................................... 30
4.4.1 Transmitter List................................................................................................ 31
4.4.2 Display Layout................................................................................................. 32
4.4.3 Information ...................................................................................................... 33
4.5 CONFIGURATION....................................................................................................... 34
4.5.1 Device Setup..................................................................................................... 35
4.5.2 Display ............................................................................................................. 36
4.5.3 Device Summary .............................................................................................. 37
4.6 GLOBAL SETTING ..................................................................................................... 38
4.7 LOG.......................................................................................................................... 38
4.8 HOW TO SETUP A VIDEO WALL ................................................................................ 39
4.9 HOW TO SETUP MULTIVIEW ..................................................................................... 41
A REGULATORY COMPLIANCE .............................................................................. 43
B SAFETY PRECAUTIONS ......................................................................................... 48
B.1 SAFETY PRECAUTIONS............................................................................................. 49
B.1.1 General Safety Precautions............................................................................. 49
B.1.2 Product Disposal ............................................................................................. 50
B.2 MAINTENANCE AND CLEANING PRECAUTIONS ........................................................ 51
C HAZARDOUS MATERIALS DISCLOSURE ......................................................... 52
C.1 ROHS II DIRECTIVE (2015/863/EU) ....................................................................... 53
C.2 CHINA ROHS........................................................................................................... 54

iSDV-200CTR
Page VII
List of Figures
Figure 1-1: iSDV-200CTR Transceiver..........................................................................................2
Figure 1-2: Front Panel ..................................................................................................................3
Figure 1-3: Rear Panel....................................................................................................................5
Figure 3-1: USB HID Mode Switch Location..............................................................................12
Figure 3-2: HDMI Connector........................................................................................................13
Figure 3-3: RJ-45 Ethernet Connector........................................................................................15
Figure 3-4: 10GbE SFP+ Connector............................................................................................17
Figure 3-5: RJ-45 Ethernet Connector........................................................................................17
Figure 3-6: Power Connector ......................................................................................................18
Figure 3-7: Reset Button Location..............................................................................................20
Figure 4-1: Operation Mode.........................................................................................................30
Figure 4-2: Configuration.............................................................................................................34
Figure 4-3: Global Setting............................................................................................................38
Figure 4-4: Log..............................................................................................................................38

iSDV-200CTR
Page VIII
List of Tables
Table 1-1: LED Indicators ..............................................................................................................4
Table 1-2: Technical Specifications..............................................................................................6
Table 2-1: Package List..................................................................................................................9
Table 3-1: USB HID Mode Selection............................................................................................12
Table 3-2: HDMI Connector Pinouts ...........................................................................................13
Table 3-3: IR Receiver Cable Pinouts.........................................................................................14
Table 3-4: IR Blaster Cable Pinouts............................................................................................14
Table 3-5: LAN Connector Pinouts.............................................................................................15
Table 3-6: 10GbE SFP+ Pinouts..................................................................................................17
Table 3-7: LAN Connector Pinouts.............................................................................................17
Table 3-8: Power Connector Pinouts..........................................................................................18
Table 3-9: RS-232 Serial Port Pinouts ........................................................................................18

iSDV-200CTR
Page 1
Chapter
1
1Introduction

iSDV-200CTR
Page 2
1.1 Overview

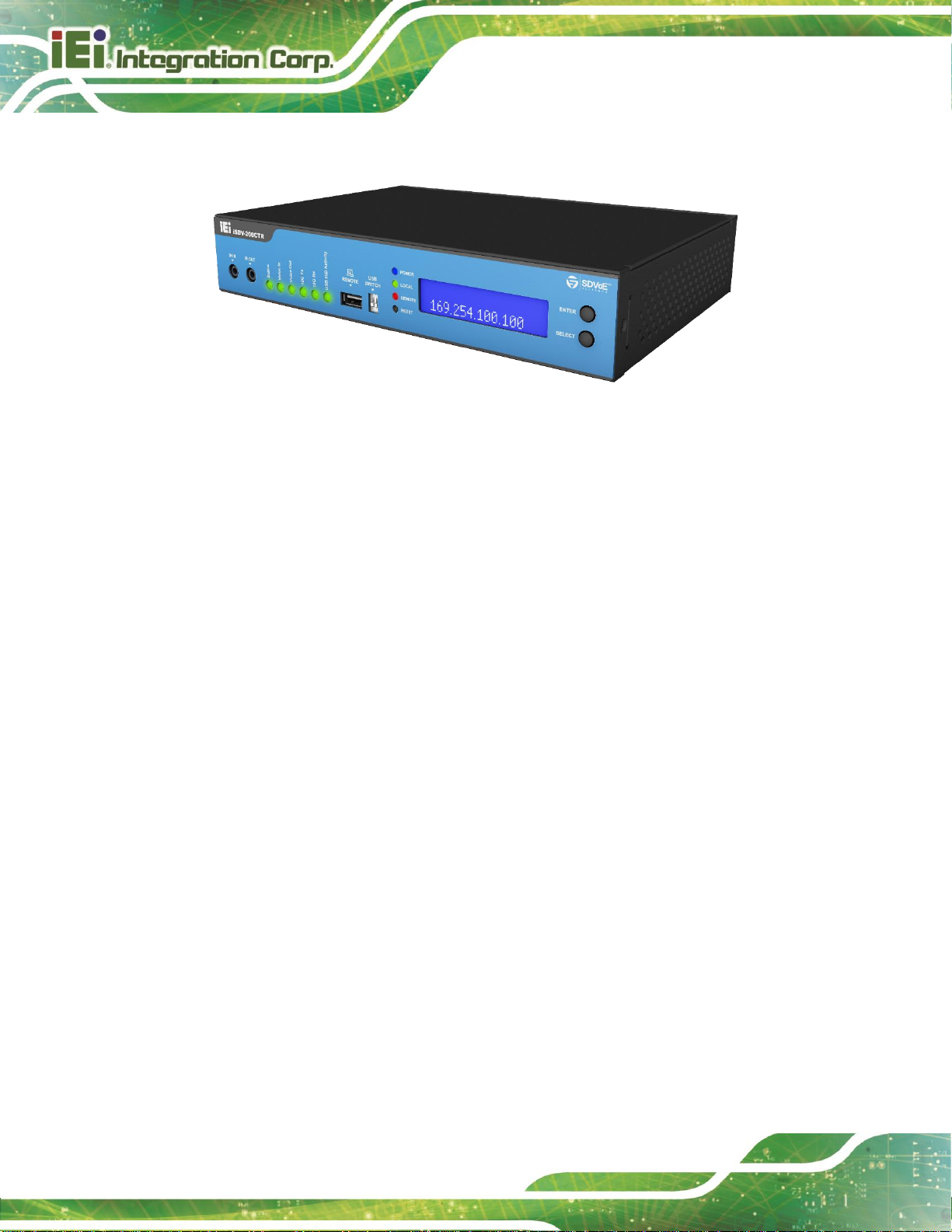

Figure 1-1: iSDV-200CTR Transceiver
The iSDV-200CTR is a 4K HDR SDVoE IP combo transceiver with a Semtech BlueRiver®
AVP2000T AV processor and two on-board 128Mx16 DDR3 memory. With its 10GbE
combo port design, the iSDV-200CTR allows streaming over copper cable or fiber cable in
one single device to deliver zero-latency video and audio for live event, video wall or
situation room.
The iSDV-200CTR includes one HDMI input and one HDMI output supporting 4K60
resolutions. Other slots and connectors include four USB-HID, one GbE port, two RS-232,
one infrared output, one infrared input and two audio jacks (line-out and mic-in.
1.2 Features
The iSDV-200CTR has the following features
Decoder hybrid and copper/fiber combo device
Visualization hardware design for IP management
Flexible software, iSDV Network Video Orchestrator, for TX/RX configuration
and applications

iSDV-200CTR
Page 3
1.3 Front Panel
The front panel of the iSDV-200CTR are shown in 692H692HFigure 1-2.

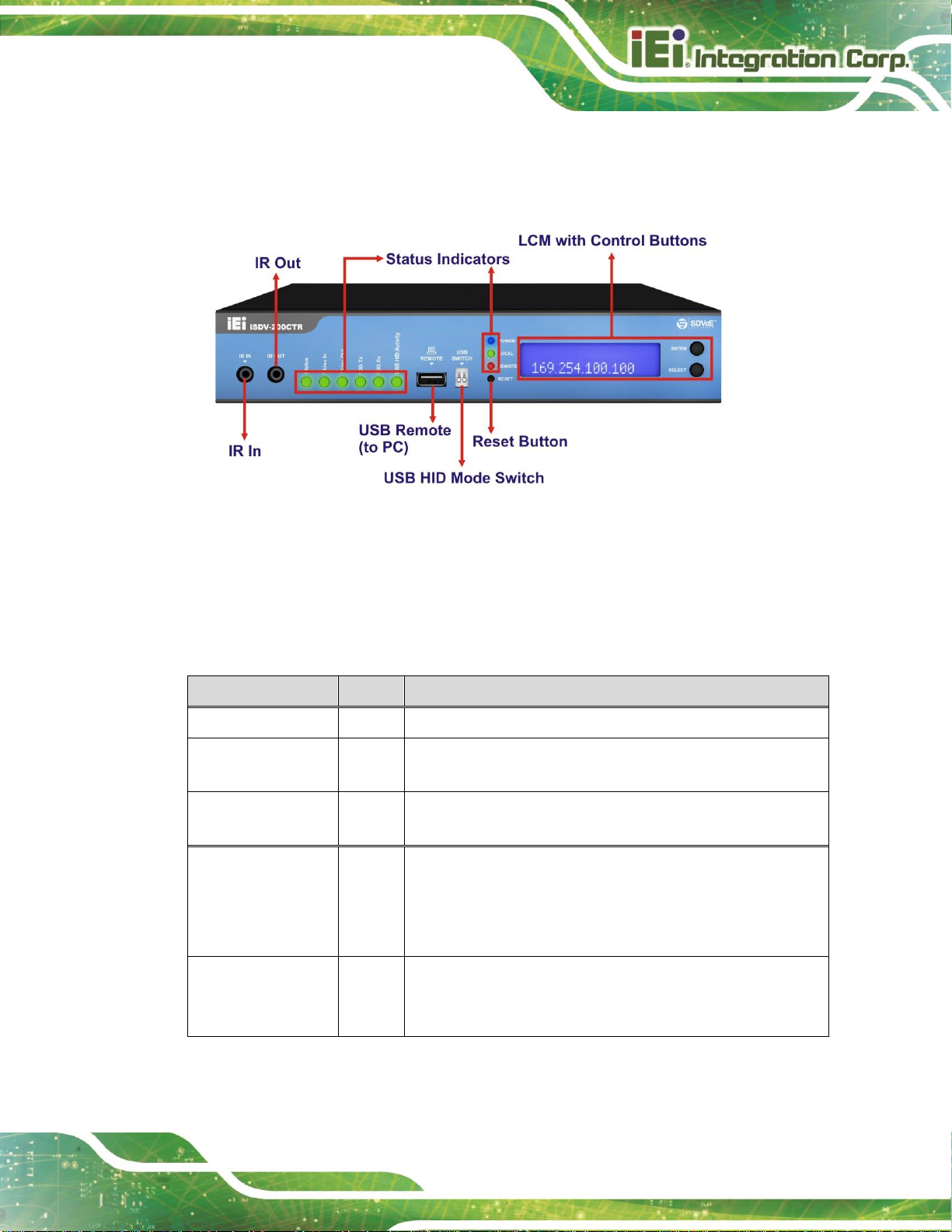

Figure 1-2: Front Panel
1.3.1 LED Indicators
The descriptions of each LED indicator on the front panel are listed below.
LED Indicator
Color
Description
Power
Blue
ON: Power on
Local
Green
ON: USB HID mode is set to “Local” for USB
keyboard/mouse connection
Remote
Red
ON: USB HID mode is set to “Remote” for connecting host
USB port.
Status
Green
System Status LED
Steady on: Main application firmware is running.
Slow blinking: Golden firmware is running.
Fast blinking: Bootloader code is running.
Video In
Green
Video In Stable LED
Valid HDMI video signal is present at the HDMI input
interface.

iSDV-200CTR
Page 4
Video Out
Green
Video Out Stable
Reflects status of HDMI signal received from a transmitter
as transported over the 10GbE link to the receiver.
10G Tx
Green
10G Tx LED
Indicates if Ethernet packets are transmitting.
Off: No packets transmitting.
Blinking: Packets are transmitting.
10G Rx
Green
10G Rx LED
Indicates if Ethernet packets is received and if a valid signal
is detected.
Off: No packets received and Rx SERDES NOT linked.
Blinking: Packets received and Rx SERDES linked.
On: No packets transmitted but Rx SERDES linked.
USB HID Activity
Green
USB HID Activity
Off: USB HID not enabled or not presently paired or paired
with a device in OTG mode with no USB device connected
(no active role selected).
Flash twice followed by off for 1 second:
Indicates authentication failed when two paired devices
have encryption enabled.
Blinking: USB HID paired but no Local or Remote USB
device connected.
On: USB HID paired plus both Local and Remote USB
device connected.
Table 1-1: LED Indicators

iSDV-200CTR
Page 5
1.4 Rear Panel
The rear panel of the iSDV-200CTR are shown in Figure 1-3.
Figure 1-3: Rear Panel
1.5 Technical Specifications
The specifications for the iSDV-200CTR are listed below.
iSDV-200CTR
AV Processor
BlueRiver® AVP2000T
Memory
2 x 128Mx16 DDR3 onboard
Video Interfaces
HDMI 2.0 supporting all resolutions up to 594MHz
4K60 RGB and 4:4:4 8-bit
4K60 4:2:2 10-bit for broadcast and medical applications
4K60 4:2:0 10-bit and 12-bit HDR
Control Button
Trigger & Tuning:
1 x Reset button
1 x USB switch
LCM
1 x Monochrome LCM (65 x 15 mm)

iSDV-200CTR
Page 6
I/O Ports
1 x 1GbE LAN
1 x 10GbE LAN
1 x 10GbE SFP+
1 x IR in
1 x IR out
1 x HDMI 2.0 in
1 x HDMI 2.0 out
1 x 3.5mm audio-in jack
1 x 3.5mm audio-out jack
4 x USB-HID
2 x RS-232
9 x LED indicator
1 x Reset button
1 x USB switch
Application Mode
Transmitter / Receiver
Extension / Switching / Video Wall / Multi Viewer / KVM supported
Power Input
12 V DC In, 3.3A
Operating Temperature
-20°C ~ 50°C without air flow
-20°C ~ 60°C with air flow
Operating Humidity
20% ~ 95%, non-condensing
Dimensions (W x D x H)
238 mm x 166 mm x 44.5 mm
Weight
1235 g
Safety & EMC
CE, FCC, CCC
Software
Free management software (iSDV Network Video Orchestrator)
supported
Software Compatible OS
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Linux Ubuntu 18.04 LTS+
QNAP NAS QTS 5
Table 1-2: Technical Specifications

iSDV-200CTR
Page 7
Chapter
2
2Unpacking

iSDV-200CTR
Page 8
2.1 Unpacking
To unpack the system, follow the steps below:
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the
internal (first) box.
Step 4: Lift the system out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Make sure all the components listed in the packing list are present.
2.2 Packing List
NOTE:
If any of the components listed in the checklist below are missing, do
not proceed with the installation. Contact the IEI reseller or vendor the
iSDV-200CTR was purchased from or contact an IEI sales
representative directly by sending an email to sale[email protected].

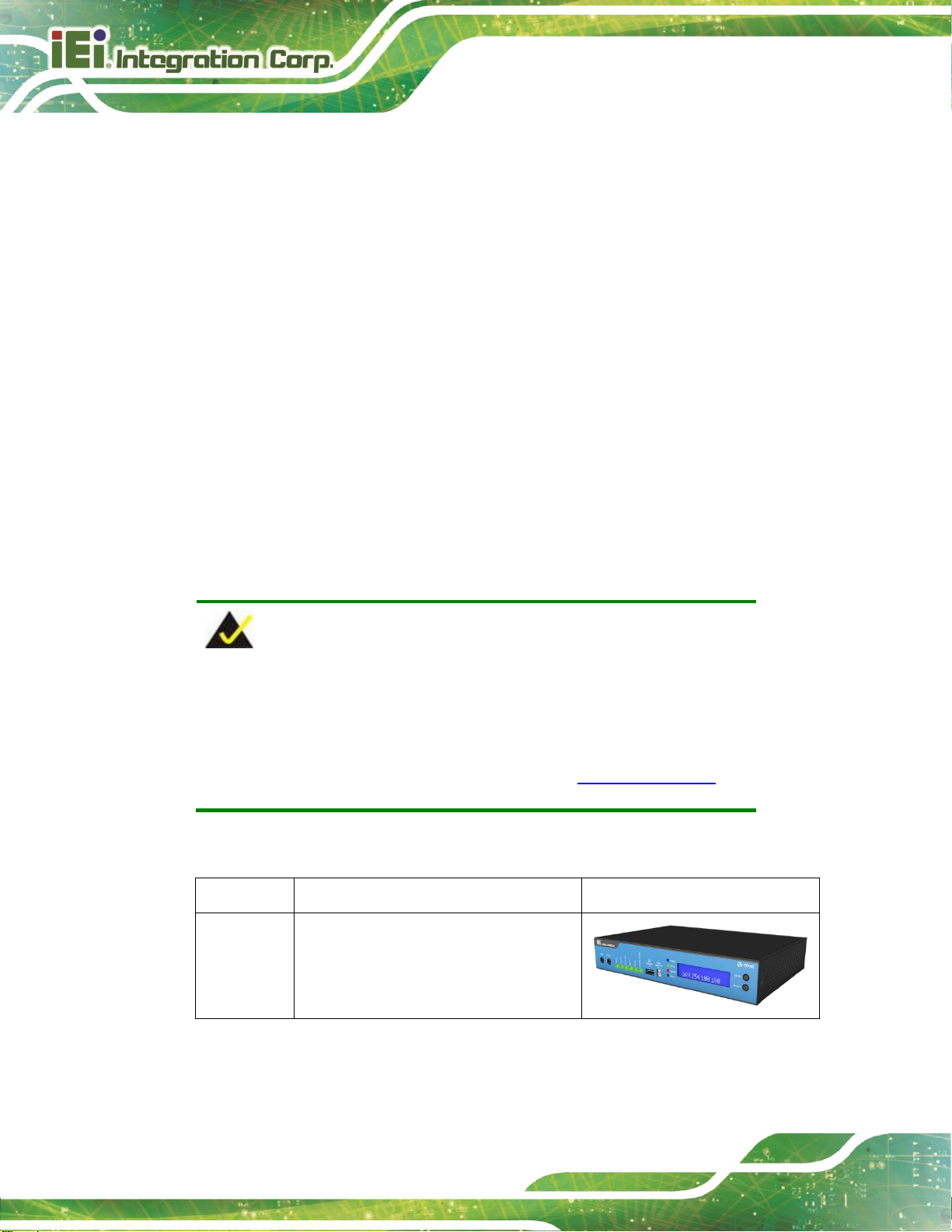

The iSDV-200CTR is shipped with the following components:
Quantity
Item
1
iSDV-200CTR

iSDV-200CTR
Page 9

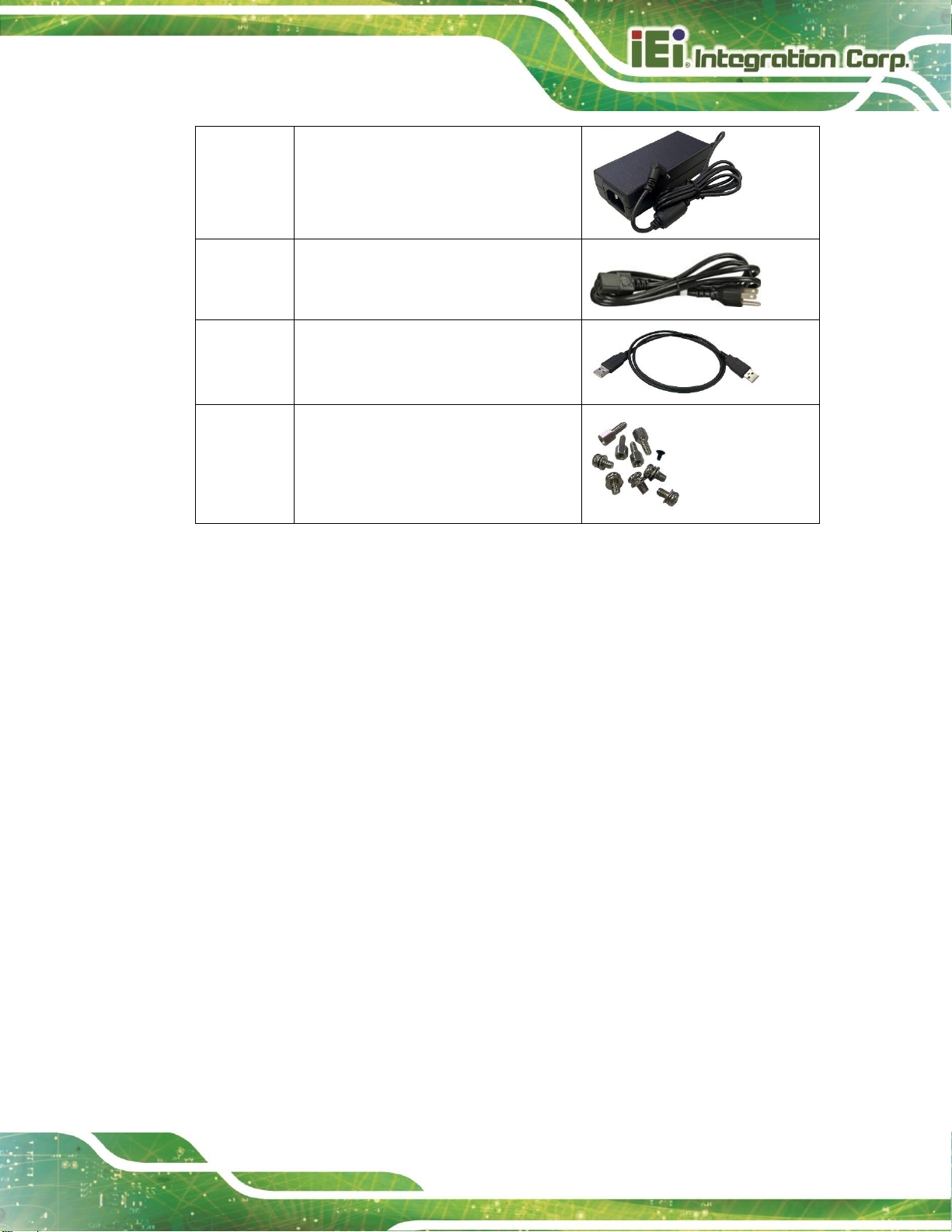

1
Power adapter (40 W)
1
Power cord
1
USB cable (Type A to Type A)
1
Screw pack
Table 2-1: Package List

iSDV-200CTR
Page 10
Chapter
3
3Hardware Installation

iSDV-200CTR
Page 11
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during installation may result in
permanent damage to the iSDV-200CTR and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the iSDV-200CTR. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the iSDV-200CTR or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
Disconnect Power: Power to the iSDV-200CTR must be disconnected
during the installation process, or before any attempt is made to access the
bottom panel. Electric shock and personal injury might occur if the
iSDV-200CTR’s chassis is opened while the power cord is still connected to
an electrical outlet.
Grounding: The iSDV-200CTR should be properly grounded. The voltage
feeds must not be overloaded. Adjust the cabling and provide external
overcharge protection per the electrical values indicated on the label attached
to the back of the iSDV-200CTR.
3.2 Installation Precautions
During installation, be aware of the precautions below:
Read the user manual: The user manual provides a complete description of
the iSDV-200CTR, installation instructions and configuration options.
Air Circulation: Make sure there is sufficient air circulation when installing
the iSDV-200CTR. The iSDV-200CTR must not be obstructed by any objects.
Leave at least 5 cm of clearance around the iSDV-200CTR to prevent
overheating.
Qualified Personnel: The iSDV-200CTR must be installed and operated only
by trained and qualified personnel. Maintenance, upgrades, or repairs may

iSDV-200CTR
Page 12
only be carried out by qualified personnel who are familiar with the associated
dangers.
3.3 USB HID Mode Selection
The iSDV-200CTR has one USB remote port on the front panel and four USB-HID ports
on the rear panel. The USB remote port is for connecting with PC; the USB-HID ports are
for connecting USB devices such as keyboard and mouse.
The USB HID mode switch (691H691HFigure 3-1) on the front panel allows users to configure the
mode of the USB ports as listed below.
USB Switch
Description
USB mode set by software
Enable the USB remote port (on front panel) for PC connection
Enable four USB-HID ports (on rear panel) for keyboard/mouse connection
Table 3-1: USB HID Mode Selection

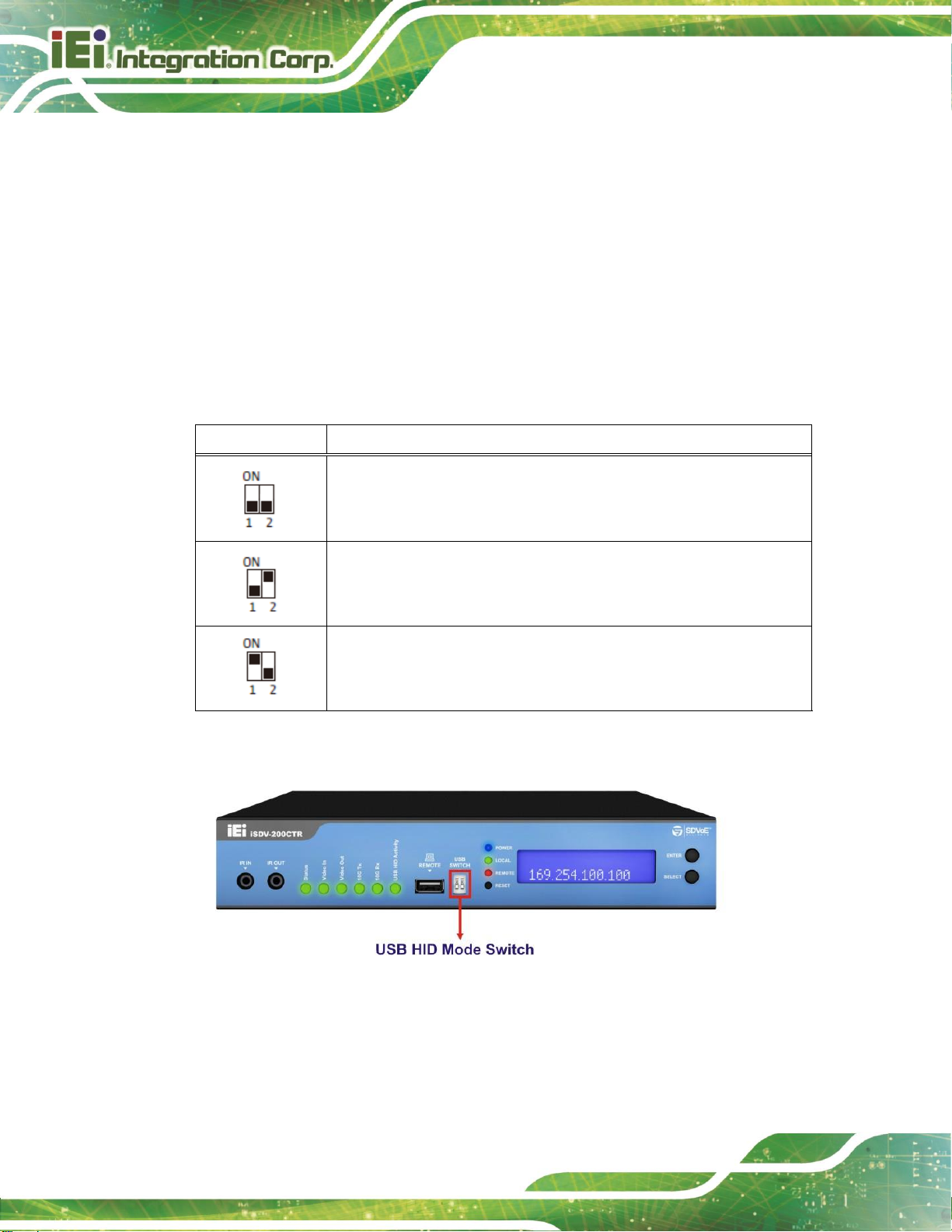

Figure 3-1: USB HID Mode Switch Location
