Cisco TelePresence MX700 User manual

78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved. https://www.cisco.com/go/mx-docs
Installation guide
for Cisco TelePresence MX700 Single Camera
on a free standing oor stand or a oor stand secured to the wall

78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 2
Manpower
We recommend three people working together
to mount the system. Follow local regulations.
Dimensions
Height: 1631 mm / 64.3in.
Width: 2517 mm / 99.1 in.
Depth: 156 or 215mm / 6.2 or 8.5in. (wall secured)
920mm / 36.3 in. (free standing)
Weight: 154kg / 340lb
Floor stand secured to the wall
This guide covers the floor stand mounted MX700 with
single camera, in either the free standing or wall secured
configurations.

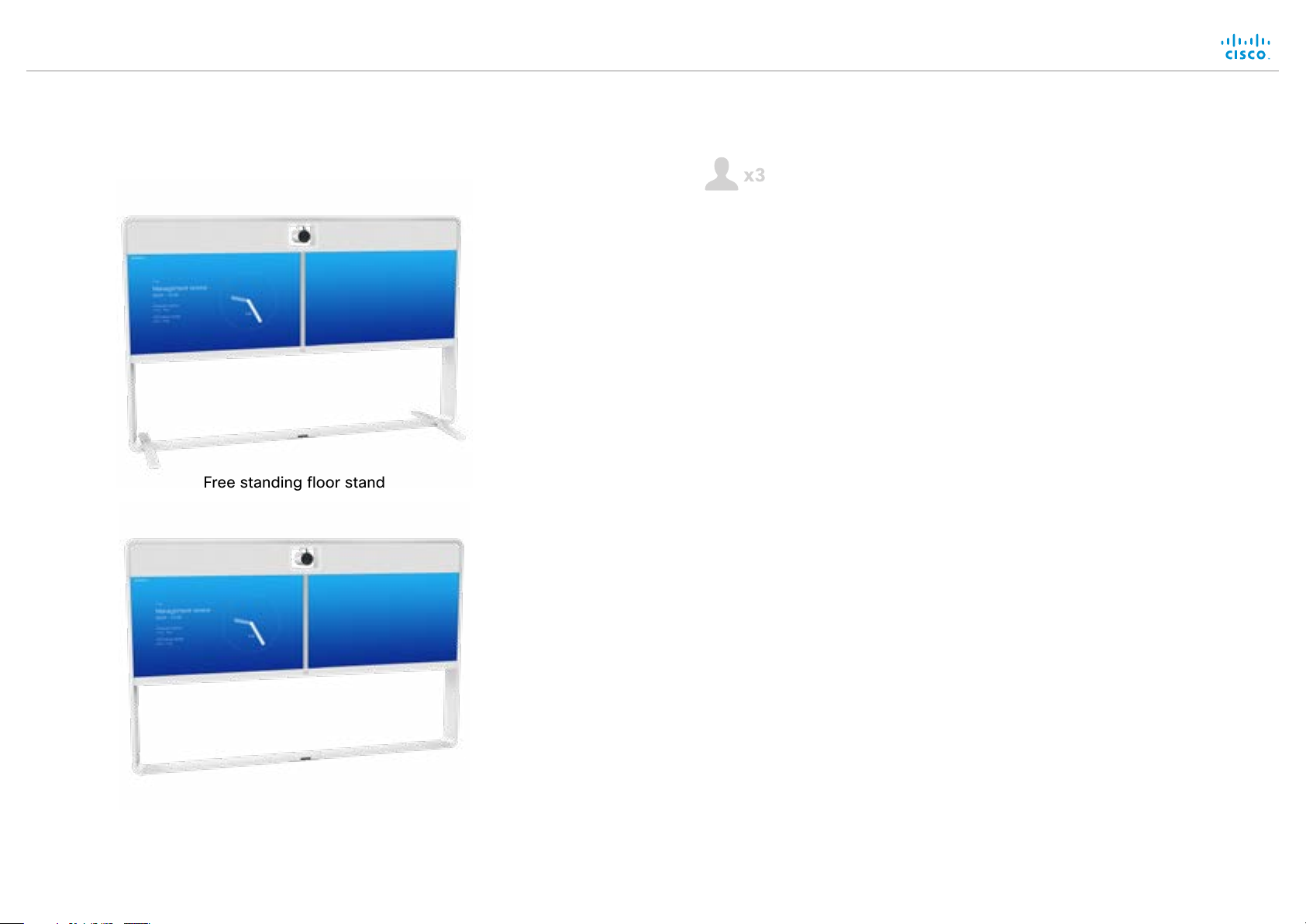

Free standing floor stand
Room setup
Explore the Cisco Project Workplace to find inspiration and guidelines
when preparing your office or meeting room for video conferencing:
https://www.cisco.com/go/projectworkplace
Documentation
Visit one of these websites to find out more about setup,
management, and use of this product:
https://collaborationhelp.cisco.com
https://www.cisco.com/go/mx-docs
Use the first link if your device is registered to the Cisco Webex
service and the second link if the device is registered to another
service.

78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 3

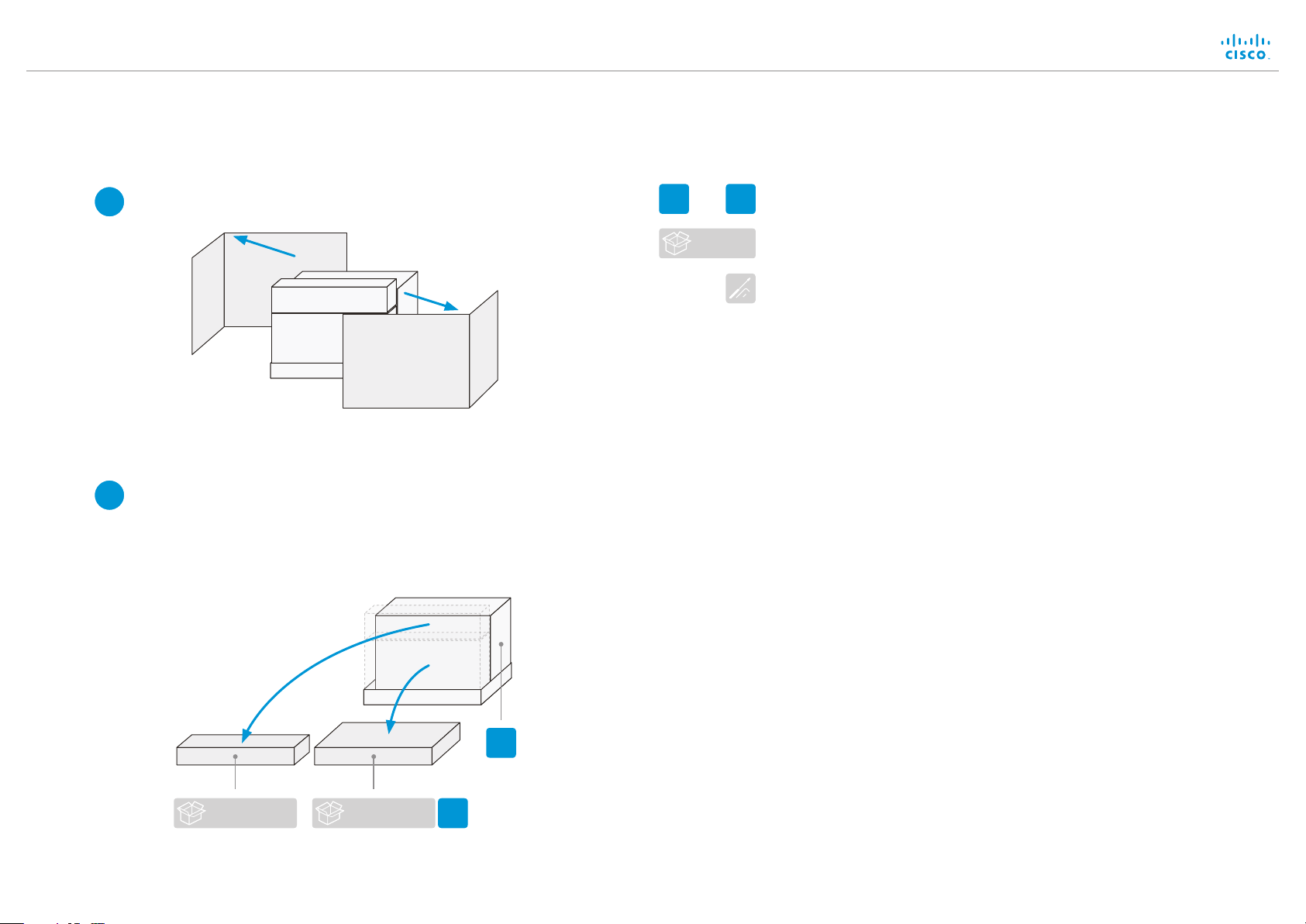

Lay the box marked with F-J+L+M flat on the floor. Remove the lid.
Boxes F to J, L and M are inside.
Lay the box marked with A, and B+C+E+K flat on the floor. Remove
the lid. Boxes B, C, E and K are inside.
2
1Open the plastic snap locks and remove the side walls.
Packaging
Boxes are labeled A to M. This guide refers to the labels.
A M
...
B+E-G Shows which boxes are inside.
Tools and screws are in this box.
A
D
F-J+ L+M B+C+E+K

78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 4
EMC Class A declaration
WARNING: This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
声 明
此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种
情况下，可能需要用户对其干扰采取切实可行的措施。
WARNING: This is a class A product. In a domestic environment
this product may cause radio interference in which case the user
may be required to take adequate measures.
Allen key, 4 mm
Allen key, 2.5mm
Tor x T20

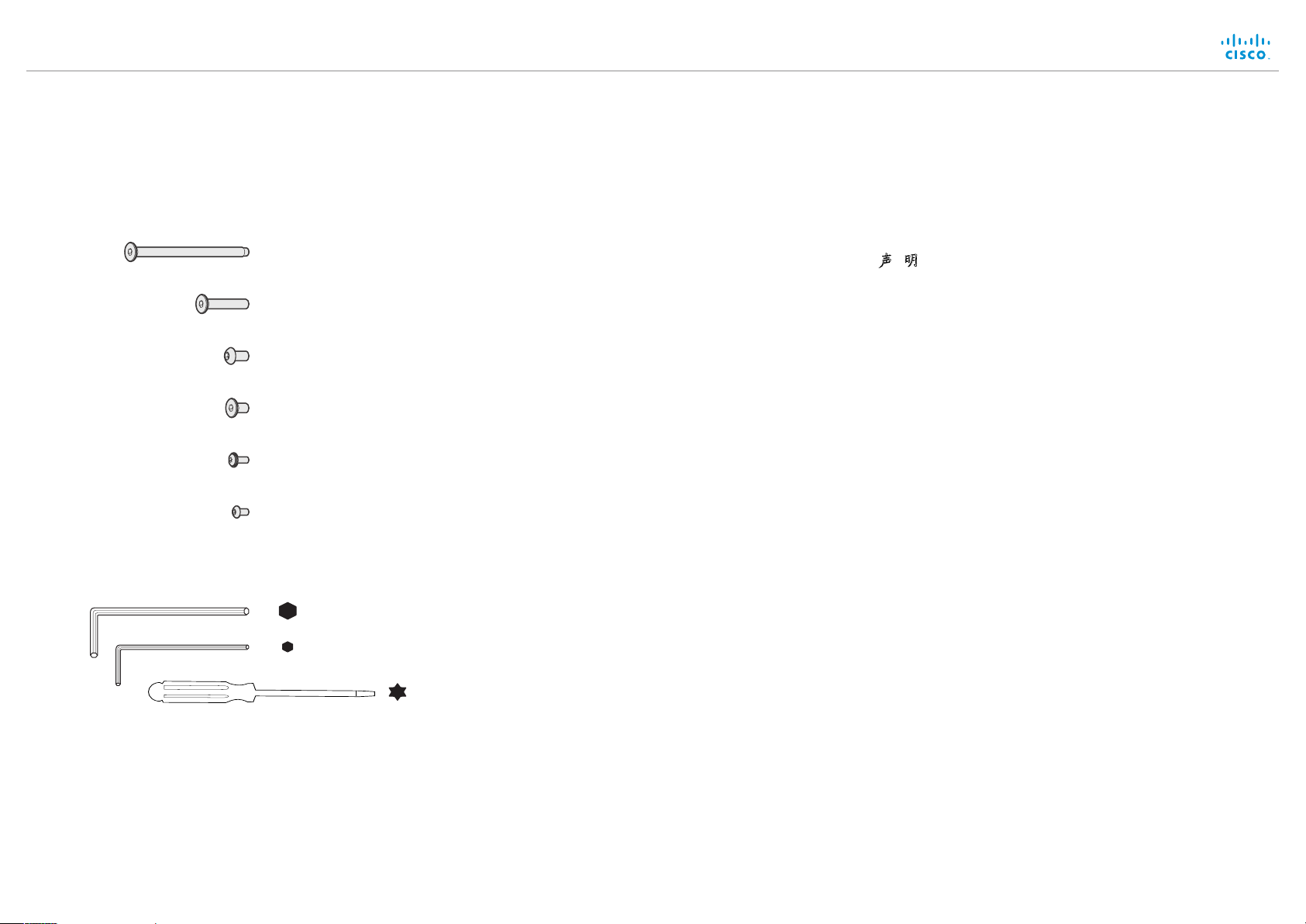

Screws and tools
The screw kit contains more screws than you need,
because the same kit is shipped with all mounting options.
M6x90, countersunk
Tool: Allen key, 4 mm
M6x35, countersunk
Tool: Allen key, 4 mm
M6x12, countersunk
Tool: Allen key, 4 mm
M6x12, pan
Tool: Allen key, 4 mm
M4x8, pan
Tool: Allen key, 2.5mm
PT4x10, pan
Tool: Torx T20

1Remove covers from floor stand parts
A
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 5
Set aside the covers. They will be
replaced when the system is fully
assembled and tested (step 20).
Front

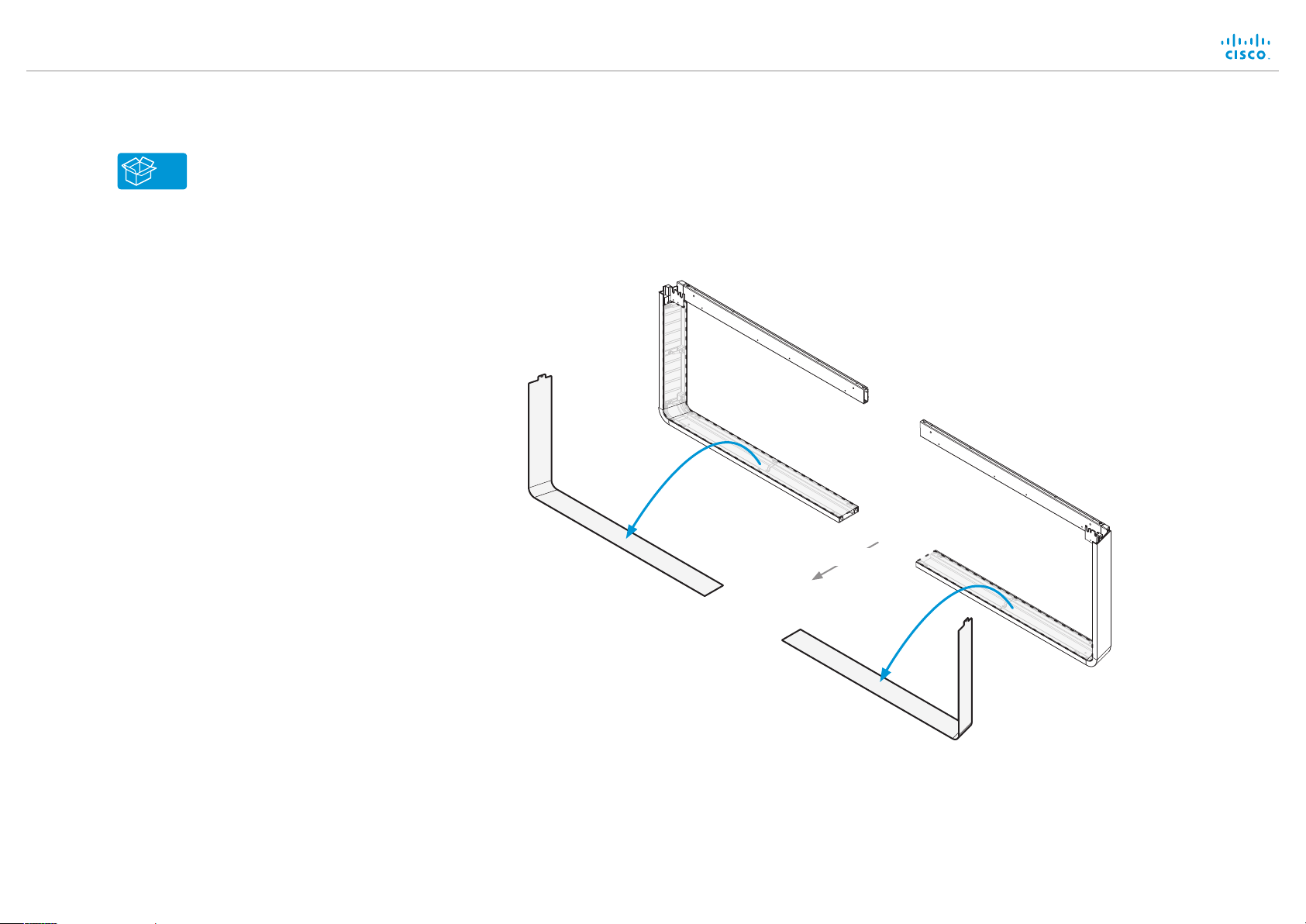

2Assemble floor stand
B
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 6
Fasten the upper and lower center parts simultaneously,
first on one side; then on the other.
Six screws from the back
and two from the top.
8 × M6x12, countersunk
8 × M6x12,
countersunk

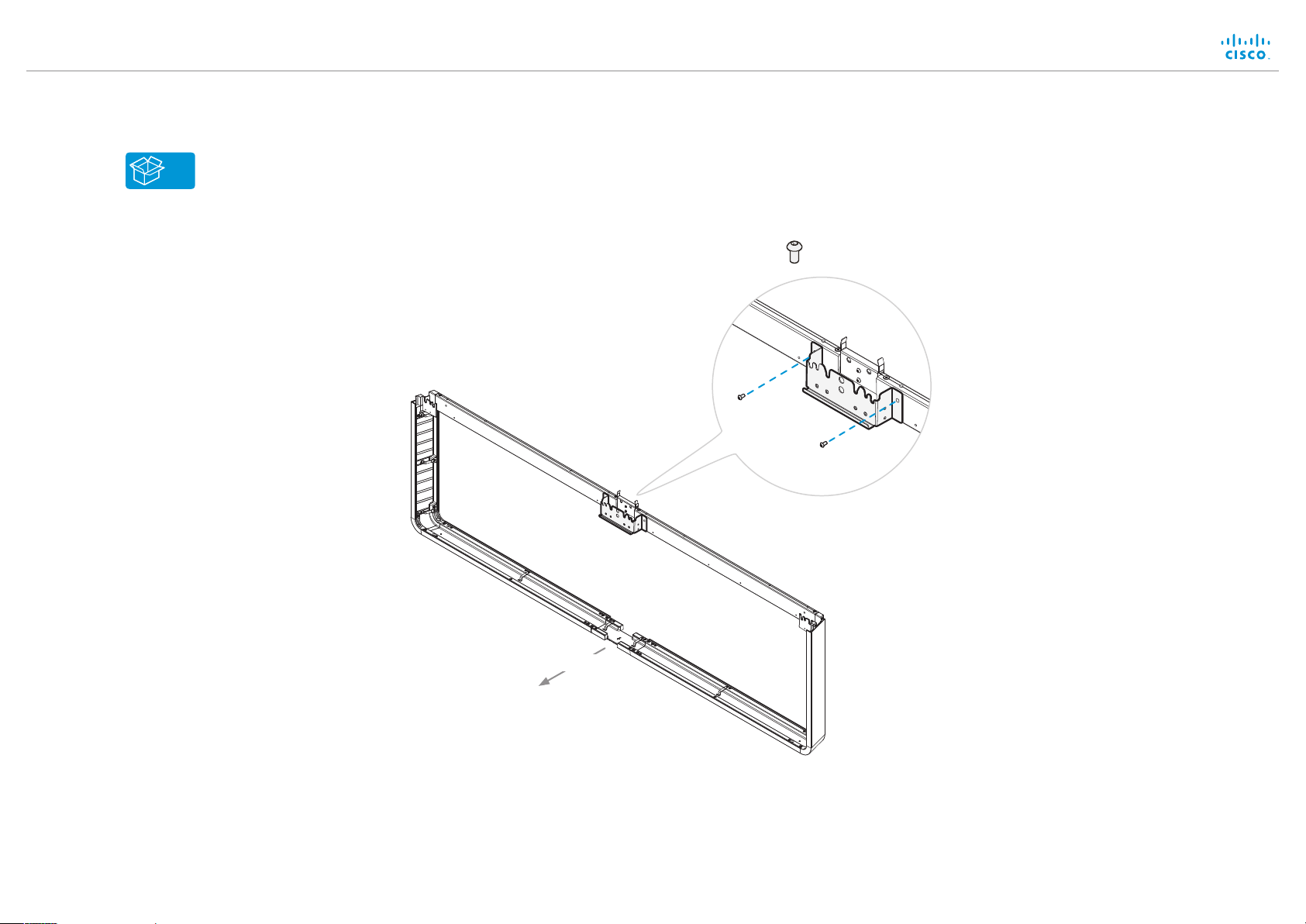

3Fasten center bracket
B
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 7
Front
2 × M6x12, pan

4Secure floor stand
B
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 8
Option A:
Mount the feet to the floor stand to allow it to be free standing
4 × M6x35, countersunk
Front
Option B (secured to the wall) is described on the next page.

4Secure floor stand
C
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 9

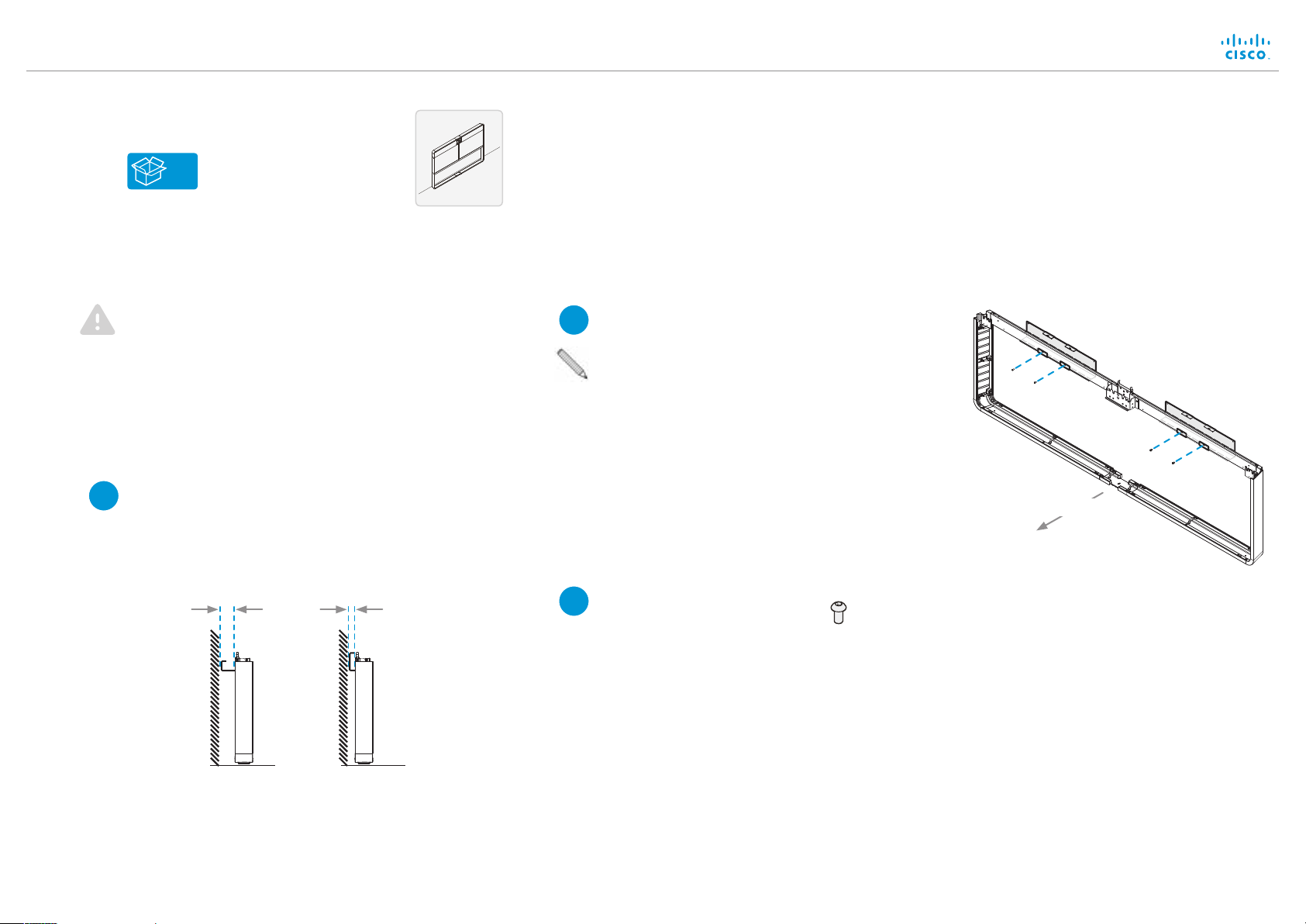

Option B:
Use the wall brackets provided to secure the floor stand to the wall
The system must be installed by qualified
personnel, in accordance with state and local
building regulations.
The wall and mounting hardware must be
able to safely support the product.
Side view
94 mm / 3.70 in. 37 mm / 1.46 in.
The wall brackets have two mounting positions.
Position the brackets the way that suits your
room the best.
1
2Place the floor stand in the wall brackets
and move the floor stand and wall brackets
into position. Mark the required screw hole
positions on the wall.
The wall brackets can be fastened through
any of the horizontal slots.
Fasten each wall bracket in a secure manner
ensuring that the wall’s structure is sufficient
to support the system (screws/mounting
hardware not provided; not shown in
illustration).
3Fasten the floor stand to
the wall brackets with the
four screws (provided). 4 × M6x12, pan
Front
Option A (free standing with feet) is described on the previous page.

5Read this before you mount the monitors
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 10
The monitors are heavy
We recommend three people working
together to mount the monitors. Two
people should lift the monitor using the
handles as described here. The other
person must help stabilizing the monitor
and check that the monitor enters the
slots properly.
Use lifting handles
To avoid trapping your fingers, use the lifting
handles at the bottom of the monitor.
The screws with wing nut, which you
can see from the sides of the monitor,
must enter the center slot on each side
of the lower frame.
Applies to systems that are secured to the
wall: To assure that the camera can move
freely, fasten two bump-ons on the rear of
the top profile, close to the camera.

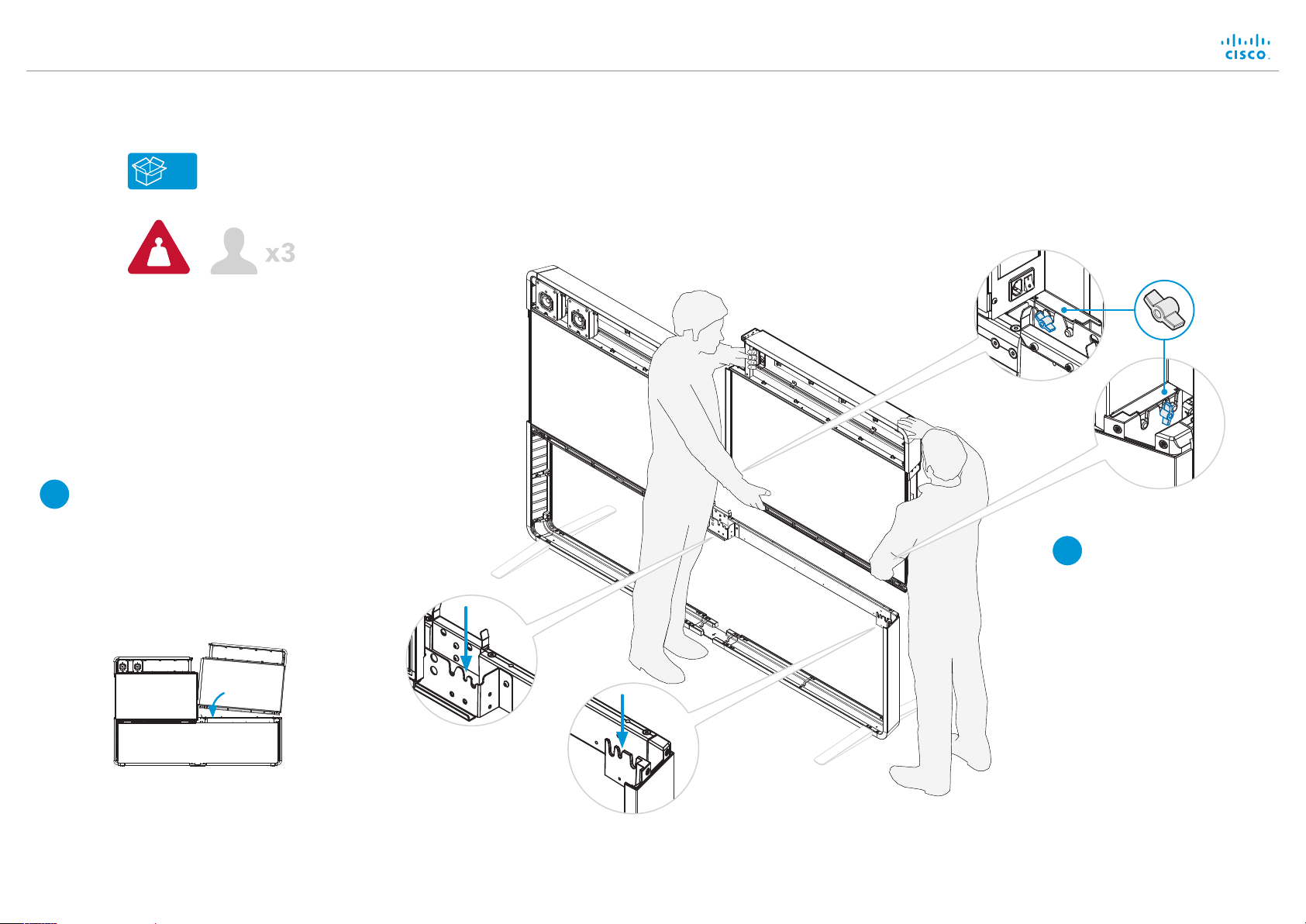

6Lift left monitor onto floor stand
D
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Pa ge 11
65 kg / 144 lb
Make sure that the screw
with wing nut enters the
center slot on both sides.
Do not let go of the monitor
before it is securely placed
on the floor stand.
1
Rear view
Tighten the wing nuts
on both sides. They are
accessed from the sides
of the monitor.
2
Rear view
Front view
Front view

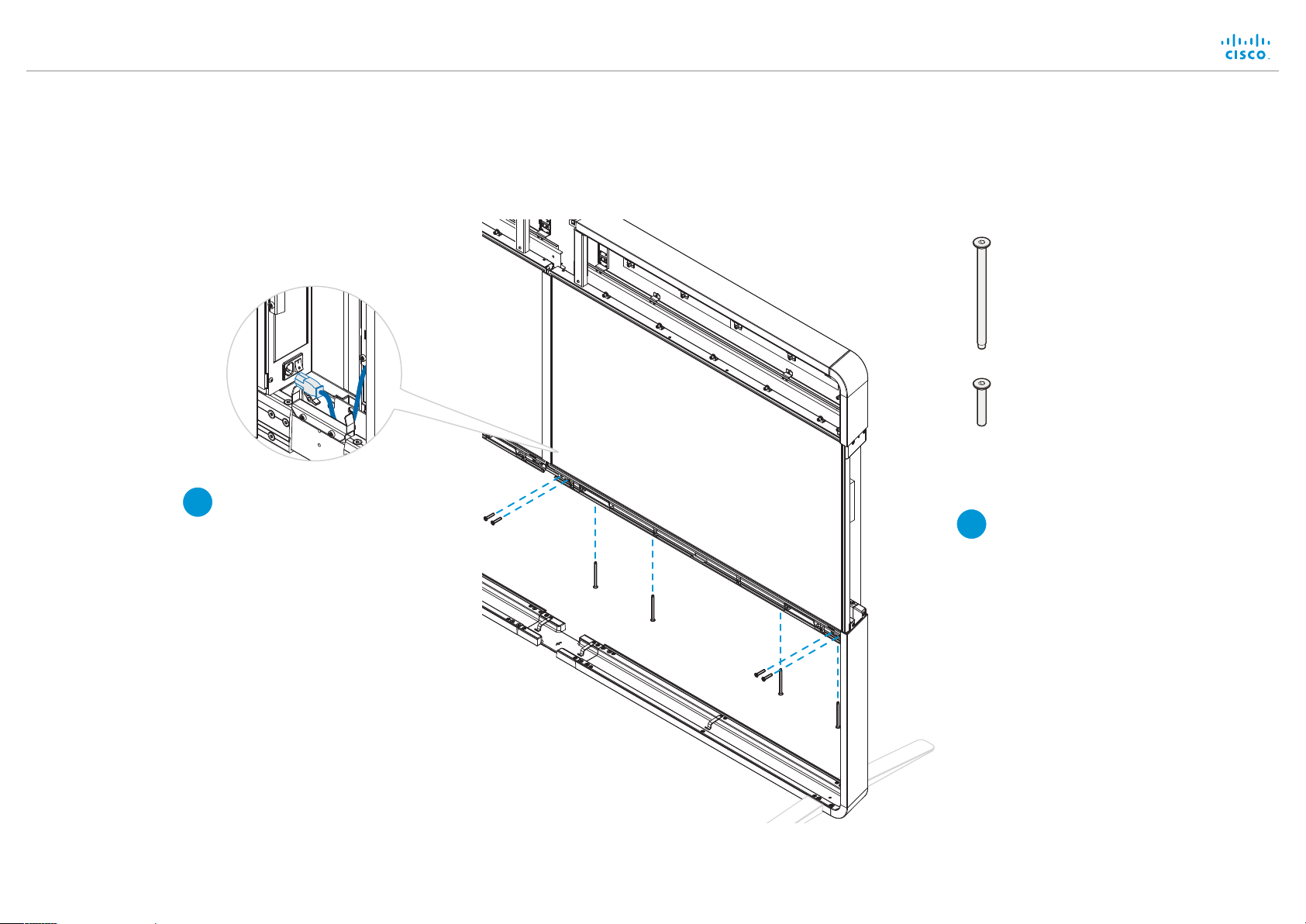

7Fasten left monitor to floor stand and connect power cable
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 12
Enter four screws from
front and four screws from
underneath. Then, tighten
all screws.
1
Connect power cable
A power cable is strapped at the rear of
the monitor. Connect it to the close-by
socket.
Let the other end hang freely. It will be
connected to the right monitor in step 9.
2
4 × M6x90, countersunk
4 × M6x35, countersunk

8Lift right monitor onto floor stand
D
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 13
65 kg / 144 lb
Tighten the wing nuts
on both sides. They are
accessed from the sides
of the monitor.
2
Make sure that the screw with
wing nut enters the center slot on
both sides.
Keep the outer side a bit lower than
the side toward the other monitor
when lowering the monitor onto the
floor stand.
Do not let go of the monitor before it
is securely placed on the floor stand.
1Rear view
Rear view
Front view
Front view

9Fasten right monitor to floor stand and connect power cable
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 14
Enter four screws from
front and four screws from
underneath. Then, tighten
all screws.
1
Connect power cable
Connect the loose end of
the power cable from step 7
to the close-by socket at
the rear of the right monitor.
The socket must be reached
from below.
Make sure that the power
switch next to the socket is
in its ON position.
2
4 × M6x90, countersunk
4 × M6x35, countersunk

10Remove support handles
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 15
Unscrew the screws (4 × M4x8)
and remove the support handles.

11  Mount joining bracket
EBox E is placed uderneath box C.
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 16
7 × M6x12, pan
Place the joining bracket in the
channel. Make sure it aligns with
the channel at top.
Open the lever.
Push down the lever to
horizontal position.
12
3 4

12  Mount back cover
E
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 17
Mount the back cover. If the system is
placed close to the wall the back cover
must be mounted from above.
1
2
Lower the back cover toward the
system. The cover snaps to magnets.
Lead the guidance pins on the back
cover into the holes.

13Organize pre-mounted cables
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 18

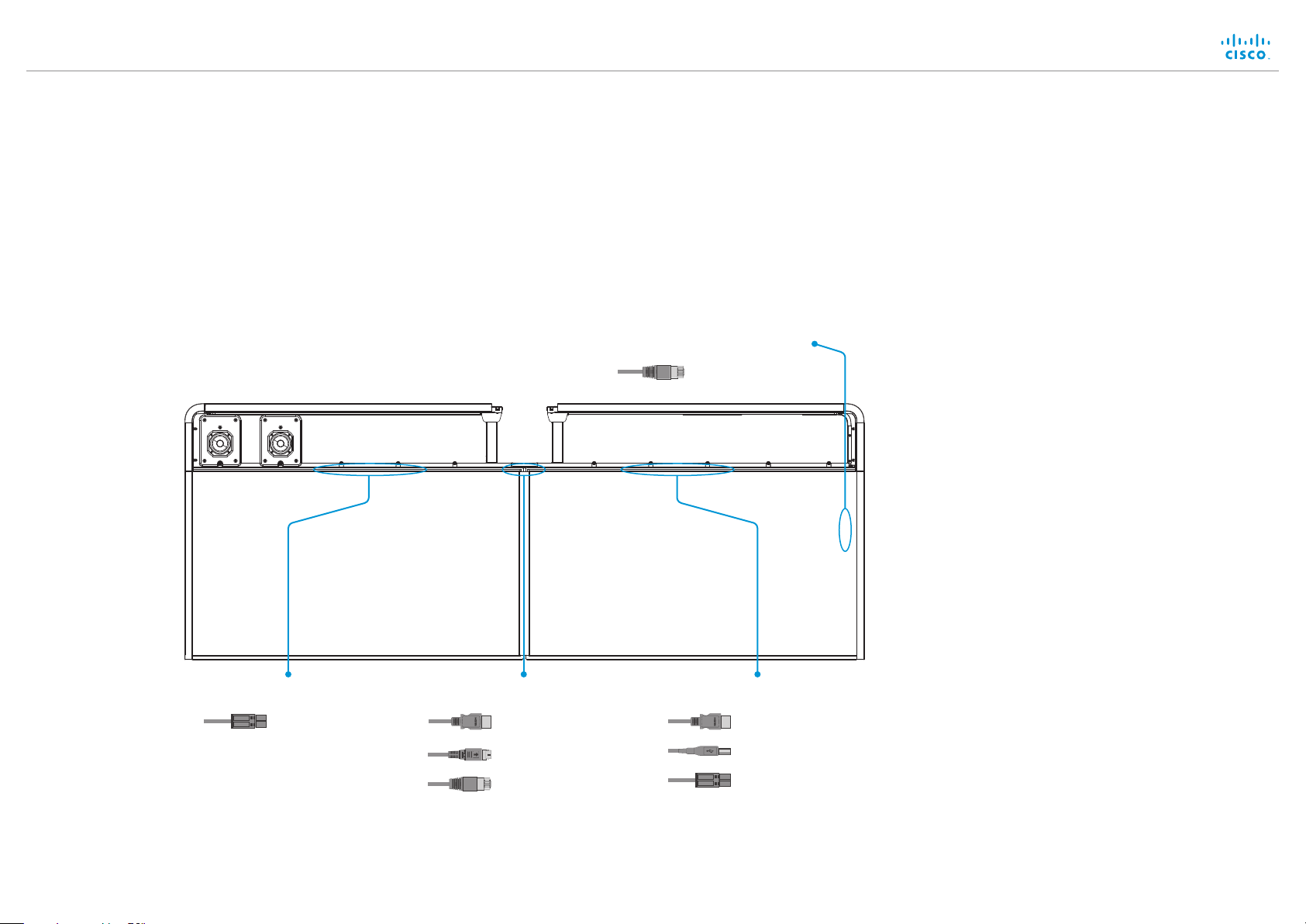

Stretch out the cables in the channel on top of the monitors, and place
them as illustrated. Do not unplug any cables.
This arrangement makes the installation of the camera module in step 15
and connecting cables in steps 14, 16 and 17 easier.
Left
monitor
Right
monitor
To the left of camera module
On the right side of monitor
Camera cables
Power (step 16)
Ethernet (step 16)
Loudspeaker cables
number 3–5 (step 17)
3 × HDMI (step 14)
USB, type B (step 14)
Power over Ethernet
(step 14)
HDMI (step 16)
To the right of camera module
Loudspeaker cables
number 1–5 (step 17)
5 ×

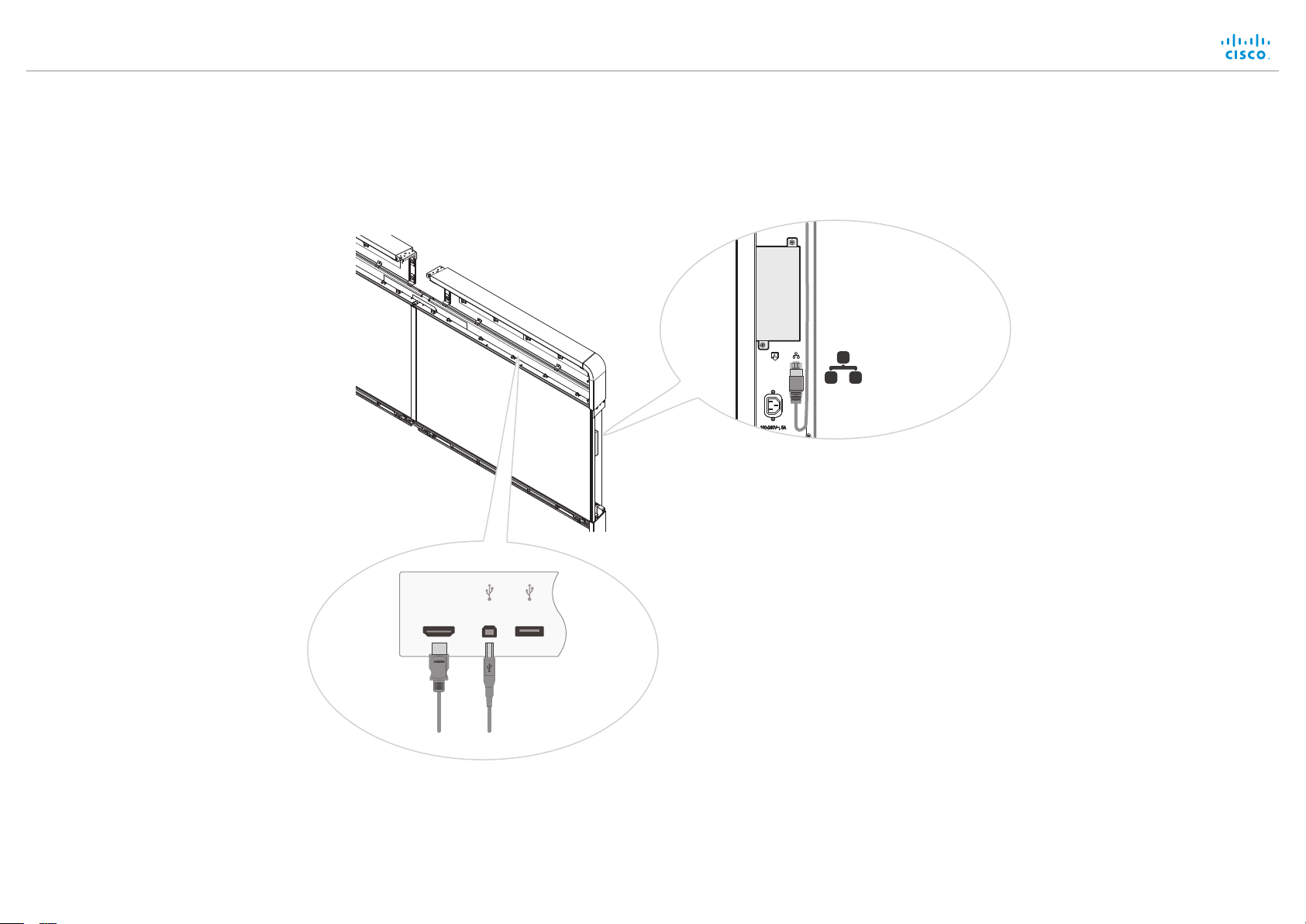

14  Connect cables to right monitor and PoE injector
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 19
Power over Ethernet injector
Ethernet
Right monitor connector panel
HDMICOLOR
CALIBRATION 12
DO NOT
REMOVE
USB (type B)HDMI
SWITCH

15Mount camera (page 1 of 2)
F, G
78-100218-03A0 | 2018 JUNE | © 2018 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX700 Single camera - Floor stand
Page 20
Insert the stud underneath the frame. Align its
screw hole with the upper right screw hole of
the camera. Fasten the stud to the top profile
with one screw from above.
Repeat this step for the left side.
2 × M4x8, pan
1 2 3
Insert the camera. 2 × M4x8, pan (one for each stud)
2 × Studs for camera
