Citizen H504 User manual

CITIZEN
Chronograph
Model No.FBI ***/Cal.No.H504
(^rcrayKk
•MANUALE Dl FUNZIONAMFNTO
H^j^agp^pg.
Eco-Drive
CTZ-B8119

Thank you for purchasing a CITIZEN watch. To ensure correct use, please read these
instructions carefully. Please confirm that the CITIZEN International Guarantee Card is
included foryour possible claim.
Vielen Dank fur den Kauf dieser CITIZEN Uhr. Bitte lesen Sie diese Anleitung durch, urn
mit den Funktionen dieser Uhr vertraut zu werden. Uberpriifen Sie bitte in Ihrem eigenen
Interesse, obderUhrdie internationale CITIZEN Garantiekarte beigelegt ist.
Nous vous remercions d'avoir porte votre choix sur une montre CITIZEN. Pour assurer une
utilisation correcte, veuillez lire ces instructions attentivement. Veuillez vous assurer que la
cartedegarantieinternationale CITIZEN estfoumiepourtoute reclamation gventuelle.
Muchas gracias por la compra de estereloj CITIZEN. Para asegurar un uso correcto, lea
detenidamente estas instrucciones.Verifiquede que la tarjeta de Garantia Intemacional de
CITIZEN le sea suministrada con el reloj en el momenta de la compra, de esta manera,
podra reclamar servicios de acuerdo con los tdrminos dela garantia.
Grazie peraver scelto un orologio CITIZEN. Perla sicurezza diunuso corretto, sipregadi
leggere attentamente le istruzioni. Inoltre abbiate la cortesia di assicurarvi che la cartadi
garanzia internazionale CITIZEN sia inclusa incasodiun eventuale reclamo.
Muitoobrigadopor adquirirurnrelogioCITIZEN.Paragarantiruma utilizacaocorreta,por
favor leia estas instrucoes atentamente. Confirme tambem se o Cartao Intemacional de
Garantiada CITIZENacompanhao re!6gio. Ele sera necessario no caso de uma possfvel
reclamacao.
#»pccrnzENMo mm^JEmmmm, mmmmmitmmmm0 mmumm
®cmzENmm\m^ m%m®®zmm0
fcmmmcmzEm, saws. %m&iEffi&m, mmffmmm&mmft. m

CONTENTS
1. Features 3
2. Before Using 4
3. Displays and Buttons 5
4. Functions Unique to Solar-Powered Watches 6
•Insufficient Charging Warning Feature
• Quick Start Feature
• When the Watch has Stopped due to Insufficient Charging
•Overcharging Prevention Feature
5. General Reference for Charging Times 11
6. Handling Precautions 12
• Try to Keep the Watch Charged at all Times
7. Replacing the Secondary Battery 14
8.
Setting the Time and Date 15
•Setting
the Time
•Setting
the Date
9. Using the Chronograph 18
10.
Zero Positioning of Chronograph Second Hand 20
11. Precautions 22
12. Specifications 28

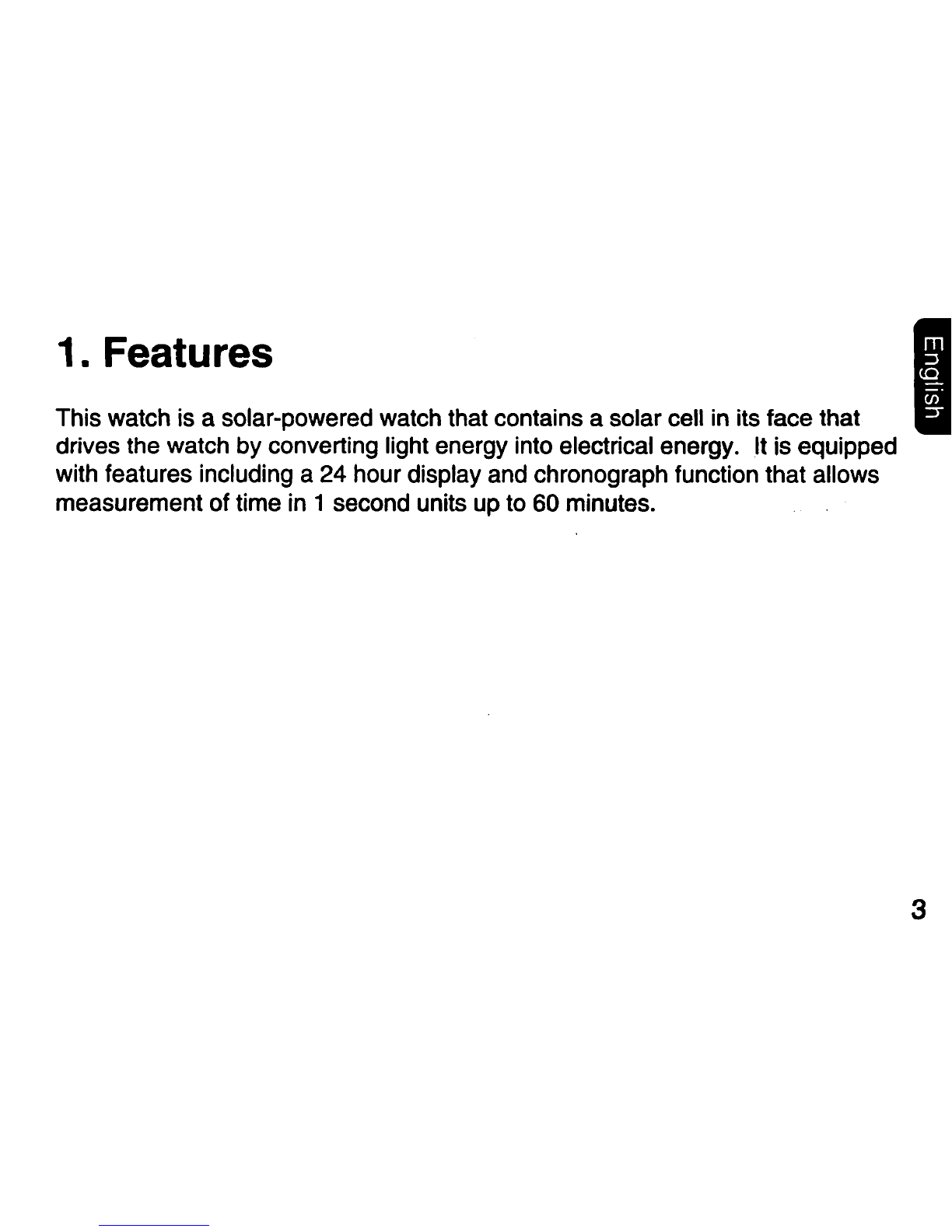

1. Features
This watch is a solar-powered watch that contains asolar cell in its face that
drives the watch by converting light energy into electrical energy. It is equipped
with features including a 24 hour display and chronograph function that allows
measurement of time in 1 second units up to 60 minutes.

2. Before Using
This watch is a solar-powered watch. Please fully charge the watch before
using by exposing it to light.
A secondary battery is used in this watch to store electrical energy. This
secondary battery is a clean energy battery that does not contain mercury or
other toxic substances. Once fullycharged, the watch willcontinue to run for
about five months without additional charging.
<Proper Use of this Watch>
To use this watch comfortably, make sure to recharge it before it stops running
completely. Since there is no risk of overcharging (Overcharging Prevention
Feature), it is recommended that the watch be recharged everyday.

3. Displays and Buttons
Chronograph minute
hand
Second hand
Chronograph secondhand
*The illustrations shown in this manual may differ from the actual watch you have purchased.

4. Functions Unique to Solar-Powered
Watches
When the watch becomes
insufficiently charged, the
following warning features
will be activated to inform
the wearer that the watch
is insufficiently charged.
[Normal Time Display]
If insufficiently
charged
If charged

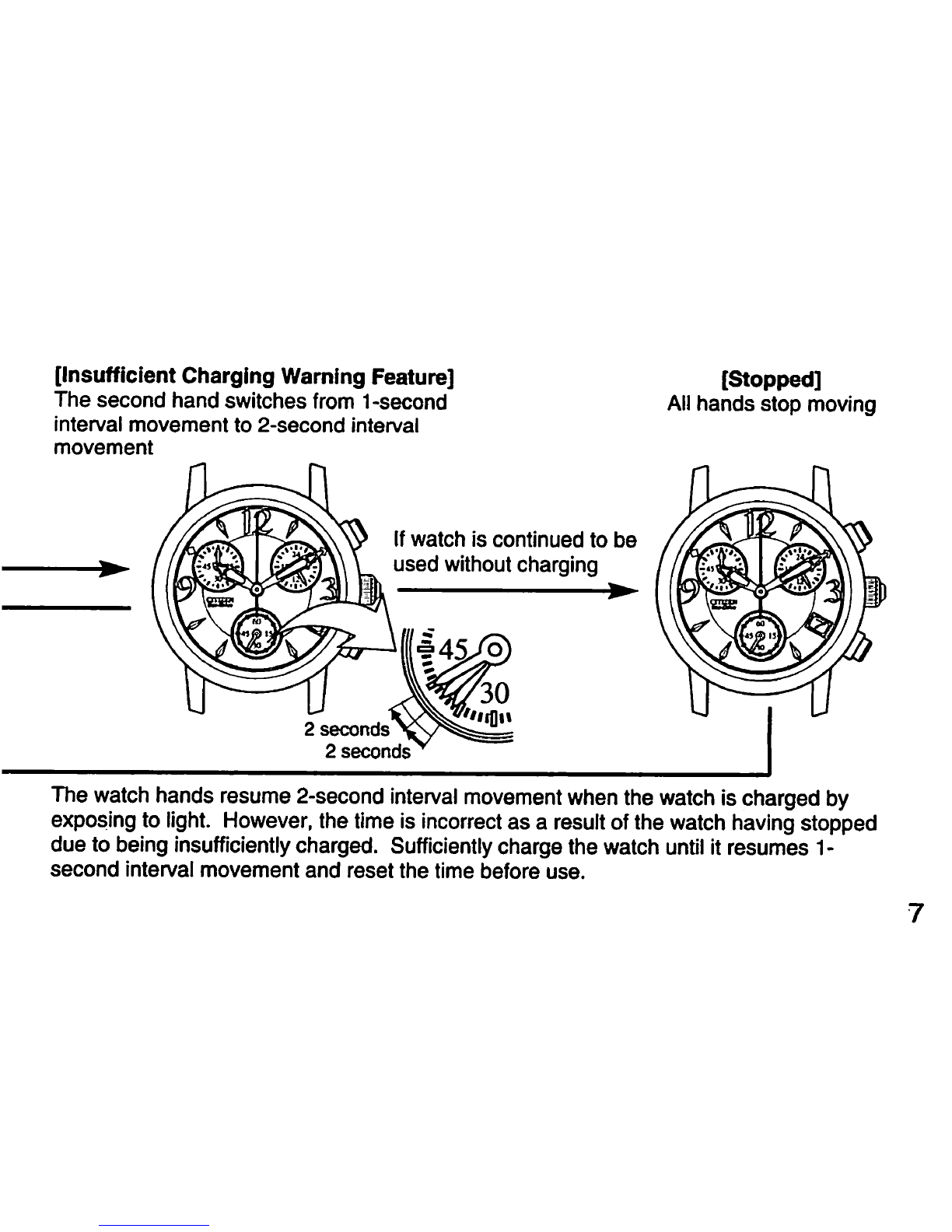

[Insufficient Charging Warning Feature]
The second hand switches from 1-second
interval movement to 2-second interval
movement
If watch is continued to be
used without charging
•
[Stopped]
All hands stop moving
The watchhands resume 2-second interval movementwhenthe watchischarged by
exposingto
light. However, the timeis incorrect as a resultofthe watchhavingstopped
due to being insufficientlycharged. Sufficientlycharge the watch untilit resumes 1-
second interval movement and reset the time before use.

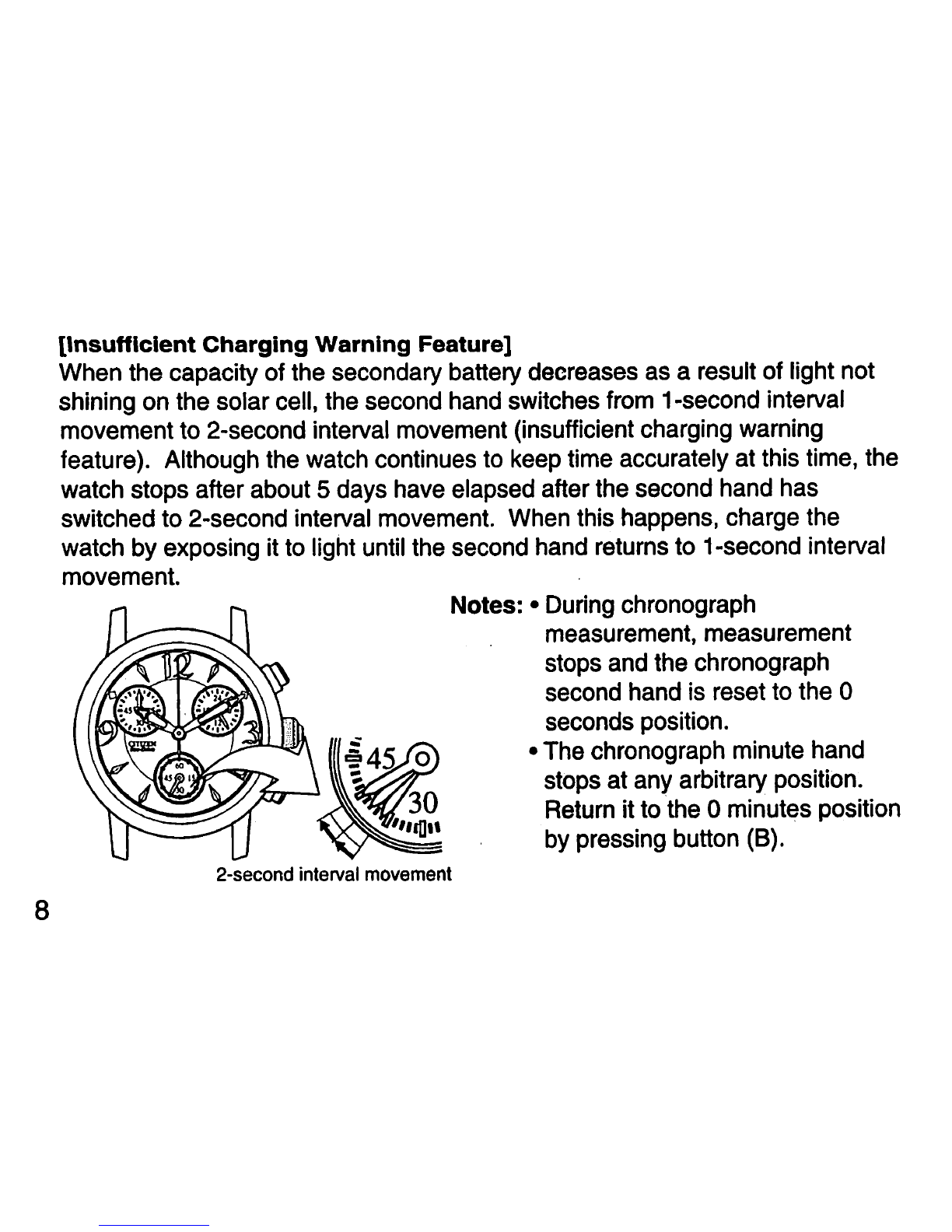

[Insufficient Charging Warning Feature]
When the capacity of the secondary battery decreases as a result of light not
shining on the solar cell, the second hand switches from 1-second interval
movement to 2-second interval movement (insufficient charging warning
feature). Althoughthe watch continues to keep time accurately at this time, the
watch stops after about 5days have elapsed after the second hand has
switched to 2-second interval movement. When this happens, charge the
watch by exposing itto light untilthe second hand returns to 1-second interval
movement.
Notes: • During chronograph
measurement, measurement
stops and the chronograph
second hand is reset to the 0
seconds position.
• The chronograph minute hand
stops at any arbitrary position.
Return it to the 0 minutes position
by pressing button (B).
2-second interval movement

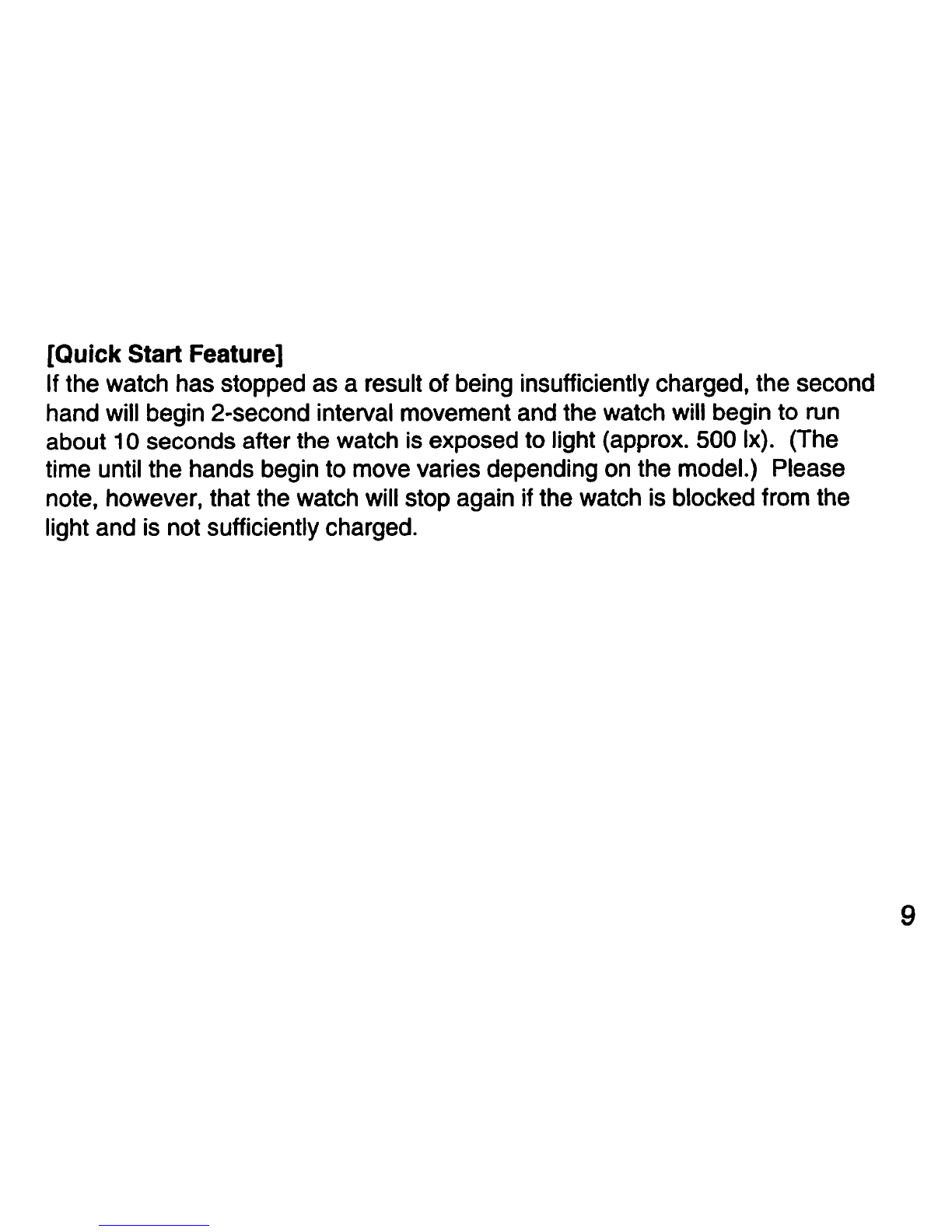

[Quick Start Feature]
If the watch has stopped as aresult of being insufficiently charged, the second
hand willbegin 2-second interval movement and the watch willbegin to run
about 10 seconds after the watch is exposed to light (approx. 500 Ix). (The
time until the hands begin to move varies depending on the model.) Please
note, however, that the watch will stop again if the watch is blocked from the
light and is not sufficiently charged.

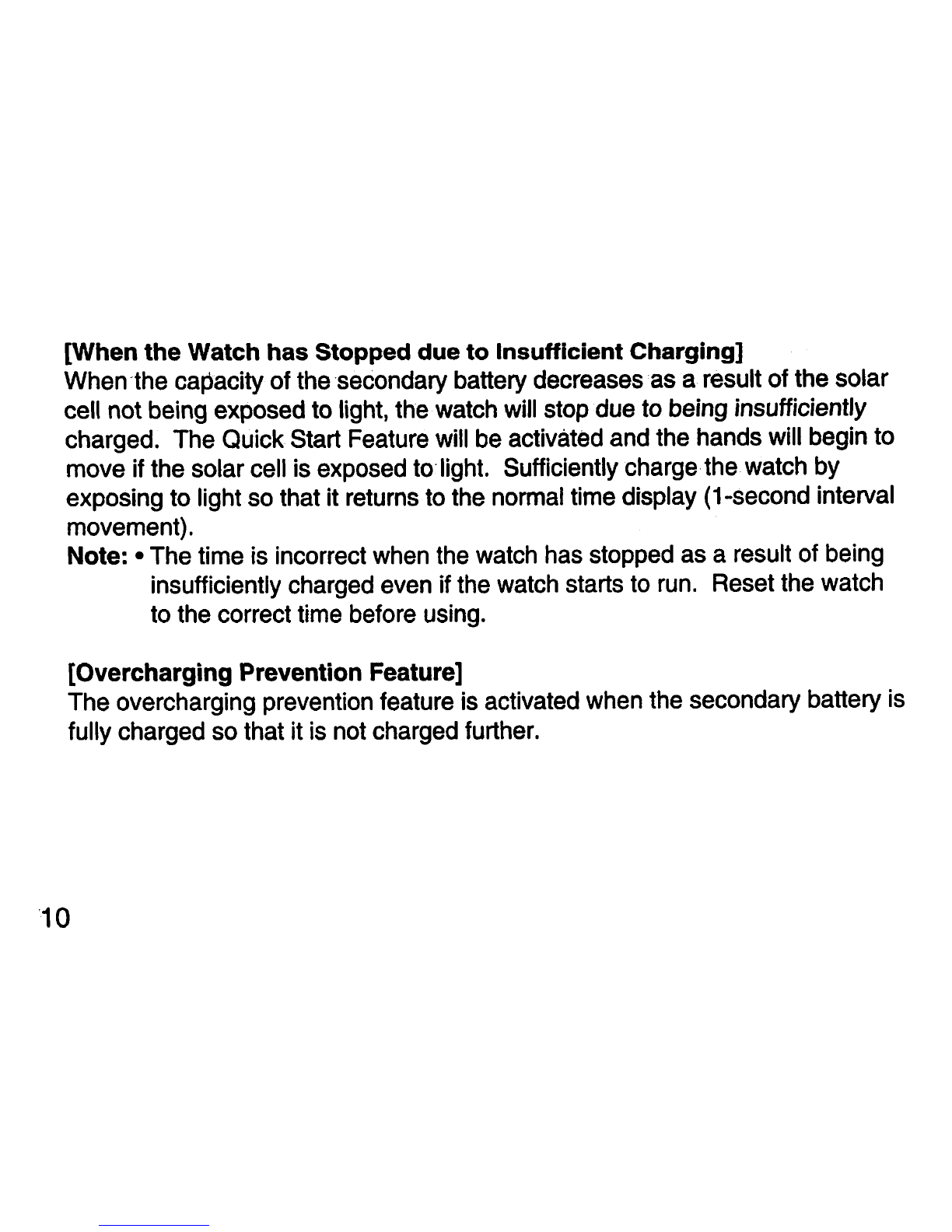

[When the Watch has Stopped due to Insufficient Charging]
When the capacity of the secondary battery decreases as a result of the solar
cell not being exposed to light,the watch will stop due to being insufficiently
charged. The QuickStart Feature will be activatedand the hands will beginto
move ifthe solar cell is exposed to light. Sufficiently charge the watch by
exposing to lightso that itreturns to the normaltimedisplay (1-second interval
movement).
Note: • The time is incorrect when the watch has stopped as a result of being
insufficiently charged even ifthe watch starts to run. Reset the watch
to the correct time before using.
[Overcharging Prevention Feature]
The overcharging preventionfeature is activated when the secondary battery is
fully charged so that it is not charged further.
10

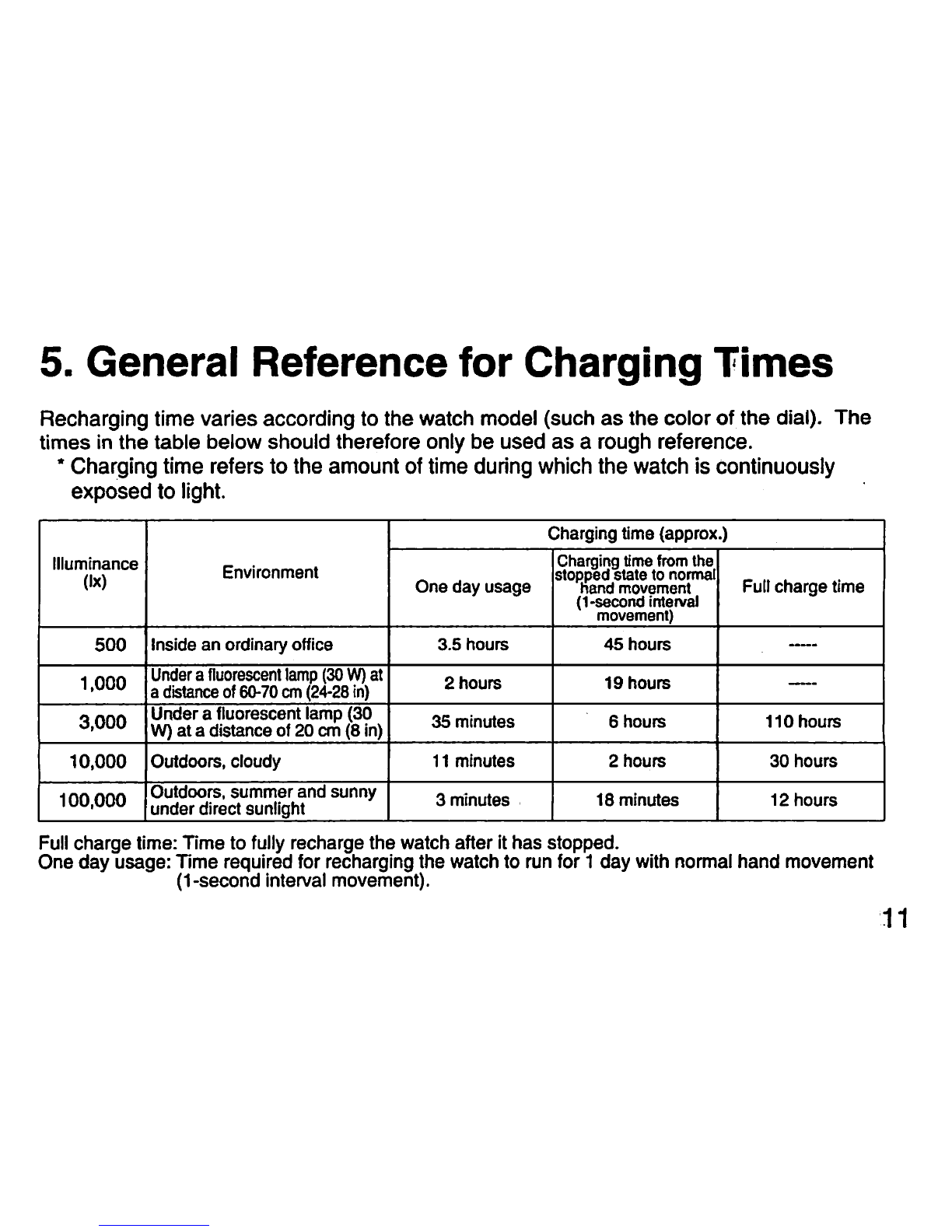

5. General Reference for Charging Times
Recharging time varies according to the watch model (such as the color of the dial). The
times in the table below should therefore only be used as a rough reference.
*Charging time refers to the amount of time during which the watch is continuously
exposed to light.
Illuminance
(Ix)
Environment
Charging time (approx.)
One day usage
Charging time from the
stopped state to normal
hand movement
(1-second interval
movement)
Full charge time
500
Inside an ordinary office 3.5 hours 45 hours
—
1,000
Undera fluorescent lamp (30 W)at
a distance of60-70 cm (24-28in) 2
hours
19 hours
—
3,000
Under a fluorescent lamp (30
W) at a distance of 20 cm (8 in)
35 minutes
6 hours 110 hours
10,000
Outdoors, cloudy
11 minutes 2 hours 30 hours
100,000
Outdoors, summer and sunny
under direct sunlight 3
minutes 18 minutes
12 hours
Full charge time: Time to fully recharge the watch after it has stopped.
One day usage: Time required for recharging the watch to run for 1 day with normal hand movement
(1-second interval movement).
11

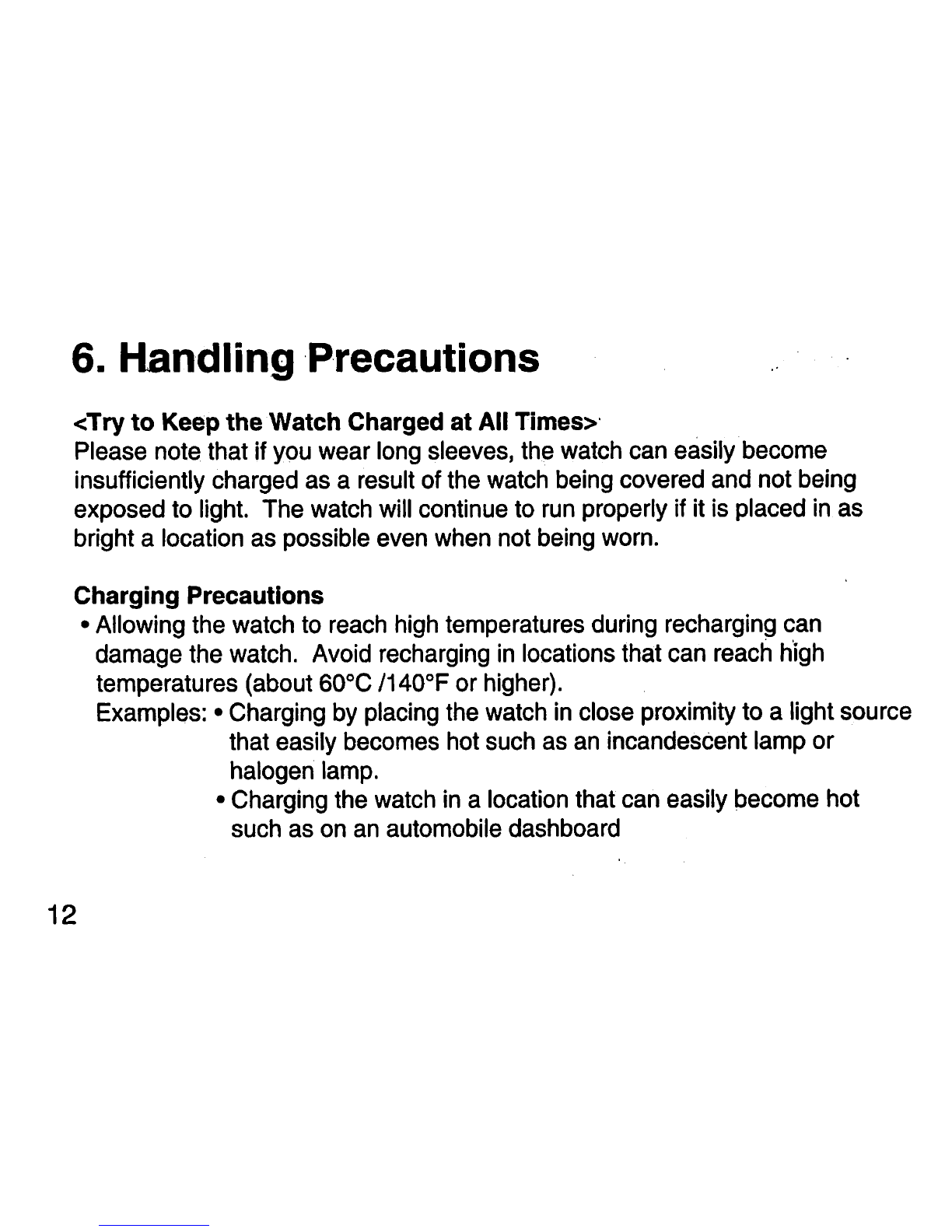

6. Handling Precautions
<Try to Keep the Watch Charged at All Times>
Please note that ifyou wear long sleeves, the watch can easily become
insufficiently charged as a result of the watch being covered and not being
exposed to light. The watch willcontinue to run properly ifit is placed in as
bright a location as possible even when not being worn.
Charging Precautions
• Allowingthe watch to reach high temperatures during recharging can
damage the watch. Avoidrecharging in locations that can reach high
temperatures (about 60°C /140°F or higher).
Examples: • Charging by placing the watch in close proximityto a lightsource
that easily becomes hot such as an incandescent lamp or
halogen lamp.
•Charging the watch in a location that can easily become hot
such as on an automobile dashboard
12

• When charging using the light from an incandescent lamp, charge while
being careful that the watch does not become excessively hot by placing at a
distance of at least 50 cm (20in) from the lamp.
Handling of Secondary Battery
• Please do not attempt to remove the secondary battery from the watch.
• If the secondary battery has been unavoidably removed, store it in a location
out of
the reach of small children to prevent accidental swallowing.
• If
the secondary battery should happen to be swallowed, please consult a
physician
and seek medical attention immediately.
Only Use the Specified Secondary Battery
• Never use a secondary battery other than the secondary battery used in this
watch. Although the watch is designed not to operate if another type of
secondary battery is installed, since this may result in overcharging that can
cause the secondary battery to rupture, there is the risk of both damage to
the watch and injury to the wearer.
• Only use the specified secondary battery when replacing the secondary
battery.
13

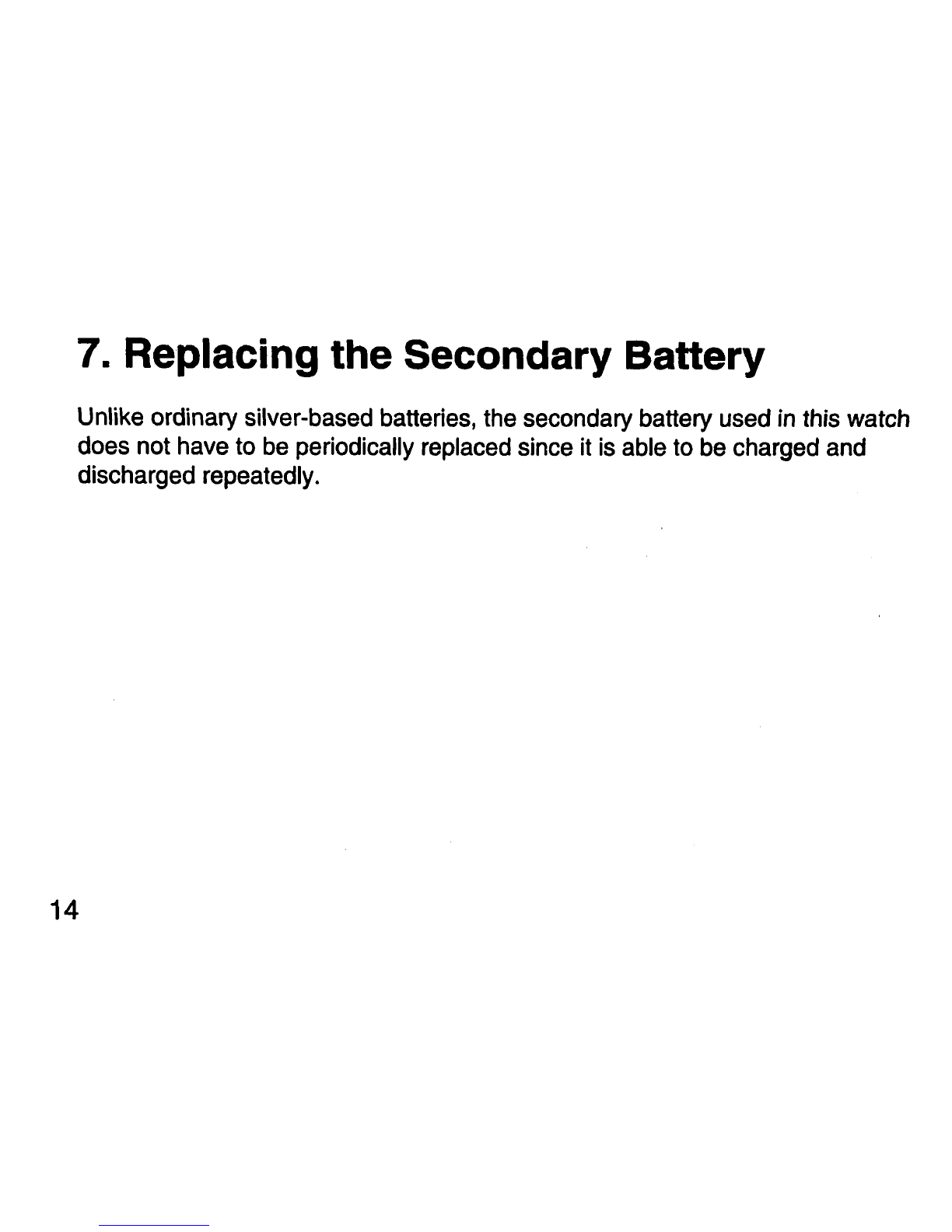

7. Replacing the Secondary Battery
Unlike ordinary silver-based batteries, the secondary battery used in this watch
does not have to be periodicallyreplaced since it is able to be charged and
discharged repeatedly.
14

8. Setting the Time and Date
Inthe case the crownis ofthe screw-locktype, loosen the screw byturningthe
crown to the left before operating the crown, and after having returned the
crownto the normalposition following operation,turn itto the rightwhile
pushing it in to securely retighten it.
[Setting the Time]
Hour hand Min.rt» h*nH 1• pu" the crown out to the time
correction position when the second
hand has reached the 0 seconds
position.
2. Turn the crown to set the time.
• The 24 hour hand moves in
conjunction withthe hour hand. Pay
attention to AM and PMwhen setting
the time.
3. Securely return the crown to the
normal position in synchronization with
a telephone or other time service.
15

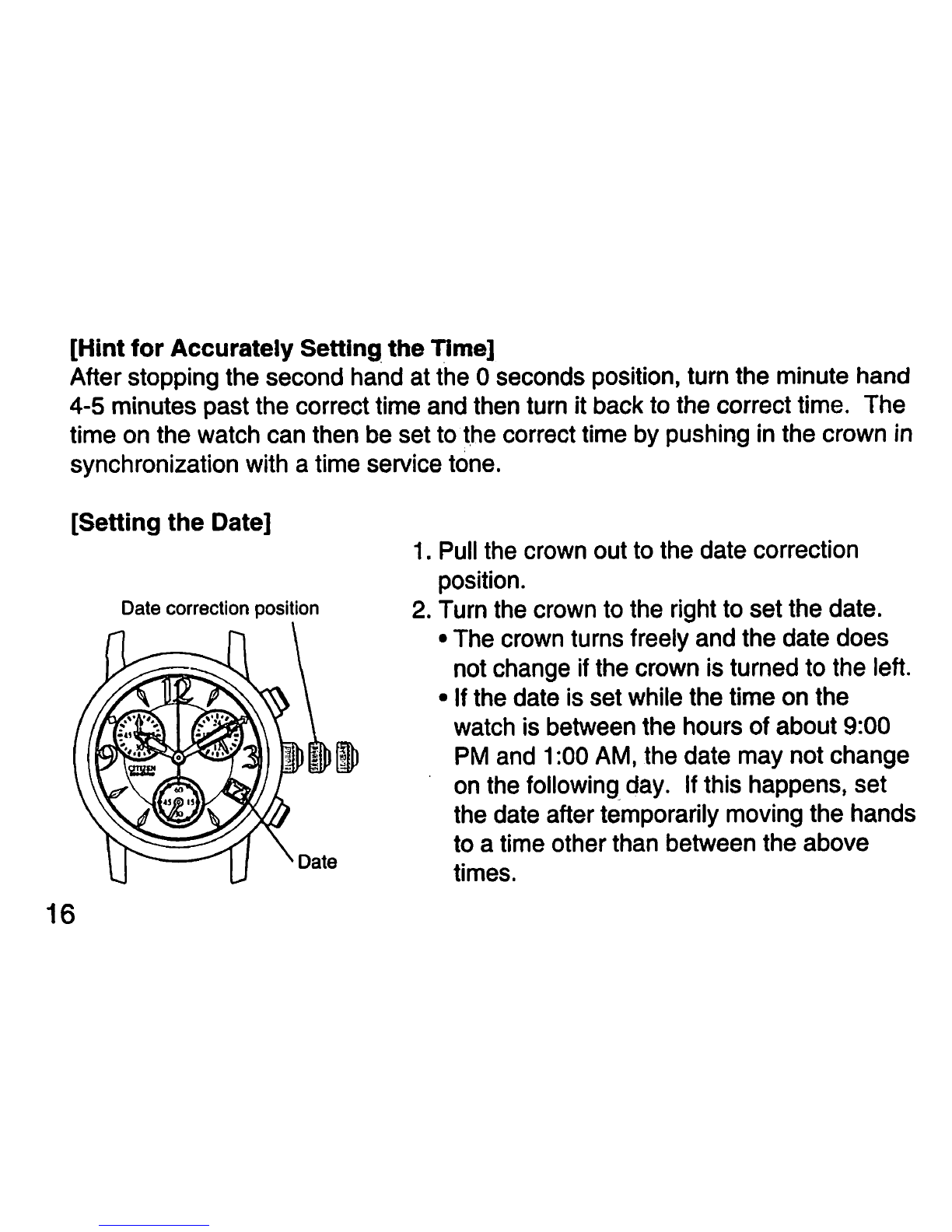

[Hint for Accurately Setting the Time]
After stopping the second hand at the 0 seconds position, turn the minute hand
4-5 minutes past the correct time and then turn it back to the correct time. The
time on the watch can then be set to the correct time by pushing in the crown in
synchronization with a time service tone.
[Setting the Date]
Date correction position
1. Pull the crown out to the date correction
position.
2. Turn the crown to the right to set the date.
• The crown turns freely and the date does
not change ifthe crown is turned to the left.
• If the date is set while the time on the
watch is between the hours of about 9:00
PM and 1:00 AM, the date may not change
on the following day. Ifthis happens, set
the date after temporarily moving the hands
to a time other than between the above
times.

• The date is based on a 31-day calendar. The date must be changed from
the last day of the month to the firstday of the
following month forthose
months not having 31 days (months having 30 days and February).
• The date changes at around 12:00 AM.
3. Once the date has finished being set, return the crown to the normal
position.
17

9. Using the Chronograph
The chronograph function of this watch is able to measure and display elapsed
time up to 59 minutes, 59 seconds in 1 second units. After 60 minutes have
elapsed, each of the chronograph hands automatically stop at the 12:00
position.
Button (A)
Button (B)
[Chronograph Timing]
1. Start timing by pressing button (A).
•
The chronograph is repeatedly started and
stopped by pressing button (A).
2. Pressing button (B)
resets the chronograph
to 0 seconds.
Reset
(A)
Time
Measurement
(A)
Stop
ii(B) (A) (B)

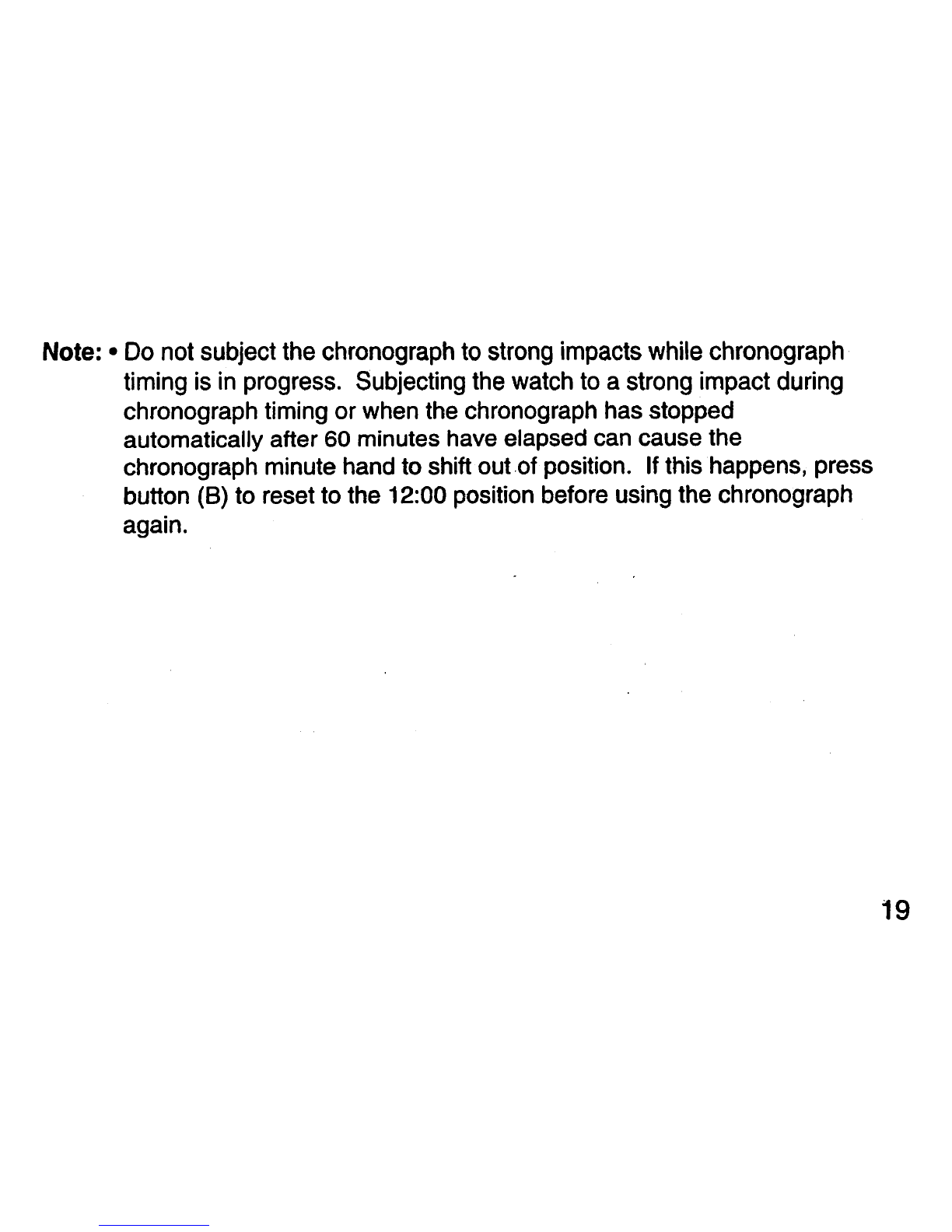

Note: • Do not subject the chronograph to strong impacts while chronograph
timingis in progress. Subjecting the watch to a strong impact during
chronograph timing or when the chronograph has stopped
automatically after 60 minutes have elapsed can cause the
chronograph minute hand to shift out of position. Ifthis happens, press
button (B) to reset to the 12:00 position before using the chronograph
again.
19
