clage Zip 27941 User manual

Zip
Instantaneous Hot Water
Electronically controlled instantaneous water heater
DSX: 27940 - 50 °C and 27941 - 60 °C models
Installation instructions
For 50ºC models, the appliance delivers water not exceeding 50ºC in accordance with AS3498

2
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
Contents
1. Safety instructions..............................................................................................3
2. Overview ..................................................................................................... 4
3. Technical data .................................................................................................5
4. Dimensions ................................................................................................... 6
5. Environment and recycling .......................................................................................6
6. Installation....................................................................................................7
Installation site ................................................................................................ 7
Installing the wall bracket ....................................................................................... 8
Installing connection pieces ...................................................................................... 8
Installing the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Surface mounted installation ....................................................................................10
7. Electrical connection ...........................................................................................11
Wiring diagram ...............................................................................................11
Structural prerequisites.........................................................................................11
Electrical connection from below .................................................................................11
Electrical connection from above .................................................................................12
8. Initial operation...............................................................................................13
Selection of power rating .......................................................................................13
Sower application (only for 60°C models) .........................................................................13
Lock level ....................................................................................................14
Reinstallation.................................................................................................14
9. Maintenance work ............................................................................................15
Cleaning and replacing the filter strainer ..........................................................................15
Cleaning and replacing the filter strainer if direct connected ..........................................................15

3
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
1. Safety instructions
Please read these instructions carefully before installing or using the appliance!
Keep the instructions handy with the appliance for future use!
Installation, initial operation and maintenance of this appliance must only be con-
ducted by an authorised professional, who will then be responsible for adherence to
applicable standards and installation regulations. We assume no liability for any dam-
ages caused by failure to observe these instructions.
To observe additionally for pressureless installation:
• The water outlet behind the devices must not be blocked, and the water flow must not be restricted.
• The water outlet facilities, such as shower head, jet control and other outlet unit, must be decalcified regu-
larly. Deposits must be removed in regular intervals.
• Only the fittings recommended by the manufacturer may be used.
• If the appliance is exclusively connected to a single shower, only the shower heads recommended by the
manufacturer may be used. No other fittings or appliances which decrease the water flow to the shower
may be installed.
• Do not use the appliance until it has been correctly installed and unless it is in perfect working order.
• Do not remove the front cover under any circumstances before switching off the mains electrical supply to the
unit.
• Never make technical modifications, either to the appliance itself or the electrical leads and water pipes.
• The appliance must be earthed at all times.
• Pay attention to the fact that water temperatures in excess of approx. 43°C are perceived as hot, especially
by children, and may cause a feeling of burning. Please note that the fittings and taps may be very hot when
the appliance has been in use for some time.
• The appliance is only suitable for domestic use and similar applications inside closed rooms, and must only
be used to heat incoming water from the mains supply.
• The appliance must never be exposed to frost.
• The values stated on the rating plate must be observed.
• In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the mains water supply
instantly. Repairs must only be carried out by the customer service department or an authorised professional.
• This appliance can be used by children aged 3years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
• If the appliance is factory equipped with a power supply cable, it must be replaced with an original spare
cable from the manufacturer in case of damage by an authorised technician in order to avoid any hazards.
• For appliances with direct connection, an all-pole disconnecting device with a contact opening width of
≥ 3 mm per phase must be provided at the installation end, according to Australian wiring rules AS/NZ3000.
• The wall bracket must be secured with the supplied screws and dowels. The appliance must be secured to
the wall bracket. The appliance may only be operated if it has been properly mounted on the wall bracket.
• The prescribed nominal pressure stated on the rating plate may not be exceeded at any time.
• The required water resistance may not fall below the value stated on the rating plate at any time.

4
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
2. Overview

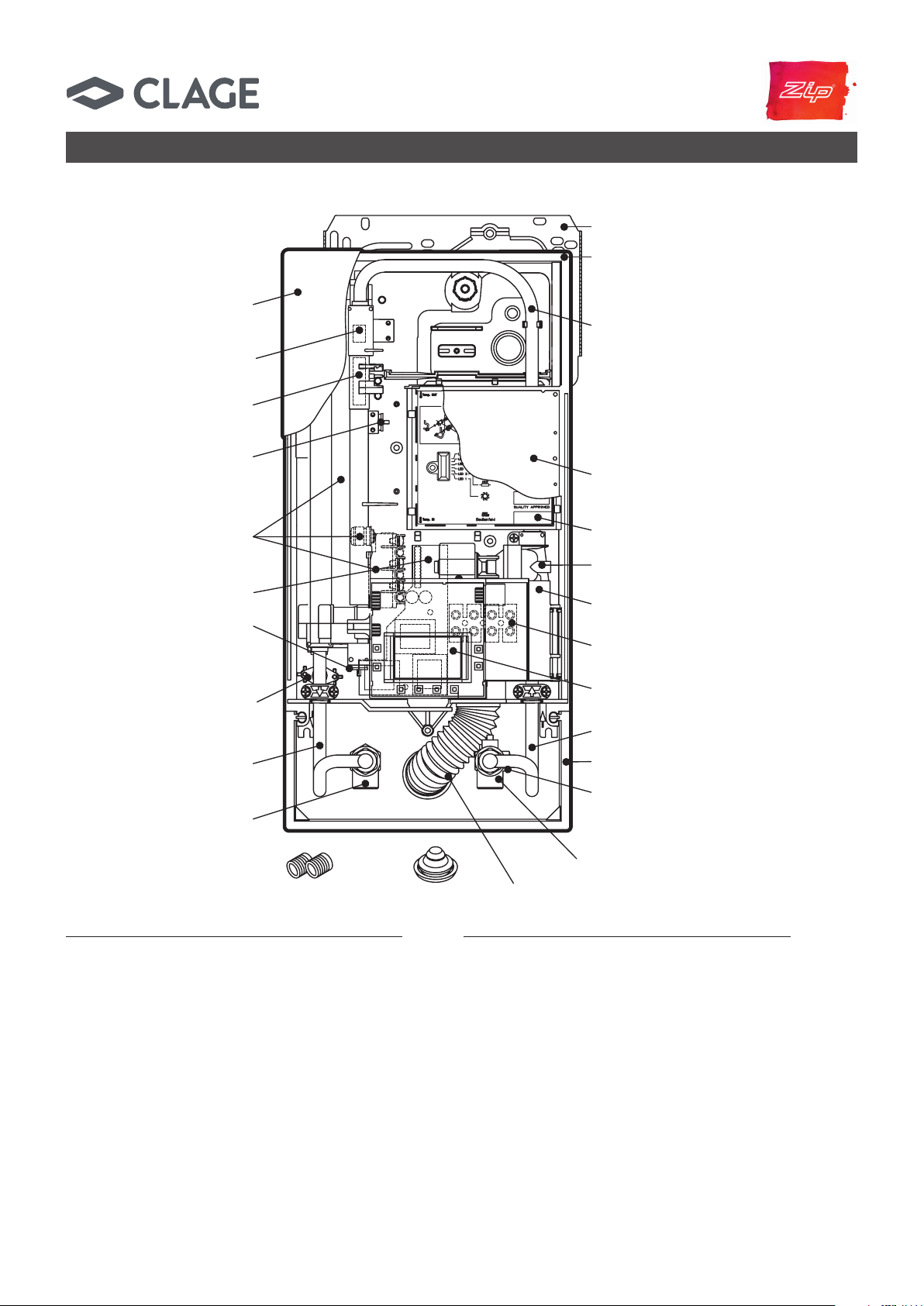

When ordering spare parts, please always specify the appliance model and serial number.
Parts in Bold Type are available as Spare Parts. Other parts are available on request
Pos. Part.-No. Description
1 99381 Hot water connection
2 Outlet pipe
3 Safety thermal cut-out (STB)
4 99382 DSX / DEX thermal sensor set 2.1
5 99383 Servomotor with electronic 2.1
6 Repair kit DSX
7 99384 Flow sensor
8 99385 Non-return valve
9 DSX hood
10 Bottom part
11 Wall bracket
12 DSX connecting pipe
13 99386 PCB cover 2.1
Pos. Part.-No. Description
14 Control panel support
15 Connecting terminal
16 99387 DSX control panel
17 Inlet pipe
18 Frame
19 99388 Fine filter
20 99389 Cold water connection
21 Water splash protection sleeve
22 Grommet
23 Screw-in nipples 1/2”
not shown:
24 Faceplate
25 99390 Fittings kit
26 Operating foil
12
6
13
14
4
15
16
20
21
2223
17
18
19
8
9
7
5
6
4
4
2
1
11
10
3

5
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
3. Technical data
Model DSX
Part no. 27940 - 50 °C model 27941 - 60 °C model
Energy efficiency class A *)
Rated capacity / rated current 18 kW..27 kW (26 A..39 A)
Chosen capacity / current 18 kW
(26 A)
21 kW
(30 A)
24 kW
(35 A)
27 kW
(39 A)
18 kW
(26 A)
21 kW
(30 A)
24 kW
(35 A)
27 kW
(39 A)
Electrical connection 3~ / PE 380..415 V AC 3~ / PE
400 V AC 3~ / PE 380..415 V AC 3~ / PE 400 V AC
Min. required cable size 1) see note 1)
Hot water (l/min) 2)
max. at ∆t = 28 K
max. at ∆t = 38 K
9.2
6.8
10.7
7.9
12.3
9.0
13.8
10.2
9.2
6.8
10.7
7.9
12.3
9.0
13.8
10.2
Rated volume 0.4 l
Rated pressure 1.0 MPa (10 bar)
Connecting type pressure-resistant / pressureless
Heating system Bare wire heating system IES®
@ 15 °C:
Required spec. water resistance Spec.
electrical conductivity
≥ 1,100 Ωcm
≤ 90 mS/m
Inlet temperature ≤ 70 °C
Flow rate to switch on – max. flow rate 2.5 l/min – automatic 3)
Pressure loss 0.2 bar at 2.5 l/min 1.3 bar at 9.0 l/min
Temperature range 20 – 50 °C 20 – 60 °C
Water connection G ½“
Weight (when filled with water) 4.2 kg
VDE class of protection I
Noise level test certificate PA-IX 6822/I
Type of protection / safety IP25
*) The declaration complies with the EU regulation No812/2013
1) The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specific requirements of AS/NZS 3000
2) Mixed water
3) Electronically controlled depending on the desired temperature and cold water temperature

6
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
4. Dimensions
231
231
170
363
466
56
100
97
Dimensions in mm
5. Environment and recycling
Your product was manufactured from high-quality, reusable materials and compo-
nents. Please respect in case of discarding that electrical devices should be disposed of
separately from household waste at the end of their service life. Therefore, please take
this device to a municipal collection point that accepts electronic scrap. Disposing it
correctly will support environmental protection and will prevent any potential negative
effects on human beings and the environment that could arise from inappropriate han-
dling of these devices at the end of their service life. Please contact your local authority
for further details of your nearest designated collection point or recycling site.
Business customers: If you wish to discard equipment, please contact your dealer or
supplier for further information.

7
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
Installation site
• Appliance must only be installed in frost-free rooms. Never expose appliance to
frost.
• The Appliance must be wall mounted and has to be installed with water connectors
downward.
• The appliance complies with protection type IP25.
• To avoid thermal losses and dead legs, the distance between the instantane-
ous water heater and the furthest outlet should be kept as short as possible
(<6meters). In addition all hot water pipe work should be insulated in accordance
with AS/NZS 3500.
• For maintenance work, a shut-off valve should be installed in the supplyline. The
appliance must be accessible for maintenance work.
• The specific resistance of the water must be at least 1100Ωcm at 15 °C. The specific
resistance can be asked for with your water distribution company.
• For 50°C models: The appliance delivers water not exceeding 50 °C in accordance
with AS3498.
• For 60°C models: The appliance may be able to be used with a thermostatic mixing
valve or where serving a fixture that does not require temperature limitation such as
a commercial kitchen sink or cleaners sink. Refer to AS/NZS 3500.4.
6. Installation
The following regulations must be observed:
• Installation must comply with all statutory regulations, as well as those of the
local electricity and water supply companies.
• The rating plate and technical specifications
• Only intact and appropriate tools must be used
• Installation must comply with all statutory regulations, AS/NZS 3000, AS/NZS
3500, as well as those of the local electricity and water supply companies
• These instructions must be read and fully understood before commencing the
installation. If in doubt, or in need of further guidance please ring Zip
on 1800 638 633

8
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
6. Installation
Note: If you install this instantaneous water heater in exchange for a conventional
instantaneous water heater, there is generally no need to drill holes for the wall brack-
et, in this case step 2 would not be necessary.
Thoroughly rinse the water supply pipes before installation to remove soiling
from the pipes.
1. Using a 12 mm hexagon socket screw key, screw the screw-in nipples into the wall
connections. The seals must be fully screwed into the thread. After tightening, the
double nipples must protrude by at least 12mm.
2. Hold the included mounting template on the wall and align it so that the holes in
the template fit over the connections. Mark the drill holes according to the template
and drill them using a 6 mm drill. Insert the included dowels.
3. Screw in the wall bracket. Offset tiling or uneven surfaces can be compensated by
up to 30 mm with the aid of the spacers supplied. The spacers are fitted between
the wall and the wall bracket.
Installing the wall bracket
Note: Fasten the screw nuts with caution, to avoid damage to the valves or the
piping system.
1. As shown in the illustration, screw the cold water connection piece with the union
nut and the ½inch seal onto the cold water connection.
2. Screw the hot water connection piece with the union nut and the ½inch seal onto
the hot water connection.
Installing connection pieces

9
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
1. To open the appliance hood, take off the faceplate and unscrew the main hood
screw.
• When replacing an appliance, the electrical power supply cable may be connected
in the upper part. Only in such case, follow the instructions “Electrical connection
from above”.
2. Place the appliance on the heater bracket so that the threaded rod of the wall
bracket fits in the provided hole of the appliance. If necessary, slight corrections are
possible by carefully bending the threaded rod of the wall bracket. However, it must
be possible to screw on the water connection pipes of the appliance without apply-
ing force.
3. Screw the two ⅜inch union nuts of the appliance‘s water connection pipes, each
with the ⅜inch seal, onto the fittings.
4. Screw the plastic knurled nut onto the threaded rod of the wall bracket.
5. Open the water supply line to the unit and slowly open (position “open“) the shut-
off valve (a) in the cold water connection piece. Check all connections for leaks.
6. Next, open and close the hot water tap valve several times until no more air
emerges from the line and all air has been eliminated from the instantaneous water
heater.
6. Installation
Installing the appliance
(a)
closed
open

10
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
Note: Fasten the screw nuts with caution, to avoid damage to the valves or the
piping system.
For direct connection, the two ½inch screw-in nipples and the ½inch seals must be
screwed into the ½inch union nuts of the hot-water and cold-water connectors. The
two ½inch caps of the side outlets of the hot-water and cold-water connectors must
be removed and screwed onto the open end of the screw-in nipples. The hot-water and
cold-water connectors must then be screwed into the 3/8inch union nut of the appli-
ance and delivery pipe, together with the 3/8inch seals.
For direct connection, it is advisable to mount the appliance at a distance as illustrated
alongside, using the spacer sleeves supplied. It should therefore be noted that the two
fixing holes near the lower pipe connections are also used.
The flared end of the pipes must be screwed into the ½inch side outlets of the hot-
water and cold-water connectors with ½inch union nuts and ½inch seals. The holes
required for the pipes must then be broken out of the housing with the aid of a blunt
implement.
In case of direct connection please note: Put the strainer into the cold water con-
nection!
6. Installation
Surface mounted installation

11
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
Structural prerequisites
• The cross sectional area of the connection cable must be in accordance with the
power rating of the appliance and the specific requirements of AS/NZS 3000.
• The appliance must be permanently connected to the electrical supply through an
isolation switch as per AS/NZS 3000.
• The electric wiring should not be damaged. After mounting, the wiring must not be
direct accessible.
• An all-pole disconnecting device (e.g. via fuses) with a contact opening width of at
least 3 mm per pole should be provided at the installation end.
• To protect the appliance, a fuse element must be fitted with a tripping current com-
mensurate with the nominal current of the appliance.
7. Electrical connection
Wiring diagram
21
4
5
3
1. Electronic circuitry
2. Heating element
3. Safety pressure cut-out
4. Terminal strip
5. Safety thermal cut-out
Note: If necessary, the connecting terminal can be displaced to the upper part
of the appliance. If you want to do so, please follow the instructions in the next
chapter.
Check that the power supply is switched off prior to electrical connection!
1. Dismantle approximately 6cm off the connecting cable above the wall outlet. With
the smaller opening ahead, slide the water splash protection sleeve over the con-
necting cable so that the sleeve is flush with the wall. This prevents any leaking
water from coming into contact with the electrical leads. It must not become dam-
aged! The protection sleeve must be used!
2. Open the control panel rightwards.
3. Strip the cables and plug them in the connecting terminals according to the wiring
diagram. The appliance must be earthed.
4. Pull the protective sleeve over the connecting cables until the sleeve fits perfectly in
the recess of the intermediate panel. Adjust the water splash protection sleeve as
illustrated. Reinsert the control panel and lock it on the heating element.
5. Place the hood on the appliance and screw in the fastening screw. After that you
can reinsert the faceplate.
Electrical connection from below
Only by a specialist!
Please observe:
• The installation must comply with current IEC and national local regulations or
any particular regulations, specified by the local electricity supply company
• The rating plate and technical specifications
• The appliance must be earthed!

12
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
7. Electrical connection
Check that the power supply is switched off prior to electrical connection!

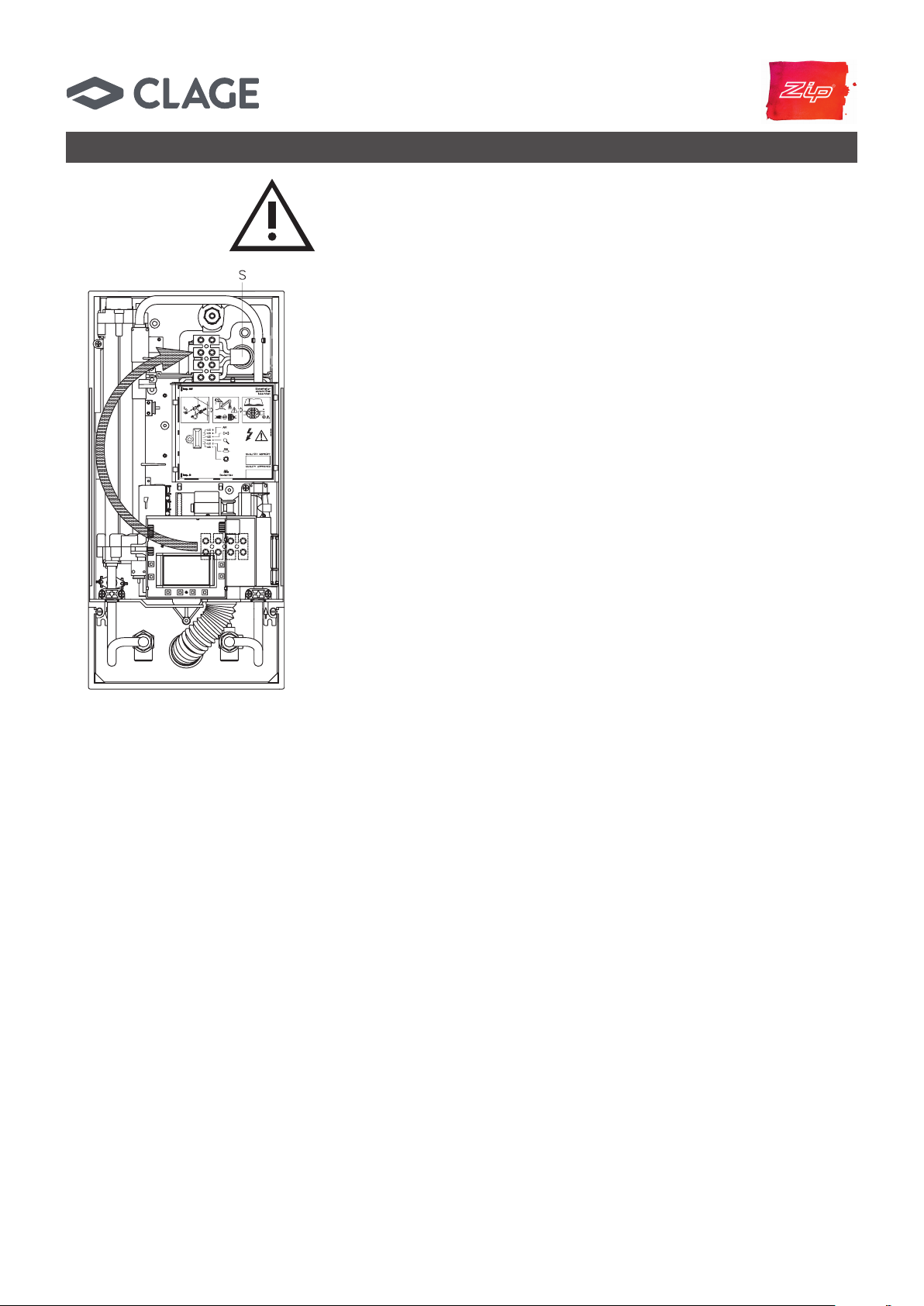

1. Open the prepared breaking point (S) in the upper part of the appliance by pressing
with a blunt implement (e.g. srewdriver).
2. Slit the grommet to match the cable size. The opening in the grommet should be
slightly smaller than the cross-section of the cable in order to ensure optimum pro-
tection against water. Fit the grommet into the opening. The protection grommet
must be used!
3. Dismantle the cable roughly 6 cm above the point where it emerges from the wall.
Hold the prepared appliance so that you can route the cable into the grommet with
the other hand.
4. Place the appliance on the heater bracket so that the threaded rod of the wall brack-
et fits in the provided hole of the appliance.
5. Open the control panel rightwards.
6. Unscrew the fastening screw of the connecting terminal. Displace the connecting
terminal to the upper foot. Affix the connecting terminal again.
7. Strip the cables and plug them in the connecting terminals according to the wiring
diagram. The appliance must be earthed.
8. Reinsert the control panel and lock it on the heating element.
9. Place the hood on the appliance and screw in the fastening screw. After that you
can reinsert the faceplate.

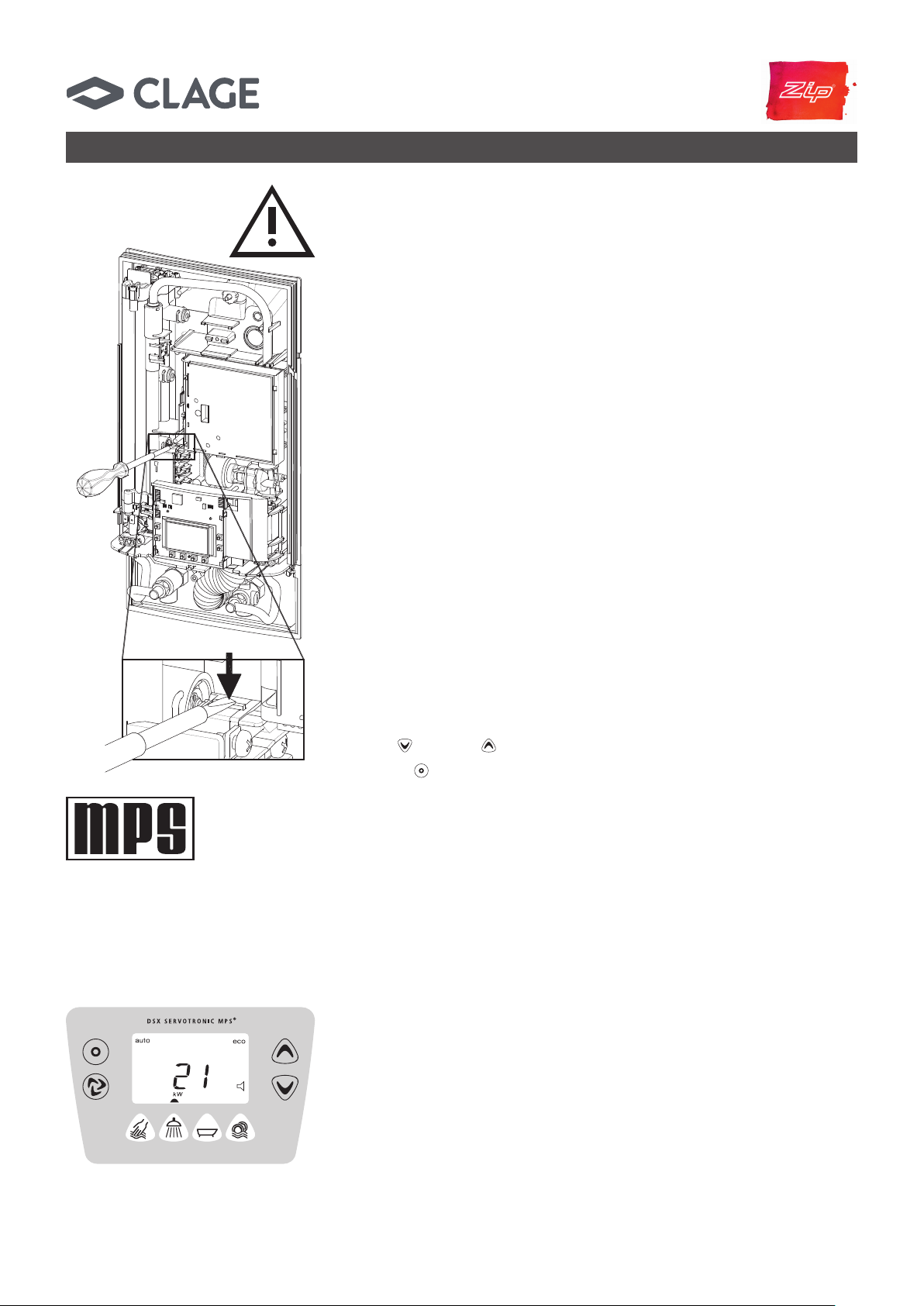

Electrical connection from above

13
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
8. Initial operation
Before making the electrical connection, fill the mains and the appliance with
water by carefully opening and closing the hot water tap in order to vent com-
pletely.
To ensure a maximum flow, remove any existing aerator from the faucet. Flush
the warm and cold water pipes each at least for one minute.
After every draining (e.g. after work on the plumbing system or following repairs
to the appliance), the heater must be re-vented in this way before starting it up
again.
If the water heater cannot be put into operation, the temperature cut-out or the pres-
sure cut-out may have tripped during transport. If necessary, reset the cut-out.
Selection of power rating
Only by authorised specialist, otherwise lapse of guarantee!
Upon first connection of the appliance to the supply voltage, select the maximum
power rating. Only after having set the power rating, the heater provides its standard
operation mode.
The maximum allowable power rating at installation site depends on the local situa-
tion. It is imperative to observe all data shown in the table “Technical specifications“,
in particular the required cable size and fuse protection for the electrical connection.
Moreover, the electrical installation must comply with the statutory regulations of the
respective country and and AS/NZS 3000 electrical regulations.
1. Switch on the power supply to the appliance. The LCD display on the appliance must
light up.
2. When switching on the supply voltage for the first time, the value “21“ flashes in
the display. If not, please follow the below note “Reinstallation“.
3. Select the maximum allowable power rating depending on the local situation via
the up and down arrow keys (18, 21, 24 or 27 kW).
4. Press key to confirm the setting. The appliance starts operating.
5. Mark the set power rating on the rating plate.
6. After having set the maximum allowable power rating, the heating element will be
activated after approx. 10 - 30sec of continuous water flow.
7. Open the hot water tap. Check the function of the appliance.
8. Explain the user how the instantaneous water heater works and hand over the
operating instructions for the user.
9. Fill in the guarantee registration card and send it to Zip Heaters or use the online
registration on our website.
Multiple Power System MPS®:
The rated capacity (max. power consump-
tion) is 27 kW/ 400 V and can be changed
internally to 24 kW, 21kW or 18 kW.
®
The water heater’s temperature must be limited to 55 °C, if it is connected to a shower.
The service menu parameter “Temperature Limit“ (“tL”) must be set to a value less or
equal 55 °C, in consultation with the customer and the lock level must be activated.
When the device is operated with preheated water, it must be ensured that this tem-
perature is limited to 55 °C as well.
Sower application (only for 60 °C models)

14
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
In case the appliance will be commissioned again under different installation condi-
tions than during its initial operation, it may be necessary to adapt the maximum
power rating.
A temporary short-circuit of the two pins (see figure), will reset all heater parameters
to works setting and lock the heating. Value “21“ flashes in the display until the maxi-
mum power rating has been selected. This condition will maintain when activating and
deactivating the supply voltage.
8. Initial operation
Lock level
The operating mode of the appliance can be restricted.
Activation of the lock level
1. Select required level of Lock level via the setup menu (see chapter “How to use,
Setup menu”)
2. Disconnect the appliance from the power supply (e.g. by switching off the fuses)
3. Insert the jumper on the power electronics (see picture)
4. Put the appliance into operation again
Deactivation of the lock level
1. Disconnect the appliance from the power supply (e.g. by switching off the fuses)
2. Remove jumper
3. Put the appliance into operation again
Reinstallation

15
Instructions for installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
9. Maintenance work

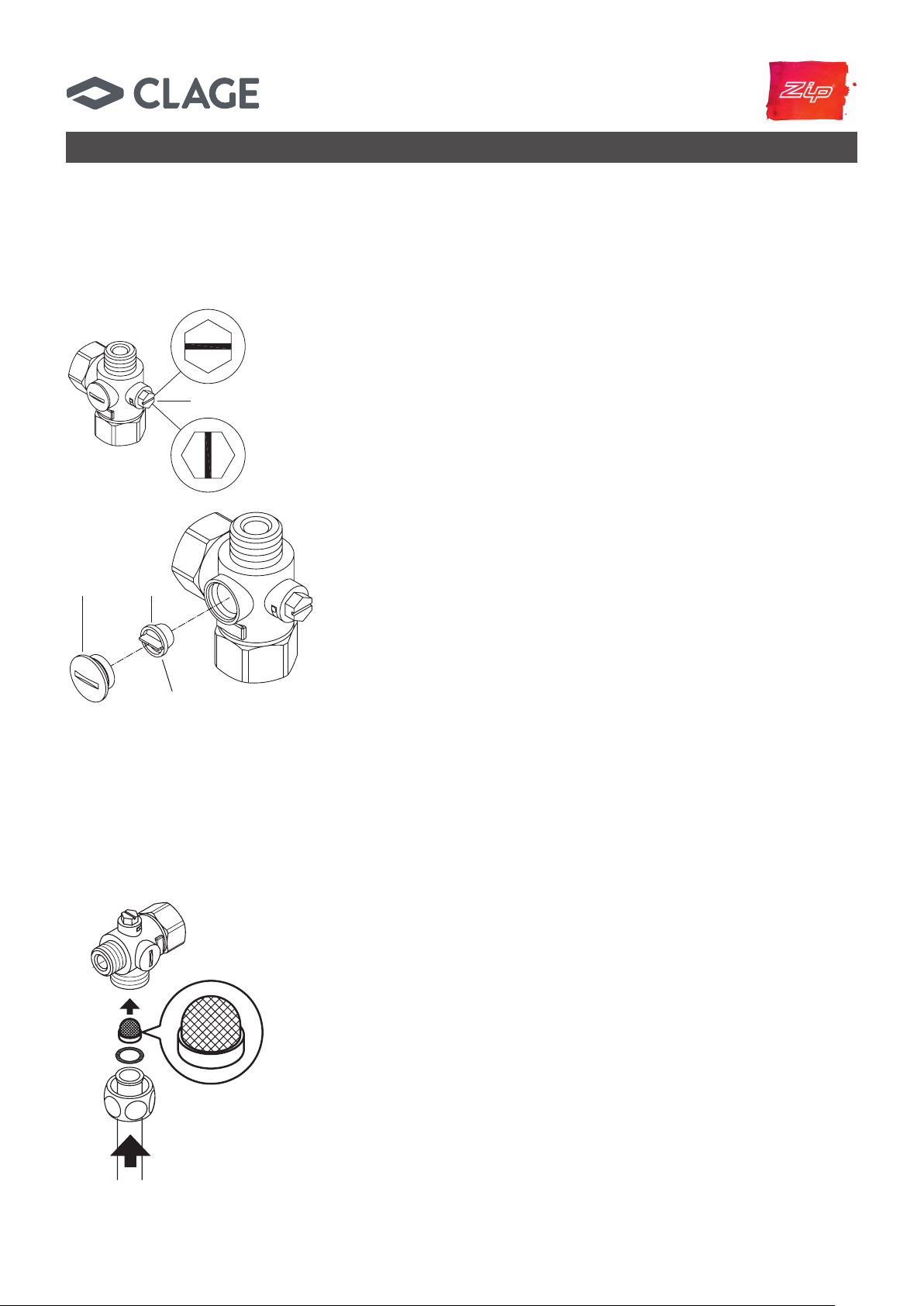

The cold water connection of this instantaneous water heater is equipped with an inte-
grated shut-off valve and a strainer. Soiling of the strainer may reduce the warm water
output. Clean or replace the strainer as follows:
1. De-energize the instantaneous water heater (e.g. via deactivating the fuses) and
prevent inadvertent reactivation of them.
2. To open the hood, take off the small face plate, loose the screw behind this cover
and detach the hood.
3. Close the shut-off valve (a) in the cold water connection piece (position“closed“).
4. Unscrew the screw plug (b) from the cold water connection piece and take out the
strainer (c).
5. The strainer can now be cleaned or replaced.
6. After fitting of the clean strainer tighten the screw plug.
7. Slowly reopen the shut-off valve in the cold water connection piece (posi-
tion“open“).
8. Vent the unit by carefully opening and closing the affiliated warm water tap valve
several times until air no longer emerges from the pipe.
9. Fit the hood of the unit. Then switch on the power again (e.g. via activating the
fuses).
Maintenance work must only be conducted by an authorised professional.
Cleaning and replacing the filter strainer
(a)
closed
open
(c)(b)
Strainer
The cold water connection of this instantaneous water heater is equipped with a
strainer. Soiling of the strainer may reduce the warm water output. Clean or replace the
strainer as follows:
1. De-energize the instantaneous water heater (e.g. via deactivating the fuses) and
prevent inadvertent reactivation of them.
2. Close the shut-off valve in the mains water supply of the instantaneous water
heater.
3. To open the hood, take off the small face plate, loose the screw behind this cover
and detach the hood.
4. Unscrew mains water inlet from connection piece and take out the strainer.
5. The strainer can now be cleaned or replaced.
6. After refitting the clean strainer reconnect the mains water inlet to the connection
piece.
7. Slowly reopen the shut-off valve in the mains water supply.
8. Vent the unit by carefully opening and closing the affiliated warm water tap valve
several times until air no longer emerges from the pipe.
9. Fit the hood of the unit. Then switch on the power again (e.g. via activating the
fuses).
Cleaning and replacing the filter strainer if direct connected

Instructions for Installer - DSX - 801051 - November 2018 v1.00 Art.no: 9120-34372
Head Office
Zip Water (Aust) Pty. Ltd
ABN: 46 000 578 727
67-77 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipwater.com
Telephone: [phone]
Free Call: 1 800 638 633
As Zip’s policy is one of continuous
product improvement, changes to
specifications may be made without
prior notice. Images in this booklet
have been modified and may not be
true representations of the finished
goods.
Quick reference guide
Set temperature
1
–1 °C +1 °C
Convenience zone 35,0..42,0 °C
1
–0,5 °C +0,5°C
Store temperature
2
Press ≥ 3 sec
3
1
Info menu
2
1
4
3
5
Reset
1
Press + hold!
Reset completed
3
2
Temperature limit on
+
Press
≥ 3 sec
1 2
Display
confirms
activation:
3
Temperature limit off
1+
Display
confirms
deactivation:
2
Press
≥ 3 sec
Select preset temperature
A1 A2
B1 B2
C1 C2
D1 D2
Press
≥ 3 sec
Setup menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥ 3 sec
Setup key
Info key
Programme keys
Arrow key up
Arrow key down
TEMP PROTECTION ENABLED
TEMP PROTECTION OFF
Show
bath
kitc
