clage Zip CEX9 User manual

Zip
Instantaneous Hot Water
Electronically controlled instantaneous water heater
CEX9: 27900 - 50 °C model
Installation instructions
For 50°C models, the appliance delivers water not exceeding 50°C in accordance with AS3498

2
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
Contents
1. Safety instructions..............................................................................................3
2. Overview ..................................................................................................... 5
3. Technical data .................................................................................................6
4. Dimensions ................................................................................................... 6
5. Typical installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. Installation....................................................................................................8
Installation site ................................................................................................ 8
Mounting the appliance ......................................................................................... 9
Installing the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7. Electrical connection ...........................................................................................10
Wiring diagram ...............................................................................................10
Structural prerequisites.........................................................................................10
Electrical connection (only by a qualified tradesperson) ..............................................................10
Electrical connection with pre-installed power cable.................................................................10
Electrical installation to a permanent connection ...................................................................11
8. Initial operation...............................................................................................12
Selection of power rating .......................................................................................12
Reinstallation.................................................................................................13
Lock level ....................................................................................................13
9. Service menu .................................................................................................14
10. Environment and recycling.....................................................................................15
The alignment template is located on the pull-out pages in the middle of this manual.

3
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
Please read these instructions carefully before installing or using the appliance!
Keep the instructions handy with the appliance for future use!
Installation, initial operation and maintenance of this appliance must only be con-
ducted by an authorised professional, who will then be responsible for adherence to
applicable standards and installation regulations. We assume no liability for any dam-
ages caused by failure to observe these instructions.
• Do not use the appliance until it has been correctly installed and unless it is
in perfect working order.
• Do not remove the front cover under any circumstances before switching off
the mains electrical supply to the unit.
• Never make technical modifications, either to the appliance itself or the
electrical leads and water pipes.
• The appliance must be earthed at all times.
• Pay attention to the fact that water temperatures in excess of approx. 43 °C
are perceived as hot, especially by children, and may cause a feeling of
burning. Please note that the fittings and taps may be very hot when the
appliance has been in use for some time.
• The appliance is only suitable for domestic use and similar applications
inside closed rooms, and must only be used to heat incoming water from
the mains supply.
• The appliance must never be exposed to frost.
• The values stated on the rating plate must be observed.
• In case of malfunction, disconnect the fuses immediately. In case of leaks,
cut off the mains water supply instantly. Repairs must only be carried out by
the customer service department or an authorised professional.
• This appliance can be used by children aged 3years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concern-
ing use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be performed by children without supervision.
• If the appliance is factory equipped with a power supply cable, it must be
replaced with an original spare cable from the manufacturer in case of dam-
1. Safety instructions

4
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
To observe additionally for pressureless installation:
• The water outlet behind the devices must not be blocked, and the water
flow must not be restricted.
• The water outlet facilities, such as shower head, jet control and other outlet
unit, must be decalcified regularly. Deposits must be removed in regular
intervals.
• Only the fittings recommended by the manufacturer may be used.
• If the appliance is exclusively connected to a single shower, only the shower
heads recommended by the manufacturer may be used. No other fittings or
appliances which decrease the water flow to the shower may be installed.
1. Safety instructions
age by an authorised technician in order to avoid any hazards.
• For appliances with direct connection, an all-pole disconnecting device
with a contact opening width of ≥3mm per phase must be provided at the
installation end, according to Australian wiring rules AS/NZ3000.
• The wall bracket must be secured with the supplied screws and dowels. The
appliance must be secured to the wall bracket. The appliance may only be
operated if it has been properly mounted on the wall bracket.
• The prescribed nominal pressure stated on the rating plate may not be
exceeded at any time.
• The required water resistance may not fall below the value stated on the
rating plate at any time.

5
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
2. Overview

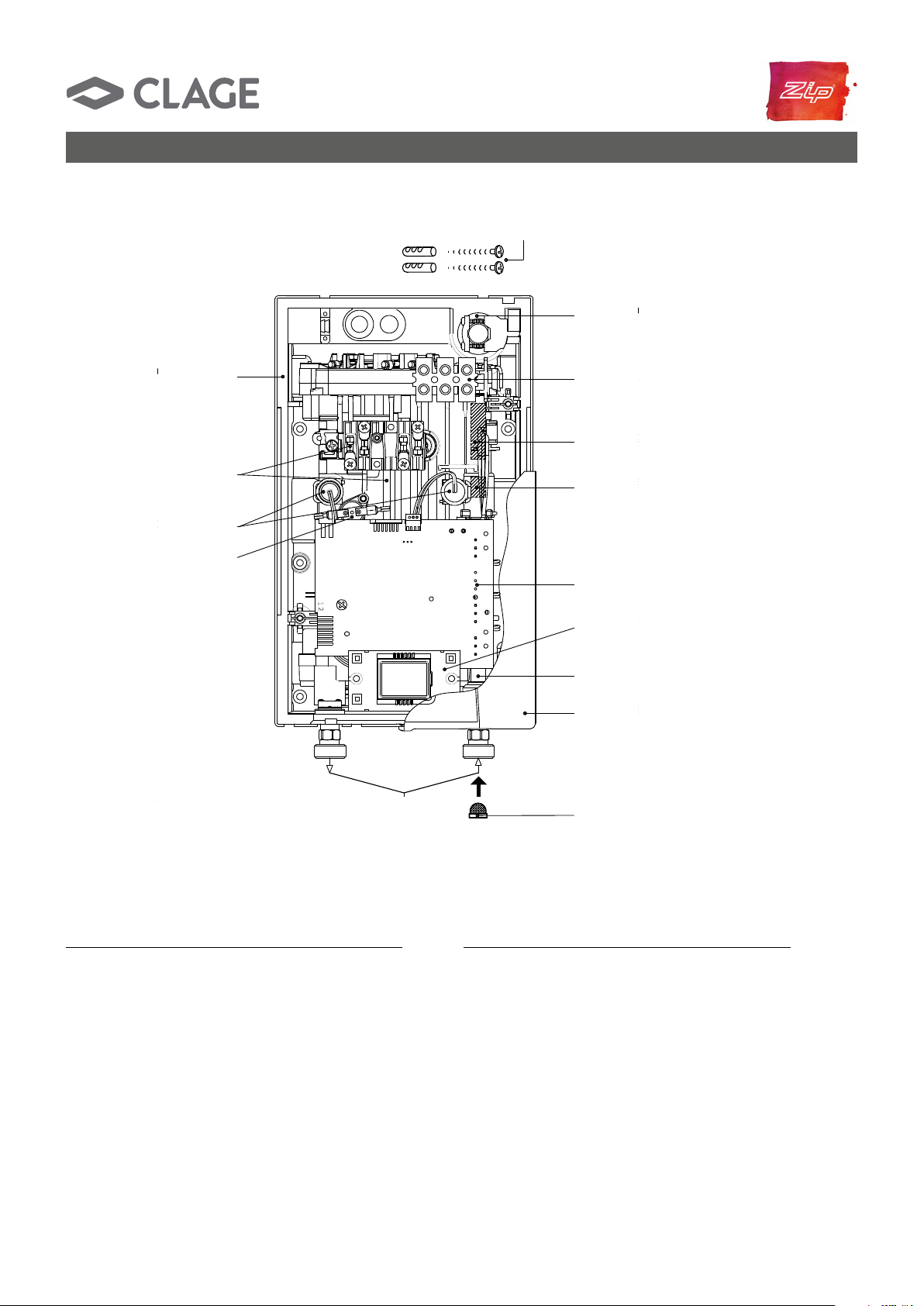

When ordering spare parts, please always specify the appliance model and serial number.
Parts in Bold Type are available as Spare Parts. Other parts are available on request
Pos. Part.-No. Description
1 Grommet
2 Connecting terminal
3 99394 Flow sensor
4 99385 Non-return valve
5 99398 PCB CEX9
6 99418 CEX control panel
7 Inlet pipe
8 CEX cover
Pos. Part.-No. Description
9 Inlet filter
10 Connection piece 1/2“
11 Safety thermal cut-out
12 99400 Thermal sensor set
13 Heating element incl. SDB
14 Bottom part
15 99397 Screws and dowels
12
13
14
15
6
7
8
5
4
3
2
1
10
11
9

6
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
3. Technical data
Model CEX9
Part no. 27900 - 50 °C model
Energy efficiency class A *)
Rated capacity (Rated current) 6.0 / 9.6 kW (27.3 / 40 A)
Chosen capacity (Chosen current) 6.6 kW (28.7 A) 8.8 kW (38.3 A)
Electrical connection 1/N/PE 220..240 V AC
Min. required cable size see note 1)
Hot water (l/min)
max. at ∆t = 25 K 3.8 5.0
Rated volume 0.3 l
Rated pressure 1.0 MPa (10 bar)
Connecting type pressure resistant / pressureless
Heating system Bare wire heating system IES®
Required spec. water
resistance @ 15 °C
Spec. electrical conductivity
≥ 1100 Ωcm
≤ 90.9 mS/m
Inlet temperature ≤ 70 °C
Flow rate to switch on – max. flow rate 2.0 – 5.0 l/min 2)
Pressure loss 0.2 bar at 2.5 l/min 1.3 bar at 9.0 l/min 3)
Temperature choice 20 °C – 50 °C
Water connection G ½"
Weight (when filled w. water) 2.7 kg
VDE class of protection I
Type of protection / safety IP25
*) The declaration complies with the EU regulation No812/2013
1) The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specific requirements of AS/NZS 3000
2) Flow rate limited to achieve optimum temperature rise
3) Without flow regulator

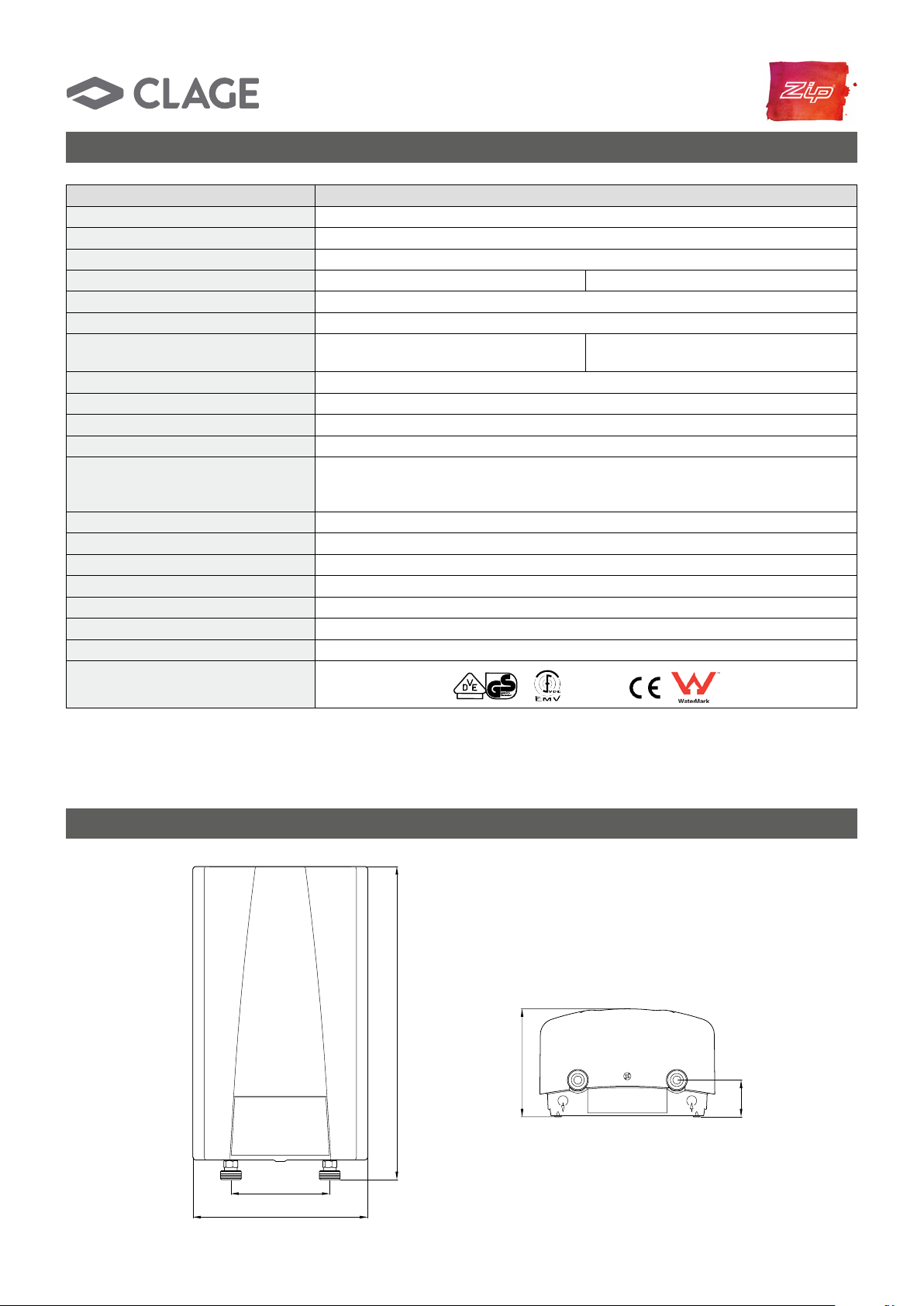

4. Dimensions
108
37
312
100
177
108
37
312
100
177
Dimensions in mm

7
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687

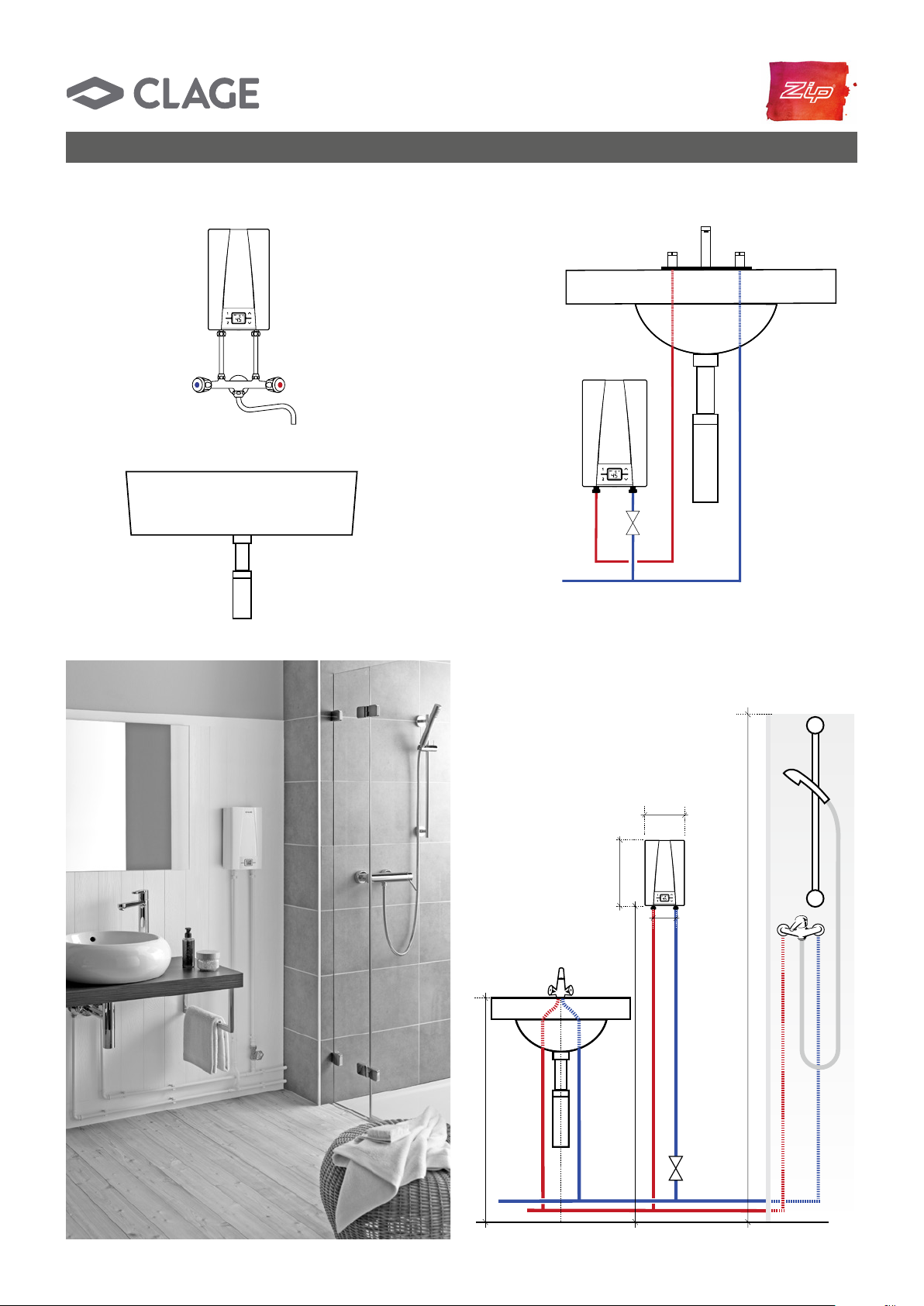

5. Typical installation
0
MADEIN GERMANY
MADEIN GERMANY
MADEIN GERMANY
177
294
100
Wall mounted mixer: Supply for one sink Direct connection: Supply for one outlet
Direct connection: Supply for multiple outlets
Top edge of shower cabin approx. 1950
Top edge of handwash basin approx. 850
Bottom edge of application approx. 1200
Dimensions in mm (installation example)

8
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
Installation site
• Appliance must only be installed in frost-free rooms. Never expose appliance to
frost.
• The Appliance must be wall mounted and has to be installed with water connectors
downward.
• The appliance complies with protection type IP25.
• To avoid thermal losses and dead legs, the distance between the instantane-
ous water heater and the furthest outlet should be kept as short as possible
(<6meters). In addition all hot water pipe work should be insulated in accordance
with AS/NZS 3500.
• For maintenance work, a shut-off valve should be installed in the supplyline. The
appliance must be accessible for maintenance work.
• The specific resistance of the water must be at least 1100Ωcm at 15 °C. The specific
resistance can be asked for with your water distribution company.
• For 50°C models: The appliance delivers water not exceeding 50 °C in accordance
with AS3498.
6. Installation
The following regulations must be observed:
• Installation must comply with all statutory regulations, as well as those of the
local electricity and water supply companies.
• The rating plate and technical specifications
• Only intact and appropriate tools must be used
• Installation must comply with all statutory regulations, AS/NZS 3000, AS/NZS
3500, as well as those of the local electricity and water supply companies
• These instructions must be read and fully understood before commencing the
installation. If in doubt, or in need of further guidance please ring Zip
on 1800 638 633

Kabeleinführung / Cable entry
4,2 × 38mm
Ø6mm
600mm max
38
27
312 108
37
177 100
Anschlussraum
Connection zone
Cable entry

Kabeleinführung / Cable entry
4,2 × 38mm
Ø6mm
600mm max
38
27
312 108
37
177 100
Anschlussraum Connection zone

9
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
6. Installation
1. Thoroughly rinse the water supply pipes before installation to remove soiling from
the pipes.
2. Hold the appliance on the wall, and mark the drill lines at top and bottom, right and
left, corresponding to the small notches at the edge of the appliance hood (see bot-
tom figure). The alignment template (located on the pull-out pages in the middle of
this manual) may be used for this purpose alternatively.
3. Connect the top and bottom marks vertically with each other (A–A).
4. Connect the right and left marks horizontally with each other (B–B).
5. The intersections of these lines are the drill points.
6. Drill the holes using a 6 mm drill. Insert the included dowels and screws. The screws
have to protrude 5mm.
7. Hang up the appliance into the rear hanging openings until it clicks into place.
Mounting the appliance
1. Attach the water connection pipes with to the appliance’s water connection. Use the
⅜inch seals.
2. Open and close the hot water tap until no more air emerges from the pipe and all
air has been eliminated from the water heater.
Installing the appliance
263
179
140
41
84
26
140 77
96
28
37
26

10
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
Structural prerequisites
• The cross sectional area of the connection cable must be in accordance with the
power rating of the appliance and the specific requirements of AS/NZS 3000. A
maximum cable size must be observed: 10 mm2.
• The appliance must be permanently connected to the electrical supply through an
isolation switch as per AS/NZS 3000.
• The electric wiring should not be damaged. After mounting, the wiring must not be
direct accessible.
• An all-pole disconnecting device (e.g. via fuses) with a contact opening width of at
least 3 mm per pole should be provided at the installation end.
• To protect the appliance, a fuse element must be fitted with a tripping current com-
mensurate with the nominal current of the appliance.
7. Electrical connection
Wiring diagram
1. Electronic circuitry
2. Heating element
3. Safety pressure cut-out
4. Terminal strip
5. Safety thermal cut-out
Only by a specialist!
Please observe:
• The installation must comply with current IEC and national local regulations or
any particular regulations, specified by the local electricity supply company
• The rating plate and technical specifications
• The appliance must be earthed!
Electrical connection (only by a qualified tradesperson)
Check that the power supply is switched off prior to electrical connection!
Electrical connection with pre-installed power cable
The appliance is to be connected with the pre-installed power cable to a terminal box.
If necessary, use one of the three predetermined breaking points for the cable entry (at
the right, left or top).
1
2
5
3
4

11
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
7. Electrical connection
If, in case of particular local circumstances, connecting to a permanent connection is
the only possibility, continue as follows.
1. Disassemble the pre-installed power cable.
2. Dismantle off the power cable so that you can insert the cable with the cladding
through the water splash protection sleeve up to the cord grip into the appliance.
3. Lead the cable through the water splash protection sleeve into the appliance so that
one can securely fix the cladding of the cable with the cord grip. If necessary, use
one of the three predetermined breaking points for the cable entry (at the right, left
or bottom). The protective sleeve prevents water from entering the appliance along-
side the connection line. The protection sleeve has to be used!
4. Mount the cord grip. The cord grip must be used!
5. Strip the cables and plug them in the connecting terminals according to the wiring
diagram. The appliance must be earthed.

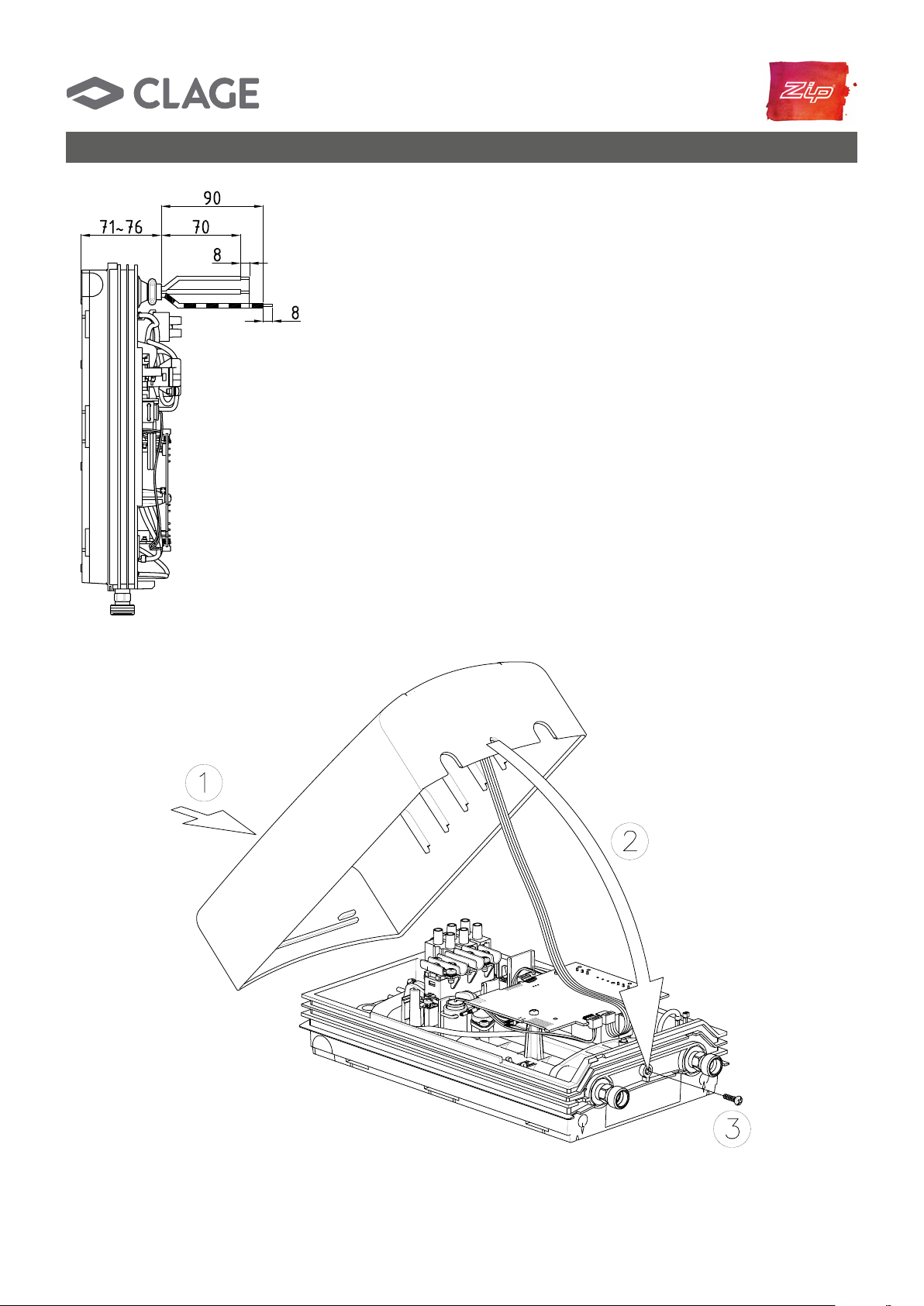

6. After successful electrical connection, fit the hood of the unit. Make sure not to jam
any cables between the appliance hood and the base part of the appliance.
Alternative:
Electrical installation to a permanent connection

12
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687

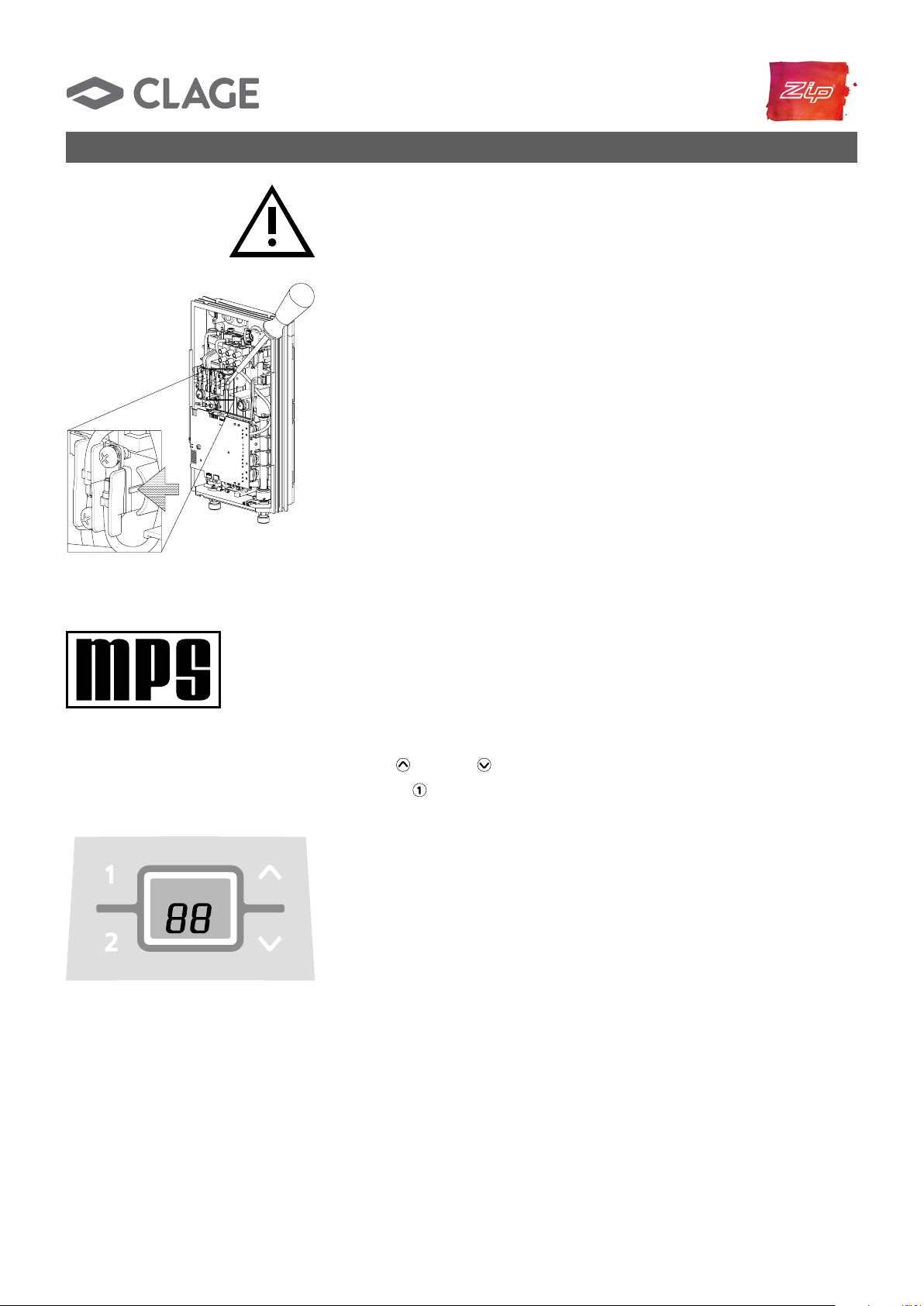

8. Initial operation
Before making the electrical connection, fill the mains and the appliance with
water by carefully opening and closing the hot water tap in order to vent com-
pletely.
To ensure a maximum flow, remove any existing aerator from the faucet. Flush
the warm and cold water pipes each at least for one minute.
After every draining (e.g. after work on the plumbing system or following repairs
to the appliance), the heater must be re-vented in this way before starting it up
again.
If the water heater cannot be put into operation, the temperature cut-out or the pres-
sure cut-out may have tripped during transport. If necessary, reset the cut-out.
Selection of power rating
Only by authorised specialist, otherwise lapse of guarantee!
Upon first connection of the appliance to the supply voltage, select the maximum
power rating. Only after having set the power rating, the heater provides its standard
operation mode.
The maximum allowable power rating at installation site depends on the local situa-
tion. It is imperative to observe all data shown in the table “Technical specifications“,
in particular the required cable size and fuse protection for the electrical connection.
Moreover, the electrical installation must comply with the statutory regulations of the
respective country and those of the local electricity supply company (Germany: DIN
VDE 0100).
1. Switch on the power supply to the appliance. The digital display on the appliance
must light up.
2. When switching on the supply voltage for the first time, the value “88” flashes in the
display. If not, please carefully read the note “Reinstallation”.
3. Select the maximum allowable power rating depending on the local situation via
the up and down arrow keys: 6.6 or 8.8 kW.
4. Press key to confirm the setting. The appliance starts operating.
5. Mark the set power rating on the rating plate.
6. Open the hot water tap. Check the function of the appliance.
7. After having set the maximum allowable power rating, the heating element will be
activated after approx. 10-30seconds of water flow.
8. Explain the user how the instantaneous water heater works and hand over the
operating instructions.
9. Fill in the guarantee registration card and send it to the after-sales service or use the
online registration.
®
Multiple Power System:
The rated capacity (max. power con-
sumption) is 8.8 kW / 230 V and can be
reduced to 6.6 kW.
MADE IN GERMANY

13
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
In case the appliance will be commissioned again under different installation condi-
tions than during its initial operation, it may be necessary to adapt the maximum
power rating. A temporary short-circuit of the two pins (see figure), will reset all heater
parameters to works setting and lock the heating.
Value “88“ flashes in the display until the maximum power rating has been selected.
This condition will maintain when activating and deactivating the supply voltage.
8. Initial operation
Reinstallation
The operating mode of the appliance can be restricted. The service menu can be used
to configure the appliance.
Activation of the lock level
1. Set required lock level in the service menu (refer to chapter “Service menu” in this
installing instructions).
2. Disconnect the appliance from the power supply (e.g. by switching off the fuses).

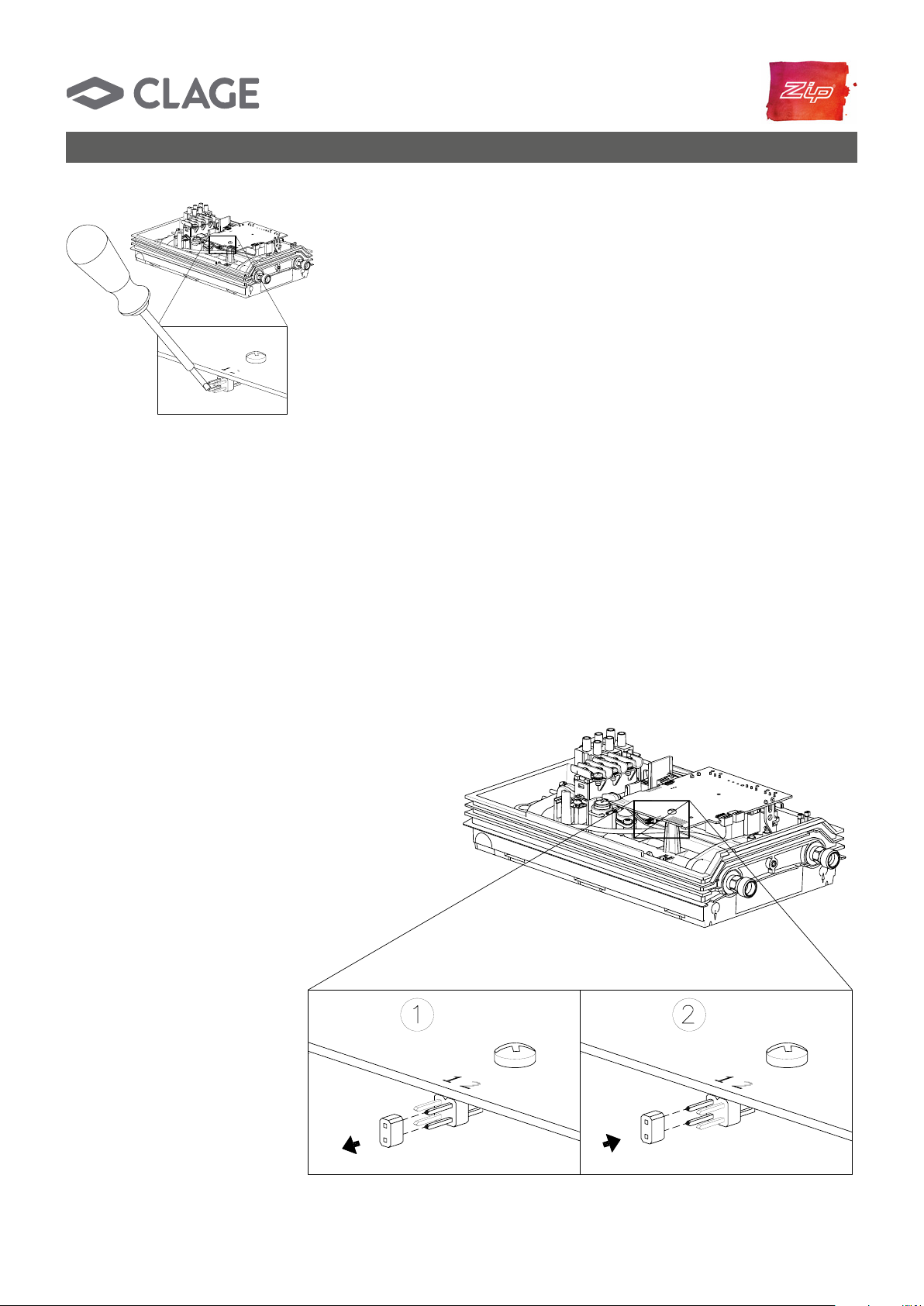

3. Move the jumper on the power electronics from pin 2 to pin 1 (see figure).
4. Put the appliance into operation again.
Deactivation of the lock level
1. Disconnect the appliance from the power supply (e.g. by switching off the fuses).
2. Move jumper from pin 1 to pin 2.
3. Put the appliance into operation again
Lock level

14
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
9. Service menu
Menu item order of “Service menu“:
Flow
Power
Temp in
Temp out
Control value
Power limit
Diagnostics
Lock level
Software version
Radio channel
Received strength
Backlight
Temperature limit
Signal
2
8
4
7
5
3
6
9
+
1
Open service menu
Display flashes
Press
≥ 2 sec
The service menu offers an overview of system parameters and is used for diag-
nostics.

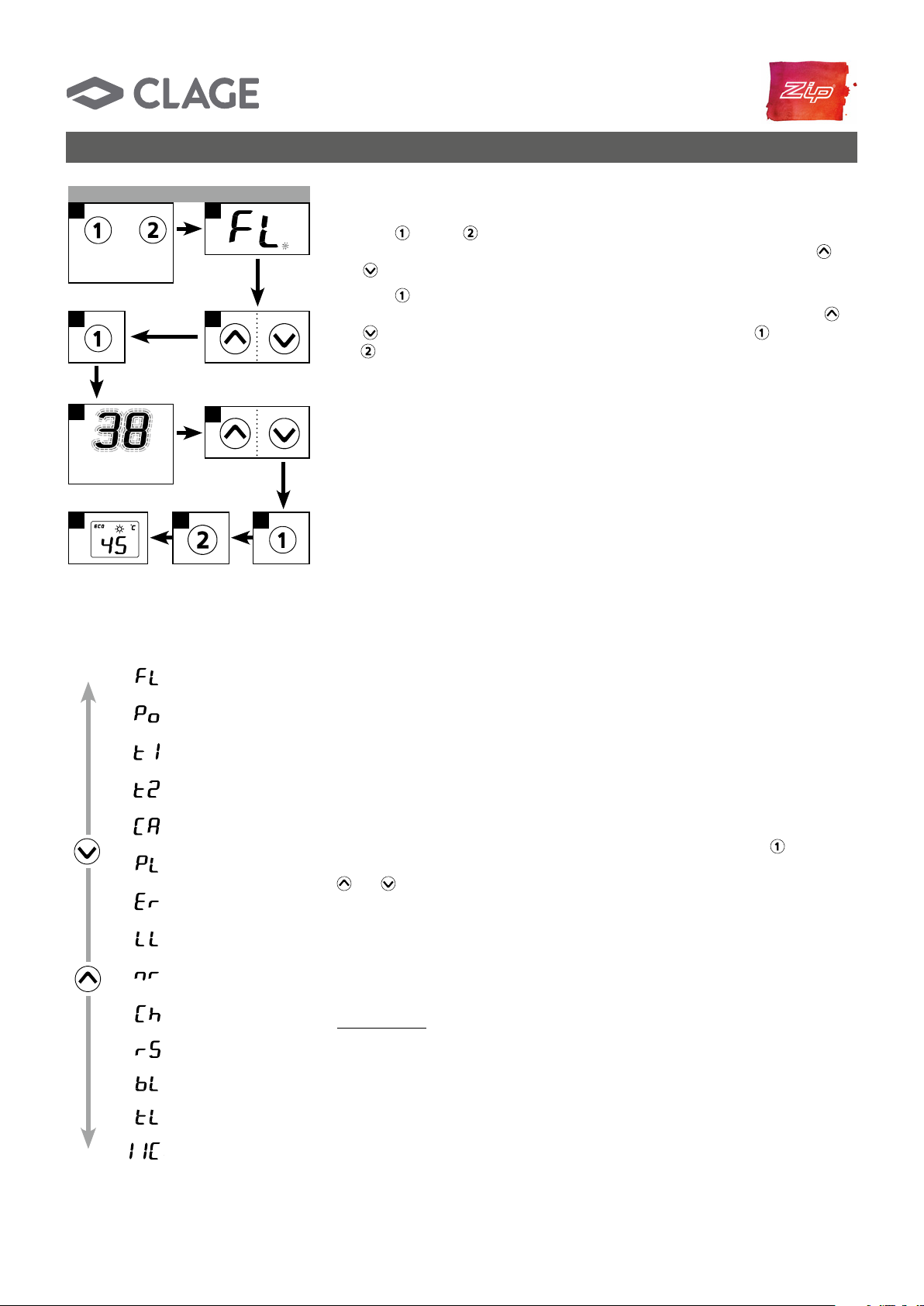

Press key and key simultaneously for at least 2seconds to call up the service
menu, the display confirms by “FL” and by a flashing point. Using the arrow keys
and , you can switch between the individual menu items.
Press key to see the value of the currently selected menu. The value flashes in the
display. (The values of some menus can be switched over by using the arrow keys
and .) You will get back to the drop-down-menu when pressing key again. With
key you will get back to the standard display (nominal value). After two minutes
without any key stroke the system automatically switches back to the standard display.
Individual menu items as follows:
“FL“: Flow
Indication of current flow rate given in l/min.
“Po“: Power
Indication of current power consumption (kW).
“t1“: Temp in
Indication of inlet temperature (°C).
“t2“: Temp out
Indication of outlet temperature (°C).
“CA“: Control value
Indication of calibration value of the control system. Regular range: 40 – 60.
“PL“: Power limit
Indication of the current maximum power rating (kW) of the appliance.
“Er“: Diagnostics
Indication of the last ten diagnostic messages.
The error code is indicated by the first displayed value after pressing key (refer to
“Abstract for Trouble-Shooting & Diagnostics” in the hood). By using the arrow keys
and the last 10 error codes are displayed chronologically. Thereby the display
indicates in turns the error numbers from “0” to “9“ and the corresponding error. The
last error will be recorded at position “0” and the former ones each shifted 1 position
backwards.
“LL“: Lock level
The operating mode of the appliance can be restricted.
Setting Options:
“0” no restriction (factory setting)
“1” factory reset via key (countdown) not possible, parameters can be seen, but not be modified
in setup menu
“2” same as “1”, additionally the setup menu cannot be opened
“3” same as “2” additionally nominal value memory 1 and 2 not changeable
“4” same as “3”, additionally nominal value not changeable
Note: When the setting 1, 2, 3 or 4 was chosen, the system parameters can no
longer be modified in the service menu.
In order to modify these system parameters, it is necessary to remove the jumper

15
Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687

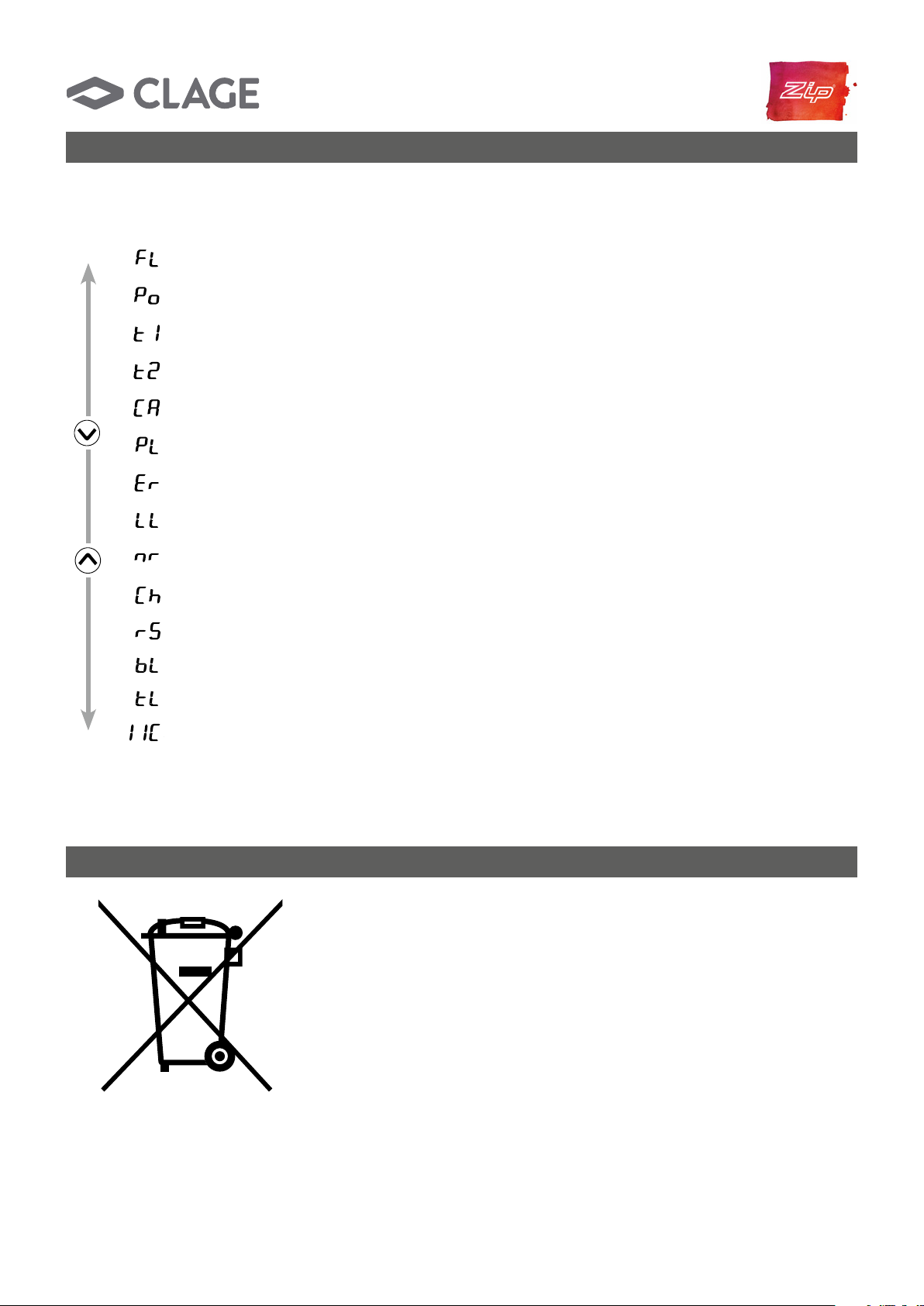

9. Service menu
Menu item order of “Service menu“:
Flow
Power
Temp in
Temp out
Control value
Power limit
Diagnostics
Lock level
Software version
Radio channel
Received strength
Backlight
Temperature limit
Signal
on the power electronics, as specified in the chapter “Deactivation of the lock
level”.
“nr“: Software version
Information about installed software version.
“Ch“: Radio channel
(with wireless module only)
Information about the current radio channel of the water heater and its remote control.
“rS“: Received strength
(with wireless module only)
Information about the current signal quality of the remote control as percentage.
Depending on the distance between remote control and water heater the value varies
between 10 % and 100%.
“tL”: Temperature limit
The maximum setable temperature can be reduced to any value within the tempera-
ture limit.
The Lock Level must be activated by placing the jumper to enable the limitation.
“IIC“: Signal
Information about the quality of the radio contact when a diagnostic display is con-
nected.
10. Environment and recycling
Your product was manufactured from high-quality, reusable materials and compo-
nents. Please respect in case of discarding that electrical devices should be disposed of
separately from household waste at the end of their service life. Therefore, please take
this device to a municipal collection point that accepts electronic scrap. Disposing it
correctly will support environmental protection and will prevent any potential negative
effects on human beings and the environment that could arise from inappropriate han-
dling of these devices at the end of their service life. Please contact your local authority
for further details of your nearest designated collection point or recycling site.
Business customers: If you wish to discard equipment, please contact your dealer or
supplier for further information.

Instructions for installer - CEX9 - 801040 - January 2019 v1.10 Art.no: 9120-25687
4010436256878
Head Office
Zip Water (Aust) Pty. Ltd
ABN: 46 000 578 727
67-77 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipwater.com
Telephone: [phone]
Free Call: 1 800 638 633
As Zip’s policy is one of continuous
product improvement, changes to
specifications may be made without
prior notice. Images in this booklet
have been modified and may not be
true representations of the finished
goods.
+
1
3
2
+
12
1
–1 °C +1 °C
A1 A2
B1 B2
2
4 3
1
1
–0,5 °C +0,5 °C
3
+
1 2
2
8
4
7
5
3
6
9
+
1
Arrow key down
Arrow key up
Programme button 1
Programme button 2
Press + hold!
Reset completed
Press
≥ 3 sec
Confirmation
of deactivation
Press
≥ 3 sec
Display of new value (e.g. 43 °C)
Set required
temperature
(e.g. 43 °C)
Confirmation
of activation
Press
≥ 3 sec
Display flashes
Press
≥ 2 sec
Set temperature
Convenience zone 35,0.. 42,0 °C
Select preset temperature
Store temperature
Power limit
Unit provides no output
Temperature limit off
Temperature limit on Reset
Open service menu
Quick reference guide
