Dear Clearaudio customer,
Thank you for purchasing the Clearaudio concept / Verify radial tonearm.
The innovative concept / Verify tonearm is using a friction free magnetic bearing technology and is
designed to allow a very comfortable and easy set up.
Highest demands and Made in Germany, combined with technology and a timeless design enable
the best possible sound enjoyment.
Please read this instruction manual carefully to avoid any damages or loss of warranty.
This manual will help you for an easy setup and guarantees the highest pleasure for a long time.
We wish you a lot of enjoyment with your new Clearaudio concept / Verify tonearm.
Clearaudio electronic GmbH

User manual / Bedienungsanleitung
Made in Germany Page / Seite 3
Safety instructions
1. General information
Check the tonearm for any damage before using it. Do not connect the tonearm if damaged!
Never connect the tonearm if it has been dropped or gotten wet, contact your dealer to have the
tonearm checked.
Never expose the tonearm to rain or moisture.
The inside of the tonearm is maintenance free. Never open the case or attempt to repair the unit
yourself, since this can lead to loss of warranty!
Before using the tonearm for the rst time or after a long period of inactivity the lift must be
operated approx. 4-5 times to loosen the grease in the tonearm lift to lower the lift bar evenly again.
2. Intended use
The concept / Verify is a tonearm for playing music and is intended exclusively for use on turntables.
Only use the concept / Verify tonearm in accordance with the information provided in the user
manual.
3. Location of installation
Avoid locations with direct sunlight, temperature uctuations and high humidity. Likewise, avoid
placing electronic devices near heaters, heat lamps, or other devices that produce heat.
The device is designed for operation at room temperature.
No objects with an open ame may be placed on or near the device (burning candles or similar).
4. Maintenance
We recommend that you move the tonearm lift at regular intervals to keep the bearing grease supple
and to prevent the tonearm from getting stuck during playback if you do not use your Clearaudio
tonearm for a longer period.
Never use aggressive cleaning agents.
Do not use dry cloths for cleaning as this generates static electricity. Suitable cleaning and care
products from Clearaudio are available at www.analogshop.de or from specialist retailers.
Only use a soft cloth with a smooth surface or a soft brush for cleaning.

User manual / Bedienungsanleitung
Page / Seite 4 © clearaudio electronic GmbH, 2022-11
5. Health information
Permanently high volume can lead to various types of hearing damage. Use high volume responsibly!
6. Service
The concept / Verify tonearm should be repaired during the guarantee period by the manufacturer
only, otherwise the warranty claim expires. All Clearaudio products should only be serviced by
specialist retailer.
If, despite the high production standard, a service is necessary, the
concept / Verify tonearm must
be send to Clearaudio through your dealer.
7. Transport
Use the original packing material for further transportation of the concept / Verify tonearm, otherwise
serious damage could occur.
Be sure to pack the device exactly as it was shipped.
Safe transport is only guaranteed in the original packaging.
Proceed in reverse as described for assembly when packing.
8. Disposal
Do not dispose this product together with other waste.
WEEE Reg. No.: DE26004446
9. CE Marking
This electronic product corresponds to the applicable guidelines for obtaining the CE mark.

User manual / Bedienungsanleitung
Made in Germany Page / Seite 5
Contents
1. List of components.......................................................................... 6
2. Mounting the tonearm base
2.1 Mounting the tonearm base on the Clearaudio Performance DC or Ovation turntable..... 7
2.2 Mounting the clamping ring on another manufacturers’ turntables..................................8
3. Mounting the concept / Verify tonearm.......................................... 9
4. Adjustment of the distance between spindle and pivot point .........10
5. Adjustment of the tonearm
5.1 Adjustment of the VTA ....................................................................................................... 11
5.2 Alignment and adjustment of the cartridge.......................................................................12
5.3 Adjustment of the tracking force.......................................................................................13
5.4 Adjustment of the azimuth.................................................................................................14
5.5 Adjustment of the anti-skating..........................................................................................15
6. Troubleshooting ...............................................................................16
7. Technical data ..................................................................................17
Warranty information.......................................................................... 34 - 35

User manual / Bedienungsanleitung
Page / Seite 6 © clearaudio electronic GmbH, 2022-11
1. List of components
The Clearaudio concept / Verify tonearm is delivered in a customized packing to ensure its safe
transport. Please retain the original packaging for any future transportation and shipping.
Please see the list below to check the contents of your Clearaudio
concept / Verify tonearm.
1. concept / Verify tonearm 5. Tonearm alignment gauge
2. Clamping base 6. Without picture:
Additional counterweight: 35.75 g
- at head screw M3 x 8
3. Hex wrench (#2 /3)
Screw driver
7. Without picture:
Warranty card, Clearaudio Quality Card,
user manual, return delivery note
4. Screws:
- 3x hex screws M4 x 10
(stainless steel)
- 1x grub screw M6 x 8
(stainless steel)
Pic. 1: List of components
Recommended Tools:
• Clearaudio Cartridge alignment gauge (Art. No. AC005/IEC)
• Clearaudio Weight Watcher touch (Art. No. AC163)
• Clearaudio Mini Level Gauge (Art. No. AK001)
This items and more accessories are available through your dealer or at www.analogshop.de.
1
2
345

User manual / Bedienungsanleitung
Made in Germany Page / Seite 7
2. Mounting the tonearm base
2.1 Mounting the tonearm base on the Clearaudio Performance DC or Ovation turntable
Please check if the correct tonearm base is mounted on your turntable (Pic. 2).
If the wrong tonearm base is mounted place the turntable on the edge of a table or similar surface
to gain access to the tonearm base from below.
Remove the tonearm base by loosening the six M4 x 35mm screws with a hex wrench on the bottom
side of the clamping ring.
Exchange the tonearm base and loosely tighten the screws to keep the tonearm base rotatable.
Please ensure the perfect location of the base.
Pic. 2: Tonearm base for concept & Performance DC & Ovation
(Art. No. AC031-4)

User manual / Bedienungsanleitung
Page / Seite 8 © clearaudio electronic GmbH, 2022-11
2.2 Mounting the clamping ring on another manufacturers’ turntables
Drill three holes into the turntable chassis to mount the aluminium clamping ring.

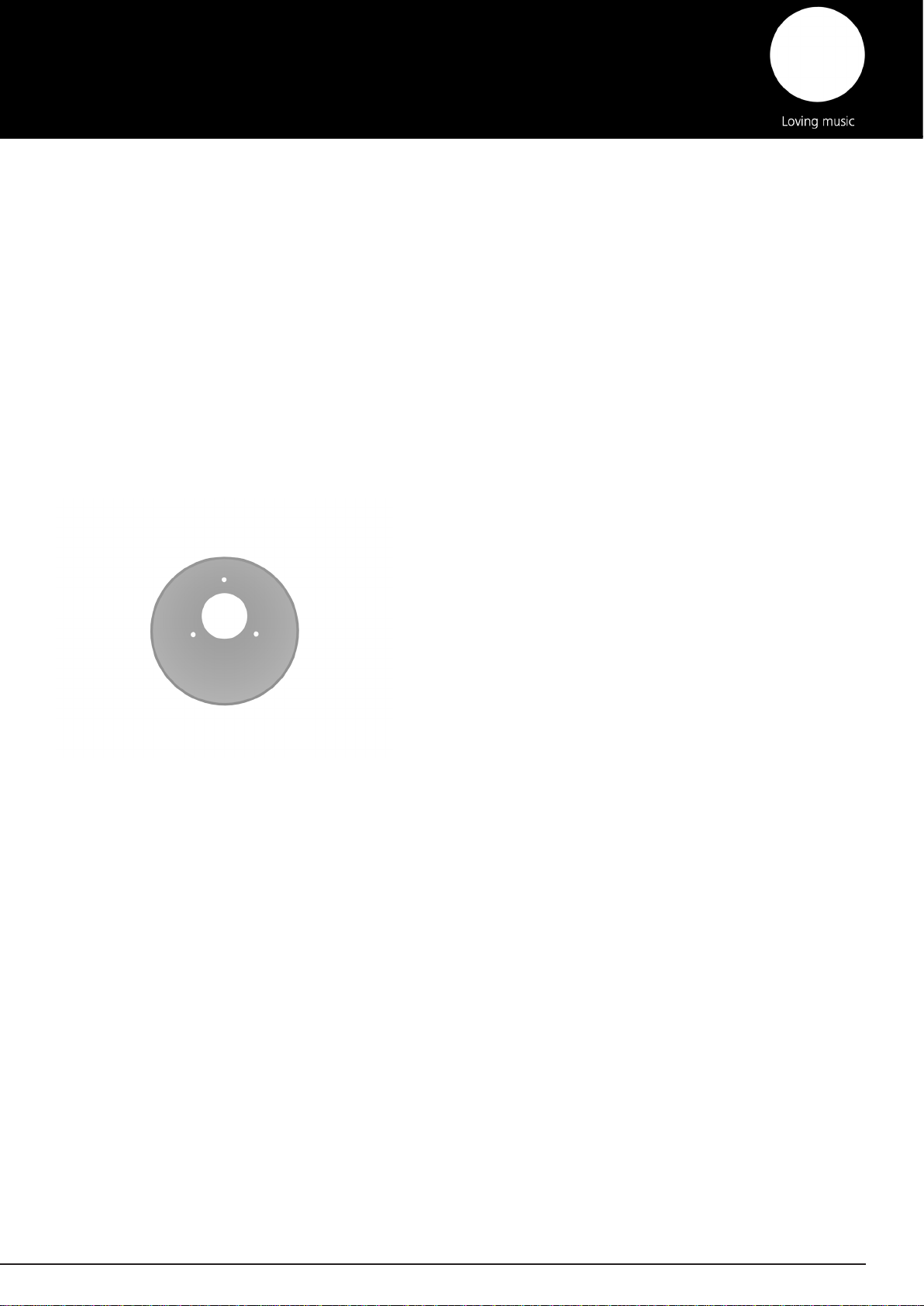

Use the measurements given in the drawing template below to ensure the correct position of the
three holes (Pic. 3).
Use a 3.3mm drill for this step. After you have drilled the three holes, thread the holes using an
appropriate tap cutter. If the material of the turntable chassis is not suitable for threading, please
use a 4.5mm drill for the holes. In this case, you will need longer screws with nuts to t the tonearm
base.
Please note that this image is not true to scale.
Pic. 3: Drilling template for mounting the tonearm base on a other manufacturers‘ turntable

User manual / Bedienungsanleitung
Made in Germany Page / Seite 9
Pic. 5: Mounting the tonearm
Pic. 6: Locking the tonearm
3. Mounting the concept / Verify tonearm
Pic. 4: Assembling the clamping base
Take the clamping ring and place it on the
recess in the tonearm base.
Now you can attach the clamping ring to the
tonearm base with the 3 supplied M4 x 10
screws.
Make sure that the side hole of the clamping
ring remains accessible (see Pic. 4).
First insert the tonearm cable and then the
tonearm foot of the concept / Verify tonearm
into the hole of the clamping ring (Pic. 5).
Now x the tonearm with the screws and
the hex wrench. Do not over-tighten for later
adjustments (Pic. 6)!

User manual / Bedienungsanleitung
Page / Seite 10 © clearaudio electronic GmbH, 2022-11
Pic. 7: Distance from pivot to stylus
Pic. 8: Cartridge mounting
5. Adjustment of the tonearm
The following settings require to mount the cartridge on the headshell.
Always follow the cartridge manufacturer’s instructions.
Leave the stylus protector on your cartridge to avoid any damages!
Now you can connect the respective signal cable with the matching color
pins of the cartridge.
Please note the following colour coding:
Red: right channel / R+
Green: right channel / R-
White: left channel / L+
Blue: left channel / L-
Connect the pins of your cartridge to the jacks of the headshell or tonearm
cable, taking care not to use too much force.
Use suitable precision pliers or tweezers for assistance if necessary.
222 mm
4. Adjustment of the distance between spindle and pivot point
We recommend to use the Clearaudio alignment gauge (Art. No. AC005/IEC, also available from
www.analogshop.de) for the exact setting of the tonearm pivot point.
Make sure that the distance between spindle and the pivot point of the tonearm is exactly 222mm.
You can adjust the distance by rotating the tonearm base.
Please tighten the tonearm base and check the measurement again after adjustment.

User manual / Bedienungsanleitung
Made in Germany Page / Seite 11
Pic. 9: Fixing the tonearm height
5.1 Adjustment of the VTA
The tonearm remains loose in the clamping ring and is not screwed tight. Now place a record or
the Clearaudio alignment gauge (Art. No. AC005/IEC) on the turntable and remove the stylus
protector from your cartridge.
Make sure the tracking force is roughly adjusted to avoid damage to the cartridge.
Please be extremely careful during the following steps!
Never move the cartridge in the alignment gauge while it is lowered.
Use the lift to lower the tonearm and check if the tonearm tube is parallel to the platter.
The tonearm tube should not touch the lift bracket, but the needle must rest on the record or the
alignment gauge.
Put the tonearm tube back in the rest position if the tonearm tube is not parallel and shows a slight
incline.
Now carefully lower/raise the entire tonearm in the clamping ring until the tonearm tube is parallel
to the platter.
Hand-tighten the clamping ring while the tonearm is in this position.
Put the tonearm back in the rest position holder and add the stylus protector if the position is still
correct.

User manual / Bedienungsanleitung
Page / Seite 12 © clearaudio electronic GmbH, 2022-11
5.2 Alignment and adjustment of the
cartridge
Use the adjustment template, included in the
scope of the delivery for the nal tonearm and
cartridge adjustment.
Place it directly on the turntable (without
record) and align it with the arrow pointing
toward the tonearm pivot point (Pic. 10).
Take the tonearm out of the rest position and
align it in the area of the cross lines.
Lower the tonearm and check the alignment.
The cartridge body must be aligned in the
template grid and the needle tip should be
located in the cross lines.
Also, the side and front edges of the housing
have to be parallel to the grid lines.
To correct the adjustment, loosen the screws
of the cartridge to move the cartridge in the
headshell.
Re-check the setting again after you have
tightened the screws.
Pic. 10: Alignment of the tonearm
Pic. 11: The tonearm tube must be absolutely parallel
Pic. 12: Stylus tip on reference point

User manual / Bedienungsanleitung
Made in Germany Page / Seite 13
5.3 Adjustment of the tracking force
Turn the counter weight at the end of the tonearm to increase or lower the tracking force.
Caution: Please hold the tonearm tube while rotating the counterweight to avoid any damages.
Red arrow (to the end of the tonearm)
= lower tracking force -> turn the counter weight anti-clockwise (left)
Green arrow (to the beginning of the tonearm)
= more tracking force -> turn the count weight clockwise (right)
Please follow the instructions of the respective cartridge manufacturer.
We recommend using the Clearaudio „Weight Watcher touch“ digital cartridge scale (Art. No.
AC163, also available at www.analogshop.de) for the correct setting.
Pic. 13: Adjustment of the tracking force

User manual / Bedienungsanleitung
Page / Seite 14 © clearaudio electronic GmbH, 2022-11
Pic. 14: Azimuth adjustment
5.4 Adjustment of the azimuth
The azimuth is the angle of the cartridge stylus to the record surface. Viewed from the front, the
cartridge needle has to be vertical to the record.
Please note: The azimuth is already set at the factory.
Lower the cartridge onto the record surface and check the position of the needle if you still want to
optimize the azimuth.
Please proceed as following to change the azimuth:
Loosen the screw (hex wrench #2) on the bottom side of the tonearm tube near the headshell.
Now you can adjust the azimuth by turning the headshell in the tonearm tube.
Carefully tighten the small hex screw again without changing the previously selected position.
We recommend the “Mini Level Gauge” from Clearaudio (Art.No.: AK001; also available from www.
analogshop.de) to check the adjustment.

User manual / Bedienungsanleitung
Made in Germany Page / Seite 15
5.5 Adjustment of the anti-skating
The anti-skating is already preset by Clearaudio.
Use the adjusting screw on the underside of the tonearm to adjust the anti-skating.
This setting is marked with a line on your tonearm (viewed from below).
Pic. 15: Adjustment of the anti-skating
You can change the anti-skating as follows:
Turn clockwise (max. 5 turns) = stronger anti-skating
Turn counterclockwise (max. 5 turns) = weaker anti-skating
We recommend the Clearaudio Trackablity Test Record available from www.analogshop.de or from
your specialist retailer for a professional and perfect anti-skating setting.
The tonearm adjustment is now complete.
We recommend to re-check all settings again and correct them if necessary before connecting the
tonearm to your phono pre-amplier.
We hope you enjoy your new
concept / Verify tonearm.
Your Clearaudio team

User manual / Bedienungsanleitung
Page / Seite 16 © clearaudio electronic GmbH, 2022-11
6. Troubleshooting
First check the possible causes to rule out incorrect operation if you have a problem with your
concept / Verify tonearm.
Please contact your dealer if the error persists!
Never try to open the unit and/or repair it yourself, this will void the warranty!
Error Cause Measure
Needle bounces
or slides across
record
Is the record or the stylus dirty or
damaged? Clean the record / or the cartridge. Clearaudio oers many helpful accessories for care and
cleaning. In the event of damage, we recommend
an assessment by a specialist and, if necessary,
an exchange.
Has the tracking force been set
too high? Adjust the tracking force. Use only a suitable gauge! For example
Clearaudio „Weight Watcher touch“ or
„Smart Stylus Gauge“.
Is the record deformed or
scratched? Use a record clamp or replace the record.
Is the turntable leveled? Check the alignment of the turntable and adjust
if necessary.
Tonearm lift
does not lower
or lowers very
slowly
The tonearm has not been used
for a long time, which means that
the greas in the tonearm lift can
harden and lower with diculty.
Operate the lift about 4-5 times to loosen the
grease in the tonearm lift and the lift bar will lower
evenly again.

User manual / Bedienungsanleitung
Made in Germany Page / Seite 17
7. Technical data
Construction details: Radial tonearm,
with friction free magnetic bearing technology.
Material: Aluminium (silver), tonearm tube made of black aluminium
(
concept ) or silver carbon ( Verify ).
Cartridge balance range: 2.5g - 17.0g
Overhang: 17.56mm
Total length: 305.00mm
Eective length: 239.56mm
Mounting distance
(tonearm pivot to spindle): 222.00mm
Oset angle: 24.16°
Wiring: 1.1m Clearaudio Direct Wire PLUS terminated with RCA.
Weight:
concept : approx. 450g (incl. counterweight)
Verify : approx. 440g (incl. counterweight)
Manufacturer’s warranty: 2 years*
* Provided that the warranty card is correctly completed and returned to Clearaudio, or your product is registered
online at https://clearaudio.de/en/service/registration.php, within 14 days of purchase.

User manual / Bedienungsanleitung
Page / Seite 18 © clearaudio electronic GmbH, 2022-11
Sehr geehrte clearaudio Kundin, sehr geehrter clearaudio Kunde,
Sie haben sich für einen concept / Verify Tonarm entschieden, ein hochwertiges Produkt der
clearaudio electronic GmbH.
Wir bedanken uns bei Ihnen für das uns entgegengebrachte Vertrauen.
Der innovative concept / Verify Tonarm verfügt über eine reibungsfreie Magnetlagerung und ist so
designed, dass Sie diesen sehr einfach und komfortabel montieren können.
Um alle Vorteile des concept / Verify Tonarms nutzen zu können, lesen Sie bitte diese
Bedienungsanleitung aufmerksam durch.
Alle Hinweise dienen dem Ausschöpfen der vollen Klangeigenschaften und bewahren Sie vor
Fehlbedienungen.
Wir wünschen Ihnen viel Freude mit Ihrem neuen clearaudio concept / Verify Tonarm.
clearaudio electronic GmbH

User manual / Bedienungsanleitung
Made in Germany Page / Seite 19
Sicherheitshinweise
1. Allgemeine Hinweise
Überprüfen Sie den Tonarm vor der Inbetriebnahme auf vorhandene Schäden.
Ist der Tonarm beschädigt, sollten Sie diesen nicht anschließen!
Schließen Sie den Tonarm niemals an, wenn er heruntergefallen oder nass geworden ist, kontaktieren
Sie Ihren Händler, um den Tonarm überprüfen zu lassen.
Setzen Sie den Tonarm niemals Regen oder Feuchtigkeit aus.
Das Innere des Tonarms ist wartungsfrei, önen Sie niemals das Gehäuse oder versuchen Sie das
Gerät selbst zu reparieren. Dies führt zu Garantieverlust!
Vor dem erstmaligen Benutzen oder nach längerem Stillstand muss der Lift ca. 4-5x betätigt werden,
damit sich das Fett im Tonarmlift lösen kann und der Liftbügel wieder gleichmäßig abgesenkt wird.
Nicht für Kinder geeignet! Lieferumfang kann verschluckbare Kleinteile enthalten.
2. Bestimmungsgemäßer Gebrauch
Der concept / Verify ist ein Tonarm zur Musikwiedergabe und zur ausschließlichen Verwendung auf
Plattenspielern bestimmt.
Der bestimmungsgemäße Gebrauch des concept / Verify Tonarms ist die Verwendung in
Übereinstimmung mit den in der Bedienungsanleitung bereitgestellten Informationen.
3. Aufstellungsort
Vermeiden Sie Aufstellungsorte mit direkter Sonneneinstrahlung, Temperaturschwankungen sowie
hohe Luftfeuchtigkeit. Ebenso sollten Sie Elektrogeräte nicht in der Nähe von Heizungen, Heizlampen
oder anderen Geräten platzieren die Wärme Produzieren.
Das Gerät ist für den Betrieb in beheizten Räumen konzipiert.
Auf dem Gerät dürfen keine Gegenstände mit oener Flamme aufgestellt werde (brennende Kerzen
o.Ä.).
4. Pege
Falls Sie Ihren clearaudio Tonarm längere Zeit nicht benutzen, empfehlen wir Ihnen den Tonarmlift
in regelmäßigen Abständen zu bewegen, um das Lagerfett geschmeidig zu halten und ein mögliches
Haken des Tonarms beim Abspielen zu vermeiden.
Verwenden Sie auf keinen Fall aggressives Reinigungsmittel.
Verwenden Sie zum Reinigen keine trockenen Tücher, da dies elektrostatische Auadung erzeugt.
Geeignete Reinigungs- und Pegemittel von clearaudio sind über www.analogshop.de oder über
den Fachhandel erhältlich.
Verwenden Sie zur Reinigung nur ein weiches Tuch mit glatter Oberäche bzw. einen weichen Pinsel.

User manual / Bedienungsanleitung
Page / Seite 20 © clearaudio electronic GmbH, 2022-11
5. Gesundheitshinweise
Dauerhaft hohe Lautstärke kann zu diversen Schädigungen des Gehörs führen.
Gehen Sie verantwortungsbewusst mit hohen Lautstärken um!
6. Service
Der concept / Verify darf während der Garantiezeit nur vom Hersteller repariert werden, ansonsten
erlischt der Garantieanspruch. Der Service für alle clearaudio Produkte sollte ausschließlich beim
Fachhändler erfolgen.
Sollte trotz des hohen Fertigungsstandards ein Service erforderlich werden, muss die clearaudio
concept / Verify über Ihren Fachhandel an clearaudio eingeschickt werden.
7. Transport
Beim Transport des clearaudio concept / Verify Tonarms ist stets die Originalverpackung zu
verwenden. Achten Sie darauf, das Gerät genauso zu verpacken, wie es ausgeliefert wurde.
Nur in originalverpacktem Zustand ist ein sicherer Transport gewährleistet.
Beim Verpacken umgekehrt verfahren, wie bei dem Aufbau und der Inbetriebnahme beschrieben.
8. Entsorgung
Dieses Produkt darf nicht zusammen mit Restmüll entsorgt werden.
WEEE Reg.Nr.: DE26004446
9. CE-Markierung
Dieses Elektronikprodukt entspricht den gültigen Richtlinien zur Erlangung des CE-Zeichens.
