ClearWater Lights CANopener User manual

Page 2
Step 1: Parts List and Bike Preparation
Page 1
**NOTE****NOTE**
The table below is only a quick summary guide of all the CANopener features. SeeThe table below is only a quick summary guide of all the CANopener features. See
the details of each feature throughout this manual.the details of each feature throughout this manual.
Page 1
Summary of CANopener features and operationSummary of CANopener features and operation
VERSION 2.4
TSC = Turn Signal Cancel WW = Wonder Wheel (BMW multifunction controller)
TPM = Tire Pressure Monitor FTP = Flash To Pass OBL = Optional Brake Light
Default setting in RED
Function
Command
Modes
Darla/Glenda
Dimmer
[Pg. 5]
Press and release (TSC), then
Hold control wheel Left for 2
seconds and rotate to adjust.
Press (TSC) again to lock in.
Rotate WonderWheel to select 10 brightness
levels (10% to 100%) To adjust brightness on
High Beam Mode, turn on high beam first.
Dimmer control will cancel after 2 seconds or
by pressing TSC
Erica/Krista/Sevina
Dimmer
[Pg. 5]
Press and release (TSC), then
hold control wheel right for 2
seconds and rotate to adjust.
Press (TSC) again to lock in.
Erica/Krista/Sevina
On/Off
Hold TSC for 2 seconds
Mode 1 - on and dimmable (default)
Mode 2 – off
Darla On/Off
(Version 2.3 and later)
Hold TSC Left for 5 seconds to
turn OFF
Hold TSC Right for 3 seconds to
turn back ON
Mode 1 - on and dimmable (default)
Mode 2 – off
High Beam
Mode
[Pg. 7]
Press and release (TSC), hold
brake lever and press & release
FTP 5 times to toggle
Mode 1 - all lights on 100% with high beam or
FTP, Krista/Erica/Sevina must be turned on
Mode 2 - Same as Mode 1 except
Krista/Erica/Sevina lights don’t have to be
turned on. (default)
Mode 3 - Same as Mode 2 but lights will
strobe for 2 seconds if FTP is pressed 3
times (Version 1.91 and later)
Horn Activation
Mode
[Pg. 6]
Press and release TSC, then
hold brake lever and press &
release TSC 5 times to toggle
Mode 1 - horn does not affect lights
Mode 2 - horn activates lights 100% (default)
Mode 3 -lights strobe with horn
Hazard
Flasher
Alert Mode
[Pg. 7]
Press and release (TSC), hold
hazard switch then press &
release brake lever 5 times to
toggle
Mode 1 - no flash (default)
Mode 2 - lights strobe while holding hazard
switch (Version 1.90 and earlier). Lights
strobe when hazards are toggled on (Version
1.91)
Turn Signal
Dimming
[Pg. 6]
Press and release (TSC), hold
right turn signal then press &
release front brake lever 5 times
Mode 1 - off (default)
Mode 2 - lights dim when turn signals are
activated.
Clearwater
Brake Light
(optional)
[Pg. 8]
While stationary, press & release
TSC then press & release the
front brake lever 5 times within 5
seconds to toggle
Mode 1 - off (default on Version 1.6 and
older)
Mode 2 - functions identically to BMW brake
light (default on Version 1.7 and later)
Mode 3 - California legal strobe on brake
activation (4Hz flash)
Mode 4 – speed sensitive (flashes faster and
brighter with harder braking) Can be
adjusted.
Inertial Braking
[Pg. 8-9]
Press & release TSC then press
& release the foot brake lever 5
times within 5 seconds to toggle
Mode 1 - Inertial braking disabled
Mode 2 – Low sensitivity. Brake light
activates when engine braking reaches .4G.
Mode 3 – High sensitivity. Brake light
activates when engine braking reaches .2G.
(default)
Brake Dimming
See brake light manual
See brake light manual
Reset
Default
Settings
[Pg. 9]
Press and release (TSC), hold
left turn signal then press &
release FTP 6 times within 6
seconds.
Reset all functions to the default settings
above.
BIKE MUST BE RUNNING TO TOGGLE THROUGH MODES BELOW

Page 3
Step 1: Parts List and Bike Preparation
Page 2
Summary of Features
1. Independent dimming feature
• Independent dimming of two sets of Clearwater lights using the BMW
Wonder Wheel (handlebar mounted rotary dimmer is included for
non-Wonder Wheel bikes)
• The dimmer has 11 brightness levels. Starting at 3%, then increasing
from 10-100% in 10% increments
2. Automatic Dimmer
• Dimmer setting compensates automatically using the bike’s photocell
• Factory preset for day, night, and high beam illumination
3. On/O function for Erica/Krista/Sevina/Darla lights
• No separate switch required, uses factory turn signal cancel button
4. Turn Signal Dimming
• Clearwater Lights can be set to dim while turn signals are activated.
5. Horn Activation Mode
• Programmable to illuminate or strobe with horn button (o road use
only)
6. High Beam Mode
• Clearwater Erica/Krista/Sevina lights programmable to activate or
strobe (o-road use only) with ash-to-pass button
7. Hazard Flasher Alert Mode
• Programmable to strobe when switching the hazard button on/o (o
road use only)
8. Clearwater Brake Light Module (optional)
• Programmable LED brake module includes standard brake/tail
California-legal strobe mode, and speed sensitive mode
9. Auxiliary CANopener relay drives
• Auxiliary turn on (1/4 amp maximum) -YELLOW wire
• Auxiliary horn (1/4 amp maximum) - GRAY wire
• Auxiliary high beam relay drive (1/4 amp maximum) - GREEN wire
WARNING: Do not connect auxiliary accessories without a relay!
10. Factory Default Reset
• Reset all functions to the default settings
Clearwater CANopener features and operations

Page 4

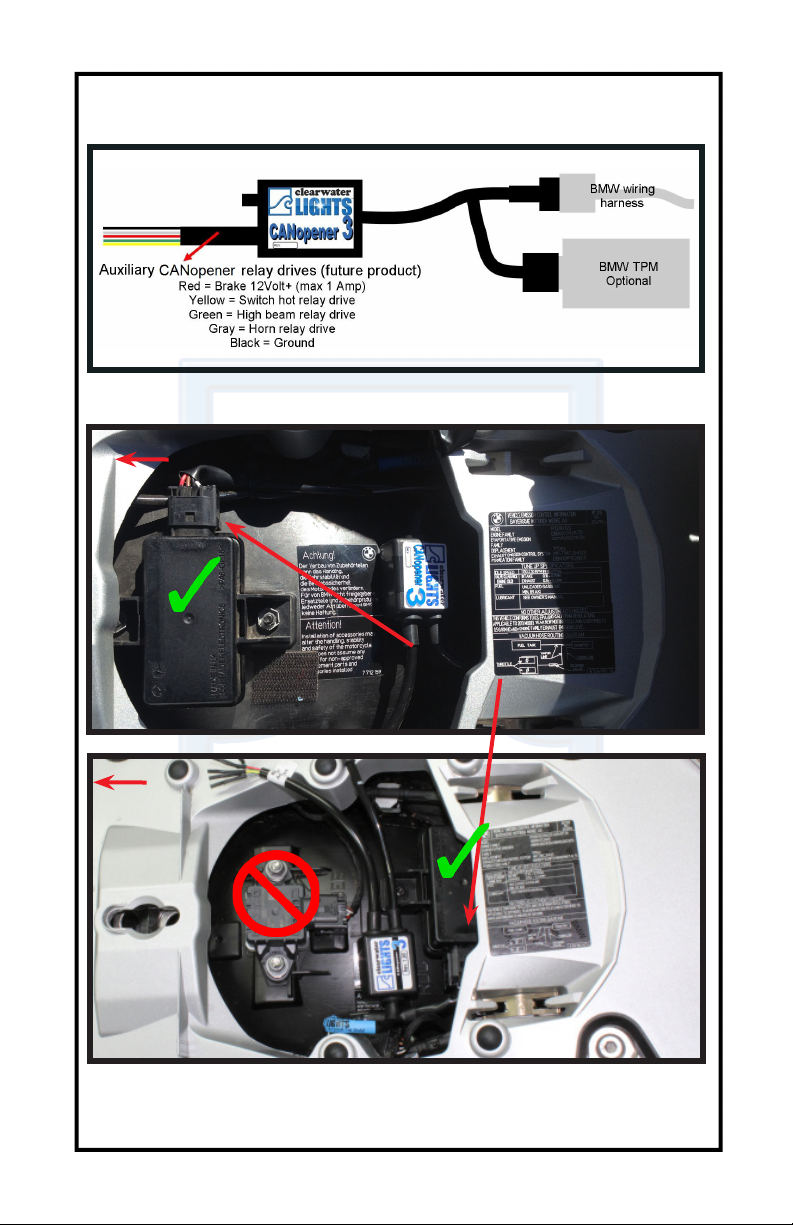

CANopener Mounting Locations
Page 3
The CANopener module can be found mounted under the seat on most liquidThe CANopener module can be found mounted under the seat on most liquid
cooled BMW’s.cooled BMW’s.
Tire Pressure MonitorTire Pressure Monitor
(Models w/ TPM)(Models w/ TPM)
2013-2015 TPM2013-2015 TPM
locationlocation
2016+ TPM2016+ TPM
locationlocation
CANopener location on a R1200GSW/GSAW
Front of BikeFront of Bike
Front of BikeFront of Bike

Page 5

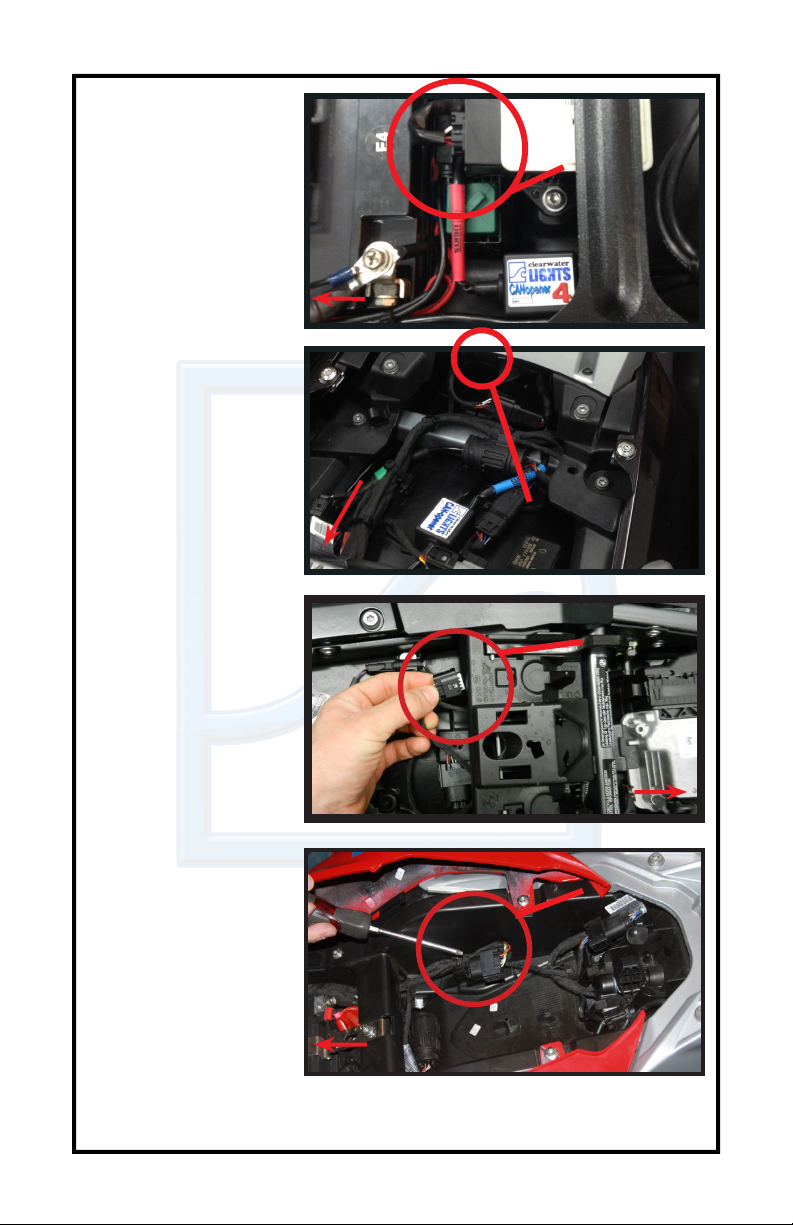

CANopener Mounting Locations
Page 4
CANopener location on
a K1600GT.
CANopener location on
a R1200RTW.
Tire PressureTire Pressure
Monitor hiddenMonitor hidden
here.here.
CANopener location on
a R1200R/RS
CANopener location on
a S1000XR
Alarm module plugAlarm module plug
is hidden here.is hidden here.
Lean angle sen-Lean angle sen-
sor location.sor location.
Tire Pressure Monitor hid-Tire Pressure Monitor hid-
den here under frame.den here under frame.
Front of BikeFront of Bike
Front of BikeFront of Bike
Front of BikeFront of Bike
Front of BikeFront of Bike

Page 6 Page 5
Clearwater CANopener operation and features
WARNING: When conguring the dimmer, be sure that the Wonder Wheel is not
making adjustments to other functions of the onboard systems. Turn o the
entertainment system to prevent volume adjustment or unwanted channel
changes, and select the home screen on the GPS.
DIMMING CONTROL (Wonder Wheel equipped bikes)DIMMING CONTROL (Wonder Wheel equipped bikes)
Information on DimmingInformation on Dimming:: Two modulated brightness channels are adjustable using
the Wonder Wheel. Each channel is programmable for (11) brightness settings (3,
10-100%) in three dierent modes (day, night, and high beam). Settings are stored,
and will be remembered when restarting the bike or disconnecting the battery. The
dimmer is programmed at the factory for the most useful day/night settings. Follow
the procedure below to enter dimming mode.
Step 1Step 1: To enter into dimming mode, rst: To enter into dimming mode, rst
press & release the TSC button shown inpress & release the TSC button shown in
the gure to the right.the gure to the right.
Step 2Step 2: To adjust Glenda/Darla lights,: To adjust Glenda/Darla lights,
hold the Wonder Wheel to the left for 2hold the Wonder Wheel to the left for 2
seconds. To adjust Krista/Erica/Sevinaseconds. To adjust Krista/Erica/Sevina
lights, hold Wonder Wheel to the rightlights, hold Wonder Wheel to the right
for 2 seconds. The lights should ashfor 2 seconds. The lights should ash
twice. The brightness level can then betwice. The brightness level can then be
adjusted by rotating the wheel.adjusted by rotating the wheel.
Step 3Step 3: To exit dimming mode, press and: To exit dimming mode, press and
release the TSC button again. This willrelease the TSC button again. This will
lock in the brightness setting.lock in the brightness setting.
Note - Remember that each set of lights are adjustable for day and night.
Day and night settings are automatically selected by the ambient light level
reaching the bike’s photocell. To adjust the night dimmer, simply cover the
dash display using your hand or a towel. Activating the high beam switches the
lights to 100%. If you want your high beam dimmed, simply perform the same
commands in high beam.

Page 7
Default Settings:
DIMMING CONTROL (Non-Wonder WheelDIMMING CONTROL (Non-Wonder Wheel
If the motorcycle does not have the GPS Prep Package (Wonder Wheel), your light kit will
come equipped with a handlebar mounted knob for dimming control. Separate day and
night settings, seperate channel dimming, and all strobe functions will not be available.
Clearwater CANopener operation and features
Page 6
ON/OFF FUNCTION FOR ERICA/KRISTA/SEVINAON/OFF FUNCTION FOR ERICA/KRISTA/SEVINA
The Krista/Erica/Sevina lights can be manually deactivated. Toggle these modes
by holding the TSC button for two seconds.
• Mode 1 – on and dimmable (default)
• Mode 2 – o
( Krista/Erica/Sevina lights can automatically be shut o if the TSC button is pressed and
released 3 times. This is great if the rider forgets is the lights are on or o.)
TURN SIGNAL DIMMINGTURN SIGNAL DIMMING
The front Clearwater lights, and Billie tail light can be programmed to dim when the turn
signals are activated. To toggle the Turn Signal Dimming mode on and o, press and
release the (TSC) button, hold the right turn signal while pressing and releasing the front
brake lever 5 times.
DIMMING CONTROL (except non-WonderWheel bikes)
• Mode 1 - O (default)
• Mode 2 - All Clearwater lights dim to the lowest setting when activating turn signals.
HORN ACTIVATION MODEHORN ACTIVATION MODE
The Clearwater lights can be programmed for three dierent modes when
the horn button is pressed. Toggle these modes by pressing and releasing the
TSC, then hold the front brake lever and press and release the TSC (5) times. The
brake and Clearwater lights will ash to indicate the mode selected:
• Mode 1 – horn does not aect lights
• Mode 2 – horn activates lights 100% (default)
• Mode 3 – horn strobes lights (if two sets of Clearwater lights are installed,
they will alternate ashing)
WARNING: The use of strobe mode may not be legal on public highways. Check
your local regulations. This mode is intended for parades and escorts under
certain conditions.

Page 8
HIGH BEAM MODEHIGH BEAM MODE
The Krista/Erica/Sevina lights can be programmed for three modes of
operation in conjunction with high beams. Toggle these modes by pressing
and releasing the (TSC) button, holding the front brake lever then pressing and

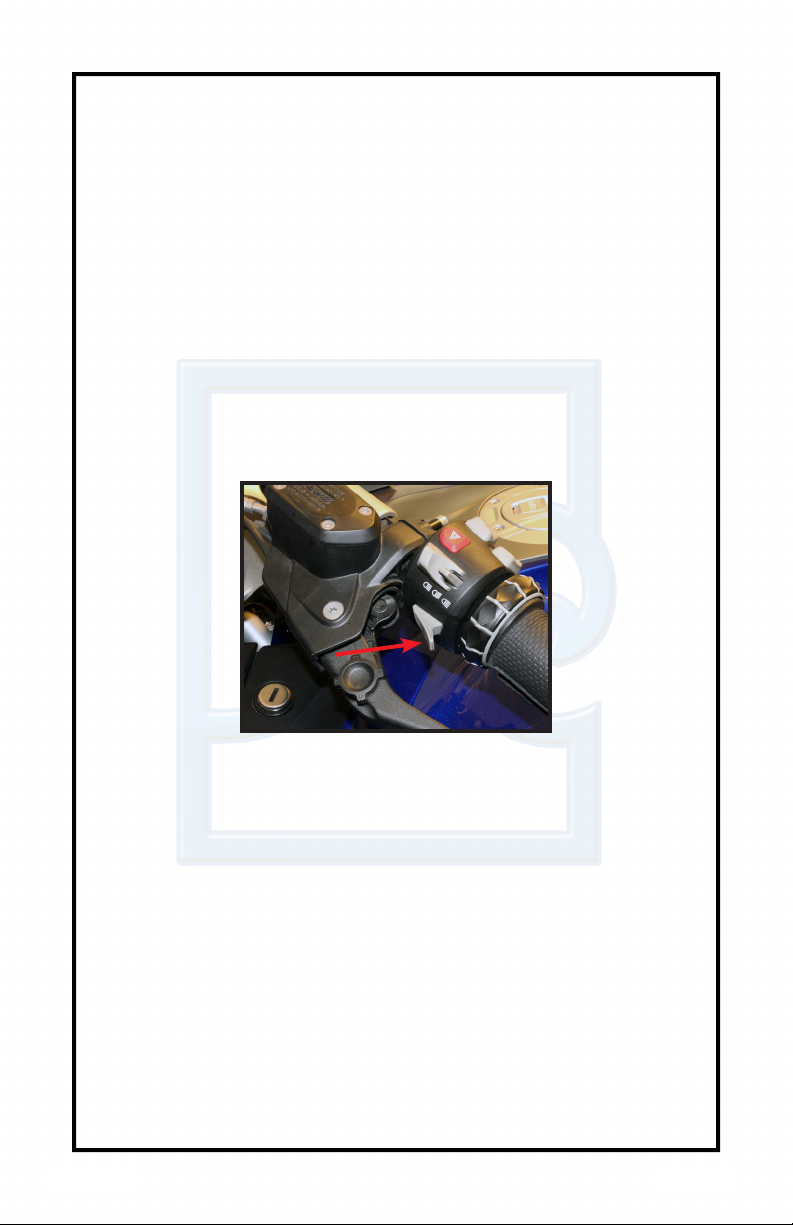

releasing the FTP button (See Fig. A below) (5) times:
• Mode 1 – All Clearwater lights turn on 100% when high beam or ash-to-
pass is pressed. Krista/Erica/Sevina lights will not turn on with high beam
or ash-to-pass if Krista/Erica/Sevina lights are switched o.
• Mode 2 – HIGH BEAM ACTIVATION. All Clearwater lights turn on 100%
when high beam or ash-to-pass is pressed. Krista/Erica/Sevina lights will
turn on when High beam or ash-to-pass is pressed, even when Krista/
Erica/Sevina lights are switched o (default on Version 1.6 or greater).
• Mode 3 - HIGH BEAM FLASH MODE: Same as Mode 2, but lights will ash
for 2 seconds when the ash-to-pass button is triggered 3 times. (Version
1.91 or later).
Clearwater CANopener operation and features
Page 7
HAZARD FLASHER ALERT MODEHAZARD FLASHER ALERT MODE
The Clearwater lights can be programmed to strobe when the hazard
asher button is toggled on. Toggle these modes by pressing and releasing the
(TSC) button, holding down the hazard asher button, then press and release the
brake lever (5) times:
• Mode 1 – OFF, no ash with emergency asher button (default)
• Mode 2 – strobe with emergency asher when button is held down
(Version 1.90 or earlier), or toggled on (Version 1.91 and later). If two sets of
Clearwater lights are installed, they will alternate ashing.
WARNING: The use of strobe mode may not be legal on public highways. Check
your local regulations. This mode is intended for parades and escorts under
certain conditions.
Fig. AFig. A
FTP buttonFTP button

Page 9
Clearwater CANopener operation and features
Page 8
AUXILIARY CANopener RELAY DRIVESAUXILIARY CANopener RELAY DRIVES
• Auxiliary turn on (1/4 amp maximum) Useful for turning on aux fuse boxes or
a PDM-60.
• Auxiliary horn (1/4 amp maximum) Useful for adding an aux air horn. MUST
use relay.
• Auxiliary high beam relay drive (1/4 amp maximum) Useful for adding an aux
high beam.
WARNING: Do not connect auxiliary accessories without a relay!
CANopener Wiring Key
(For Billie/Accessory Cable)
Ground
Brake/Tail Light
12V Motory Start*
High Beam*
Horn* *Relay Drive
FACTORY DEFAULT RESETFACTORY DEFAULT RESET
To reset the CANopener to the factory settings, press and release the (TSC) button,
hold the left turn signal switch and press and release the ash-to-pass button (6)
times . All factory preset dimmer levels and modes will be selected. A successful reset
is indicated by ve ashes of all Clearwater lights.
DIXI FUNCTIONALITYDIXI FUNCTIONALITY
Dixi lights operate similarly to two sets
of our lights. The Outer Ring of LEDs (A)
can be turned on and o by holding in
the TSC for 2 seconds just like a set of
Kristas, Ericas or Sevinas.
The Inner LEDs (B) are designed to come on with the engine just like a set of
Darlas but can be shut o (Version 2.3+) by holding the TSC Left for 5 seconds and
turned back on by holding the TSC to the right for 3 seconds.
The Inner and Outer ring of LEDs are dimmed independantly using the same
dimming operation as the Krista/Erica/Sevina channel for the outer ring of LEDs
and as Darlas for the inner LEDs. Refer to Page 5, Step 2 for further dimming
operation details.
Note: These are all 12vNote: These are all 12v
signals that would besignals that would be
used to trip a relay thatused to trip a relay that
is powered by the bike’sis powered by the bike’s
battery.battery.

Page 10 Page 9
Notes
Page 9

Page 11
Page 9
Notes
Page 10

As Of 3/6/2020
