Coca-Cola Freestyle® 71OO utilizes micro-dosing technology and stores
all beverage components separately until the moment the drink is poured,
ensuring a fresh, great tasting beverage every time.
This guide provides general tips and
proper maintenance procedures for your
Coca-Cola Freestyle® 7100 dispenser.

© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company
equipment
operations
product replacement
maintenance
resources
contents
external components •••••••••••••••••2
internal components •••••••••••••••••3
pouring a drink •••••••••••••••••••••4
(standard and ADA interface)
access the crew dashboard••••••••••••••5
using the freestyle operating system••••••••6
cleaning nozzle and injector ring ••••••••• 14
cleaning ice chute and check/refill ice ••••• 15
small parts & cleaning tips ••••••••••••• 16
daily, weekly, and monthly tasks ••••••••••17
prohibit dispense ••••••••••••••••••• 18
calorie display feature ••••••••••••••• 19
Crew Connect ••••••••••••••••••••• 20
handling ingredient cartridges •••••••••••7
when to replace an ingredient cartridge •••••8
replacing an ingredient cartridge ••••••••••9
HFCS (sweetener) dashboard reset ••••••• 10
replacing sweetener ••••••••••••••••••11
HFCS (sweetener) and NNS
Coca-Cola Freestyle Boost (optional equipment) ••12

© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company

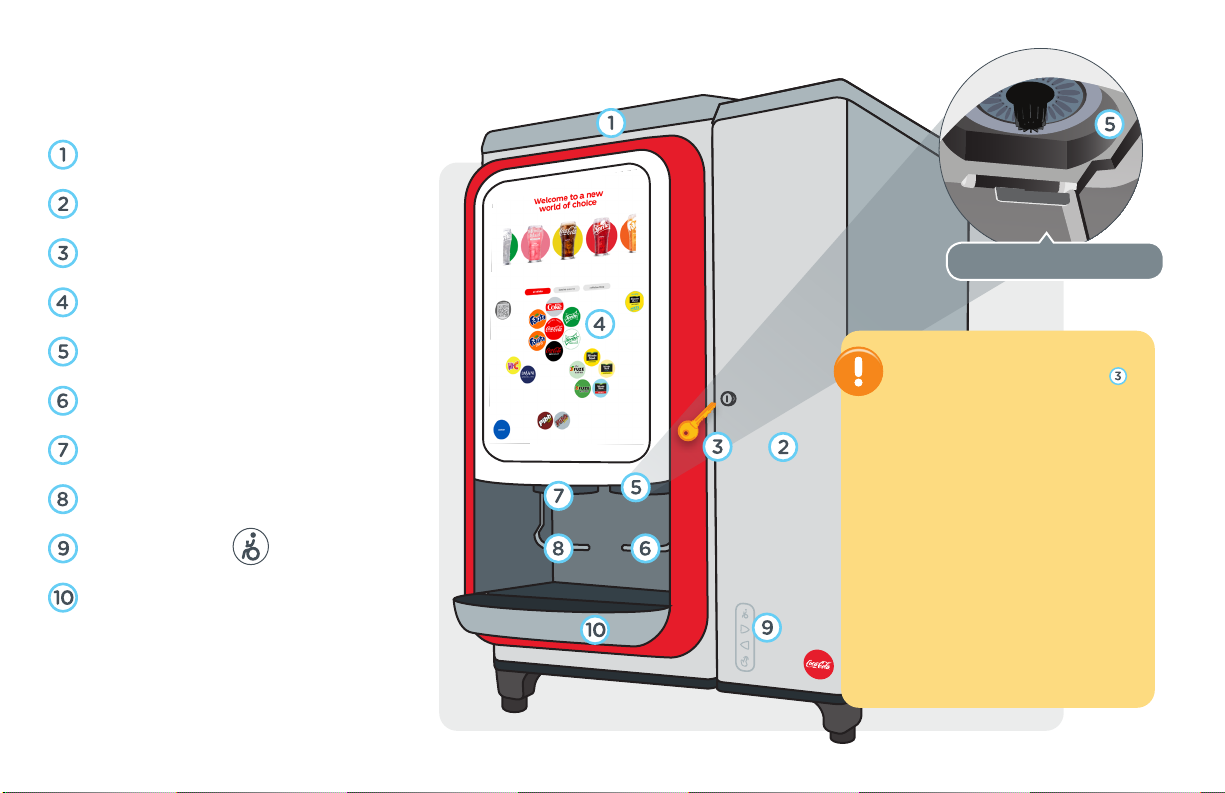

external components
Ice bin lid*
Cartridge access door
Key
Touch screen
Nozzle and injector ring
Beverage dispense lever
Ice chute
Ice dispense lever
ADA interface
Cup rest and drain pan
The cartridge area is accessible by
unlocking the key lock (pictured
in the diagram).
• For several reasons, including food
safety, it’s important to keep this
area locked at all times and the key
kept with a manager or in a secured
location (such as a locked oce).
• Additional keys can be ordered
through the Coca-Cola Small Parts
Program at no-cost.
• Should you misplace your key
or experience trouble with
accessing the cartridge area, call
Coca-Cola Phone-Fix®for support at
1-800-241-COKE (2653).
* Not applicable with top mounted ice maker.
page 2 | equipment
Nozzle and Injector Ring

The dispenser is
equipped with two
stand-by modes:
1. Power Saver Mode
If the dispenser is inactive for
120-minutes the touchscreen
will go dark. Simply tap the
touchscreen anywhere to
wake it up.
2. Locked Mode
Lock the dispenser by
pressing the lock icon in the
top right corner of the crew
dashboard. This mode locks
the touch screen and prohibits
dispensing during non-
operating hours. Choose to
lock manually or set an
automated time window.
Power Switch
The power (on/o) switch is
located on the right-hand side
underneath a square plastic
flap. CAUTION! DO NOT
POWER OFF unless told to do
so by a Coca-Cola Senior
Technician or as instructed for
safety when cleaning the ice
bin (refer to page 15).
© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company
internal and under the counter components
Ingredient cartridge
Cartridge tray
Brand identification strip
Power switch
HFCS sweetener
CO2tank
Power Switch
Cartridge Tray
page 3 | equipment

© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company

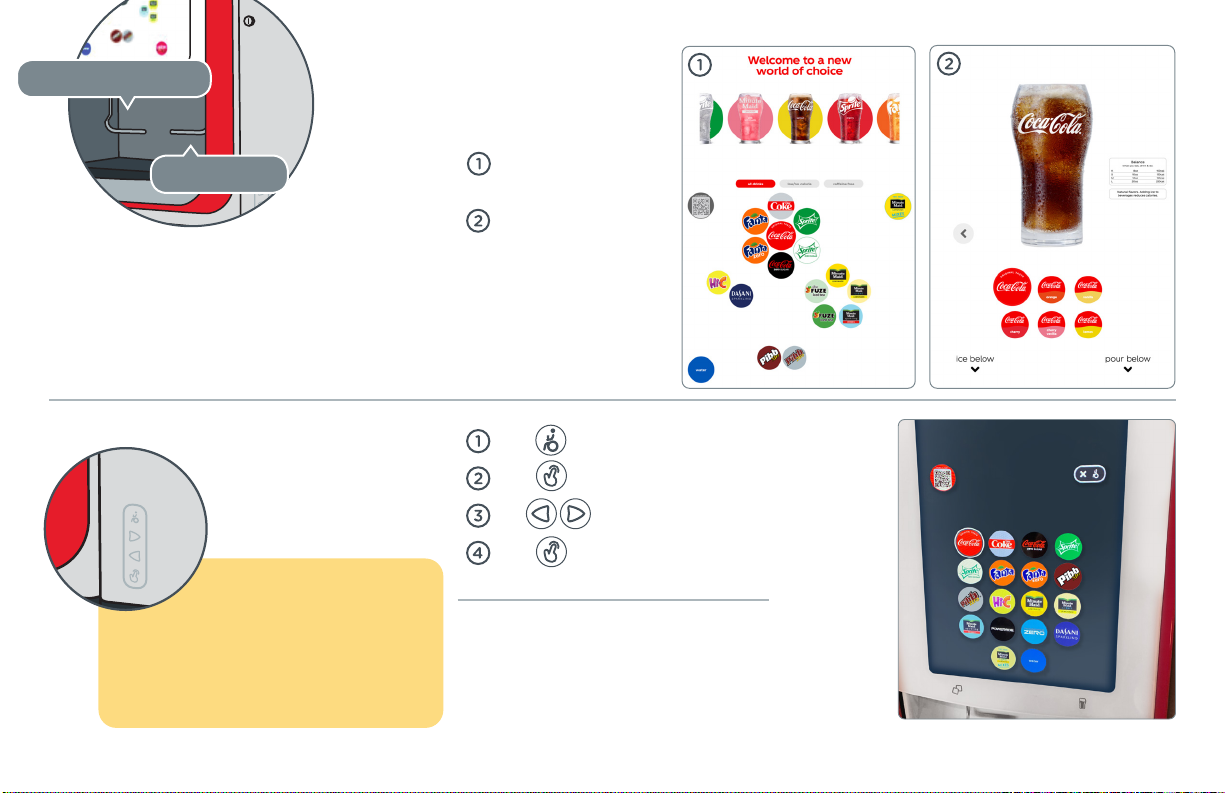

pouring a drink
Step one
Place your cup under the ice chute and press
lever to dispense ice.
Step two
Find your favorite beverage using the touch
screen. Note the touch screen will time out after
10 seconds and return to the home screen.
Using the ADA interface
The ADA interface allows people with
reach challenges (such as those in
wheelchairs) to use the Coca-Cola
Freestyle® dispenser without
having to reach the touch screen.
NOTE: The ADA screen will revert back to the
standard home screen after one minute of
inactivity, or press “ADA Exit Button” in the
upper right corner.
Ice Dispense Lever
Pour Lever Select a brand to see all
available flavor options.
Pick your favorite and
then use the pour lever to
dispense your beverage.
page 4 | operations
Assisting Guests with the Coca-Cola Freestyle
Dispenser
Some guests may need a little extra help choosing
and dispensing his/her drink if you have the
Coca-Cola Freestyle dispenser.
If someone looks like they might need assistance (e.g., he/she is
visually impaired or height/reach challenged), tell your guest that
you have the Coca-Cola Freestyle dispenser and that you would
be happy to assist with his/her beverage choice.
It is up to you to determine whether the above satisfies your legal
and operational obligations.
Press to activate the ADA Interface
Press to select a brand and see all the flavor options.
Use to navigate to your favorite beverage
Press to pour selected beverage.

© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company

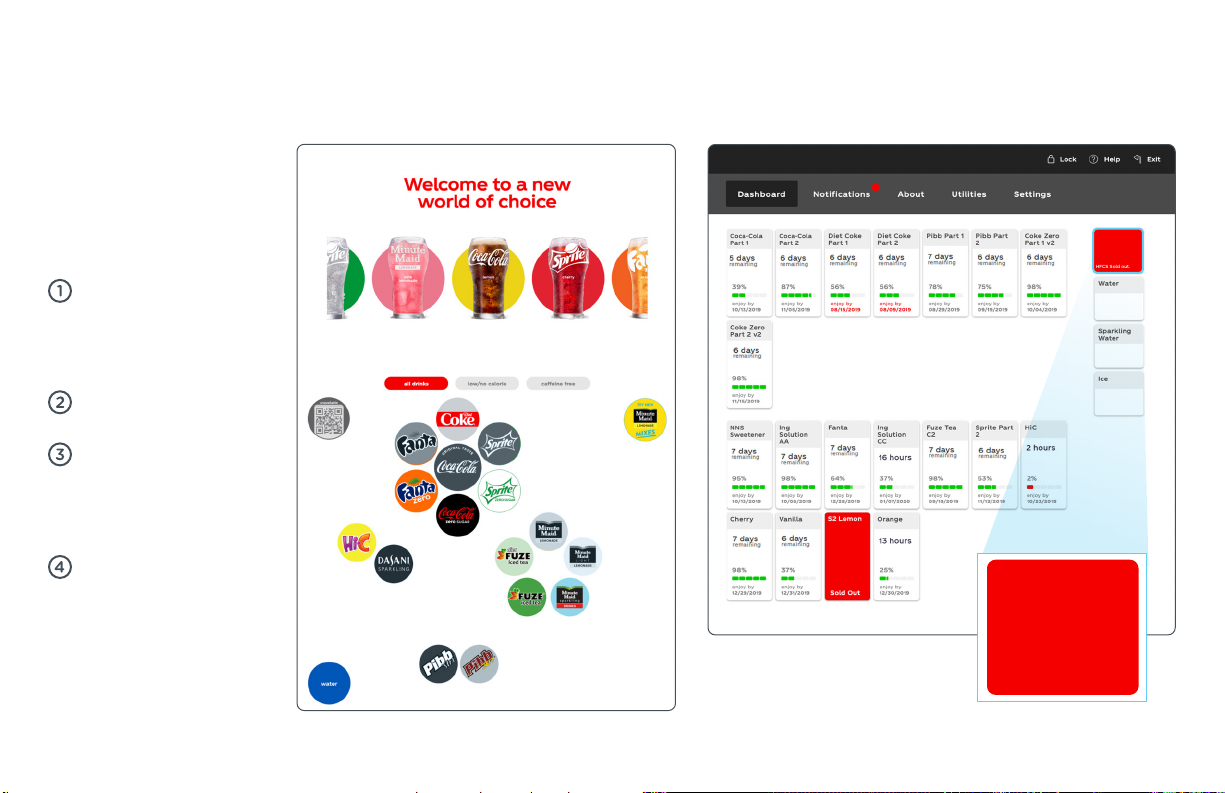

Crew Dashboard
There are two ways to
access the crew
dashboard:
Secret Handshake
Opening the
cartridge access
door
access the crew dashboard
Secret
handshake
On the all brands
consumer screen, press
your index finger to the
lower left side of the
screen to the right of the
water icon. Hold for
approximately 5-6
seconds to launch the
crew dashboard.
page 5 | operations

© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company
Bold alerts provide clear direction when
maintenance is required.
Color-coded fuel gauges displaying the
remaining product percentage and enjoy by
date of each cartridge improve cartridge
change-out management for crew members
and reduce product waste.
The percentage remaining and time before
changing the ingredient cartridge may vary
significantly. For example, a flavor cartridge
with 6% may have several days remaining,
while a heavily used ingredient cartridge,
like Coca-Cola, may last only a few hours
with 6%.
A time remaining feature provides an
accurate reading when each cartridge will
likely run out. This new feature is calculated
using the dispenser’s consumption activity
and daypart data to deliver a dynamic and
precise reading throughout the day.
using the crew dashboard
page 6 | operations
Orange
Prime
Required

© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company
SmartPAK™ (paperboard) cartridges replace your BIB packaging,
except for HFCS (sweetener) BIB. HFCS will be the only
ingredient located outside of the Coca-Cola Freestyle®
dispenser.

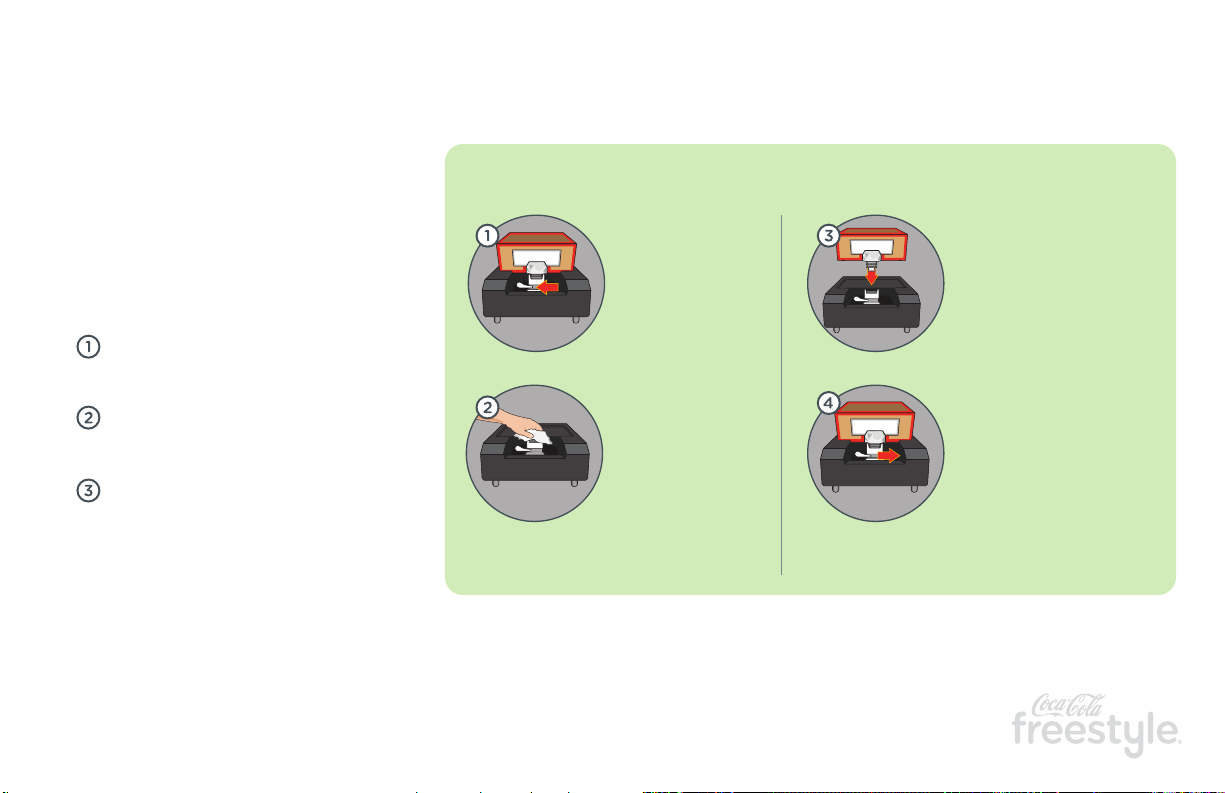

• Always remove and replace ONE CARTRIDGE at a time to avoid inserting it into the
incorrect slot.
• Black plastic cartridge trays should be “hand washed” only using detergent
cleanser and Kay-5 sanitizer or an approved equivalent and NEVER PLACED IN A
DISHWASHER. Placing trays in a dishwasher may warp the trays over time.
• Staging of ingredient cartridges and plastic trays for your most popular brands
and flavors will make the cartridge change-out process more ecient and avoid
delays during peak periods.
• Never stack cartridges more than six (6) high.
• Always ensure ingredient cartridges are organized by “enjoy by dates” to
eectively manage inventory.
• Always use your oldest ingredient cartridges on hand first,
i.e. “FIRST-IN ~ FIRST-OUT”.
• Avoid placing cartridges near any heat source, standing water,
or cleaning solutions.
Proper handling of the ingredient cartridges and plastic
trays is extremely important to ensure proper operation
of the Coca-Cola Freestyle® 7100 dispenser.
page 7 | product replacement
handling ingredient cartridges

© 2020 The Coca-Cola Company | Coca-Cola Freestyle® 71OO User Guide | Confidential information of The Coca-Cola Company
when to replace cartridges and how to prime
The example above shows the Hi-C ingredient
cartridge is empty, as a result the flavor icon is
grayed out and will say “Not Available” when
selected.
Access the crew dashboard
to view the color-coded fuel
gauge displaying the
remaining product percentage.
Keep in mind, the percentage
remaining and time before changing the ingredient
cartridge may vary significantly. For example,
a flavor cartridge with 6% may have several
days remaining while a heavily used ingredient
cartridge, like Coca-Cola, may last only a few
hours with 6%.
NOTE: Time remaining is an estimate based on the
dispenser’s consumption activity and daypart data.
Replacing ingredient cartridges
starts with knowing when a
cartridge is empty or unavailable.
1 hour
Fanta
remaining
2%
Enjoy by 04/05/19
Cartridge prime procedure.
Priming an ingredient cartridge simply removes
any trapped air in the line and ensures guests
receive a consistent, quality beverage. After
replacing an empty cartridge, follow the on-
screen messages outlined below:
Confirm the cartridge was inserted into
the correct slot and prime by pressing the
orange box on the crew dashboard or press
“Prime All” to prime multiple cartridges.
REMINDER: The prime process lasts
approximately 5-10 seconds. The process should
NEVER be interrupted.
When priming is complete, press exit at
the upper right of the screen. Follow the
subsequent prompt on the screen to return
to the main screen.
NOTE: Only press the “Prime All” button ONCE!
Pressing it more than once will needlessly repeat
the prime process.
Navigate to Consumer Interface
Are you sure you want to navigate to the consumer interface now?
ContinueCancel
page 8 | product replacement
1 hour
Fanta
remaining
2%
Enjoy by 04/05/19
