Electrical signal integrity considerations for
HP BladeSystem
technology brief
Introduction......................................................................................................................................... 2
What is signal integrity ........................................................................................................................ 2
Challenges.......................................................................................................................................... 4
Significant factors affecting signal integrity ............................................................................................. 6
Dielectric losses ............................................................................................................................... 6
Skin effect ....................................................................................................................................... 6
Impedance discontinuities ................................................................................................................. 6
Stubs .............................................................................................................................................. 7
Crosstalk......................................................................................................................................... 8
Design goals....................................................................................................................................... 9
Target fabrics ................................................................................................................................10
Infrastructure architecture ................................................................................................................ 10
Implementation.................................................................................................................................. 11
Specification library ....................................................................................................................... 12
Board trace lengths ........................................................................................................................ 12
Board layout and materials ............................................................................................................. 12
Summary .......................................................................................................................................... 15
For more information.......................................................................................................................... 16
Call to action .................................................................................................................................... 16

Introduction
A requirement for any server architecture is that it continues to meet future customer needs by
supporting a built in capability to provide sustained high performance as technology driven
bandwidth enhancements become available.
The BladeSystem c-Class enclosures (c3000, c7000) are architected to ensure that they can support
upcoming technologies and increasing demand for bandwidth and power for at least 5 to 7 years.
This technology brief discusses the effort to design, model, standardize, and document the electrical
requirements for the high-speed interfaces of the HP BladeSystem. This applies to all HP BladeSystem
switch modules, mezzanine cards, server blades, and midplanes that use the high-speed interface.
What is signal integrity
Signal integrity engineering ensures that electronic circuits communicate reliably in the presence of
channel impairments. Over short distances and at low bit rates, a simple conductor can easily
transmit a signal from point A to point B with good fidelity (Figure 1).

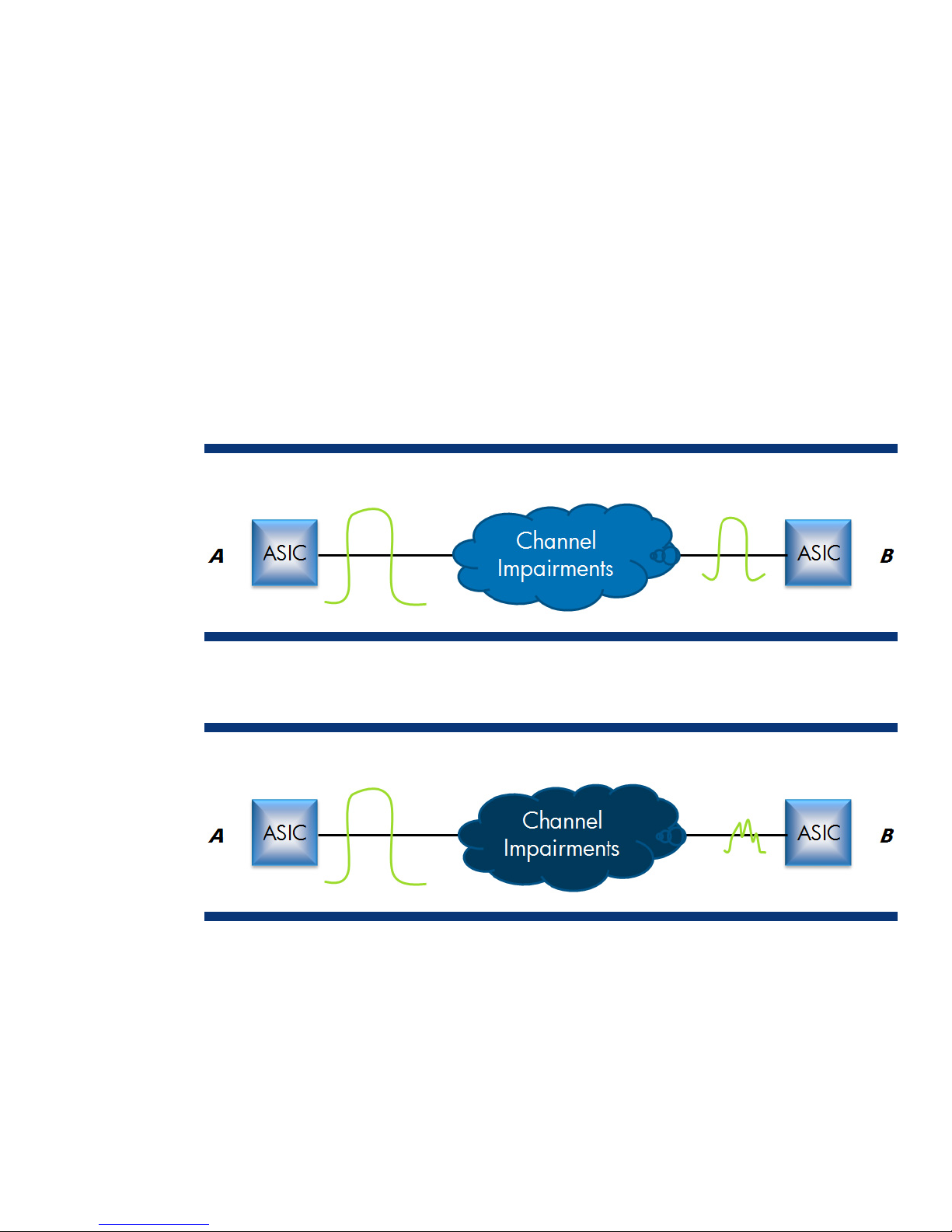

Figure 1. Lossy signal line depiction over short distances and low bit rates
However, at high bit rates and over longer distances, various effects can degrade the electrical signal
to the point where data transmission errors occur, resulting in a system malfunction (Figure 2).
Figure 2. Lossy signal line depiction over longer distances and higher bit rates
2

As signal speeds increase additional effects inherent in the transmission media environment emerge
as inhibitors to successful signal delivery. These effects include:
•the physical characteristics of the material used for transmission, including materials adjoining the
transmission media
•the interference caused by the interaction of multiple simultaneous signals
•the noise introduced at connection points as the signal passes from one component to another
While in the 2002 (and earlier) timeframe, effective signal analysis calculations required using Ohm’s
Law, but in the 2008 (and beyond) timeframe these calculations require a more sophisticated
approach using Maxwell’s Equations. Figure 3 depicts how fundamental design considerations have
increased in complexity as transmission speed has increased. To better manage this increased
complexity, a dedicated signal integrity research group is tasked to create, develop, and publish
design guidelines. These guidelines illustrate design implementation techniques necessary to avoid the
pitfalls created by increased transmission speed. These guidelines are then made available to the
product design specialists to apply as necessary. Strict adherence to these guidelines is required.

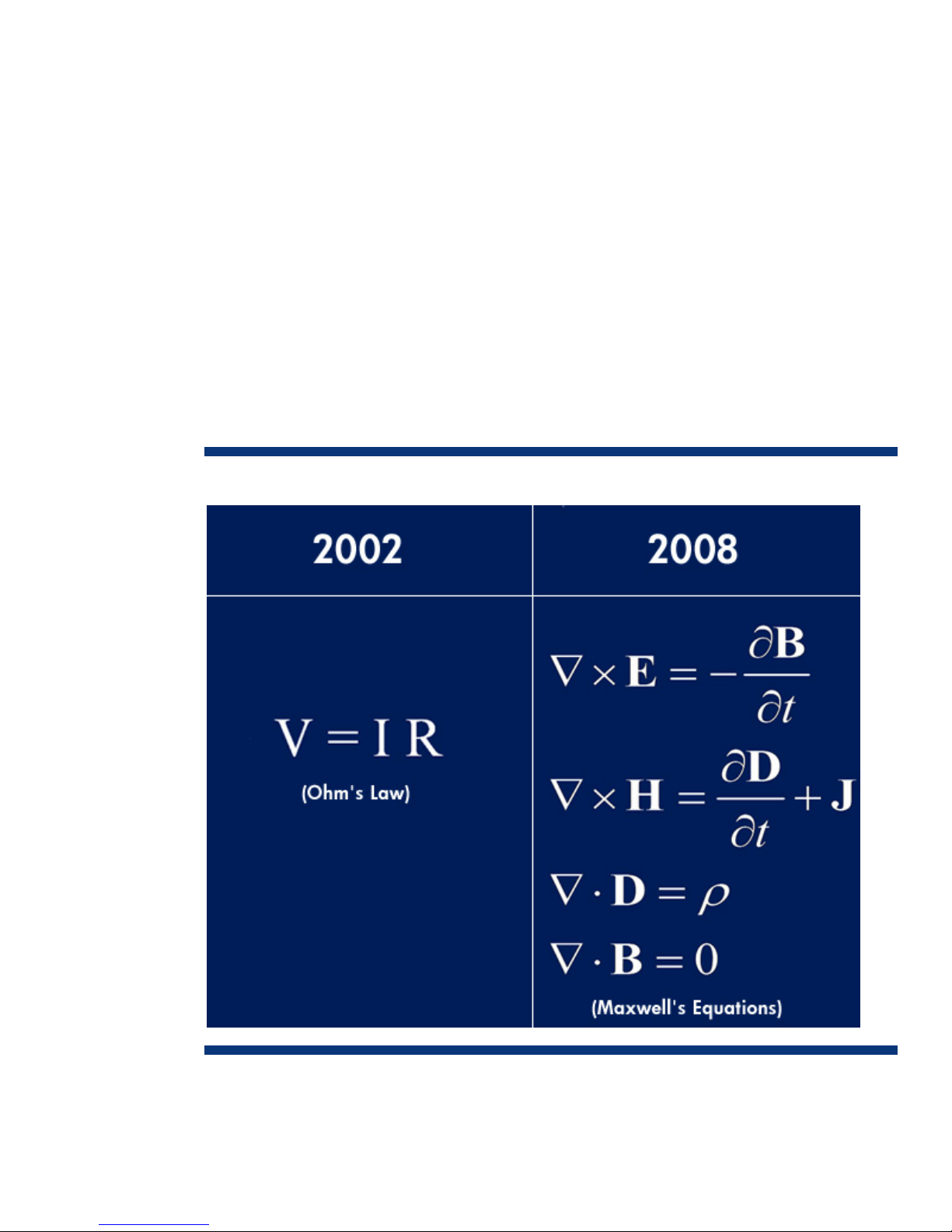

Figure 3. This figure contrasts signal integrity analysis in 2008 versus 2002 (and earlier)
3

Challenges
The NonStop signal midplane in a BladeSystem enclosure is capable of conducting extremely high
signal rates of up to 10 Gb/s. Each half-height server blade has the cross-sectional bandwidth to
conduct up to 160 Gb/s per direction. In a c7000 enclosure fully configured with 16 half-height
server blades, the aggregate bandwidth is up to 5 Terabits/sec across the NonStop signal midplane.
This is bandwidth between the device bays and the interconnect bays only. It does not include traffic
between interconnect modules or blade-to-blade connections.
Significant signal losses occur as a function of increased speed, distance, and discontinuities, but the
loss can be mitigated in several ways:
•Improving the passive signal channel to reduce frequency-dependent losses
•Improving the driver and receiver silicon to compensate for frequency-dependent losses in the
passive signal channel
•Invoking a combination of these two approaches
There are a few main challenges to signal integrity:
•Insufficient line bandwidth, which results in attenuation and inter-symbol interference
•Impedance discontinuities at connectors which results in reflection and therefore signal distortion
•Cross-talk which reduces signal quality
As the signal frequency increases, many factors begin to affect the signal’s integrity. An effective way
to view the potential integrity of the signal is to use an eye diagram. The eye diagram is a collection
of timing-synchronized overlaid oscilloscope traces depicting a large set of differing bit sequences.
The bit sequences that make up the transmitted signal create unique energy signatures that affect the
signal’s wave shape, making the signal sequence dependent. In other words, the order of 1’s and 0’s
transmitted can impact the integrity of the transmission. The “eye” in the eye diagram is shown in
Figure 4; it is the opening in the center of each example. This opening depicts the edge transitions
and the time available for the receiver circuit to determine the value of the received signal. Follow a
trace in Figure 4 left to right from one eye to the next. If the trace was high in one eye that trace will
reach a higher level in the next eye. If the trace was low in one eye it does not reach as high a level
in the next eye. This is called inter-symbol interference.
Figure 4 illustrates eye closure due to attenuation and bandwidth limitations, these create inter-symbol
interference, eventually limiting the receiver’s ability to distinguish one bit from another. Noise causes
variation up and down on each trace in the eye diagram. Jitter is uncertainty in the horizontal time
where a trace goes from high to low or low to high. These degradations close down the available
headroom in the eye opening.
4

Figure 4. Measured eye diagrams from a 40" PCI-Compliance ISI trace
Increasing frequency significantly increases attenuation. Skin resistive loss and dielectric loss are the
primary components of frequency-dependent attenuation, as shown in Figure 5.
Figure 5. Frequency dependent attenuation
5

Significant factors affecting signal integrity
A transmitted signal arriving at the receiver must maintain sufficient magnitude and quality to be
reliably recognized. As signal frequency increases, previously inconsequential factors emerge as new
obstacles.
Line bandwidth is affected by attenuation introduced by factors such as dielectric loss and the skin
effect. Additionally, the reflections produced at impedance discontinuities, specifically at connector
interfaces, become significant because they generate noticeable signal distortion. At these speeds,
crosstalk between transmission lines becomes a limiting factor. These factors are discussed briefly
below.
Dielectric losses
Dielectric loss is caused by the electromagnetic field associated with a signal traveling along a
conductor and its interaction with the adjacent material, in this case the printed circuit board. This
interaction contributes to high frequency signal attenuation. Dielectric loss is a principal cause
responsible for frequency-dependent losses within printed circuit boards.
Skin effect
The skin effect essentially increases the resistance of a conductor as the signal frequency increases. As
the signal frequency increases, the signal current is forced toward the surface of the conductor by the
magnetic field and to vacate the center of the conductor. The signal current is said to travel at the
"skin" of the conductor. This has the effect of limiting the accessible area of the conductor that is
available to carry the signal current, increasing the resistance of that conductor.
Impedance discontinuities
Potentially, impedance discontinuities may occur at any point where the transmitted signal is
transferred from one component to another. This transfer normally represents a physical structure
change in the signal path, such as, connectors, plated through-holes for connector pins, vias for
transitioning printed circuit board (PCB) layers, and differing board materials. At the point of the
discontinuity, an impedance change creates reflected energy back to the source of the signal. This
becomes a new signal that adds to the desired signal at an incorrect time effectively reducing the
quality of the transmitted signal.
6

Stubs
In PCB design, through-hole vias connect the signal path from one layer to another. As shown in
Figure 6, many instances of this path leave a portion of the via unused. As signal speed increases,
this unused portion of the via becomes a transmission line that can create significant reflections that
can seriously reduce signal quality. Any conductor that extends off the main conductor some length
and then stops is called a stub.
A through-hole via connecting the signal path from one layer to another that extends beyond the main
path is an example of a stub. As shown in Figure 6, traces changing layers frequently leave such an
unused portion of the via. A portion of the signal traveling on the trace will go down the stub and
reflect off the end and return to the trace after the delay of going down and back. This reflected signal
is added to the traveling signal. At high enough data rates this delay is long enough compared to the
bit length to adversely affect a portion of the next bit. This distorts the signal waveform.

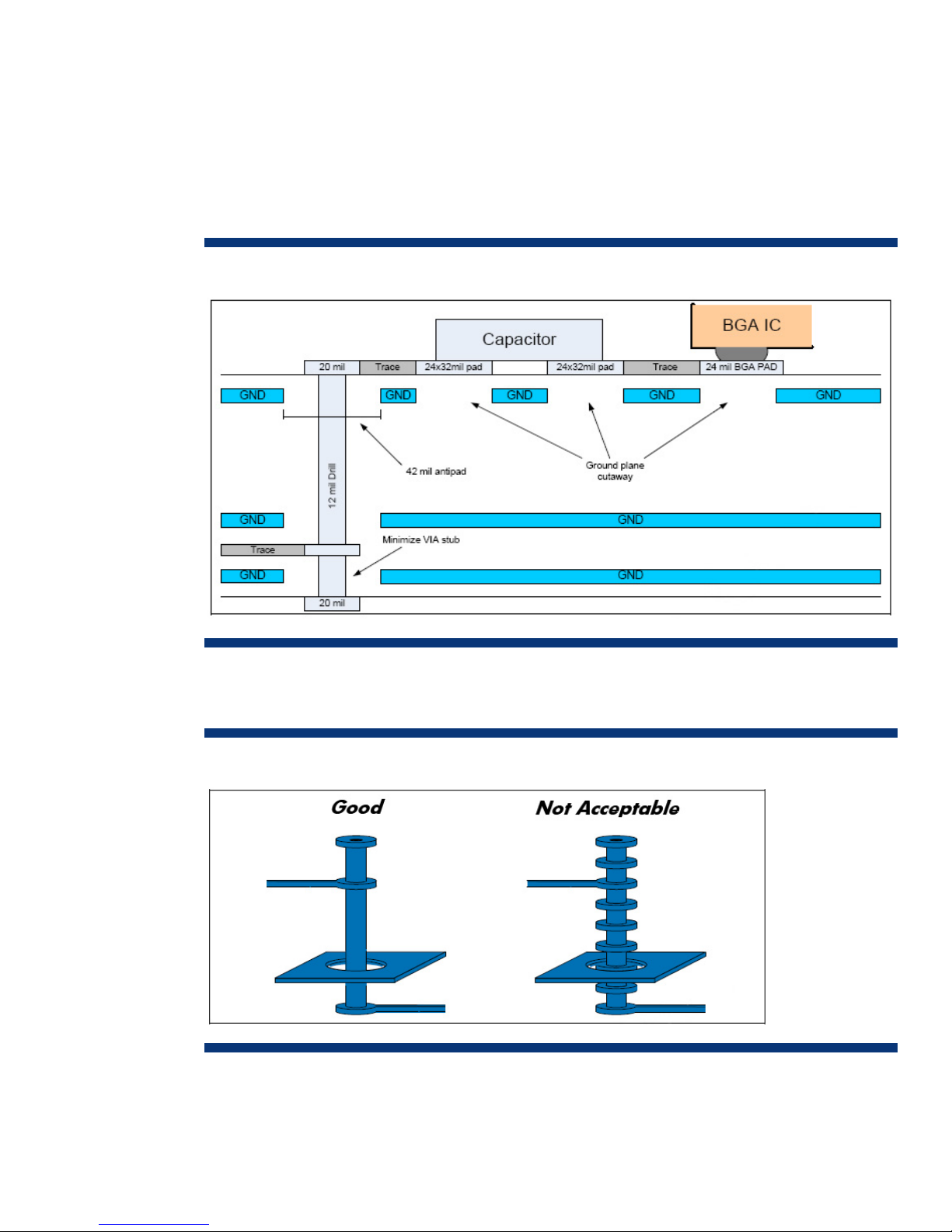

Figure 6. Cross sectional view of a plated through hole, the portion of the via that is not used for the signal path
is known as a stub
7

Crosstalk
As current moves through a conductor it creates an electromagnetic field. When two (or more)
conductors run parallel to each other, the inductive and capacitive coupling between the paths can
lead to interference. This interference is also known as crosstalk. Essentially, crosstalk is the coupling
of a signal from one conductor into another adjacent conductor and is exacerbated by increasing
transmitted signal speed and reducing the distance between adjacent conductors.
Crosstalk results in adding a portion of a signal to its adjacent signals. The externally generated
portion of any signal is noise to the original signal. Noise reduces the eye opening and the
probability of correctly transferring data on that conductor. Figure 7 depicts the magnetic field that
couples two traces and the fact that this coupling diminishes with distance. To the extent possible, the
conductors in the board are routed with appropriate spacing to minimize crosstalk.
Crosstalk also occurs between the vias in the pin fields of the connectors and in the connectors
themselves. These are complex three dimensional structures with non-uniform electric and magnetic
fields.

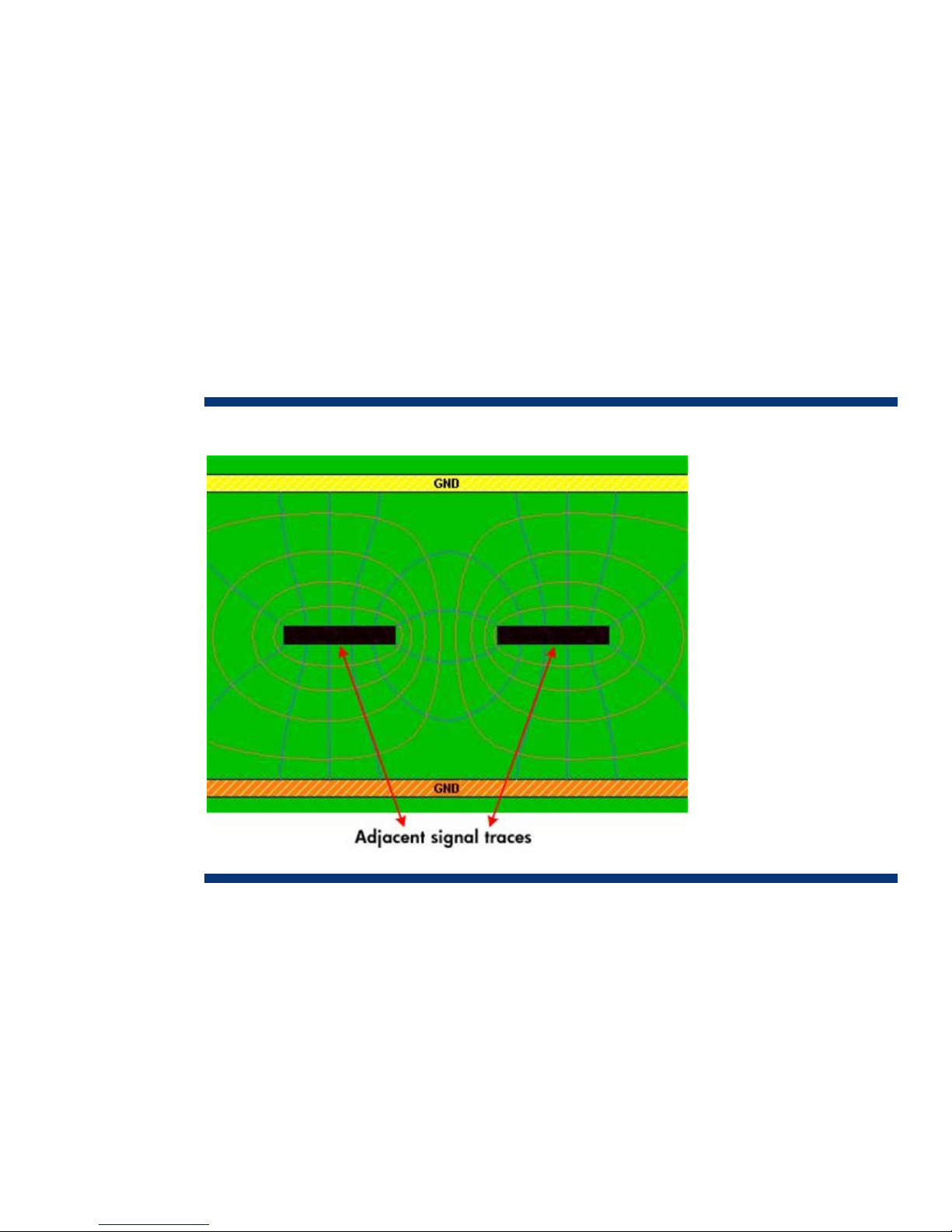

Figure 7. Cross sectional view of parallel signal traces depicting electromagnetic fields and their interactions
8

Design goals
The BladeSystem c-Class uses a high-speed signal midplane that provides the flexibility to intermingle
server blades and interconnect fabrics in many ways to solve a multitude of application needs. The
NonStop signal midplane is unique because it can use the same physical traces to transmit GbE, Fibre
Channel, 10 GbE, InfiniBand, Serial Attached Technology (SAS), or PCI Express signals. As a result,
customers can fill the interconnect bays with a variety of interconnect modules depending on their
needs. Figure 8 depicts the signal path across the BladeSystem architecture. It is organized by module
with divisions shown at connection points and indicates the board material, trace length range, and
connector type for each element. The variance in the trace length parameter listed in Figure 8 is due
to the size of the circuit board; the larger the circuit board the longer the traces may be.

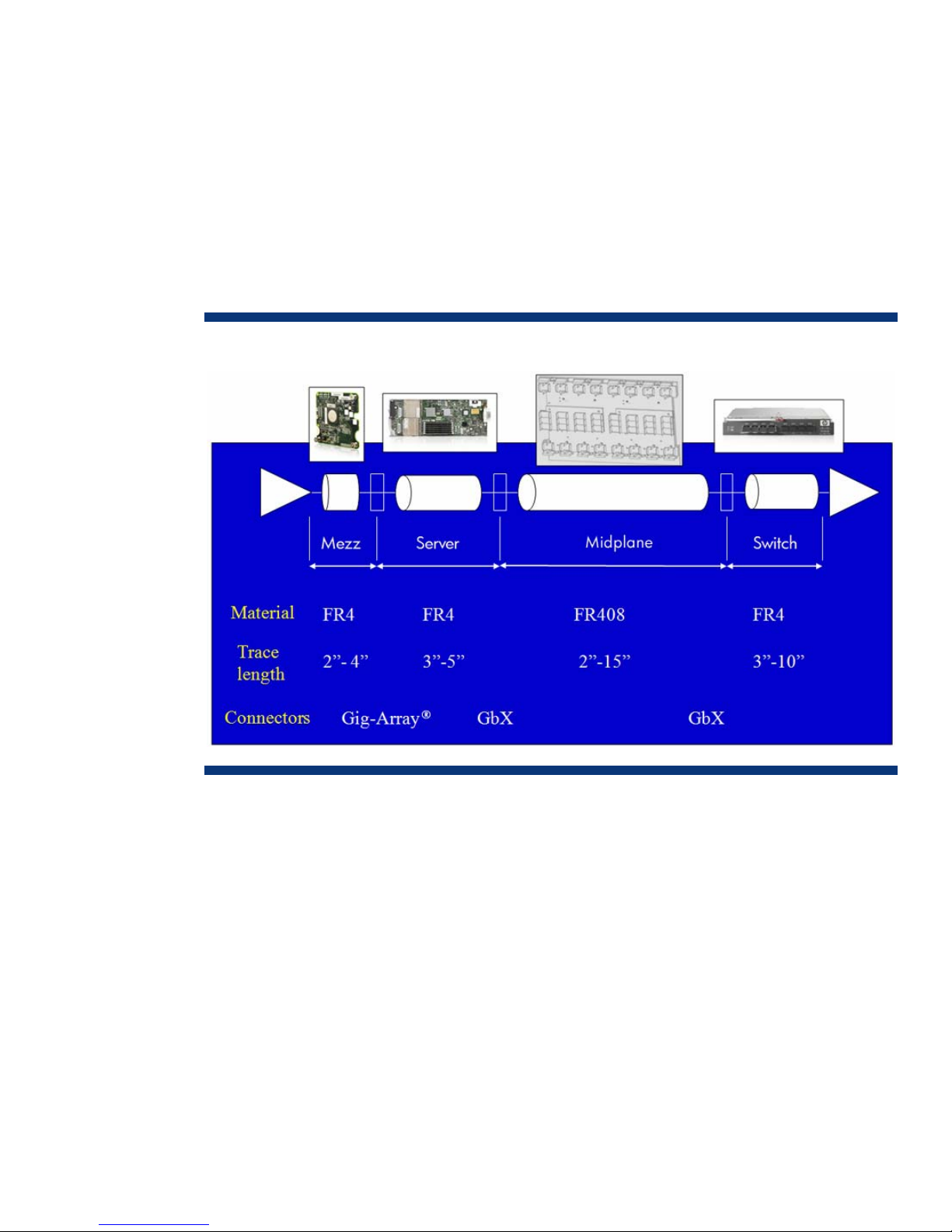

Figure 8. Signal path across the BladeSystem architecture
The NonStop signal midplane can transmit signals from different I/O fabrics because of similarities in
the physical layer of those fabrics. Serialized I/O protocols such as GbE, Fibre Channel, 10GbE,
SAS, PCI Express, 1000-Base-KX, 10G-Base-KX4, and InfiniBand along with the 8 Gb Fibre Channel
are all based on a physical layer that uses two or more differential pairs with a serializer/deserializer
interface.
The BladeSystem c-Class enclosure was designed and built to ensure that it can support upcoming
technologies and their demand for bandwidth and power for at least five to seven years. This
required locking in the infrastructure long before certain fabrics would be available to be tested
(Figure 9).
9

Figure 9. Fabric technology targets
Additionally, the design had to incur minimal additional cost for infrastructure to support fabrics yet to
be developed, leverage industry standard components, and interoperate with the dozens of
companies and multiple divisions involved.
Over its lifecycle, the BladeSystem c-Class architecture must support dozens of server blades, more
than 50 Mezzanine Cards (MEZZ) and I/O modules, and multiple enclosure designs.
Target fabrics
The HP BladeSystem provides high-speed interfaces between server blades and switch modules.
Server blades may contain components connected to the high-speed interfaces on their motherboards
or on mezzanine cards. The main high-speed interface is expected to be used for connecting server
blades to switch modules with high-speed differential signals. In various implementations, these
channels are used for routing Ethernet, Fibre Channel, or other types of signaling.
Infrastructure architecture
For single-wide switch modules, each main high-speed interface consists of a group of four pairs of
signals, available for use as two lanes (two transmit pairs and two receive pairs) connected to a
server blade. Additionally, for single-wide switch modules, there is also an inter-switch link available
that allows two adjacent switch modules to communicate for failover, connectivity, and so forth. It
consists of eight pairs of signals available for use as four lanes (four transmit pairs and four receive
pairs).
10

For double-wide switch modules, the main high-speed interface consists of two groups (eight pairs) of
signals that are available from each server blade. These are used to route signals that require up to
four Lanes, such as 10 GB Ethernet using the 3.125 Gbaud SERDES1type of interface.
Implementation
In order to guarantee success and manage costs effectively, the BladeSystem design team separated
the system into its component parts, illustrated in Figure 8, created and applied significant
modeling/simulation techniques, and then verified, through empirical data, that the models accurately
reflected the physical system. The team then created an extensive documentation/specification library
and implemented a design review process that ensures continued adherence and success. Specific
steps included the following:
•Assisting the internal product teams in signal integrity best practice; providing layout/routing
guidelines; including optimizations for 10Gbs
•Assisting in the design and validation of top tier mezzanine and switch designs; assisting vendors
with signal integrity related direction and in-house hardware measurements
•Developing accurate channel models
•Ensuring that the NonStop midplane can handle up to 10Gbs signaling
•Developing signal integrity tools and models to help develop lower tier independent hardware
vendor (IHV) solutions
Achieving this level of bandwidth between bays required special attention to maintain the signal
integrity of the high-speed signals. HP took three key steps to maintain signal integrity:
•Using general best practices for signal integrity to minimize end-to-end signal losses across the
signal midplane
•Moving the power into an entirely separate backplane to independently optimize the signal
midplane
•Providing means to set optimal signal waveform shapes in the transmitters, depending on the
topology of the end-to-end signal channel
Following best practices for signal integrity was important to ensure high-speed connectivity among all
server blades and interconnect modules. To aid in the design of the signal midplane, HP involved the
same signal integrity experts that design the HP Superdome computers. Specifically, HP paid special
attention to several best practices:
•Controlling the differential impedance along each end-to-end channel on the PCBs and through the
connector stages
•Planning signal pin assignments so that receive signal pins are grouped together yet isolated by a
ground plane from the transmit signal pins in order to minimize crosstalk
•Keeping the overall channel short to minimize losses
•Increasing the length of short traces in order to minimize reflections
•Routing signals in groups to minimize signal skew
•Reducing the number of through-hole via stubs by carefully selecting the layers to route the traces,
controlling the PCB thickness, and back-drilling long via-hole stubs to minimize signal reflections
11
1The 3.125 Gbaud SERDES is a serializer/deserializer (SerDes) data interface used to transmit data between chips.

Specification library
All server blade and midplane channels (and segments of channels) are required to meet the electrical
specifications developed by HP, allowing separate vendors to create interoperable parts of the
channel. The server blade vendor must ensure that any channel terminating at an IC on the server
blade meets the same requirements as the combined effects of the server blade-to-MEZZ and MEZZ
channel segments. The following sections describe examples of generic electrical characteristics of the
high-speed interfaces between the switch module and the server blade or MEZZ, as well as the inter-
switch link.
Board trace lengths
If the signal terminates in an IC, the trace length includes the electrical length of any series capacitors
and their vias and any via needed to connect to the IC. If the design requires other external
components (for instance, terminating resistors), the trace length also includes any electrical length
necessary for those components. GbX®2connectors have different electrical lengths between the
contacts in different rows. This difference between rows must be compensated by a trace length
difference for signals that make up a differential pair. Signals must include additional trace length for
each GbX connector. The extra trace must be added as close as possible to the GbX connector to
avoid signal distortion at very high frequencies caused by differential trace coupling.
Compensation for this difference is made on the midplane so server blade and switch module vendors
need only match the traces of a pair.
The differential pairs are classified as “tightly” coupled when the traces are less than 3x width apart.
This maintains the differential character of the signals. The section of the differential pair that is
spread apart is given a slightly larger line width to maintain the differential impedance as exactly as
possible (see Figure 10). Trace length matching should be done as close as possible to the point
where the length difference occurs.
Ground layers must fully surround the connector pins for the GbX connector on the server blade;
failure to do this results in a mismatched differential impedance in the connector field and adds skew
and common mode noise to the signals. Given the proximity of the GbX with the edge of the server
blade PCB, the ground layers may need to be exposed to the PCB edge.

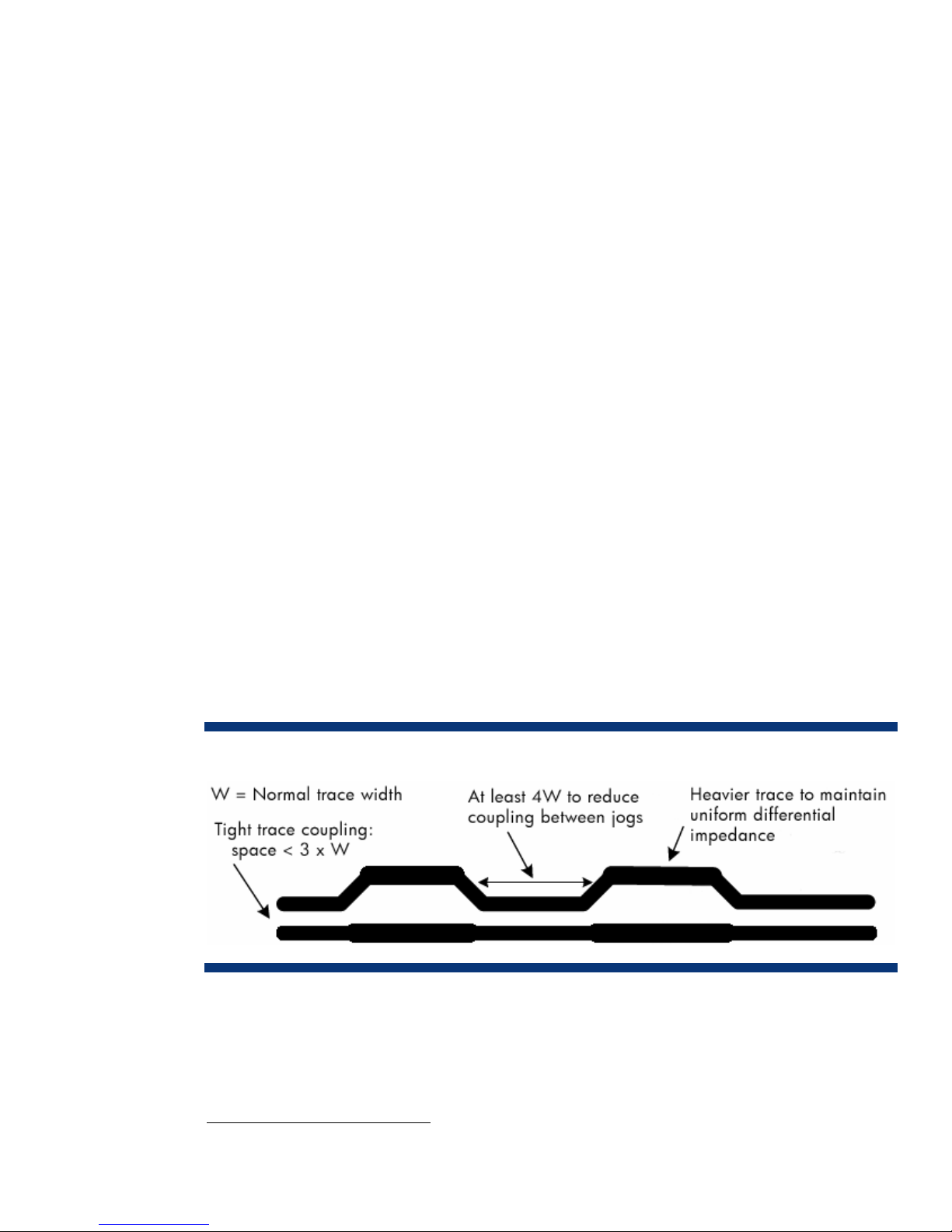

Figure 10. Jog layout for length matching with tight coupling
Board layout and materials
High-speed signal routing (>2Gbit/sec) is extremely critical and should follow all of these guidelines,
or ascertain through testing and simulations that it meets the required functionality.
2The GbX connector is a high-density differential connector providing increased density, impedance matching, and low crosstalk.
12

The impedance of channels that include components and component pads should be adjusted by
removing some of the adjacent ground plane under these components and pads. To prevent crosstalk
and impedance discontinuities in other signals, no signals are routed under these “cutaways” in the
ground layer. Vias should use the smallest practical drill size and only be used to connect to
components or connectors. Via stubs should be limited in size. In cases where the traces must be
routed on layers with stubs longer than specified, the vias should be back-drilled to reduce the stub
length, as previously described. Vias use a large clearance anti-pad in ground planes to reduce
capacitance. These concepts are depicted in Figure 11.
Figure 11. This is an edge view of a slice through a circuit board, depicting preferred IC routing for a receiver.
Unused pads at vias should be removed to reduce capacitance. A pad is unused if it is not connected
to a trace, see Figure 12. Test pads should not be used.
Figure 12. Remove non-functional pads
Using data from a fiber weave investigation HP determined that the differences found among PCB
fiber weaves were large enough at 10Gb/s to affect signal integrity. For designs that expect to
operate at speeds of 5Gbps or greater, traces should not be routed parallel to the rectangular edges
13

of a board for more than two inches of cumulative distance. The length of trace segments that are
parallel to the edge of a board should be minimized as much as possible. Traces should be at an
angle of at least 10º to a board edge. This is to reduce the effects of PCB fiber weave on board
impedance and propagation velocity on differential traces (see Figure 13).
Figure 13. Zig-Zag routing example
14

Summary
The BladeSystem c-Class enclosure was designed to ensure that it could support new high-speed
technologies and their demand for both bandwidth and power for at least 5 to 7 years.
Signal integrity issues arise as transmission frequencies increase. These issues require specific
engineering to ensure that electronic circuits communicate reliably in the presence of signal
impairments. This increased complexity has created a need for development of design guidelines and
created a requirement for strict adherence to the resultant guidelines. The design must leverage
industry standard components and interoperate with the dozens of companies and multiple divisions
involved.
HP has substantially engaged in signal integrity engineering to guarantee success and manage costs
effectively. The effort modularized the system into its component parts, created and applied significant
modeling/simulation techniques, and then verified, through empirical data, that the models accurately
reflected the physical system. HP created and maintains an extensive documentation/specification
library that with adherence yields design success and customer satisfaction.
15

For more information
For additional information, refer to the resources listed below.
Resource description Web address
Industry Standard Server Technology
Communications
www.hp.com/servers/technology
HP BladeSystem www.hp.com/go/bladesystem
Call to action
Send comments about this paper to [email protected].
© 2009 Hewlett-Packard Development Company, L.P. The information contained
herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
GbX is a registered trademark of Amphenol Corporation.
Gig-Array is a registered trademark of FCI.
TC090401TB April 2009
16
