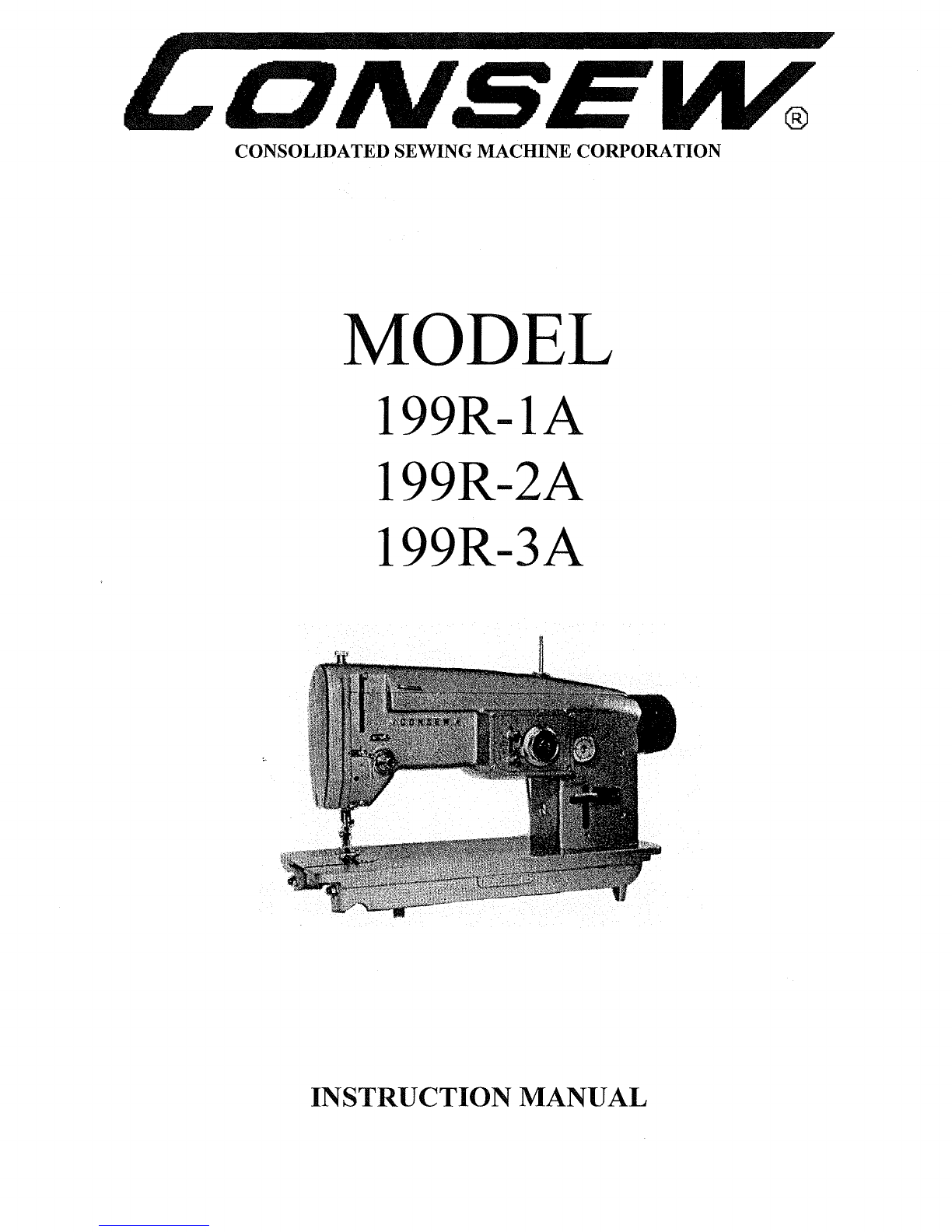

Consew 199R-1A User manual

ONSE
CONSOLIDATED SEWING MACHINE CORPORATION
MODEL
199R-1A
199R-2A
199R-3A
INSTRUCTION MANUAL
From the library of: Superior Sewing Machine & Supply LLC

8
9 199R
CONSEW MODEL 199R IS A ZIGZAG AND STRAIGHT STITCH SEWING MACHINE WITH A ROTARY HOOK.
THAT PRODUCES A LOCKSTITCH.
MAIN PARTS:
1. SPOOLPIN
2. THREAD GUIDE
3. PRESSURE REGULATOR
4. TAKE UP LEVER
5. TENSION REGULATOR
NEEDLES
6. NEEDLE BAR
7. PRESSER FOOT
8. COVER OR SLIDE PLATE
9. NEEDLE PLATE
10. STITCH LENGTH REGULATOR
11. FEED DIRECTION
LEVER
(FORT ACKING)
12. ZIGZAG WIDTH
MODEL 199R USES STANDARD NEEDLE STYLE 16 x 231 UP TO SIZE 19 OR STYLE 16 x 95 IN ALL SIZES.
THREAD
LEFT TWIST THREAD SHOULD BE USED IN THENEEDLE.
EITHER RIGHT OR LEFT TWIST
THREAD CAN BE USED IN THE BOBBIN.
HOW TO DETERMINE THE TWIST OF THE THREAD: HOLD THE THREAD AS SHOWN ABOVE; TWIST IT
BETWEEN THE THUMB AND FORE-FINGER OF YOUR HANDS. IF IT
IS LEFT TWIST THE STRANDS WILL
WIND TIGHTER. IF RIGHT TWIST; THE STRANDS WILL UNRAVEL.
From the library of: Superior Sewing Machine & Supply LLC

REMOVING THE BOBBIN CASE;
RAISE THE NEEDLE BAR TO ITS HIGHEST POINT BY TURNING THE HAND WHEEL TOWARD YOU.
OPEN THE SLIDE PLATE BY SLIDING IT TO THE LEFT AND WITH THE LEFT THUMB AND FOREFINGER
PLACED UNDER THE BED, OPEN THE HINGED LATCH (A) AT THE FRONT OF THE BOBBIN CASE AND
USING THIS LATCH REMOVE THE BOBBIN CASE FROM THE SEWING HOOK. THE BOBBIN WILL FALL
OUT OF THE BOBBIN CASE INTO YOUR HAND, THEN CLOSE THE BOBBIN CASE LATCH (A).
Fig. 3
WINDING THE BOBBIN;
1. PLACE THE BOBBIN (3) ON SPINDLE WINDER
2. PASS THE THREAD THROUGH THE HOLE (4) OF THE BOBBIN WINDER THREAD GUIDE AND THROUGH
THE TENSION DISCS (5) FROM THE REAR.
3. PULL THE END OF THE THREAD AND WIND IT AROUND THE EMPTY BOBBIN
SEVEN OR EIGHT TIMES FROM THE BOTTOM UP, AS SHOWN BY THE ARROW IN FIG. 4.
4. PUSH THE BOBBIN WINDER LEVER (1) DOWN UNTIL THE BOBBIN WINDER WHEEL (2) PRESSES AGAINST
THE DRIVE BELT.
5. START THE MACHINE AND THE THREAD WILL BEGIN WINDING ON THE BOBBIN. WHEN THE BOBBIN IS
FULL, IT WILL RELEASE AUTOMATICALLY AND STOP.
6. CUT THE THREAD AND REMOVE THE BOBBIN FROM THE SPINDLE.
7. YOU CAN ADJUST THE QUANTITY OF THREAD TO BE WOUND ON THE BOBBIN BY ADJUSTING THE
SCREW (7) WHICH CONTROLS THE LATCH (6).
8. IF THE THREAD DOES NOT WIND EVENLY ON THE BOBBIN. ADJUST THE POSITION OF THE BOBBIN
WINDER THREAD GUIDE (4)BY MOVING IT TO THE RIGHT OR LEFT AFTER LOOSENING THE SCREW.
9. LOOSEN THE TENSION FOR FINE THREAD BY TURNING THE NUT IN A COUNTERCLOCKWISE
DIRECTION. 3
Fig. 5-A Fig. 5-B Fig. 5-C
From the library of: Superior Sewing Machine & Supply LLC

THREADING THE BOBBIN CASE
1. HOLD THE BOBBIN CASE BETWEEN THE LEFT THUMB AND FOREFINGER AS SHOWN ABOVE. WITH
ABOUT 2 INCHES OF THREAD TRAILING, HOLD THE BOBBIN BETWEEN THE THUMB AND FIRST TWO
FINGERS OF THE RIGHT HAND, AS SHOWN IN FIG. 5A.
2. INSERT THE BOBBIN INTO BOBBIN CASE AND PULL THE TRAILING THREAD INTO THE SLOT, DOWN
AND TO THE LEFT, UNTIL IT ENTERS THE GROOVED EYE UNDER THE TENSION SPRING FIG. 5B, 5C.
3. LEAD THREAD END THROUGH GUIDE HOLDER (H) FIG. 6, LOCATED AT FRONT OF BOBBIN CASE
ABOVE THE HINGED LATCH.
INSERTING THE BOBBIN CASE
1. RAISE THE NEEDLE BAR TO ITS HIGHEST POINT BY TURNING THE HAND WHEEL TOWARD YOU.
2. AFTER SLIDING OUT THE SLIDE PLATE, HOLD THE BOBBIN CASE LATCH WITH LEFT THUMB AND
FORE FINGER TO PREVENT THE BOBBIN FROM FALLING OUT.
3. PRESS THE BOBBIN CASE ONTO POST (P) UNTIL THE PROTRUDING FINGER (C) ENTERS THE NOTCH
(B) OF THE HOOK, AND THEN CLOSE THE LATCH.
NOTE; BE SURE THAT THE PROTRUDING FINGER ENTERS THE NOTCH PROPERLY AND IN THE CORRECT
POSITION.
Fig.6
THREADING THE MACHINE (FIG. 7)
1. RAISE THE THREAD TAKE-UP LEVER (7) TO ITS HIGHEST POSITION BY TURNING THE HAND WHEEL
TOWARD YOU.
2. LEAD THE THREAD THROUGH THE HOLE (1) OF THE SPOOL PIN AND THE THREE HOLED THREAD GUIDE
(2).
3. RUN THE THREAD BENEATH AND AROUND THE TENSION DISCS (3) FROM RIGHT TO LEFT.
4. BRING THE THREAD OVER THE LOOP OF THE CHECK SPRING (4) AND DOWN AGAIN UNDER THE
RETAINING HOOK (5), FROM RIGHT TO LEFT.
6. NOW RUN THE THREAD DOWN THROUGH THE THREAD GUIDES, (6) & (8).
7. LEAD THE THREAD THROUGH THE NEEDLE BAR THREAD GUIDE (9).
8. NOW RUN THE END OF THE THREAD THROUGH THE EYE OF THE NEEDLE FROM FRONT TO BACK,
DRAWING IT OUT ABOUT 2 INCHES.
.Fig. 7
From the library of: Superior Sewing Machine & Supply LLC

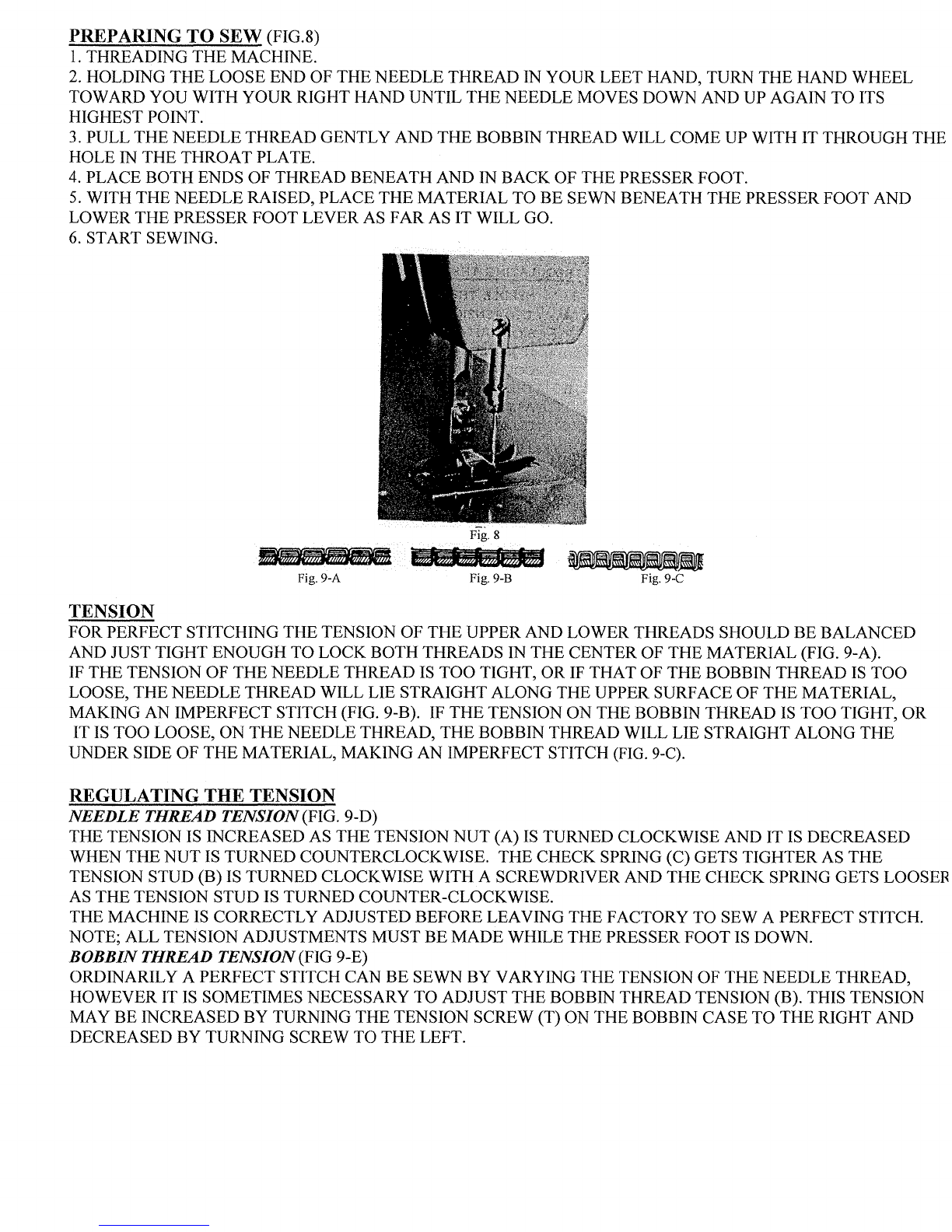

PREPARING TO SEW (FIG.8)
1. THREADING THE MACHINE.
2. HOLDING THE LOOSE END OF THE NEEDLE THREAD IN YOUR LEET HAND, TURN THE HAND WHEEL
TOWARD YOU WITH YOUR RIGHT HAND UNTIL THE NEEDLE MOVES DOWN AND UP AGAIN TO ITS
HIGHEST POINT.
3. PULL THE NEEDLE THREAD GENTLY AND THE BOBBIN THREAD WILL COME UP WITH IT THROUGH THE
HOLE IN THE THROAT PLATE.
4. PLACE BOTH ENDS OF THREAD BENEATH AND IN BACK OF THE PRESSER FOOT.
5. WITH THE NEEDLE RAISED, PLACE THE MATERIAL TO BE SEWN BENEATH THE PRESSER FOOT AND
LOWER THE PRESSER FOOT LEVER AS FAR AS IT WILL GO.
6. START SEWING.
Fig. 8 -
Fig. 9-A Fig. 9-B Fig. 9-C
TENSION
FOR PERFECT STITCHING THE TENSION OF THE UPPER AND LOWER THREADS SHOULD BE BALANCED
AND JUST TIGHT ENOUGH TO LOCK BOTH THREADS IN THE CENTER OF
THE MATERIAL (FIG. 9-A).
IF THE TENSION OF THE NEEDLE THREAD IS TOO TIGHT, OR IF THAT OF THE BOBBIN THREAD
IS TOO
LOOSE, THE NEEDLE THREAD WILL LIE STRAIGHT ALONG THE UPPER SURFACE OF
THE MATERIAL,
MAKING AN IMPERFECT STITCH (FIG. 9-B). IF
THE TENSION ON THE BOBBIN THREAD IS TOO TIGHT, OR
IT IS TOO LOOSE, ON THE NEEDLE THREAD, THE BOBBIN THREAD WILL LIE STRAIGHT ALONG THE
UNDER SIDE OF THE MATERIAL, MAKING AN IMPERFECT STITCH (FIG. 9-C).
REGULATING THE TENSION
NEEDLE THREAD TENSION(FIG. 9-D)
THE TENSION IS INCREASED AS THE TENSION
NUT (A) IS TURNED CLOCKWISE AND IT IS DECREASED
WHEN THE
NUT IS TURNED COUNTERCLOCKWISE. THE CHECK SPRING (C) GETS TIGHTER AS THE
TENSION STUD (B) IS TURNED CLOCKWISE WITH A SCREWDRIVER AND THE CHECK SPRING GETS LOOSER
AS THE TENSION STUD IS TURNED COUNTER-CLOCKWISE.
THE MACHINE IS CORRECTLY ADJUSTED BEFORE LEAVING THE FACTORY TO SEW A PERFECT STITCH.
NOTE; ALL TENSION ADJUSTMENTS MUST BE MADE WHILE THE PRESSER FOOT IS DOWN.
BOBBIN THREAD TENSION (FIG 9-E)
ORDINARILY A PERFECT STITCH CAN BE SEWN BY VARYING THE TENSION OF THE NEEDLE THREAD,
HOWEVER IT IS SOMETIMES NECESSARY TO ADJUST THE BOBBIN THREAD TENSION (B). THIS TENSION
MAY BE INCREASED
BY TURNING THE TENSION SCREW (T) ON THE BOBBIN CASE TO THE RIGHT AND
DECREASED BY TURNING SCREW TO THE LEFT.
From the library of: Superior Sewing Machine & Supply LLC

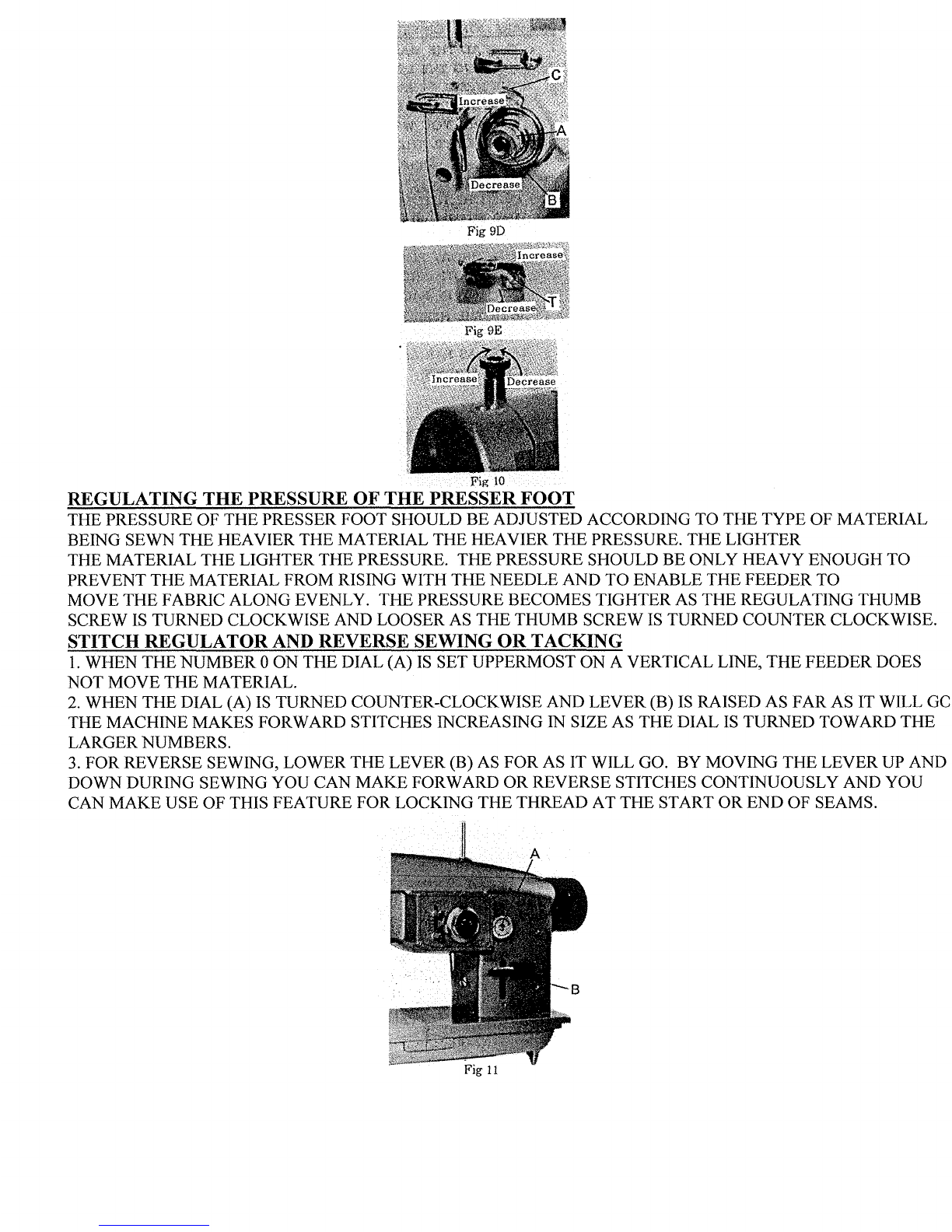

Fig9D
Fig 10
REGULATING THE PRESSURE OF THE PRESSER FOOT
THE PRESSURE OF THE PRESSER FOOT SHOULD BE ADJUSTED ACCORDING TO THE TYPE OF MATERIAL
BEING SEWN THE HEAVIER THE MATERIAL THE HEAVIER THE PRESSURE. THE LIGHTER
THE MATERIAL THE LIGHTER THE PRESSURE. THE PRESSURE SHOULD BE ONLY HEAVY ENOUGH TO
PREVENT THE MATERIAL FROM RISING WITH THE NEEDLE AND
TO ENABLE THE FEEDER TO
MOVE
THE FABRIC ALONG EVENLY. THE PRESSURE BECOMES TIGHTER AS THE REGULATING THUMB
SCREW IS TURNED CLOCKWISE AND LOOSER AS THE THUMB SCREW IS TURNED COUNTER CLOCKWISE.
STITCH REGULATOR AND REVERSE SEWING OR TACKING
1. WHEN THE NUMBER 0 ON THE DIAL (A) IS SET UPPERMOST ON A VERTICAL LINE, THE FEEDER DOES
NOT MOVE THE MATERIAL.
2. WHEN THE DIAL (A) IS TURNED COUNTER-CLOCKWISE AND LEVER(B)
IS RAISED AS FAR AS IT WILL GC
THE MACHINE MAKES FORWARD STITCHES INCREASING IN SIZE AS THE DIAL IS TURNED TOWARD THE
LARGER NUMBERS.
3. FOR REVERSE SEWING, LOWER THE LEVER (B) AS FOR AS IT WILL GO. BY MOVING THE LEVER UP AND
DOWN DURING SEWING YOU CAN MAKE FORWARD OR REVERSE STITCHES CONTINUOUSLY AND YOU
CAN MAKE USE OF THIS FEATURE FOR LOCKING THE THREAD AT THE START OR END OF SEAMS.
From the library of: Superior Sewing Machine & Supply LLC

STRAIGHT AND ZIGZAG SEWING
TURN THE ZIGZAG REGULATING KNOB Z (Fig. 12), TO THE LEFT AS FAR AS IT WILL GO. THIS WILL CAUSE
THE MACHINE TO SEW A STRAIGHT STITCH. TURNING THIS KNOB TO THE RIGHT WILL PRODUCE A
ZIGZAG STITCH WHICH WILL BECOME WIDER, THE MORE THIS KNOB IS TURNED TO THE RIGHT (IN A
CLOCKWISE DIRECTION). THE WIDEST ZIGZAG STITCH IS BEING SEWN WHEN THE KNOB Z CANNOT BE
TURNED ANY FURTHER.
NOTE: THE ZIGZAG REGULATING KNOB CAN BE MOVED INTO ANY DESIRED POSITION WHILE THE
MACHINE
IS RUNNING. DO NOT ADJUST THE ZIGZAG REGULATING KNOB WHEN MACHINE IS AT REST
AND THE NEEDLE IS IN THE MATERIAL. DISREGARDING THIS ADVICE MAY RESULT IN BROKEN OR BENT
NEEDLES. TURN HANDWHEEL TOWARD YOU TO RAISE NEEDLE OUT OF MATERIAL BEFORE ADJUSTING
THE KNOB.
Fig 12
SETTING THE NEEDLE BAR AT THE CORRECT HEIGHT
MAKE SURE THAT THE NEEDLE IS PUSHED UP INTO THE NEEDLE BARAS FAR AS IT WILL GO. REMOVE
THE FACE PLATE. SET ZIGZAG CONTROL KNOB FOR STRAIGHT STITCH SEWING AND TURN
HAND WHEEL TOWARD YOU UNTIL THE NEEDLE REACHES THE LOWEST POINT OF ITS DOWNWARD
STROKE. SEE THAT THE NEEDLE ENTERS THE NEEDLE SLOT IN THE THROAT (NEEDLE) PLATE AT THE
VERY CENTER. IF IT DOES NOT ADJUST THE NEEDLE BAR FRAME PITMAN ECCENTRIC STUD (FIG. 2) AS
DESCRIBED IN THE FOLLOWING PAGES. AFTER MAKING THE NEEDED ADJUSTMENTS TO THE NEEDLE
POSITION PROCEED IN THE FOLLOWING MANNER: REMOVE THE SLIDE PLATE, NEEDLE PLATE AND FEED
DOG. CONTINUE TURNING HANDWHEEL TOWARD YOU UNTIL THE NEEDLE BARHAS RISEN
APPROXIMATELY 3/32' ABOVE ITS LOWEST POSITION. THE POINT OF THE SEWING HOOK SHOULD NOW
BE AT THE CENTER OF THE NEEDLE AT A DISTANCE APPROXIMATELY 3/32" ABOVE THE EYE.
IF ADJUSTMENT SHOULD BE REQUIRED LOOSEN THE SET SCREW "B" (FIG 1) IN THE NEEDLE BAR
CONNECTING STUD TO RAISE OR LOWER THE NEEDLE BARAS NECESSARY. BE SURE TO TIGHTEN
THE SET SCREW ONCE YOU HAVE MADE THIS ADJUSTMENT.
From the library of: Superior Sewing Machine & Supply LLC

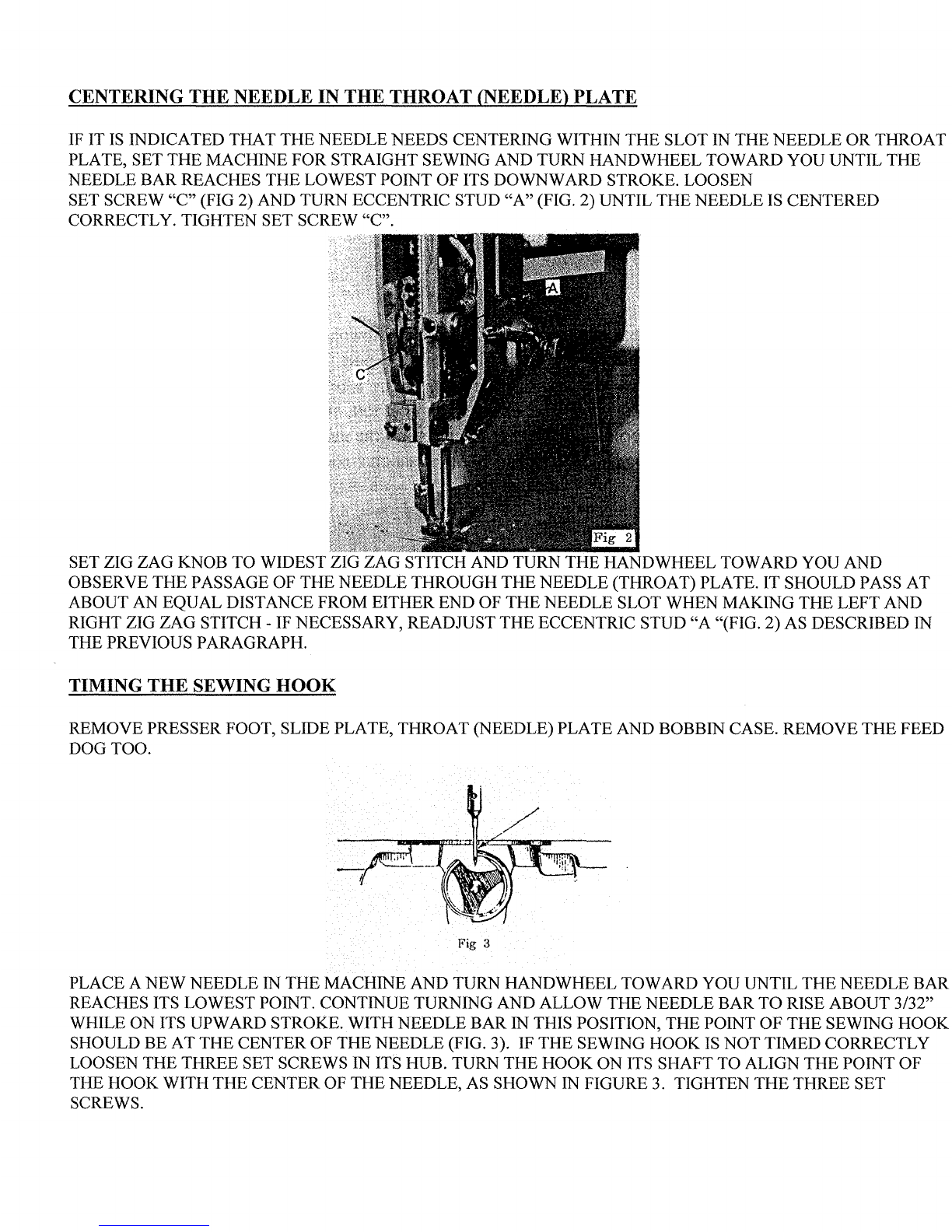

CENTERING THE NEEDLE IN THE THROAT (NEEDLE) PLATE
IF IT IS INDICATED THAT THE NEEDLE NEEDS CENTERING WITHIN THE SLOT IN THE NEEDLE OR THROAT
PLATE, SET THE MACHINE FOR STRAIGHT SEWING AND TURN HANDWHEEL TOWARD YOU UNTIL THE
NEEDLE BAR REACHES THE LOWEST POINT OF ITS DOWNWARD STROKE. LOOSEN
SET SCREW
"C" (FIG 2) AND TURN ECCENTRIC STUD "A" (FIG. 2) UNTIL THE NEEDLE IS CENTERED
CORRECTLY. TIGHTEN SET SCREW "C".
SET ZIG ZAG KNOB TO WIDEST ZIG ZAG STITCH AND TURN THE HANDWHEEL TOWARD YOU AND
OBSERVE THE PASSAGE OF THE NEEDLE THROUGH THE NEEDLE (THROAT) PLATE. IT SHOULD PASS AT
ABOUT AN EQUAL DISTANCE FROM EITHER END OF THE NEEDLE SLOT WHEN MAKING THE LEFT AND
RIGHT ZIG ZAG STITCH- IF NECESSARY, READJUST THE ECCENTRIC STUD "A "(FIG. 2) AS DESCRIBED IN
THE PREVIOUS PARAGRAPH.
TIMING THE SEWING HOOK
REMOVE PRESSER FOOT, SLIDE PLATE, THROAT (NEEDLE) PLATE AND BOBBIN CASE. REMOVE THE FEED
DOG TOO.
Fig 3
PLACE A NEW NEEDLE IN THE MACHINE AND TURN HANDWHEEL TOWARD YOU UNTIL THE NEEDLE BAR
REACHES ITS LOWEST POINT. CONTINUE TURNING AND ALLOW THE NEEDLE BAR TO RISE ABOUT 3/32"
WHILE ON ITS UPWARD STROKE. WITH NEEDLE BAR IN THIS POSITION, THE POINT OF THE SEWING HOOK
SHOULD
BEAT THE CENTER OF THE NEEDLE (FIG. 3). IF THE SEWING HOOK IS NOT TIMED CORRECTLY
LOOSEN THE THREE SET SCREWS IN ITS HUB. TURN THE HOOK ON ITS SHAFT TO ALIGN THE POINT OF
THE HOOK WITH THE CENTER OF THE NEEDLE, AS SHOWN IN FIGURE 3. TIGHTEN THE THREE SET
SCREWS.
From the library of: Superior Sewing Machine & Supply LLC

TO REMOVE AND REPLACE THE SEWING HOOK
REMOVE THE NEEDLE, SLIDE PLATE AND BOBBIN CASE. TAKE OUT SCREW "D" (FIG. 4) AND REMOVE
HOOK RETAINER
"E" (FIG. 4). LOOSEN THE THREE SET SCREWS IN THE HUB. TURN HANDWHEEL UNTIL
THE THREAD GUARD (WIDEST PART) OF THE HOOK IS AT THE BOTTOM THEN REMOVE THE SEWING HOOl
FROM ITS SHAFT (FIG. 4).
4
WHEN INSTALLING A NEW SEWING HOOK, HAVE THE THREAD GUARD AT THE BOTTOM. NOW TURN THE
BOBBIN CASE HOLDER UNTIL THE NOTCH "F" IS AT THE TOP. REPLACE HOOK RETAINER "E" WATCHING
THAT THE PROJECTION "G", NEAR ITS END (FIG. 1) ENTERS NOTCH "F" IN THE BOBBIN CASE HOLDER;
FASTEN HOOK RETAINER TO THE UNDERSIDE OF THE BED BY MEANS OF THE SCREW. REPLACE THE
NEEDLE AND TIME THE SEWING HOOK AS DESCRIBED IN THE PRECEEDING PARAGRAPH. RE-INSTALL
BOBBIN CASE, THROAT PLATE AND SLIDE PLATE.
TIMING THE FEEDING MECHANISM
THE FEEDING MECHANISM IS TIMED AT THE FACTORY FOR AVERAGE STITCHING PERFORMANCE.
NORMAL TIMING IS SUCH THAT THE FEED DOG TEETH, RISING FROM THEIR LOWEST POSITION SHOULD
BE JUST FLUSH WITH THE SURFACE OF THE THROAT (NEEDLE) PLATE AFTER THE NEEDLE POINT HAS
TRAYELLED ABOUT 5/16" ABOVE THE PLATE WHILE ON ITS UPSTROKE. TO ALTER THE TIMING OF THE
FEEDING MECHANISM PROCEED AS FOLLOWS; REMOVE TOP COVER FROM THE MACHINE TURN THE
HANDWHEEL TOWARD YOU UNTIL THE TWO SET SCREWS, LOCKING THE FEED ECCENTRIC INTO THE
MAIN SHAFT, COME INTO VIEW (FIG. 5). LOOSEN BOTH SET SCREWS. LIGHTLY TAP THE FEEDECCENTRIC
TOWARD YOU TO ADVANCE FEED TIMING. TO RETARD FEED TIMING, TAP ECCENTRIC TO ROTATE
TOWARD THE REAR OF.THE MACHINE.
Fig. 5
vOTE; DO NOT MOVE ECCENTRIC MORE THAN ABOUT 1116" OF A ROTATION AT A TIME. THEN TIGHTEN SET
.CREWS AND CHECK FOR RESULTS.
From the library of: Superior Sewing Machine & Supply LLC

TIMING THE MOVEMENT OF THE NEEDLE BAR FRAME
SET THE ZIGZAG KNOB TO STRAIGHT STITCH AND TURN THE HANDWHEEL. WATCH HOW
THE NEEDLE MOVES IN AND OUT OF THE SLOT IN THE THROAT (NEEDLE) PLATE. IF THE NEEDLE IS NOT
CENTERED IN THE SLOT, MAKE THE ADJUSTMENTS SUGGESTED IN THE PARAGRAPH ON THE CENTERING
OF THE NEEDLE. NOW ADJUST THE NEEDLE TO PRODUCE WIDEST ZIG ZAG STITCH. TURNING THE
HANDWHEEL TOWARD YOU, OBSERVE VIBRATION (SIDEWAYS MOVEMENT OF THE NEEDLE BAR). THE
NEEDLE BAR ON ITS UPWARD MOVEMENT SHOULD BEGIN TO VIBRATE WHEN THE POINT OF THE NEEDLI
IS NO LESS THAN ABOUT 3/32" ABOVE THE THROAT PLATE. IT SHOULD STOP VIBRATING WHEN THE
NEEDLE HAS REACHED APPROXIMATELY THE SAME POSITION ON THE DOWNWARD SWING. TO ADJUST
VIBRATION OF THE NEEDLE BAR, LOOSEN SET SCREW "H" (FIG. 5) VIBRATING CAM AND LIGHTLY TUR1
THE CAM ON ITS SHAFT, TIGHTEN SET SCREWS AND CHECK THE RESULTS. REPEAT THIS PROCEDURE
UNTIL YOU ACHIEVE THE DESIRED RESULT.
TO RAISE OR LOWER THE FEED DOG
WHEN AT ITS HIGHEST POSITION, THE FEED DOG SHOULD RISE ABOVE THE THROAT (NEEDLE) PLATE TO
THE FULL DEPTH OF THE TEETH. TO ADJUST THE POSITION OF THE FEED DOG, LOOSEN SCREW '1" (FIG . 4
AND RAISE OR LOWER THE FEED DOG AS DESIRED, THEN TIGHTEN THE SCREW. WHEN RAISING OR
LOWERING THE FEED DOG BE CAREFUL THAT ITS UNDERSIDE DOES NOT DROP SO LOW THAT IT STRIKES
THE HOOK.
ADJUSTMENT OF THE THREAD TAKE UP SPRING
THE THREAD TAKE UP SPRING "K" (FIG. 6) SHOULD BE SET SO THAT WHEN THE EYE OF THE NEEDLE
REACHES THE GOODS ON THE DOWNWARD STROKE OF THE NEEDLE BAR, THE SPRING WILL HAVE
COMPLETED ITS ACTION AND WILL REST AGAINST THE STOP ON THE THREAD TAKE UP SPRING
REGULATOR.
IF THE THREAD TAKE UP SPRING IS NOT SET AS OUTLINED ABOVE, LOOSEN SET SCREW "L" (FIG. 6) AND
TURN TENSION STUD 'M' TO THE LEFT FOR REDUCED MOVEMENT OF THE SPRING OR TO THE RIGHT FOR
MORE MOVEMENT. AFTER THE TAKE UP SPRING IS SET CORRECTLY TIGHTEN SET SCREW 'L".
REGULATION OF THE TENSION OF THE THREAD TAKE UP SPRING
'K' IS DONE BY TURNING THE TENSION
STUD
"M" TO THE RIGHT TO INCREASE TENSION OR TO THE LEFT TO DECREASE IT. THE TENSION OF THE
SPRING SHOULD BE JUST ENOUGH
TO TAKE UP THE SLACK OF THE NEEDLE THREAD UNTIL THE EYE OF
THE NEEDLE REACHES THE MATERIAL ON ITS DOWNWARD MOVEMENT.
From the library of: Superior Sewing Machine & Supply LLC

Consolidated Sewing Machine Corp.
Website: www .consew.com
MAIN office
Miami,FL Los Angeles, CA
131 W. 25th Street 4013 N.W. 79th Avenue 2320 South Hill Street
New York, NY 10001 Miami, FL 33166 Los Angeles,
CA 90007
Tel: [phone] Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone] Fax:[phone]
e-mail: [email protected] e-mail: [email protected] e-mail: [email protected]
From the library of: Superior Sewing Machine & Supply LLC

I
I
I
I
I
I
I
I
I
I
I
I
From the library of: Superior Sewing Machine & Supply LLC
