Contro l4 C4-SKCB-XX User manual

™
Warnings and Considerations
IMPORTANT! Using this product in a manner other than outlined in this
document voids your warranty. Further, Control4 is NOT liable for any
damage incurred with the misuse of this product. See “Troubleshooting.”
IMPORTANT! Do NOT use a power screwdriver to install this device. If you
do, you may overtighten the screws and strip them. Also, overtightening
the screws may interfere with proper button operation.
IMPORTANT! This is an electronic device with intricate components.
Handle and install with care!
CAUTION! Do not exceed the number of keypads per power supply
as indicated in the Keypad Bus Wiring Guide. Exceeding the maximum
number of keypads will result in overheating the wires and/or failed
devices.
ATTENTION! Ne pas dépasser le nombre de claviers par bloc
d’alimentation comme indiqué dans le Guide de câblage du clavier. Si vous
dépasser le nombre maximal de claviers les fils et / ou dispositifs pourrai
surchauer.
Installation Instructions
CAUTION! When wiring the keypad, make sure that either:
đŏ The Bus Power Supply is not powered on.
- OR -
đŏ The pluggable connector is disconnected from the Bus Power Supply.
ATTENTION! Lors du branchement du clavier, assurez-vous que
đŏ Le Bus d’alimentation n’est pas sous tension ou
đŏ La prise est déconnecté de l’alimentation.
1 Prepare the cable for termination by stripping the outer sheath and individual
wires, and then wire into the pluggable terminal block.
2 Wire the keypads as shown below.
Figure 1. Keypad Wiring
3 Fit the wires back into the wallbox.
4 Align the keypad to the wallbox (observe the orientation direction arrow),
then fasten it with the included screws.
IMPORTANT! Tighten the screws until the device is flush with the
wall surface, but no further. Overtightening can warp the keypad and
cause it to malfunction.
KeyPad KeyPad
V+ GNDD+ D- V+ GNDD+ D-
To Bus Ethernet
Gateway
To Next Keypad
Supported Model

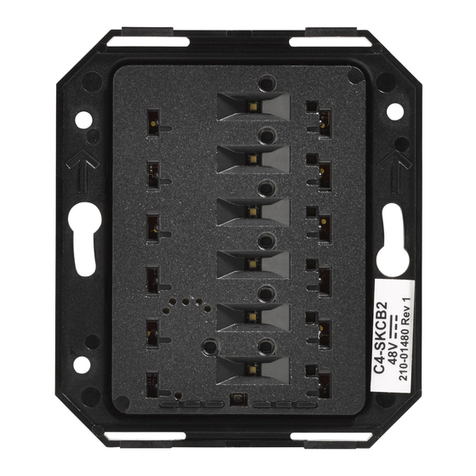

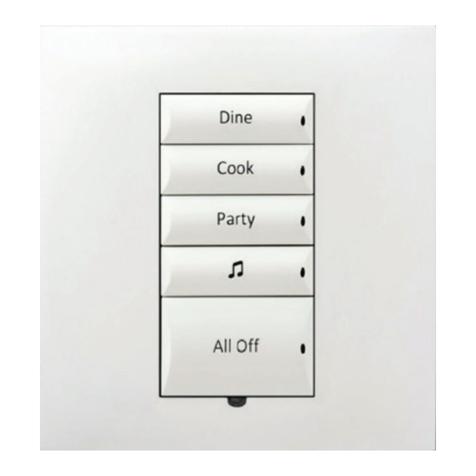

đŏ C4-SKCB-XX Square Configurable Wired Keypad
Introduction
The Control4® Square Configurable Wired Keypad is intended for use in a Control4
system. It installs in a standard UK square wallbox. Communication to the Control4
system is via RS-485 protocol and wiring. For RS-485 wiring topologies, refer to
the document Keypad Bus Wiring Guide.
Box Contents
đŏ Square Configurable Wired Keypad
đŏ Keycap Button Kit
đŏ Pluggable Terminal Block
đŏ Warranty Card
Specifications
The specifications are described below.
Model Number C4-SKCB-XX
Power Requirements 48VDC
Power Consumption Maximum 48VDC 1.2W
Minimum 48VDC 0.7W
Environmental
Operational Temperature 32˚F - 104˚F (0˚C - 40˚C)
Humidity 5% to 95% non-condensing
Storage -4˚F - 158˚F (-20˚C - 70˚C)
Miscellaneous
Control Communications RS-485
Weight 0.1 lb. (0.045 kg)
Shipping Weight 0.3 lb. (0.14 kg)
Square
Configurable
Wired Keypad
Installation Guide

5 Install the buttons following the instructions in the Keypad Buttons Installation
Guide.
6 Install the Control4 faceplate (sold separately) by placing the top of the
faceplate on the device and firmly pressing the bottom until the faceplate
snaps into place against the wall.
NOTE: To remove the faceplate, use a flathead screwdriver. Insert the
screwdriver into the small gap on the bottom between the faceplate and
the device. Twist the screwdriver blade to pop the faceplate o.
7 Ensure that the Bus Power Supply is installed correctly and powered on. For
instructions, see the Bus Power Supply, 48V Installation Guide.
Wiring Diagrams
For bus wiring details, refer to the Keypad Bus Wiring Guide.
Operation and Configuration
On initial power up, all status LEDs on the keypad will illuminate green, indicating
that the device has power. Until the keypad has been configured into a Control4
system, it will not control any loads. To set up this keypad for use with a Control4
system, refer to the Composer Pro User Guide.
Button Tap Sequences
The button tap sequences are defined in the table below. Button tap sequences
that require a single (1) button should use the top-most button installed on the
keypad. Button tap sequences requiring two (2) buttons should use the top-most
and bottom-most (or bottom-left) buttons installed on the keypad.
Function Button Sequence
Identify 4
Reboot 15
Factory Reset 9-4-9
Unidentify 13-4-13
Troubleshooting
If the LEDs do not light up indicating that the keypad is receiving power::
đŏ Ensure that the Bus Power Supply is powered on.
đŏ Ensure that the Bus Ethernet Gateway is powered on and connected.
đŏ Check for proper wiring (see “Installation Instructions” above).
đŏ For help on the installation or operation of this product, email or call the
Control4 Technical Support Center. Provide your exact model number.
Contact [e-mail] or see the website www.control4.com
Care and Cleaning
đŏ Do NOT paint the keypad or its wall plate.
đŏ Do NOT use any chemical cleaners to clean the keypad.
đŏ Clean surface of the keypad with a soft damp cloth as needed.
Regulatory/Safety Information
To review Regulatory information for your particular Control4 products, see the
information located on the Control4 website at:
http://www.control4.com/regulatory/.
Patent Information
Applicable patents are available at: http://www.control4.com/legal/patents.
Warranty
For complete warranty information, including details on consumer legal rights as
well as warranty exclusions, review the Warranty card or visit:
www.control4.com/warranty.
Copyright ©2014 Control4. . All rights reserved. Control4, the Control4 logo, the Control4 iQ logo and the Control4 certified logo are registered trademarks or trademarks of Control4 Corporation
in the United States and/or other countries. All other names and brands may be claimed as the property of their respective owners Pricing and specifications are subject to change without notice
200-00367 Rev. B 01/16/14 (BN)
