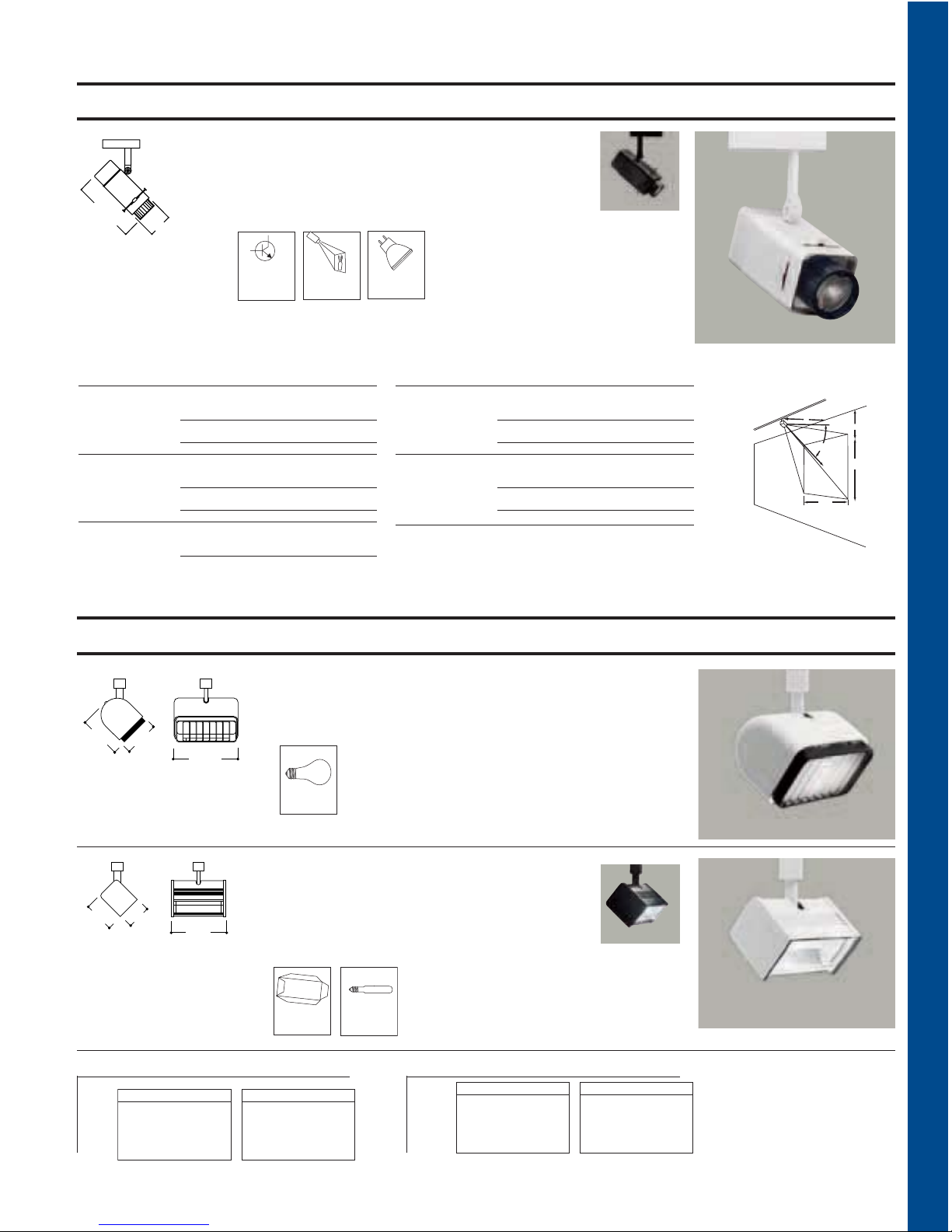

TRACK LIGHTING Framing Projector / Wall Wash
COOPER LIGHTING
HALO®
L2756 Low Voltage Framing Projector with
Integral 12V Electronic Transformer
Notes: Not for use with Four Circuit Trac
Finish: White (P), Black (MB)
Lamp: 75W 12V MR16
Accessories: L256 Iris
9"
(229mm) 3 1/2"
(89mm)
MB
Max. Extension:
11 1/2” (292mm)
P
75W EYC 42° 2' 30° 17" 15" 14" 155
45° 25" 24" 22" 88
60° 50" 39" 32" 35
3' 30° 27" 21" 16" 58
45° 40" 25" 30" 33
4' 30° 40" 31" 18" 29
75W EYF 14° 2' 30° 18" 14" 15" 270
45° 32" 16" 22" 139
60° 58" 19" 32" 64
3' 30° 32" 24" 17" 91
45° 48" 25" 28" 55
4' 30° 44" 33" 19" 48
50W EXN 40° 2' 30° 17" 13" 15" 156
45° 26" 15" 22" 82
60° 50" 19" 31" 36
3' 30° 27" 21" 17" 56
45° 47" 21" 28" 30
4' 30° 37" 29" 19" 30
50W EXZ 27° 2' 30° 18" 13" 15" 183
45° 30" 15" 22" 96
60° 57" 20" 34" 38
3' 30° 31" 24" 16" 54
45° 51" 27" 26" 29
4' 30° 42" 31" 18" 28
50W EXT 14° 2' 30° 19" 15" 14" 178
45° 28" 16" 21" 95
60° 59" 20" 32" 45
3' 30° 30" 24" 16" 62
45° 51" 27" 26" 30
4' 30° 46" 34" 17" 30
Max
Width
Aiming
Point
Max
Length
DD
D
A
Width and length of beam is measured to visual cutoff.
Width and length can be adjusted to fit object by using built in shutters or L256 accessory iris lens.
The DD value is the distance from ceiling to top edge of beam.
Footcandle values are averages of lamps from different manufacturers as measured at center of beam.
ADJUSTABLE
BEAM
INTEGRAL
ELECTRONIC
TRANSFORMER
12V
75W MAX
12V MR16
L2756 Framing Projector -Illumination on Vertical Plane
Lamp Lamp Distance Aiming Beam Beam Beam Max
Type Beam From Angle Length Width Distance Footcandles
Wall From
Ceiling
Lamp Lamp Distance Aiming Beam Beam Beam Max
Type Beam From Angle Length Width Distance Footcandles
Wall From
Ceiling
L650, L651, L652, L653
L641, L642, L643
L611, L612, L613
L1631, L1632
LZR102, LZR104,
LZR106, LZR108
Halo Single and 2-Circuit Lazer Track
L2756
Lampholder/Track Compatibility
L1751 Wall Washer with Black Louver
Notes: Provides broad uniform illumination
Finish: White with Black Louver (P)
Lamp: 100W A19, 150W A21
4 3/4"
(121mm) 4 1/8"
(105mm)
7 3/4"
(197mm)
Max. Extension:
7 3/4” (197mm)
100W A19
150W A21
P
P
MB
L1752 Quartz Wall Washer
Notes: Provides uniform illumination with sharp cutoff at top and
bottom
Finish: White (P), Black (MB)
Lamp: 150W T-4 Tungsten Halogen Frosted
Mini-Candelabra Base
Accessories: L977 Barn Doors
BARN DOORS
AVAILABLE
150W
TUNGSTEN
HALOGEN
3 5/8"
(92mm)
3"
(76mm)
6 1/8"
(156mm)
Max. Extension:
6 1/2” (165mm)
L650, L651, L652, L653
L641, L642, L643
L611, L612, L613
L1631, L1632
LZR102, LZR104,
LZR106, LZR108
Halo Single and 2-Circuit Lazer Track
L1751
L1752
L1751
L1752
WALL WASHERS
FRAMING PROJECTOR
Lampholder/Track Compatibility
