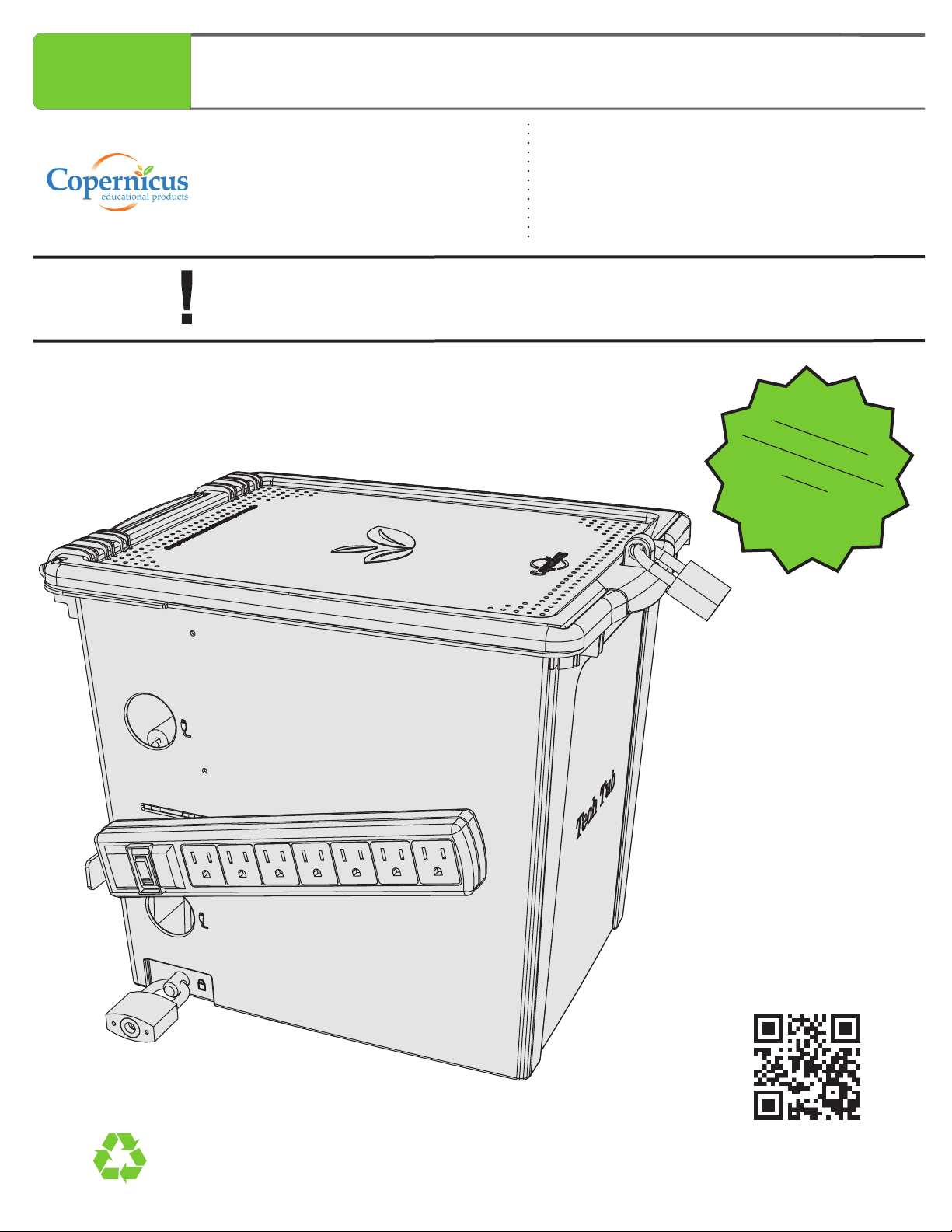

Copernicus Tech Tub Premium User manual

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
Please Recycle
Assembly Guide
TEC700_2014_D
Check out our other products online at
www.copernicused.com
?This product is meant to be assembled by an adult.
?In its unassembled state, small parts present a hazard.
?To be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
TEC700
Email our Customer Support
Need Support?
Have a Question?
Don’t throw
these instructions
away!
Positioningtemplate
printed inside!
TM
Tech Tub Premium - 7 Devices

5
Tub and Lid
Warranty
Year
TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a drawing to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Component
Warranty
1
Year
Frame
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Dear Educator,
TM
Thank you for purchasing one of our products. I hope the assembly of your Tech Tub went well.
If you have any questions, or concerns, or ideas for how we can improve, please call us at 1-800-267-8494,
where someone will be happy to help.
Enjoy using your new product and happy teaching.
We do not inherit the earth
from our ancestors, we
borrow it from our children.
NORTH AMERICAN
PROVERB
Change is the end result of
all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the lives
of others.
PERICLES
Education is the most
powerful weapon which you
can use to change the world.
NELSON MANDELA
Jim Phillips
President
Assembly Guide
TEC700_2014_D
Check out our other products online at
www.copernicused.com
2
TEC700 TM
Tech Tub Premium - 7 Devices

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
Warning! Hazard Risks!
Please read the warnings below for important safety information regarding your product.
Failure to read these warnings or to follow the instructions below could result in personal
injury or damage to your product that could void your warranty.
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture. The internal components are not sealed from the
environment.
Read your power strip’s electrical specifications. Only plug in devices that are approved for use
with this power strip. Connect the supplied power strip directly to a wall outlet. The socket-outlet
shall be installed near the equipment and shall be easily accessible. Do not connect to
another power strip or use an extension cord. Unplug when not in use.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and
marked to avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless
otherwise specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage
to your equipment or personal injury.
Electronic
Equipment
Adult
Supervision
3

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
Please note that in its unassembled state, this product contains parts
that can be hazardous to small children. This product should be
assembled by an adult.
!
WARNING
Lid (1)
Tub (1)
Locking Pin (1)
Padlock (2)
Locking Block (1)
Cable Hook (2)
7-Device Holder (1)
Power Strip (1)
4
TEC700 TM
Tech Tub Premium - 7 Devices

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.

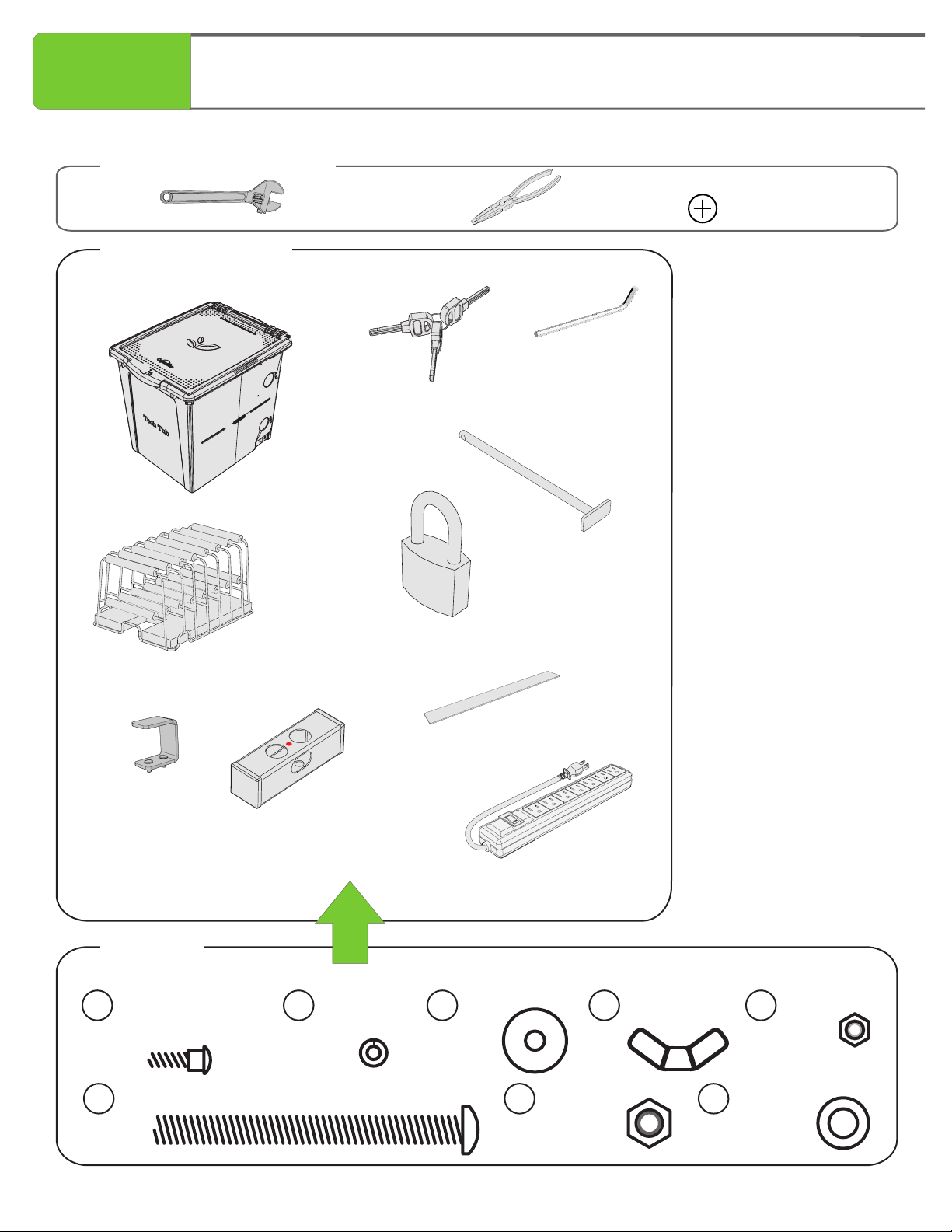

Contents - TEC700
Before beginning, you should have:
Additional tools required:
Adjustable wrench (2) OR
5mm,
7mm,
11mm
Screwdriver
+Phillips #1
7-Device
Holder
(TEC-AC7)
1x
Locking Block
1x
(31078)
Locking Pin
1x
(31079)
Padlock
2x
Power Strip
1x
Hook & Loop
Straps
7x
Key
6x
5
Cable Hook
2x
Allen Key 4mm
1x
TEC700 TM
Tech Tub Premium - 7 Devices - Parts
TM
Tech Tub
1x
(TEC57)
Hardware
Actual Size
M3 x 12mm
Carriage Screw
(4.6mm Square Width)
2x
AM4 Lock Nut
4x
E
M3 Wing Nut
2x
D
M6 x 70mm
2x
FM6 Lock Nut
2x
GM6 Washer
6x
H
M3 Lock
Washer
2x
BFlat Washer
2x
C
In box
+Pliers

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
Tips for Assembly
This symbol denotes a 2- or 3- Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you
build the unit.
For parts and other issues regarding your Tech Tub:missing
Please call Copernicus Customer Service,
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [email protected]
where we will be happy to help.
?
?
?
Need Tech Support?
Have a Question?
2-Person Task 3-Person Task
Email our Tech Support Service
Customer Service - FAQ’s
6
TEC700

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
7
Power Strip
1x
A
1
You will need: (Not to Scale)
Actual Size:
M3 x 12mm
2x
M3 Lock Washer
2x
B
Flat Washer
2x
C
M3 Wing Nut
2x
D
TM
Install Hardware on Power Strip and Mount to Tech Tub
Right Back Left
TM
Tech Tub
1x
You MUST assemble the power strip on
back face if you are using your Tech Tub™
with TEC714 & TEC728 carts.
Choose the side you would like to mount the power strip on
Tighten bolts
once in place
12
Install screws in power strip Install power strip to the Tech Tub™
Make sure outlet
cable end if pointed
towards the back of
the Tech Tub™
It may take some force to fit the
screw head into the keyhole slot.
Use pliers to help slide the screw
head into the keyhole slot.
Tighten fully
C
D
B

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
4
You will need: (Not to Scale)
Actual Size:
Lock Lid with Padlock
5
You will need: (Not to Scale)
Actual Size:
Wrap Power Strip Cable
Padlock
1x
Note
Padlock will
not lock
without key
:
8
Key
3x
Cable Hook
2x
M4 lock nut
4x
E
AA
Tighten fully
Note orientation
of cable hooks
2
You will need: (Not to Scale)
Actual Size:
Install Device Holder
3
You will need: (Not to Scale)
Actual Size:
Install Cable Hooks
7-Device Holder
1x
Note orientation
of holder.

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
Use Template and Drill Holes into Surface
6You will need: (Not to Scale)
7
You will need: (Not to Scale)
Actual Size:
Locking Block
1x
M6 x 70mm
2x
F
M6 Lock Nut
2x
G
M6 Washer
6x
H
OPTIONAL:
Positioning Template (found at back of this guide)
1x
9
Allen Key 4mm
1x
TM
Follow Steps 6 to 8 to install the Tech Tub Locking
Block and Locking Pin System
Mount Locking Block
Drilled holes from Step 6
F
H
G
Underside
Label facing
upwards
H
Table or Countertop
Section
View
G
F
HWasher goes
INSIDE tube
HWasher goes
UNDER tube
H
H
Use positioning template
found at back of these
Assembly Instructions
Use 1/4” or 6mm drill bit
Maximum thickness of
surface is 2-1/2” (63mm)
Table or Countertop
Use tape to secure
the positioning template

OPTIONAL: TM
Follow Steps 6 to 8 to install the Tech Tub Locking
Block and Locking Pin System
TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
TM
Lock the Tech Tub with Locking Pin
8
You will need: (Not to Scale)
Padlock
1x
Locking Pin
1x
1 2
3 4
TM
Push Tech Tub
until Locking
Block is
completely
in channel.
Slide Locking Pin
through hole on
TM
Tech Tub Secure Locking Pin with Padlock
on other side.
10
Key
3x

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.

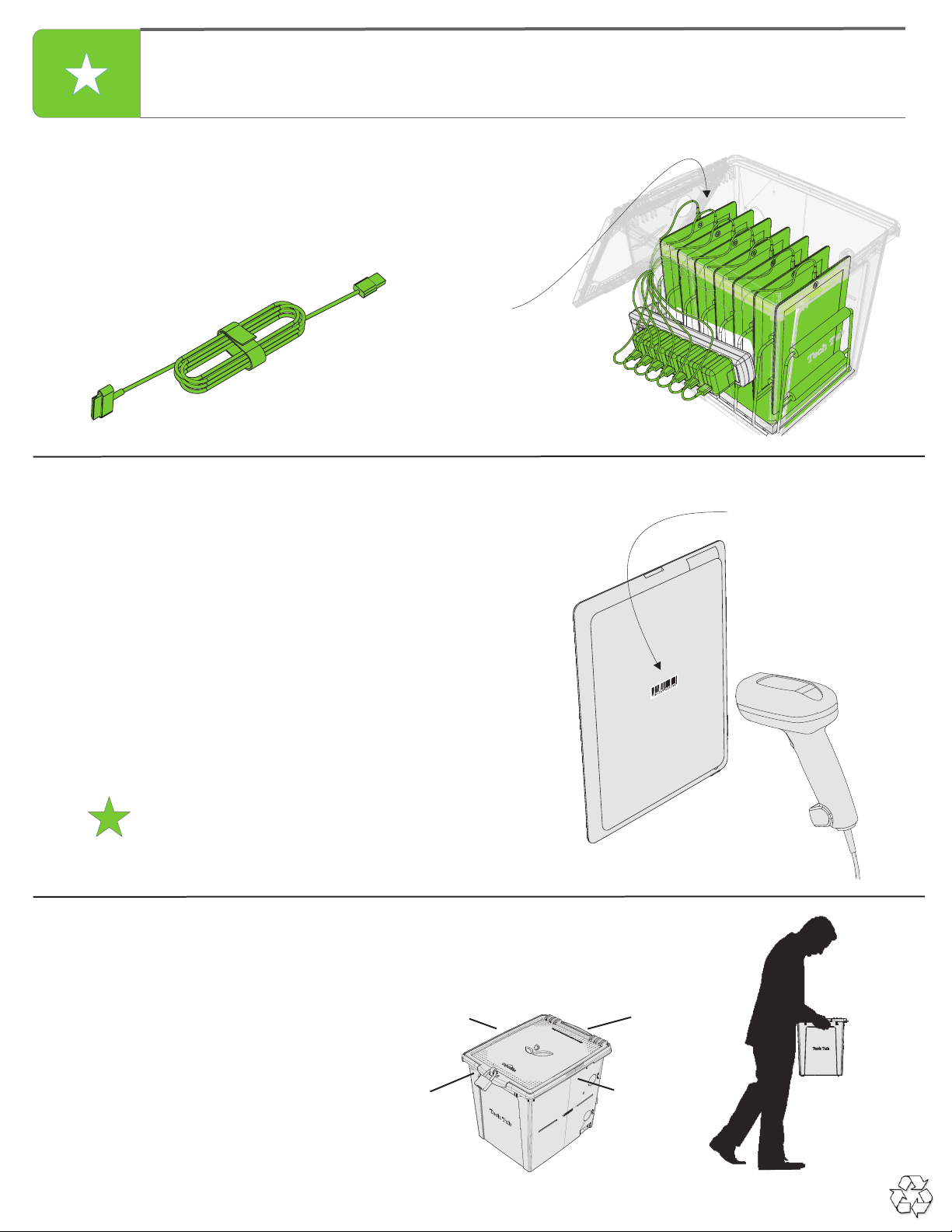

Tips for Use
How to insert your device and manage your cables.
Ensure the device’s charging ports are easily accessible when loading.
Use your Hook & Loop Straps to bundle your device’s cables.
TM
iPad charging port
facing upwards
TM
iPad 30-Pin Cable
11
TM
Carrying your Tech Tub
TM
Use the Handles along the sides of the Tech Tub for easy lifting and carrying.
Handle
Handle
Handle
Handle
Device Management
Keeping track of your devices can be made easier by creating a
sign-out program.
There are many automated software solutions available that make
setting up and running a device check-out program very easy.
Here is a list of some companies and their products:
®
ResourceMate - www.resourcemate.com
Neuton Data Systems - www.neuton.net
IntelliScanner - www.intelliscanner.com
Does your school already use an automated
system to keep track of books?
You could use this system to also keep track
of your devices!
Use a barcode and
scanner for
identifying your
devices.

TEC700 - Version D - Released December 16, 2014 - Copernicus Educational Products Inc.
12
Hinge Side
Snap Side
Drill here
Drill here
Snap Side of Tech Tub
Hinge Side of Tech Tub

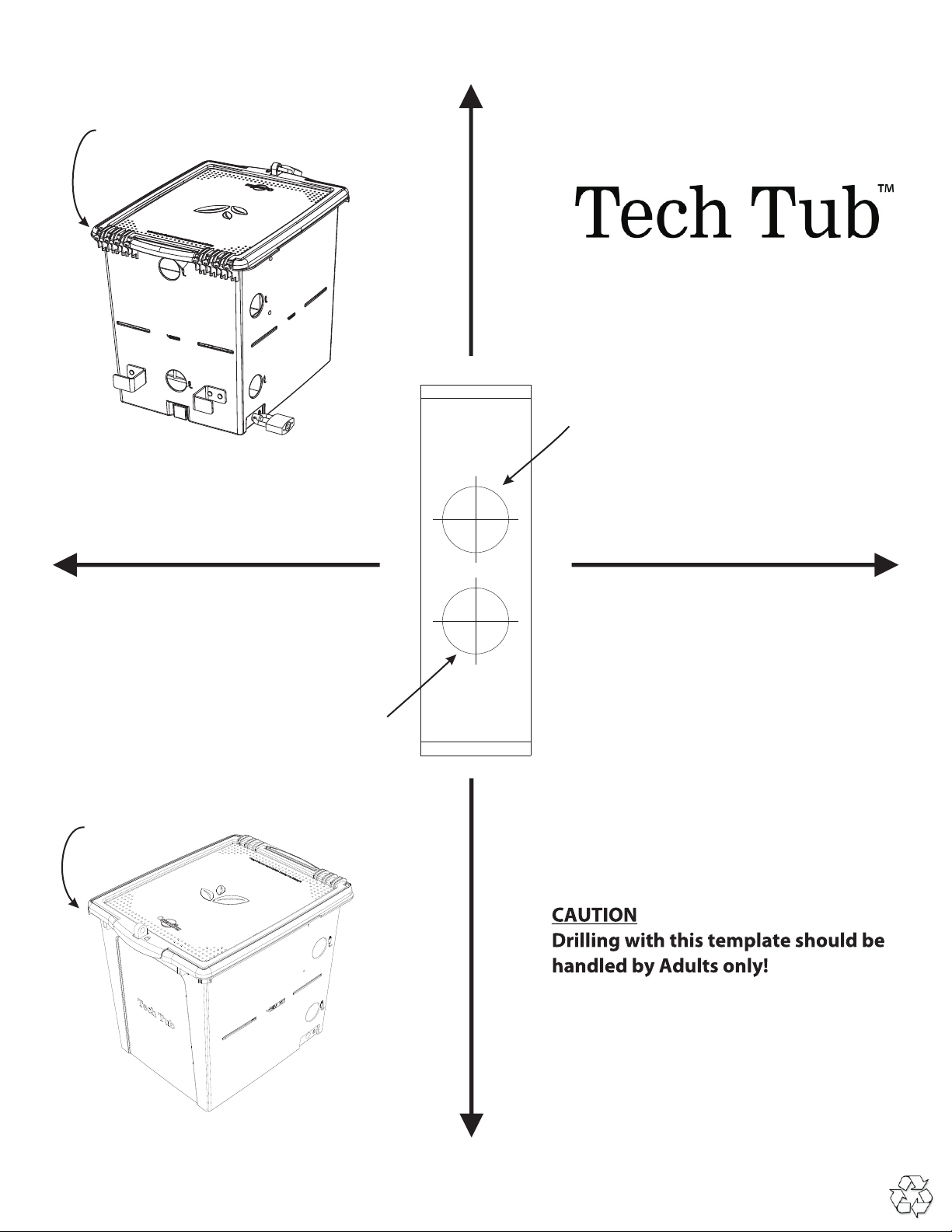

Mounting Template
Leave a minimum of 15-1/2” (395mm)
of space from Locking Block
Leave a minimum of 15-1/2” (395mm)
of space from Locking Block
Leave a minimum of 11” (280mm)
of space from Locking Block
Leave a minimum of 4” (102mm)
of space from Locking Block
