Copernicus Tech Tub2 FTT706 User manual

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
ŸThis product is meant to be assembled by an adult.
ŸIn its unassembled state, small parts present a hazard.
ŸTo be used under direct supervision of an adult.
WARNING
FTT706
FTT2010
FTT2010-USB
FTT2010-USBAUS
Please Recycle
6 Device Trolley
(FTT706)
®
2
Tech Tub Trolley
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
Assembly Guide
FTT706_2010_2010-USB_2010-USBAUS_2020_A
Check out our other products online at
www.copernicused.com
10 Device Trolley
(FTT2010, FTT2010-USB,
FTT2010-USBAUS)

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a draw to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Component
Warranty
1
Year
Frame
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
Life
Frame
Warranty
Time
Life
®
2
Tech Tub
Time
Warranty
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
®
2
Tech Tub Trolley
FTT706
FTT2010
FTT2010-USB
FTT2010-USBAUS
Kaylyn Belcourt-McCabe
President
Dear Educator,
Thank you for purchasing the Trolley. We hope it meets all your expectations and you and your
®
2
Tech Tub
students enjoy using it at your school.
If you have any questions, concerns or ideas on how we can improve please let us know by contacting our
Customer Solutions Ninjas at 1-800-267-8494 or [e-mail].
Happy teaching,
Assembly Guide
FTT706_2010_2010-USB_2010-USBAUS_2020_A
Check out our other products online at
www.copernicused.com
2

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.

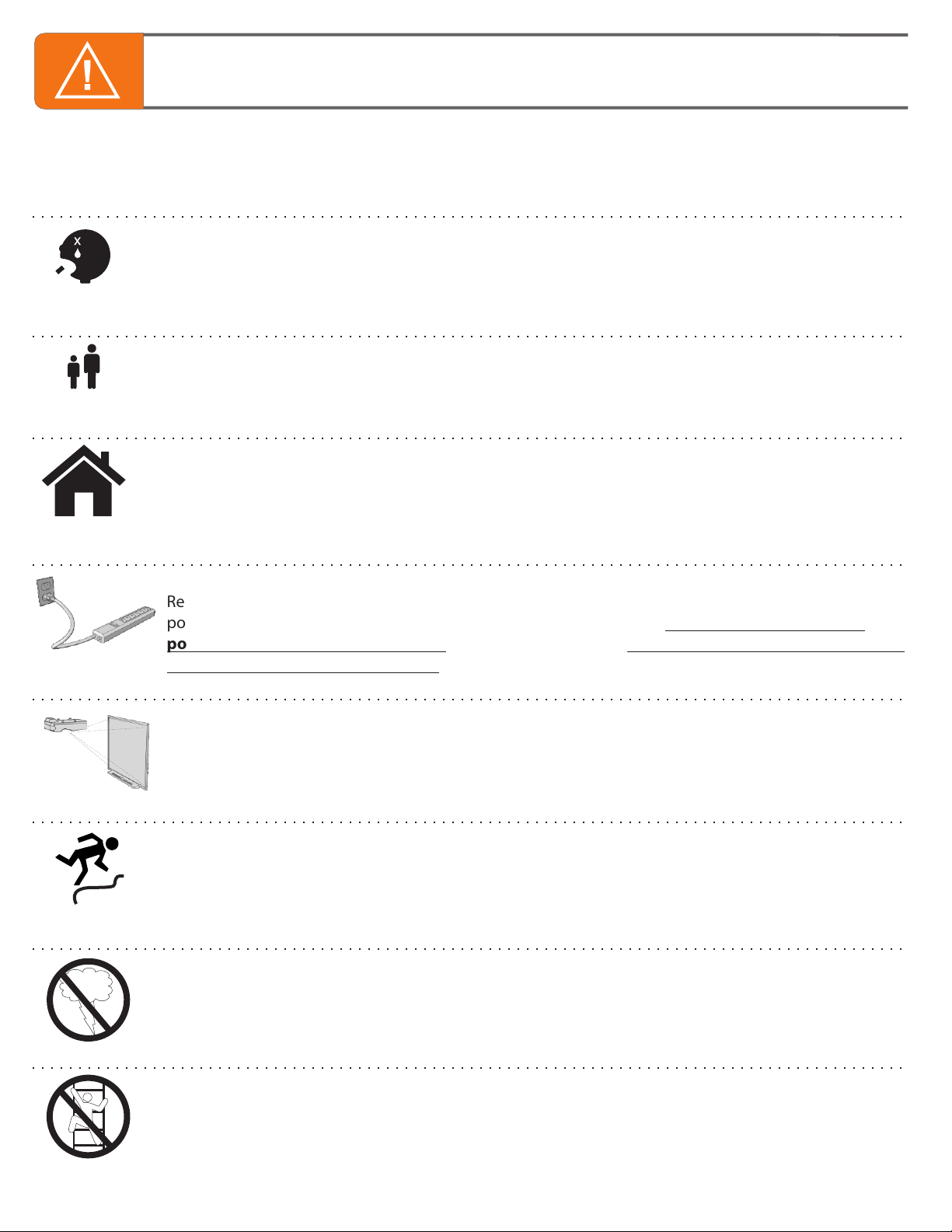

Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.
3

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
FTT706
®
2
Tech Tub Trolley- 6 Device
STOP!
If you are building a FTT706
please follow this Assembly Guide
before following the Assembly Guide
that is included in your Tech Tub.
Please skip any steps that are marked
for FTT2010, FTT2010-USB or
FTT2010-USBAUS ONLY.
4

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
STOP!
FTT2010
FTT2010-USB
FTT2010-USBAUS
®
2
Tech Tub Trolley- 10 Device
If you are building a FTT2010,
FTT2010-USB FTT2010-USBAUS or
please follow this Assembly Guide
before following the Assembly Guide
that is included in your Tech Tub.
Please skip any steps that are
marked for FTT706
ONLY.
5

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
This symbol denotes a 2-Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed together in one bag.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build the unit.
2-Person Task
Tips for Assembly
?
?
?
Customer Service - FAQ’s
For missing parts and other issues regarding this product:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [e-mail]
Need Tech Support?
Have a Question?
Email our Tech Support Service
www.copernicused.com
Check out some of our
other great products!
6

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
Before beginning, you should have:
Contents - Box 1
Trolley Frame
1x
Extension bracket
2x
Used only with
FTT2010
FTT2010-USB
FTT2010-USBAUS
Hardware
Actual Size
In Box 1
Front Support
1x
M6 x 15mm
2x
M6 Acorn Nut
4x
M6 Washer
6x
M6 Lock Washer
4x
Allen Key
(43281)
1x
A
B
C
D
M6 Lock Nut
2x
E
M5 Washer
4x
M5 Lock Nut
4x
F
G
®
2
Tech Tub Trolley
8mm/10mm Hex Wrench
1x
Trolley Handle
1x
FTT706
FTT2010
FTT2010-USB
FTT2010-USBAUS
Tools
Not to Scale
7

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
8
FTT706
FTT700 (1x)
®
2
Tech Tub Trolley
FTT1100 (1x)
FTT2010
®
2
Tech Tub Trolley
Tech Tub 2®
10 Device
Main Body
1x
FTT1100-USBAUS (1x)
10 Port USB Hub
(255144-AUS)
1x
FTT2010-USB
®
2
Tech Tub Trolley
FTT2010-USBAUS
®
2
Tech Tub Trolley
FTT1100-USB (1x)
Power Cord
1x
Tech Tub 2®
6 Device
Main Body
1x
6 outlet
Power Strip
(25515)
1x
Tech Tub 2®
10 Device
Main Body
1x
10 outlet
Power Strip
(255159)
1x
Tech Tub 2®
10 Device
Main Body
1x
10 Port USB Hub
(255144)
1x
USB “B” Cable
1x
North American
power cord shown.
Power Cord
1x
Power Adapter
(255146)
1x
USB “B” Cable
1x
Power Adapter
(255146)
1x
Australian
power cord shown.

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
1
You will need: (Not to Scale)

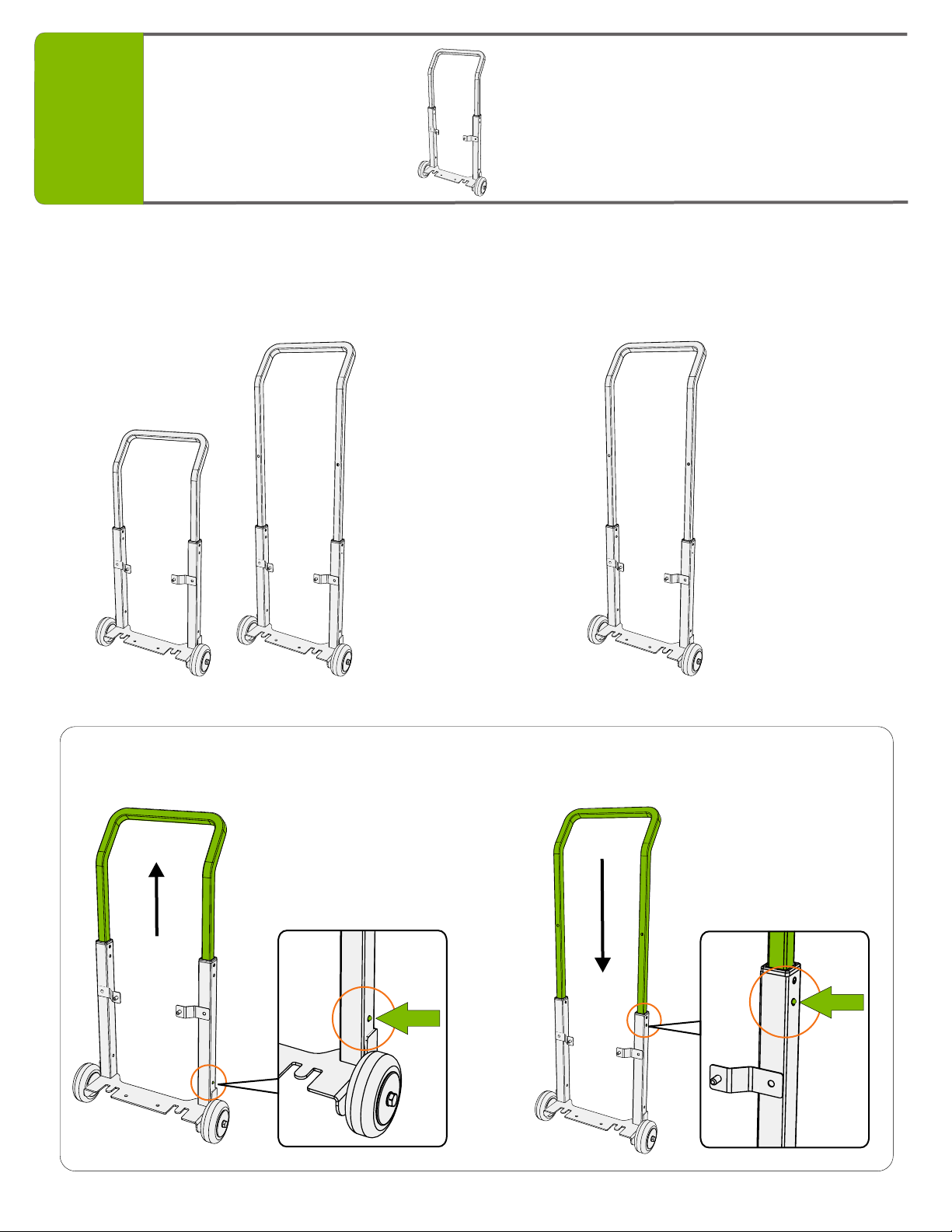

Adjust Trolley Handle to the Correct Height
Adjust the Trolley Handle Into the Correct Position According to Your Model Number
FTT706
Handle can be in raised or lowered position.
FTT2010/ FTT2010-USB/ FTT2010-USBAUS
Handle MUST be in raised position.
To Adjust Handle Up:
Depress button at the bottom
and pull up on the handle.
To Adjust Handle Down:
Depress button at the top
and push down on the handle.
Trolley Frame
1x
Trolley Handle
1x
OR
How To Adjust Handle
PRESS
PRESS
9

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
Fasten Extension Bracket to top Holes on Trolley Handle
M6 Acorn Nut
2x
M6 Washer
2x
B
C
You will need: (Not to Scale)
Trolley Frame
1x
Trolley Handle
1x
Extension
Bracket
2x
M6 Lock Washer
2x
D
Actual Size:
Pay Attention to Orientation of Brackets When Installing Them Onto the Trolley Handle
B
C
DB
C
D
Longer stud
goes through
Trolley Handle
3
FTT2010,
FTT2010-USB,
FTT2010-USBAUS
ONLY
You will need: (Not to Scale)Actual Size: M5 Washer
2x
M5 Lock Nut
2x
F
G
FF
G
G
®
2
Attach the Tech Tub to the Trolley Frame
Fit Trolley Onto Back of Tech Tub
Trolley Frame
1x
Trolley Handle
1x
1Fasten Hardware Through Inside of Tech Tub
2
Ensure the tabs on the base of the trolley are
®
2
fully inserted into the feet on the Tech Tub .
2
FTT706
ONLY
!
10

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
You will need: (Not to Scale)
4Actual Size: M5 Washer
4x
M5 Lock Nut
4x
F
G
®
2

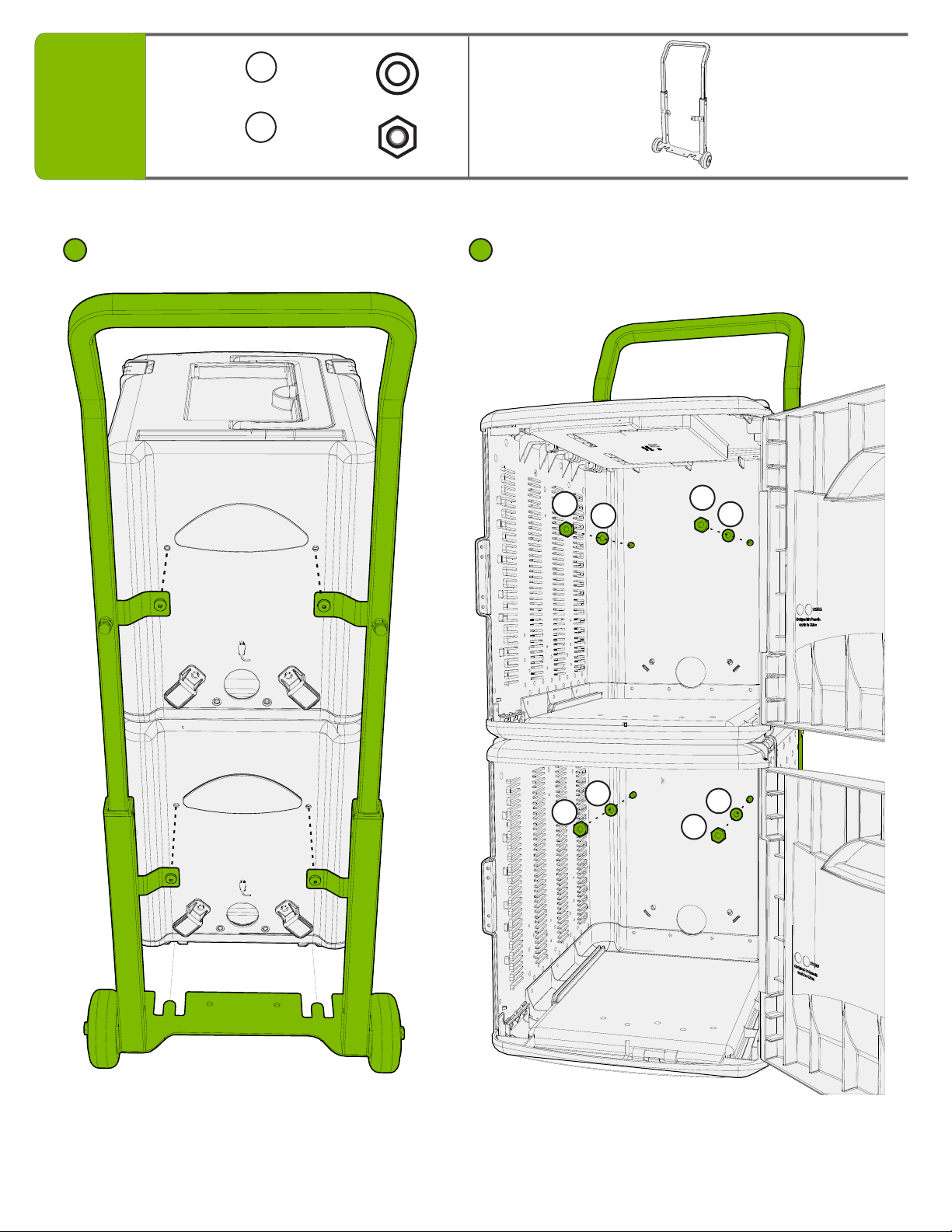

Attach the Tech Tub to the Trolley Frame
Trolley Frame
1x
Trolley Handle
1x
Fit Trolley Onto Back of Tech Tub
1Fasten Hardware Through Inside of top and
Bottom Tech Tub
2
Ensure the tabs on the base of the trolley are
®
2
fully inserted into the feet on the Tech Tub .
!
FTT2010,
FTT2010-USB,
FTT2010-USBAUS
ONLY
FF
G
G
FF
GG
11

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
Actual Size:
®
2
Fasten Trolley Base to Bottom of the Tech Tub
Tip Trolley Onto Back
1
2
M6 Lock Nut
2x
E
M6 x 15mm
2x
A
Fasten Hardware From Inside Tech Tub
3
Insert Fasteners Through Trolley and Tech Tub
5M6 Washer
2x
C
C
E
A
C
E
A
12

FTT706_2010_2010-USB_2010-USBAUS - Version A - Released August 13, 2020 - Copernicus Educational Products Inc.
6
Actual Size: You will need: (Not to Scale)
®
2

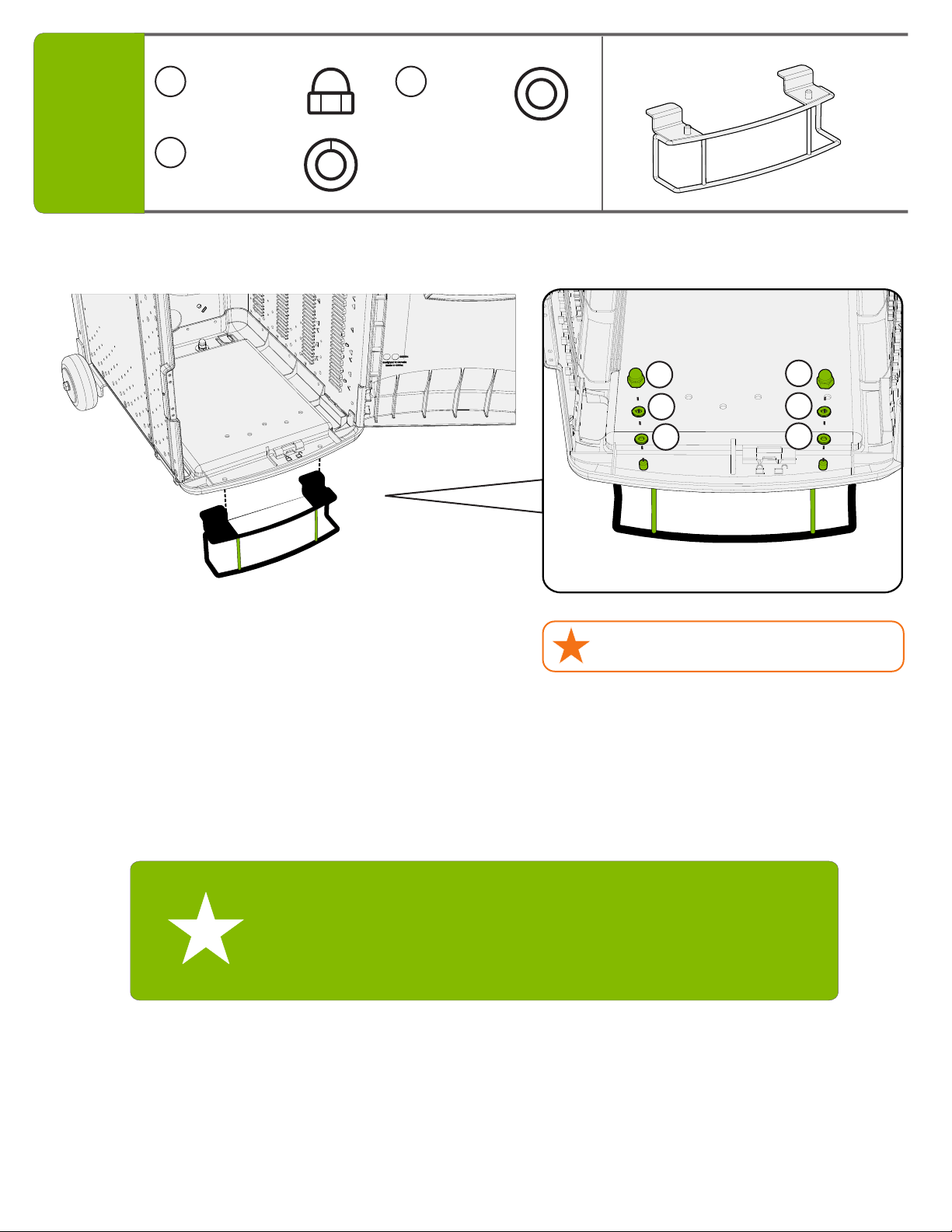

Attach Front Support to Bottom of Tech Tub
®
2
Tech Tub - 6 and 10 Device Setup:
Please follow the assembly guide found in the tub
®
2
shipping box to complete your Tech Tub setup.
Note the orientation of the Front
Support before installation.
Front Support
1x
!
M6 Acorn Nut
2x
BM6 Washer
2x
C
M6 Lock Washer
2x
D
Tighten all hardware but do not over tighten.
BB
DD
CC
13
