Copernicus Tech Tub2 FTT1000 User manual

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
Assembly Guide
FTT1000_FTT1000-USB_2016_C
Check out our other products online at
www.copernicused.com
?This product is meant to be assembled by an adult.
?In its unassembled state, small parts present a hazard.
?To be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
®
2
Tech Tub - 10 Device Setup
FTT1000
FTT1000-USB
Please Recycle
PLEASE KEEP THIS GUIDE WITH THE PRODUCT
Cable Pocket
Door (2)
Power Box
Door (2)
Divider (12)
use 9 only
Surface Mount
Lock (1)
®
2
Tech Tub
TM
2
Tech Tub
Top Handle (1)
Cable Hooks (4)
Flip Lock (2)

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a draw to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Component
Warranty
1
Year
Frame
Jim Phillips
Chief Cook and Bottle Washer
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Dear Educator,
Thank you for purchasing one of our products. I hope that the is useful in your classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or
email at [email protected].
Enjoy using your new product and happy teaching.
®
2
Tech Tub
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
®
2
Tech Tub - 10 Device Setup
Assembly Guide
FTT1000_FTT1000-USB_2016_C
Check out our other products online at
www.copernicused.com
FTT1000
FTT1000-USB
Life
®
2
Tech Tub
Time
Warranty
2

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to
your equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.
3

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
This symbol denotes a 2-Person Task. For safety, please ensure that there are
the suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay
close attention. The symbol denotes a step needing extra attention to ensure it is
done correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can
be hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you
build the unit.
?
?
?
2-Person Task
Tips for Assembly
Customer Service - FAQ’s
For parts and other issues regarding this product:missing
- I lost the key to, how can I get a new one?
Please call Copernicus Customer Service,
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [email protected]
where we will be happy to help.
Need Tech Support?
Have a Question?
Email our Tech Support Service
4
www.copernicused.com
Check out some of our
other great products!

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
®
2
Tech Tub - 10 Device Setup
FTT1000
Shelf
x6
Power Box Door
x1
Tech Tub Main
Body
x1
Hook & Loop
Straps
x6
FTT600-B
FTT600-0
10 Outlet Power Strip
x
(255159)
1
Shelf
x6
Power Box Door
x1
Tech Tub Main
Body
x1
Hook & Loop
Straps
x6
Hardware Bags
Actual Size
Back Foot Anchor Pin
2x
ABM5 Washer
x2
M4 x 15mm
4x
D
CM5 Lock Nut
x2 M6 x 15mm
2x
E
HM6 Wing Nut
2x
Hardware components are not used for all tech tub setup
configurations. Depending on the setup configuration you
choose, you may have extra hardware..
Keys
2x
Not to scale
Allen Key
Not to Scale
(43281)
1x
Allen Key
Not to Scale
1x
Front Pin Bracket
1x
Not to scale
GM6 Lock Washer
2x
Screwdriver
+
Additional tools required:
Before beginning, you should have:
Adjustable wrench x1
8mm or 5/16”,
10mm or 7/16”
Wrench
OR
FM6 Washer
2x
5
In Box

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
®
2
Tech Tub - 10 Device Setup
FTT1000-USB
10 outlet USB Hub
x1
(255144)
FTT600-C
Shelf
x6
Power Box Door
x1
Tech Tub Main
Body
x1
Hook & Loop
Straps
x6
Hardware Bags
Actual Size
Back Foot Anchor Pin
2x
ABM5 Washer
x2
M4 x 15mm
4x
D
CM5 Lock Nut
x2 M6 x 15mm
2x
E
FM6 Washer
2x HM6 Wing Nut
2x
Shelf
x6
Power Box Door
x1
Tech Tub Main
Body
x1
Hook & Loop
Straps
x6
FTT600-0
Keys
2x
Not to scale
4mm Driver
Allen Key
Not to Scale
(43281)
1x
5mm Driver
Allen Key
Not to Scale
1x
Front Pin Bracket
1x
Not to scale
GM6 Lock Washer
2x
Screwdriver
+
Additional tools required:
Before beginning, you should have:
Adjustable wrench x1
8mm or 5/16”,
10mm or 7/16”
Wrench
OR
6
Hardware components are not used for all tech tub setup
configurations. Depending on the setup configuration you
choose, you may have extra hardware..
In Box

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
®
2

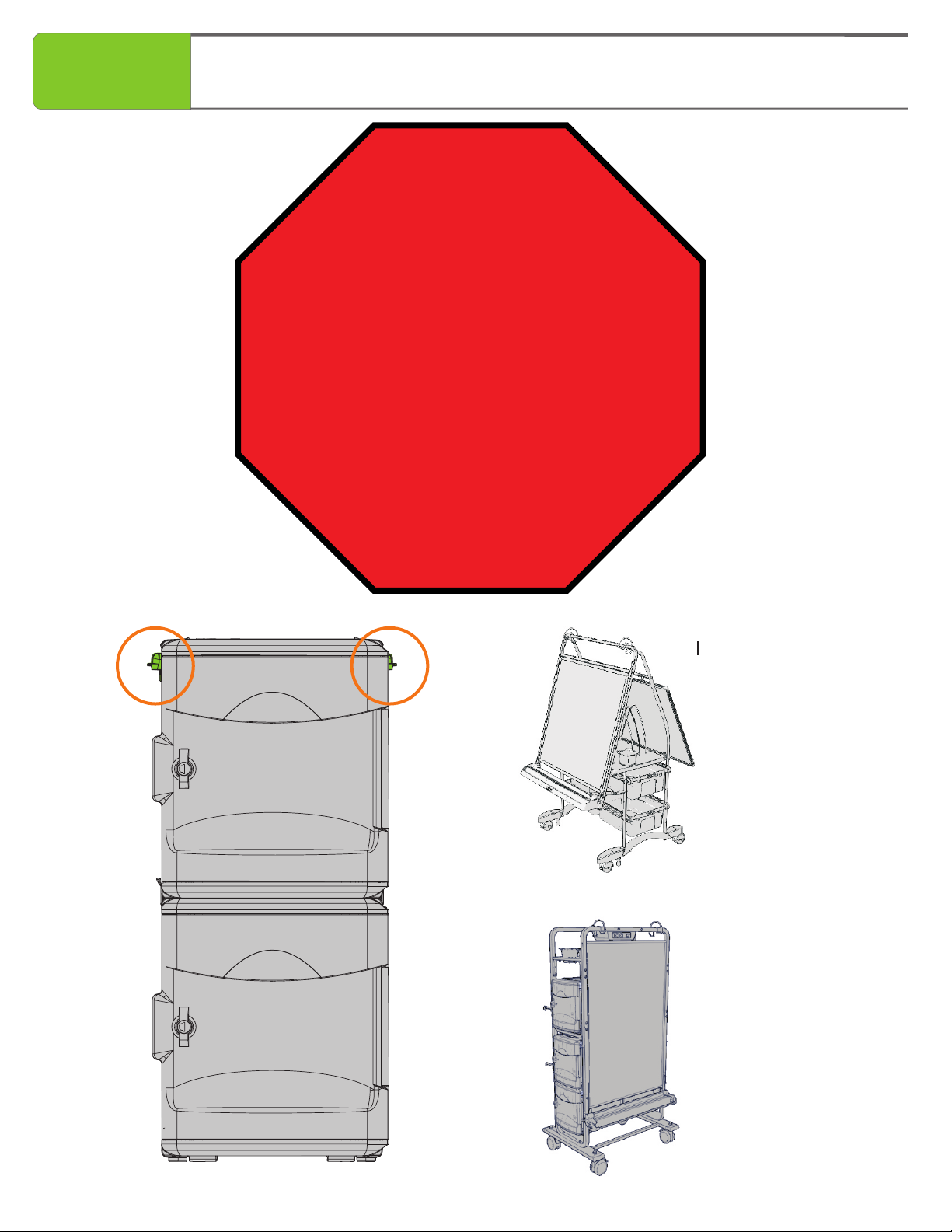

Tech Tub - Installing Tub Rails
FTT-AC1
®
Royal Reading
Writing Center
Dual Duty
Teaching Easel
STOP!
If you purchased the Royal Reading
Writing Center or the Dual Duty Teaching
Easel you will need to install the Tub Rails on
®
2
your Tech Tub first before proceeding with this
assembly guide. Please look inside the easel
box for the FTT-AC1 kit where you will find the
Tub Rails and the Tub Rails assembly guide.
If you have not purchased one of these two
products, please proceed to the next
page to begin setting up your
®
2
Tech Tub .
®
7

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.

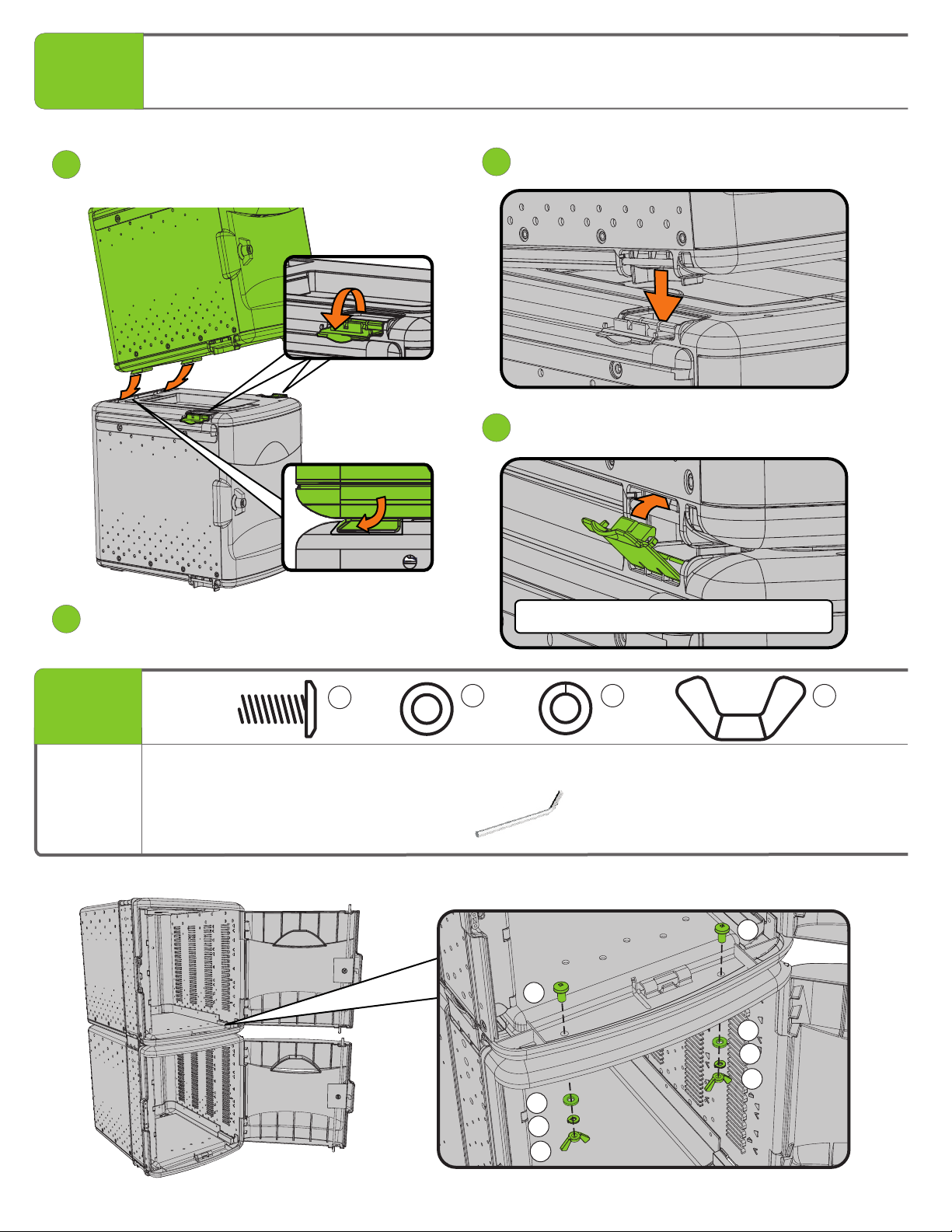

Attach Together
®
2
Tech Tub
You will need: (Not to Scale)
Actual Size:
Bolt Together With Provided Hardware
®
2
Tech Tub
3Insert the front feet of the top tub into the
front openings on the top of the lower tub.
E
x2
F G
x2 x2
H
x2
1
E
F
G
E
H
F
G
H
8
4mm Driver
Allen Key
Not to Scale
(43281)
1x
Insert the back feet of the top tub into
the slot on the top of the lower tub.
2
2
4Lock the top and bottom tubs together
using the flip locks on either side.
Press firmly till you hear a SNAP!
Fully open Flip Locks on either side
of the bottom tub.
1

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
3
Attach Power Box Doors Together
You will need: (Not to Scale)
21
Power Box Door
x2
9
Attach Power Box Door to Base of Bottom ®
2
Tech Tub
Snap door into corresponding holes found on inside bottom face of tub.
Hook doors together (rotate as shown) Slide doors together
43 Rotate flap down against lower door Press all snaps firmly into place
Push bottom of door into
holes until you hear a SNAP!
Look at the underside of the
tub to ensure all the Power
Door snaps are fully engaged.
T shaped rail on bottom
of upper door slides
into grooves on the top
of the lower door.

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.

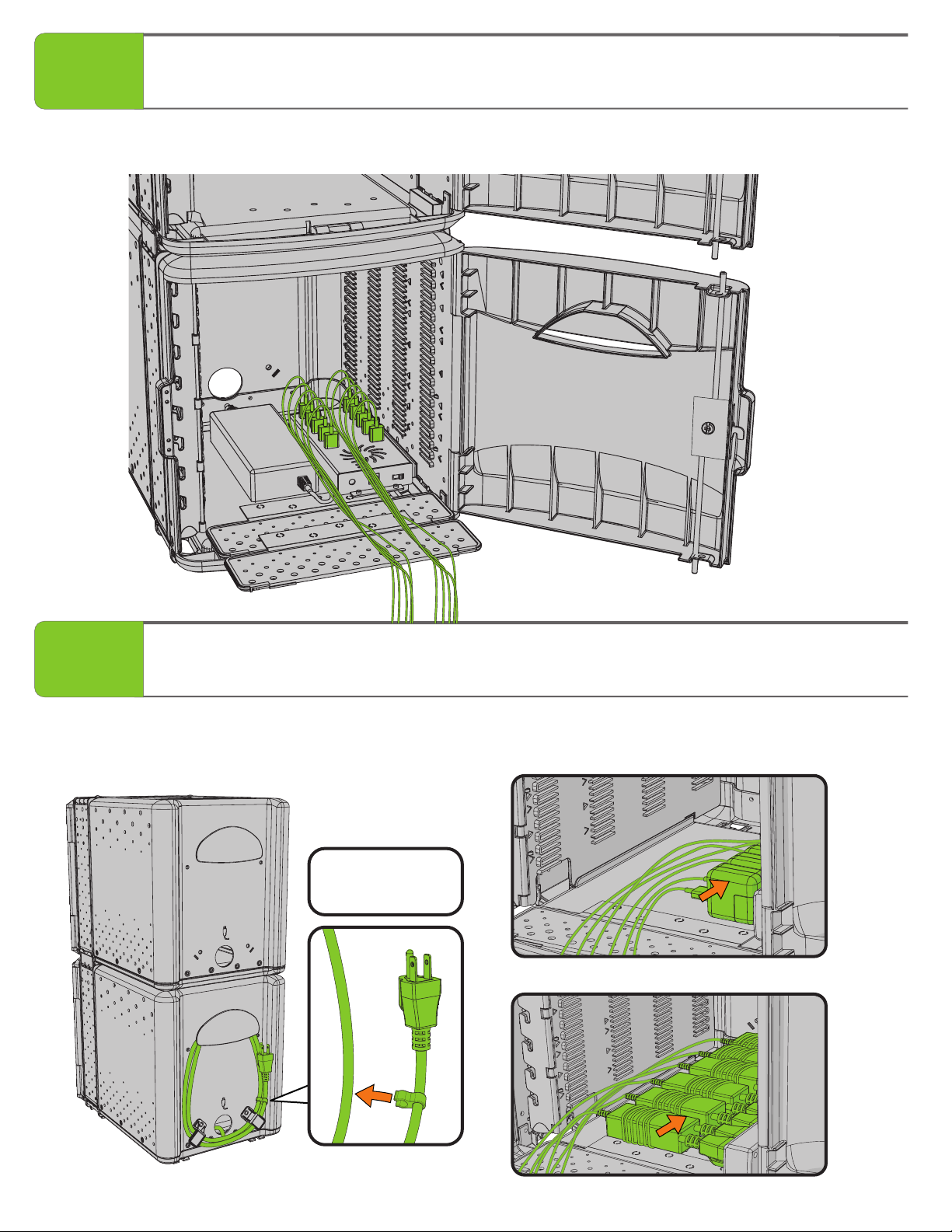

Add Power Strip or 10 Outlet USB Hub
Feed excess cable through hole on back of tub
Wrap excess cord around
power adapter.
4
10 Outlet USB HubPower Strip
10 Outlet Power
Strip
x1
(255159)
Illustration Only
10 outlet USB Hub
x1
(255144)
Illustration Only
Plug Device Power Cords into Power Strip, if using a USB Hub go to Step 6
5
You will need: (Not to Scale) Hook & Loop
Straps
x10
ChromebooksiPads/Tablets
Start from the back of the power strip and work forwards
Leave some slack on the
cord so it is easier to
access the outlets Leave some slack on the
cord so it is easier to
access the outlets
TURN POWER
SWITCH ON
TURN POWER
SWITCH ON
10

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
7
6
Wrap Up Power Strip or 10 Outlet USB Hub Power Cable
Make sure all device cables are pushed far back into tub before wrapping Power Strip
or 10 Outlet USB Hub cable
Plug Device USB Cords into 10 Outlet USB Hub
Start from the back of the 10 Outlet USB Hub and work forwards
iPads/Tablets
Use the Cable Clip to
keep the Power Strip
cord secure.
11

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
1
2
®
2

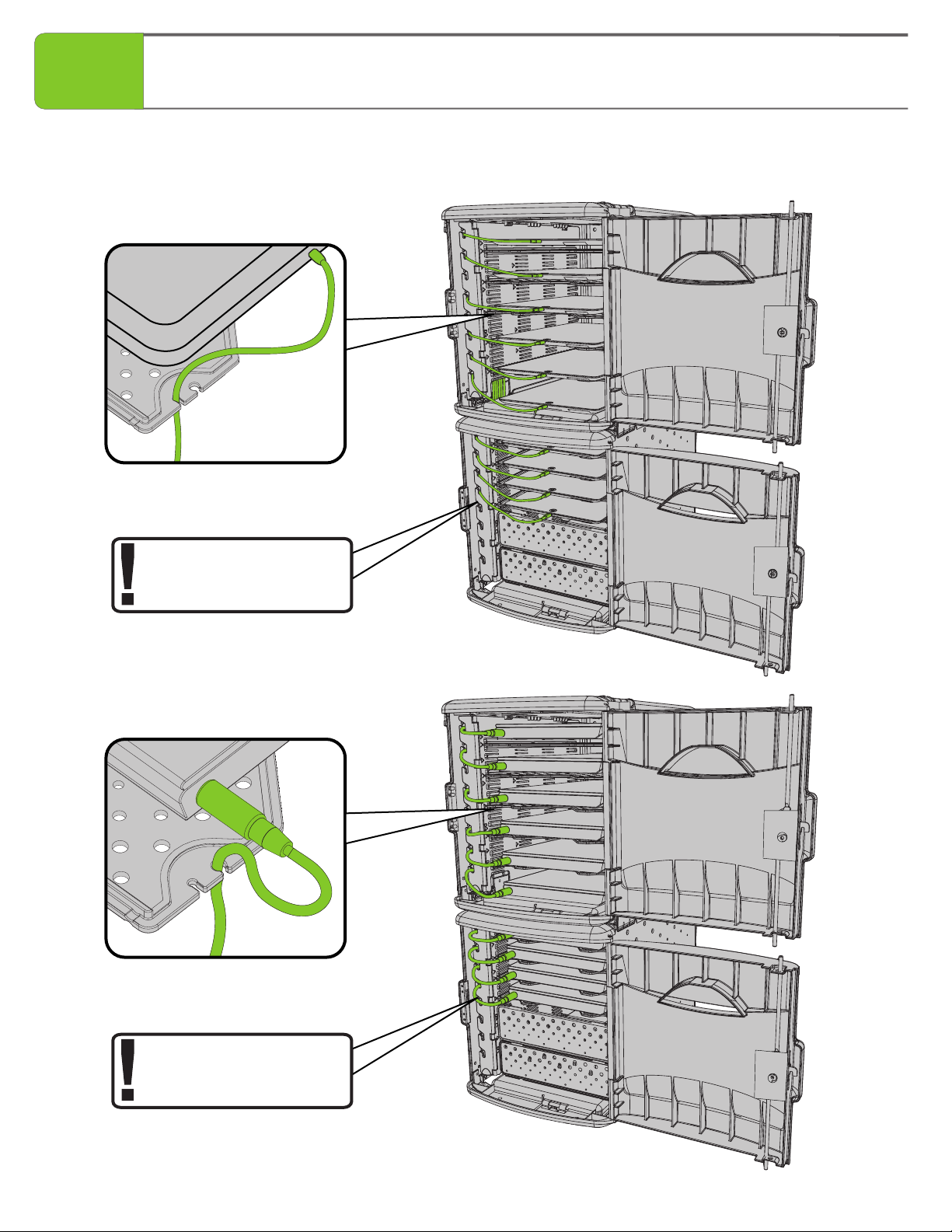

Tech Tub 10 Device Cable Management
Feed Power Cables Through Cable Management System
Slide cable through opening
8
3
This cable management set up is the same for iPads/Tablets and Chromebooks that are
plugged into a Power Strip or 10 Port USB Hub
Feed 6 of the 10 cables through
the opening between tubs.
12
Hook cables into Cable Pocket
Door slots leaving 6”(15cm) of
cable outside to plug into device.
Top Tub:
Use the middle six slots to ensure
the cables line up with your devices.
Bottom Tub:
Use the top four slots to ensure the
cables line up with your devices.

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
9
Actual Size:
You will need: (Not to Scale)
Insert Shelves into Body
®
2
Tech Tub
Follow pattern on the RIGHT for proper divider placement
Shelves
x9
Top of Shelf Bottom of Shelf
Depending on your device and/or cases used, divider spacer can be customized for your needs.
B
Close Power Box Door
TUB A:
For cases thicker than 30mm (1.18”) only use
bottom shelf and stack your devices.
TUB B:
For cases thicker than 44mm (1.73”) only use
bottom shelf and stack your devices.
13
SNAP!
A
TUB B:
Place your shelves in the slots marked with the
following symbol pattern. Its easiest to start from
the bottom of the tub and work upwards.
TUB A:
Place your shelves in the slots marked with
the
TUB A:
Place your shelves in the slots marked with the
following symbol pattern, push in until you hear the
SNAP. It’s easiest to start from the bottom of the tub,
just above the Power Door, and work upwards.

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
Place Devices Onto the Shelf
Plug in devices with corresponding cord once in place
Chromebooks
iPads/Tablets
10 Adding Devices to ®
2
Tech Tub
14
Push extra cord behind Cable
Pocket Door once device is
installed.
You can use the Cable Clip on
the front of the Shelf to keep your
cables in place.
You can use the Cable Clip on
the front of the Shelf to keep your
cables in place.
Push extra cord behind Cable
Pocket Door once device is
installed.

FTT1000_FTT1000-USB - Version C - Released August 2nd, 2016 - Copernicus Educational Products Inc.
15

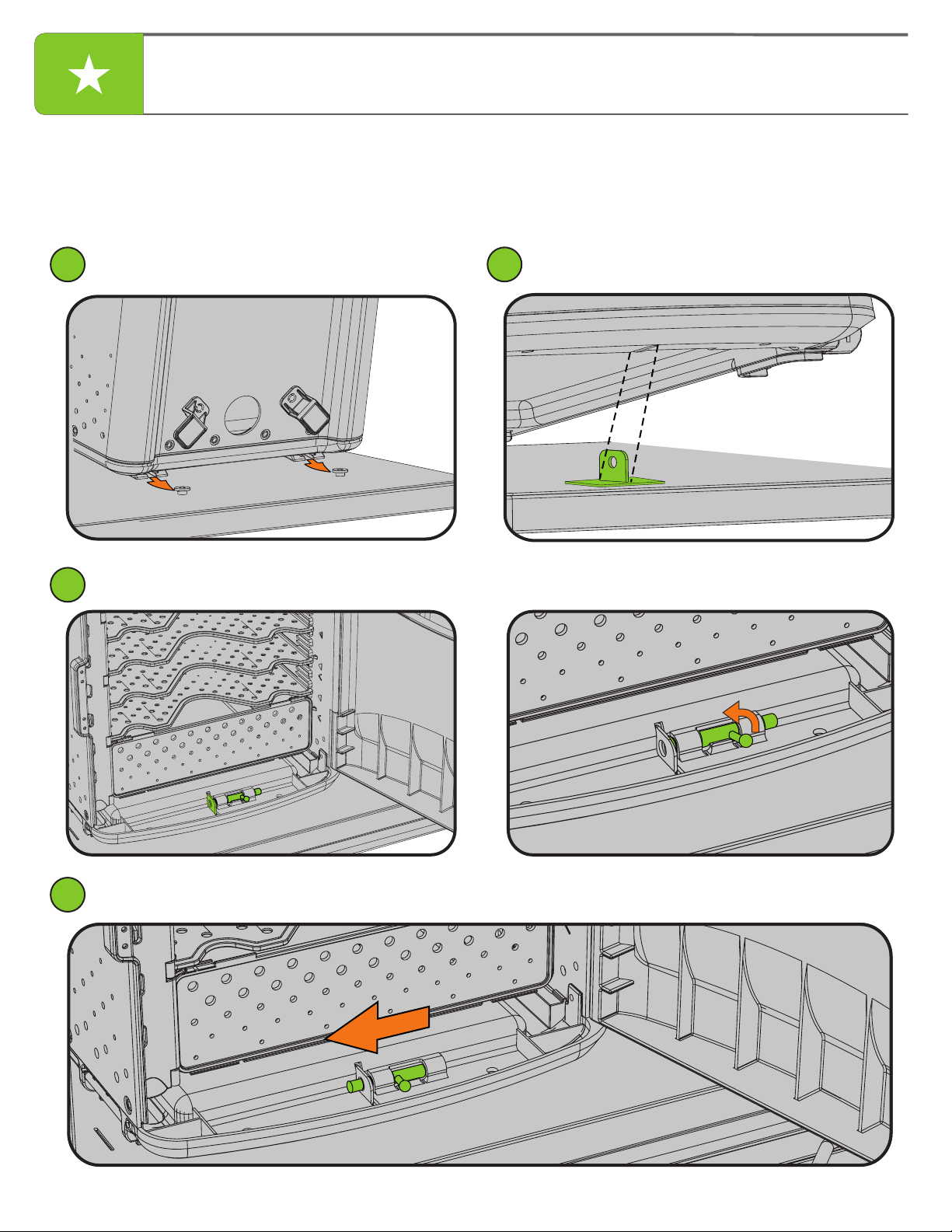

Lock Tub to Surface Using Locking Pin.
First, complete the installation of surface mounting hardware using the attached template;
then complete the steps below to secure your T onto the surface.
®
2
ech Tub
4
Surface Mounting ®
2
Tech Tub
1
3
2
Hook the rear feet onto the pins, slide tub
all the way back.
The slot on the front underside of the
fits over the metal tab.
®
2
Tech Tub
Open the front door and slide the locking pin through the metal tab.
®
2
Tech Tub
After sliding pin through bracket, lock front door of to secure devices.
®
2
Tech Tub
!
