Copernicus Tech Tub 2 FTT432 User manual

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
ŸThis product is meant to be assembled by an adult.
ŸIn its unassembled state, small parts present a hazard.
ŸTo be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Please Recycle

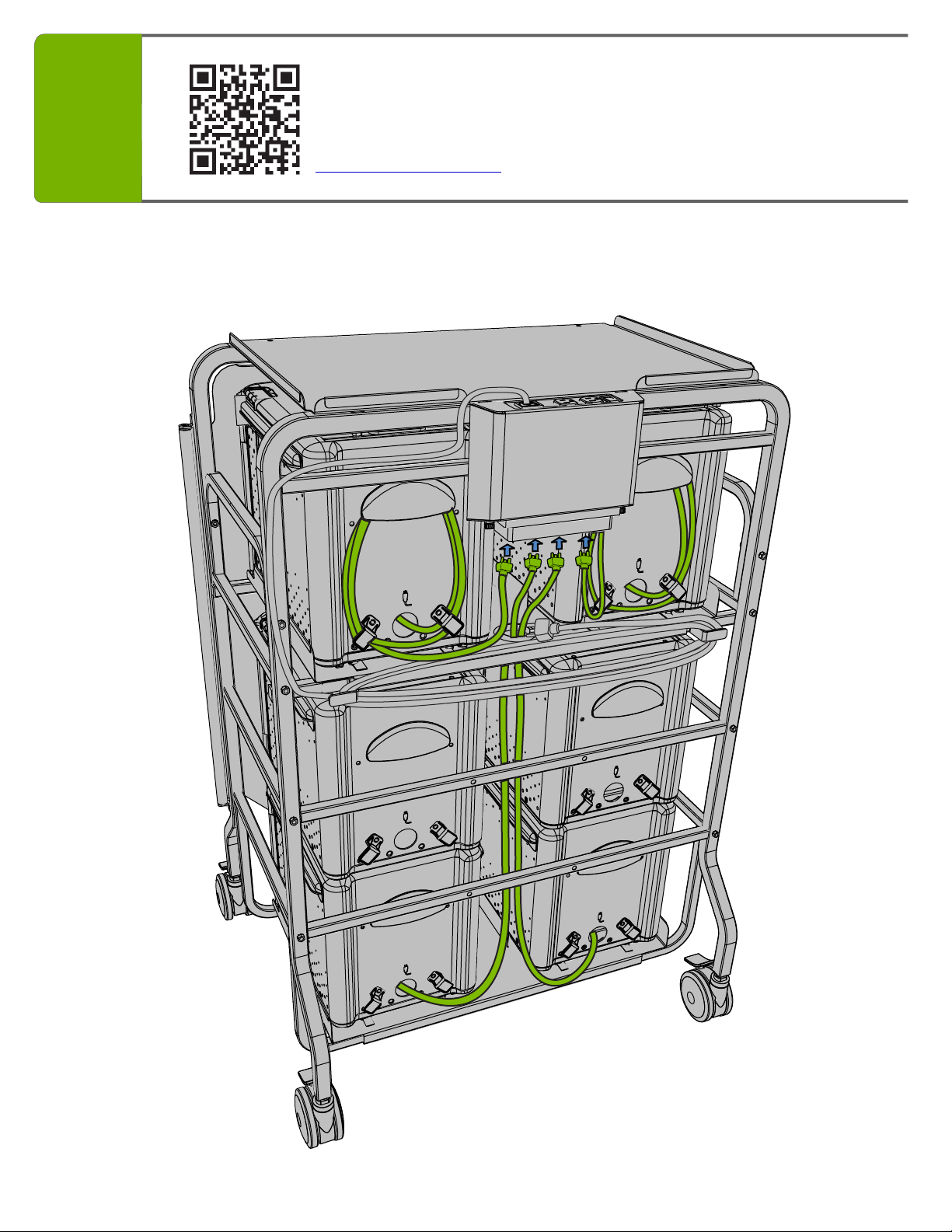

32 Device Premium Cart
®
2
Tech Tub Premium Cart
FTT432,
FTT432-USB
Assembly Guide
FTT432_432-USB_2018_A
Check out our other products online at
www.copernicused.com

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
2
Tub
Warranty
Life
Time To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a draw to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Component
Warranty
1
Year
Frame
Jim Phillips
Chief Cook and Bottle Washer
Dear Educator,
®
2
Thank you for purchasing one of our products. I hope that the Tech Tub Premium Cart is useful in your classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at
[e-mail].
Enjoy using your new product and happy teaching.
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
Frame
Warranty
10
Year
®
2
Tech Tub Premium Cart
FTT432,
FTT432-USB
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Assembly Guide
FTT432_432-USB_2018_A
Check out our other products online at
www.copernicused.com

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
3
Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
4
7/16” Hex Wrench
Not to Scale (320950)
x2
Hardware
Actual Size
FTT400-0
In Box 1
4” Caster
With Brake
(41011)
x4
Front Frame & Doors
(51096)
x1
Back Frame
(51095)
x1
1/4-20 x 2.0”
(430207)
x4
A
B
C
E
1/4-20 x 1.5”
(430206)
x12
1/4-20 x 1.0”
(430205)
x4
D
1/4” Star Washer
(4301022)
x46
1/4-20 Nut
(43011)
x18
M5x7mm
Thumb Nut
(432140)
x4
JM6x15mm
Thumb Screw
(43216)
x2
K
1/4-20 x 1.0”
(43004)
x2
Zip Tie
x2
½”Lock Washer
(43010211)
x4
H½” Flat Washer
(4301981)
x4
I
LAdhesive Back
Silicone Bumper
(420070)
x4
FTT432,
FTT432-USB
Top Shelf
(32003)
x1
Side Stretcher
(33123)
x4
Side Handle
(33122)
x2
Tub Shelf
(320031)
x2
F
G
Power Timer
Cover
(32101)
x1
Power Timer
Mounting
Bracket
(321012)
x1
FTT400-1
Caster Wrench
(32095S)
x1
®
2
Tech Tub Premium Cart

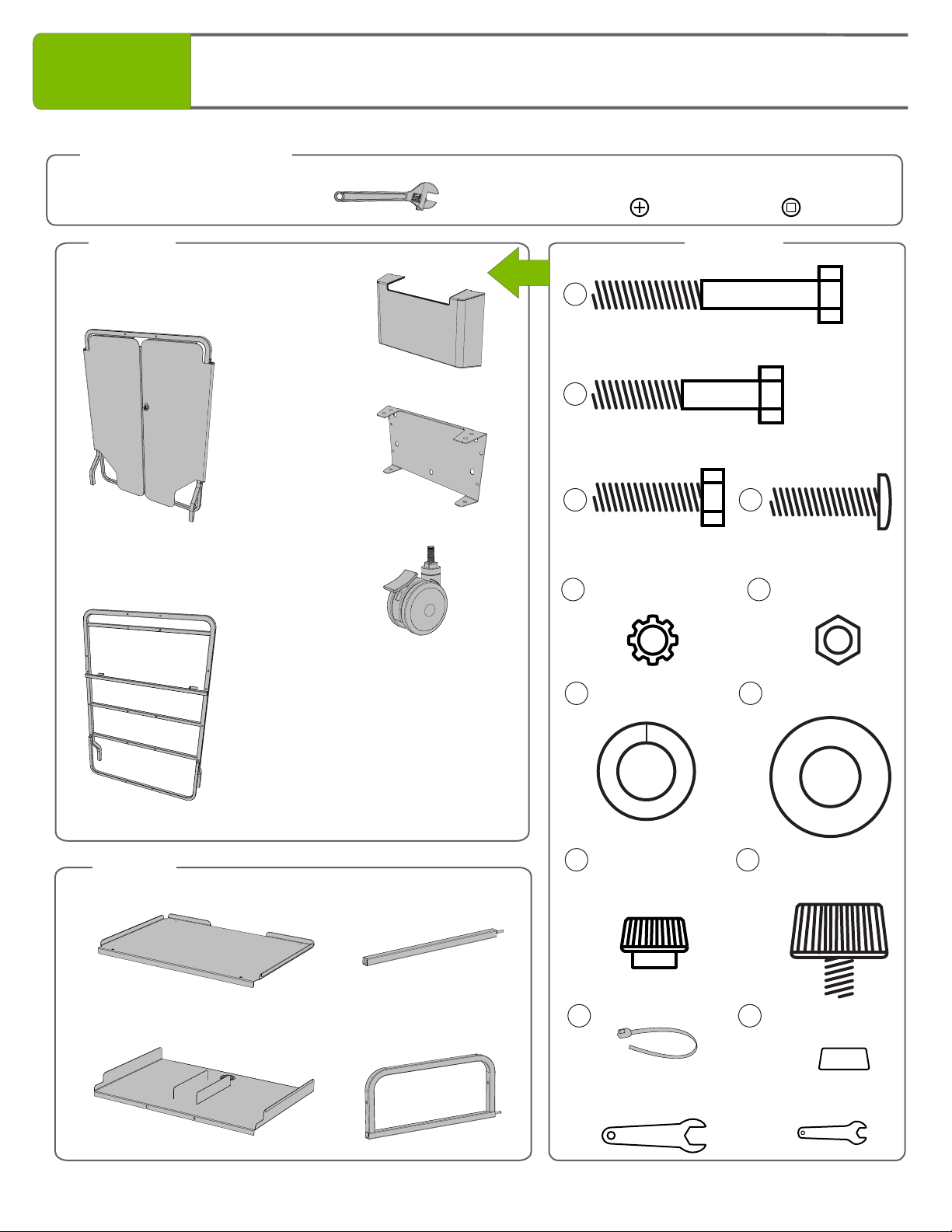

Before beginning, you should have:
Additional tools required:
Adjustable Wrench
x2
Philips
Screwdriver
x1
+OR
Robertson
Screwdriver
x1

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
5
FTT432-USB
FTT432
®
2
Tech Tub Premium Cart with USB
®
2
Tech Tub Premium Cart

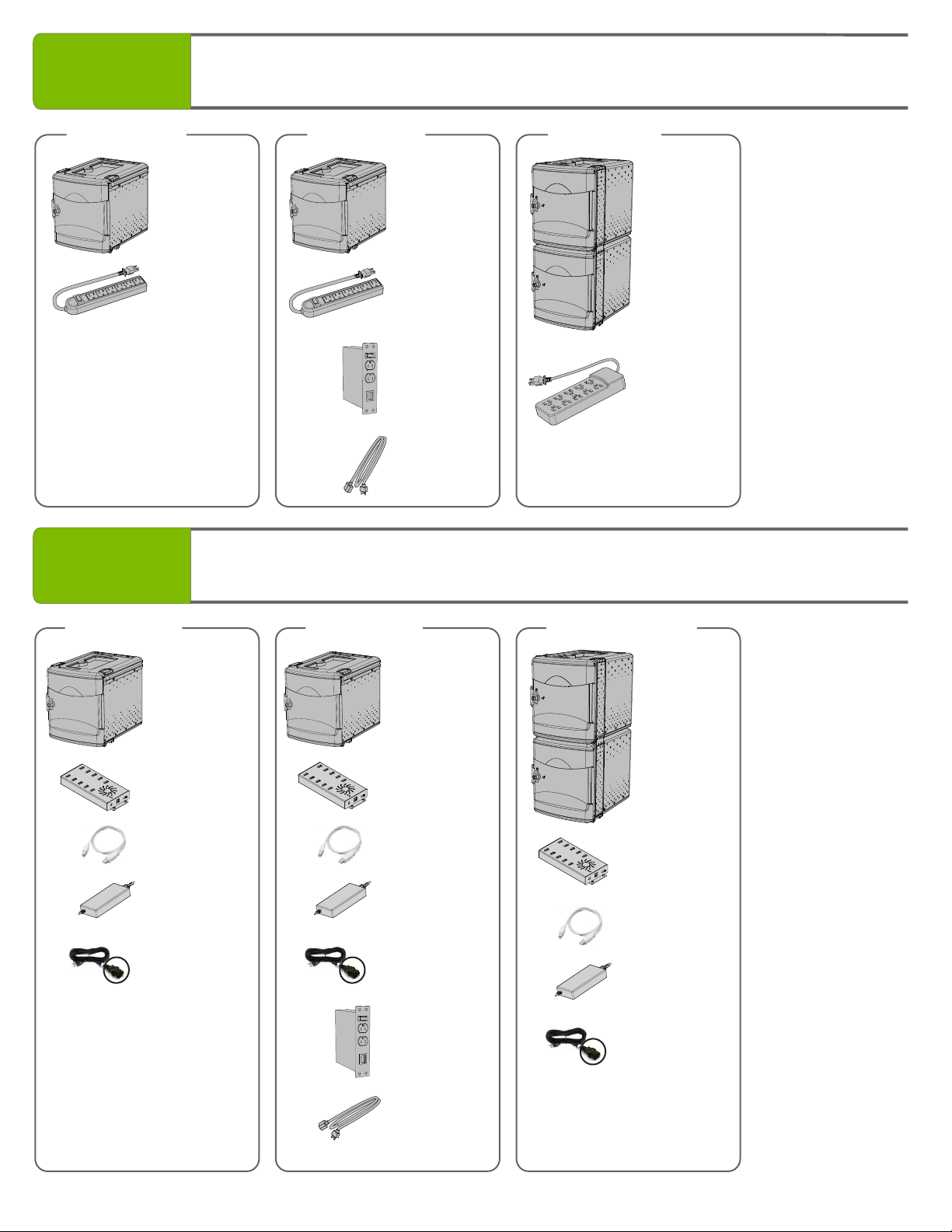

Tech Tub 2®
6 Device
Main Body
x1
FTT600-A (x1)
6 outlet
Power Strip
(25515)
x1
FTT600-F (x1)
6 outlet
Power Strip
(25515)
x1
Power
Timer
(25526)
x1
Tech Tub 2®
6 Device
Main Body
x1
15’ Power
Timer Cable
x1
Tech Tub 2®
10 Device
Main Body
x1
FTT1000 (x2)
6 outlet
Power Strip
(255159)
x1
Tech Tub 2®
10 Device
Main Body
x1
FTT1000-USB (x2)
FTT600-C (x1)FTT600-G (x1)
10 Port USB Hub
(255144)
x1
10 Port USB Hub
(255144)
x1
Tech Tub 2®
6 Device
Main Body
x1
Tech Tub 2®
6 Device
Main Body
x1
10 Port USB Hub
(255144)
x1
USB “B” Cable
x1
Power Timer
(25526)
x1
15’ Power
Timer Cable
x1
North American
power cord shown.
Power Cord
x1
Power Adapter
(255146)
x1
USB “B” Cable
x1
North American
power cord shown.
Power Cord
x1
Power Adapter
(255146)
x1 USB “B” Cable
x1
North American
power cord shown.
Power Cord
x1
Power Adapter
(255146)
x1

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
6
For missing parts and other issues regarding this product:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [email protected]om
This symbol denotes a 2 Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed together in one bag.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
?
?
?
2-Person Task
Tips for Assembly
Customer Service - FAQ’s
Need Tech Support?
Have a Question?
Email our Tech Support Service
!Please note, star washers are critical components for electrical safety. Star washers
must be included and fasteners fully tightened to prevent the risk of electric shock.
www.copernicused.com
Check out some of our
other great products!

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
7
1
Actual Size:
Attach the Side Stretchers and Side Handles
AFront Frame & Doors
x1
Side Handle
x2
1 2
Attach Side Stretchers to Front Frame Attach Side Handles to Front Frame
Note: Open doors so they are perpendicular to the frame(as shown). This will allow the frame to stand upright on its own
while you attach the stretchers and handles.
F
F
B
B
E
E
B
B
E
E
E1/4” Star
Washer
x10
Please note, star washers are critical components for
electrical safety. Star washers must be included and
fasteners fully tightened to prevent the risk of electric
shock.
1/4” Star Washer
x10
E
A
E
E
A
EE
B
E
B
E
1/4-20 x 2.0”
x2
B1/4-20 x 1.5”
x6
2-Person Task
1/4-20 Nut
x2
FSide Stretcher
x4
7/16” Hex Wrench
x2
You will need: (Not to Scale)

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
8
You will need:
(Not to Scale)
Actual Size:
Join the Back Frame to Side Stretchers and Handles
Back Frame
x1
Note: Before attaching the back
frame, ensure the legs of the frame
point outward as shown.
FA
A
F
F
F
F
F
F
F
E
E
E
E
E
E
E
E
E
E
A1/4-20 x 2.0”
x2
Lock Handle
Close the Doors and
lock them using the
included key.
Turn Cart Over
12
Close and lock front doors Flip frame upside down
Important electrical
safety component.
1/4” Star Washer
x10
E
2-Person Task
2
2-Person Task
3
7/16” Hex Wrench
x2
FE 1/4” Star
Washer
x10
1/4-20 Nut
x8

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
9
1/4-20 x 1.0”
x2
E
You will need: (Not to Scale)
Actual Size:

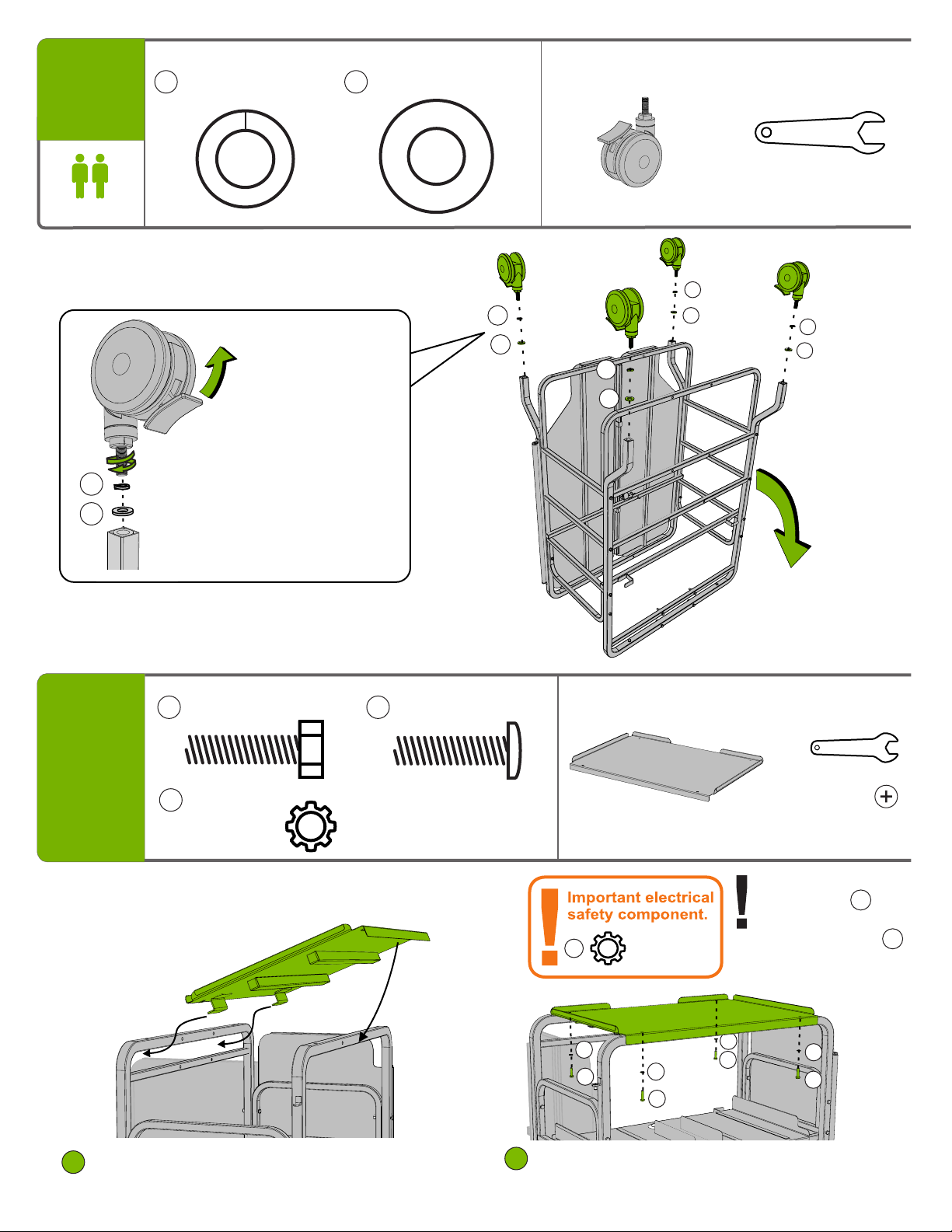

Attach Top Shelf
Top Shelf
x1
1Hook Back of Shelf Under Back Frame 2Fasten Shelf to Front and Back Frame
Efront
back
front
back
C
1/4” Star Washer
x4
back
1/4” Star Washer
x4
E
G
H
G
H
G
H
G
H
4You will need: (Not to Scale)
4” Caster With Brake
4x
Install Casters
Actual Size:
½” Flat Washer
x4
H
½”Lock Washer
x4
GCaster Wrench
x1
G
H
Press down to
lock the caster.
Thread caster into leg and
tighten with caster wrench.
Check every 6 months and
tighten as needed.
After the casters are
installed, flip the cart right
side up onto the casters and
unlatch and open the front doors.
D1/4-20 x 1.0”
x2
D
E
C
EC
D
E
Note
Ensure screws
are used on the front
and hex head bolts
are used on the back
to ensure cart security.
C
D
2-Person Task
front
Philips Head
Screwdriver
x1
7/16” Hex Wrench
x2
5

FTT432_432-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
10

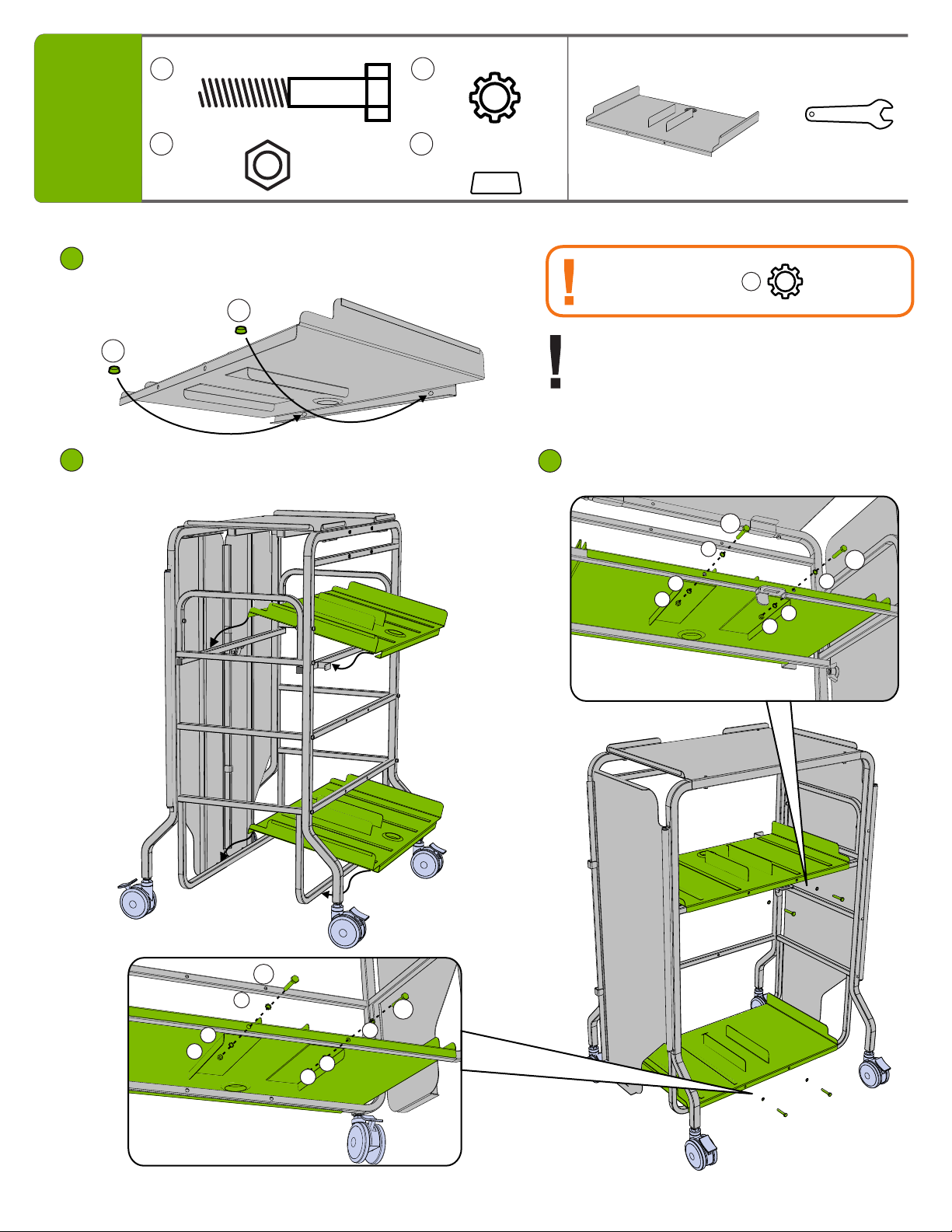

Install Tub Shelves onto cart
2Hook back of Tub Shelf over Back Frame and swing
front of Tub Shelf down onto Front Frame
Tub Shelf
x2
3Fasten front of shelves to Front Frame
front
back
back
back
E1/4” Star Washer
x8
F1/4-20 Nut
x4
B1/4-20 x 1.5”
x4
6
E
F
B
EE
F
B
E
E
F
B
EE
F
B
E
Actual Size: You will need: (Not to Scale)
1Apply two Adhesive Backed Silicone Bumpers to each
Tub Shelf
LAdhesive Backed
Silicone Bumper
x4
Note
The Adhesive Backed Silicone Bumpers create a snug
fit between the front of the Tub Shelf and the front
frame. You may need to pull on the front edge of the
shelf to get it over the front frame.
1/4” Star Washer
x8
E
Important electrical
safety component.
L
L
7/16” Hex Wrench
x2
backfront
