Copernicus Tech Tub TEC520 User manual

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Assembly Guide
TEC520_TEC520C_TEC728_
2014_C
Check out our other products online at
www.copernicused.com
?This product is meant to be assembled by an adult.
?In its unassembled state, small parts present a hazard.
?To be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
™
Tech Tub Cart - 4 Tubs
TEC520
TEC520C
TEC728
Email our Customer Support
Need Support?
Have a Question?
1

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Assembly Guide
Check out our other products online at
www.copernicused.com
TEC520_TEC520C_TEC728_
2014_C
Validate Your Warranty
5
Tub and Lid
Warranty
Year To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a drawing to win a Copernicus Product for your classroom at the same time!
Component
Warranty
1
Year
Frame
10
Frame
Warranty
Year
Dear Educator,
Thank you for purchasing one of our products. I hope the assembly of your Tech Tub™ Cart went well.
If you have any questions, or concerns, or ideas for how we can improve, please call us at 1-800-267-8494,
where someone will be happy to help.
Enjoy using your new product, and happy teaching,
We do not inherit the earth
from our ancestors, we
borrow it from our children.
NORTH AMERICAN
PROVERB
Change is the end result of
all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the lives
of others.
PERICLES
Education is the most
powerful weapon which you
can use to change the world.
NELSON MANDELA
Jim Phillips
President
For missing parts and other issues regarding your Tech Tub™ &
Tech Tub™ Cart:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [email protected]
?
?
?
Need Tech Support?
Have a Question?
Email our Tech Support Service
Customer Service - FAQ’s
™
Tech Tub Cart - 4 Tubs
TEC520
TEC520C
TEC728
2

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Warning! Hazard Risks!
Please read the warnings below for important safety information regarding your product.
Failure to read these warnings or to follow the instructions below could result in personal
injury or damage to your product that could void your warranty.
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture. The internal components are not sealed from the
environment.
Read your powerbar’s electrical specifications. Only plug in devices that are approved for use
with this powerbar. Connect the supplied power bar directly to a wall outlet. Do not connect to
another power bar or use an extension cord. Unplug when not in use.
Powerbar
Specifications
Do not install or use the electrical components of this unit during a lightening storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and
marked to avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless
otherwise specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage
to your equipment or personal injury.
Electronic
Equipment
Adult
Supervision
3

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.

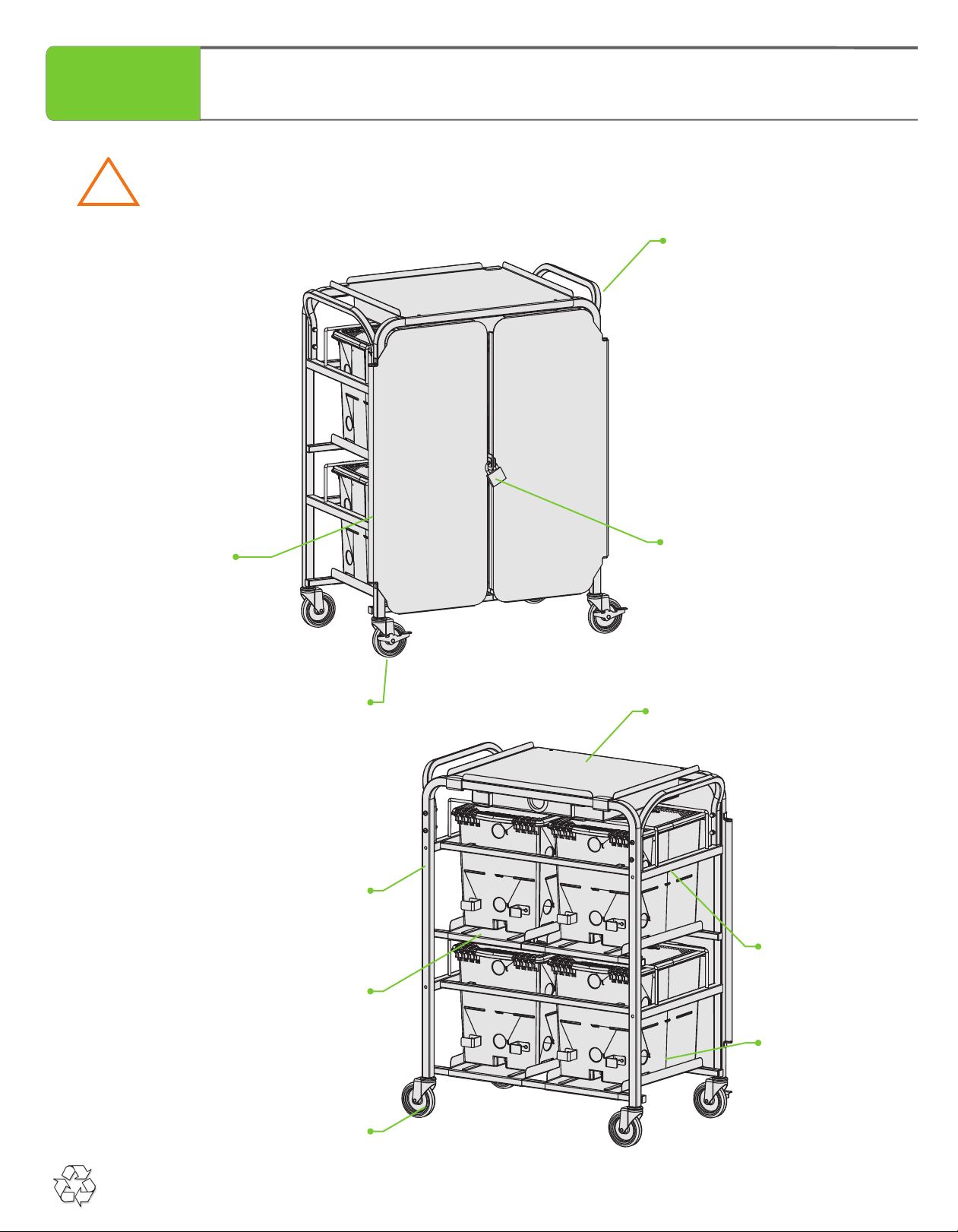

Please note that in its unassembled state, this product contains parts
that can be hazardous to small children. This product should be
assembled by an adult.
!
WARNING
Main Frame - Front (1)
Padlock (1)
Top Shelf (1)
Shelf (4)
Cross Stretcher (2)
Main Frame - Back (1)
4" Caster With Brake (2)
4" Caster Without Brake (2)
Tech Tub™ (4)
Handle (2)
™
Tech Tub Cart - 4 Tubs
TEC520
TEC520C
TEC728
4

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Before beginning, you should have:
Additional tools required:
Adjustable wrench (2) Rubber Mallet
OR 7/16 in
Screwdriver
++ Phillips
- Parts
Hardware
Actual Size
1/4” X 3” Bolt
(430085)
8x
A
1/4” X 2” Bolt
(43008)
8x
C
1/4” Lock Washer
(43010)
14x
B
1/4” Acorn Nut
(430110)
8x
E
In box
1/4” X 1” Bolt
(43004)
2x
D
Contents
TEC500
(Comes with TEC520)
Premium Tech Tub™
(TEC500)
4x
3/8” Lock Washer
(430251)
4x
F
Top Shelf
1x
Cross Stretcher
2x
Shelf
4x
Main Frame
- Back
1x
4" Caster
With Brake
2x
Padlock
1x
4" Caster
Without Brake
2x
Key
2x
Main Frame
- Front
1x
Contents - TEC4-0
Handle
2x
Contents
TEC4-1
™
Tech Tub Cart - 4 Tubs
TEC520
TEC520C
TEC728
Contents
TEC500C
(Comes with TEC520C)
Tech Tub™ - Premium 5
Chromebooks (TEC500C)
4x
Contents
TEC700
(Comes with TEC728)
Tech Tub™ - Premium 7
Device (TEC700)
4x
Value-Line Tree Clip
(43316)
8x
G
5

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Tips for Assembly
This symbol denotes a 2- or 3- Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been bagged according to type and size.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you
build the unit.
2-Person Task 3-Person Task
TM

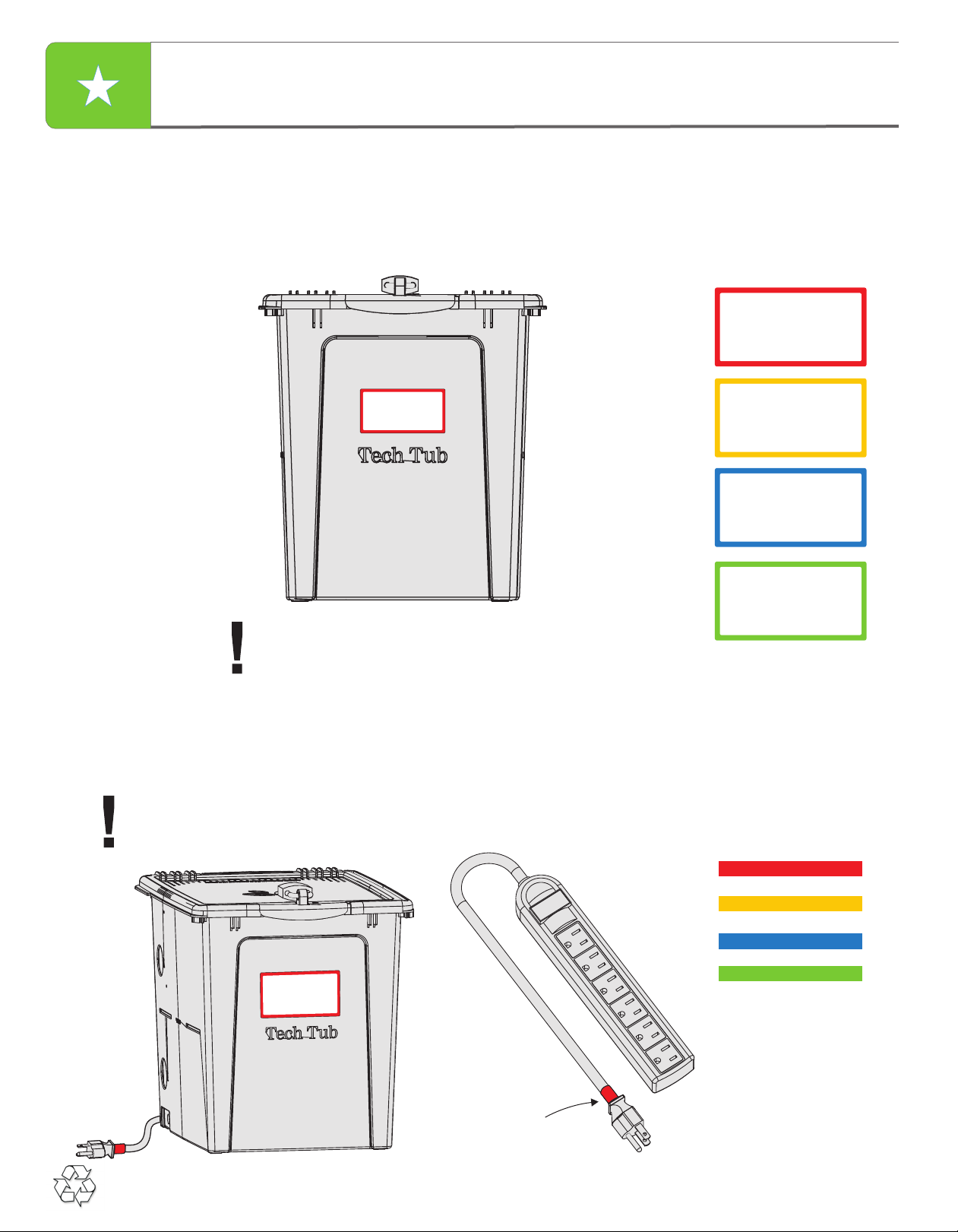

Some of the models of this product include kits that feature the Tech Tub .
TM
The Premium Tech Tub models include a power strip for charging various
electronic devices. This warning applies to this component and any other
electronic equipment used with this product.
NEVER PLUG THIS OR ANY
OTHER POWER STRIP INTO
ANOTHER POWER STRIP
TEC520
TEC520C
TEC728
6

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
1/4” X 3”
Bolt
4x
A
1
You will need: (Not to Scale)
Actual Size:
Cross Stretcher
2x
Main Frame - Back
1x
Install Cross Stretcher & Stretchers to
Main Frame - Back
2
You will need: (Not to Scale)
Actual Size:
Install the Main Frame - Front
A
B
1/4” Lock Washer
4x
B
Main Frame - Front
1x
2-Person Task
2-Person Task
A
Hand tighten bolts ONLY
Open the doors to the side while
assembling the frame.
Note the tabs on the
Main Frame - Back
1/4” X 3”
Bolt
4x
A
A
Hand tighten bolts ONLY
7

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
3
You will need: (Not to Scale)
Actual Size:
Install Handles
Handle
2x
1/4” X 2”
Bolt
8x
C1/4” Lock
Washer
8x
B1/4” Acorn
Nut
8x
E
Note handles bend out
C
B
E
C
B
E
Tighten All the bolts
8

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Top Shelf
1x
Install Top Shelf
1
4
You will need: (Not to Scale)
Actual Size:
Hook the back tabs around the Main Frame - Back
2
Rotate down and hook the front tab around the
Main Frame - Front
1
2
D
1/4” X 1” Bolt
2x
D
FRONT VIEW BACK VIEW
Tighten screws fully
Front of the Cart with
the doors open to sides
Front
of the
Cart with
the doors
open to sides
D
1/4” Lock
Washer
2x
B
B
B
9

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
5
You will need: (Not to Scale)
Actual Size:

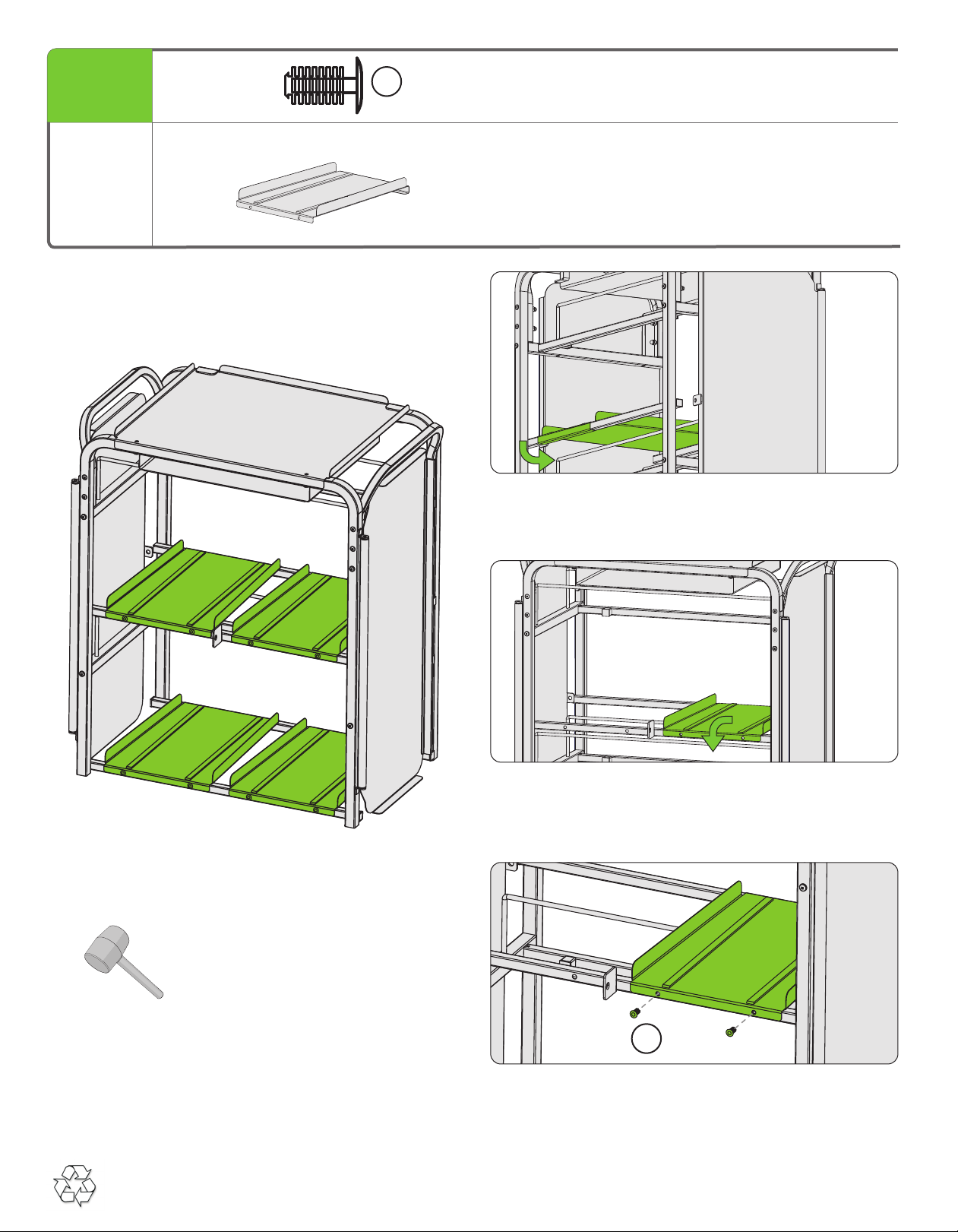

Install the Shelves
(Repeat this step for all 4 shelves)
1
Hook the back tabs around the Main Frame - Back
2
Rotate and hook the front tab around the
Main Frame - Front
FRONT VIEW BACK VIEW
3
Secure the shelf in place using two Tree Clips
FRONT VIEW
Value-Line Tree Clip
8x
G
G
Shelf
4x
Press Tree Clips firmly into
Main Frame - Front stretcher.
Tap the Tree Clips in using a
rubber mallet.
10

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
6
You will need: (Not to Scale)
Actual Size:

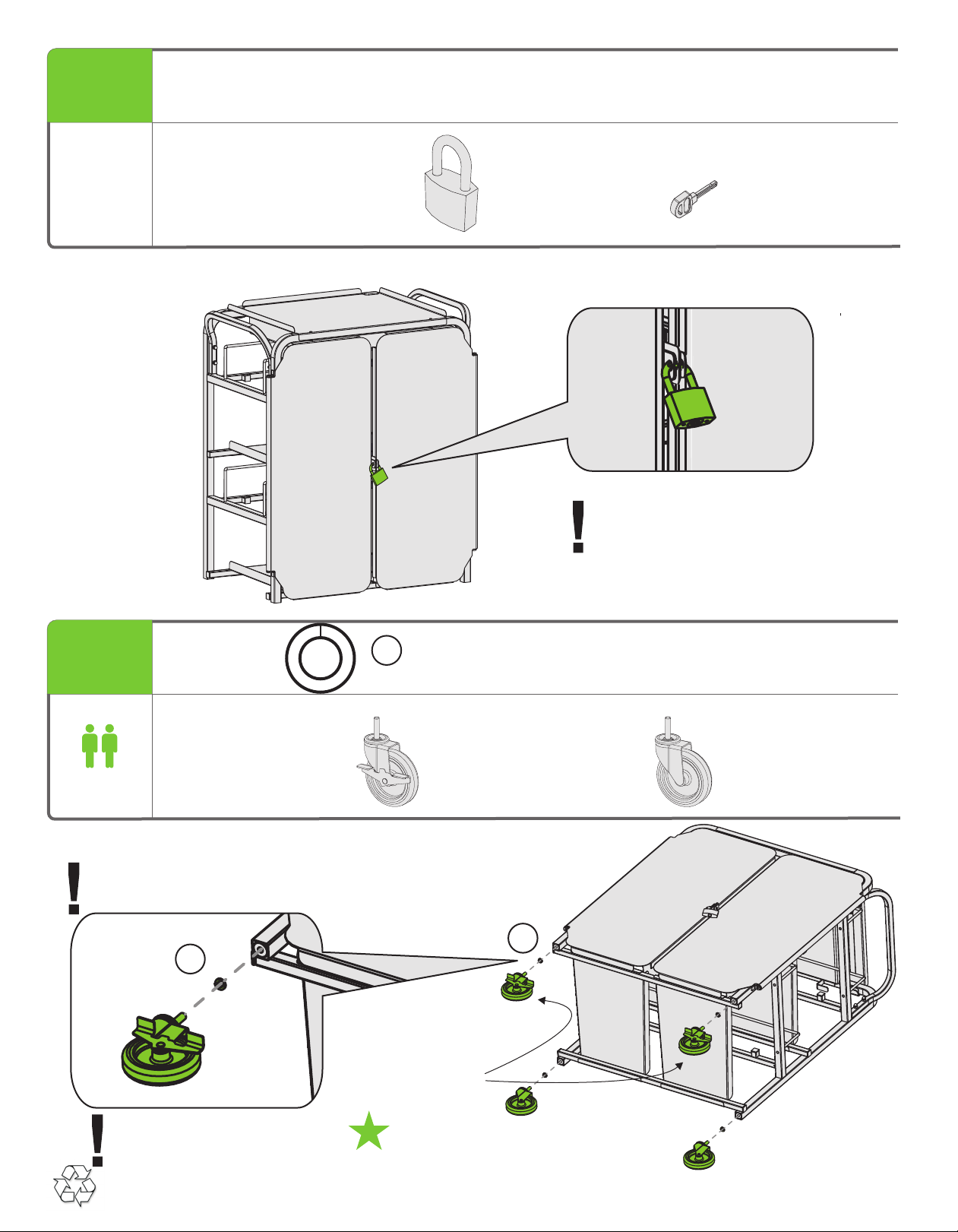

Lock Doors with Padlock
7
You will need: (Not to Scale)
Actual Size:
Padlock
1x
Install Casters
Make sure to lock the doors
before moving the unit around,
even in assembly.
Keys
2x
4” Caster With Brake
2x
4” Caster Without Brake
2x
2-Person Task
3/8” Lock Washer
4x
F
Lay the Cart on its back to install the Casters.
Make sure the doors are locked before moving the Cart.
F
F
4” Casters With Brake
On Front
Note casters with brakes
should be on the front Thread the Casters in place, then
tighten with an adjustable wrench.
11

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.

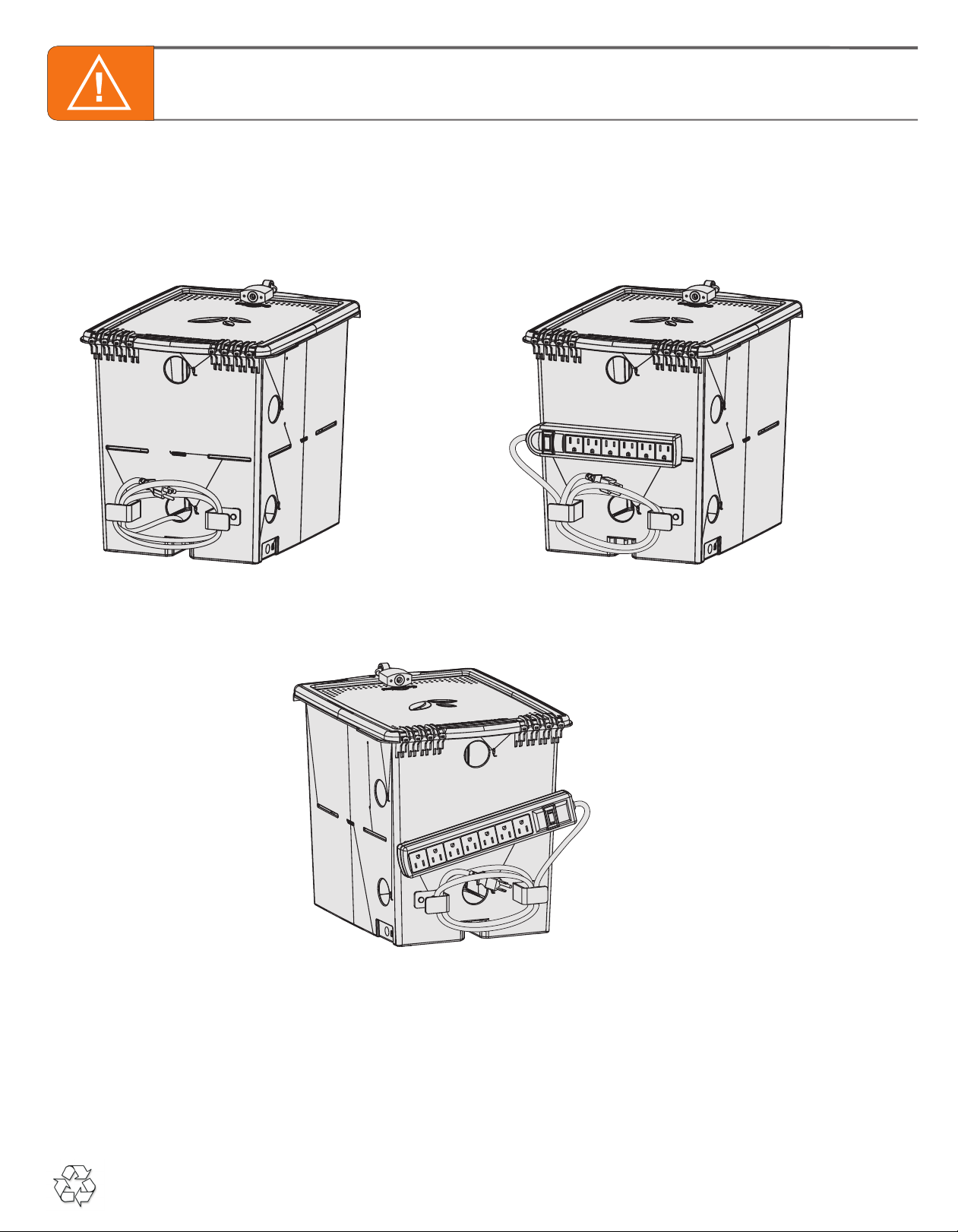

Assemble Tech Tubs™
STOP - You must Assemble your Tubs Now
Follow the assembly instruction included in the Tub cartons, before moving on to step 8.
TECH TUB™ - TEC500 TECH TUB™ - TEC500C
TECH TUB™ - TEC700
12
OR

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
1
8
You will need: (Not to Scale)
Actual Size:
Place Tech Tubs™ in Cart
Place the Tub on the shelf ...
3
2
Make sure the Tub is all the way in and touches
the back stretcher.
... Slide the Tub to the back.
!
Please note that the Tubs come with locking blocks and pins which are NOT needed when
using the Tubs with the cart. The locking blocks and pins can be mounted in different
locations to be used as “hubs” which a single Tub can be locked to temporarily.
Please refer to Steps 6-8 of the Assembly Guide that is included with your Tubs, for
instructions on mounting the locking blocks as well as how to utilize the locking feature.
Tech Tub™ - Premium
(TEC500)
4x
Tech Tub™ - Premium 5
Chromebooks (TEC500C)
4x
Tech Tub™ - Premium 7
Device (TEC700)
4x
13
OR OR

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.

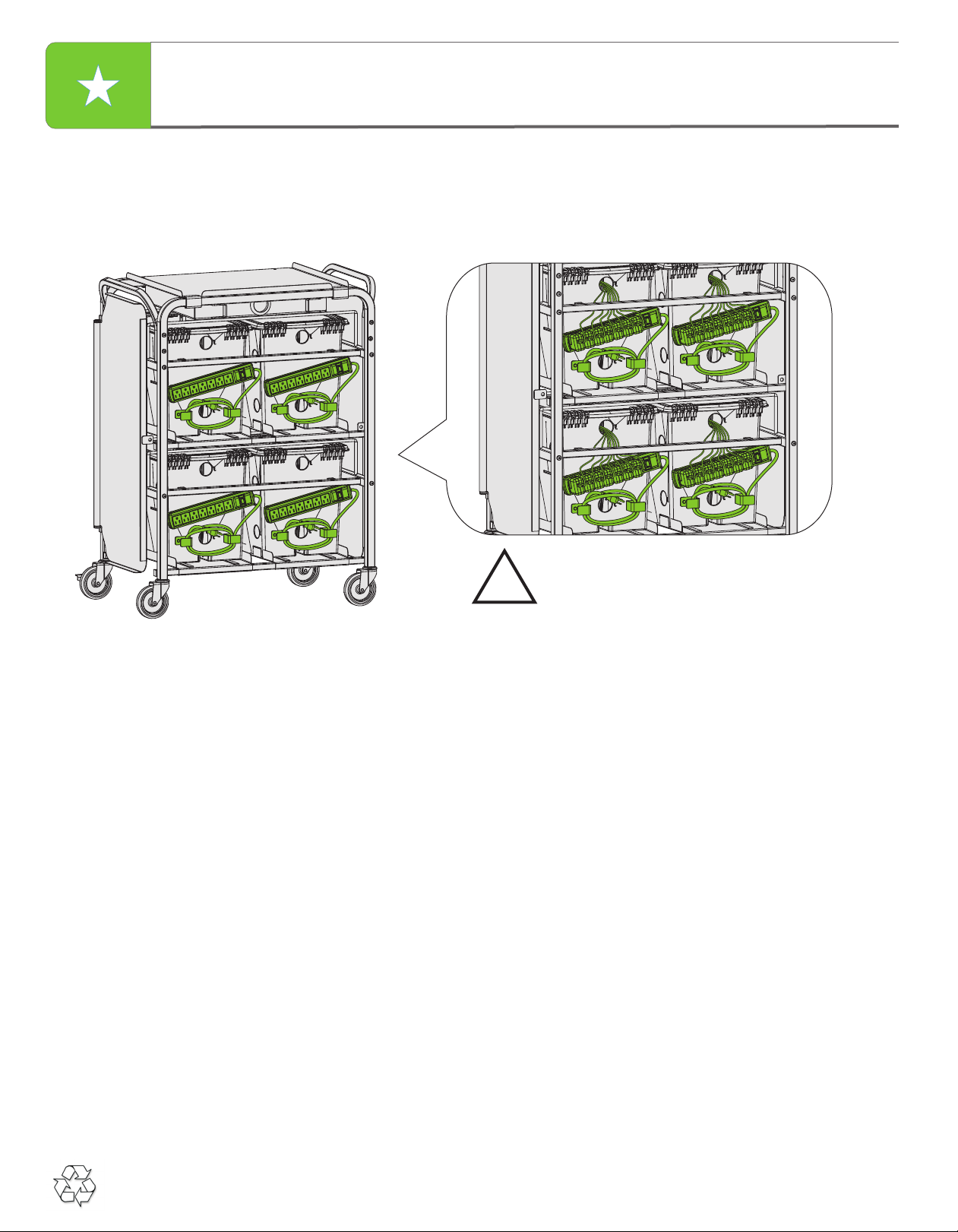

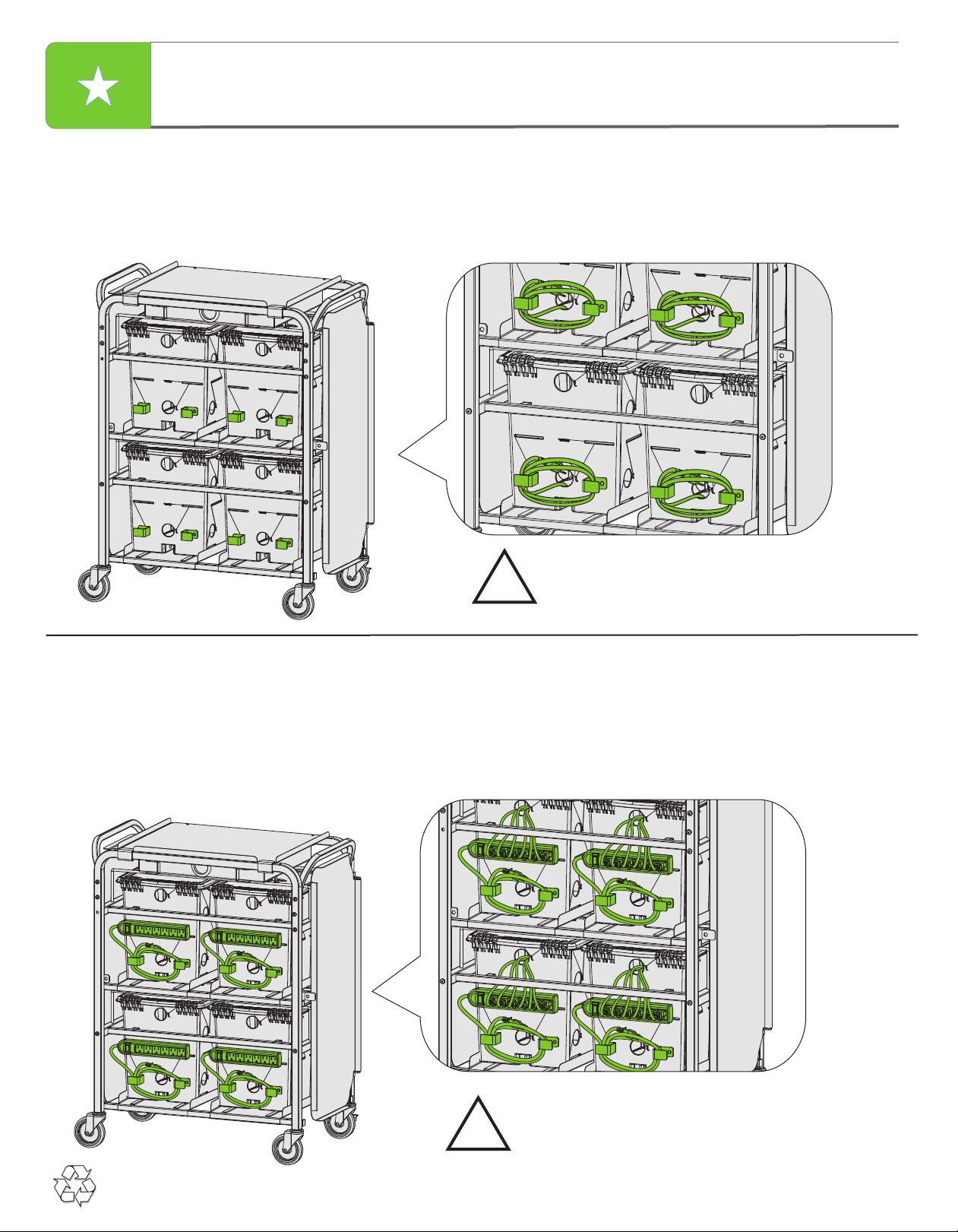

Cable Management (TEC520)
Tips for Use
ALWAYS Wrap Cords Around the Cable
Hooks Before Moving Cart
!
ALWAYS Wrap Cords Around the Cable
Hooks Before Moving Cart
!
Use the cable hooks on the individual Tech Tub™ to manage the power strip cords. Always wrap
cords before placing the Tech Tub™ in the cart.
Cable Management (TEC520C)
Use the cable hooks on the individual Tech Tub™ to manage the power strip cords. Always wrap
cords before placing the Tech Tub™ in the cart.
14

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Cable Management (TEC700)
Tips for Use
ALWAYS Wrap Cords Around the Cable
Hooks Before Moving Cart
!
Use the cable hooks on the individual Tech Tub™ to manage the power strip cords. Always wrap
cords before placing the Tech Tub™ in the cart.
15

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Stick the matching strip colour label around the matching Tub’s power strip cord. These labels
help you easily identify which power strip belongs to which Tub when plugged in.
Place the Large label on the front of your Tech Tub™. This helps to differentiate each Tub from
one another.
Labelling your Tech Tub™
Tips for Use
Only use one label per Tub
Only use one label per
Tub’s Power Strips
Make sure you match the label colours
on each Tub with their Power Strip’s labels.
Repeat this process for all the Tubs.
Wrap label
16

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Use the opening in the back of your storage shelf for managing your laptop and Apple TV
cables.
Top Shelf Cable Management Options
Tips for Use
Use the cable hooks on the back of the Tech Tub™ Cart to manage your laptop and Apple TV
cables.
17

TEC520_TEC520C_TEC728 - Version D - Released July 31, 2014 - Copernicus Educational Products Inc.
Turns your iPad® into a Document Camera by utilizing the camera feature. This institutional
quality stand provides teachers with the same basic functionality of traditional Document
Cameras but at a fraction of the cost. For more information visit: www.copernicused.com
DEWEY - the Document Camera Stand
Suggested Products
Stand
Document Camera
Tech Tub™ Cart - 2 Tubs
This unique storage system have the capacity to hold 2 Tech Tubs™. With a locking system
providing added security and locking casters to increase mobility. The Tech Tub™ Cart is an ideal
for transporting devices from one location to another. The cart is also a secure central resource
for storing tech devices.
TEC510B
For Base Version Cart
TEC510, TEC510C, TEC714
For Premium Version Cart
18
