Patio Heater
NP10518US
USER’S MANUAL
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg FR office: Saint Vigor d'Ymonville PL office: Gdańsk

WARNING
Do not store or use gaso-
line, or other flammable
vapors and liquids, in the
vicinity of this or any other
appliance. An propane
cylinder not connected for
use shall not be stored in
the vicinity of this or any
other appliance.
WARNING: For Outdoor Use Only.
Installation and service must be performed by a qualified installer,
or the gas supplier.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
WARNING:
Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Read the installation, operat-
ing, and maintenance instructions thoroughly before installing or
servicing this equipment.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference
DANGER
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.
1. The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1 NFPA
54; National Fuel Gas Code; Natural Gas and Propane
Installation Code, CSA B149.1; or Propane Storage and Handling
Code, CSA B149.2, as applicable.
2. The appliance must be isolated from the gas supply piping system
by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to or
less than 1/2 psi (3.5 kPa).
3. The maximum inlet gas supply pressure is 250 psi.
4. Appliance may shut down in windy conditions in excess of 3 miles
per hour (4.83 kilometers per hour).
5. The appliance area must be kept clear and free from combustible
materials, gasoline, and other flammable vapors and liquids.
6. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any gas
control that has been under water.
7. Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns or clothing
ignition.
8. Young children should be carefully supervised when they are in the
area of the appliance.
9. Clothing or other flammable materials should not be hung from the
appliance or placed on or near the appliance.
10. Any guard or other protective device removed for servicing the
appliance shall be replaced prior to operating the appliance.
11. Installation and repair should be done by a qualified service
person. The appliance should be inspected before use and at least
annually by a qualified service person. More frequent cleaning may be
required as necessary. It is imperative that the control compartment,
burners, and circulating air passageways of the appliance are kept
clean.
IMPORTANT SAFETY INFORMATION
02 03

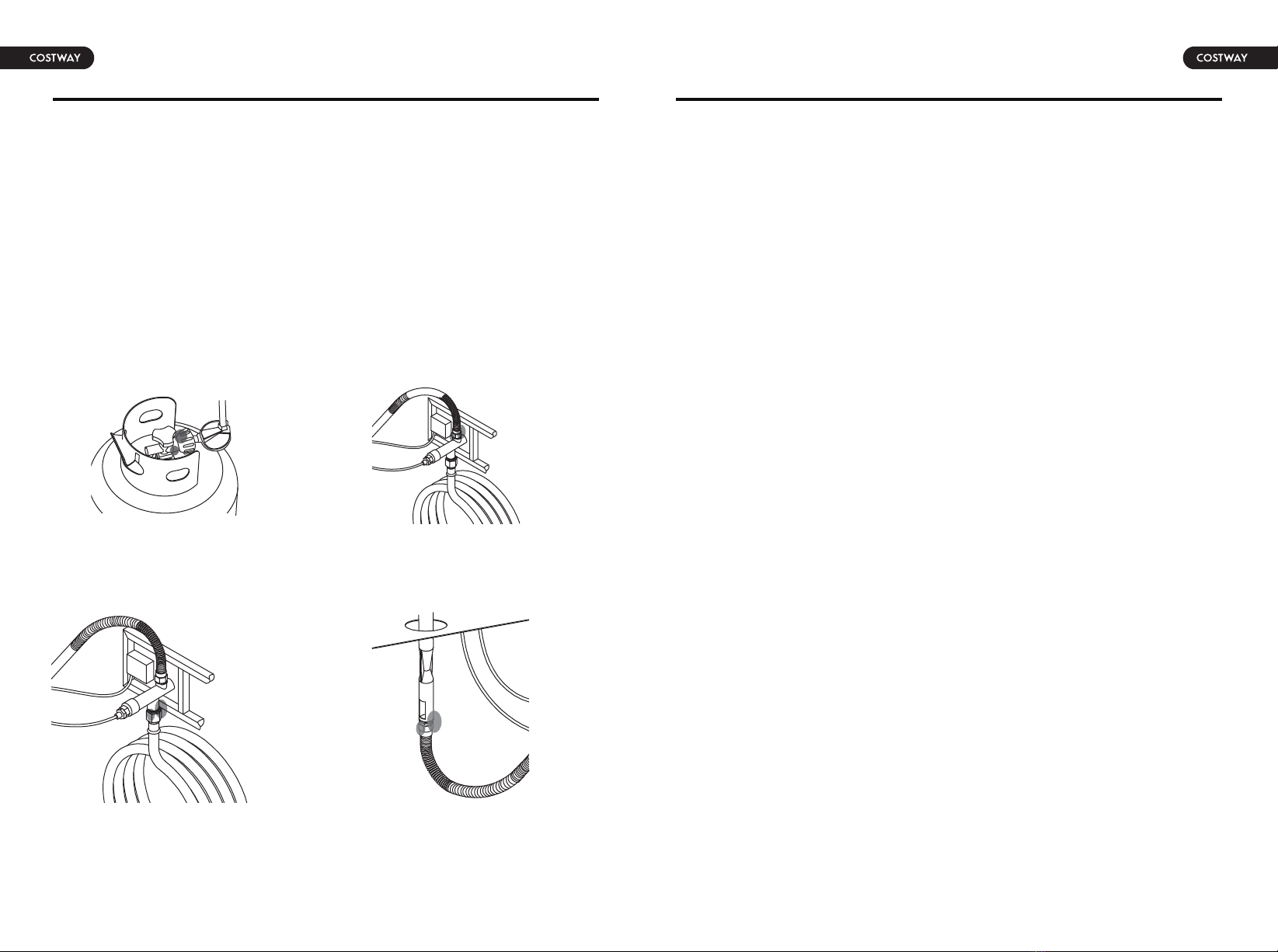

1. The propane gas supply cylinder to be used must be constructed
and marked in accordance with the U.S. Department of
Transportation (D.O.T.) Specifications for propane Gas Cylinders, or
the Standard for Cylinders, Spheres and Tubes for Transportation of
Dangerous Goods and Commission, CAN/CSA-B339, as applicable.
2. The propane gas supply cylinder to be used must have a listed
overfilling prevention device (See Figure 1).
3. The propane gas supply cylinder to be used must have a cylinder
connection device compatible with the connection for the appliance.
4. A self-contained propane gas cylinder for use with this appliance
must have a capacity of 20 Ibs cylinder (Height approximately 18 in.,
Tank Body approximately 12 in. diameter, Base approximately 8 in.
diameter).
5. The cylinder supply system must be arranged for vapor withdrawl.
6. The cylinder used must include a collar to protect the cylinder
valve.
7. This appliance shall be used only outdoors in a well-ventilated
space and shall not be used in a building, garage or any other
enclosed space.
8. When this appliance is not in use, the gas must be turned off at
the supply cylinder.
9. Storage of this appliance indoors is permissible only if the cylinder
is disconnected and removed from the appliance.
10. Cylinders must be stored outdoors in a well-ventilated area out of
the reach of children. Disconnected cylinders must have threaded
valve plugs tightly installed and must not be stored in a building,
garage or any other enclosed areas.
11. Do not store a spare propane gas cylinder under or near this
appliance;
12. Never fill the cylinder beyond 80% full;
13. Place the dust cap on the cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on the cylinder
valve that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
IMPORTANT SAFETY INFORMATION (About Propane Gas)
12. CAUTION: The propane gas pressure regulator provided with this
appliance must be used. This regulator is set for an outlet pressure of
11 inches water column.
13. DO NOT burn solid fuels in this appliance.
14. This outdoor gas appliance is for Outdoor Use ONLY.
15. This outdoor gas appliance is not intended to be installed in or on
recreational vehicles and/or boats.
16. This outdoor appliance is not for use on wood decks or other
flammable surface.
17. Before each use of this gas appliance, open the door and/or the
Propane Tank Drawer and inspect the hose. If there is evidence of
excessive abrasion or wear or if the hose is damaged, the hose
assembly must be replaced prior to the appliance being put into
operation. Use only the replacement hose assembly specified in this
manual. Make sure to leak test.
18. Before each use of this gas appliance, inspect the burner. The
burner must be replaced prior to the appliance being put into
operation if it is evident that the burner is damaged. Use only the
replacement burner specified in this manual.
19. Make sure to properly locate the gas hose including locating the
hose out of pathways where people may trip over it or in areas where
the hose may be subject to accidental damage.
20. Keep the fuel supply hose away from any heated surface.
21. Never use gasoline, kerosene, or any other liquid fuel to start a
fire.
22. Always maintain a safe distance from the fire.
23. Always supervise children around the fire.
24. Never leave a fire unattended.
25. The appliance is hot during and after use, always allow ample
cooling time before touching or moving.
IMPORTANT SAFETY INFORMATION
04 05

SPECIFICATIONS
Rated Heat Input (Propane)
Propane Regulator Pressure
Clearance to combustible surfaces
41,000 BTU/hr
11 inches water column
Sides: 3 feet (36 in.), Top: 5 feet (60 in.)
WARNING: This product can expose you to chemi-
cals including chromium (hexavalent compounds)
AND BENZENE, which are known to the State of
California to cause cancer and birth defects or
other reproductive harm.
For more information go to:
www.P65warnings.ca.gov/furniture.
Standard 20 lb.tank
Figure 1

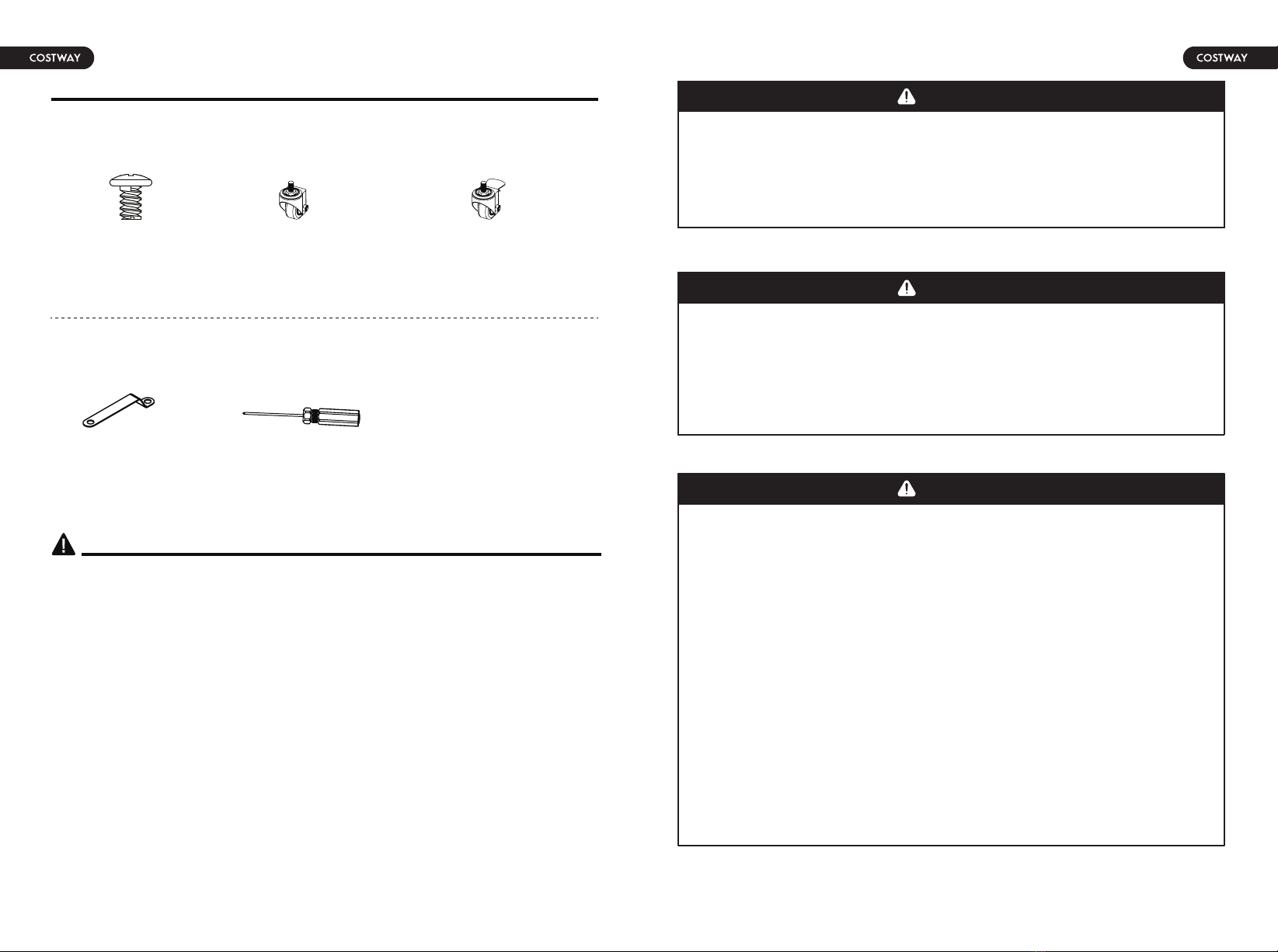

PACKAGE CONTENTS
A
B
C
D
E
G
F
DESCRIPTIONPART QUANTITY
A Metal shield 1
BGlass fixture 1
4
CWide glass
4D
1E
Narrow glass
Base
1F Door
1G Weather cover
4H Adjustable foot (PRE-ASSEMBLED)
H
06 07

AA
Bolt (M6 x 5 mm)
Qty. 24
BB
Caster
Qty. 2
CC
Caster with locking device
Qty. 2
DD
Ground fixer
Qty. 4
EE
Phillips screwdriver
Qty. 1
HARDWARE CONTENTS (shown actual size)
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or install the product.
This manual contains important information about the assembly,
operation and maintenance of this patio heater. General safety
information is presented in these first few pages and is also located
throughout the manual. Keep this manual for future reference and to
instruct new users of this product. This manual should be read in
conjunction with the labeling on the product. Safety precautions are
essential when any mechanical or propane fueled equipment is
involved. These precautions are necessary when using, storing, and
servicing. Using this equipment with the respect and caution
demanded will reduce the possibilities of personal injury or property
damage. The following symbols shown below are used extensively
throughout this manual. Always heed these precautions, as they are
essential when using any mechanical or fueled equipment.
DANGER
DANGER
DANGER
• EXPLOSION - FIRE HAZARD.
• Keep solid combustibles, such as building materials, paper or
cardboard, a safe distance away from the heater as recommended
by the instructions.
• Provide adequate clearances around air openings into the
combustion chamber.
• Never use the heater in spaces that do or may contain volatile or
airborne combustibles, or products such as gasoline, solvents,
paint thinner, dust particles or unknown chemicals.
• During operation, this product can be a source of ignition. Keep
heater area clear and free from combustible materials, gasoline,
paint thinner, cleaning solvents and other flammable vapors and
liquids. Do not use heater in areas with high dust content.
Minimum heater clearances from combustible materials: 3 feet
from the sides & 5 feet from the top.
Failure to comply with the precautions and instructions provided with this
heater can result in death, serious bodily injury and property loss or
damage from hazards of fire, explosion, burn, asphyxiation, and/or carbon
monoxide poisoning. Only persons who can understand and follow the
instructions should use or service this heater.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. If odor continues, keep away from the appliance and immediately call
your gas supplier or fire department.
08 09

CAUTION
WARNING WARNING
SAFETY INFORMATION
DANGER
DANGER
• CARBON MONOXIDE HAZARD.
• This heater is a combustion appliance. All combustion appliances
produce carbon monoxide (CO) during the combustion process. This
product is designed to produce extremely minute, non-hazardous
amounts of CO if used and maintained in accordance with all warnings
and instructions. Do not block air flow into or out of the heater.
• Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery
eyes, headaches, dizziness, fatigue and possibly death. You can't see it
and you can't smell it. It's an invisible killer. If these symptoms are
present during operation of product, leave the area and get fresh air
immediately!
• For outdoor use only.
• Never use inside house, or other unventilated or enclosed areas.
• This heater consumes air (oxygen). Do not use in unventilated or
enclosed areas to avoid endangering your life.
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames, direct sunlight, other
ignition sources or where temperatures exceed 120OF (49OC).
• Propane vapors are heavier than air and can accumulate in low places.
If you smell gas, leave the area immediately.
• Never install or remove propane cylinder while heater is lighted, near
flame, other ignition sources or while heater is hot to touch.
• This heater is hot during use and can ignite flammables too close to the
burner. Keep flammables at least 3 feet from sides & 5 feet from top.
Keep gasoline and other flammable liquids and vapors well away from
heater.
• Store the propane cylinder outdoors in a well ventilated space out of
reach of children. Never store the propane cylinder in an enclosed area
(house, garage, etc.). If heater is to be stored indoors, disconnect the
propane cylinder for outdoor storage.
WARNING
WARNING WARNING
We cannot foresee every use of our heaters. Check with your local fire
safety authority if you have questions about heater use. Other
standards govern the use of fuel gases and heat producing products for
specific uses. Your local authorities can advise you about these. If no
local codes exist, follow National Fuel Gas Code, ANS Z223.1. In
Canada, installation must conform to local codes. If no local codes exist,
follow the current National standards of CANADA
CAN/CGA-B 149.2.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance. An propane cylinder not
connected for use shall not be
stored in the vicinity of this or any
other appliance.
Improper installation, adjustment,
alteration, service or maintenance
can cause property damage, injury
or death. Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.
SAFETY INFORMATION
BURN HAZARD
• Never leave heater unattended
when hot or in use.
• Keep out of reach of children.
SERVICE SAFETY
• Keep all connections and fittings clean. Make sure propane cylinder valve
outlet is clean.
• During set up, check all connections and fittings for leaks using soapy
water. Never use a flame.
• Use as a heating appliance only. Never alter in any way or use with any
device.
Certain materials or items, when
stored under the heater, will be
subjected to radiant heat and
could be seriously damaged.
10 11

Hardware Used
Figure 2
Ground fixer X 4
1. Side place the product base (E) on a
non-abrasive flat surface to prevent
scratching, unscrew the adjustable foot (H)
and remove from the base (E). Line up the
hole on the ground fixer (DD) with the
corresponding holes on the base (E), then
insert the bolt on adjustable foot(H) into
the holes and hand tighten them clockwise.
To prevent heater from strong wind or
incline ground, anchor the base securely to
the ground with long nails or screws (See
Figure 2).
Note: long nails or screws are not included.
DD
H
E
DD
2. It is optional to replace the adjustable
foot (H) with casters (BB) and casters with
locking device (CC).
a. Remove the foot glider (H) from the base
(E), then install the two casters (BB) and
two casters with locking device (CC) with
the base, installation procedures are same
as step 1.
Note: The two casters (BB) are installed on
two adjacent holes on the product base (E),
so are the two casters with locking device
(CC).
b. Make sure the locking device on the
casters (CC) are pressed down after
installation, so that the heater will not move
in any way (See Figure 3).
DD
BB
E
Hardware Used
Caster X 2
Caster with locking device X 2
BB
CC
Ground fixer X 4
DD
Figure 3
CC
Carefully unpack all parts from the box, compare parts with package content
listed above, make sure all parts are present before beginning assembly of
product. If any part is missing or damaged, do not attempt to assemble the
product.
Tools Required for Assembly (not included): Phillips screwdriver.
PREPARATION
WARNING
WARNING
SAFETY INFORMATION
• This product is fueled by propane gas. Propane gas is invisible, odorless,
and flammable. An odorant is normally added to help detect leaks and can
be described as a “rotten egg” smell. The odorant can fade over time so
leaking gas is not always detectable by smell alone.
• Propane gas is heavier than air and leaking propane will sink to the
lowest level possible. It can ignite by ignition sources including matches,
lighters, sparks or open flames of any kind many feet away from the
original leak. Use only propane gas set up for vapor withdrawal.
• Store or use propane gas in compliance with local ordinances and codes
or with ANS/NFPA 58. Turn off propane when not in use.
• Alert children and adults to the hazards of high surface temperatures.
Stay away from these surfaces to avoid burning skin or igniting clothing.
• Carefully supervise young children when in the vicinity of the heater.
• Do not hang clothing or any other flammable materials from the heater,
or place on or near the heater.
• Replace any guard or protective device removed for servicing the
appliance prior to placing back in service.
• Installation and repair should be done by a qualified service person. The
heater should be inspected before use and annually by a qualified service
person. More frequent cleaning may be required as necessary. It is
imperative that the control compartment, burners, and circulating air
passageway of the appliance be kept clean.
ASSEMBLY INSTRUCTIONS
12 13

EE
AA
C
Figure 6
5. Insert three wide glasses (C) into the "L"
clips which have been welded together with
table top, then attach them with bolts (AA)
using the Phillips screwdriver (EE)
(See Figure 6).
Note: DO NOT tighten the bolts completely.
Note: After the assembly is completed, the
warning icon and font in the upper right
corner of the glass should face outwards.
Hardware Used
Bolts (M6 X 5) x 8
AA
Phillips screwdriver x 1
EE
Figure 5
4. Cover and clamp the four narrow glasses
(D) with glass fixture (B) carefully.
Afterwards, tighten the bolts (AA), but not
tighten too much to avoid the glass pieces
being damaged (See Figure 5).
B
D
Figure 4
Hardware Used
Bolts (M6 X 5) x 8
3. Insert the four narrow glasses (D) into
the "L" clips which have been welded
together with table top, then attach them
with bolts (AA) using the Phillips screwdriver
(EE) (See Figure 4).
Note: DO NOT tighten the bolts completely.
D
E
EE
AA
AA
Phillips screwdriver x 1
EE
7. Place the gas cylinder into the
cylinder holder. Secure the cylinder
by tightening clockwise the retention
point found on the cylinder holder, so
that the cylinder cannot move from
side to side or fall down. Connect
the regulator, screw the black handle
clockwise to tighten, turn the black
handle counterclockwise to remove.
The knob on the control panel is
turned all the way to the “OFF”
position when the heater is NOT in
use (See Figure 8).
Figure 8
retention point
regulator
E
E
F
Figure 7
6. With the help of another person, cover and
clamp the three wide glass (C) with metal
shield (A) carefully and tenderly, insert the
fourth wide glass (C) into the "L" clips in the
metal shield (A) firstly, then insert the
bottom of wide glass (C) into the "L" clips in
the table top.
Note: tighten all the bolts but not
overtighten to avoid the glass pieces being
damaged.
Note: after assembly, the warning icon and
font on the glass faces out and is located in
the top right corner.
EE
C
Hardware Used
Bolts (M6 X 5) x 8
AA
A
Phillips screwdriver x 1
EE
AA
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
14 15

BATTERY
WARNING:
1. Please observe proper polarity and use the correct battery type when
installing or replacing the battery. Improper installation could result in
ignition failure.
2. Please remove the battery if consumed or if product is to be left unused
for a long period of time.
Make sure the control knob is in the “OFF” position. Unscrew the push button
cap on the ignitor module located on the control panel to access the battery
compartment. The ignitor module requires one AAA size battery. BATTERY IS
NOT INCLUDED.
Figure 10
OFF (APG.)
MAX
(MÁX.)
1 AAA
1.5V
IGNITOR
( Encendedor )
ON/MIN
(ENC./MÍN.)
LIGHTING INSTRUCTIONS
1. Push in gas control knob slightly and
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the way
4. If the burner does not light in 15
1. Push in gas control knob slightly and turn to “OFF”.
TO TURN OFF GAS
INSTRUCCIONES DE ENCENDIDO
PARA CERRAR EL GAS
1. Presione ligeramente la perilla de control del gas y gírela a la
2. Gire la perilla de control del gas a “ENC/MÍN” (encendido/mínimo).
3. Presione la perilla de control del gas hasta el fondo y mantenga presionada.
4. Si el quemador no se enciende en 15 segundos, suelte la perilla y esta
encender el quemador nuevamente, repita los pasos 1 al 3.
1. Presione ligeramente la perilla de control del gas y gírela a la
turn to “OFF”.
and hold. Continue to press the
ignition button for 15 seconds.
seconds, release the knob and it will
pop back out. Wait 5 minutes before attempting
to light the burner again, repeat step 1 to 3.
posición “APG” (apagado).
Siga presionando el botón de encendido durante 15 segundos.
volverá a su posición hacia afuera. Espere 5 minutos antes de intentar
posición “APG” (apagado)
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
8. Cover the heater with the outdoor
weather cover (G) when not in use to
protect it from the elements or
when the heater is cool COMPLETELY
after use (See Figure 9).
Figure 9
G
ASSEMBLY INSTRUCTIONS
16 17

LIGHTING INSTRUCTIONS
1. Make 2~3 oz. of leak solution by mixing one part liquid dishwasher
detergent and three parts water. Noted: make sure control knob is “OFF”.
2. Apply several drops of solution where the cylinder attaches to regulator,
(See Figure 11), inspect the solution at the connection for bubbles. If NO
bubbles appear, the connection is secure. If bubbles appear, the connection
has the leak, disconnect the regulator, reconnect, perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is
defective and contact the cylinder’s supplier.
3. Apply several drops of solution where gas valve attaches to bellows, (See
Figure 12), where gas valve attaches to regulator hose, (See Figure 13), and
where inlet tube attaches to bellows, (See Figure 14). If NO bubbles appear,
the connections are secure. If bubbles appear, the connection has the leak,
disconnect, reconnect, perform another leak check. If you continue to see
bubbles after several attempts, both parts are defective and should replace
with the new ones.
1. Push in gas control knob slightly and turn to “OFF”.
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the way and hold. Continue to press the
ignition button for 15 seconds.
4. If the burner does not light in 15 seconds, release the knob and it will pop
back out. Wait 5 minutes before attempting to light the burner again and
repeat step 1 to 3.
To perform a leak test:
gas valve / regulator hose
connection (Figure 13)
inlet tube / bellows
connection (Figure 14)
cylinder / regulator connection
(Figure 11)
gas valve / bellows connection
(Figure 12)
LEAK TEST
To prevent fire or explosion hazard when testing for a leak:
OPERATION INSTRUCTIONS
1. Always perform the leak test as described below before lighting this
appliance or each time the cylinder is connected for use.
2. Do not smoke or allow other sources of ignition in the area while
conducting a leak test.
3. Conduct the leak test outdoors in a well-ventilated area.
4. Do not use matches, lighters or a flame to check for leaks.
5. Do not use this appliance until any and all leaks are corrected. If you are
unable to stop a leak, disconnect the propane supply and call a gas
appliance service shop or your local propane gas supplier.
OPERATION INSTRUCTIONS
18 19

Observe Flame Height When Lit: The burner will display blue and yellow
flames. These flames should be a blue / yellow color between 15~20 in.
height (See Figure 16). These flames should not be yellow or produce thick
smoke. This would indicate an obstruction of airflow through the burners. The
flames should be blue with straight yellow tops.
Figure 16
Yellow
Yellow
Light Blue
Light Blue
Blue Blue
Good Bad
WARNING: For your safety, read and follow the Lighting Instructions in this
manual and in the Rating Plate on the appliance. IMPROPER LIGHTING
PROCEDURES COULD RESULT IN A FIRE HAZARD OR EXPLOSION HAZARD
OR PROPERTY DAMAGE, INJURY OR LOSS OF LIFE.
TO TURN OFF GAS
1. Push in gas control knob slightly and turn to “OFF”.
Figure 15
gas control knob
ignition button
OFF (APG.)
MAX
(MÁX.)
1 AAA
1.5V
IGNITOR
( Encendedor )
ON/MIN
(ENC./MÍN.)
LIGHTING INSTRUCTIONS
1. Push in gas control knob slightly and
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the way
4. If the burner does not light in 15
1. Push in gas control knob slightly and turn to “OFF”.
TO TURN OFF GAS
INSTRUCCIONES DE ENCENDIDO
PARA CERRAR EL GAS
1. Presione ligeramente la perilla de control del gas y gírela a la
2. Gire la perilla de control del gas a “ENC/MÍN” (encendido/mínimo).
3. Presione la perilla de control del gas hasta el fondo y mantenga presionada.
4. Si el quemador no se enciende en 15 segundos, suelte la perilla y esta
encender el quemador nuevamente, repita los pasos 1 al 3.
1. Presione ligeramente la perilla de control del gas y gírela a la
turn to “OFF”.
and hold. Continue to press the
ignition button for 15 seconds.
seconds, release the knob and it will
pop back out. Wait 5 minutes before attempting
to light the burner again, repeat step 1 to 3.
posición “APG” (apagado).
Siga presionando el botón de encendido durante 15 segundos.
volverá a su posición hacia afuera. Espere 5 minutos antes de intentar
posición “APG” (apagado)
OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS
20 21

CARE AND MAINTENANCE
To enjoy the outstanding performance from your patio heater, make sure you
perform the following activities on a regular basis:
1. Use warm soapy water for cleaning. Never use flammable or corrosive
cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner
assembly dry at all times. Do not submerge the control valve assembly. If
the gas control is submerged in water, do NOT use it. It must be replaced.
a. Keep the appliance area clear and free from combustible materials, gaso-
line and other flammable vapors and liquids.
b. Do not obstruct the flow of combustion and ventilation air.
c. Keep the ventilation opening(s) of the cylinder enclosure free and clear
from debris.
3. Air flow must be unobstructed. Keep controls, burner, and circulating air
passageways clean. Signs of possible blockage include:
(1). Gas odor with extreme yellow tipping of flame.
(2). Patio heater does NOT reach the desired temperature.
(3). Patio heater flame is excessively uneven.
(4). Patio heater makes popping noises.
(5). Spiders and insects can nest in burner or orifice. This dangerous
condition can damage patio heater and render it unsafe for use. Clean burner
holes by using a heavy-duty pipe clearer.
Compressed air may help clear away small particles.
4. Carbon deposits may create a fire hazard. Clean burner with warm soapy
water if any carbon deposits develop.
5. Cover your patio heater with an outdoor weather cover when not in use to
protect it from the elements.
NOTE: Always allow patio heater to cool COMPLETELY before you cover the
patio heater with an outdoor weather cover or you attempt to service or
perform maintenance.
REPLACEMENT PARTS LIST
DESCRIPTION PART# NO
Wide glass
C
B
A
D
E
F
G
H
F210017-A
F210017-C
F210017-D
F210017-E
F210017-F
Narrow glass
Base
Door
PF-FIREPIT-GV Gas valve
ET-CA Caster
ET-CAWLD Caster with locking device
F210017-HP Hardware pack
PF-FIREPIT-TC-10 Thermocouple, 250 mm/10"
PF-FIREPIT-LVL-ET-36 Foot glider 01, 36 x 42 mm
PF-FIREPIT-R180H14 Regulator 180 degree hose 350 mm/14"
PF-FIREPIT-ET-S-W12 Electrode 3" tip, wire 300 mm for 30000 BTU
PF-FIREPIT-PI Pulse ignition
PF-FIREPIT-KNOB-ET-L Control knob ET, large #6
F210017-M Weather cover
Metal shield
F210017-B
Glass fixture
Problem Possible cuase Corrective action
The burner
will not
ignite.
The burner
flame is too
low.
Carbon
build-up
and/or thick
black smoke
is present.
The gas cylinder is frosted over.
An opening is blocked.
The control knob is not in the
“ON” position.
(1)
(2)
(3)
The gas pressure is low.
The outdoor temperature is
less than 40°F, and the
cylinder is less than 1/4 full.
(1)
(2)
There is dirt or film on the
reflector and burner screen.
The burner is blocked.
(1)
(2)
Wait until gas cylinder
warms up and becomes
unfrosted.
Clear the blockage.
Turn the control knob to
the “ON” position.
(1)
(2)
(3)
Turn the cylinder valve off
and replace the cylinder.
Use a full gas cylinder.
Check the burner ports for
blockage.
(1)
(2)
(3)
Clean the reflector and
burner screen.
Remove any blockage,
and clean the burner
inside and outside.
(1)
(2)
Troubleshooting
OPERATION INSTRUCTIONS
22 23
