COUGAR MX440-A User manual

FEATURES

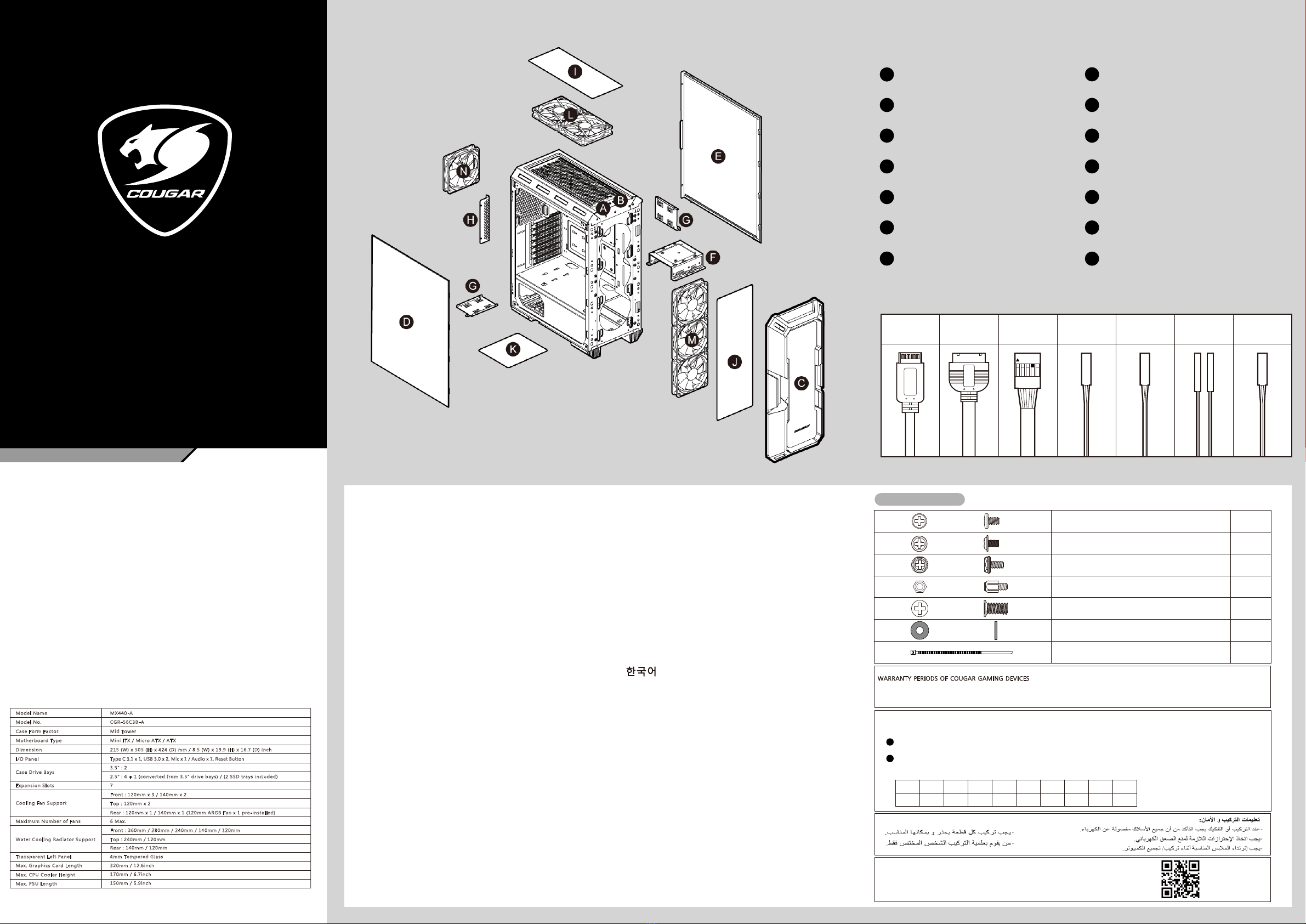

Assembly Drawing
Power button / Reset button
A
G2.5" HDD/SSD trays
TYPE C 3.1 / USB 3.0 / HD audio ports
B
HSlot covers
CFront panel
IAir filter for top panel
DTempered glass side panel
Air filter for front panel
J
ERight side panel
KAir filter for bottom panel
Specifications might vary depending on the country or region of sale.
Installing the Front I/O Connectors
Distinguished and Unique Design
MX440-As front panel features bold lines and rugged structures. It is the chassis that
brings the new concept of strength and sturdy. The brushed metal-like texture with
orange borders give it a unique look that makes you stand out among the others.
Attractive RGB Lighting with a Massive Tempered Glass Left Panel

from the tempered glass left panel. The full-length PSU cover also helps you to present a clean
and tidy build.
Wider but More Compact and Powerful

and cable management. However, its compact exterior dimension takes up less desktop space.
SSDs,

Easy Access and Connectivity for All Your Devices



Strong Cooling Performance
MX440-A
cooling radiator, and high-end cooling components. It helps you to protect critical components
from overheating.
F3.5" HDD cage (compatible for 2.5" HDD/SSD)
L2 x 120mm fans for top panel (optional)
M3 x 120mm / 2 x 140mm fans for front panel
(optional)
N120mm / 140mm fan for rear panel
(1 x 120mm ARGB Fan pre-installed)
• Impressive brushed metal-like front Panel
• Massive tempered glass left panel
• Support for up to six fans and a 360mm radiator
• Support for up to 320mm long graphics cards
• Support for two 3.5" HDDs and four 2.5" SSDs
ENGLISH
• Beeindruckende Frontplatte aus gebürstetem Metall
• Linker Abdeckung aus massivem gehärtetem Glas
• Unterstützt bis zu sechs Lüfter und einen 360-mm-Kühlkörper
• Unterstützt Grafikkarten mit einer Länge von bis zu 320 mm
• Unterstützt 2 3,5" Zoll-Festplatten und 4 2,5" Zoll-SSDs
DEUTSCH
• Impresionante panel frontal tipo metal cepillado
• Panel izquierdo de vidrio templado
• Soporta hasta 6 ventiladores y un radiador de 360mm
• Soporte para tarjetas gráficas de hasta 320mm de largo
• Soporte para 2 HDD de 3.5" y 4 SSD de 2.5"
ESPAÑOL
• Panneau avant en métal brossé impressionnant
• Un capot gauche en verre trempé massi
• Prend en charge jusqu'à 6 ventilateurs et un radiateur de 360 mm
• Prend en charge les cartes graphiques jusqu'à 320 mm de longueur
• Prise en charge de 2 disques durs 3,5" et 4 SSD 2,5"
FRANÇAIS
• Imponujący panel przedni przypominający szczotkowany metal
• Lewej pokrywie z litego szkła hartowanego
• Obsługa maksymalnie 6 wentylatorów i radiatora do 360 mm
• Możliwość montażu kart graficznych o długości do 320 mm
• Obsługa 2 dysków twardych 3,5" i 4 SSD 2,5"
POLISH
• Painel frontal em metal escovado impressionante
• Painel lateral esquerdo em vidro temperado
• Suporta até 6 ventoinhas e radiador de 360mm
• Suporta placas gráficas de até 320mm
• Suporta até 2 HDDs de 3.5" e 4 SSDs de 2.5"
PORTUGUÊS
РУССКИЙ
• Впечатляющая матовая металлическая передняя панель
• массивной левой панелью из закаленного стекла
• Поддержка до шести вентиляторов и 360-мм радиатора
• Поддержка видеокарт длиной до 320 мм
• Поддержка двух 3.5-дюймовых жестких дисков и четыре
2.5-дюймовых SSD
• 高质感发丝纹仿金属面板
• 全透钢化玻璃左侧盖
• 最高可支援6个风扇与360mm的水冷散热器
• 支援长达320mm的显示卡
• 支援2个3.5" HDD硬碟与4个2.5" SSD硬碟
中 文
• 󴳡󴲫󴳲󴲭󴳼󴱗󴱵󴳞󴳶󴳼󴳑󴳚󴳖󴳴
• 󴲵󴳲󴳂󴲯󴲬󴳼󴳒󴲯󴱲PC󴱹󴱗󴱓󴲖󴱹󴱲󴱹󴳚󴴅󴳍󴲝󴱘󴱱󴲉󴱤
• 6󴱹󴳞󴲪󴳼󴱳360󴱹󴳲󴳁󴲱󴴅󴳈󴴅󴲝󴱲󴱘󴰾󴲗󴱪󴲝
󴱢󴲉󴱤
• 320mm󴲹󴳲󴳞󴲬󴳌󴲸󴲴󴴅󴳒󴱶󴱲󴱘󴲉󴱤
• 2󴱯󴱹3.5"󴱹HDD󴱳4󴱯󴱹2.5" SSD󴲝󴱲󴱤
日本語
• 인상적인 브러시 드메탈과 같은 전면 패널
• 강력한 강화 유리 좌측 덮개가 있는
• 최대 6 개의 팬및360mm 라디에이터 지원
• 최대 320mm의긴그래픽 카드를 지원
• 3.5" HDD 2개와 2.5" SSD 4개
한국어
Case Form Factor
Dimension
Motherboard Type
I/O Panel
Case Drive Bays
Expansion Slots
Model Name
Cooling Fan Support
Water Cooling Radiator Support
Maximum Number of Fans
Max. Graphics Card Length
Max. CPU Cooler Height
Max. PSU Length
320mm / 12.6inch
Transparent Left Panel 4mm Tempered Glass
170mm / 6.7inch
150mm / 5.9inch
MX440-A
Model No. CGR-56C3B-A
Mid Tower
215 (W) x 505 (H) x 424 (D) mm / 8.5 (W) x 19.9 (H) x 16.7 (D) inch
7
Mini ITX / Micro ATX / ATX
Type C 3.1 x 1, USB 3.0 x 2, Mic x 1 / Audio x 1, Reset Button
3.5" : 2
2.5" : 4 + 1 (converted from 3.5" drive bays) / (2 SSD trays included)
Front : 120mm x 3 / 140mm x 2
Rear : 140mm / 120mm
Top : 240mm / 120mm
Front : 360mm / 280mm / 240mm / 140mm / 120mm
6 Max.
Top : 120mm x 2
Rear : 120mm x 1 / 140mm x 1 (120mm ARGB Fan x 1 pre-installed)
MX440-As iconic sturdy and solid style. With an
included ARGB fan, the tempered glass left panel showcases stunning lighting view.
Besides, it has wide and powerful interior spaces, which allows you to have hardware
expandability, high cooling performance, and abundant storage space.
MX440-A
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MX440-A
Warranty : 1 Year
● This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.
● Only for electrical components.
ACCESSORY KIT
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже, и означают год,
последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
●
Например,
AG = 17 = 2017 год
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
A B C D E F G H I J
12345678 9 0
A
B
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg България QR код
X 20Fan screws
X 82.5”HDD / SSD EVA washers
X 29Motherboard screws and 2.5" SSD screws
X 4Power supply screws
X 3Stand-off
3.5" HDD screws X 8
Cable ties X 5
USB 3.0 HD AUDIO POWER SW
HD AUDIO
POWER SW
RESET SW
RESET SW
POWER LED
POWER LED + POWER LED
-
USB3.0
TYPE C 3.1 H.D.D LED
H.D.D LED
- +

Installing water cooling radiators & cooling fans
Installing the 2.5"SSDs
Removing side panels
1
2
1
2
3
4
2
12 31
Installing the 3.5"HDDs
4
3
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C
Tel:[phone]
Service E-Mail:[email protected]
COUGAR USA Technical Service
Tel: [phone]
Mail: [email protected]
https://cougargaming.com/support/contact/upload/
For more information, please visit
Compucase Enterprise Co.,Ltd.
All rights reserved.
www.cougargaming.com
Made in China
1
3
2









(Top)
1(Front)
2
(Rear)
3
LEFT
RIGHT RIGHT
1
2
3
4
5
RIGHT
1
2
LEFT
1
2
1
RIGHT
2 3
RIGHT
LEFT
34
Connectors
Connectors
Connectors
5
1
2
Installing PCI-E cards
Support for graphics card up to 320mm-long
RIGHT
A. Please lift up the tempered glass panel
from the bottom left notch.
B. When lifting up the tempered glass panel,
please hold it carefully with your other hand.
A
B
2.5" HDD / SSD EVA washers
X 8
※ Please stick EVA washers on SSD holes before
installing 2.5" SSD.
