Creative Zen Touch QSB User manual

3
English
A Tour of Your Player
Previous button
Play/Pause button
Next button
Liquid Crystal
Display (LCD)
OK button
Back button
Menu button
Random button
Touch pad control
Front view
Zen Touch QSB.book Page 3 Monday, June 28, 2004 4:50 PM

4
Earphone
connector
USB
port
Lock
switch
Power adapter connectorPower button
Volume Increase
button
Volume Decrease
button
To p v i e w
Side views
Reset hole
Zen Touch QSB.book Page 4 Monday, June 28, 2004 4:50 PM

5
Button What It Does Usage Tips
Power button
• Turns the player on and off.
• To turn on your player, press and hold until
the LED turns on.
• To turn off your player, press and hold until
the Shutting down message appears.
Release the Power button.
Menu button • Displays the main menu,
which contains most of your
player’s features.
Previous button • Goes to the beginning of the
current track, or to the
previous track.
• Moves back within a track
when you press and hold
the button.
• To go back to another track, press the
Menu button, and then select Selected
Music. Select the track you want to skip to.
Next button • Goes to the next track.
• Moves ahead within a track
when you press and hold
the button.
• To skip forward to another track, press the
Menu button, and then select Selected
Music. Select the track you want to skip to.
Play/Pause button • Starts, pauses or continues
playback.
• To play a track from Music Library
screens, press this button.
Volume Increase
button
• Increases the volume. • Press and hold to increase the volume
quickly.
Zen Touch QSB.book Page 5 Monday, June 28, 2004 4:50 PM

6
Volume Decrease
button
• Decreases the volume. • Press and hold to decrease the volume
quickly.
Back button
• Goes to previously accessed
screens in the menu.
Random button
• Plays random tracks in your
player.
Touch pad control
• Scrolls up and down menus.
• Selects menu options.
• For usage information, see “Using the
Touch Pad Control” on page 7.
Lock switch • Locks and disables all
buttons on your player. • Slide the switch to the right.
Reset hole
• Resets your player.
• Push the end of a thin object (for example,
a straightened paperclip) into the Reset
hole.
Button What It Does Usage Tips
Zen Touch QSB.book Page 6 Monday, June 28, 2004 4:50 PM

7
Using the Touch Pad Control
The touch pad control is one of the most important features of your player. In this
document, we will use the term, “select”, to mean that you should use the touch pad
control to scroll through options, and then select the option by pressing the OK button.
Use the upper or lower sections of the touch pad control to scroll rapidly through options.
Place your finger on the upper or lower section of the touch pad control and hold it down
to scroll rapidly.
• To “select”, use the touch pad control to scroll to the option you want, and select the
option by pressing the OK button.
• When selecting an option, instead of pressing the OK button, you can also tap the touch
pad control. The Tap to Select feature, however, must be enabled. To enable this feature,
see “Playing and Managing Your Music“ in your User’s Guide.
The touch
pad control
Place your finger on the
middle section of the
touch pad control.
Gently rub the middle
section of the touch
pad control to scroll
through options.
Press the OK button
to select an option.
OK button for selecting options
Upper section for fast scrolling upwards.
Middle section for normal scrolling upwards or downwards.
Lower section for fast scrolling downwards.
Zen Touch QSB.book Page 7 Monday, June 28, 2004 4:50 PM

8
Getting Started
1
1Setting Up Your Player
1. Make sure that your player is NOT
connected to your computer.
2. Insert the Zen Touch CD into your
CD-ROM drive.
3. The Zen Touch CD supports Windows
AutoPlay mode and starts running
automatically. If not, you need to enable
your CD-ROM drive's auto-insert
notification feature. For more details, see
“Frequently Asked Questions“ in your
User’s Guide.
4. Follow the instructions on the screen.
5. When prompted, connect your player to your computer as shown in Figure 1.
You can listen to your player’s preloaded music immediately by pressing the Play/Pause
button.
USB port
USB cable
Figure 1
Zen Touch QSB.book Page 8 Monday, June 28, 2004 4:50 PM

9
2
2Charging the battery
The high performance lithium-ion battery supplied with your player needs to be fully
charged before you use it. The battery is fully charged in approximately four hours.
Using the power adapter
To charge your player’s battery, connect one end of the power adapter to the wall outlet
and the other end to your player’s power adapter connector, as shown in Figure 2. Check
the battery icon to see when the battery is fully charged.
You can also charge your player’s battery using the supplied USB cable. For more information,
see “Getting Started” in your User’s Guide.
Figure 2
Power adapter connector Power adapter cable
Zen Touch QSB.book Page 9 Monday, June 28, 2004 4:50 PM

10
3
3Selecting Your Player’s Menu Language
1. Turn on your player. Press and hold the Power button until the LED turns on.
2. Press the Menu button .
3. Select Settings.
4. Select Language.
5. From the menu, select a language.
4
44 Transferring Music and Data
Audio selections have been preloaded to your player to get you started quickly. If you wish
to listen to music immediately, simply press the Play/Pause button .
If you wish to download additional music tracks to your player, you can either download
music tracks from Internet music sites (see “Downloading from the Internet” on page 2-6
of your User’s Guide) or rip them from your audio CDs to create digital files on your
computer. For more information, see “Ripping from a CD” on page 2-7 of your User’s
Guide.
Music files can be encoded into the supported formats (MP3, WMA or WAV file formats),
and then transferred to your player with Creative MediaSource Organizer.
Data files can also be transferred to and stored in your player, for example, you can transfer
a large data file from one computer to another. Data can be transferred to your player with
the Creative NOMAD Explorer application.
Basic instructions on how to use Creative MediaSource and NOMAD Explorer are provided
in the Creative MediaSource and NOMAD Explorer Help.
Zen Touch QSB.book Page 10 Monday, June 28, 2004 4:50 PM

11
Playing Music
Audio selections have been preloaded to your player to get you started quickly. Your
player’s Selected Music list allows you to play back audio tracks.
1. Press the Play/Pause button .
2. The Play icon appears on the Now Playing screen, and tracks from the Selected
Music list begin playing.
3. The Now Playing screen shows the track that is being played back or the track that
has been selected.
4. To display the Selected Music list, which shows the list of tracks being played, press the
OK button.
EQ setting
Play mode
Track title
Elapsed time
Album title
Artist
Remaining time
Elapsed time bar
Audio selections
Zen Touch QSB.book Page 11 Monday, June 28, 2004 4:50 PM

12
About the Menu Screen

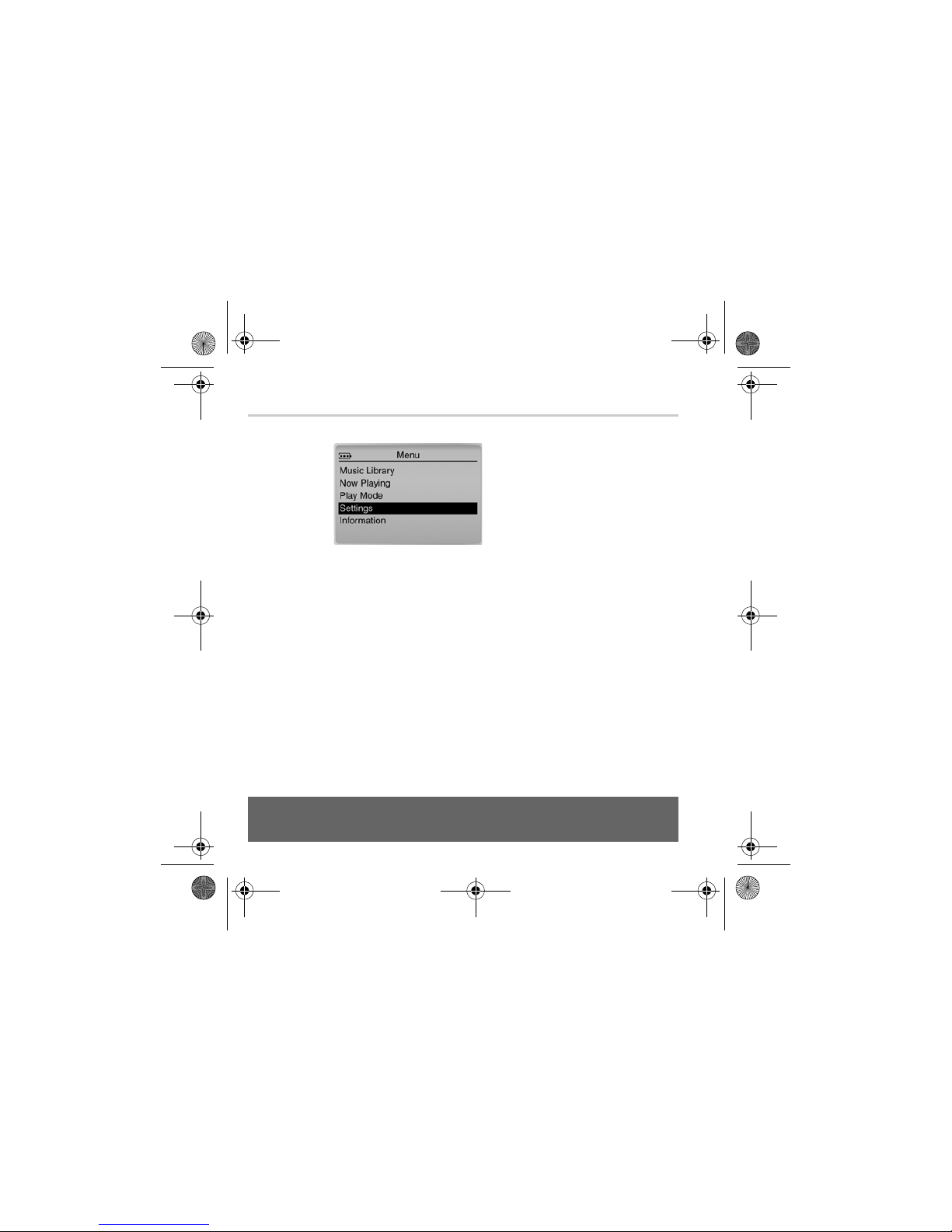

Press the Menu button to access the Menu screen (Figure 3).
Music Library
Select this option to browse all tracks in your player or to locate a track quickly.
Now Playing
Select this option to get to the Now Playing screen, which displays the current track
being played back.
Play Mode
Select this option to repeat or shuffle the tracks in your player.
Settings
Select this option to get to the Settings screen. On this screen, you can personalize your
player or enhance tracks using EQ settings.
Information
Select this option to view your player’s details, for example, version and album count.
For more information, read the User’s Guide on the Installation CD.
Go to d:\manual\<language>\manual.pdf (replace d:\ with the drive letter of your CD-ROM/
DVD-ROM drive, and <language> for the language the document is in)
Figure 3
