Crestron FT2-700-ELEC Series User manual

The Crestron® FT2-700-ELEC and the FT2-700-ELEC-PTL FlipTop™ cable
management systems install into a table or other horizontal surface to
provide modular tabletop connectivity for users. The FT2-700-ELEC
series feature a one touch lid that retracts fully and disappears with the
tap of a button. When the lid is retracted, 12 module slots are arranged in
two rows of six. The flexible modular design may also be customized with
an assortment of Crestron accessories. For more information about the
accessories, please visit www.crestron.com/Crestron-FlipTops.
The FT2-700-ELEC Series features a built in electrical power bus, which
enables compatibility with one-touch cable retractors, active connector
plates, and USB rapid charging modules. It also enables backlighting of
the symbol icons on all retractors, connector plates, and USB charging
modules.
The FT2-700-ELEC-PTL offers an alternative pass-through lid style
which allows cables to be fully extended while the lid is closed.
The FT2-700-ELEC and the FT2-700-ELEC-PTL are functionally similar.
For simplicity within this document, they are both referred to as the
"FT2-700 assembly."
In the Box
1 FT2-700-ELEC, FlipTop™ FT2 Series, 700 Size, Electrical
Additional Items
3 Bars, Locking, with Screws (P/N 4528906)
1 Cable, DC Power Splitter (P/N 2050094)
1 Holder, Power Supply (P/N 2048887)
4 Module, Blank Plate (P/N 2049602)
8 Module, Pass-Through Cable (P/N 4526880)
1 Power Cord, 5 ft 10 in. (1.78 m) (P/N 2042043)
1 Power Pack, 24 VDC, 2.5 A, 100-240 VAC (P/N 2045873)
4 Spacer, Plastic, FT2-700 (P/N 2050568)
1 Template, Cutout (P/N 4527491)
FT2-700-ELEC-AL Only
1 Bezel, FT2-700, Alloy (P/N 4529321)
FT2-700-ELEC-PTL-AL Only
1 Bezel, FT2-700, Pass-Through Lid, Alloy (P/N 4531563)
FT2-700-ELEC-PTL-B Only
1 Bezel, FT2-700, Pass-Through Lid, Black (P/N 4531562)
FT2-700-ELEC-B Only
1 Bezel, FT2-700, Black (P/N 4529320)
1
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

Mount the FlipTop Assembly
A mounting hole is required for an FT2-700-ELEC installation. Use the
included template to cut a new mounting hole for new installations. The
FT2-700-ELEC may also replace an FT-600 FlipTop and use the existing
mounting. When determining the location for the FT2-700 assembly,
consider where users will be seated and their proximity to the FT2-700
assembly's modules and retractors. Refer to the FT2A-CBLR-1T and
FT2A-CBLR-GR series cable retractors for above-the-table cable pull-out
lengths.
For a new mounting, follow sections Cut the Mounting Hole and Secure
the FlipTop Assembly. To use the mounting hole of an existing FT-600
FlipTop assembly, follow sections Replace the FT-600 FlipTop Assembly
and Secure the FlipTop Assembly.
Cut the Mounting Hole
A saw, tracing utensil, and the included cutout template are required to
cut the mounting hole.
1. Check the table surface and the area beneath the table. Clear any
obstructions that may impede the installation or functionality of the
FT2-700 assembly, retractors, and accessories.
2. Using the included cutout template, trace an outline of the mounting
hole onto the table.
3. Cut the mounting hole in the table with an appropriate saw.
Replace the FT-600 FlipTop Assembly
An FT2-700 assembly may replace an FT-600 FlipTop assembly and use
the existing mounting hole. The FT-600 FlipTop assembly mounting hole is
larger than the mounting hole required for the FT2-700 assembly. The
included plastic spacers are used to help fill the gap between the mounting
hole and the FT2-700 assembly.
1. Loosen the four socket screws that secure the two mounting plates
and the FT-600 FlipTop assembly to the surface.
2. Remove the FT-600 FlipTop assembly.
3. Attach the four plastic spacers (included) to each corner of the
FT2-700 assembly.
4. Continue to prepare the FT2-700 assembly by attaching the DC power
splitter. Refer to Secure the FlipTop Assembly.
2
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

Secure the FlipTop Assembly
To prepare the FT2-700 assembly and secure it to the table surface:

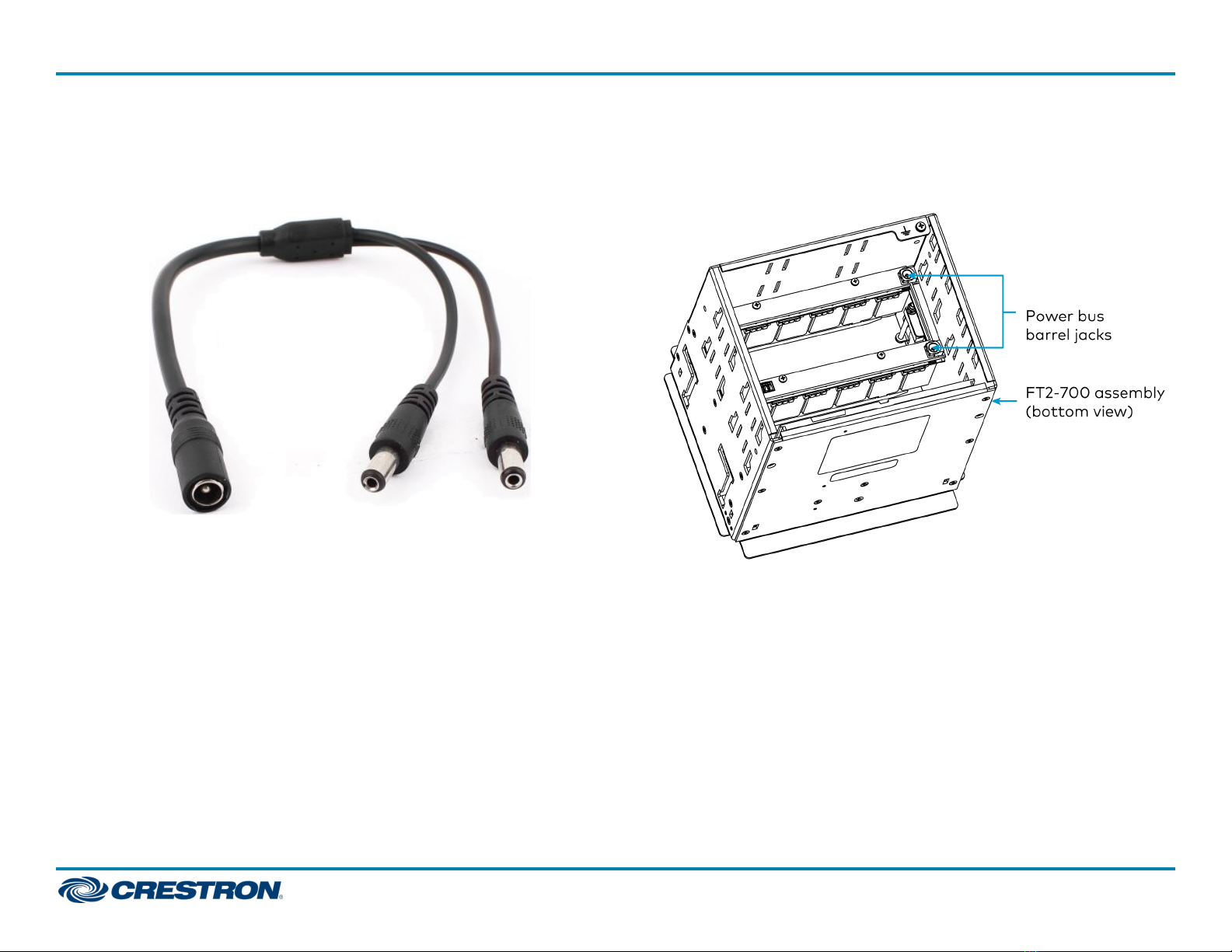

1. Locate the included DC power splitter cable.
2. On the underside of the FT2-700 assembly, locate the power bus and
connect the dual-connector ends of the DC power splitter to the two
barrel jacks of the power bus. The cable will be accessed later in
Connect and Place the Power Supply.
3. Ensure that all four swiveling dogs are tucked inside of the FT2-700
assembly, and then insert the FT2-700 assembly into the mounting
hole until the top lip is flush with the table surface.
3
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

4. Carefully tighten the four swiveling dogs in each corner of the FlipTop
assembly clockwise until the FT2-700 assembly is secured in place
against the table. Do not overtighten the swiveling dogs.
CAUTION: A manual torque screwdriver may be used to hand
tighten the swiveling dogs. Set the torque screwdriver to its lowest
setting to avoid stripping the swiveling dogs and damaging the
table. If removing the FT2-700 assembly from the table, ensure
that the screwdriver rotation is set correctly before loosening the
swiveling dogs.
Connect and Place the Power Supply
The FT2-700 assembly ships with one 24 VDC power supply that is used
to supply power to the power bus in the FT2-700 assembly. There are six
possible locations to attach the power supply. Connect the power supply
prior to installing any modules.
NOTE: Two power supplies are required if installing two rapid charging
modules in the FT2-700 assembly. For more information, refer to the
FT2A-CHGR-USBA-BASICQuick Start Guide (Doc.8423) or
FT2A-CHGR-USBA/CInstallation Guide (Doc.8219).
4
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

To connect the power supply to the power bus:
1. Underneath the FT2-700 assembly, connect the power supply to the
bottom of the power bus.
lIf connecting one power supply, connect the power supply’s power
cord to the single connector end of the DC power splitter cable.
Refer to step 1 in Secure the FlipTop Assembly.
lIf connecting two power supplies, connect each power supply’s
power cord to a barrel jack in the power bus.
2. Use the two included tie wraps to dress the power cord.

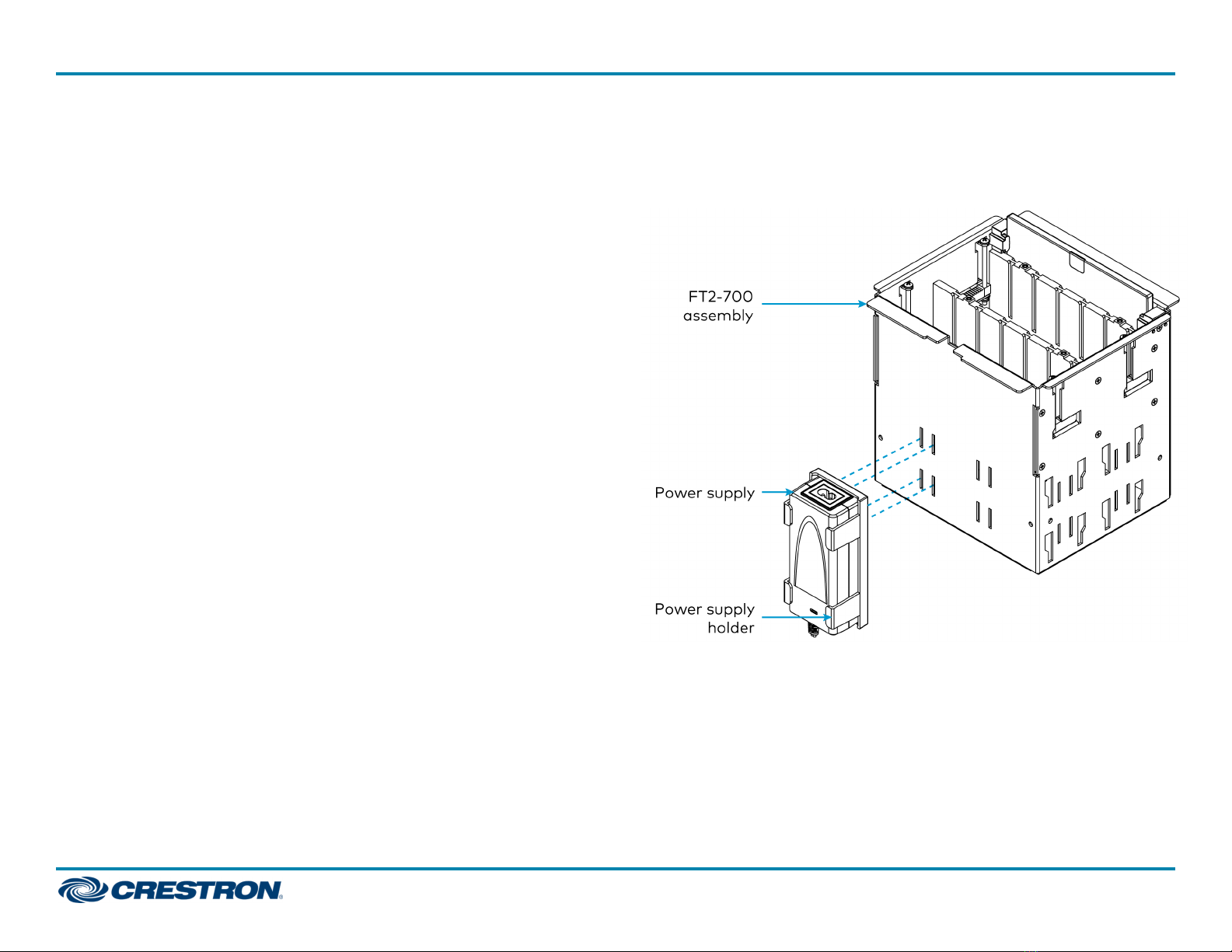

3. Slide the power supply into the power supply holder until it is secured in
place.
4. Align the four keyed tabs on the power supply holder with four keyed
slots on the FT2-700 assembly. Then, push the power supply holder up
and into the slots so that the keyed tabs engage the wide end of the
slots.
5
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

5. Slide the holder downward until it is secured to the FT2-700 assembly.
6. Connect the included 5 ft 10 in. (1.78 m) power cord to the power jack
on top of the power supply.
7. Connect the other end of the power supply to a power source only
after all other modules have been installed and all connections have
been made to the FlipTop assembly.
Install the Modules
Installation procedures for most modules are available in separate
product documentation. For more information, refer to the specific
product manual located at www.crestron.com/manuals. The following
sections provide best practices and installation procedures for pass-
through cable modules and blank plate modules.
Position the Modules
The FT2-700 assembly includes FT2A-PLT-PT pass-through cable
modules and FT2A-PLT-BLANK blank plate modules.
Follow the best practices below when performing module installation.
lPerform module installation in the following order:
1. AC Power Outlet Modules (FT2A-PWR-US series)
2. Retractor modules (FT2A-CBLR-1T series and FT2A-CBLR-GR
series)
3. All other modules (FT2A-CP series, FT2A-CHGR series,
FT2A-PLT-PT, and FT2A-PLT-BLANK)
lPlace the FT2A-CBLR-GR modules only at the ends of a module row.
lDress all cables after installing each module.
Install the Pass-Through Cable Module
The FT2A-PLT-PT pass-through modules enable FT2-CBL-PT pass-
through cables and other types of interface cables to be installed within
the FT2-700 assembly. Each FT2A-PLT-PT cable module is packaged with
one nylon grommet and one cable plate. One empty module slot in the
FT2-700 assembly and one FT2-CBL-PT series or other interface cable
are required for installation.
6
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

Installing the Pass-Through Cable Module with 4K Cables
1. Push the connector end of the cable through the hole in the cable plate.

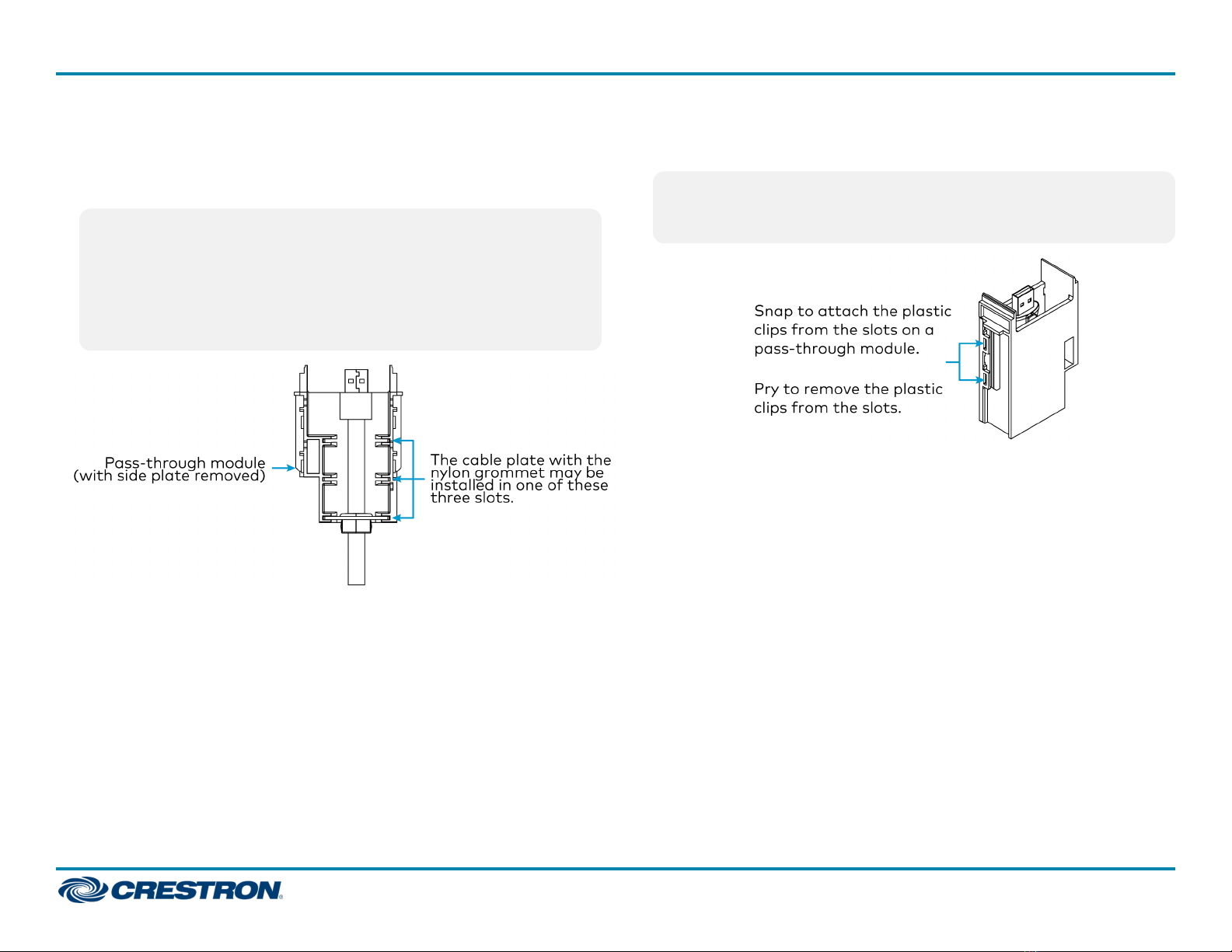

2. Insert the cable plate into one of the three slots in the pass-through
module. Choose the appropriate slot based on the length of the cable
connector. The top of the connector should sit flush with the top of the
module.
NOTES:
lIf the connector extends past the top of the pass-through
module, the FT2-700 assembly lid cannot close.
lEnsure that the cable moves freely in the module prior to
attaching the side plate. The plate is difficult to remove once it is
attached.
lThe grommet is not needed when installing most 4K cables. If
the cable is 10 mm or thinner, the grommet may be used.
3. Attach the side plate to the module by snapping the plastic clips on the
plate into the two slots on the module.
NOTE: If the side plate must be removed, use a small, flat object
(such as a flat-head screwdriver) to carefully pry the plastic clips on
the side plate off of the module near the two slots.
4. Feed the other end of the cable through an empty module slot in the
FT2-700 assembly.
5. Slide the pass-through cable module into the same module slot as
mentioned in the previous step. Use the guide ribs on the front and
rear of each module to help position the module in the FT2-700
assembly.
Installing the Pass-Through Cable Module with Non-4K
Cables
The grommet is recommended to use with cables that are 10 mm or
thinner.
1. Open the grommet.
2. Insert a cable into the grommet with the connector facing up toward
the end user.
3. Press the grommet back together to secure the cable inside.
4. Push the grommet and cable through the hole in the cable plate.
7
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

5. Insert the cable plate into one of the three slots in the pass-through
module. Choose the appropriate slot based on the length of the cable
connector. The top of the connector should sit flush with the top of the
module.
NOTES:
lIf the connector extends past the top of the pass-through
module, the FT2-700 assembly lid cannot close.
lEnsure that the cable moves freely in the module prior to
attaching the side plate. The plate is difficult to remove once it is
attached.
6. Attach the side plate to the module by snapping the plastic clips on the
plate into the two slots on the module.
NOTE: If the side plate must be removed, use a small, flat object
(such as a flat-head screwdriver) to carefully pry the plastic clips on
the side plate off of the module near the two slots.
7. Feed the other end of the cable through an empty module slot in the
FT2-700 assembly.
8. Slide the pass-through cable module into the same module slot as
mentioned in the previous step. Use the guide ribs on the front and
rear of each module to help position the module in the FT2-700
assembly.

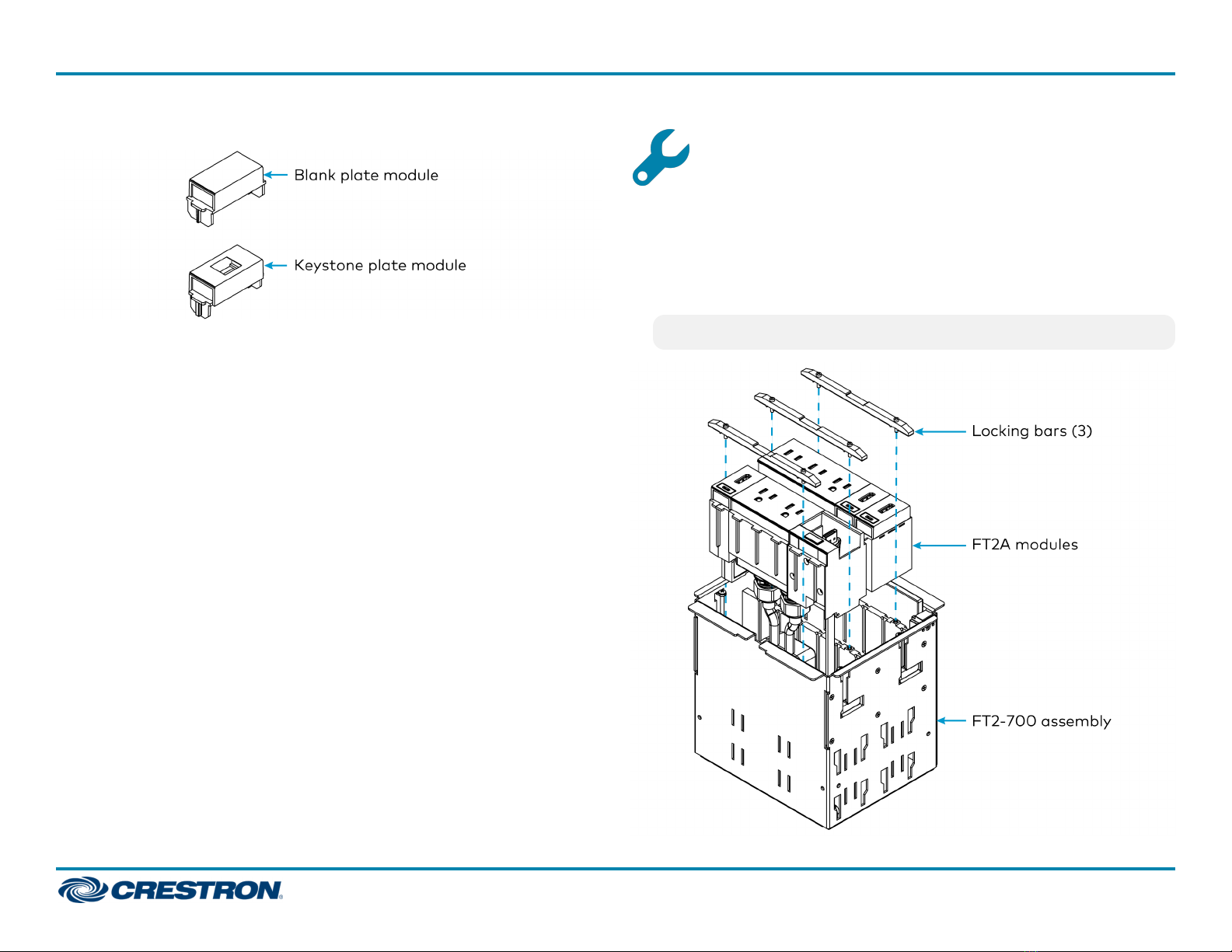

Install the Blank and Keystone Plate Module
Four blank plate modules are included to fill empty slots in module rows. A
keystone plate (sold separately) module allows for cables terminated with
standard keystone jacks to be installed in the FT2-700 assembly. The
blank and keystone modules each require one empty module slot for
installation.
8
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

Blank and Keystone Plate Modules
To install a blank or keystone plate module into the FT2-700 assembly:
lSlide the blank plate module down into the appropriate module slot.
Use the guide ribs on the front and rear of each module to help
position it in the FT2-700 assembly.
lFor the keystone plate module, complete the following steps.
1. Snap the cable’s keystone jack into the keystone opening in the
keystone plate module.
2. Feed the cable down through the empty module slot.
3. Slide the attached keystone plate module down into the same
module slot using the front and rear guide ribs to assist with
positioning.
Install the Locking Bars
1. Position the locking bars so that the screws attached to the locking
bars engage the screw holes in the FT2-700 assembly.
2. Using a manual torque screwdriver set to its lowest possible setting,
hand tighten the locking bar screws until the locking bars are secured
to the FT2-700 assembly.
CAUTION: Do not overtighten the locking bar screws.
9
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

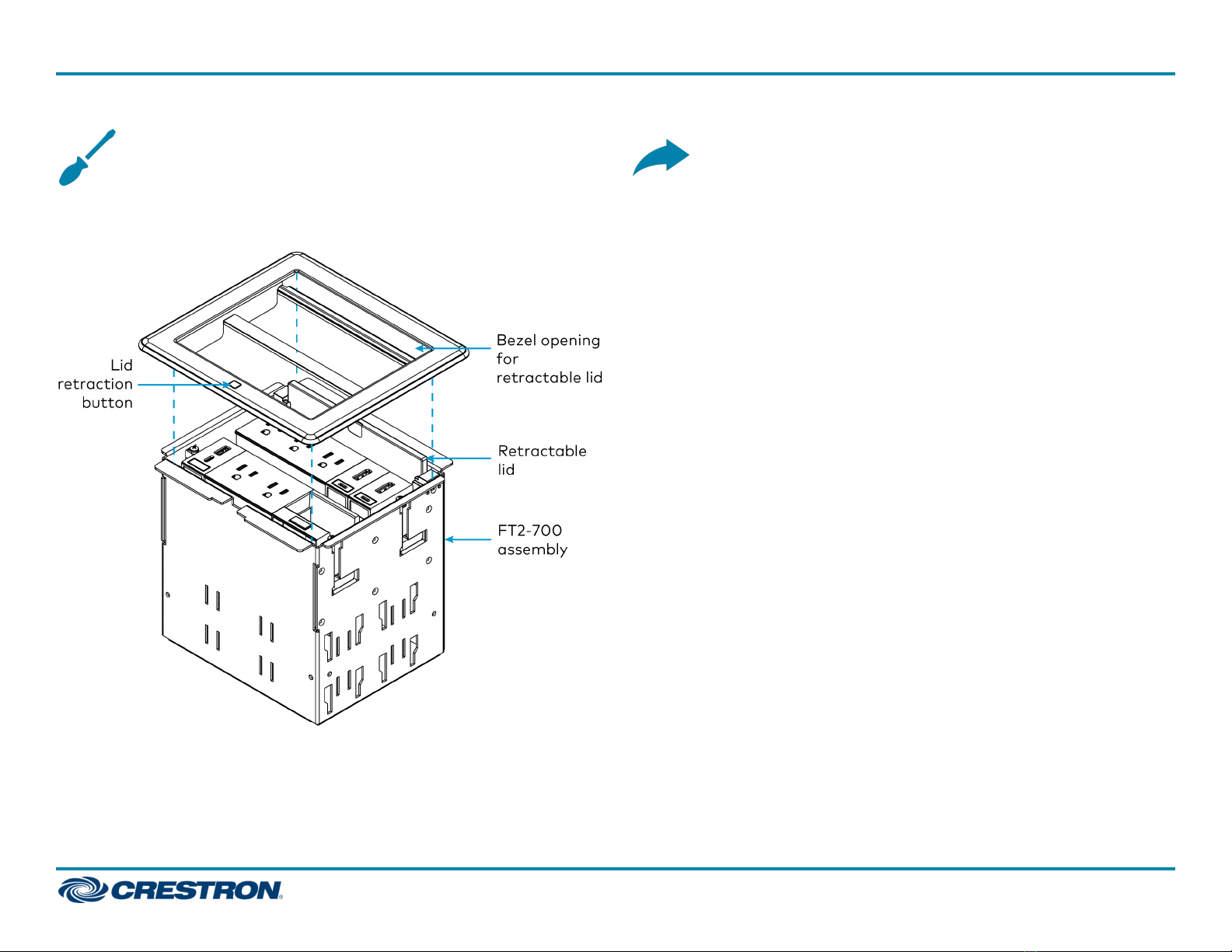

Install the Bezel
Place the bezel onto the FT2-700 assembly so that the retractable lid fits
inside the bezel opening. The bezel is held in place using magnets.
Operate the FlipTop Assembly
To operate the FT2-700 assembly:
1. Tap the lid retraction button to retract the one-touch lid. The lid
disappears into the assembly.
2. Access the modules in the FT2-700 assembly.
3. Close the lid by lifting it vertically and returning it over the FlipTop
assembly.
10
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical

Visit the Product Page
Scan the QR code to visit the product page.
FT2-700-ELEC
www.crestron.com/model/6509653
FT2-700-ELEC-PTL
www.crestron.com/model/6511410
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software is
licensed to Crestron dealers, CSPs, and end-users under a separate End-User License
Agreement. Both of these Agreements can be found on the Crestron website at
www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
Crestron, the Crestron logo, and FlipTop are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
Other trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their
products. Crestron disclaims any proprietary interest in the marks and names of
others. Crestron is not responsible for errors in typography or photography.
©2020 Crestron Electronics, Inc.
Doc. 8244F
05/22/20
11
FT2-700-ELEC Series QuickStart
FlipTop™ FT2 Series, 700 Size, Electrical
