Crux BEEBH-28 User manual

MODE
VOL
+
-
CH
SEEK
SKIP
TUNE
FOLDER
1 2 3 4 5 6
RPT RDM
SOUND
AUX DSP
CD AM
FM
DISC- DISC+
SCAN A.SEL
INITIAL PAIRING TO THE VOICE PROMPTS:
1. READY (POWER ON)
2. SEARCHING PHONES (FOR PREVIOUS PAIRED PHONES)
3. PLEASE SEARCH AND SELECT THE “BEEBH-28” DEVICE FROM
MOBILE PHONE AND ENTER “0000”.
4. YOU ARE NOW READY TO USE THE HF SYSTEM.
Note: The Bluetooth interface will remember up to the last 8 devices.
Note: If pairing is unsuccessful after several attempts power o then
power back on to re-attempt, if unsuccessful please contact our tech
support line.
AUTO RE-CONNECT:
1. The BEEBH-28 module will automatically re-connect the a previously
paired mobile phone when the ignition is turned “ON” to the vehicle
and the mobile phone’s Bluetooth feature is also on.
Note: The Bluetooth module will re-connect with the last mobile phone’s
it was paired with. If no mobile phone is not found, it will
revert to the pairing process.
BLUETOOTH INTERFACE FOR SELECT 2003-UP HONDA VEHICLES
IMPORTANT NOTE
THIS KIT WILL ONLY SUPPORT
STEERING WHEEL CONTROL
EQUIPPED VEHICLES.
We recommend reading this installation guide rst before starting any
work. Following these instructions from “Start” to” Finish” will ensure
a smooth and hassle free installation. We oer telephone support M-F
9:00 AM – 5:00PM PDT at 1 [phone]. We are here to help.
PRELIMINARY:
- Disconnect the positive(+) battery cable for radios that are
non-navigation. Radios that are navigation ready should not
disconnect the battery cable. Please use caution when installing.
Do not install the interface near or on the vehicle’s HVAC system.
This will prevent overheating and condensation build up.
- Determine the proper installation method for your specic vehicle.
Use overview to help you determine installation method.
INSTALLATION
1. Remove the factory radio to gain access to the factory radio wiring
connectors.
2. Disconnect the factory connectors from the rear of the factory radio.
3. Connect the male connectors of the interface power harness into the
factory radio.
4. Reconnect the factory connectors into the mating connectors of the
interface harness.
5. Connect the male 3-pin connector into the pigtail connector.
6. Route the microphone to a desired location, (for example near the
rear view mirror).
7. Re-install a factory radio back into the vehicle’s dash.
All features of this module may vary by mobile phone
manufacturer. For questions on your mobile phone’s
features, please reference the mobile phone’s user manual
for information.
NO BLUETOOTH CONTROL FROM RADIO CONTROLS
BEEBH-28
BEEBH-02
BEEBH-03
BEEBH-04
BEEBH-05
VOICE DIAL PRESS AND HOLD CH DN FOR 2 SEC
ANSWER PRESS CH UP BUTTON ONCE
END A CALL PRESS CH DN BUTTON ONCE
REJECT PRESS CH DN BUTTON ONCE
ANSWER SECOND CALL PRESS CH UP BUTTON ONCE
SWITCH BETWEEN CALLS PRESS CH UP BUTTON ONCE
INCREASE VOLUME PRESS VOLUME UP ONCE
DECREASE VOLUME PRESS VOLUME DN ONCE
PRIVACY MODE PRESS CH UP ONCE
USING THE STEERING WHEEL CONTROL BUTTONS
Note: If an incoming call is answered from the mobile phone’s keypad,
the call will direct itself to the headset on the mobile phone. To re-direct
the phone call to the “BEEBH-28”, it must be done directly from the
mobile phone.
Note: When transferring a phone call to the mobile phone for privacy,
the user must re-connect the BEEBH-28 and the mobile phone by
selecting the module from the device menu on the phone.
Note: If after ending a call the radio is powered “OFF”, you must power
“ON” the radio to regain volume control.
3-PIN
(male plug)
TO FACTORY
RADIO
20-PIN
(male plug)
20-PIN
(female plug)
TO FACTORY
HARNESS
24-PIN
(male plug)
12-PIN
(male plug)
17 AND 20-PIN CONNECTORS:
20-PIN BLUE CONNECTOR:
MIC
BALL JOINT
MOUNTING THE MICROPHONE
1. Insert the mounting clip into the ball joint on the microphone.
2. Mount the clip on your visor or near the rear view mirror.
3. Route the remaining cable along the edge of the roof liner and
towards the back of the radio, hiding the cable from sight.
MIC
BALL JOINT
END
ANSWER
Note: Premium Audio Systems need to “Turn On” the radio for hands-
free audio to be heard.
APPLICATIONS
3-PIN
(male plug)
TO FACTORY
RADIO
24-PIN
(male plug)
24-PIN
(female plug)
TO FACTORY
HARNESS
24-PIN
(male plug)
12-PIN
(male plug)
24-PIN CONNECTORS:
BALL JOINT
BEEBH-28
2008 - 2012 Accord DX/EX/LX
2006 - 2011 Civic/ Si
2007 - 2012 CRV
2009 - 2012 Fit
2008 - 2011 Odyssey
2009 - 2012 Pilot
2009 - 2012 Ridgeline
BEEBH-02
2003 - 2007 Accord DX/EX/LX
2005 - 2006 CRV
2003 - 2008 Element
2005 - 2007 Odyssey
2003 - 2008 Pilot
2006 - 2008 Ridgeline
BEEBH-03
2012 - UP CRV
2012 - UP Civic
BEEBH-04 / AMPLIFIED
2008 - 2012 Accord
2008 - 2012 Pilot
2006 - 2011 Civic (Non-Nav)
BEEBH-05 / AMPLIFIED
2005 - 2006 CRV
2003 - 2007 Element
2003 - 2007 Pilot
2005 - 2007 Odyssey (Non-Nav)

BLUETOOTH INTERFACE FOR SELECT 2003-UP HONDA VEHICLES

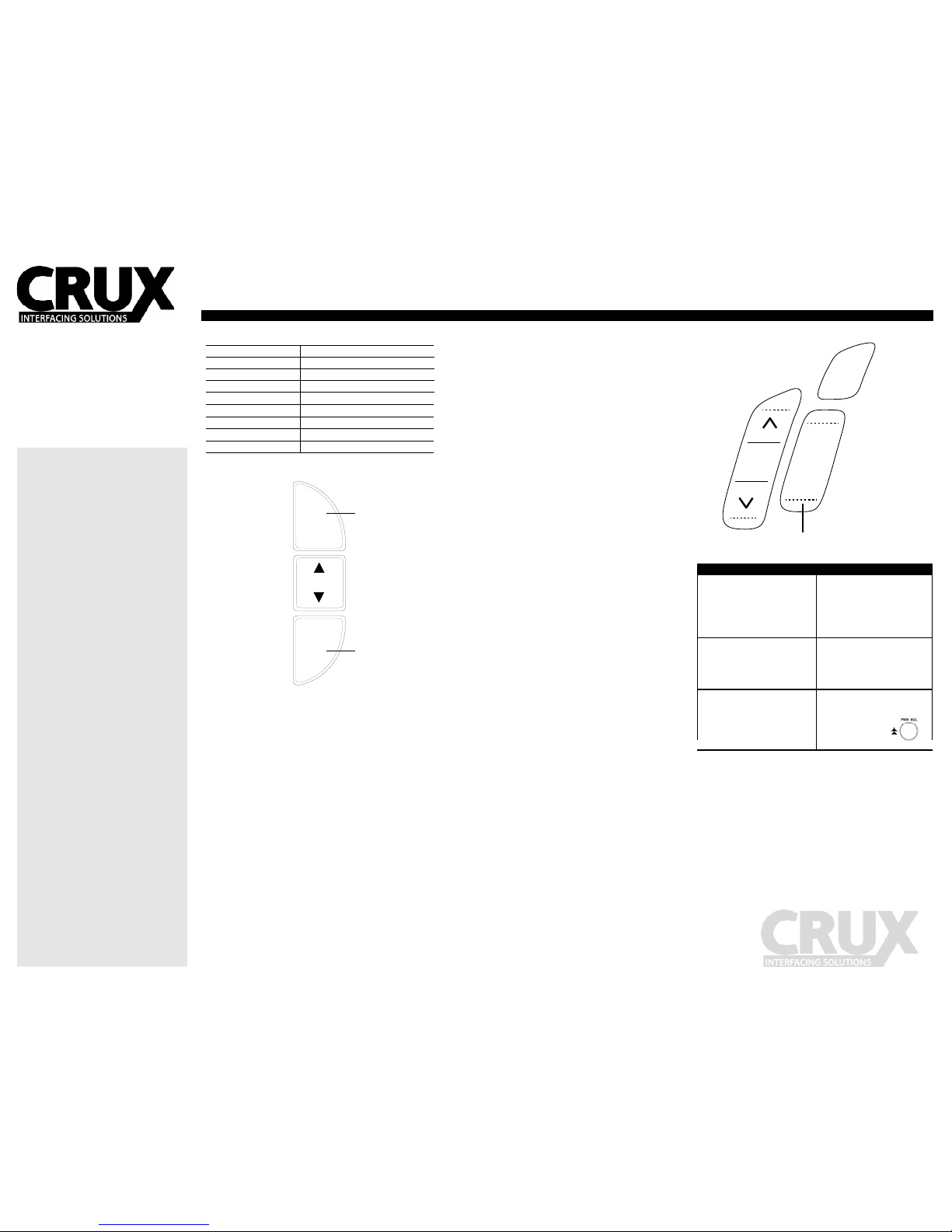

USING THE MENU STRUCTURE:
MISSED CALLS:
1. Press and Hold the “CH DN” button.
2. Press the “TALK” button once to enter the menu options.
Continue to press the “TALK” button till you hear the
interface announce “MISSED CALLS”, and wait for the numbers
to be announced.
3. When the number you wish to dial is announced, press the
“SEEK UP” button once to make the call.
INCOMING CALLS:
1. Press the “TALK” button once.
2. Press the “TALK” button once to enter the menu options.
Continue to press the “TALK” button till you hear the
interface announce “INCOMING CALLS”, and wait for the
numbers to be announced.
3. When the number you wish to dial is announced, press the
“SEEK UP” button once to make the call.
OUTGOING CALLS:
1. Press the “TALK” button once.
2. Press the “TALK” button once to enter the menu options.
Continue to press the “TALK” button till you hear the
interface announce “OUTGOING CALLS”, and wait for the
numbers to be announced.
3. When the number you wish to dial is announced, press the
“SEEK UP” button once to make the call.
SETTING TTS VOLUME:
1. Press the “TALK” button twice.
2. Press the “TALK” button once to enter the menu options.
Continue to press the “TALK” button twice till you hear the
interface announce “SETTING VOLUME”, and wait for her
announcement.
3. Set the TTS volume by pressing the volume Vol+ and Vol- waiting
for the announcement. Each announcement will indicate the volume
level of the TTS.
4. When the desired volume level is reached, press the “SEEK UP”
button once to select.
DELETE ALL PAIRED DEVICES:
This feature allows you to delete all paired devices on the interface.
The module does NOT allow the user to only clear one device. The
module will delete all previously paired devices only
1. Press the “TALK” button twice.
2. Press the “TALK” button once, to enter the menu options.
Continue pressing the “TALK” button twice till you hear the
interface announce “DO YOU WANT TO DELETE PAIRED
PHONE LIST”.
3. Press the “SEEK UP” button once within 3 seconds to conrm.
4. The interface will ask “ARE YOU SURE”, press the “SEEK UP”
button once to re-conrm..
Note: The menu structures only remember the last 24
numbers in the call log from dialed from the mobile
phone.
Note: All menu structures work in 3 second increments.
If after 3 seconds the interface will time-out.
TALK BUTTON
MODE
VOL
+
-
CH
PHONE MUST BE UNPAIRED
TO ENTER THE FOLLOWING
MENU STRUCTURE
Have a bad connection when
using the A2DP or Handsfree
proles?
Are you experiencing random
static interuptions durring your
phone calls?
Have you paired your mobile
device, and get no sound from
the radio? Try reseting the TTS
volume setting.
Delete all paired devices on your
mobile device and on the UBT.
(See Using The Menu Structure)
Remove the battery on the
mobile device for a minimum of
15 Seconds.
With the phone paired to the
UBT, enter the “SETTING TTS
VOLUME” under
menu structure.
The default level is
at volume 4.
IMPORTANT NOTE
THIS KIT WILL ONLY SUPPORT
STEERING WHEEL CONTROL
EQUIPPED VEHICLES.
BEEBH-28
BEEBH-02
BEEBH-03
BEEBH-04
BEEBH-05
APPLICATIONS
BEEBH-28
2008 - 2012 Accord DX/EX/LX
2006 - 2011 Civic/ Si
2007 - 2012 CRV
2009 - 2012 Fit
2008 - 2011 Odyssey
2009 - 2012 Pilot
2009 - 2012 Ridgeline
BEEBH-02
2003 - 2007 Accord DX/EX/LX
2005 - 2006 CRV
2003 - 2008 Element
2005 - 2007 Odyssey
2003 - 2008 Pilot
2006 - 2008 Ridgeline
BEEBH-03
2012 - UP CRV
2012 - UP Civic
BEEBH-04 / AMPLIFIED
2008 - 2012 Accord
2008 - 2012 Pilot
2006 - 2011 Civic (Non-Nav)
BEEBH-05 / AMPLIFIED
2005 - 2006 CRV
2003 - 2007 Element
2003 - 2007 Pilot
2005 - 2007 Odyssey (Non-Nav)
ANSWER PRESS MODE OR AM/FM BUTTON
END A CALL PRESS CH UP BUTTON ONCE
REJECT PRESS CH UP BUTTON ONCE
ANSWER SECOND CALL PRESS MODE OR AM/FM BUTTON
SWITCH BETWEEN CALLS PRESS MODE OR AM/FM BUTTON
INCREASE VOLUME PRESS VOLUME UP ONCE
DECREASE VOLUME PRESS VOLUME DN ONCE
ENTER PRIVACY MODE PRESS MODE ONCE
ENTER MAIN MENU PRESS AND HOLD CH UP BUTTON
USING THE 4 BUTTON STEERING WHEEL CONTROL
CH
MODE
VOL
END
ANSWER
ANSWER PRESS MODE BUTTON ONCE
END A CALL PRESS CH BUTTON ONCE
REJECT PRESS CH BUTTON ONCE
ANSWER SECOND CALL PRESS MODE BUTTON ONCE
SWITCH BETWEEN CALLS PRESS MODE BUTTON ONCE
INCREASE VOLUME PRESS VOLUME UP ONCE
DECREASE VOLUME PRESS VOLUME DN ONCE
PRIVACY MODE PRESS CH MODE BUTTON ONCE
ENTER MAIN MENU HOLD CH BUTTON
USING THE 4-BUTTON STEERING WHEEL CONTROL BUTTONS
