Crux Sightline ACPGM-80NW User manual

ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.0512221 of 12
-
- Integrates wired/ wireless Android Auto and CarPlay.
PRODUCT FEATURES:
ACPGM-80NW Module Power Harnesses Smartphone Interface Module
4K HDMI Cable Microphone
LVDS Video Cable 3.5mm Aux Cable Smart-Play Module Power Harness
OSD Controller
PARTS INCLUDED:
Optional sold seperately
USB Extension Cable

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.0512222 of 12
WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MAIN
ACPGM-80NC
Smart-Play / Android Auto Integration
for GM Vehicles with CUE & MyLink Systems
R
INTERFACINGSOLUTIONS
V IDEO
REAR CAMERA
FRONT CAMERA
Front Camera
12V Power & Ground
Rear Camera
12V Power & Ground
OSD
CONTROL
PAD
OSD Control Pad is used to
adjust the settings. Must be
unplugged and stored after.
LVDS
Adapter
Cable
To the LVDS Connector
behind top side of radio
From the LVDS Connector
behind top side of radio
To the 10-pin connector
behind top side of radio
From the 10-pin connector
behind top side of radio
Fuse
***See Special Note on page 3 regarding LVDS connections on RE models***
Red
Red
Black
Black
Multi/IO
HDMI
Smart-Play Module
R
INTERFACINGSOLUTIONS
HDMI
Power Port
+12V ACC (Red)
GND (Black)
Aux Cable
To factory
Aux Input
Microphone
Original Smartphone
Cable To Smartphone
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
DIP SWITCH SETTINGS:
DIP SETTING VEHICLE
1 to 8 ALL UP Malibu and Volt
1 DOWN
2 DOWN Escalade, CTS-V
3 UP
4 DOWN Cruze (with 8” screen)
5 DOWN Cadillac XT5
6 DOWN Impala, Suburban, Tahoe, Yukon, Sierra, Acadia, Silverado, Yukon (with RSE)
7 DOWN Suburban (with RSE), Tahoe (with RSE)
1 & 5 DOWN Colorado
2 & 5 DOWN Escalade, CTS, CTS-V, SRX (with no OEM front camera)
RSE = Rear Seat Entertainment
carplay or wired AA

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.0512223 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
Suburban, Tahoe, Yukon models with Rear Seat
Entertainment Systems have 2 LVDS cables on
the back of the radio.
On RE models, the power harness is plugged in behind
the headunit but the LVDS cable is plugged in at the
HMI module (usually found behind the glove box).
the HMI module.
INSTALLATION INSTRUCTIONS:

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.0512224 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
SPECIAL NOTE:
On Impala and Suburban, Tahoe, Yukon models with Rear Seat Entertainment Systems, the LVDS cable
note of this when plugging in the LVDS connectors. See image below.
ACPGM-80N
LVDS OUT
OEM
Cable
the OEM connector wires.
ACPGM-80N POWER HARNESS
White LIN Bus
Blue/White MMI
Brown/White CAN
Red +12V Constant
Black Ground

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.0512225 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
Connector at headunit
LIN (Blue wire)
MMI (White wire)
Cut Green wire Pin #8
ACPGM-80N
Harness
Cut the Green wire on pin #8 on the 10 pin
factory connector and connect the LIN (blue
wire) and MMI (white wire) of the ACPGM-80N
harness following the diagram above.
10 Pin connector
PIN 1 = B+ connect to VCC Red wire
PIN 3 = CAN connect to CAN High (White/Brown) wire
PIN 10 = Ground connect to Black wire
30 Pin ACPGM-80N main module pin out.
LIN (Blue wire)
MMI (White wire)
Cut Green wire Pin #6
ACPGM-80N
Harness
16 Pin connector
PIN 9 = B+ connect to VCC Red wire
PIN 12 = CAN connect to CAN High (White/Brown) wire
PIN 16 = Ground connect to Black wire

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.0512226 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
OSD Control Pad
ON SCREEN DISPLAY (OSD) SETTINGS:
Save&Reboot
UP
DOWN
LEFT RIGHT
ENTER
Plug in 4K HDMI Cable Plug in 3.5mm Aux Cable
to factory Aux Input
-
phone cable to USB Ext. cable for
Plug and Play harness plugs
behind radio
ACPGM-80N LVDS video
cable plugs behind radio
ACPGM-80N
LVDS OUT
OEM
Cable

SMART-PLAY SETTINGS:
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.051222
7 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
navigate down toLVDS Inputand
to the next menu.
Set Navi Brand to NV17 Navigate the OSD back
the main menu and go to
Save&Reboot then Run.
Have Android AutoLink OFF .
Wait for screen that will state
Use Carplay with “NV17W-WIFI ”
WIRELESS CARPLAY/WIRLESS ANDROID AUTO CONNECTION SETTINGS

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.051222
8 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
Enable Wi-Fi and connect
to “ NV17W “ module
Open Control Center and Tap
Screen Mirroring
a. On iPhone X or later; iPad with
iPadOS 13 or later: Swipe down from the
upper-right corner of the screen.
b. On iPhone 8 or earlier or IOS 11
edge of screen
Airplay will pull up on sreen mirroring app
Select “ Airplay ”
Enable Android AutoLink Download AutoLink Pro APP
Available in the “Play Store”
SMARTPHONE MIRRORING CONNECTION

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.051222
9 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems

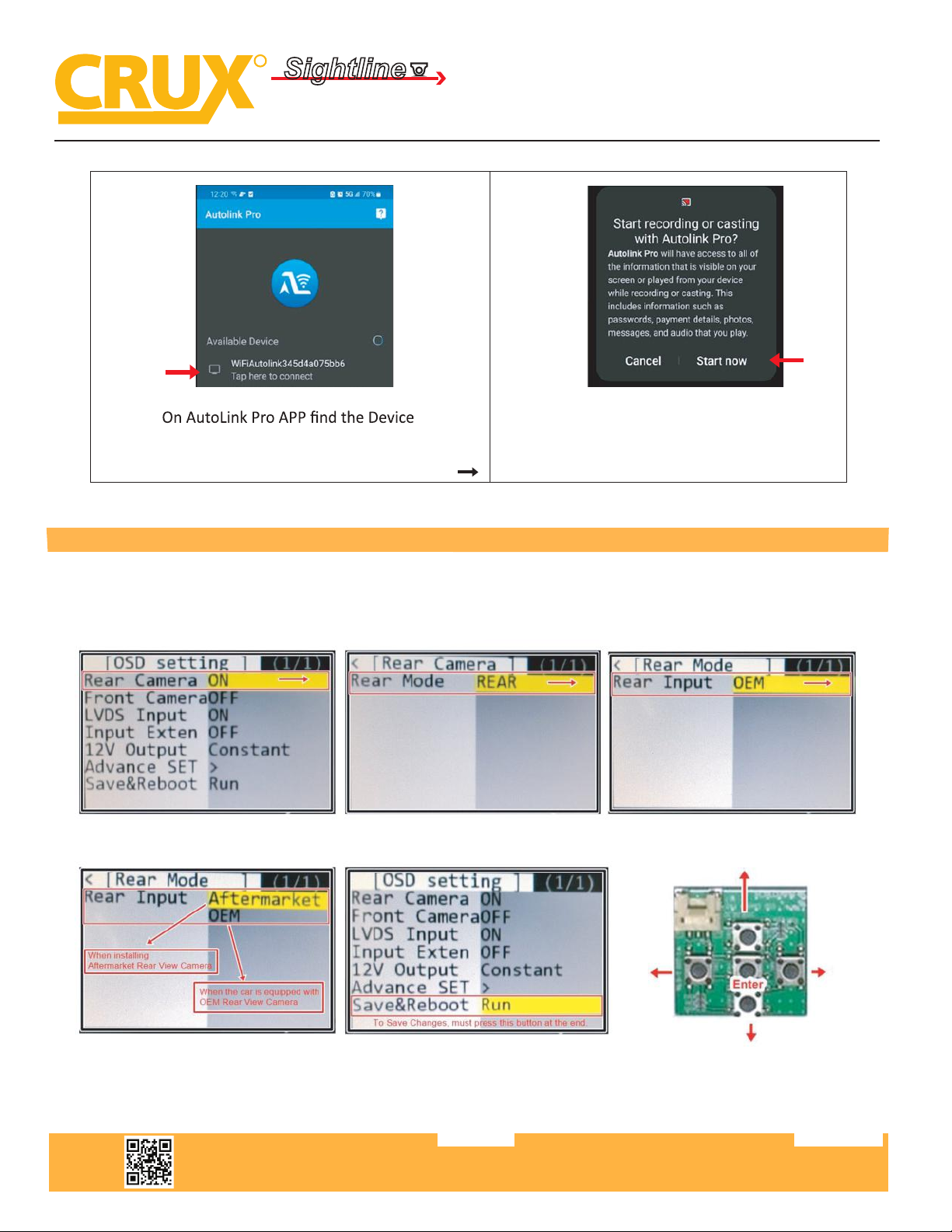

and Tap to Connect
Select “Start Now”
REAR AND FRONT CAMERA SETTING

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.051222
10 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
FRONT CAMERA SETTING
To turn ON the Dynamic Parking Guide Lines, go the Rear Input > Rear Set and turn ON Warning LANG.
Go back to the root menu and Run Save&Reboot. Remember to unplug the OSD Control Pad otherwise
DYNAMIC PARKING GUIDE LINES

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.05122211 of 12
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
FORCE VIEWING THE FRONT CAMERA:
Press for 2 seconds = Force view front camera
Press once = Back to OEM screen
Press for 2 seconds = Force view rear camera
Press once = Back to OEM screen
For MyLink IO5/IO6 radios:
VEHICLE APPLICATIONS:
8” Screen
Buick
2014-2018
Cadillac
2013-2018
2014-2018
2014-2018
2014-2018
2015-2018
2013-2018
2013-2018
2016-2018
LaCrosse
ATS
CTS Coupe
CTS
CTS-V
Escalade
SRX
XTS
XT5
Chevrolet
2014-2018
2017-2018
2015-2018
2015-2018
2014-2018
2015-2018
2014-2018
2015-2018
2015-2018
Avalanche
Colorado
Cruze
Impala
Malibu
Silverado
Suburban
Tahoe
GMC
2017-2018
2015-2018
2014-2018
2014-2018
Acadia
Canyon
Sierra Pickup
Yukon
OPERATION:
To enter Smart-Play mode, press Smart-Play home screen. Use
the factory touch screen for
Smart-Play controls.
Apps can be opened by touch
screen or by Siri control.

TROUBLESHOOTING
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.051222
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
12 of 12
*If your call audio does not use car’s bluetooth, manually change it on the phone to select the vehicle during the call, then the
phone should remember the last used setting
Changing the call audio routing setting to “BLUETOOTH HEADSET”
Go to Settings - Accessibility - Touch - Call Audio Routing. Keep it at “Automatic”
1. IF the screen is black & not showing factory infotainment screen or the CarPlay/Android Auto Screen
- Conrm secure connection of GVIF cables to the top monitor.
- Conrm GVIF cables are not damaged, pinched, kinked or bent.
2. No trigger issue/No click heard when HOME button double clicked, or upper left screen corner tapped
- Check and conrm proper connection of the Main Car Interface Harness,
CAN bus board, and 30-pin Car Interface Harness.
- Check and conrm no loose pins or damage to the harness. Green/RED LED Light should be
visible from the Metal Box
3. When HOME button doubled clicked or upper left screen corner tapped, black screen appears
- Conrm proper secure connection of the HDMI Cable.
- Conrm power wire is connected on the CarPlay Box. Red LED light should be visible from
the CarPlay Box.
4. Screen image glitching or distorted
- Conrm correct dip switch setting.
7. Siri does not recognize my voice
- Conrm Microphone jack connection (3.5mm), which is on the USB side of the CarPlay Box.
- Conrm that there are no wire damage.
5. Hands free call quality noise and echo
- For iPhone, conrm the phone is connected to your vehicle via Bluetooth and
“Call Audio Routing setting” Keep it at “Automatic”
- For Android, conrm Bluetooth is being used for calls by observing phone’s call audio output.
6. No sound
- Conrm AUX cable connection, which is on the HDMI side of the CarPlay Box.
- Conrm Car Media Source is in AUX mode. Conrm sound output from the phone to NV17W CarPlay.
ACPGM-80NW
Smart-Play Integration with Multi Camera Inputs
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
