Crystal Pro Water Dispenser
www.crystalcoolers.com
© 2020 Crystal Mountain Products Inc.

2
Notes

3
Table of Contents 3
Notices and Safety Information 4
Features and Benets 5
Exploded Views and Parts List 7
Installation 10
Operating Crystal Pro Water Dispenser 14
Service and Maintenance 15
General Maintenance 15
Sanitizing Reservoirs 15
Draining Reservoirs 16
Resetting Leak Detection System 18
Troubleshooting 19
Technical Specications 20
Flow Diagram 21
Electrical Diagram 22
Warranty 23
Table of Contents

4
Please Dispose of Properly
Throughout this manual there are paragraphs set o by special headings.
“Notice” is used to emphasize installation, operation or maintenance information which is important, but
may not present a hazard to persons or property.
“Caution” is used when failure to follow directions could result in damage to equipment or property.
“Warning” is used to indicate a hazard which could cause injury or death if ignored.
The “Caution” and “Warning” paragraphs are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution, and careful attention are conditions
which cannot be built into the equipment.
To ensure proper and ecient operation of the Crystal Pro Water Dispenser to your full satisfaction, carefully fol-
low the instructions in this manual.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection be-
fore the system.
Check and follow the applicable plumbing codes and ordinances when installing this equipment. Local codes may
prohibit the discharge of acidic or caustic solutions to drain. An extra solution tank may be required to neutralize
the solution before discharging to drain. Follow local codes if they dier from this manual.
This dispenser has a maximum pressure rating of 80 psi (5.5 bar). A pressure regulator must be used for all instal-
lations. This will help prevent internal structural damage to the unit and potential water leaks. The pressure reg-
ulator should be installed on the water supply before the inlet connection.
Failure to use an appropriate anti-ood device for any reason will not obligate or make Crystal Moun-
tain responsible in any wayfor Product Liability issues relating to any claims, including water damage
claims.
Regularly inspect the lters, lter housings and the plumbing ttings and connections for water leaks. Water leaks
may cause damage to your oce or facility and are not the responsibility of the manufacturer.
Only connect the power cord to a properly grounded outlet. NOTE: To provide additional protection from the risk
of shock, this unit MUST be connected to a ground fault circuit interrupter (GFCI) outlet at all times. Use of an ex-
tension cord will void any warranties.
Keep the power cord out of heavy trac areas. To avoid a re hazard, never put the power cord under rugs, near
radiators, stoves or heaters.
Do not use a damaged power cord or plug. If the power cord is damaged, a qualied service technician must re-
place it.
This dispenser is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con-
cerning use of the dispenser by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the dispenser.
This product should not be disposed with other household wastes. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of ma-
terial resources. To recycle your used dispenser, contact your local recycler or waste collector for the proper proce-
dures.
Notices and Safety Information

5
Thank you for purchasing the Crystal Mountain Crystal Pro Water Dispenser. The Crystal Pro brings a
fresh approach and a new look to point-of-use water dispensers. The system's contemporary color
scheme complements every oce environment. There are no bottles to change and the supply is virtu-
ally unlimited.
Hot, Cold & Ambient Dispenser
Your Crystal Pro Water Dispenser will provide up to 0.3 gallons (1.2 L) of hot water from a stainless steel
reservoir using a 450 watt heating element. A bi-metal limiter is provided to prevent overheating and
can be manually reset. The hot water is factory pre-set to 181°F (83 °C). Cold water is chilled with a high
capacity compressor using R134 refrigerant. An electro-mechanical thermostat controls the tempera-
ture of the water in the one gallon (3.8 L) stainless steel reservoir. The cold water temperature is facto-
ry preset to a nominal 41°F (5 °C)
UV Light System
All models of the Crystal Pro dispensers are tted with a UV-C band light system at the point of dispens-
ing and built into the ambient reservoir lid. This system is used to inhibit the growth of bacteria. When
dispensing Ambient or Cold water you will notice a pulsating “UV INSIDE” light which indicates the UV
light system activation.
Leak Detection System
All models of the Crystal Pro are tted with a leak detector. This system will generate an audible alarm
and front panel light alert upon detecting water in the base of the unit. In addition, the system will au-
tomatically shut o the incoming water supply to prevent further damage.
Filtration System (not included)
Crystal Pro dispensers are designed to be used with reverse osmosis, or carbon ltration. For locations
where a drain is not present, a ltration-only option is recommended.
Internal Storage Reservoir
An internal storage reservoir eliminates the need for an external storage tank. The internal compart-
ment is large enough to contain most water treatment systems. A oat mechanism guards against over-
ows.
Mechanical Components
All water connection ttings are compliant with NSF Standard 61. The Crystal Pro connects to the water
supply using a 1/4"female bulkhead tting. The molded panels are made from recyclable ABS plastic.
Features & Benets

6
The Crystal Pro Water Dispensers come completely assembled and ready for set up and operation
either with, or without, installation of reverse osmosis or ltration cartridges.
Remove the dispenser from the box, saving the box and the packaging materials. The carton con-
tains the following items:
Qty Item
1Crystal Pro Water Dispenser

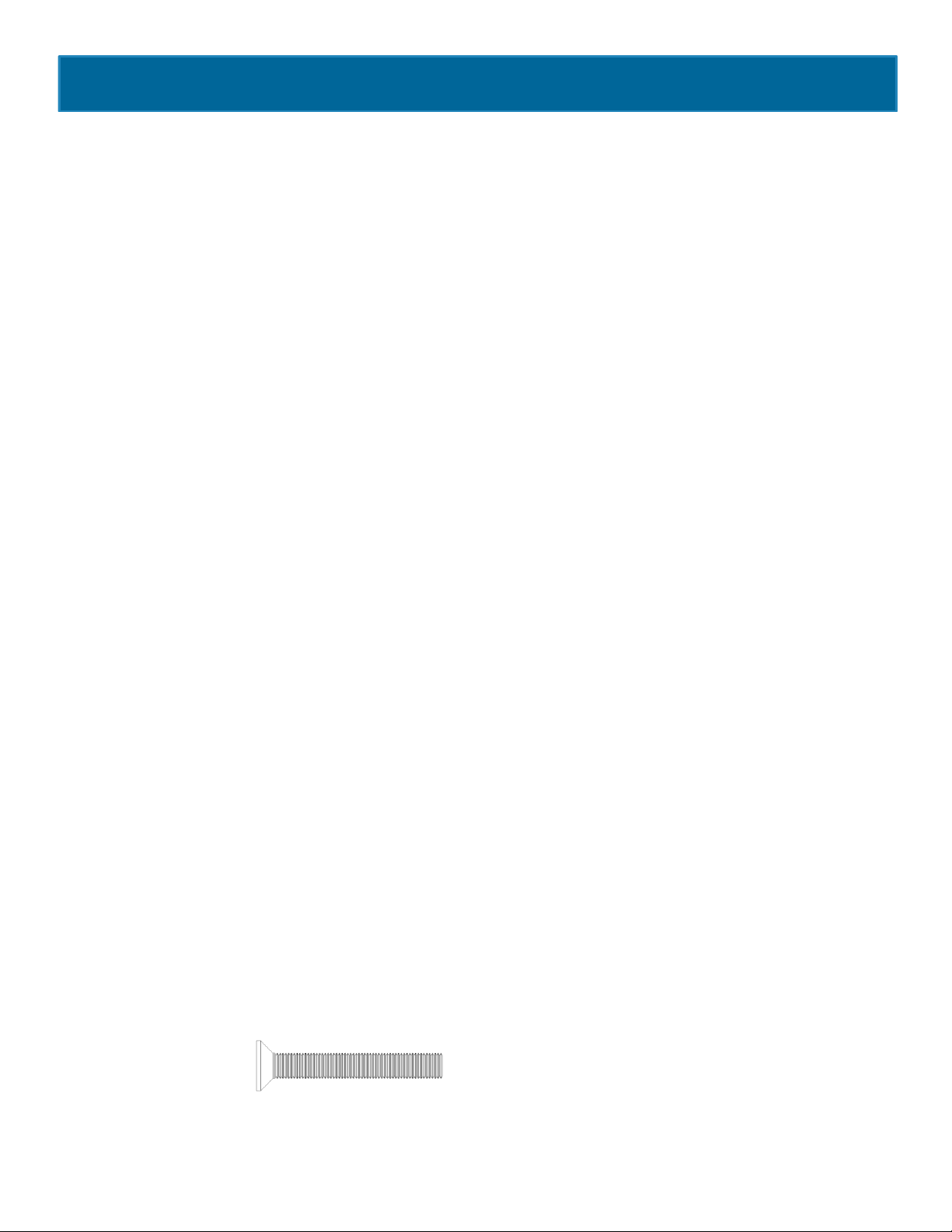

1M4 X 30 Tamper-proof Screw
1M6 X 60 Expansion Bolt (220V units only – for CE compliance)
1User Manual
Inspect the exterior for any damage which may have occurred during shipment.
1) To inspect the interior, remove the ltration service panel.
2) Visually inspect for any wires, tubing, or ttings which may have come loose during shipment.
3) Record the model and serial numbers below for future reference.
Record your Crystal Pro model number here:
Serial Number:
Date purchased:
Date installed:
Products oered and marketed by Crystal Mountain and its aliates are protected by patents is-
CR S P 3 K H K
1
C
Description
Reservoir
Type of lidNo. of
Faucets
Body color Temp.
Options
Lid color
Voltage
Any 1-2
Alpha-
numeric
Characters
Crystal Pro
S = Stainless
Steel Reservoir
P = POU
3 = 3
K=Black
H=Hot, Cold
&Ambient
K =Black
1 = 110v-115v
C= Made
in China
Features & Benets

7

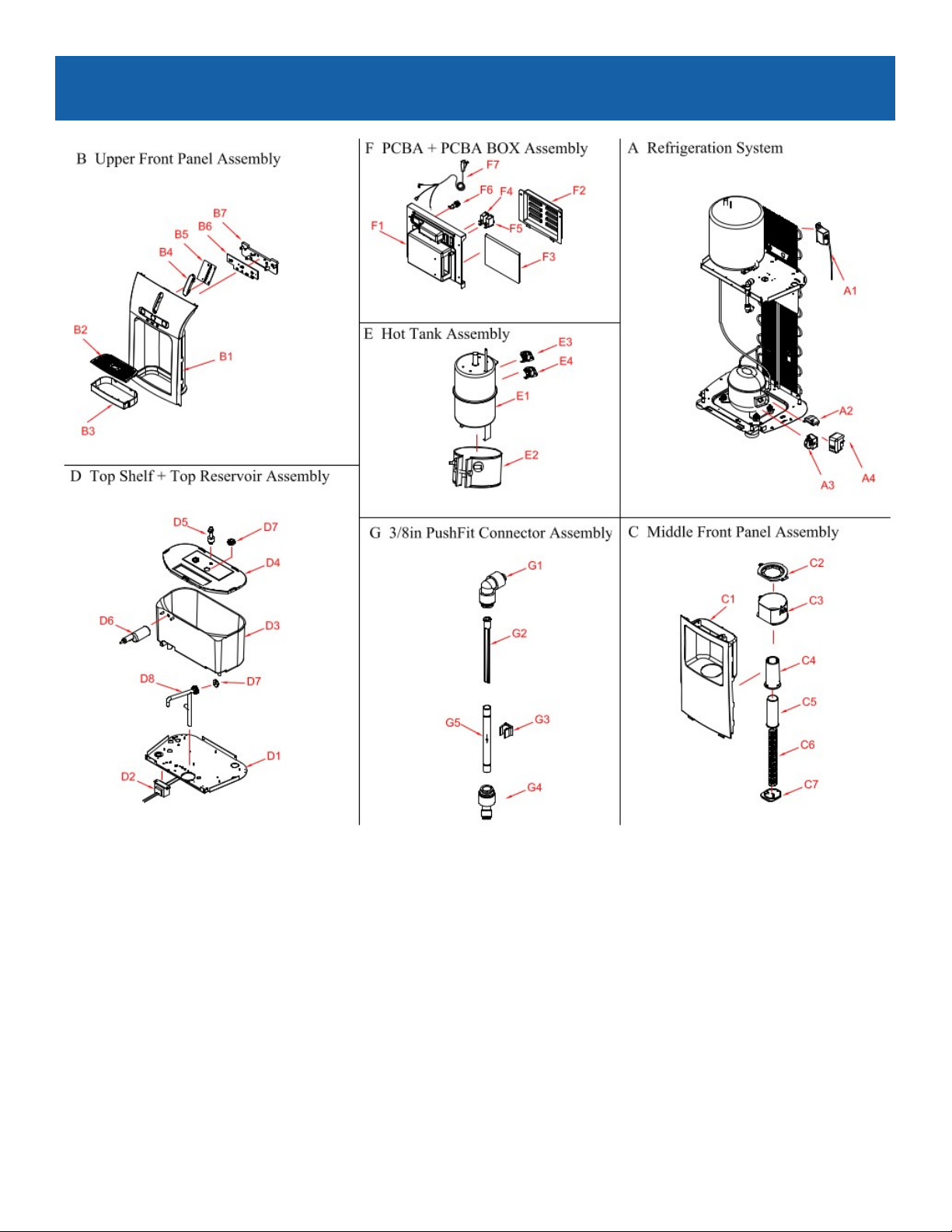

Parts Diagram

8
Parts Diagram Detail

9
Parts Listing
DESCRIPTION Part Number
1Side Panel, Left SMT-C400002
2Side Panel, Right SMT-C400003
3Top Cover SUB-C400007
4Lamp, Logo ELE-C100419
5Cover, Back SMT-C400005
6Solenoid, Low Pressure 24V DC (3 in unit) POU-C400001
7Support Bracket, Rear Upper (2 in unit) SMT-C400008
8Support Bracket, Front (2 in unit) SMT-C400007
9Water Outlet PLC-C400015
10 Bulkhead Ftg, JG 1/4 x 1/4 POU-C000003
11 Bulkhead Ftg, JG 1/4 x 1/4 POU-C400012
12 Solenoid, High Pressure POU-C400002
13 Leak Detector Assy SUB-C400014
14 Panel, Lower Front SUB-C400035
A Refrigeration System N/A
A1 Cold Control REF-C400004
A2 Overload REF-C100300
A3 Relay REF-C100229
A4 Cover, Compressor PW2.5DV REF-C100301
B Upper Front Panel Assy SUB-C400033
B1 Upper Front Panel, Black N/A
B2 Grill, Drip Tray PLC-C400011
B3 Drip Tray Base PLC-C400009
B4 Cover, UV N/A
B5 PCB, UV Display N/A
B6 PCB, Push Button Module N/A
B7 Bracket, Push Button, Black N/A
C Middle Front Panel Assy, Black SUB-C400034
C1 Middle Front Panel, Black N/A
C2 Bracket, Cup PLC-C400007
C3 Door Lock PLC-C400008
C4 Cup Dispenser, Outer PLC-C400023
C5 Cup Dispenser, Inner PLC-C400024
C6 Spring, Cup Dispenser FAS-C400011
C7 Cup Dispenser Bottom PLC-C400022
D Top Shelf & Reservoir N/A
D1 Top Shelf SMT-C400013
D2 Transformer (120V/18V/1A) ELE-C400033
D3 Reservoir, Ambient PLC-C400001
D4 Lid, Reservoir PLC-C400002
D5 Float, Electronic ELE-C400026
D6 Float Valve, Mechanical POU-C400005
D7 UVC LED Module, 0.8W, 12-24 VDC ELE-C100401
D8 Water Outlet, SS, UV SMT-C100235
E Hot Tank Assy SUB-C400001
E1 Hot Tank, SS N/A
E2 Heater Band ELE-C100298
E3 Heat Limiter ELE-C100170
E4 Thermostat ELE-C100109
F PCB, Box & Cover Assy SUB-C400037
F1 PCB Box PLC-C400017
F2 Cover, PCB PLC-C400018
F3 Main PCB, UVC ELE-C100416
F4 Power Switch, Green ELE-C400007
F5 Power Switch, Red ELE-C400006
F6 Fuse, 10Amp ELE-C400032
F7 Power Cord ELE-C400029
G 3/8” Pusht Connector Assembly N/A
G1 DM Elbow, 1/4 x 3/8(AEU0604), Gray POU-C100071
G2 In-Line, Screen Filter, 3/8 (70 Mesh) POU-C100063
G3 “C” Clip, 8mm, Plastic MIS-C100222
G4 Union, JG 3/8 x 1/4 POU-C100026
G5 Tube, SS, 9.5mm OD x 95mm SMT-C100220
Parts Not Shown
Adjustable Foot MIS-C400006
Filter Bracket SMT-C400006

10
Position & Level
1) Locate the dispenser as close to the water supply and the electrical connections as possible.
2) Level the unit using the adjustable leveling feet and built-in level indicator.
3) Keep the dispenser at least 4 inches from the wall to ensure adequate airow.
Warning: The dispenser should not be exposed to direct sunlight, heat sources, or an ambient air tem-
perature above 100°F (38°C) or below 37°F (3°C) or structural damage may occur.
4) To meet CE standards (if applicable), it is necessary to fasten the unit to the oor with an M6x60
expansion bolt.
A. Locate and drill a 43 mm deep hole using an alloy drill bit with 9 mm diameter.
B. Install the at pad, the spring washer and the nut to the bolt, and then insert into the hole.
C. Remove the ltration service panel and locate the alignment hole on the base plate.
D. Align the dispenser with the expansion bolt using the hole in the base plate.
E. Using a wrench, secure the unit to the expansion bolt.
F. Reinstall the ltration service panel.
5) Your Crystal Pro Water Dispenser comes complete with a built-in cup holder under the water dis-
penser section. This holder is designed to hold up to twenty standard size cups with a diameter be-
tween 2.8"and 3.0" (71 – 76mm).
Installation

11
Installation
Make Water & Electrical Connections
1) The dispenser contains push-to-connect type ttings on the rear of the unit for the water supply and
R/O drain. These ttings accept ¼"polypropylene plastic tubing. If copper tubing is to be used,
these ttings must be replaced with a metal design. In addition, drain ports are provided for
the hot and cold tanks.
2) Connect a potable, cold water supply to the unit. Pressure must be 40-80psi (2.8-5.5 bar) and
at a temperature no more than 105°F (41°C).
3) Flush the water supply feed until it runs clear before making connection to the dispenser.
Caution:
Installation should only be executed by trained personnel. Check and follow the applicable plumbing
codes and ordinances when installing this equipment. The connection must be to the potable mains wa-
ter supply and should be via a shut o valve. An Appropriate anti-ood device should be tted as close-
ly as possible to the mains connection point. In order to meet plumbing regulations, a backow pre-
venter may be required.
Failure to use an appropriate anti-ood device for any reason will not obligate or make Crystal Moun-
tain responsible in any way for Product Liability issues relating to any claims, including water damage
claims.
Do not connect the dispenser to a water line which exceeds 105°F (41°C) as structural damage
may occur.
This water dispenser has a maximum pressure rating of 80 psi (5.5 bar). A pressure regulator must be
used for all installations. This will prevent internal structural damage to the unit and potential water
leaks. This should be installed on the water supply before the dispenser water inlet.
4) Plug the dispenser into the wall outlet and verify that the green power status indicator is “on.” A fuse
located on the rear service panel helps to protect the internal circuits from damage.
Caution:
Damage to the dispenser will result if hot and cold switches are turned on without water inside the
tanks.
If the unit was placed on its side, it must stand upright for a minimum of twenty-four hours before op-
eration to allow the compressor to stabilize.
Install Filtration (if applicable)
The Crystal Pro is shipped from the factory with no internal ltration installed.
Consult with your lter supplier on the best ltration solutions for the local water conditions and follow
the manufacturer's instructions on their installation, use and servicing.
Flush Filters (if applicable)
All lters must be ushed prior to use per manufacturer's instructions. Depending upon your ltration or
R/O system, this process may be combined with the initial sanitizing process. It is recommended to ush
no less than two gallons through each lter. If using R/O, check to see if the lter manufacturer/supplier
recommends soaking the R/O membrane (the R/O lter system is sold separately), prior to installation.
Dispose of the rst ve gallons of product water.

12
Installation
Sanitize the Dispenser
You must sanitize your system before using it for the rst time. Failure to do so may result in poor water
taste and water quality. This is best accomplished as outlined below.
1) Ensure both water connections – supply and R/O drain (if applicable) are made at the rear of the
unit.
2) Open top service panel to gain access to the main storage tank.
3) Open the ltration service panel.
4) Place a sanitization cartridge (this can be an empty lter cartridge or one supplied by your lter sup-
plier – not supplied with unit) inline before the water inlet of the unit.
5) Using a small eyedropper, prepare the sanitization cartridge by adding two teaspoons of unscented,
liquid chlorine bleach.
6) Insert this cartridge inline prior to the system. If you have empty sanitization cartridges, install them
in the lter positions. If you do not, remove your ltration system, then bypass it with a ¼' polyeth-
ylene tubing and two - ¼" union quick connect ttings. Refer to the service manual of the ltration
system being used for proper sanitization of your ltration system.
7) Slowly turn on the water supply until the main storage tank is ½ full then turn o.
8) Carry out a visual inspection for any water leaks.
9) Lift the main storage tank lid taking care not to damage the oat sensor or UV light.
10) Wearing sterile gloves, and using a clean, lint-free cloth thoroughly wipe down the inside of the main
storage tank with the bleach solution.
11) Let stand for ten minutes or until completely dry.
12) Slowly turn on the water supply.
13) Depress the dispensing buttons (alternate between hot, ambient and cold spigots) to allow the solu-
tion to run through the spigots and associated lines.
14) Drain the system until the chlorine bleach is no longer detected at the spigot. Drain the remaining
water through the drain connection at the rear of the unit.
15) Remove the sanitization cartridge and install the lter and/or R/O cartridges.
Note: Remember to connect the R/O drain line to the R/O cartridge. Ensure that the ow restric-
tor is visible inside the R/O drain line
Note: If R/O is being used, allow several hours to completely ll all tanks
The unit is supplied with a lter access door locking screw. This screw must be installed before
the unit is put into service.

13
Installation
Turn on “Hot” & “Cold” Power Switches.
1) With all tanks completely lled with water, both the hot and cold switches at the rear of the dispenser
should be turned “on.” It will take approximately twenty minutes for the hot water and two hours
for the cold water to reach their temperature presets.
2) Record the service date on the inside ltration panel for future reference. This will ensure that
maintenance intervals are recorded and scheduled.
3) Reinstall the ltration service panel.

14
Operating the Crystal Pro
Your Crystal Pro Water Dispenser contains a simple, intuitive user interface for operation and sta-
tus. Hot and Cold buttons are backlit and a nightlight is provided in the dispensing area.
Button/LED ON OFF
Flashing
Power Indicator
Dispenser Powered Dispenser Unpowered
N/A
Hot Button Always On
Dispenser Unpowered
N/A
Ambient Button
N/A
N/A
N/A
Cold Button Always On
Dispenser Unpowered
N/A
UV Activation Light UV System Ready* UV System Ready UV System Active
System Fault Indicator
UV Bulb Needs Replacement
UV System Ready System Fault – i.e. Leak,
Short-Circuit
Night Light
Dark Environment
Light Conditions
n/a
*On only when user is in front of the unit.
Note: To prevent the inadvertent dispensing of hot water, the dispense button must be held for 3 sec-
onds until a beep is heard. Press the button again for water to dispense

15
Once assembled, installed and ushed properly, your Crystal Pro Water Dispenser will provide
years of trouble-free operation. Installation and service should only be carried out by a trained
service professional. If applicable, ltration cartridges should be replaced every six months or as
directed by the manufacturer. The hot water tank may require periodic descaling of mineral
buildup inside the tank.
Service Notes
Caution:
Do not clean the water dispenser with a power washer or water jet device.
1) Sterile gloves must be worn when handling the lters, reservoir or any components that have
contact with the drinking water.
General Maintenance
1) Wipe all surfaces on the front panels, dispensing buttons, dispenser area, faucet, and drip
tray with an anti-bacterial cleaning wipe or spray.
2) Remove and clean the drip tray and grill. If the grill is damaged or heavily stained it should be
replaced.
3) Wipe away any dust which may have accumulated on the condenser grill.
4) Drain both tanks after long periods of non-use.
5) On R/O models periodically inspect the ow restrictor to ensure it is clean and unrestricted.
Caution:
Use only factory-authorized replacement parts. Using unauthorized parts or accessories may
cause damage or aect performance. Any damage, diminished performance or property dam-
age from using unauthorized parts or accessories is not covered under the manufacturer's war-
ranty.
Sanitize Reservoirs
1) All water reservoirs should be sanitized at regular intervals, especially after a long period of
non-use. This is best accomplished using a sanitization kit if available or by using the proce-
dure outlined below.
2) Prepare water dispenser for the service
3) Turn o both the hot and cold switches at the rear of the unit.
4) Unplug the electrical supply to the unit.
5) Turn o the water supply to the unit.
6) Drain all water storage tanks using the drain ports located at the rear of the dispenser.
Service & Maintenance

16
Caution:
Take care to prevent burns when draining the hot tank.
7) Remove the existing ltration cartridges
8) Open the front panel to gain access to the ltration compartment.
9) Remove all cartridges from the lter compartment.
10) For R/O systems, ensure that the drain line with ow restrictor between the R/O cartridge and drain
port is removed rst.
Install the Sanitization Cartridges
1) Place a sanitization cartridge (this can be an empty lter cartridge or one supplied by your lter sup-
plier – not supplied with dispenser) inline before the water inlet of the unit.
2) Using a small eyedropper, prepare the sanitization cartridge by adding two teaspoons of unscented,
liquid chlorine bleach.
3) Insert this cartridge inline prior to the system.
4) If you have empty sanitization cartridges install them in the remaining positions. If you do not, re-
move your ltration system, then bypass it with a ¼” polyethylene tubing and 2 - ¼" union quick con-
nect ttings. Refer to the service manual of the ltration system being used for proper sanitization of
your system.
5) Begin the sanitization process
6) Plug in the dispenser.
7) Slowly turn on the water supply.
8) Check for leaks or spills which may cause the leak detection system to activate.
9) Once all tanks are lled (approximately 3-5 minutes) let stand for 5-10 minutes.
10) Press and hold the hot, ambient and cold dispense buttons until water begins to ow.
11) Continue for 10 minutes, or until the bleach has been thoroughly ushed from the system.
Draining Reservoirs
1) Unplug the electrical supply to the unit.
2) Turn o the water supply to the dispenser.
3) Remove the cold drain plug on the rear to allow water to drain into a bucket.
4) Tilt the unit backward to facilitate draining of the water.
5) Repeat this process for the hot tank side.
6) Reinstall both drain plugs and verify they are secure.
Service & Maintenance

17
7) Remove and replace cartridges
8) Remove all sanitization cartridges from the manifold or water inlet.
9) Turn water supply on and ll unit to ush remaining sanitizing agents then repeat steps 18-23
10) Install new ltration cartridges.
11) For R/O systems, ensure that the drain line is connected between the R/O cartridge and drain port.
Verify that the ow restrictor is properly installed.
12) Record the service date on the ltration panel.
13) Wipe down the base of the ltration compartment and reinstall the ltration panel.
14) Return the dispenser to service
15) Wipe down the drip tray and all outer panels.
16) Clean any dust and debris from the condenser grill.
UV System Replacement
1) Turn o the “hot” and “cold” switches on the rear of the dispenser.
2) Turn o the water supply and activate the dispensing buttons to relieve any pressure in the unit.
3) Unplug the electrical cord from the wall socket.
4) Remove the top panel to gain access to the UV assembly either on the reservoir lid or in the water
outlet tube. If replacing the UV on the reservoir lid, remove the lid from the reservoir.
Warning:
Do not remove the lamp from holder while illuminated and never look directly at the UV light as UV ra-
diation is dangerous for the eyes and skin
5) Unplug the UV wire connector.
6) Remove the old UV assembly by gently pulling the assembly out of the outlet tube or by unscrewing
the locknut if replacing the reservoir UV.
7) Install the new UV LED (Crystal Mountain part number ELE-C100401) by pushing into the outlet tube
or, if replacing the LED in the reservoir lid, by securing it in place with the locknut.
8) Re-attach the wire connector.
9) Plug the electrical cord into the wall socket.
10) Slowly turn on the water supply.
11) If the UV on the water outlet tube was replaced, activate the dispensing buttons and check that there
is no leak before installing the top panel.
12) Reinstall the top panel.
13) Turn on the “hot” and “cold” switches on the rear of the dispenser.
Service & Maintenance

18
Reset Leak Detection System
All models of Crystal Pro Water Dispensers are equipped with a leak detection system. This system will
generate an audible and visual warning upon detecting water in the base of the unit. In addition, the sys-
tem will automatically shut o the incoming water supply valve to prevent further damage. The leak de-
tection warning will stop once the leak is stopped and the aected area is dried out.
Service notes
If an audible "click" is heard within 5 minutes of turning on the red power switch, the hot tank is likely
empty, and has overheated. The hot tank limiter will need to be reset.
Caution:
Turn o the hot tank and unplug the unit’s power cord before reseng the hot tank!
Service & Maintenance
Hot Tank On/O Switch
Hot Tank Reset

19
Troubleshooting
Symptom
Possible Cause
Solution
No Power / Power status indica-
tor o
No power to unit
Circuit breaker or GFCI is tripped
Blown fuse
Check outlet and plug for proper connection
Check external circuit breaker/GFCI
Check fuse at rear of unit and replace if needed
Tanks not lling during initial
setup
Check external water supply valve
Fix source of leak
Remove source of blockage
Allow several hours for RO to ll
Water is not hot or cold
Power switches turned o
Check the power switches on the rear panel
No, or low, ow from cold
Water inside the cold tank frozen
Turn o the cold switch for 4 hours to melt ice
inside tank
No, or low, ow from hot
Hot tank needs to be descaled
De-scale hot water tank
No, or low, ow from both hot
and cold
Filter cartridges may need changed
Low pressure from water supply
Change lter cartridge(s)
Check water supply pressure.
Hot tank limiter has tripped
Reset the hot tank limiter.
Cold switch is o
Unit is not installed correctly
Refrigeration Leak
Check that the cold switch is “on” Check that the
unit is 4" from the wall, not in direct sunlight or in
a room with high ambient temperature.
Unit not sanitized or Filters not ushed
Sanitize the dispenser.
If the bad taste persists, taste the water coming
directly from the lter cartridge and change as
necessary. If still bad, change the lter, or con-
tact your service provider.

20
Specications
Water Dispenser
Safety Features
Failure to use an appropriate anti-ood device for any reason will not
obligate or make Crystal Mountain responsible in any way for Product
~1.0 KWH
