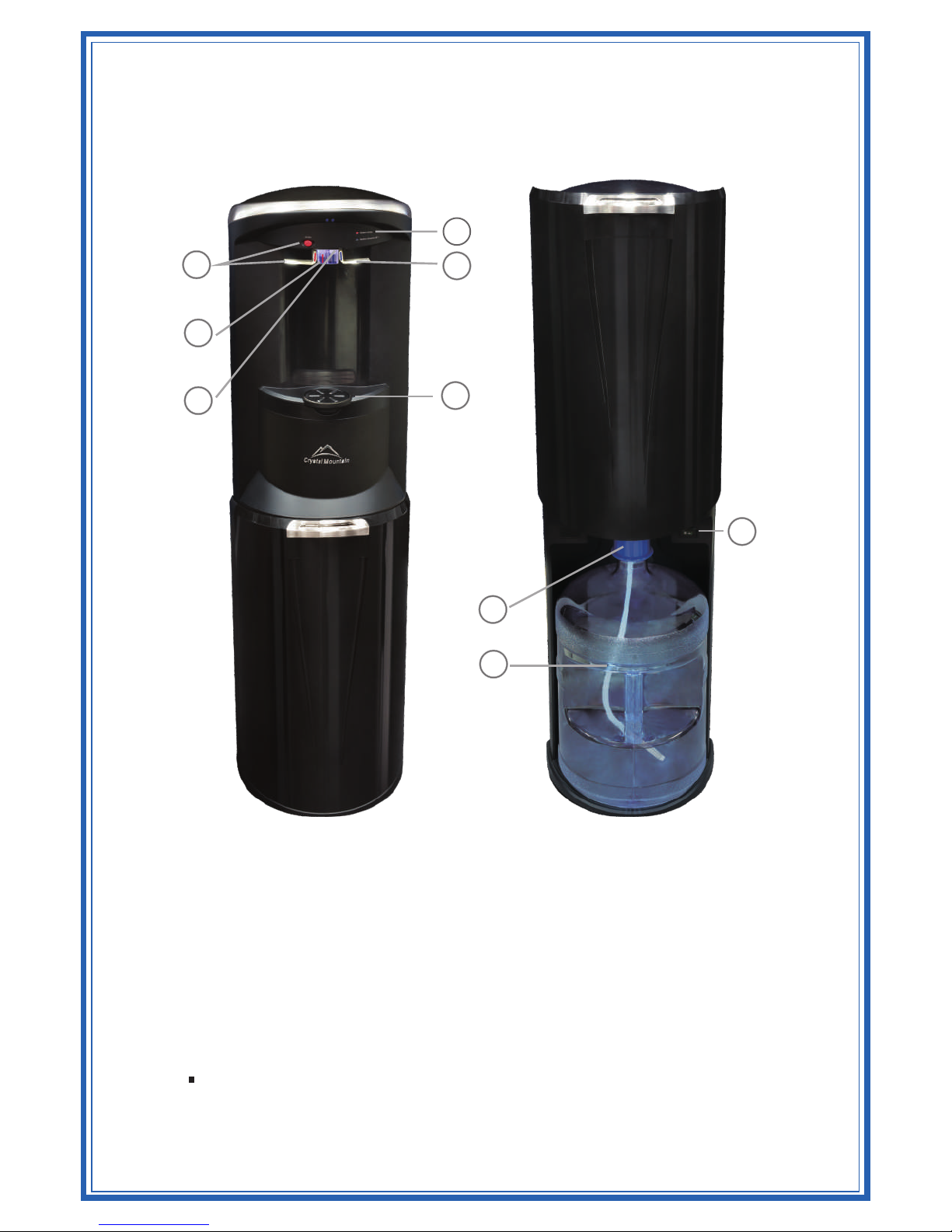

Crystal Mountain Storm User manual

STORM
Bottom-Load
Water Dispenser User Manual

2.Cold Water Lever
3. Hot Water Lever
(with child safety feature)
4.Water Outlet
6.Drip Tray and Cover
7.Energy Saving Switch (Hot water)
8.Bottle Adaptor Assembly
9.Water Bottle (Not included)
Product may not appear exactly as shown
1
2
3
4
56
1.Indicator lights
- (Top) – Replace Bottle Alarm LightRed
- (Bottom) – Replace SmartFlo SF-1 Water Blue
Cartridge Alarm Light
5.LED Nightlight
8
9
7

Function Lights
Blinking on top indicates that the bottle is nearly empty.Red light
Blinking on the bottom indicates that the SmartFlo SF-1 Water Cartridge Blue light
has reached its (suggested) usage limit date and should be changed.
Cold Water Lever – Depress lever to dispense water. Release lever to stop.
Hot RED Water Lever (with child safety feature) – Push button into the cooler and
depress lever to dispense water. Release lever to stop.
Water Outlet – and water is dispensed from this locationHot Cold
LED Nightlight – Located behind Faucet Levers. Provides additional light in low
light situations (activated when water lever is depressed)
Drip Tray and Cover – Dishwasher Safe. Snaps in and out. Position glass or cup
over center to avoid spills.
Energy Saving Switches – Located in the bottle installation area at top. Switch the
Energy Saving Switch off to stop the hot water heating function.
Bottle Adaptor Assembly – Located inside of cabinet. Connects to bottle to allow
water to be pumped into the hot and cold reservoirs.
Water Bottle – Not Included. Uses 3, 4, or 5 Gallon water bottles.
(Please see below pictures – removable water system)
SmartFlo SF-1 Water Cartridge - Design allows for quick and easy sanitization of the
cold water system.
FEATURES

Locate Water Dispenser
1. Place the water cooler on a flat level surface in a cool shaded location near a grounded wall outlet.
2. Position water dispenser so that the back of the unit is a minimum of 4 inches / 10 cm away from the wall
to ensure proper ventilation (Figure 1).
Install Water Bottle
(1) Open Dispenser door (Figure 2). (slide door upwards to allow access to bottle area)
(2) Place fresh bottle outside of the cabinet
(3) Clean the outside of new bottle with a cloth (Figure 3)
(4) Remove bottle cap completely from the top of the bottle (Figure 4)
(5) Un-package and assemble the Bottle Adaptor assembly (located in the bottle storage area)
(6) Place the bottle adaptor probe into the bottle (Figure 5)
(7) Slide the bottle adaptor over the neck of the bottle and push down to secure (Figure 6)
(8) Push probe down until the tube hits the bottom of bottle (Figure 7)
(9) Slide bottle into cabinet (Figure 8) and close the door (slide door downwards to close)
THANK YOU FOR BUYING A CRYSTAL MOUNTAIN WATER COOLER!
GETTING STARTED
Figure 1
Figure 2 Figure 3 Figure 4
Figure 5 Figure 6 Figure 7 Figure 8
4 inches (10 cm)

Ensure Priming of water system is complete before starting this step.
Notice: Hot water will not be dispensed by the cooler until the Energy Saving
Switch has been activated, located behind and at top of bottle access door.
Turn on the Energy Saving Switch ( color).RED
- To disable the heating function (Hot Water), turn off the Energy Saving Switch
(Figure 9).
DO NOT draw water from the cooler for about 30 minutes to let the water cool
or heat.
Optimum water temperatures will be reached after several hours of operation.
DISPENSING WATER
The SmartFlo SF-1 Water Cartridge has been tested and sanitized prior to packaging. During transit dust
and odors may accumulate in the water tanks and lines. Dispense and dispose of at least 1 quart (1 Liter) of
water prior to drinking any water.
Cold Water Dispense
The temperature control of the cold water is preset to dispense water between
39.2-50°F (4 to 10°C)
Optimum cold water temperatures will be reached after several hours of
operation. During this time the compressor could run continuously. This is
normal. (Figure 10)
1. Position bottle, glass or other container below water outlet
2. Depress (push downwards) cold water lever to start cold water flow
3. Release cold water lever once desired fill level is achieved
Hot Water Dispense
The temperature control of the hot water is preset to dispense water between 168.8-197.6°F (76 to 92°C)
CAUTION
This unit dispenses water at temperatures that can cause severe burns.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Activate Heating Functions
Provide Electricity
Ensure that the available power supply matches the cooler’s voltage specifications indicated on the
nameplate label (located at the rear of unit).
Plug power supply cord into receptacle.
Please ensure that cooler is set up so as access to the power outlet and plug is unobstructed.
NOTE: DO NOT turn on the Energy Saving Switch yet. Proceed to the “Prime Water System” section.
NOTE: To provide additional protection from the risk of shock, this unit MUST be connected to a ground
fault circuit interrupter (GFCI) outlet at all times. Use of an extension cord will void any warranties.
Prime Water System (Required during initial setup and after replacement of SmartFlo SF-1
Water Cartridge)
Depress the and water levers to fill their respective tanks.Cold Hot
When water begins to flow from both faucets, the tanks have been filled (approx. 1 minute per tank).
Figure 10
Figure 9

Figure 17 Figure 18 Figure 19 Figure 20
Figure 13 Figure 14 Figure 15 Figure 16
Optimum hot water temperatures will be reached after 15-20 minutes

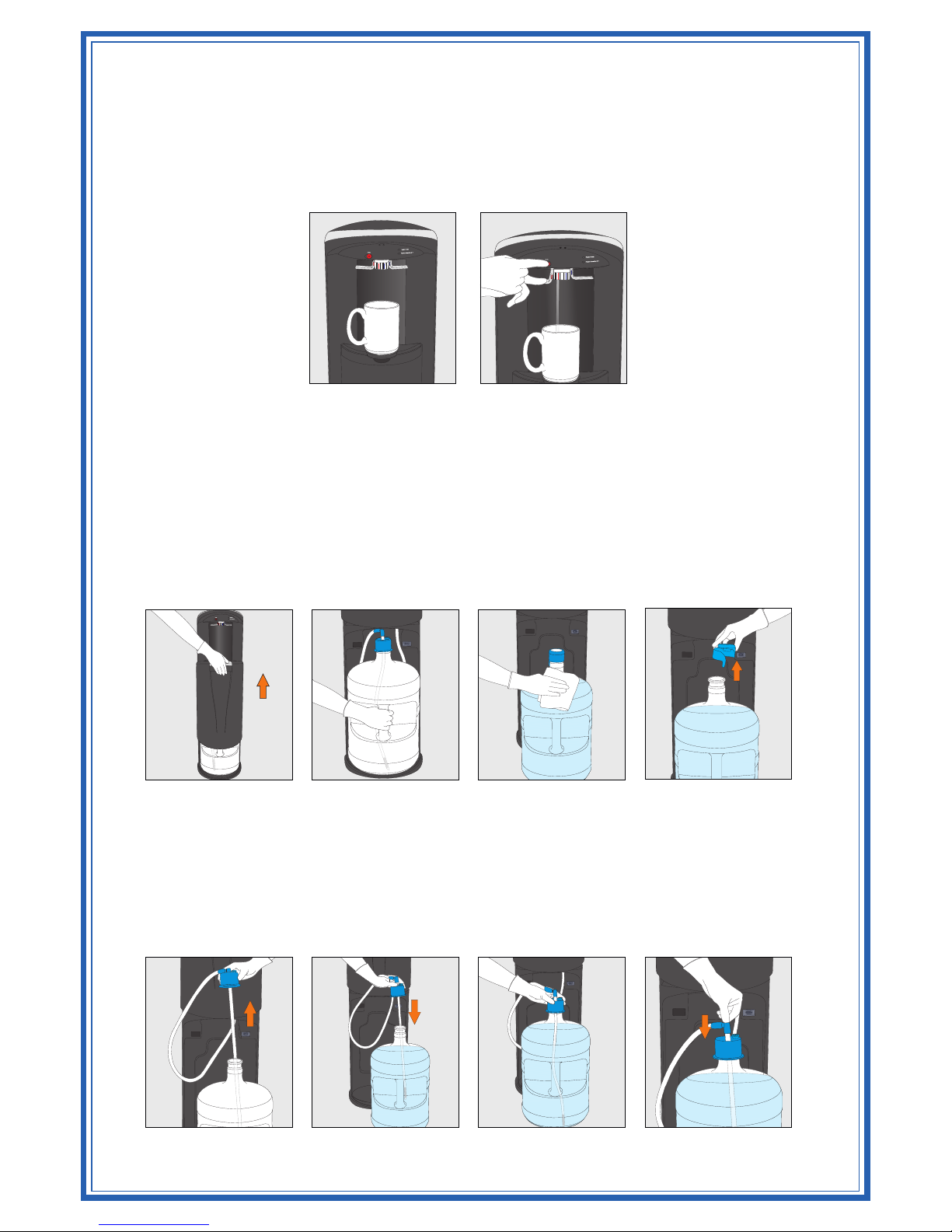

1. Position bottle, glass or other container below water outlet (Figure 11)
2. Push the safety button in, and depress (push downwards) the hot water lever to start hot water flow RED
(Figure 12)
3. Release hot water lever once desired fill level is achieved
Bottle Change
A flashing light above the cold water lever will alert you when your water bottle is getting low. The Red
bottle will need to be replaced shortly. Water may be dispensed normally until empty (no water flows from
water outlet when levers are depressed)
1. Open Dispenser door (Figure 13). (Slide door upwards to allow access to bottle area)
2. Slide empty bottle out of cabinet (Figure 14)
3. Place fresh bottle outside of the cabinet
4. Clean the outside of new bottle with a cloth (Figure 15)
5. Remove bottle cap completely from the top of the bottle (Figure 16)
6. Remove bottle adaptor from the empty bottle (Figure 17) and place directly into the top of the new, full
bottle (Figure 18)
Note: to maintain sanitization of the system, refrain from touching the section of the bottle adaptor tube
that is inserted into the bottle
7. Slide the bottle adaptor over the neck of the bottle and push down to secure (Figure 19)
8. Push probe down until the tube hits the bottom of bottle (Figure 20)
Figure 11 Figure 12

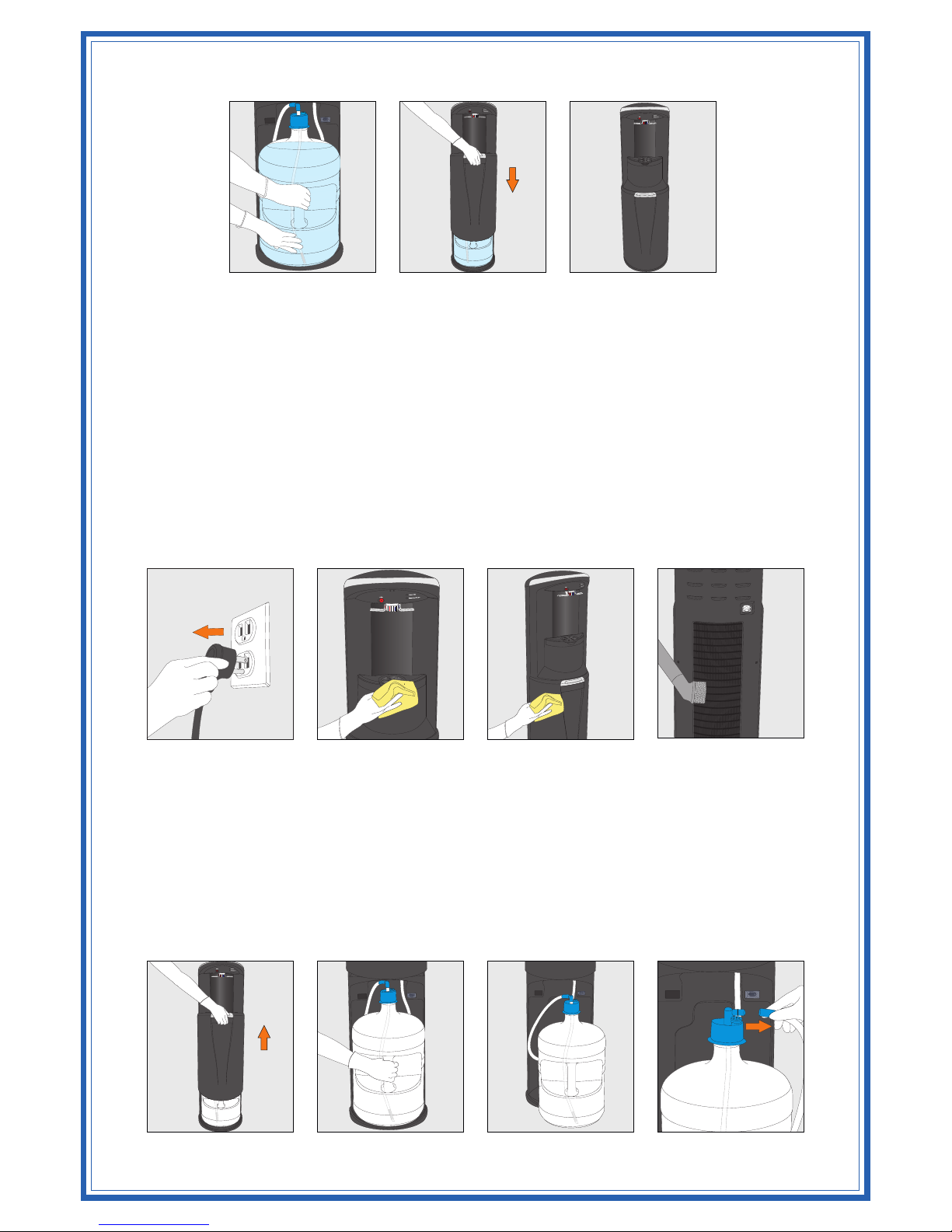

9. Slide bottle into cabinet and close the door (Figure 21 to Figure 23) (slide door downwards to close)
10. Place a container under faucet and dispense cold water until a smooth stream of water is dispensed (may
take up to 1 minute)
CLEANING
Do not immerse the unit in water for cleaning
External: Disconnect power supply cord (Figure 24), use only mild dishwashing liquid or cleaning
products and a soft cloth for cleaning the exterior surfaces (Figure 25 and Figure 26). USE bleach DO NOT
or abrasive cleaners. Use a vacuum cleaner to remove dirt and lint from the condenser (Figure 27). The unit
should be cleaned every 3 months, except where fingers touch the temperature selectors, which can be
wiped often with hygienic wipes or mild cleaning products.
Caution: Do not clean unit with a water jet device.
Ensure the following when cooler is to be serviced:
Turn off the Energy Saving Switch and disconnect power supply cord.
Replacement of SmartFlo SF-1 Water Cartridge
For the best quality and tasting water, it is recommended to change the SmartFlo SF-1 Water Cartridge
every 12 months. Follow the steps below to replace the SmartFlo SF-1 Water Cartridge. Recommend to
empty the bottle installed in the cooler prior to replacement of the SmartFlo SF-1 Water Cartridge and
Bottle Adaptor.
1. Open Dispenser Door (Figure 28). (Slide door upwards to allow access to bottle area)
2. Slide empty bottle out of cabinet (Figure 29 and Figure 30)
3. Disconnect the water line from the bottle adaptor (Figure 31)
4. Open the replacement SmartFlo SF-1 Water Cartridge kit, and remove the access key provided
Figure 28 Figure 29 Figure 30 Figure 31
Figure 21 Figure 22 Figure 23
Figure 24 Figure 25 Figure 26 Figure 27

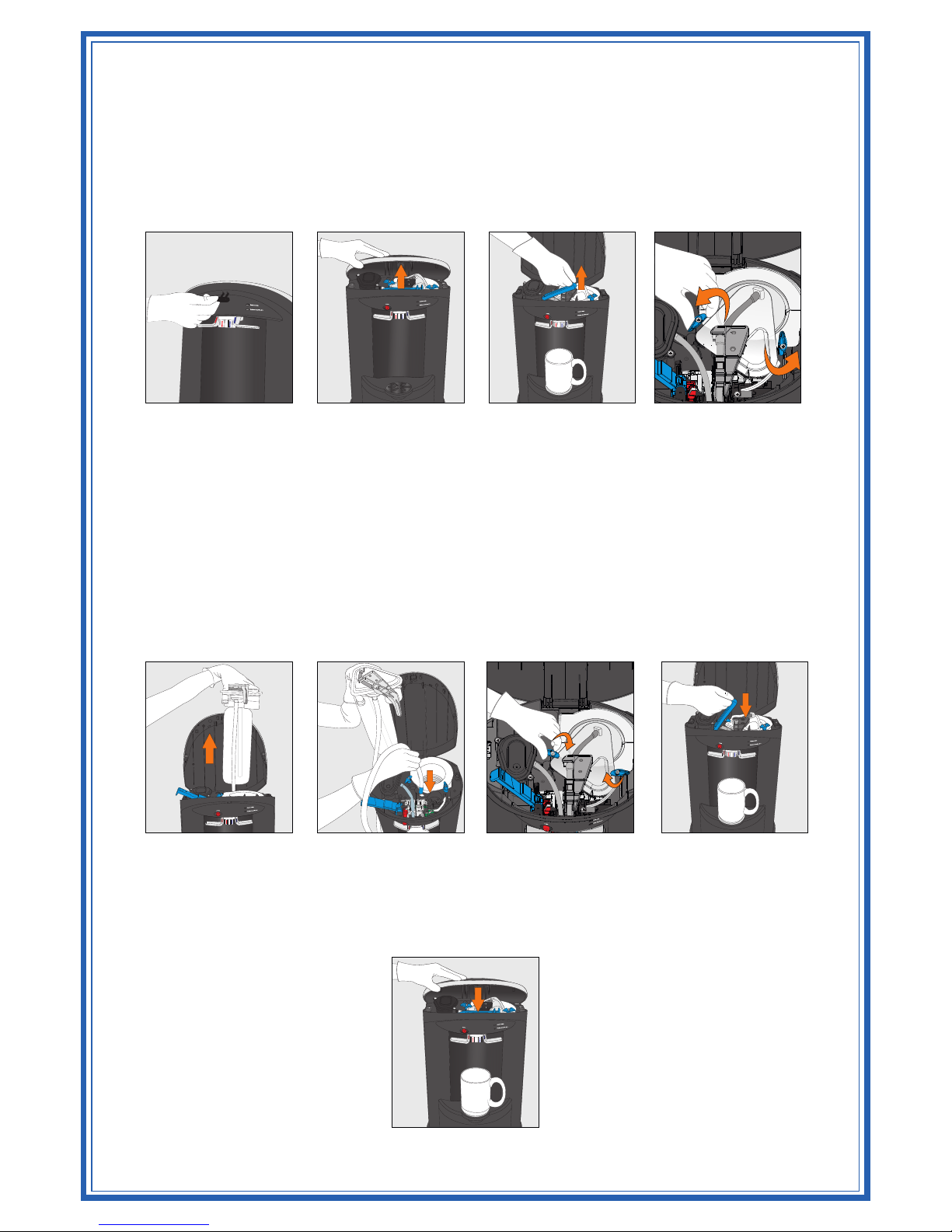

5. Insert the access key into the 2 holes located at the underside of the top edge of the cooler (above water
levers) and push inwards (Figure 32 and Figure 33)(once unlocked, the front of the top cover opens
upwards)
6. Place a glass or other container below the water outlets (to catch drips), and unlatch the locking clip
located near the front of the cooler to release the water tubing (Figure 34)
7. Unlock the turn knobs which hold down the SmartFlo SF-1 Water Cartridge (Figure 35)
8. Pull SmartFlo SF-1 Water Cartridge upwards to remove (Figure 36)
9. Discard used SmartFlo SF-1 Water Cartridge according to local regulations. (Please recycle)
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the reuse of sustainable resources.
10. Insert water line of replacement SmartFlo SF-1 Water Cartridge through the guide tube, and push
through to bottle installation area (Figure 37).
11. Ensure seal is properly installed on the outlet tube of the SmartFlo SF-1 Water Cartridge assembly (may
have shifted during shipment of un-packaging)
12. Align SmartFlo SF-1 Water Cartridge with openings in cooler, and push into place
13. Rotate turn knobs to lock SmartFlo SF-1 Water Cartridge in place (Figure 38)
14. Close the locking clip to secure water outlet tubing in place (Figure 39)
15. Close the top cover of the cooler (Figure 40) (push downwards to lock into place)
16. Place fresh bottle outside of the cabinet
17. Clean the outside of new bottle with a cloth
18. Remove bottle cap completely from the top of the bottle
Figure 32 Figure 33 Figure 34 Figure 35
Figure 36 Figure 37 Figure 38 Figure 39
Figure 40

19. Remove replacement bottle adaptor from packaging and install onto new, full bottle (Figure 41)
Note: to maintain sanitization of the system, refrain from touching the section of the bottle adaptor tube
that is inserted into the bottle
20. Remove protective cap from the SmartFlo SF-1 water line and install onto the replacement bottle
adaptor assembly (Figure 42)
21. Slide bottle into cabinet and close the door (Figure 43 to Figure 44) (slide door downwards to close)
22. Depress the and water levers to fill their respective tanks.Cold Hot
When water begins to flow from both faucets, the tanks have been filled (approximately 1 minute per
tank)
TROUBLESHOOTING
Water Leaks
• If water present only at base of unit (not dripping from above), first try to replace the water
bottle.
• If water leaking from above the bottle (or not bottle related), unplug Dispenser, remove bottle
and call 1-800-878-6422 for assistance
Water Not Dispensing
• Ensure Hot/Cold tanks have been primed (see section for priming of water system)
• Ensure bottle is not empty. If empty, replace it
• Ensure that the water selection lever is fully depressed
• Ensure all SmartFlo SF-1 tubing is free of any holes, cuts or cracks.
• Ensure SmartFlo SF-1 locking knobs (in top) are securely locked in place.
Not Cooling (Hot Water – No Concern)
• Optimum cold water temperatures will be reached after several hours of operation
• Ensure that the dispenser is at least 4 inches (100mm) from the wall to provide sufficient
ventilation
• If the water still isn’t cold, please call 1-800-878-6422 for assistance
No Hot Water (Cold Water – No Concern)
• Optimum hot water temperatures will be reached after 15-20 minutes
• Ensure that the Red Hot Water Switch (located behind top right side of bottle access door) is
turned on
• If the water still isn’t hot, please call 1-800-878-6422 for assistance
Dispenser is Noisy
• Ensure that the dispenser is positioned on a flat, level surface
• Ensure that the bottle is not empty. If empty, replace it
Figure 41 Figure 42 Figure 43
CAUTION! ALWAYS DRAIN WATER COMPLETELY BEFORE SHIPPING OR STORING THE COOLER!
44
Figure

WARNING
To reduce risk of injury and property damage, user must read this entire guide
before assembling, installation and operation of the dispenser.
Failure to follow the instructions in this manual can cause personal injury or
property damage.
This product dispenses water at very high temperatures. Failure to use properly
can cause personal injury.
When operating this dispenser, always exercise basic safety precautions,
including the following:
• Prior to use, this dispenser must be assembled and installed in accordance with this
manual.
• Install indoors on a flat level surface only. Place dispenser in a dry place away from
direct sunlight. Do NOT use outdoors.
• This appliance is intended to be used in household and similar applications such as
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type
environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.
• Do NOT place dispenser into an enclosed space or cabinet.
• This dispenser is intended for dispensing water only. Do NOT use other liquids.
Never use any other liquid in the dispenser other than known and microbiologically
safe bottled water.
• Do not use an extension cord
• To provide additional protection from the risk of shock, this unit MUST be
connected to a ground fault circuit interrupter (GFCI) outlet at all times. Use of an
extension cord will void any warranties.
• If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
• Always grasp plug and pull straight out from outlet. Never unplug by pulling on
power cord.
• To protect against electric shock, do NOT immerse cord, plug, or any other part of
dispenser in water or other liquids.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Use with caution only.
• Service should only be performed by a certified technician. Please contact us at
1- 800-878-6422 for assistance
SAFETY PRECAUTIONS

Services Required:
See nameplate located on the back of the dispenser
Refrigeration System
• Refrigerant Type: R134a, 1.23oz (35g)
• Pressure (Refrigeration): High Side: 265 PSI, Low Side: 140PSI
Water Flow
• The flow rate from the water outlets on the dispenser is a maximum of 0.475 US
Gal/minute (1800 ml/minute)
The customer acknowledges that water, like other liquids, can cause damage to
surfaces. The customer takes full responsibility for placing the cooler within a
residence or business, and acknowledges that failure to address drips, leaks or
spillages is at the customer’s risk.
The Warranty and Underwriters’ Laboratory and CE listings for the coolers are
invalidated if any alteration, modification, or use or misuse in combination with any
other machine or devices is deemed to be the source of any claim. The manufacturer
accepts no liability (including for bodily injury) resulting from any alteration, misuse,
neglect, accidents, improper installations or repairs.
Environmental application temperature: 50~90°F (10~32°C)
The unit is rated IP10. (This unit is not protected against ingress of water)
For more information on this product, please visit www.crystalcoolers.com

DOC-C100099 Rev0514
