CTC Union VRM01/24 User manual

VDSL SERIES CTC Union
1















Link Aggregation (LACP) dynamic trunking group, 


  


already
 








VDSL SERIES CTC Union
2


Figure 1: VRM01/24
The VRM01/24 has 24 x POTS Ports(RJ21)24 x 12.5 Mbps VDSL Ports (RJ21)
1 x 10/100/1000Mbps auto-sensing RJ-45 and 1 x Giga RJ-45/GBIC(fiber optic) Auto-Link
Ethernet port . The VRM01/24 is one rack-unit (1RU) high, 14-inches deep. It is a standard 19”
Rack mounted size.
the VRM01/24 deliver dedicated bandwidth per port at rates up to 12.5 Mbps. VDSL
transmissions coexist with POTS and ISDN, and can be compatibled with ADSL/HomePNA
traffic in the same building. The VRM01/24 can be configured on a per-switch basis to support
the following modes:
12.5 Mbps symmetrical rate (up to 1200 meter/4000 Feets)
The VRM01/24 and VDSL Modem provide fast and easy connectivity into building patch panels
with RJ-21 connector. The 10/100/1000 Ethernet ports can be used to connect servers, Ethernet
switches. These connectivity options provide multiple price/performance options to meet building
and budget requirements.
The VRM01/24 provides the important features necessary for robust networks:
Quality of Service: 802.1p COS supports. Provides high-and low-priority queuing on a
per-port basis.
Supports: IGMP Snooping by 512 IP multicast table for VOD (Video on demand)
Scalability: Up to 10 Mbps symmetric performance over single-pair wiring. Fast
Ethernet Channel port aggregation.
Security:802.1Q Tag base and port-based virtual local-area network (VLAN) support. Private
VLAN access, assuring port security without requiring a VLAN per port, and also supports MAC
filtering to Lock MAC address.
Network Management: VDSL VRM01/24 technology support Telnet and Web-based
Management easy-to-use configuration and ongoing monitoring. This software is embedded in
the VDSL VRM01/24 and delivers remote, intuitive management of VDSL VRM01/24 and
connected VDSL CPE devices through a single IP address.
The VRM01/24 are easy-to-configured and deployed, and offering a compelling option in terms
of cost, performance, scalability and services compared to traditional ATM-based xDSL

VDSL SERIES CTC Union
3
solutions.

Table of Contents
1. Unpacking Information
Check List .............................................................4
Product Features ..................................................5
2. General Description
Hardware Description............................................7
Front Panel ...........................................................7
LED Indications.....................................................9
Rear Panel ............................................................10
3. Installation
Hardware Installation ............................................11
Pre-Installation Requirements ...............................11
General Rules .......................................................12
Connecting configuration .....................................12
Cascading configuration........................................13
4. Management Configuration
In-Band Management ..........................................15
Console port (RS-232) configuration......................15
Remote Network Control.........................................18
VDSL Speed Control and port Enable/Disable .............28
5. Applications ........................................................46
Appendix A: Troubleshooting................................48
Appendix B: RJ21 Telco ports distribution ..........51
FCC Warning ................................................................. 53
Warranty ......................................................................... 54

VDSL SERIES CTC Union
4
1.Unpacking Information
Check List
Carefully unpack the package and check its contents against the checklist.
Package Contents
1. VRM01/24 concentrator
24XPOTS Ports(RJ21)24X10 Mbps VDSL Ports (RJ21)One GIGA
PortOne10/100/1000 Mbps auto-sensing N-way Ethernet ports.
2. Users manual CD
3. AC Power Core
4. 2x Rack Mounting Brackets
5. 4x Screws
6. 4x Plastic feet
7. 2x1.5m RJ-21 male-to-male Telco connector wire (Option Parts)
Please inform your dealer immediately for any missing, or damaged parts. If possible, retain
the carton, including the original packing materials. Use them to repack the unit in case
there is a need to return for repair.

VDSL SERIES CTC Union
5
Product Guide
Product Name
 24VDSL+2 Giga Ethernet Intelligent VDSL VRM01/24
Feature
Compliant with IEEE 802.3 & 802.3u & 802.3z Ethernet Standards
Compliant with ETSI, ITU, ANSI standards
Provides 1 x 10/100/1000Mbps auto-sensing RJ-45 plus 1 x 1Giga RJ-45/GBIC(fiber) Auto-Link
Ethernet port for Trunking or cascading
Provides 24 VDSL ports with RJ-21 connector for connects client
side
Provides 24 POTS/ISDN filtering port with RJ-21 connector
Splitter on board
Supports bandwidth management(speed rate control) from 100Kbps to 10Mbps for
VDSLport
Supports MAC address table: 6K Entries
Provides SNR(Signal to Noise Ratio) indication for checking phone wiring quality
Store-and-forward Switching method.
Supports auto MDIX
Cascading up to 4 Units
Supports flow control IEEE802.3x for Full Duplex & Back Pressure for Half Duplex
Long driver capable up to 1.2Km(4000 feet)
Ethernet transport with POTS / ISDN traffic over single copper wire pair
Spectral compatibility with XDSL, ISDN(2B1Q/4B3T), HomePNA
Robust operation on severely distorted line
Supports Port Base VLAN
Supports GARP/GVRP 802.1p/q Tagging VLAN
Supports 802.1ad port trunking
Supports port mirroring
Supports 802.1d Spanning trees
Supports BOOTP/DHCP Client Supports IGMP snooping
Supports 802.1p QOS
Supports 802.1x Port Based Network Access Control
Supports RS-232 console port for functions setup:
Supports internal FAN and temperature monitor and management function
Supports SNMP RFC-1493 Bridge MIBs & RFC-1213 MIB II & RFC-1643

VDSL SERIES CTC Union
6
Ethernet MIB & Enterprise MIB
Supports RMON groups 1,2,3,9(RFC-1757 RMON MIB)
Supports MAC address filtering/learning limit for port security mode
Supports broadcast storm filtering
RS-232 console port :DB-9Pin Female / 9600bps
Supports Telnet and WEB Base for remote control access
Supports WEB Base for Management
Supports TFTP/XMODEM for firmware upgrade
Supports In-Band/Out-of-Band Management
Provides surge protection for each VDSL ports
Provides Power & POST LED.
Provides LED indication Link/Active/Speed/Duplex Status for Ethernet port.
Provides LED indication Link for VDSL port.
Internal switching power adapter Input :AC 85-265 volts/50-60Hz/2A .
Dimensions: 444 x 361 x 44 m/m
Safety: FCC/CE

VDSL SERIES CTC Union
7
2. General Description
Hardware Description
This section describes the important parts of the VRM01/24. It features the front and rear
panel drawings LEDs, connectors, and switchs.
Front Panel
The following figure shows the front panel.
Figure Chapter 2.1 Front Panel description
Front panel.
(1) “PWR.”: Power Led light.
(2) “POST”: Power On Self Test.
(3) 24XPOTS Ports(RJ21).
(4) 24X10 Mbps VDSL Ports (RJ21).
(5) RS-232 Console Port.
(6) 1 x 10/100/1000Giga RJ-45/GBIC(fiber) Auto-Link Ethernet port
(7) 1X10/100/1000 Mbps auto-sensing N-way Ethernet ports.
(8) Reset Button.
the VRM01/24 has embedded Splitter between every VDSL side and POTS side. It permit
you can delivers broadband service on the same lines as Plain Old Telephone Service
(POTS), PBX, ISDN traffic and VDSL Signal.
Several LED indicators for monitoring the device itself, and the network status. At a quick
glance of the front panel, the user would be knew if the product is receiving power; if it is
monitoring another VRM01/24 or other devices; or if a problem exists on the network.

VDSL SERIES CTC Union
8
Provides one 10/100/1000Mbps auto-sensing RJ-45 Ethernet ports and one GIGA Port.
GIGA Port support RJ-45 or GBIC Interface auto link function. You can use RJ-45 interface or
GBIC
interface.Figure Chapter 2.2

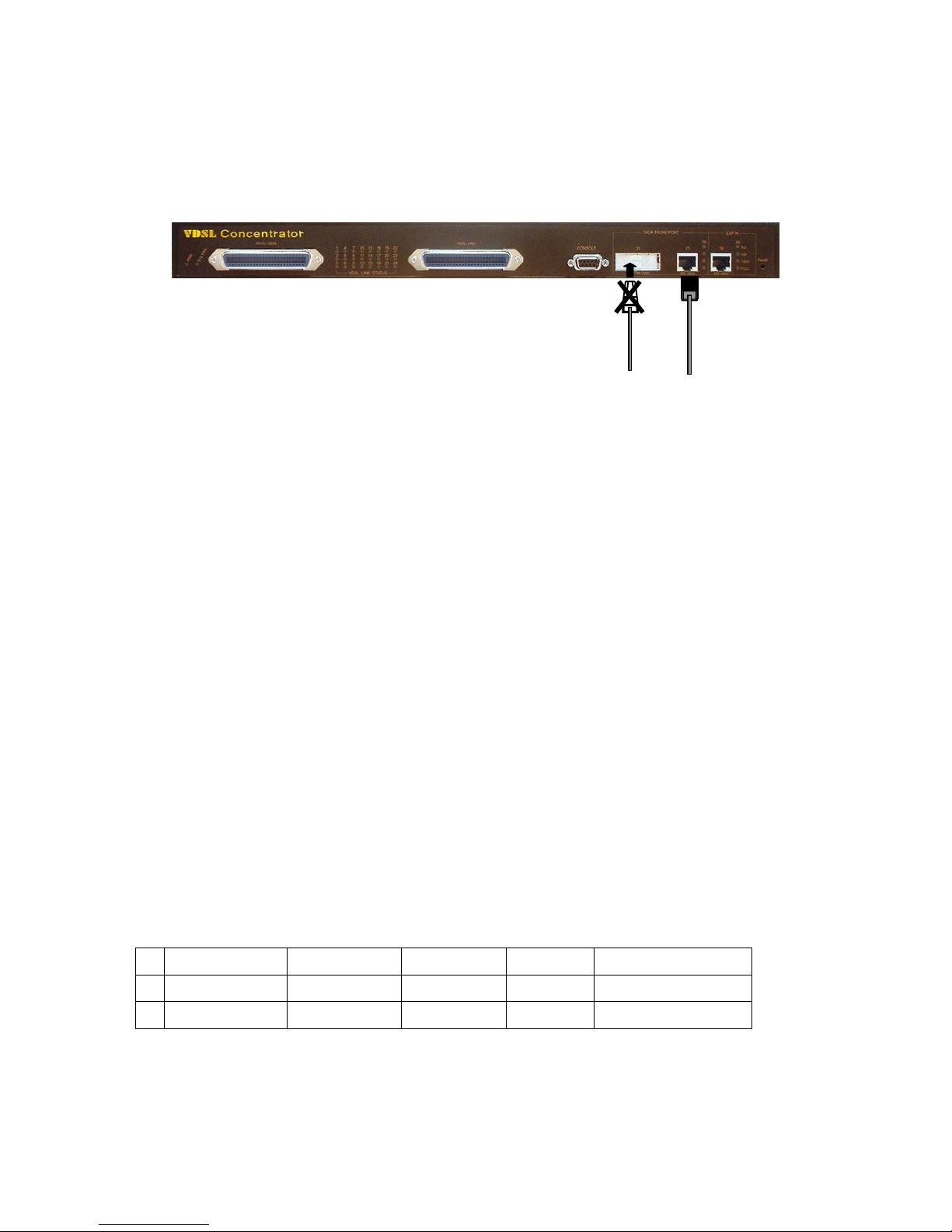

Normal GIGA port status default in copper (RJ45), if you want to change connect media to
fiber you must plug in GBIC fiber module.
First, make sure fiber to fiber connecting is ready, and another fiber device must power on first,
then reboot VRM01/24, that will be sensing and link that in Fiber optic mode.
GIGA port RJ-45 and GBIC can’t use in the same time,else that will be link in Copper
mode(default).
If you want to change GIGA port interface (RJ45 interface link change to
GBIC interface link or GBIC interface link change to RJ45 interface link), you must reboot system
again.
GBIC Fiber Optics
A gigabit interface converter (GBIC) is a transceiver that converts electric currents (digital
highs and lows) to optical signals, and optical signals to digital electric currents. The GBIC is
typically employed in fiber optic and Ethernet systems as an interface for high-speed
networking. The data transfer rate is 1.25 gigabit per second.
GBIC modules allow technicians to easily configure and upgrade electro-optical
communications networks. The typical GBIC transceiver is a plug-in module that supports
hot-plugging (it can be removed and replaced without turning off the system). The devices
are economical, because they eliminate the necessity for replacing entire boards at the
system level. Upgrading can be done with any number of units at a time, from an individual
module to all the modules in a system. GBIC(Gigabit Interface Converter), meet the Gigabit
Interface Converter specification Rev. 5.4 (MOD_DEF4) industry standard.
Mode Wavelength Bit Rate Voltage Power Margin
1 LX- Single Mode 1310nm 1.25Gbps 5V 10.5db(10KM)
2 SX- Multi Mode 850nm 1.25Gbps 5V 8.5db(550m)

VDSL SERIES CTC Union
9
LED Indications
The following describes the function of each LED indicator.
LEDs Status Descriptions
PWR.
(Power LED)
Steady
Green
This LED light is located at the left side on the front
panel. It will light up (ON) to show that the product is
receiving power. Conversely, no light (OFF) means the
product is not receiving power.
POST
(Power On Self
Tes t )
Steady
Green
Proceed function test to myself when power on.
ACT
(Receiving
LEDs)
Steady
Green
Flashing
A
ct Led if flashing to show data on Receiving status
Speed100
Speed1000
(Speed LEDs)
Steady
Yellow
Indicates that communications have been set 100 or
1000 Mbps. Each port on the VRM01/24 is assigned an
LED light for 100 or 1000 Base-TX connecting, else on
10M speed.
Steady
Yellow
Indicates that communications have been set to
full-duplex operation for the indicated port
FD
(Full-Duplex
LEDs ) Steady
Yellow
The indicator lights up working in Full Duplex
A
nd light down working in Half Duplex
LINK LEDs Steady
Green
RJ21 LED is lit up to show “Link”. The indicator both
CO and CE side connecting OK, and light down which
Meaning is no connecting.

VDSL SERIES CTC Union
10
Rear Panel
The following figure shows the rear panel

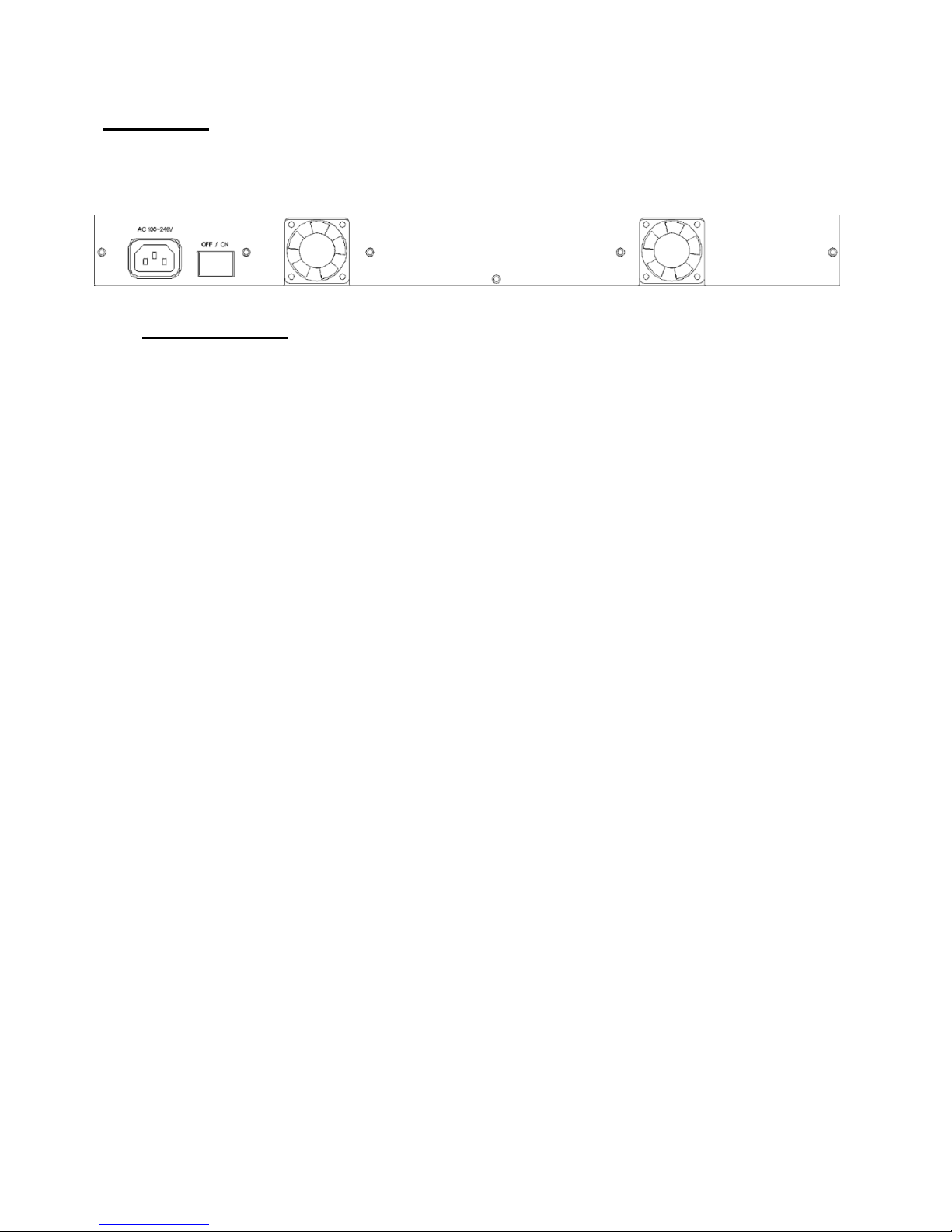

Figure Chapter 2.3 Rear Panel
AC Power Socket
The power cord should be plug into this socket. The AC Socket accepts AC power 100 to
240 voltage.

VDSL SERIES CTC Union
11
3.Installation
Hardware Installation
This chapter describes how to install the VRM01/24. To established network connection.
You may install the VRM01/24 on any level surface (table, shelf, 19 inch rack or wall
mounting). However, please take note of the following minimum site requirements before
you begin.
Pre-Installation Requirements
Before you start actual hardware installation, make sure you can provide the right operating
environment, including power requirements, sufficient physical space, and proximity to other
network devices that are to be connected. Verify the following installation requirement:
Power requirements: AC 100V to 240 V at 50 to 60 Hz.
The Switch power supply automatically adjusts to the input voltage level.
 The VRM01/24 should be located in a cool dry place, with at least 10cm/4in of space at
the front and back for ventilation.
 Place the VRM01/24 out of direct sunlight, and away from heat sources or areas with a
high amount of electromagnetic interference.
 Check if network cables and connectors needed for installation are available.
General Rules
Before making any connections to the VRM01/24, note the following rules:
Ethernet Port (RJ-45)
All network connections to the VRM01/24 Ethernet port must be made using Category 5
UTP for 100Mbps and Category 3,4 UTP for 10Mbps.
No more than 100 meters (about 328 feet) of cabling may be use between VRM01/24s or
with HUB or an end node.
 VDSL Port (RJ-21)
All home network connections to the VDSL
1 X RJ-21 Cable (Male to Male)Using Pin 1 24.26 49.
RJ-21 Pin25 & 50 are not used.
Connecting the VRM01/24
The VRM01/24 has 2 x GIGA Ethernet Support full or half-duplex operation. The
transmission mode is using auto-negotiation. Therefore, the devices attached to these
ports must support auto-negotiation unless they will always operate at half duplex. If
transmissions must run at full duplex, but the attached device does not support
auto-negotiation, then you should upgrade this device to a newer version that supports

VDSL SERIES CTC Union
12
auto-negotiation.
Use “25” port connect to devices such as server, bridge or router. You can also cascade to
another compatible MUX or hub by connecting the 26 port to the other device.
“Port 25” support 10/100/1000Giga RJ-45/GBIC(fiber) Auto-Link. So you also can use Fiber
Optic wire connect to Port 25 GBIC side.
Connecting Ethernet Port
Ethernet Port “25” and “26” support auto MDI/MDIX.
You can connect the “25 or 26” port on the VRM01/24 to any device that uses a standard
network interface such as a Cable modem, ADSL modem, Ethernet Switch, workstation or
server, or also to a network interconnection device such as a bridge or router (depending on
the port type implemented).
Prepare straight through (or cross over) shielded or unshielded twisted-pair cables with
RJ-45 plugs on both ends. Use 100ΩCategory 5 cable for connections. Connect one end of
the cable to “25” port of the VRM01/24, and the other end to a standard RJ-45 station port
on cable modem, ADSL router, wireless bridge, etc. When inserting an RJ-45 plug, be sure
the tab on the plug clicks into position to ensure that it is properly seated.
Notes:
Make sure the length of twisted-pair cable is not over by 100 meters (328 feet).

VDSL SERIES CTC Union
13
Cascading Configuration
1. When cascading above two VRM01/24, the default setting are full duplex and 1000Mbps
for daisy-chain port.
2. VRM01/24 can cascade up to 4 Units like figure 3.1
3. IF you want cascade more than 4 units please use GIGA VLAN Switch to connect every
VRM01/24. Follow the figure 3.2
Figure Chapter 3.1 UP-Link Configuration
Figure Chapter 3.2 VLAN Hub UP-Link Configuration

VDSL SERIES CTC Union
14
Connecting VDSL Port
1. Prepare the network devices you wish to connect. Make sure you have installed suitable
VDSL Modem before making a connection to any of the VRM01/24 (1-24) station ports.
You also need to prepare 18 ~ 26 gauge one twist pair phone Line wiring with RJ-11
plugs at both ends.
2. Connect one end of the cable to the RJ-11 port of the Home Access network adapter,
and the other end to any available (1~24) station port on the VDSL. Every port
supports 10 Mbps connections. When inserting an RJ-11 plug, be sure the tab on the
plug clicks into position to ensure that it is properly seated.
Instead, use only twisted-pair cables with RJ-45 connectors that conform the FCC
standards.
Notes:
1. Be sure each twisted-pair cable (RJ-45) is not over 100 meters (328 feet).
2. VDSL port use 18 ~ 26 gauge phone wiring, 28 gauge or above is not recommended.
3. We advise using Category 5 cable for Cable Modem or router connections or to attach to
any high bandwidth device to avoid any confusion or inconvenience.

VDSL SERIES CTC Union
15
4. Management Configuration
4.0 In-Band Management
Console port (RS-232) Configuration
(Change IP Address By Terminal)
You can configure the product with the local serial console port, If one of the VDSL port is not in
use, you can disable it, that procedure is to connect a notebook computer to the RS-232 port,
then boot windows @95/98/ME/2000 system, and run “Hyper-terminal” program into terminal
window, and setup step are as follow.
1. Set “Bits per second” at 9600 to the content window.
2. Set “Flow control” at None
3. Connects PC with the concentrator, you will find login manual window on the screen then enter
Login name ”admin” ; password”123”
you will find user manual window on the screen of the following 

VDSL SERIES CTC Union
16
4. Operation Button:
Tab=Next Item ;
BackSpace=Previous Item
Enter=Select ItemSelect
5. Set IP Address: Please follow the following steps
(1) Choose Switch Static Configuration you can enter to Switch Configuration page
(2) Choose Administration Configuration you can enter to Device Configuration page

VDSL SERIES CTC Union
17
(3) Choose IP Configuration you can enter IP configuration page
(4) a. Choose Edit item to Change IP address, Subnet Mask and Getway
b. Use CTRL+A button to back actions choice
c. Choose Save item to save change and back to System Configuration page
d. Choose Previous Menu item to quit System Configuration page
e. Choose Main Menu item to quit VDSL SWITH Configuration page and back to Main
Manual
f. Choose Reboot System item
g. Choose Restart item to reboot your VDSL SWITCH.

VDSL SERIES CTC Union
18
4.1 Remote Network Management
4.1.1 IP Setting
You must setup the “IP Address” with the local serial console port (RS-232 Port), and then you
can use this IP address to control this VDSL Concentrator by Telnet and WEB. Or you can
change your computer’s IP domain same with VDSL SWITH. Then use the default IP address to
control this VDSL concentrator.
Remote control by “Telnet”
To enter Telnet, type the IP address of the VDSL switch to connect management system. And
type User name and password.
Default User Name: admin
Default Password: 123
Note:
1. For secretary we limit the user login number on Telnet and Console port. So you can’t
login Telnet and Console port in the same time. But you can login Telnet and Console port
in the different time.
2. WEB Login don’t have user login limit.
When you want to end console port control you must logout to leave. Otherwise you can’t
login by Telnet.
