CTEK MXS 5.0 Polar User manual

EN
EN • 3
MODE
RECOND
CONGRATULATIONS
to the purchase of your new professional switch mode battery charger. This charger is
included in a series of professional chargers from CTEK SWEDEN AB and represents the
latest technology in battery charging.
MODE
RECOND
CTEK COMFORT CONNECT
MAINS CABLE
H05RN-F Rubber
CHARGE CABLE
H05RN-F Rubber
SUPPLY PLUG*
*Supply plugs may differ to suit your wall socket.
CTEK COMFORT CONNECT – eyelet M6
CTEK COMFORT CONNECT – clamp
SMALL
BATTERY
PROGRAM
ERROR LAMP
NORMAL
BATTERY
PROGRAM
FULLY CHARGEDREADY TO USE
COLD
WEATHER
OPTION
RECOND
OPTION
POWER LAMP
CHARGING WITH MULTI OPTIONS
1. Connect the charger to the battery.
2. Connect the charger to the wall socket.
3. Press the MODE-button to select charging program.
SMALL BATTERY PROGRAM NORMAL BATTERY
PROGRAM
Continue to press the MODE-button to combine charging program with charging
options.
COLD WEATHER OPTION RECOND OPTION
Press the MODE-button several times until the desired combination of charging
program and options are lit.
4. Follow the 8-step display through the charging process.
The battery is ready to start the engine when STEP 4 is lit.
The battery is fully charged when STEP 7 is lit.
5. Stop charging at any time by disconnecting the mains cable from the wall socket.
MODE-BUTTON
MANUAL
HPN Rubber Cable
HPN Rubber Cable

4 • EN
BATTERY SIZE (Ah) TIME TO 80% CHARGED
2Ah 2h
8Ah 8h
20Ah 4h
60Ah 12h
110Ah 26h
READY TO USE
The table shows the estimated time for empty battery to 80% charge
CHARGING PROGRAMS AND OPTIONS
Press the MODE-button to select between the charging programs and to add charging
options. The LEDs will indicate which programs and options that are selected. The
selected program will be memorised and restarted next time the charger is connected.
The table explains the different Charging Programs:
Program Battery Size (Ah) Explanation
1.2–14Ah Small battery program, 0.8A
Use for smaller batteries.
14–160Ah Normal battery program, 5A
Use for normal sized batteries.
Charging Options
Option Explanation Temp range
Cold weather option
Use for charging at low temperatures. Cold weather
option increases charging voltage
-30°C–0°C
(-22ºF–32ºF)
RECOND
Recond option
Use to return energy to empty batteries. Recond
your battery once per year and after deep
discharge to maximise lifetime and capacity. The
Recond option adds STEP6 to the selected charging
program. Frequent use of the Recond program may
cause water loss in the batteries and reduce service
life of electronics. Contact your vehicle and battery
supplier for advice.
-30°C–+50°C
(-22ºF–122ºF)
ERROR LAMP
If the error lamp is lit, check the following:
1. Is the chargers positive lead connected to the battery´s
positive pole?
2. Is the charger connected to a 12V battery?
3. Has charging been interrupted in STEP 1, 2 or 5?
Restart the charger by pressing the MODE-button. If charging is still
being interrupted, the battery...
STEP 1: ...is seriously sulphated and may need to be replaced.
STEP 2: ...cannot accept charge and may need to be replaced.
STEP 5: ...cannot keep charge and may need to be replaced.
MODE
RECOND
POWER LAMP
If the power lamp is lit with a:
1. STEADY LIGHT
The mains cable is connected to the wall socket.
2. FLASHING LIGHT:
The charger has entered the energy save mode. This happens if the charger
isn´t connected to the battery in 2 minutes.

EN
EN • 5

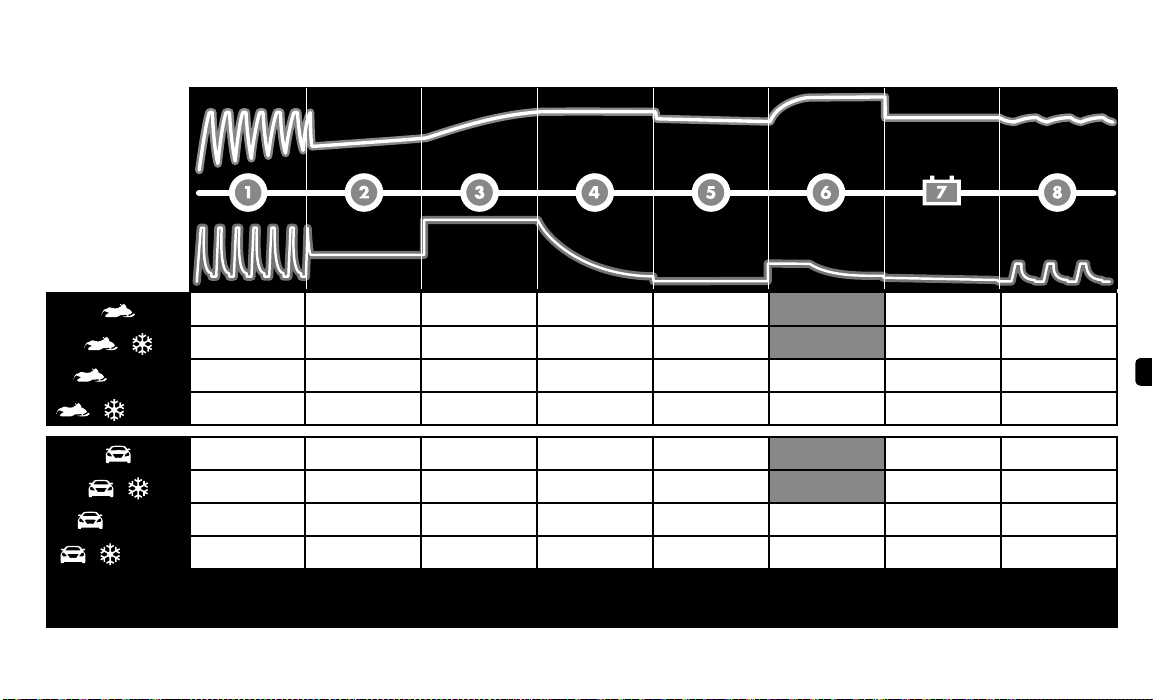

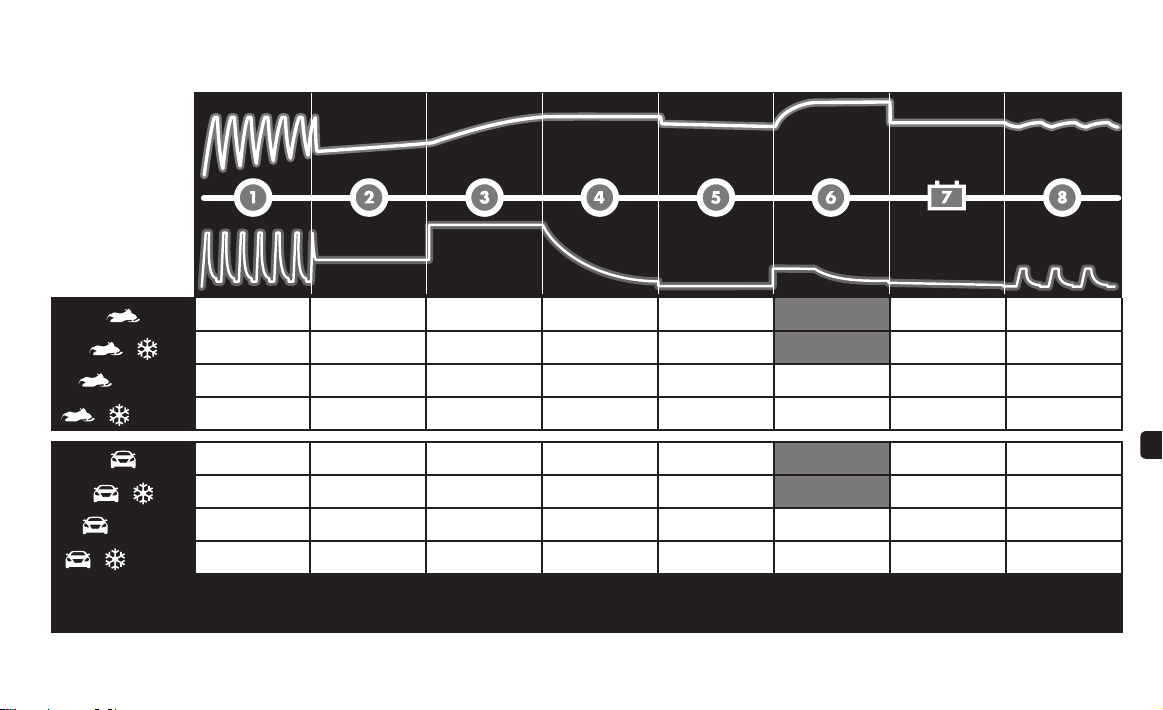

CHARGING PROGRAMS AND OPTIONS COMBINATIONS
DESULPHATION SOFT START BULK ABSORPTION ANALYSE RECOND FLOAT PULSE
Current (A) Voltage (V)
15.8V 0.8A until 12.6V Increasing voltage to
14.4V. 0.8A Declining current 14.4V Checks if voltage drops to 12V 13.6V 0.8A 12.7 V–14.4V 0.8–0.4A
+ 15.8V 0.8A until 12.6V Increasing voltage to
15.0V. 0.8A Declining current 15.0V Checks if voltage drops to 12V 13.6V 0.8A 12.7 V–15.0V 0.8–0.4A
+ RECOND 15.8V 0.8A until 12.6V Increasing voltage to
14.4V. 0.8A Declining current 14.4V Checks if voltage drops to 12V Max 15.8V 0.3A 13.6V 0.8A 12.7 V–14.4V 0.8–0.4A
+ +
RECOND
15.8V 0.8A until 12.6V Increasing voltage to
15.0V. 0.8A Declining current 15.0V Checks if voltage drops to 12V Max 15.8V 0.3A 13.6V 0.8A 12.7 V–15.0V 0.8–0.4A
15.8V 5A until 12.6V Increasing voltage to
14.4V. 5A Declining current 14.4V Checks if voltage drops to 12V 13.6V 5A 12.7 V–14.4V 5–2A
+ 15.8V 5A until 12.6V Increasing voltage to
15.0V. 5A Declining current 15.0V Checks if voltage drops to 12V 13.6V 5A 12.7 V–15.0V 5–2A
+
RECOND
15.8V 5A until 12.6V Increasing voltage to
14.4V. 5A Declining current 14.4V Checks if voltage drops to 12V Max 15.8V 1.5A 13.6V 5A 12.7 V–14.4V 5–2A
+ +
RECOND
15.8V 5A until 12.6V Increasing voltage to
15.0V. 5A Declining current 15.0V Checks if voltage drops to 12V Max 15.8V 1.5A 13.6V 5A 12.7 V–15.0V 5–2A
Limit: Max 8h Max 8h Max 20h Max 10h 3 minutes 30 min or 4h depending on
battery voltage
10 days
Charge cycle
restarts if voltage
drops
Charge cycle
restarts if voltage
drops

6 • EN
+
+
–
–
Comfort
Connect
MODE
RECOND

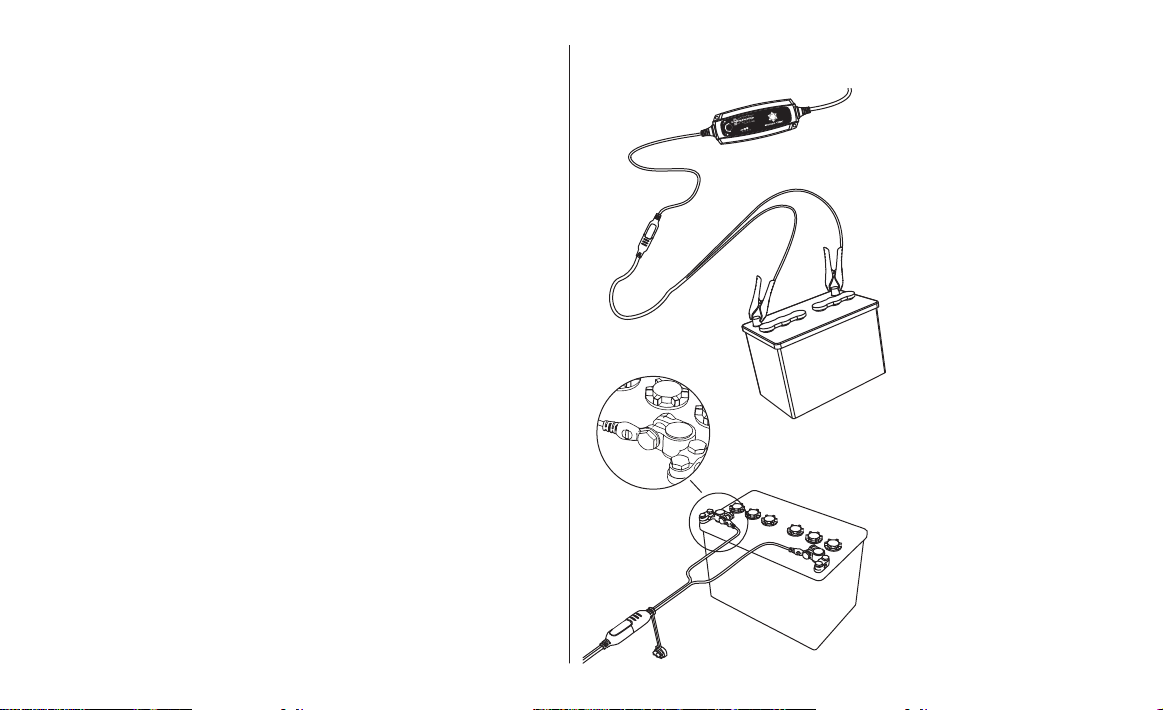

CONNECT AND DISCONNECT THE CHARGER TO A BATTERY
Comfort
Connect
Comfort
Connect
INFO
If the battery clamps are incorrectly con-
nected, the reverse polarity protection will
ensure that the battery and charger are
not damaged.
For batteries mounted inside a
vehicle
1. Connect the red clamp to the battery's
positive pole.
2. Connect the black clamp to the vehicle
chassis remote from the fuel pipe and
the battery.
3. Connect the charger to the wall socket
4. Disconnect the charger from the wall
socket before disconnecting the battery
5. Disconnect the black clamp before the
red clamp.
Some vehicles may have posi-
tively earthed batteries.
1. Connect the black clamp to the bat-
tery's negative pole.
2. Connect the red clamp to the vehicle
chassis remote from the fuel pipe and
the battery.
3. Connect the charger to the wall socket
4. Disconnect the charger from the wall
socket before disconnecting the battery
5. Disconnect the red clamp before the
black clamp.
CHARGING STEPS
STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead
plates of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents that charging proceeds with a
defect battery.
STEP 3 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that cannot hold charge may need to be
replaced.
STEP 6 RECOND
Choose the Recond option to add the Recond step to the charging process. During the
Recond step voltage increases to create controlled gassing in the battery. Gassing mixes
the battery acid and gives back energy to the battery.
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant voltage
charge.
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage
and gives a pulse when necessary to keep the battery fully charged.

EN
EN • 7
SAFETY
• The charger is designed for charging 12V lead-acid batteries.
• Check the charger cables prior to use. Ensure that no cracks have occurred in the
cables or in the bend protection. A charger with damaged cables must not be used.
A damaged cable must be replaced by a CTEK representative.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place the charger on top of the battery when charging.
• Always provide for proper ventilation during charging.
• Avoid covering the charger.
• A battery being charged could emit explosive gasses. Prevent sparks close to the
battery. When batteries are reaching the end of their lifecycle internal sparks may
occur.
• All batteries fail sooner or later. A battery that fails during charging is normally
taken care of by the chargers advanced control, but some rare errors in the battery
could still exist. Don’t leave any battery during charging unattended for a longer
period of time.
• Ensure that the cabling does not jam or comes into contact with hot surfaces or
sharp edges.
• Battery acid is corrosive. Rinse immediately with water if acid comes into contact
with skin or eyes, seek immediate medical advice.
• Always check that the charger has switched to STEP 7 before leaving the charger
unattended and connected for long periods. If the charger has not switched to STEP 7
within 50 hours, this is an indication of an error. Manually disconnect the charger.
• Batteries consume water during use and charging. For batteries where water can
be added, the water level should be checked regularly. If the water level is low add
distilled water.
• This appliance is not designed for use by young children or people who cannot
read or understand the manual unless they are under the supervision of a responsible
person to ensure that they can use the battery charger safely. Store and use the bat-
tery charger out of the reach of children, and ensure that children cannot play with
the charger.
• Connection to the mains supply must be in accordance with the national regula-
tions for electrical installations.
TECHNICAL SPECIFICATIONS
Charger model MXS 5.0 Polar
Model number 1063
Rated Voltage AC 220–240VAC, 50–60Hz
Charging voltage 14.4V, 15.0V, 15.8V
Min battery voltage 2.0V
Charging current 5A max
Current, mains 0.65A rms (at full charging current)
Back current drain* <1Ah/month
Ripple** <4%
Ambient temperature -30°C to +50°C, output power is reduced automatically
at high temperatures
Cables Rubber cables. Easy to handle down to -30°C
Charger type Eight step, fully automatic charging cycle
Battery types All types of 12V lead-acid batteries
(WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 1.2–110Ah up to 160Ah for maintenance
Dimensions 168 x 65 x 38mm (L x W x H)
Insulation class IP65
Weight 0.6kg
*) Back current drain is the current that drains the battery if the charger is not connected to
the mains. CTEK chargers has a very low back current.
**) The quality of the charging voltage and charging current is very important. A high cur-
rent ripple heats up the battery which has an aging eect on the positive electrode. High
voltage ripple could harm other equipment that is connected to the battery. CTEK battery
chargers produce very clean voltage and current with low ripple.
INFO
If the battery clamps are incorrectly con-
nected, the reverse polarity protection will
ensure that the battery and charger are
not damaged.
For batteries mounted inside a
vehicle
1. Connect the red clamp to the battery's
positive pole.
2. Connect the black clamp to the vehicle
chassis remote from the fuel pipe and
the battery.
3. Connect the charger to the wall socket
4. Disconnect the charger from the wall
socket before disconnecting the battery
5. Disconnect the black clamp before the
red clamp.
Some vehicles may have posi-
tively earthed batteries.
1. Connect the black clamp to the bat-
tery's negative pole.
2. Connect the red clamp to the vehicle
chassis remote from the fuel pipe and
the battery.
3. Connect the charger to the wall socket
4. Disconnect the charger from the wall
socket before disconnecting the battery
5. Disconnect the red clamp before the
black clamp.

8 • EN
SUPPORT
CTEK offers a professional custom support: www.ctek.com.
For latest revised user manual see www.ctek.com. By e-mail: [e-mail],
by telephone: [phone], by fax [phone].
By mail: CTEK SWEDEN AB, Rostugnsvägen 3, SE-776 70 VIKMANSHYTTAN,
SWEDEN.
VIKMANSHYTTAN, SWEDEN 2011-05-01
Jarl Uggla, President
CTEK SWEDEN AB
LIMITED WARRANTY
CTEK SWEDEN AB, issues this limited warranty to the original purchaser of this product.
This limited warranty is not transferable. The warranty applies to manufacturing faults
and material defects for 5 years from the date of purchase. The customer must return the
product together with the receipt of purchase to the point of purchase. This warranty is
void if the battery charger has been opened, handled carelessly or repaired by anyone
other than CTEK SWEDEN AB or its authorised representatives. One of the screw holes
in the bottom of the charger is sealed. Removing or damaging the seal will void the
warranty. CTEK SWEDEN AB makes no warranty other than this limited warranty and
is not liable for any other costs other than those mentioned above, i.e. no consequential
damages. Moreover, CTEK SWEDEN AB is not obligated to any other warranty other
than this warranty.
CTEK PRODUCTS ARE PROTECTED BY
2011-02-04
Patents Designs Trade marks
EP10156636.2 pending RCD 509617 CTM 669987
US12/780968 pending US D575225 CTM 844303
EP1618643 US D571179 CTM 372715
US7541778B2 US D580853 CTM 3151800
EP1744432 pending US D581356 CTM 1461716 pending
EP1483817 pending RCD 321216 CTM 1025831
SE524203 RCD 0 00911839 CTM 405811
US7005832B2 RCD 081418 CTM 830545751 pending
EP1716626 pending R C D 0 01119 911- 0 0 01 CTM 1475420 pending
SE526631 R C D 0 01119 911- 0 0 0 2 CTM 1935061 pending
US7638974B2 RCD 081244 CTM 1042686
EP1903658 pending RCD 321198 CTM 1082141 pending
EP09180286.8 pending RCD 321197 CTM 2010004118 pending
US12/646405 pending ZL 200830120184.0 CTM 4-2010-500516
pending
EP1483818 ZL 200830120183.6 CTM 410713
SE1483818 RCD 000835541-0001 CTM 2010/05152
US7629774B2 RCD 000835541-0002 CTM 766840 pending
EP09170640.8 pending US D596126
US12/564360 pending US D596125
SE528232 RCD 001705138-0001
SE525604 US D29/378528 pending
RCD 201030618223.7
pending
20016444A

SE
SE • 39
MODE
RECOND
GRATULERAR
till köpet av din nya professionella batteriladdare. Laddaren ingår i en serie profes-
sionella laddare från CTEK SWEDEN AB och representerar den senaste tekniken inom
batteriladdning.
MODE
RECOND
CTEK COMFORT CONNECT
NÄTSLADD
H05RN-F Gummi
LADDNINGSKABEL
H05RN-F Gummi
NÄTKONTAKT*
* Nätkontakten kan se olika ut för att passa i vägguttaget.
CTEK COMFORT CONNECT – eyelet M6
CTEK COMFORT CONNECT – clamp
PROGRAM
FÖR SMÅ
BATTERIER
VARNINGSLAMPA
PROGRAM
FÖR NORMAL-
STORA
BATTERIER
FULLADDAT
KLART ATT
ANVÄNDA
ALTERNATIV
FÖR KYLA REKONDITIONERING
POWER-
LAMPA
LADDA MED MULTI-ALTERNATIV
1 . Anslut laddaren till batteriet.
2 . Anslut laddaren till vägguttaget.
3 . Välj program för laddning med MODE-knappen.
PROGRAM FÖR SMÅ
BATTERIER
PROGRAM FÖR
NORMALSTORA BATTERIER
Tryck flera gånger på MODE-knappen till önskad kombination av program för ladd-
ning och laddningsalternativ.
ALTERNATIV FÖR KYLA REKONDITIONERING
Tryck flera gånger på MODE-knappen till önskad kombination av program för ladd-
ning och laddningsalternativ tänds.
4 . Följ laddningsprocessen på åttastegsdisplayen.
Batteriet är klart för start av motorn när STEG 4 tänds.
Batteriet är fulladdat när STEG 7 tänds.
5 . Laddningen kan avbrytas när som helst genom att dra ur nätkabeln från vägguttaget.
FUNKTIONS-
VÄLJARE
BRUKSANVISNING
HPN Gummikabel
HPN Gummikabel
20016444B MXS 5.0 Polar, Manual, Print file_001.indd 39 2011-10-27 16:35:03

40 • SE
BATTERISTORLEK (Ah) TID TILL 80 % LADDAT
2 Ah 2 tim
8 Ah 8 tim.
20 Ah 4 tim.
60 Ah 12 tim
110 Ah 26 tim.
KLART ATT ANVÄNDA
Tabellen visar den beräknade tiden det tar att ladda urladdade batterier till 80 %.
PROGRAM FÖR LADDNING OCH ALTERNATIV
Välj program för laddning och alternativ med MODE-knappen. Lamporna visar vilket
program och vilka alternativ som valts. Laddaren kommer ihåg valt program och startas i
det valda läget nästa gång den ansluts.
Tabellen förklarar de olika programmen för laddning:
Program Batteristorlek
(Ah) Förklaring
1,2–14 Ah Program för små batterier, 0,8 A
Laddning av små batterier.
14–160 Ah Program för normalstora batterier,
5 A
Laddning av normalstora batterier
Laddningsalternativ
Alternativ Förklaring Temperatur-
område
Alternativ vid kyla
För laddning vid låga temperaturer.
Laddspänningen ökas med detta alternativ
-30°C–0°C
(-22ºF–32ºF)
RECOND
Rekonditionering
För återställning av tomma batterier.
Rekonditionera batteriet en gång om året efter
djupurladdning för att maximera livslängden och
kapaciteten. Rekonditioneringen lägger till STEG
6 till valt laddningsprogram. Frekvent användning
av Recond-programmet kan orsaka vattenförlust
i batteriet och förkorta elektronikens livslängd.
Kontakta din återförsäljare av fordon och batteri
om du behöver råd.
-30°C–+50°C
(-22ºF–122ºF)
VARNINGSLAMPA
Kontrollera följande om varningslampan lyser:
1. Är pluskabeln på laddaren kopplad till pluspolen på
batteriet?
2. Är laddaren ansluten till ett 12 V-batteri?
3. Har laddningsprocessen avbrutits under STEG 1, 2 eller 5?
Starta om laddaren med MODE-knappen. Om laddningsprocessen
fortfarande avbryts är batteriet ...
STEG 1: ... svårt sulfaterat och kan behöva bytas ut
steg 2: ... inte laddningsbart och kan behöva bytas ut.
STEG 5: ... utan förmåga att bibehålla laddning och kan behöva bytas ut.
MODE
RECOND
POWER-LAMPA
Om strömlampan:
1. LYSER STADIGT
Sitter nätkontakten i vägguttaget.
2. BLINKAR:
Har laddaren gått in i strömsparläge. Det sker om laddaren varit bortkopp-
lad från batteriet i två minuter.
20016444B MXS 5.0 Polar, Manual, Print file_001.indd 40 2011-10-27 16:35:06

SE
SE • 41
KOMBINATIONER AV PROGRAM FÖR LADDNING OCH ALTERNATIV
DESULPHATION SOFT START BULK ABSORPTION ANALYSE RECOND FLOAT PULSE
Ström (A) Spänning (V)
15,8 V 0,8 A till 12,6 V Ökande spänning till
14,4 V. 0,8 A Avtagande ström 14,4 V Kontrollerar om spän- ningen faller till 12 V 13,6 V 0,8 A 12,7 V-14,4 V 0,8-0,4 A
+ 15,8 V 0,8 A till 12,6 V Ökande spänning till
15,0 V. 0,8 A Avtagande ström 15,0 V Kontrollerar om spän- ningen faller till 12 V 13,6 V 0,8 A 12,7 V-15,0 V 0,8-0,4 A
+
RECOND
15,8 V 0,8 A till 12,6 V Ökande spänning till
14,4 V. 0,8 A Avtagande ström 14,4 V Kontrollerar om spän- ningen faller till 12 V Max 15,8 V 0,3 A 13,6 V 0,8 A 12,7 V-14,4 V 0,8-0,4 A
+ + RECOND 15,8 V 0,8 A till 12,6 V Ökande spänning till
15,0 V. 0,8 A Avtagande ström 15,0 V Kontrollerar om spän- ningen faller till 12 V Max 15,8 V 0,3 A 13,6 V 0,8 A 12,7 V-15,0 V 0,8-0,4 A
15,8 V 5 A till 12,6 V Ökande spänning till
14,4 V. 5 A Avtagande ström 14,4 V Kontrollerar om spän- ningen faller till 12 V 13,6 V 5 A 12,7 V-14,4 V 5-2 A
+ 15,8 V 5 A till 12,6 V Ökande spänning till
15,0 V. 5 A Avtagande ström 15,0 V Kontrollerar om spän- ningen faller till 12 V 13,6 V 5 A 12,7 V-15,0 V 5-2 A
+ RECOND 15,8 V 5 A till 12,6 V Ökande spänning till
14,4 V. 5 A Avtagande ström 14,4 V Kontrollerar om spän- ningen faller till 12 V Max 15,8 V 1,5 A 13,6 V 5 A 12,7 V-14,4 V 5-2 A
+ +
RECOND
15,8 V 5 A till 12,6 V Ökande spänning till
15,0 V. 5 A Avtagande ström 15,0 V Kontrollerar om spän- ningen faller till 12 V Max 15,8 V 1,5 A 13,6 V 5 A 12,7 V-15,0 V 5-2 A
Strömgräns: Max 8 tim. Max 8 tim. Max. 20 tim. Max 10 tim. 3 minuter 30 min. eller 4 tim. beroende på
batterispänning
10 dagar
Laddningscykeln
återstartas om
spänningen faller
Laddningscykeln
återstartas om
spänningen faller
20016444B MXS 5.0 Polar, Manual, Print file_001.indd 41 2011-10-27 16:35:11

42 • SE
+
+
–
–
Comfort
Connect
MODE
RECOND
TILL- OCH FRÅNKOPPLING AV LADDAREN
Comfort
Connect
Comfort
Connect
INFO
Om batteriklämmorna kopplats felaktigt
ser polvändningsskyddet till att batteriet
och laddaren inte skadas.
För batterier som sitter i fordonet
1 . Anslut den röda klämman till batteriets
pluspol.
2 . Anslut den svarta klämman till fordon-
schassit en bit bort från bränsleled-
ningen och batteriet.
3 . Sätt i laddarens nätkontakt i
vägguttaget.
4 . Koppla bort laddaren från vägguttaget
innan du kopplar bort den från batteriet
5 . Lossa den svarta klämman före den
röda.
Vissa fordon kan ha plusjordade
batterier.
1 . Anslut den svarta klämman till batteriets
minuspol.
2 . Anslut den röda klämman till fordon-
schassit en bit bort från bränsleled-
ningen och batteriet.
3 . Sätt i laddarens nätkontakt i
vägguttaget.
4 . Koppla bort laddaren från vägguttaget
innan du kopplar bort den från batteriet
5 . Lossa den röda klämman före den
svarta.
LADDNINGSSTEG
STEG 1 DESULPHATION (AVSULFATERING)
Upptäcker om batteriet är sulfaterat. Avsulfatering med pulser tar bort sulfater från
blyplattorna och återställer batteriets kapacitet.
STEG 2 SOFT START
Provar om batteriet kan ta emot laddning. Det här steget förhindrar att ett defekt batteri
laddas.
STEG 3 BULK (HUVUDLADDNING)
Laddar med maximal ström tills batteriet har nått 80 % av sin kapacitet.
STEG 4 ABSORPTION
Laddning med avtagande ström tills batteriet nått 100 % av sin kapacitet.
STEG 5 ANALYSE (ANALYS)
Testar om batteriet kan bibehålla laddningen. Batterier som inte kan behålla laddningen
kan behöva bytas ut.
STEG 6 RECOND (rekonditionering)
Välj Recond-programmet för att lägga till Recond-läget till laddningsprocessen. Under
rekonditioneringen ökas spänningen för att skapa kontrollerad gasbildning i batteriet.
Under gasningen rörs batterisyran om och batteriets energi återställs.
STEG 7 FLOAT
Håller batterispänningen på maximal nivå genom att ladda med konstant spänning.
STEG 8 PULSE
Upprätthåller batteriets kapacitet till 95–100 %. Laddaren övervakar batterispänningen
och avger pulser vid behov så att batteriet hålls fulladdat.
20016444B MXS 5.0 Polar, Manual, Print file_001.indd 42 2011-10-27 16:35:13
