CUES K2 Instruction Manual
3600 Rio Vista Avenue
Orlando, Florida 32805
CUES K/K SCREEN OPERATIONS
LAMP II WITH MINI AND/OR MICRO PAN & TILT CAMERAS
P/N LM912, v. 05.01.20
CUES
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
P/N LM912 - v051020
2
XBOX CONTROLLER FUNCTIONS
The Xbox 360 Controller functions are identical to those of the Logitech Gamepad, aside from the exceptions shown below.
1
2
. ‘GUIDE’ button: To turn the controller on, press and hold down this button until the ring of LEDs around it begin
ashing. The ashing will stop, and the LED in the top-left quadrant will remain lit when the controller is connected
to the system.
. The two‘CONNECT’ buttons (one on the wireless receiver and one on the controller): To connect the controller to
the system,perform the following steps.NOTE: This is only necessary if the ring of LEDs around the ‘GUIDE’
button are ashing continuously.
a. Make sure that the wireless receiver is plugged into a USB port on the K/K and its LED is lit.
b. Press and hold down the ‘CONNECT’ button on the wireless receiver until its LED begins ashing.
c. Press and hold down the ‘CONNECT’ button on the controller until the ring of LEDs around the ‘GUIDE’
button start spinning. The controller is connected to the system when the LEDs stop spinning, ash a few
times, and the one in the top-left quadrant remains lit.
Several wired and wireless controllers will work with the system and may be available in a critical situation from a local electronics
vendor, such as a Radio Shack, Best Buy or Walmart. However, only controllers purchased through CUES will have labels and
are guaranteed to have been tested with the system.
The controllers that will work with the K/K:
• Wired Logitech Dual-Action
• Wired Logitech RumblePad
• Wired Microsoft Xbox
• Wireless Logitech RumblePad
• Wireless Microsoft Xbox
Note that this also gives the priority that controllers are given, in the event that more than one is connected to the K/K at
a time. (It’s common for customers to have both a wireless and a wired controller available. If the batteries go dead on the
wireless, the wired controller can still control the transporter, camera and lights). The system will read the highest priority
controller if more than one is connected at a time. Every two seconds the system detects if any controller has been connected
or disconnected and determines which controller should be read from.
• Logitech Wireless F710
• Logitech Wired F310
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
P/N LM912 - v051020

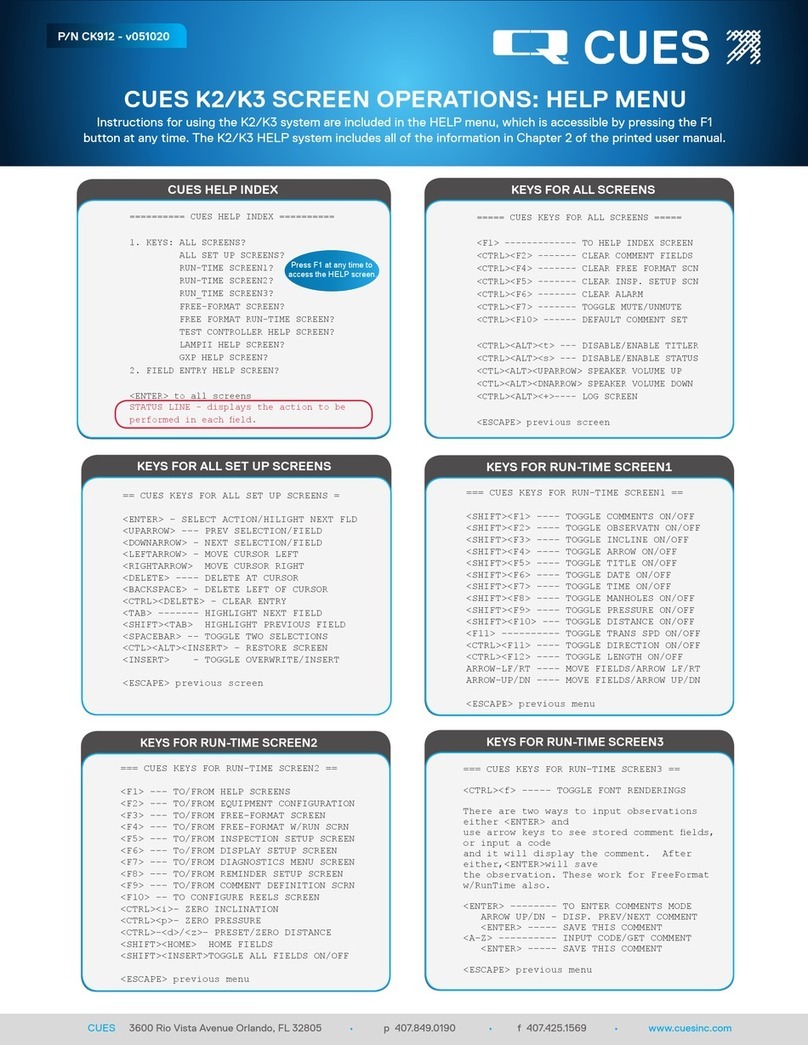

CUES K/K SCREEN OPERATIONS: HELP MENU
Instructions for using the K2/K3 system are included in the HELP menu, which is accessible by pressing the F1
button at any time. The K2/K3 HELP system includes all of the information in Chapter 2 of the printed user manual.
KEYS FOR ALL SCREENS
KEYS FOR ALL SET UP SCREENS KEYS FOR RUN-TIME SCREEN
KEYS FOR RUN-TIME SCREEN
========== CUES HELP INDEX ==========
1. KEYS: ALL SCREENS?
ALL SET UP SCREENS?
RUN-TIME SCREEN1?
RUN-TIME SCREEN2?
RUN_TIME SCREEN3?
FREE-FORMAT SCREEN?
FREE FORMAT RUN-TIME SCREEN?
TEST CONTROLLER HELP SCREEN?
LAMPII HELP SCREEN?
GXP HELP SCREEN?
2. FIELD ENTRY HELP SCREEN?
<ENTER> to all screens
STATUS LINE - displays the action to be
performed in each eld.
Press F1 at any time to
access the HELP screen.
CUES HELP INDEX
===== CUES KEYS FOR ALL SCREENS =====
<F1> ------------- TO HELP INDEX SCREEN
<CTRL><F2> ------- CLEAR COMMENT FIELDS
<CTRL><F4> ------- CLEAR FREE FORMAT SCN
<CTRL><F5> ------- CLEAR INSP. SETUP SCN
<CTRL><F6> ------- CLEAR ALARM
<CTRL><F7> ------- TOGGLE MUTE/UNMUTE
<CTRL><F10> ------ DEFAULT COMMENT SET
<CTRL><ALT><t> --- DISABLE/ENABLE TITLER
<CTRL><ALT><s> --- DISABLE/ENABLE STATUS
<CTL><ALT><UPARROW> SPEAKER VOLUME UP
<CTL><ALT><DNARROW> SPEAKER VOLUME DOWN
<CTRL><ALT><+>---- LOG SCREEN
<ESCAPE> previous screen
== CUES KEYS FOR ALL SET UP SCREENS =
<ENTER> - SELECT ACTION/HILIGHT NEXT FLD
<UPARROW> --- PREV SELECTION/FIELD
<DOWNARROW> - NEXT SELECTION/FIELD
<LEFTARROW> - MOVE CURSOR LEFT
<RIGHTARROW> MOVE CURSOR RIGHT
<DELETE> ---- DELETE AT CURSOR
<BACKSPACE> - DELETE LEFT OF CURSOR
<CTRL><DELETE> - CLEAR ENTRY
<TAB> ------- HIGHLIGHT NEXT FIELD
<SHIFT><TAB> HIGHLIGHT PREVIOUS FIELD
<SPACEBAR> -- TOGGLE TWO SELECTIONS
<CTL><ALT><INSERT> - RESTORE SCREEN
<INSERT> - TOGGLE OVERWRITE/INSERT
<ESCAPE> previous screen
=== CUES KEYS FOR RUN-TIME SCREEN1 ==
<SHIFT><F1> ---- TOGGLE COMMENTS ON/OFF
<SHIFT><F2> ---- TOGGLE OBSERVATN ON/OFF
<SHIFT><F3> ---- TOGGLE INCLINE ON/OFF
<SHIFT><F4> ---- TOGGLE ARROW ON/OFF
<SHIFT><F5> ---- TOGGLE TITLE ON/OFF
<SHIFT><F6> ---- TOGGLE DATE ON/OFF
<SHIFT><F7> ---- TOGGLE TIME ON/OFF
<SHIFT><F8> ---- TOGGLE MANHOLES ON/OFF
<SHIFT><F9> ---- TOGGLE PRESSURE ON/OFF
<SHIFT><F10> --- TOGGLE DISTANCE ON/OFF
<F11> ---------- TOGGLE TRANS SPD ON/OFF
<CTRL><F11> ---- TOGGLE DIRECTION ON/OFF
<CTRL><F12> ---- TOGGLE LENGTH ON/OFF
ARROW-LF/RT ---- MOVE FIELDS/ARROW LF/RT
ARROW-UP/DN ---- MOVE FIELDS/ARROW UP/DN
<ESCAPE> previous menu
=== CUES KEYS FOR RUN-TIME SCREEN2 ==
<F1> --- TO/FROM HELP SCREENS
<F2> --- TO/FROM EQUIPMENT CONFIGURATION
<F3> --- TO/FROM FREE-FORMAT SCREEN
<F4> --- TO/FROM FREE-FORMAT W/RUN SCRN
<F5> --- TO/FROM INSPECTION SETUP SCREEN
<F6> --- To/FROM DISPLAY SETUP SCREEN
<F7> --- TO/FROM DIAGNOSTICS MENU SCREEN
<F8> --- TO/FROM REMINDER SETUP SCREEN
<F9> --- TO/FROM COMMENT DEFINITION SCRN
<F10> -- TO CONFIGURE REELS SCREEN
<CTRL><i>- ZERO INCLINATION
<CTRL><p>- ZERO PRESSURE
<CTRL>-<d>/<z>- PRESET/ZERO DISTANCE
<SHIFT><HOME> HOME FIELDS
<SHIFT><INSERT>TOGGLE ALL FIELDS ON/OFF
<ESCAPE> previous menu
KEYS FOR RUN-TIME SCREEN
=== CUES KEYS FOR RUN-TIME SCREEN3 ==
<CTRL><f> ----- TOGGLE FONT RENDERINGS
There are two ways to input observations
either <ENTER> and
use arrow keys to see stored comment elds,
or input a code
and it will display the comment. After
either,<ENTER>will save
the observation. These work for FreeFormat
w/RunTime also.
<ENTER> -------- TO ENTER COMMENTS MODE
ARROW UP/DN - DISP. PREV/NEXT COMMENT
<ENTER> ----- SAVE THIS COMMENT
<A-Z> ---------- INPUT CODE/GET COMMENT
<ENTER> ----- SAVE THIS COMMENT
<ESCAPE> previous menu
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
P/N LM912 - v051020
KEYS FOR FREE-FORMAT SCREEN
== CUES KEYS FOR FREE-FORMAT SCREEN =
<ENTER> ----- CARRIAGE RETURN/LINE FEED
<UPARROW> --- MOVE CURSOR UP
<DOWNARROW> - MOVE CURSOR DOWN
<LEFTARROW> - MOVE CURSOR LEFT
<RIGHTARROW> MOVE CURSOR RIGHT
<DELETE> ---- DELETE SELECTION AT CURSOR
<BACKSPACE> - DELETE LEFT OF CURSOR
<TAB> ------- SPACE TO NEXT TAB STOP
<CTRL><b> --- BEGIN TEXT BLOCK SELECTION
<CTRL><c> --- COPY SELECTED TEXT BLOCK
<CTRL><x> --- CUT SELECTED TEXT BLOCK
<CTRL><v> --- PASTE SAVED TEXT BLOCK
<CTRL><f> --- TOGGLE FONT RENDERINGS
<ESCAPE> previous menu
KEYS FOR FREE-FORMAT WITH RUN SCREEN
=== CUES FREE FORMAT W/RUN SCREEN ===
<CTRL><f> ---- TOGGLE FONT RENDERINGS
<UPARROW> ---- MOVE RUN-TIME GROUP UP
<DOWNARROW> -- MOVE RUN-TIME GROUP DOWN
<LEFTARROW> -- MOVE RUN-TIME GROUP LEFT
<RIGHTARROW> - MOVE RUN-TIME GROUP RIGHT
<SHIFT><F2> -- TOGGLE OBSERVATION ON/OFF
<SHIFT><F4> -- TOGGLE ARROW ON/OFF
<ESCAPE> previous menu
CUES TEST CONTROLLER HELP
===== CUES TEST CONTROLLER HELP =====
The following hot keys are only valid
on the Test Controller screen.
<CTRL><ALT><j>- SAVE XPORT JOYSTICK OFFS
• Press <CTRL><ALT><j> to save the values
ofthegamepadtransporteranalogscks.The
negavesofthesevalueswillthenbeaddedto
allgamepadtransporteranalogsckvaluesunl
thenextpowercycleofthesystem.Thisfeature
istobeusedonlyifthegamepad’sanalogscks
areexhibing‘creep’,wherebywhenatrest,there
valuesarenotcloseenoughtozero.
CUES GXP HELP
=========== CUES GXP HELP ===========
<CTRL><f> ------ TOGGLE FONT RENDERINGS
<ALT><CTRL><g> - TO/FROM EQUIPM CONFGRTN
<F1> --- HELP
<ESC> --- MAIN MENU
• Press<CTRL><f>tocyclethroughthefont
renderings.Therearefourselecons:EBW,
HBW,WWB,BBW.Thethreeleersare
abbreviaonsforthebackgroundcolor,outline
color and character color used for the text
thatisoverlaidonthevideodisplay.Erefersto
external,meaningthatthevideoispassedthrough
(transparent).Wreferstowhite,Breferstoblack
andHreferstohalf-tone.
• Press <ALT><CTRL><g> to move to/from the
EquipmentConguraonscreen.
• Press<F1>todisplaytheGXPHelpscreen.
• Press<ESC>tomovetothemainmenu.
CUES K/K SCREEN OPERATIONS: HELP MENU
Instructions for using the K2/K3 system are included in the HELP menu, which is accessible by pressing the F1
button at any time. The K2/K3 HELP system includes all of the information in Chapter 2 of the printed user manual.
CUES LAMP II HELP
=========== CUES LAMPII HELP ===========
The following hot keys are only valid
when the LAMPII Transporter/Camera are
being used.
<ALT><F10> ----- TOGGLE LATERAL DISTANCE
<ALT><CTRL><v> - TOGGLE VIEW MAIN/LAMPII
<ALT><d> ------- PRESET LATERAL DISTANCE
<ALT><z> ------- ZERO LATERAL DISTANCE
The following only work with the Micro
Pan & Tilt
<SHUTTER>+<DPAD +/-> Raise/Lower oods
<IRIS>+<DPAD +/-> Raise/Lower spots
<ESCAPE> previous menu
CUES CUTTER HELP
========= CUES KEYS FOR CUTTER ========
Left joystick vert : UP/DN CUT
Right joystick horz : CCW/CW CUT
Right joystick vert:FWD/REV CUT DRV
IRIS+DPAD +/- : Raise/lower UP/DN CUT
SHUTTR+DPAD +/- : Raise/lower CCW CUT
FOCUS+DPAD +/- : Raise/lower FWD/REV CUT
LIGHTS+DPAD +/- :Raise/lower ood lgts
LIGHTS+DPAD 0/1 : Raise/lower spot lgts
DIAGNOSTICS+DPAD +/- : Pan up/down
ZOOM+DPAD +/- Focus near/far
Right joystick button : Pan home
VIEW : Toggle camera view
LIFT : Toggle btwen cut/drive on FWD/REV
F11 : Toggle display of cut speed %
<ESCAPE> previous menu
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
P/N LM912 - v051020
COLOR CODES
BLACK -
Works in standard mainline mode.
BLUE -
Works only when in lateral mode
(using a LAMP II system).
GREEN -
Works when using a Mini Pan &
Tilt Camera when in lateral mode.
PRESS TO TOGGLE BETWEEN THE FRONT
VIEW, LATERAL, AND REARVIEW CAMERAS
TURNS THE FUNCTION ON
TURNS THE FUNCTION OFF
MINUS BUTTON - USE SIMULTANEOUSLY
WITH DIFFERENT BUTTONS TO PERFORM
VARIOUS FUNCTIONS
PLUS BUTTON - USE SIMULTANEOUSLY
WITH DIFFERENT BUTTONS TO PERFORM
VARIOUS FUNCTIONS
PRESS IN COMBINATION WITH THE DPAD + TO RAISE THE CAMERA LIFT
PRESS IN COMBINATION WITH THE DPAD - TO LOWER THE CAMERA LIFT
PRESS IN COMBINATION WITH THE DPAD 1 TO SAVE THE CRUISE
CONTROL VOLTAGES
LAMP II IN LATERAL MODE WITH MPT CAMERA: PRESSING THE LIFT
BUTTON WILL CAUSE THE CAMERA TO PERFORM AN AUTOMATED
JOINT INSPECTION.
USE THE JOYSTICK TO MOVE THE TRANSPORTER.
PRESS TO STOP THE TRANSPORTER.
LAMP II IN LATERAL MODE: THE TRANSPORTER
VOLTAGE IS REDUCED DURING LATERAL
INSPECTION.
CUES LOGITECH
GAME PAD FUNCTIONS
WHEN USING A CUES TRANSPORTER
AND/OR LAMP II & MINI PAN & TILT CAMERA
LAMP II IN LATERAL MODE WITH MPT
CAMERA: USE THE JOYSTICK TO MOVE THE MINI
PAN & TILT CAMERA. PRESS TO MOVE THE MINI
PAN & TILT CAMERA TO THE HOME POSITION.
LAMP II IN LATERAL MODE
WITH MPT CAMERA: WHILE
PRESSING THE FOCUS
BUTTON, SIMULTANEOUSLY
PRESS THE PLUS OR MINUS
BUTTONS TO FOCUS THE
MINI PAN AND TILT CAMERA
NEAR/FAR.
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
P/N LM912 - v051020
CUES LOGITECH
GAME PAD FUNCTIONS
WHEN USING A CUES TRANSPORTER
AND/OR LAMP II & MINI PAN & TILT CAMERA
PRESS IN COMBINATION WITH THE DPAD 1 TO TURN CRUISE CONTROL ON
PRESS IN COMBINATION WITH THE DPAD 0 TO TURN CRUISE CONTROL OFF
PRESS IN COMBINATTION WITH THE DPAD + TO RAISE THE CRUISE CONTROL VOLTAGE
PRESS IN COMBINATION WITH THE DPAD - TO LOWER THE CRUISE CONTROL VOLTAGE
LAMP II IN LATERAL MODE WITH MPT CAMERA: PRESSING THE CRUISE BUTTON
WHILE MOVING THE CAMERA JOYSTICK WILL MOVE THE MAINLINE CAMERA.
LAMP II IN LATERAL MODE: PRESS THE REEL BUTTON TO RETRACT THE LATERAL
CAMERA (NOTE: REEL FUNCTIONS DISABLED). SPEED ALTERNATES BETWEEN
FAST AND SLOW WITH EACH PRESS.
WHILE PRESSING THE REEL BUTTON, SIMULTANEOUSLY PRESS THE PLUS OR MINUS
BUTTON TO MOVE THE REEL FASTER / SLOWER SPEED
PRESS THE REEL AND “ON” BUTTONS SIMULTANEOUSLY FOR PAYOUT MODE
PRESS THE REEL AND “OFF” BUTTONS SIMULTANEOUSLY FOR RETRIEVE MODE
WHILE PRESSING THE LIGHTS BUTTON,
SIMULTANEOUSLY PRESS THE PLUS OR MINUS
BUTTON TO ILLUMINATE THE EXTERNAL LIGHTS
BRIGHTER OR DIMMER
PRESS THE LIGHTS AND ON / OFF BUTTONS TO
TURN THE INTERNAL LIGHTS ON/OFF
LAMP II IN LATERAL MODE: PRESS THE LIGHTS
BUTTON TO EXTEND THE LATERAL CAMERA
(NOTE: LIGHTS FUNCTIONS DISABLED).SPEED
ALTERNATES BETWEEN FAST AND SLOW WITH
EACH PRESS
PRESS TO DISPLAY THE INTERNAL
DIAGNOSTICS SYSTEM.
COLOR CODES
BLACK -
Works in standard mainline mode.
BLUE -
Works only when in lateral mode
(using a LAMP II system).
GREEN -
Works when using a Mini Pan &
Tilt Camera when in lateral mode.
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
P/N LM912 - v051020
COLOR CODES
BLACK -
Works in standard mainline mode.
BLUE -
Works only when in lateral mode
(using a LAMP II system).
PURPLE -
Works when using a Micro Pan &
Tilt Camera when in lateral mode.
WHILE PRESSING THE IRIS BUTTON,
SIMULTANEOUSLY PRESS THE PLUS / MINUS
BUTTONS TO OPEN/CLOSE THE IRIS
WHILE PRESSING THE SHUTTER BUTTON,
SIMULTANEOUSLY PRESS THE PLUS OR
MINUS BUTTONS TO SHUTTER FAST/SLOW TO
ENABLE VISIBILITY IN LOW-LIGHT CONDITIONS
WHILE PRESSING THE FOCUS BUTTON,
SIMULTANEOUSLY PRESS THE PLUS OR MINUS
BUTTONS TO FOCUS THE CAMERA NEAR/
FAR. ALSO, PRESS THE FOCUS BUTTON AND
THE “ON” BUTTON SIMULTANEOUSLY TO
AUTO-FOCUS
WHILE PRESSING THE ZOOM BUTTON,
SIMULTANEOUSLY PRESS THE PLUS OR MINUS
BUTTONS TO ZOOM THE CAMERA IN/OUT
MICRO PAN & TILT: WHEN COMBINED
WITH THE DPAD ‘+’ OR ‘‘ INCREASE/
DECREASE THE SPOT LIGHTS.
MICRO PAN & TILT: WHEN COMBINED
WITH THE DPAD ‘+’ OR ‘‘ INCREASE/
DECREASE THE FLOOD LIGHTS.
USE THE JOYSTICK TO MOVE THE CAMERA.
PRESS TO MOVE THE CAMERA TO THE
HOME POSITION.
LAMP II IN LATERAL MODE: THE TRANSPORTER
VOLTAGE IS REDUCED DURING LATERAL
INSPECTION.
CUES LOGITECH
GAME PAD FUNCTIONS
WHEN USING A CUES TRANSPORTER AND/OR
LAMP II & MICRO PAN & TILT CAMERA
LAMPII IN LATERAL MODE WITH MICRO
PAN & TILT CAMERA: USE THE JOYSTICK
TO MOVE THE MICRO PAN & TILT CAMERA.
PRESS TO MOVE THE MICRO PAN & TILT
CAMERA TO THE HOME POSITION.
WHEN MOVING THE JOYSTICKS, NO VOLTAGE WILL BE APPLIED UNTIL THE OPERATOR HAS
MOVED THE JOYSTICK APPROXIMATELY 20% AWAY FROM THE CENTER. THIS MAKES IT SO
THAT THE TRANSPORTER DOESN’T HAVE ANY VOLTAGE APPLIED UNTIL THE OPERATOR
ACTUALLY WANTS TO MOVE THE TRANSPORTER.
CUES 3600 Rio Vista Avenue Orlando, FL 32805 •p 407.849.0190 • f 407.425.1569 •www.cuesinc.com
P/N LM912 - v051020
PRESS IN COMBINATION WITH THE DPAD 1 TO TURN CRUISE CONTROL ON
PRESS IN COMBINATION WITH THE DPAD 0 TO TURN CRUISE CONTROL OFF
PRESS IN COMBINATTION WITH THE DPAD + TO RAISE THE CRUISE CONTROL VOLTAGE
PRESS IN COMBINATION WITH THE DPAD - TO LOWER THE CRUISE CONTROL VOLTAGE
LAMP II IN LATERAL MODE WITH MICRO P&T CAMERA: PRESSING THE CRUISE
BUTTON WHILE MOVING THE CAMERA JOYSTICK WILL MOVE THE MAINLINE CAMERA.
LAMP II IN LATERAL MODE: PRESS THE REEL BUTTON TO RETRACT THE LATERAL
CAMERA (NOTE: REEL FUNCTIONS DISABLED). SPEED ALTERNATES BETWEEN
FAST AND SLOW WITH EACH PRESS.
WHILE PRESSING THE REEL BUTTON, SIMULTANEOUSLY PRESS THE PLUS OR MINUS
BUTTON TO MOVE THE REEL FASTER / SLOWER SPEED
PRESS THE REEL AND “ON” BUTTONS SIMULTANEOUSLY FOR PAYOUT MODE
PRESS THE REEL AND “OFF” BUTTONS SIMULTANEOUSLY FOR RETRIEVE MODE
WHILE PRESSING THE LIGHTS BUTTON,
SIMULTANEOUSLY PRESS THE PLUS OR MINUS
BUTTON TO ILLUMINATE THE EXTERNAL LIGHTS
BRIGHTER OR DIMMER
PRESS THE LIGHTS AND ON / OFF BUTTONS TO
TURN THE INTERNAL LIGHTS ON/OFF
LAMP II IN LATERAL MODE: PRESS THE LIGHTS
BUTTON TO EXTEND THE LATERAL CAMERA
(NOTE: LIGHTS FUNCTIONS DISABLED).SPEED
ALTERNATES BETWEEN FAST AND SLOW WITH
EACH PRESS
PRESS TO DISPLAY THE INTERNAL
DIAGNOSTICS SYSTEM.
COLOR CODES
BLACK -
Works in standard mainline mode.
BLUE -
Works only when in lateral mode
(using a LAMP II system).
PURPLE -
Works when using a Micro Pan &
Tilt Camera when in lateral mode.
CUES LOGITECH
GAME PAD FUNCTIONS
WHEN USING A CUES TRANSPORTER
AND/OR LAMP II & MICRO PAN & TILT CAMERA
This manual suits for next models
1
Other CUES Analytical Instrument manuals
Popular Analytical Instrument manuals by other brands
CONDTROL
CONDTROL Vector 100 user manual
Precaster
Precaster CP40 Operation manual
Megger
Megger TM1800 user manual
PCE Instruments
PCE Instruments C2 Camera Operator's manual
Extech Instruments
Extech Instruments BR200 user manual
DEVA Broadcast
DEVA Broadcast DB4005 Maintenance and operation instruction manual
