CURLY'S AG INCINERATOR MULTI User manual
Hand-E | 2022 MODEL
P a g e | 1
Contents
Warnings ............................................................................................... 2
Safety Instructions .................................................................................. 3
Assembly Instructions .............................................................................. 5
Contents of box...................................................................................................................................5
Step 1 –Main Frame...........................................................................................................................6
Step 2 –Handle Installation................................................................................................................7
Step 3 –Flame Head Installation ........................................................................................................8
Step 4 - Wheel Installation..................................................................................................................9
Step 5 –Gas Bottle Installation.........................................................................................................12
Step 6 - Gas Hose Installation ...........................................................................................................14
Completed Assembly.............................................................................. 16
Operating Instructions ........................................................................... 17
Step 1 –Adjustments........................................................................................................................17
Step 2 –Lighting the Incinerator Multi.............................................................................................18
Step 3 –Operating the Incinerator Multi..........................................................................................19
Step 4 –Shutting down the Incinerator Multi ..................................................................................20
Storage ............................................................................................... 20
Warranty ............................................................................................. 21
Contact Us ........................................................................................... 21
Hand-E | 2022 MODEL
P a g e | 2
Thank you for purchasing the Incinerator Multi.
We hope it helps keep your weeds at bay!
Warnings
You must read this publication before using the Incinerator Multi.
No part of this publication shall be reproduced, transmitted, or sold in whole or in
any form, without the prior written consent of Curly’s Ag. All trademarks and
registered trademarks appearing in this guide are the property of Curly’s Ag.
Users of the Incinerator Multi do so at their own risk and acknowledge the use of
the Incinerator Multi is dangerous, involves high temperatures, open flame and gas
and there is a real risk of burning. Users of the Incinerator Multi release and
indemnify Curly’s Ag from any claim, loss, damages, and injury from their use of
the Incinerator Multi including from any reliance on this publication except to the
extent such damage, loss or injury is caused by the negligence of Curly’s Ag.
This manual provides practical instructions for the safe assembly and use of the
Incinerator Multi. It must be read and applied in its entirety to ensure the safe use
of the Incinerator Multi in small scale agricultural settings. This manual does not
contain information regarding legal requirements applicable to the use of the
appliance in your specific location.
© Curly’s Ag – Curly’s Enterprises Pty Ltd, 2022. All Rights Reserved.
WARNING
READ AND UNDERSTAND THIS OPERATOR’S MANUAL COMPLETELY
BEFORE USING YOUR PRODUCT. FAILURE TO FOLLOW OPERATING
INSTRUCTIONS COULD RESULT IN SERIOUS INJURY
Hand-E | 2022 MODEL
P a g e | 3
Safety Instructions
It is the legal duty of the purchaser of the Incinerator Multi to ensure the user is
properly trained and supervised to use the Incinerator Multi safely without risk to
themselves or others.
1. Read all safety instructions before using the Incinerator Multi.
2. Safety gloves should be worn at all times.
3. Long sleeves, long pants and safety boots should be worn at all times.
4. Do not operate the Incinerator Multi if you have not read or do not
understand its Manual.
5. Do not operate the Incinerator Multi if you are not capable of safely operating
this type of equipment.
6. Do not operate any equipment if you are subject to seizures, loss of
consciousness or fainting.
7. Do not use if you are affected by alcohol or drugs including prescription
medications.
8. Do not allow children (under the age of 16) to operate the Incinerator Multi
at any time.
9. Always take safety precautions around children and animals.
10. Keep hands and feet away from the burner head whilst the machine is
operating as the flame may not be visible, particularly in bright sunshine.
11. Do not operate the Incinerator Multi when a total fire ban is enforced or on
days when there is an increased fire danger risk. Always check the fire risks and
regulations within your region before using the Incinerator Multi and if in doubt
contact your local fire authority.
Hand-E | 2022 MODEL
P a g e | 4
12. Never operate the Incinerator Multi when there are high wind conditions.
13. Never operate the Incinerator Multi around dry grass, leaves or flammable
substances.
14. Never use the Incinerator Multi in areas where petroleum or other liquids
having flammable vapor are stored or used.
15. Never operate the Incinerator Multi indoors or in enclosed spaces.
16. Always follow the correct safety procedure for the use, storage, and
transport of LPG bottles.
17. Never leave an alight Incinerator Multi unattended.
18. It is recommended to always have an assistant with you for safety
precautions and to monitor for fire risks.
19. Always have fire extinguishing equipment easily accessible and ready to be
used when operating the Incinerator Multi.(It is recommended to know how to use
the fire extinguishing equipment efficiently)
20. Be cautious of how hot the Incinerator Multi will remain even after flames
have been extinguished.
21. The burner head can remain alight even after the gas has been turned off
from the LPG residue in the hoses. Check and ensure that the burner head is
extinguished after each use.
22. Always use extreme caution. This device has an intense open flame that
can be difficult to see. Disregard of safety practices can result in severe fire
damage, personal injury, and death.
DANGER
THE USE OF THIS PRODUCT INVOLVES OPEN FLAME, HIGH
TEMPERATURES AND LPG GAS. FOLLOW ALL SAFETY
PRECAUTIONS AS DESCRIBED IN THIS MANUAL.
Hand-E | 2022 MODEL
P a g e | 5
Assembly Instructions
To assemble the Incinerator Multi, follow the instructions of this manual.
Contents of box
A. Main Frame / Gas Bottle Attachment G. Flint Lighter
B. Main Frame Attachment H. Gas Bottle Holder Strap
C. Handle I. Gas Adaptor
D. Flame Head J. Axle Bolt
E. Wheels x 2 K. Longer Axle
F. Gas Hose
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
A
Hand-E | 2022 MODEL
P a g e | 6
Step 1 –Main Frame
Take the Main Frame Attachment (B) and insert the angled end into the Main
Frame / Gas Bottle Attachment (A).
The holes will line up when inserted correctly.
Insert the Axle Bolt (J) through the hole (red arrow) when lined up.
(Ensure that the end of the bolt is pointing in the same direction as the gas bottle
holder).
Inserting into the Main Frame hole can be tight. A tap at the end with a
rubber mallet will help insertion.
A
A
B
B
J
Hand-E | 2022 MODEL
P a g e | 7

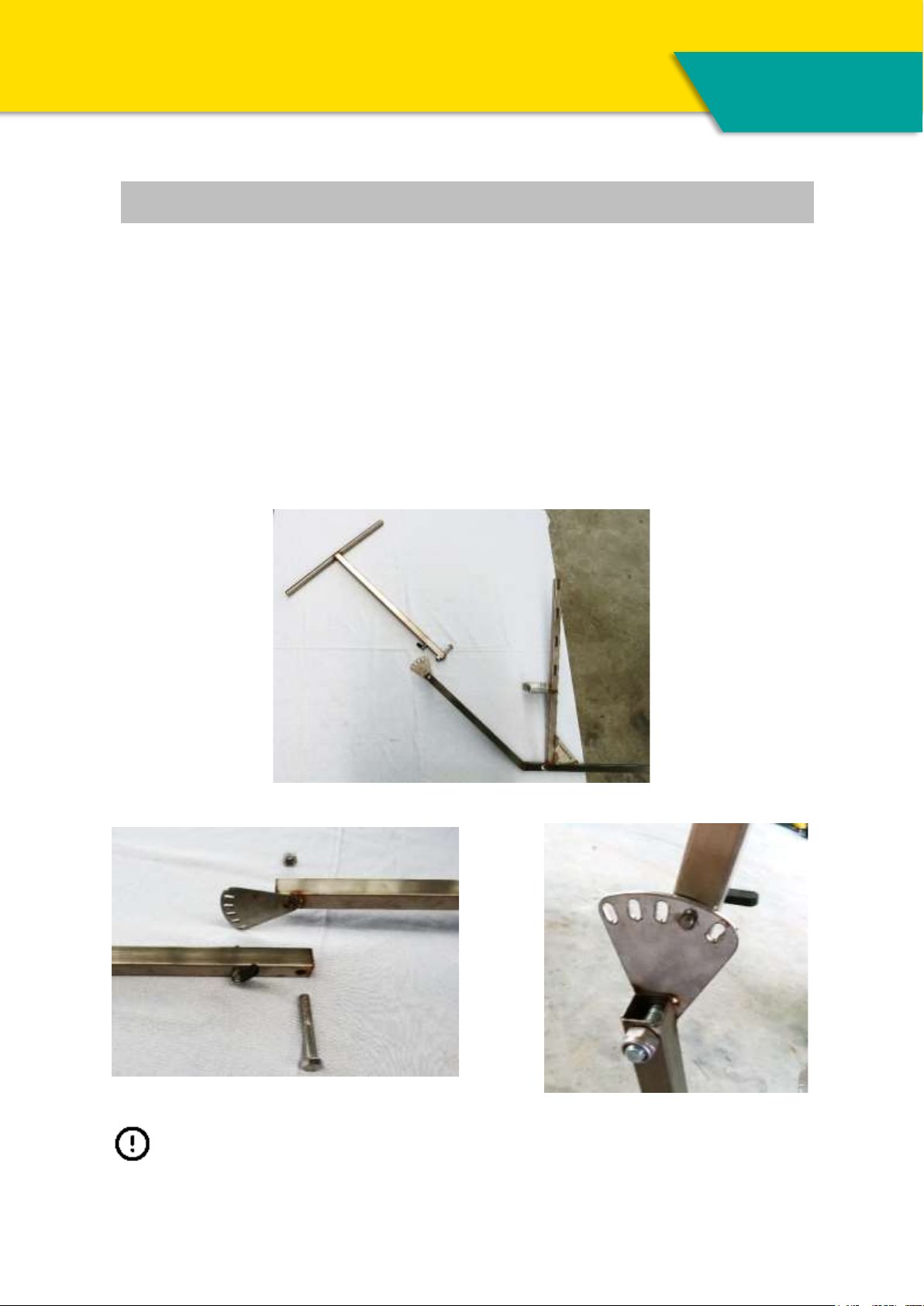

Step 2 –Handle Installation
Undo the nut and bolt that are already in the bottom of the Handle Attachment
(C).
Attach the Handle (C) Onto the Main Frame Attachment with the nut and bolt onto
the Main Frame Attachment (B) using the predrilled hole under the Cam adjuster.
The locking pin will fit into one of the cam adjustment holes.
Make sure the nut and bolt are not overtight so you can still adjust the handle via
the cam adjuster when out in the field.
Use a shifting spanner and/or a socket spanner to tighten the nut. Hold the
bolt from the other side when tightening the nut.
B
C
B
C
A
B
C
Hand-E | 2022 MODEL
P a g e | 8
Step 3 –Flame Head Installation
Make sure the flame head (D) is sitting in the opposite direction to the gas bottle
Holder (as they counter act each other's weight to give stability to your Incinerator
Multi).
Undo and remove the nut and washer from the bolt on the Flame Head (near the
adjuster)
Insert the Flame Head (D) into the predrilled hole on the bottom of the Main
Frame / Gas Bottle Attachment (A).
Replace the washer and nut and tighten.
Use a shifting spanner and/or a socket spanner to tighten the nut. Hold the
bolt from the other side when tightening the nut.
D
A
D
A
D
A
Hand-E | 2022 MODEL
P a g e | 9
Step 4 - Wheel Installation
There are 3 different ways you can have your wheels set up on your Incinerator
Multi. Using two wheels will reduce the manoeuvrability of the Incinerator multi,
however it will increase stability. You may want to use one set up or the other at
different times or in different situations.
1. ONE WHEEL –Insert the Axle bolt (J) though the hole in the middle of one
of the wheels (E), then slide wheel and Axle bolt through the hole on the
Main frame / Gas Bottle Attachment. Make sure the wheel is on the side
where the Gas bottle holder is.
Do up the nut, ensure that you don’t over tighten the nut and bolt as this
will cause unnecessary drag and wear the bearings.
Spin the wheel to check that it spins freely but there is no free play. You
will have more of Axle bolt (J) sticking out, this is for if you were to install
the second wheel.
Hole for
Axle Bolt
J
E
A
Hand-E | 2022 MODEL
P a g e | 10
2. TWO WHEELS (side by side) –Insert the Axle bolt (J) though the hole in
the middle of one of the wheels (E), then slide wheel and Axle bolt through
the hole on the Main frame / Gas Bottle Attachment. Now slide the extra
wheel onto Axle Bolt (J) (the extra bit sticking out).
Do up the nut ensure that you don’t over tighten the nut and bolt as this
will cause unnecessary drag and wear the bearings.
Spin the wheel to check that spins freely but there is no free play.
E
3. TWO WHEELS (with longer axle) –Insert the Axle bolt (J) though the hole
in the middle of one of the wheels (E), then slide wheel and Axle bolt
through the hole on the Main frame / Gas Bottle Attachment.
Screw the Longer Axle (K) to the Axle bolt (J) that is already attached to
the main frame.
Take the second Axle Bolt (J) slide that through the second wheel (E) and
screw onto the other end of longer axle bolt (K).
Do up the nut ensure that you don’t over tighten the nut and bolt as this
will cause unnecessary drag and wear the bearings.
Spin the wheel to check that spins freely but there is no free play.
E
A
J
Hole for
Axle Bolt
Hand-E | 2022 MODEL
P a g e | 11
See page 16 for completed picutres
J
K
A
E
A
J
K
A
E
A
J
K
Hole for
Axle Bolt
Hand-E | 2022 MODEL
P a g e | 12
Step 5 –Gas Bottle Installation
Take your gas bottle and slide the base into the groves on the gas bottle holder
(A) (the extra slots are for adjustment for bigger gas bottles or if the gas bottle
is too full/empty).
Take the Gas Bottle Holder Strap (H) and secure it around the gas bottle and the
Main Frame / Gas Bottle Attachment (A), (Varying slots make it easier for
different size Gas Bottles). Make sure that the bottle is held firmly and doesn’t
move.
A
A
H
A
Hand-E | 2022 MODEL
P a g e | 13
If you are using the “One Wheel” or “Two wheels - Side by Side” set up and you
would like to leave the Incinerator Multi standing by itself, you may need to
balance the Incinerator Multi by Adjusting the Flame Head.
Adjust the Flame Head (D) back in towards the gas bottle (as per the arrow) to
find the right balance and stabilise the machine so that it will stand by itself. You
might need to re-adjust this repeatedly as the gas bottle becomes emptier and
weighs less.
For pictures of each set up standing by itself see page 16.
CAUTION! Adjustment of the Flame Head (D) must always be done
while the flame is OFF. This should be before starting your
Incinerator Multi or when the Flame Head has had enough time to
cool off after using it.
H
A
A
A
A
A
A
A
A
D
D
D
D
D
D
D
D
Hand-E | 2022 MODEL
P a g e | 14
Step 6 - Gas Hose Installation
Apply thread tape or thread sealant to the male end of the gas hose fitting on the
Flame Head (D). Attach the female end of the Gas hose (F) and tighten securely.
Apply thread tape or thread sealant to the male end of the Gas bottle Adapter
(I). Attach this end securely into the other female end of the Gas hose.
Attach end of the Gas hose (F) into the Gas Bottle and tighten securely.
I
I
I
I
D
D
D
D
D
D
D
D
F
Male end
Male end
Male end
Male end
Male end
Male end
Male end
Male end
Female
end
Female
end
Female
end
Female
end
Female
end
Female
end
Female
end
Female
end
Should look like this
Should look like this
Should look like this
Should look like this
Should look like this
Should look like this
Should look like this
Should look like this
Male end
Male end
Male end
Male end
Male end
Male end
Male end
Gas hose adaptor connection
should look like this
Gas hose adaptor connection
Should look like this
Gas hose adaptor connection
Should look like this
Gas hose adaptor connection
Should look like this
Gas hose adaptor connection
Should look like this
Gas hose adaptor connection
Should look like this
F
Hand-E | 2022 MODEL
P a g e | 15
If using thread sealant, make sure you wait the recommended
drying time as per sealant instructions.
Turn on gas at LPG bottle and listen for any gas leaks, test for leaks
by applying a mixture of water and liquid soap using a spray bottle.
If the connections bubble, you have a leak and must not use the
equipment. Make sure all connections are tight and repeat above
steps. If leak continues contact a registered gas fitter.
F
Completed connection
should look like this
Completed connection
Should look like this
Completed connection
Should look like this
Completed connection
Should look like this
Completed connection
Should look like this
Completed connection
Should look like this
Completed connection
Should look like this
Completed connection
Should look like this
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
DO NOT USE THE INCINERATOR MULTI IF YOU HAVE GAS LEAKS.
ALWAYS FIX LEAKS BEFORE OPERATING IT.
Hand-E | 2022 MODEL
P a g e | 16
Completed Assembly
Completed assembly of the Incinerator Multi showing different wheel set ups.
1. One Wheel Setup (Recommended for better manoeuvrability)
2. Two Wheel (side by side) set up
3. Two Wheel (long axle) set up
3
A
A
A
A
A
A
2
A
A
A
A
A
A
1
A
A
A
A
A
A
Hand-E | 2022 MODEL
P a g e | 17
Operating Instructions
Step 1 –Adjustments
Take your Incinerator Multi to the intended area of use. Plan where and how you
are you going to use the Incinerator Multi so you can decide what adjustments to
make.
Make sure that the Handle is on a setting that is comfortable for you and that both
the horizontal and vertical angle of the Flame Head are adjusted to suit the
requirements according to the width of the area you want to flame weed and to
the height of the weeds etc. (e.g., Walking path, fence line or full garden bed).
This is important because once the Incinerator Multi is in use, it would be incredibly
hot to touch or adjust. You won’t be able to adjust the Flame Head again until it
cools down.
We recommend that you wheel around your Incinerator Multi for a bit before you
light it to make sure you are comfortable with the settings/adjustments.
Once you are experienced at operating it, this step will be a lot quicker, please
remember that to change adjustments once you have lit the Incinerator Multi, you
will need to wait for it to cool down due to the temperature of the machine once
it is lit.
DANGER
THE USE OF THIS PRODUCT INVOLVES OPEN FLAME, HIGH
TEMPERATURES AND LPG GAS. FOLLOW ALL SAFETY
PRECAUTIONS AS DESCRIBED IN THIS MANUAL.
Handle Adjuster
Handle Adjuster
Hand-E | 2022 MODEL
P a g e | 18
Step 2 –Lighting the Incinerator Multi
We recommend the use of safety gloves and eye protection for this stage.
Rest the Handle on the ground ensuring that the handle is on an even surface.
Take your flint lighter (G) and open the gas bottle slightly (till you hear the gas
escaping from the Flame Head (D).
Reach over carefully and light the Flame Head (D). Once lit you can lift the handle
up from the ground and you can adjust the flame by opening the gas more.
When initially opening the gas bottle valve on the incinerator Multi, be ready to
light the burner with the accompanying flint lighter immediately. Never allow
prolonged LPG to flow to the unignited burner.
If there has been excess unburned LPG flow, close the valve, move your unit away
from where you are and make sure you have allowed ample time for the LPG to
dissipate before re attempting to ignite the burner.
D
Hand-E | 2022 MODEL
P a g e | 19
Step 3 –Operating the Incinerator Multi
If you smell gas, shut off the LPG bottle to the device extinguish any open flame.
Check the device for any leaks using the soap and water solution. Do not attempt
to re light the device until leaks are repaired and there is no gas smell.
Opening the gas bottle more will increase the flame significantly, so adjust
carefully.
Once you have the flame set at the right intensity, walk along the path of weeds
you wish to burn. To decrease the flame, turn down the gas using the gas valve
on the bottle.
“On the Go”adjustments can be made if you wish to
change the horizontal angle of the Flame Head, to adjust
to a different area while in use, (e.g. from flame weeding
a path to a fence line).
You can make the adjustment by tilting the
unconnected end of the Flame Head (D) onto the
ground and pushing/pulling the Handle (C) the
opposite direction you want the Flame Head (D).
Watch Incinerator Multi Short Operation Demo or scan QR code
for a practical demonstration.
Do not touch the Flame Head even with gloves on to make these
adjustments, as there is still a lit flame and gloves/clothing may catch fire.
Other manuals for INCINERATOR MULTI
1
Table of contents
Other CURLY'S AG Farm Equipment manuals
