Curly's ag Incinerator multi User manual

OPERATOR MANUAL

www.curlysag.com | [email protected]

INCINERATOR MULTI

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 1

Warnings ………………………………………………………………………………………………………. Page 2

Safety Instructions ………………………………………………………………………………………. Page 3

Assembly Instructions …………………………………………………………………………………. Page 4

Video’s …………………………………………………………………………………….. Page 5

Contents of box ………………………………………………………………………. Page 6

Main Frame Assembly …………………………………………………………….. Page 7

Handle Assembly …………………………………………………………………….. Page 8

Flame Head Assembly ……………………………………………………………. Page 9

Wheel/s Assembly ……………………….………………………………………… Page 10

Gas Bottle Assembly ……………………………………………………………… Page 11

Gas Hose Assembly ………………………………………………………………. Page 12

Completed Assembly ……………………………………………………………. Page 14

Operating Instructions …………………………….………………………………………………… Page 15

Adjustments …………………………………………………………………………. Page 15

Lighting ………………………………………………………………….…………….. Page 16

Using …………………………………………………………………………………….. Page 17

Shutting Down …………………………………………………………….……….. Page 17

Storage ……………………………………………………………………………………………….……… Page 18

Warranty ……………………………………………………………………………………………….……. Page 18

Contact Us ………………………………………………………………………………………….………. Page 19

.

Contents

615. Safety InstructionsImportant Warnings

Safety Instructions

Safety InstructionsImportant Warnings

616. Safety InstructionsImportant Warnings

Safety Instructions

Safety InstructionsImportant Warnings

617. Safety InstructionsImportant Warnings

Safety Instructions

Safety InstructionsImportant Warnings

618. Safety InstructionsImportant Warnings

Safety Instructions

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 2

Thank you for purchasing the Incinerator Multi, we hope it helps keep your weeds at

bay!

You must read this publication before using the Incinerator Multi.

No part of this publication shall be reproduced, transmitted, or sold in whole or in

any form, without the prior written consent of Curly’s Ag. All trademarks and

registered trademarks appearing in this guide are the property of Curly’s Ag.

Users of the Incinerator Multi do so at their own risk and acknowledge the use of

the Incinerator Multi is dangerous, involves high temperatures, open flame and gas

and there is a real risk of burning. Users of the Incinerator Multi release and

indemnify Curly’s Ag from any claim, loss, damages, and injury from their use of

the Incinerator Multi including from any reliance on this publication except to the

extent such damage, loss or injury is caused by the negligence of Curly’s Ag.

This manual provides practical instructions for the safe assembly and use of the

Incinerator Multi. It must be read and applied in its entirety to ensure the safe use

of the Incinerator Multi in small scale agricultural settings. This manual does not

contain information regarding legal requirements applicable to the use of the

appliance in your specific location.

Warnings

1. Safety InstructionsImportant Warnings

Safety Instructions

Safety InstructionsImportant Warnings

2. Safety InstructionsImportant Warnings

Safety Instructions

Safety InstructionsImportant Warnings

3. Safety InstructionsImportant Warnings

Safety Instructions

Safety InstructionsImportant Warnings

4. Safety InstructionsImportant Warnings

Safety Instructions

WARNING

READ AND UNDERSTAND THIS OPERATOR’S MANUAL COMPLETELY

BEFORE USING YOUR PRODUCT. FAILURE TO FOLLOW OPERATING

INSTRUCTIONS COULD RESULT IN SERIOUS INJURY.

READ AND UNDERSTAND THIS OPERATOR’S MANUAL COMPLETELY

BEFORE USING YOUR PRODUCT. FAILURE TO FOLLOW OPERATING

INSTRUCTIONS COULD RESULT IN SERIOUS INJURY.

READ AND UNDERSTAND THIS OPERATOR’S MANUAL COMPLETELY

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 3

It is the legal duty of the purchaser of the Incinerator Multi to ensure the user is

properly trained and supervised to use the Incinerator Multi safely without risk to

themselves or others.

1. Read all safety instructions before using the Incinerator Multi.

2. Safety gloves should be worn at all times.

3. Long sleeves, long pants and safety boots should be worn at all times.

4. Do not operate the Incinerator Multi if you have not read or do not

understand its Manual.

5. Do not operate the Incinerator Multi if you are not capable of safely operating

this type of equipment.

6. Do not operate any equipment if you are subject to seizures, loss of

consciousness or fainting.

7. Do not use if you are affected by alcohol or drugs including prescription

medications.

8. Do not allow children (under the age of 16) to operate the Incinerator Multi

at any time.

9. Always take safety precautions around children and animals.

10. Keep hands and feet away from the burner head whilst the machine is

operating as the ﬂame may not be visible, particularly in bright sunshine.

11. Do not operate the Incinerator Multi when a total ﬁre ban is enforced or on

days when there is an increased ﬁre danger risk. Always check the ﬁre risks and

regulations within your region before using the Incinerator Multi and if in doubt

contact your local ﬁre authority.

12. Never operate the Incinerator Multi when there are high wind conditions.

Safety Instructions

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 4

13. Never operate the Incinerator Multi around dry grass, leaves or ﬂammable

substances.

14. Never use the Incinerator Multi in areas where petroleum or other liquids

having ﬂammable vapor are stored or used.

15. Never operate the Incinerator Multi indoors or in enclosed spaces.

16. Always follow the correct safety procedure for the use, storage, and

transport of LPG bottles.

17. Never leave an alight Incinerator Multi unattended.

18. It is recommended to have an assistant with you at all times for safety

precautions and to monitor for ﬁre risks.

19. Always have ﬁre extinguishing equipment easily accessible and ready to be

used when operating the Incinerator Multi.(It is recommended to know how to use

the fire extinguishing equipment efficiently)

20. Be cautious of how hot the Incinerator Multi will remain even after ﬂames

have been extinguished.

21. The burner head can remain alight even after the gas has been turned off

from the LPG residue in the hoses. Check and ensure that the burner head is

extinguished after each use.

22. Use extreme caution at all times. This device has an intense open ﬂame

that can be difficult to see. Disregard of safety practices can result in severe ﬁre

damage, personal injury, and death.

Safety Instructions (continued)

Safety Instructions

DANGER

THE USE OF THIS PRODUCT INVOLVES OPEN FLAME, HIGH

TEMPERATURES AND LPG GAS. FOLLOW ALL SAFETY

PRECAUTIONS AS DESCRIBED IN THIS MANUAL.

THE USE OF THIS PRODUCT INVOLVES OPEN FLAME, HIGH

TEMPERATURES AND LPG GAS. FOLLOW ALL SAFETY

PRECAUTIONS AS DESCRIBED IN THIS MANUAL.

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 5

To assemble the Incinerator Multi, follow the instructions of this manual. Alternatively,

watch our assembly instruction video on YouTube following the link bellow or scanning the

QR code.

Incinerator Multi Assembly Instructions VIDEO

This short Demo Video is also helpful for tips and tricks on how to use your Incinerator Multi.

Incinerator Multi Short Operation Demo

Assembly Instructions

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 6

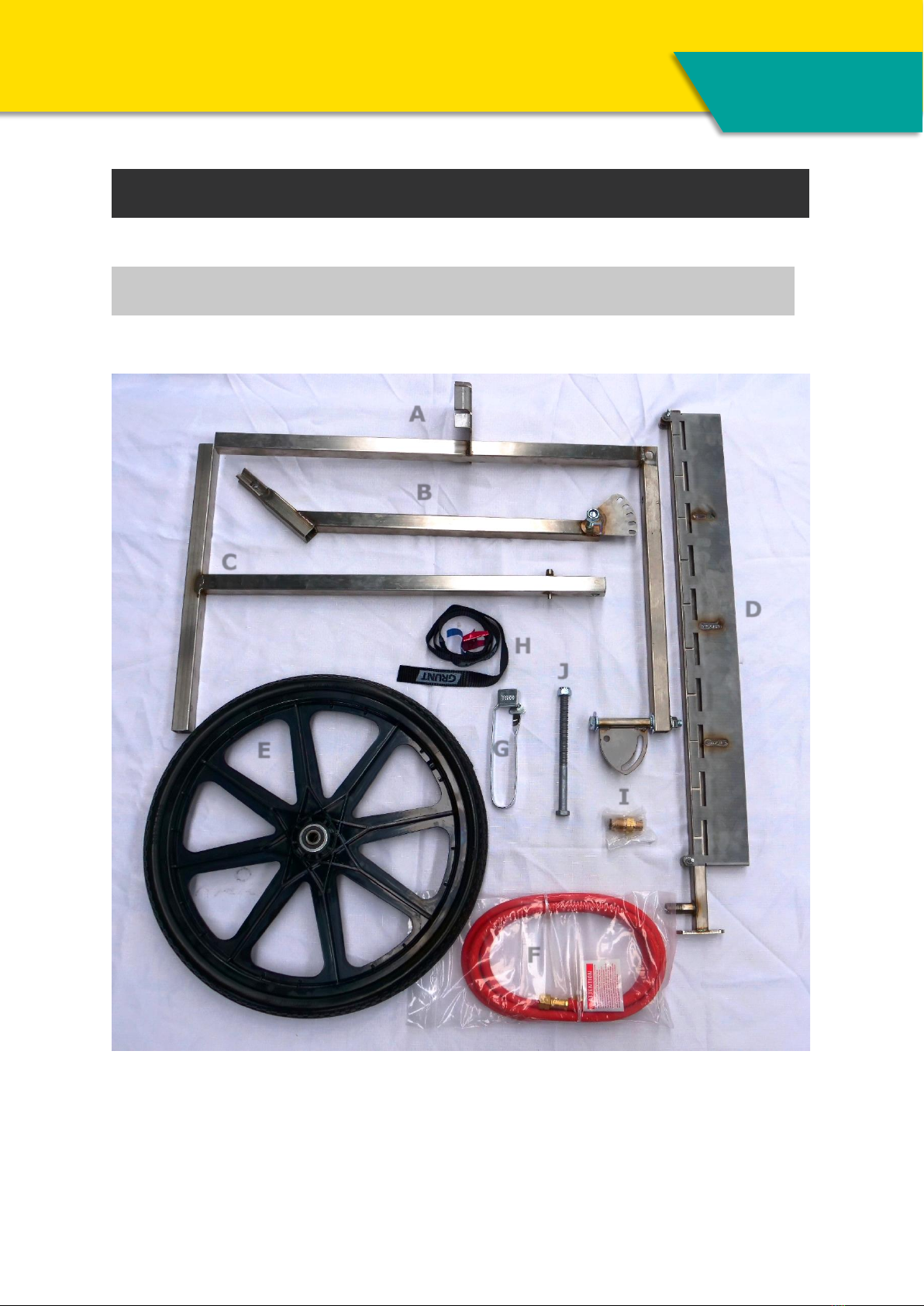

A. Main Frame / Gas Bottle Attachment F. Gas Hose

B. Main Frame Attachment G. Flint Lighter

C. Handle H. Gas Bottle Holder Strap

D. Flame Head I. Gas Adaptor

E. Wheels x 2 J. Axle Bolt

Assembly Instructions (continued)

Assembly Instructions

Contents of box

Contents

A

B

C

D

E

F

G

H

I

J

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 7

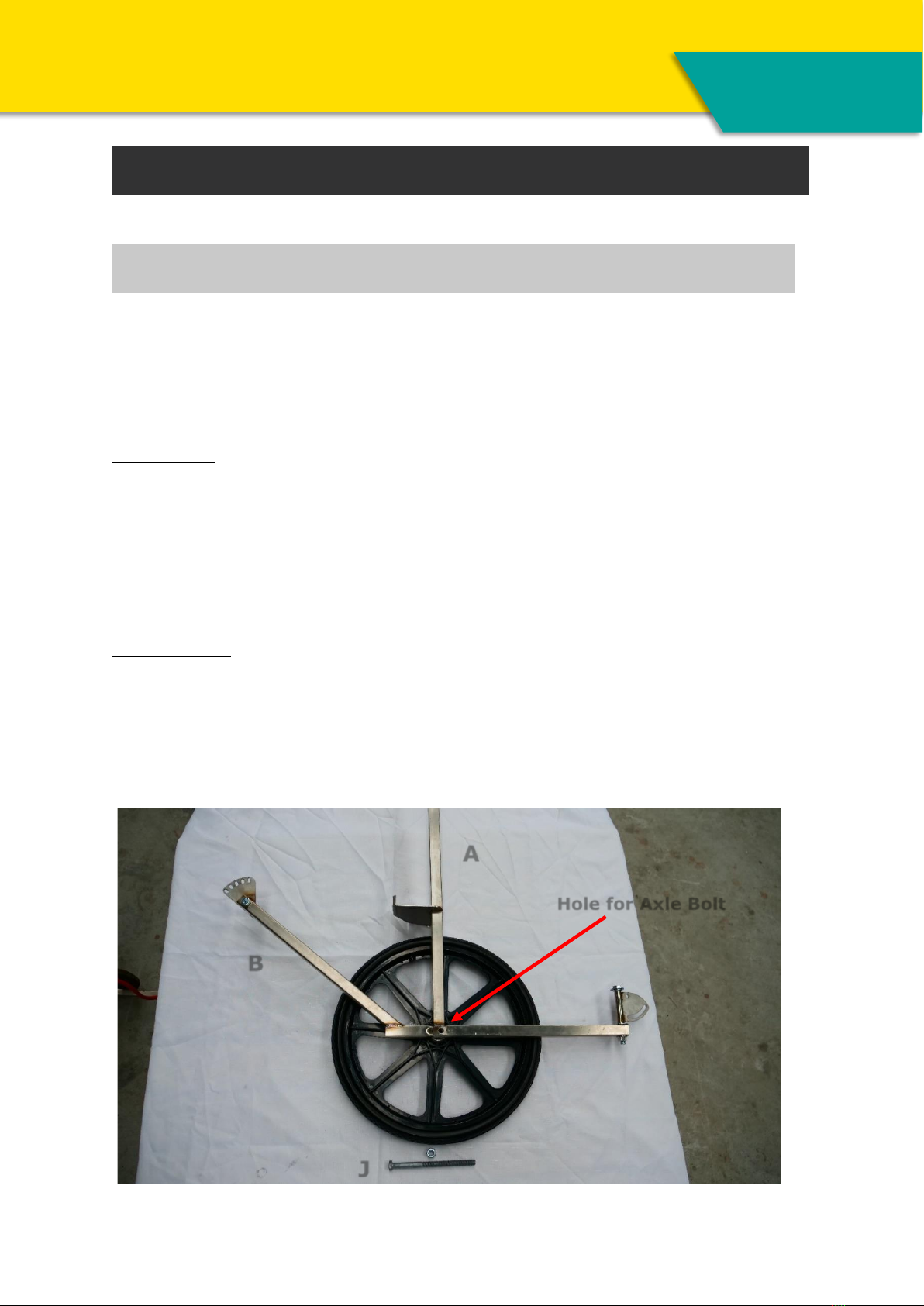

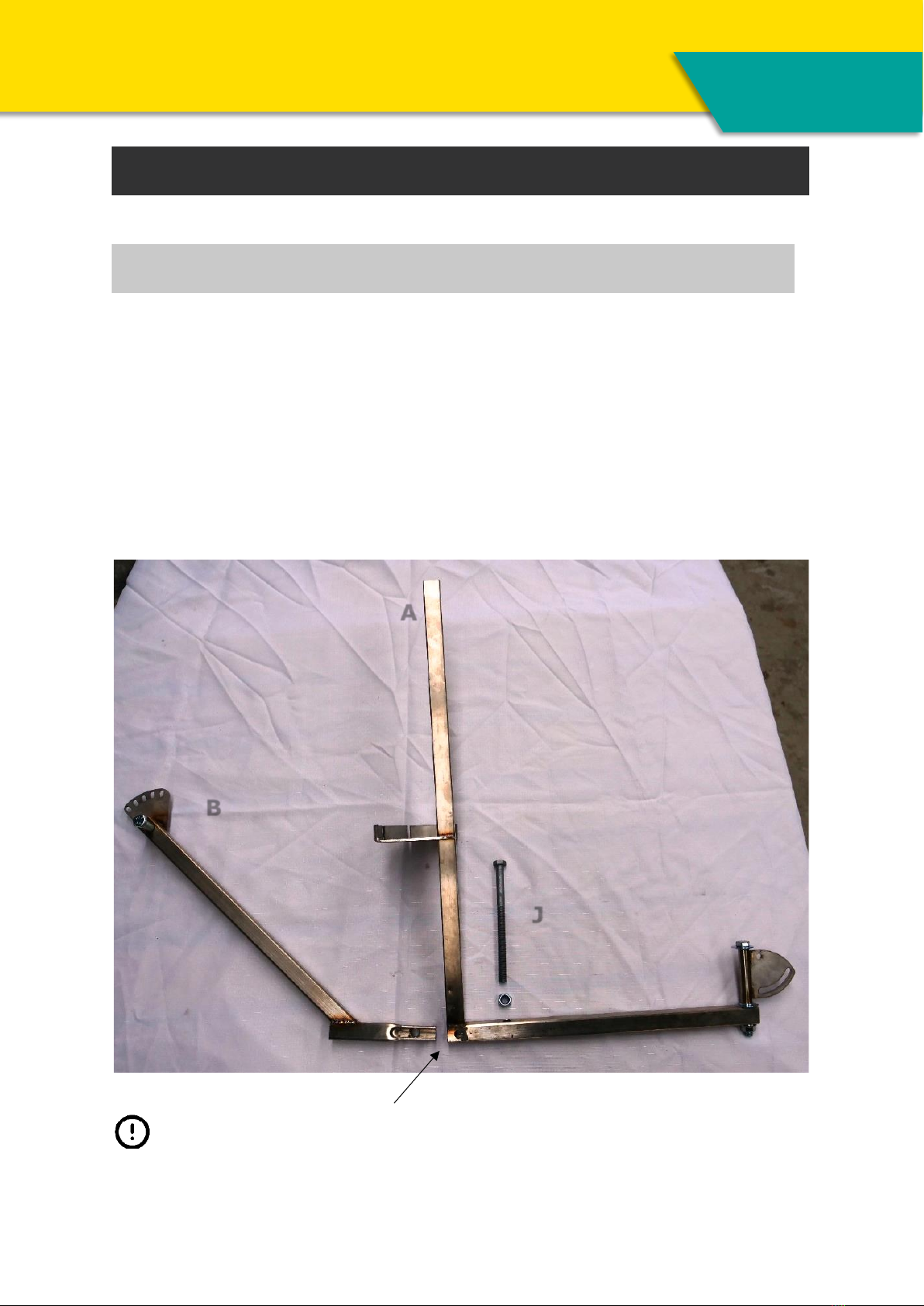

Take the Main Frame Attachment (B) and insert the angled end into the Main

Frame / Gas Bottle Attachment (A).

The holes will line up when inserted correctly.

Insert the Axle Bolt (J) through the hole (red arrow) when lined up.

(Ensure that the end of the bolt is pointing in the same direction as the gas bottle

holder).

Inserting into the Main Frame hole can be tight. A tap at the end with a

rubber mallet will help insertion.

Assembly Instructions (continued)

Assembly Instructions

Step 1 –Main Frame

A

B

J

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 8

Undo the nut and bolt that are already in the top of Main Frame Attachment (B)

(Near the cam adjuster).

Attach the Handle (C) using the bottom hole onto the bolt and do up the nut and

bolt again.

The locking pin will fit into one of the adjustment holes.

Make sure the nut and bolt are not overtight so you can still adjust the handle via

the cam adjuster when out in the field.

Use a shifting spanner and/or a socket spanner to tighten the nut. Hold the

bolt from the other side when tightening the nut.

Assembly Instructions (continued)

Step 2 –Handle Installation

B

C

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 9

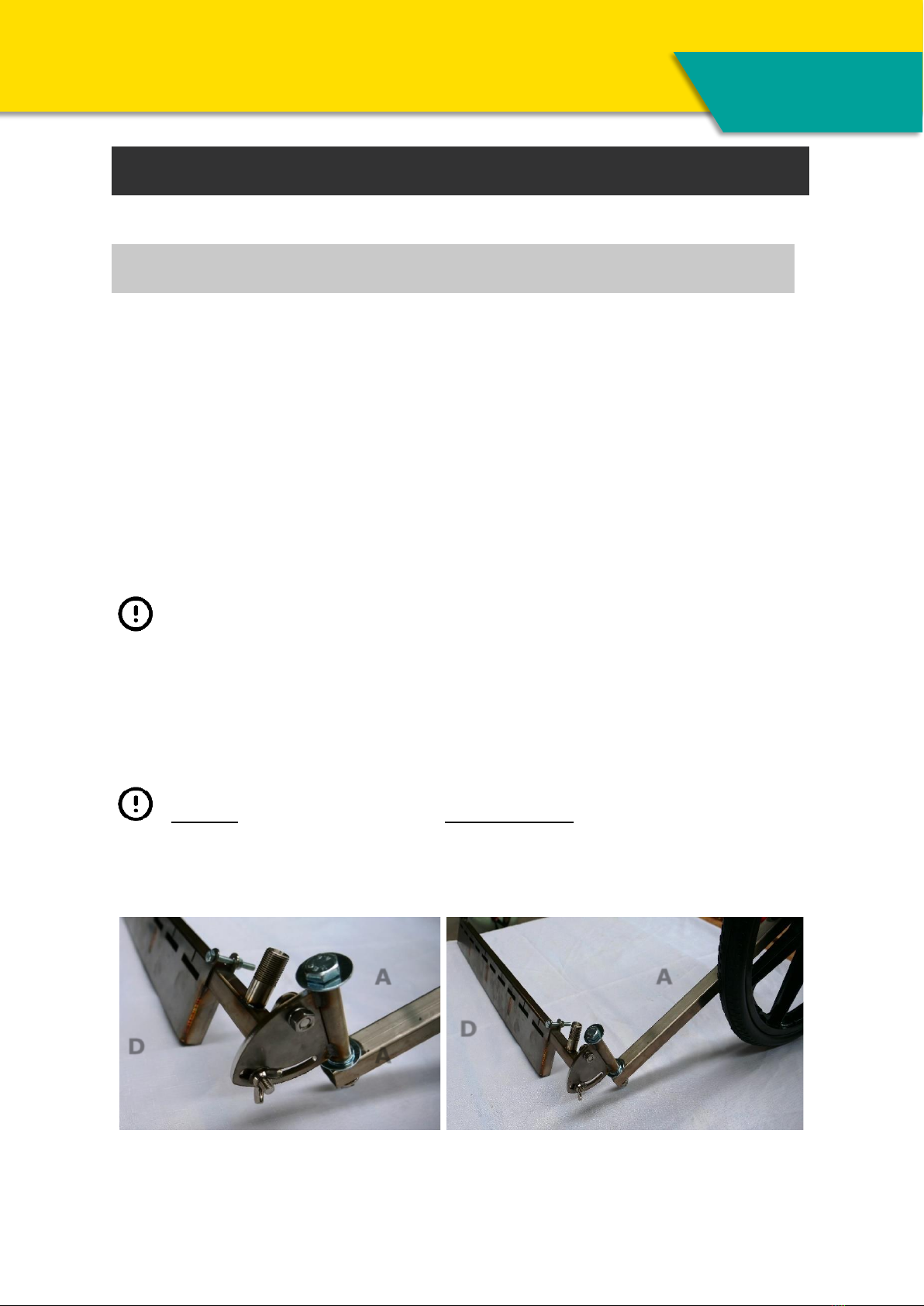

Make sure the flame head (D) is sitting in the opposite direction to the gas bottle

Holder (as they counter act each other's weight to give stability to your Incinerator

Multi).

Undo the wing nut (for the bottom hole) and the nut and split washer (for the top

hole).

Insert the Flame Head (D)into the Main Frame / Gas Bottle Attachment (A) using

the two predrilled holes.

Do up the spring washer and nut (on the top hole). Make sure they are not

overtight, so they still allow movement to adjust the angle of the flame head (D).

Use a shifting spanner and/or a socket spanner to tighten the nut. Hold the

bolt from the other side when tightening the nut.

Do up the wing nut (on the bottom bolt) finger tight.

To adjust the angle of the Flame Head (D), loosen the wing nut to adjust then re-

tighten.

CAUTION! Adjustment of the angle of the Flame Head (D) must

always be done while the flame is OFF. This should be before

starting your Incinerator Multi or when the Flame Head has had enough

time to cool off after using it.

Assembly Instructions (continued)

Step 3 –Flame Head Installation

D

A

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 10

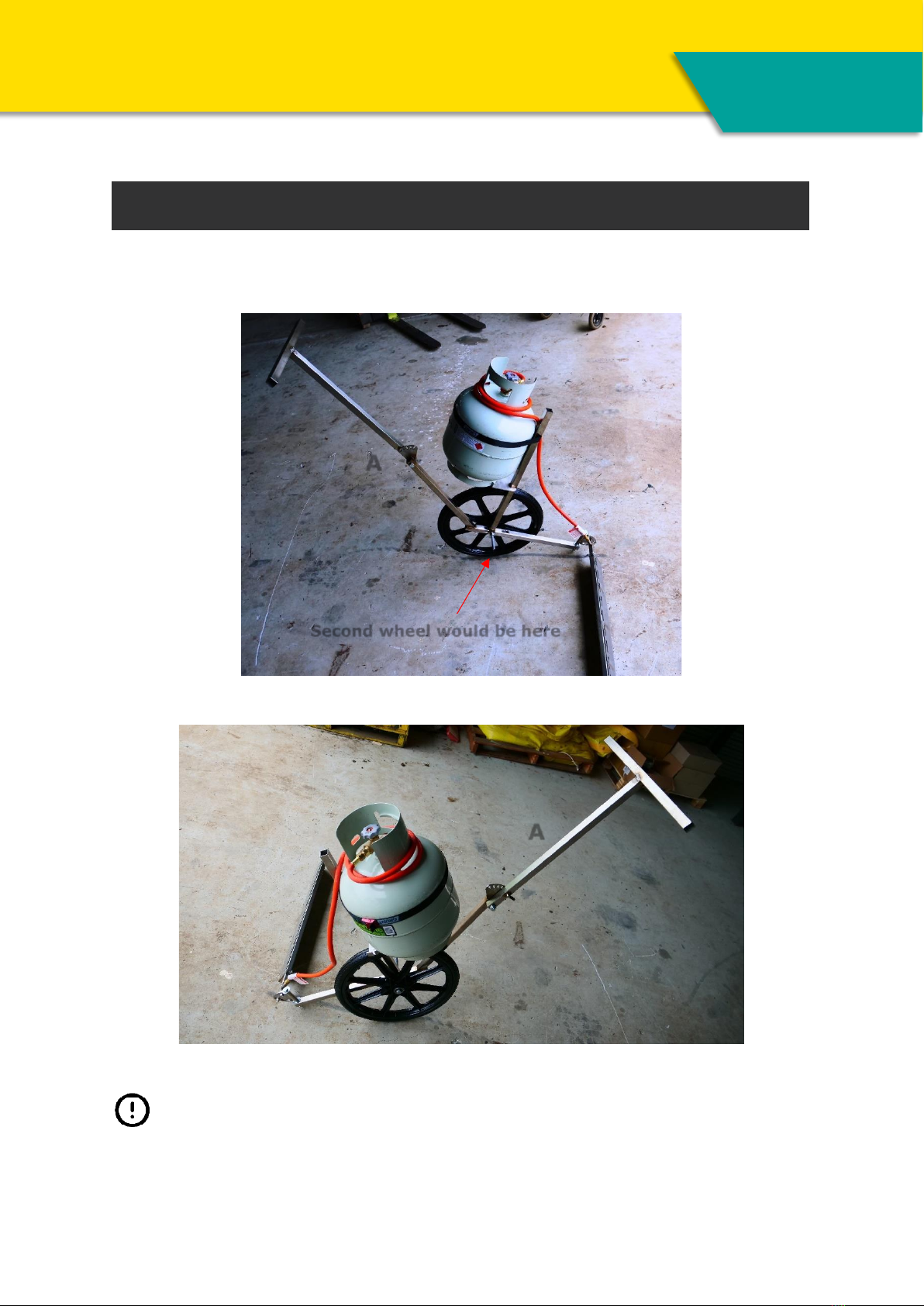

NOTE: 2 wheels are included. You can either attach one and leave the other as a

spare, or you can attach a second wheel if you feel the Incinerator Multi is more

stable (using both wheels will reduce manoeuvrability). We recommend the use

of ONE wheel only.

ONE WHEEL –Insert the Axle bolt (J) into the hole on the Main frame / Gas Bottle

Attachment, then slide on the wheel to the Axle Bolt (J).

Do up the nut, ensure that you don’t over tighten the nut and bolt as this will

cause unnecessary drag and wear the bearings.

Spin the wheel to check that it spins freely but there is no free play. You will have

more of Axle bolt (J) sticking out, this is for if you were to install the second

wheel.

TWO WHEELS –Take one wheel and slide onto Axle bolt (J), insert the wheel and

Axle bolt through the hole on the Main Frame / Gas Bottle Attachment. Then attach

the second wheel to Axle Bolt (J).

Do up the nut ensure that you don’t over tighten the nut and bolt as this will cause

unnecessary drag and wear the bearings.

Spin the wheel to check that spins freely but there is no free play.

Assembly Instructions (continued)

Step 4 –Wheel Installation

A

J

B

Hole for Axle Bolt

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 11

Take your gas bottle and slide the base into the groves on the gas bottle holder

(A) (the extra slots are for adjustment for bigger gas bottles or if the gas bottle

is too full/empty).

Take the Gas Bottle Holder Strap (H) and secure it around the gas bottle and the

Main Frame / Gas Bottle Attachment (A). Make sure that the bottle is held firmly

and doesn’t move.

Once the gas bottle is installed adjust the Flame Head (D) back in towards

the gas bottle (as per the arrow) to find the right balance and stabilise the

machine so that it will stand by itself. You might need to re-adjust this repeatedly

as the gas bottle becomes emptier and weighs less.

Assembly Instructions (continued)

Step 5 –Gas Bottle Installation

H

A

D

A

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 12

Apply thread tape or thread sealant to the male end of the gas hose fitting on the

Flame Head (D). Attach the female end of the Gas hose (F) and tighten securely.

Apply thread tape or thread sealant to the male end of the Gas bottle Adapter (I).

Attach this end securely into the other female end of the Gas hose.

Attach end of the Gas hose (F) into the Gas Bottle and tighten securely.

If using thread sealant, make sure you wait the recommended drying time

as per sealant instructions.

Assembly Instructions (continued)

Step 6 –Gas Hose Installation

I

D

F

Male end

Female end

Should look like this

Male end

Gas hose adaptor connection

Should look like this

Gas hose adaptor connection

Should look like this

Gas hose adaptor connection

Should look like this

Gas hose adaptor connection

Should look like this

Gas hose adaptor connection

Should look like this

F

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 13

If using thread sealant, make sure you wait the recommended drying

time as per sealant instructions.

Turn on gas at LPG bottle and listen for any gas leaks, test for

leaks by applying a mixture of water and liquid soap using a spray

bottle. If the connections bubble, you have a leak and must not use

the equipment. Make sure all connections are tight and repeat

above steps. If leak continues contact a registered gas ﬁtter.

Assembly Instructions (continued)

Step 6 –Gas Hose Installation

F

Completed connection

Should look like this

Completed connection

Should look like this

Completed connection

Should look like this

Completed connection

Should look like this

Completed connection

Should look like this

Completed connection

Should look like this

Completed connection

Should look like this

Completed connection

Should look like this

WARNING

DO NOT USE INCINERATOR MULTI IF YOU

HAVE GAS LEAKS

DO NOT USE INCINERATOR MULTI IF YOU

HAVE GAS LEAKS

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 14

Completed assembly of the Incinerator Multi as per below.

Variation: If you decided on the second wheel set up option, you will have

one on each side of the Main Frame (A).

Completed Assembly

A

Second wheel would be here

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 15

Take your Incinerator Multi to the intended area of use. Plan where and how you

are you going to use the Incinerator Multi so you can decide what adjustments to

make.

Make sure that the Handle is on a setting that is comfortable for you and that both

the horizontal and vertical angle of the Flame Head are adjusted to suit the

requirements according to the width of the area you want to flame weed and to

the height of the weeds etc. (e.g., Walking path, fence line or full garden bed).

This is important because once the Incinerator Multi is in use, it would be incredibly

hot to touch or adjust. You won’t be able to adjust the Flame Head again until it

cools down.

We recommend that you wheel around your Incinerator Multi for a bit before you

light it to make sure you are comfortable with the settings/adjustments.

Once you are experienced at operating it, this step will be a lot quicker, please

remember that to change adjustments once you have lit the Incinerator Multi, you

will need to wait for it to cool down due to the temperature of the machine once

it is lit.

Operating Instructions

Step 1 –Adjustments

WARNING

THE USE OF THIS PRODUCT INVOLVES OPEN FLAME, HIGH

TEMPERATURES AND LPG GAS. FOLLOW ALL SAFETY

PRECAUTIONS AS DESCRIBED IN THIS MANUAL.

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 16

We recommend the use of safety gloves and eye protection for this stage.

Rest the Handle on the ground ensuring that the handle is on an even surface.

Take your flint lighter and open the gas bottle slightly (till you hear the gas

escaping from the Flame Head (D).

Reach over carefully and light the Flame Head (D). Once lit you can lift the handle

up from the ground and you can adjust the flame by opening the gas more.

When initially opening the valve on the handle of the incinerator Multi, be ready

to light the burner with the accompanying flint lighter immediately. Never allow

prolonged LPG to flow to the unignited burner. If there has been excess unburned

LPG flow, close the valve, move your unit away from where you are and make

sure you have allowed ample time for the LPG to dissipate before re attempting

to ignite the burner.

If you smell gas, shut off the LPG bottle to the device. Extinguish any open flame.

Check the device for any leaks using the soap and water solution. Do not attempt

to re light the device until leaks are repaired and there is no gas smell.

Opening the gas bottle more will increase the flame significantly, so adjust

carefully.

Step 2 –Lighting the Incinerator Multi

D

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 17

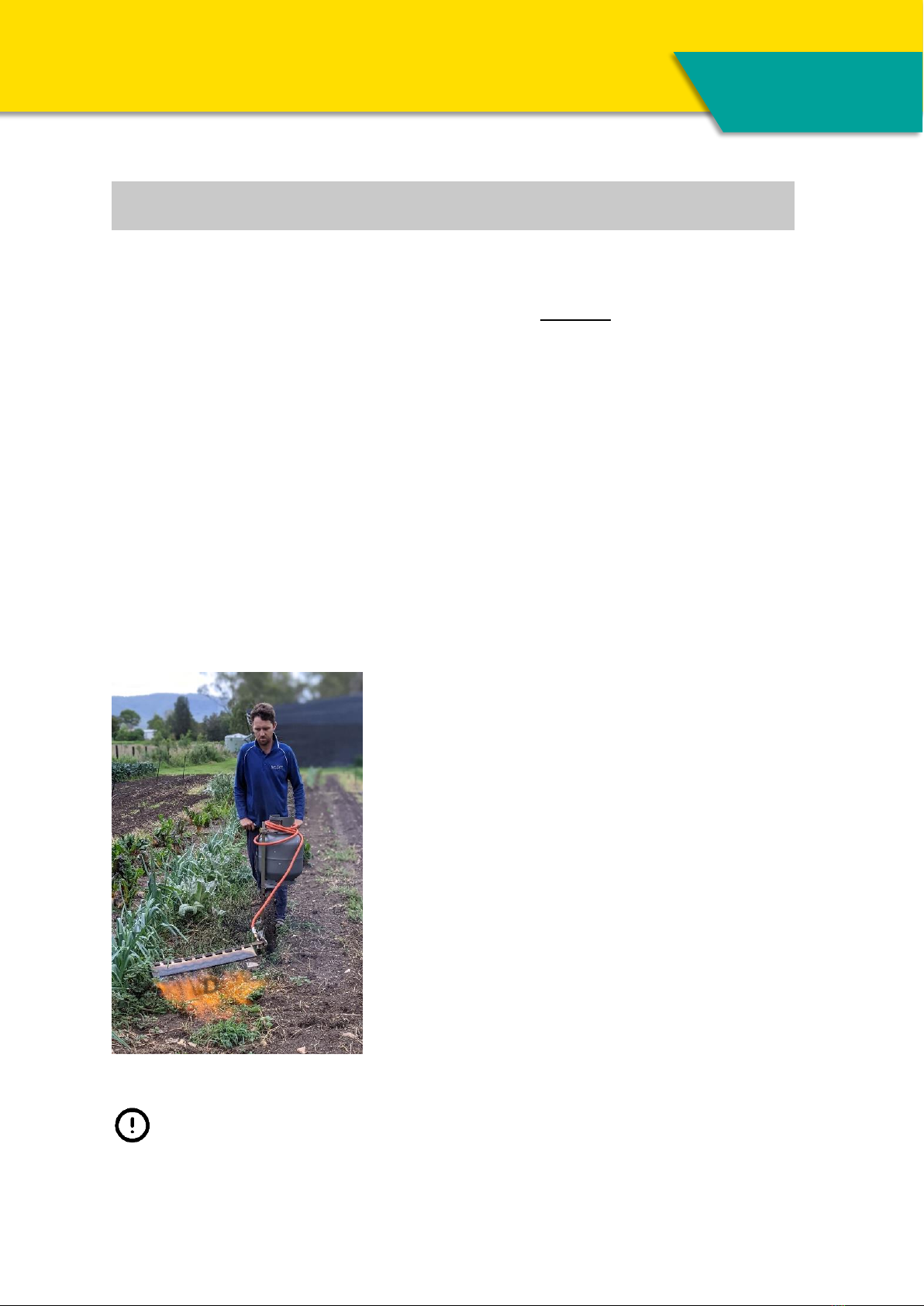

Once you have the flame set at the right intensity, walk along the path of weeds

you wish to burn. To decrease the flame, turn down the gas using the gas valve

on the bottle.

If you wish to change the horizontal

angle of the Flame Head, to adjust to a

different area while in use, (e.g. from flame

weeding a path to a fence line) you can do so

by tilting the unconnected end of the

Flame Head (D) onto the ground and

pushing the Handle (C) the opposite

direction you want the Flame Head (D) to

move to.

Watch Incinerator Multi Short Operation Demo or

scan QR code for a practical demonstration.

Once you have finished using the Incinerator Multi, turn off the gas bottle to the

closed position, the remaining gas will burn away, and the flame will disappear.

Make sure you allow enough time for the extremely hot parts to cool down

before you touch them.

Step 3 –Using the Incinerator Multi

Step 4 –Shutting down the Incinerator Multi

DANGER

THE FLAME HEAD WILL STILL BE EXTREMELY HOT IMMEDIATELY

AFTER EXTINGUISHING THE FLAME. DO NOT TOUCH UNTIL YOU

HAVE ALLOWED ENOUGH TIME FOR IT TO COOL DOWN.

THE USE OF THIS PRODUCT INVOLVES OPEN FLAME, HIGH

TEMPERATURES AND LPG GAS. FOLLOW ALL SAFETY

PRECAUTIONS AS DESCRIBED IN THIS MANUAL.

THE USE OF THIS PRODUCT INVOLVES OPEN FLAME, HIGH

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 18

The Incinerator Multi is not designed to be left out in the elements, we recommend

that the Incinerator Multi is protected from the harsh environment such as rain,

storms and prolonged sunlight as the elements could damage it.

Always double check that the gas bottle is fully shut off and there is no gas coming

out.

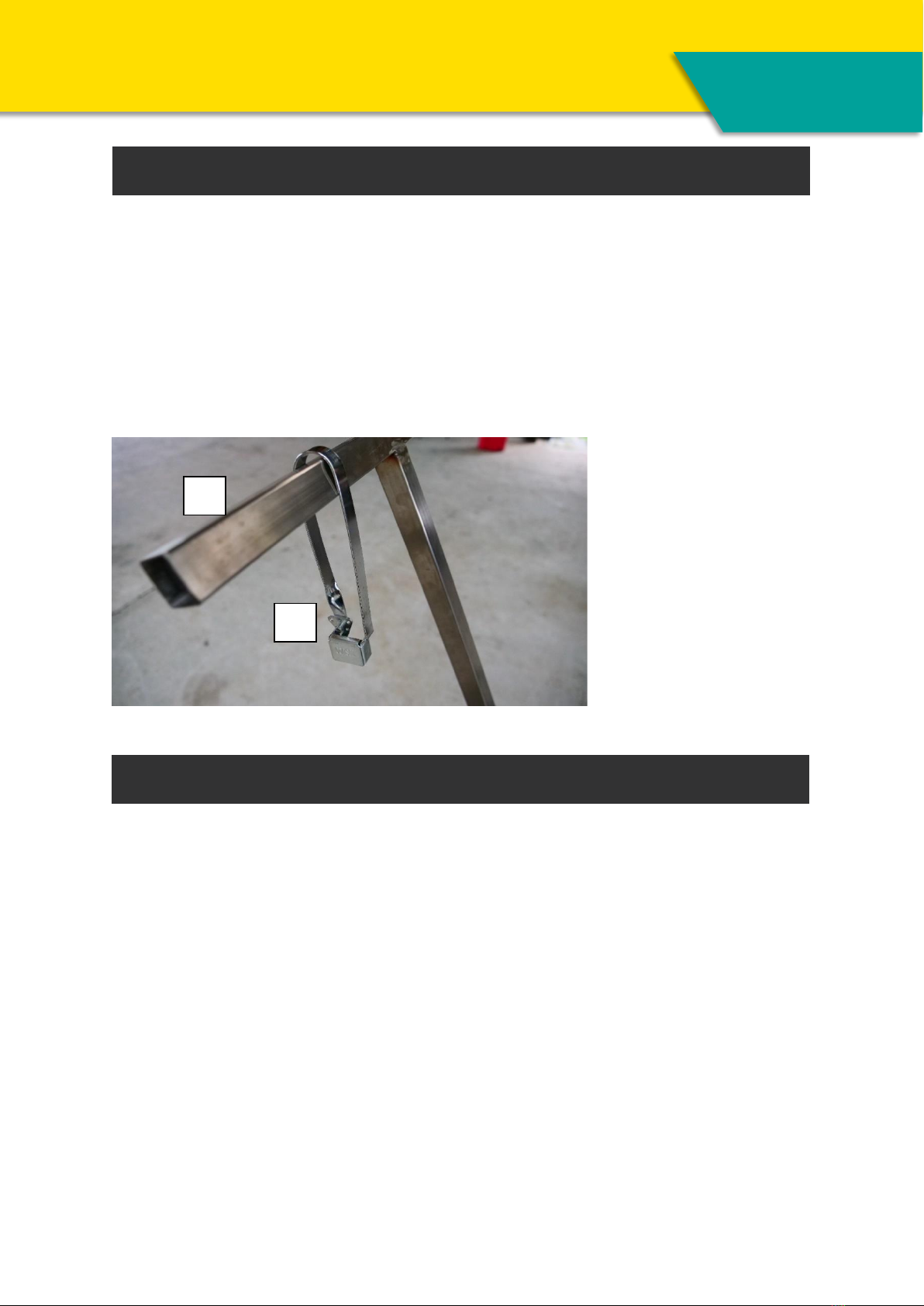

It is a good idea to keep the Flint Lighter (G) hanging from the Handle (C) to

avoid losing it

The Incinerator Multi is warranted under the Curly’s Ag limited warranty of

12 months. No warranty shall, however, apply if the Hand-E has not been

used according to the instruction given in this manual, even if it is within

the warranty period.

Storage

WARNING

Warranty

WARNING

G

C

Name | model

Curly’s Ag – Agricultural Innovations | www.curlysag.com | inf[email protected]

Incinerator Multi | 2021 MODEL

P a g e | 19

We value your opinion, please feel free to contact us if you have questions or

comments.

Website www.curlysag.com

Email [email protected]m

Phone Office Phone +61 493 281 690

Curly's Phone +61 449 268 131

Video Incinerator Multi

Contact Us

WARNING

CURLY'S AG INCINERATOR MULTI User manual

Popular Farm Equipment manuals by other brands
