Curt Group 13415 User manual

MAKE: STYLE:
60
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com
WEIGHT CARRYING:
INSTALLATION TIPS:
INSTALLATION REQUIRES:
VEHICLE PHOTO:
HITCH ILLUSTRATION:
REPRESENTATIVE PHOTO
MAKE SURE YOUR HITCH MATCHES
LEVEL OF DIFFICULTY: MODERATE
EASY CHALLENGINGMODERATE
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 877.287.8634
Safety glasses should be
worn at all times while
installing this product .
YEARS: 2019-PRESENT CADILLAC MODEL: XT4 SUV
4,000
400
TRAILER WEIGHT:
TONGUE WEIGHT:
13415 INSTALLATION INSTRUCTIONS
LBS.
LBS.
120 MIN.
MIN. PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
SCAN FOR
MORE INFO
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
1/21/2020
TORXBIT
SOCKET
T-15 SOCKET
EXTENSION
8"
SOCKET
15mm
RATCHET
TORQUE
WRENCH
PART REMOVAL
NO DRILLING REQUIRED
TEMPORARILY LOWER
EXHAUST AND REMOVE
LOWER FASCIA

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com
1. To remove lower fascia locate (2) fasteners along wheel
well and remove using T-15 socket, on both sides of
vehicle. Remove access panel and remove (2) fasteners
using T-15 socket. Set aside panel and hardware for
reinstallation.
2. Pull back wheel well cover to remove (1) fastener
using T-15 socket, on each side of vehicle. Carefully
remove lower fascia, starting from outside and moving
towards center on each side.
VEHICLE FRAME
VEHICLE STUDS
(BOTH SIDES)
EXISTING HARDWARE
(BOTH SIDES)
BUMPER BEAM

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com
3. Unclip electrical harness and set aside lower fascia for
later installation.
4. Remove bumper beam by locating and removing (4)
fasteners on each side using 15mm socket. Unclip
exhaust bracket from rear of vehicle to lower exhaust.
NOTE: To avoid damage secure exhaust when
lowering.
5. Raise hitch into position using vehicle studs to align.
Install bumper beam over hitch.
NOTE: Trimming rear cabin pressure vent may ease
installation.
6. Reinstall exhaust bracket, using hardware removed in
Step 4. Secure bracket, bumper beam, and hitch to
vehicle.

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com
7. Torque all M10 hardware to 48 ft-lbs.
8. Reinstall all vehicle components removed in Steps 1-3
in reverse order.

GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
WARNING: *** DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY ***
FOR MORE INFORMATION LOG ONTO WWW.CURTMFG.COM
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-877-287-8634
HITCH WEIGHT: LBS.
INSTALL TIME
PROFESSIONAL: MINUTES
NOVICE (DIY): MINUTES
INSTALL NOTES:
INSTALLATION STEPS
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser.
If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid,
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to
repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
4,000 400
26
60
CADILLAC XT4
1/21/2020
13415
120
Scan
for more
information
1. To remove lower fascia locate (2) fasteners along wheel well and remove using T-15 socket, on both sides of
vehicle. Remove access panel and remove (2) fasteners using T-15 socket. Set aside panel and hardware for
reinstallation.
2. Pull back wheel well cover to remove (1) fastener using T-15 socket, on each side of vehicle. Carefully
remove lower fascia, starting from outside and moving towards center on each side.
3. Unclip electrical harness and set aside lower fascia for later installation.
4. Remove bumper beam by locating and removing (4) fasteners on each side using 15mm socket. Unclip
exhaust bracket from rear of vehicle to lower exhaust.
NOTE: To avoid damage secure exhaust when lowering.
5. Raise hitch into position using vehicle studs to align. Install bumper beam over hitch.
NOTE: Trimming rear cabin pressure vent may ease installation.
6. Reinstall exhaust bracket, using hardware removed in Step 4. Secure bracket, bumper beam, and hitch to vehicle.
7. Torque all M10 hardware to 48 ft-lbs.
8. Reinstall all vehicle components removed in Steps 1-3 in reverse order.

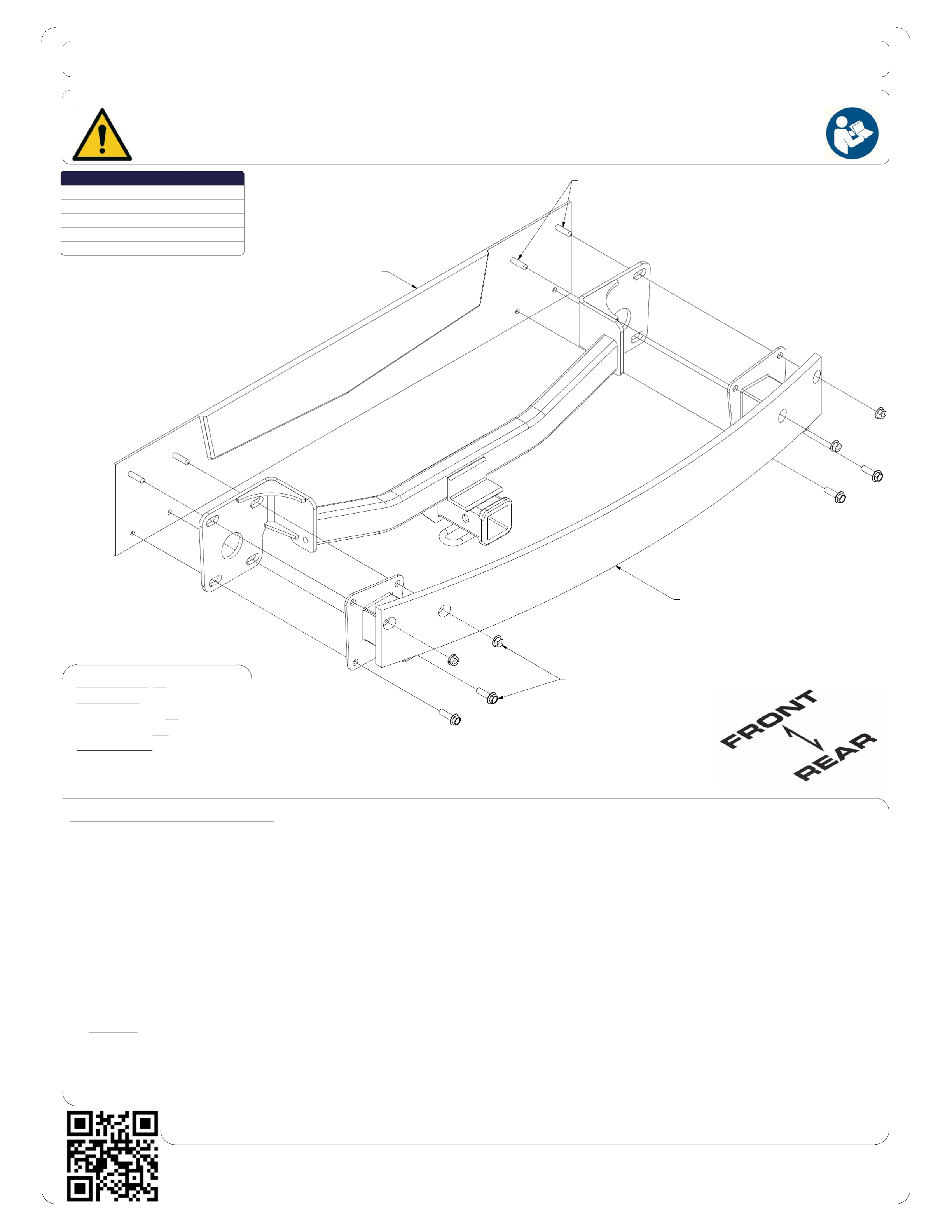

BUMPER BEAM
EXISTING HARDWARE
(BOTH SIDES)
VEHICLE STUDS
(BOTH SIDES)
VEHICLE FRAME
TOOLS REQUIRED
RATCHET
TORQUE WRENCH
15mm SOCKET
T-15 TORXBIT SOCKET
8" SOCKET EXTENSION
-NO DRILLING
-TEMPORARILY LOWER
EXHAUST AND REMOVE LOWER
FASCIA
