curt 70130 User manual

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 1
Product Registration and Warranty
CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires the front bumper to be removed
and reinstalled. Some drilling and trimming are required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
If equipped, we recommend removing the base plate attachment tabs when not in use.
INSTALLATION MANUAL 70130
WARNING
Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR).
Parts List
Item Qty Description
1 1 Tow bar base plate, driver
2 1 Tow bar base plate, passenger
3 2 Tow bar mounting tab
4 2 Safety cable, 7,500 lbs.
5 8 Square hole spacer,
1/4" x 1" x 2-1/2"
6 8 Carriage bolt,
1/2"-13 x 2", grade 8
7 8 Flange nut, 1/2"-13, grade 8
8 4 Quick link, 1/2"
9 2 Socket plug
Tools Required
Torque wrench Drill
Socket, 3/4" Drill bit, 17/32"
Socket, 7/16" T30 Torx bit
Socket, 8mm Wrench, 7/16"
Socket, 10mm Wrench, 3/4"
Socket, 15mm Tape measure
Socket, 21mm Fishwire, 1/2"
(includes four)
CAUTION
Take care when cutting any plastic or metal as injury may occur if done improperly.
Installed Attachment Tabs
Height 17-1/2"
Width 35"

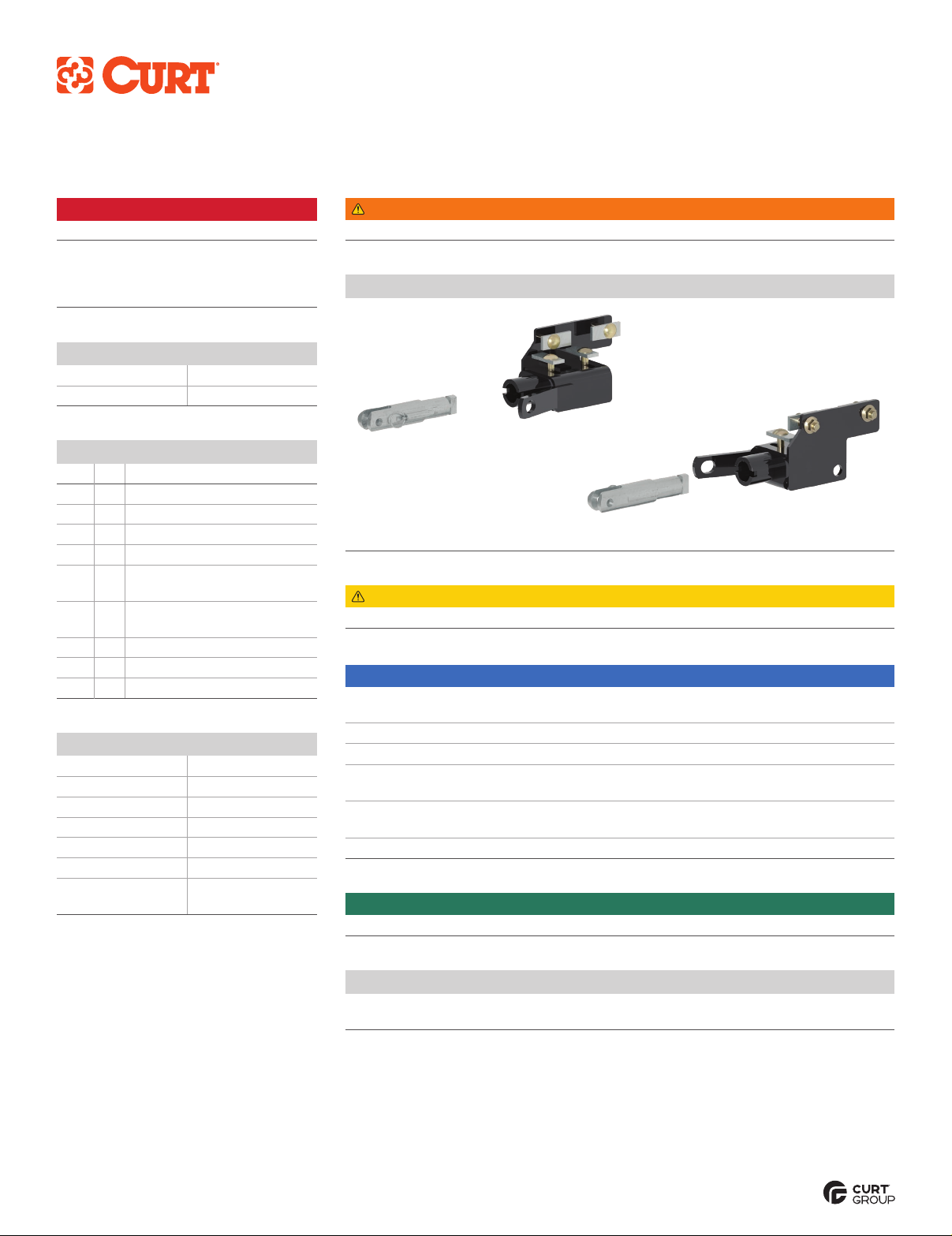

Product Photo
Not pictured: Safety cables, quick links and socket plugs
Level of Difficulty
Difficult
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 2
Included
fishwire
5
5
6
6
1
7
7
8
9
4
3
2
ASSEMBLY
Parts List
Item Qty Description
1 1 Tow bar base plate, driver
2 1 Tow bar base plate, passenger
3 2 Tow bar mounting tab
4 2 Safety cable, 7,500 lbs.
5 8 Square hole spacer,
1/4" x 1" x 2-1/2"
6 8 Carriage bolt,
1/2"-13 x 2", grade 8
7 8 Flange nut, 1/2"-13, grade 8
8 4 Quick link, 1/2"
9 2 Socket plug

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 3
Step 1
Use a 15mm socket to remove the nut in front of the lower valance under the tow hooks.
Repeat on the other side of the vehicle.
Step 2
Use a 21mm socket to remove the two nuts on the backside of the bumper on either side of the tow hook.
Repeat on the other side of the vehicle.
Step 3
Open the hood and unclip the hood release cable on the passenger side.
Then, use an 8mm socket to remove the two bolts near the center of the bumper.
Use a 10mm socket to remove the bolt at the very center of the bumper. Carefully remove the bumper, unplugging any
wiring harnesses as needed. Carefully remove the bumper and set it aside so it will not be damaged during the rest of the installation.
Skip to Step 12.
BUMPER REMOVAL
2009-2014 F-150
2015-2020 F-150
Step 4
Using a non-marring pry tool, remove the
plastic cover insert and license plate holder
from the bumper and set it aside.

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 4
Step 5
For vehicles with Adaptive Cruise Control
(ACC), use an 11mm socket to remove the
three nuts from the ACC sensor on the driver
side. Remove the sensor, unplug the wiring
harness and set the sensor aside.
For 2016-2017 Raptor models: Use a 15mm
socket to remove the side bolts from the front
underbody skid plate. Then, remove the bolt in
each of the two skid plate brackets – one on
each side of the vehicle.
2015-2018 F-150 (CONTINUED)
Step 6
Use a 21mm socket to remove the two nuts
behind the bumper on the outside of the frame
– one on either side of the vehicle.
Then, remove the three push pins along the
upper edge of the bumper where the bumper
meets the grille. This may be done while
removing the bumper. These attach the
bumper to the flexible rubber dirt guard.

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 5
2015-2018 F-150 (CONTINUED)
Step 7
Use a 21mm socket to remove the four nuts
from the face of the bumper – two on either
side of the vehicle. Carefully remove the
bumper, unplugging any wiring harness
from the bumper as necessary.
Set the bumper aside. Remove the
plastic trim around the tow hook on
each side of the vehicle.
Skip to Step 12.
Step 8
Open the hood and use a Phillips head screwdriver to remove the 12 push pins in the top radiator cover panel – six on each side.
Once removed, set the panel aside.
Step 9
Use a T30 Torx bit to remove the four screws in the top portion of the grille – two on each side.
For Navigator models: Use a 10mm socket to remove the two screws in the outer fascia piece –
one on each side as shown. Also, remove the two hood latch screws on the driver side.
Step 10
Use a 7mm (10mm on Navigator) socket to remove the three screws from the front inner edge of the wheel well. Then, pull back
the wheel well liner and use a 10mm socket to remove the two bolts behind the liner, where the bumper cover meets the fender.
Repeat on the other side of the vehicle.
For Navigator models: Remove the two push pins from the center, underside of the bumper cover.
FASCIA REMOVAL
EXPEDITION AND NAVIGATOR
Step 11
Starting on the outer edges, pull the bumper cover out, releasing the clips. Work your way toward the center of the vehicle, unclipping
the bumper cover. Carefully remove the bumper cover and set it aside so it will not be damaged during the rest of the installation.

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 6
TOW BAR BASE PLATE INSTALLATION
Step 12
Use a 15mm socket to remove the two
bolts holding the tow hook in place.
Repeat on the other side of the vehicle.
Return the tow hooks and plastic
trim to the vehicle owner.
Step 13
Starting on the passenger side, position
the tow bar base plate (#2) on the vehicle,
ensuring the side plates are flush against
the outside of the frame.
Reinstall the previously removed tow hook bolts
into the holes in the bottom of the base plate.
Torque the bolts to 75 lb-ft.
Note: For vehicles without tow hooks, use the
supplied 1/2" carriage bolts (#6), square hole
spacers (#5) and 1/2" flange nuts (#7). Torque
the bolts to 110 lb-ft.

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 7
Step 14
Using the side plate as a guide, drill two 17/32"
holes. Then, fishwire the 1/2" carriage bolts
(#6) with square hole spacers (#5) into the
holes from the end of the frame. Loosely
install the 1/2" flange nuts (#7).
Repeat on the other side of the vehicle
and torque all 1/2" fasteners to 110 lb-ft.
Step 15
Install the permanent safety cables (#4) and
quick links (#8), looping them around the
vehicle frame and linking them to the tow bar
base plates (#1, #2). There must be one cable
on each side of the vehicle.
Make sure the cables do not pinch or interfere
with any hoses, wiring or other components.
See 'Installing the Permanent Base Plate
Safety Cables' for additional information.
Step 16
Reinstall the ACC sensor if applicable.
Reinstall the bumper / cover, plugging in any
previously disconnected wiring harnesses.
Reinstall any fascia and other components
that were removed during the install.
Return any unused factory
fasteners to vehicle owner.
When ready to tow, install the tow bar
mounting tabs (#3). When not towing,
insert the socket plugs (#9) into the
ends of the tow bar base plates (#1, #2).

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •70130-INS-RA •02/26/2021 •ECN8061 •PAGE 8
SAFETY CABLE INSTALLATION
ADDITIONAL INFORMATION
Towing Tips
Check your equipment Periodically check the condition of all towing equipment. Ensure all fasteners are tight and
that all structural components are sound. Do not tow with worn or damaged parts.
Towing vehicle and trailer
manufacturer's recommendations
Review the owner's manual for your towing vehicle and trailer
for specific recommendations, capacities and requirements.
Final Installed Image
Installing the Permanent Base Plate Safety Cables
When dinghy towing a vehicle with a tow bar, base plate safety cables should be used at all times.
In the event of a disconnect, the safety cables are designed to help prevent complete vehicle separation.
When installing the safety cables, use the illustrations below as a guide.
Installation guidelines
1. The cables must be connected to
the base plate and the vehicle frame.
2. Two cables must be installed.
3. Each cable must meet or exceed the
gross weight of the towed vehicle.
4. Make sure cables do not pinch or interfere
with hoses, wiring or other components.
Note: Base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
BaseplateBaseplate
Quick link Quick link
Permanent baseplate
safety cable
Permanent baseplate
safety cable
Convenience link No convenience link
