CyberData VoIP Desktop Intercom Manual

The IP Endpoint Company
Installation Quick Reference

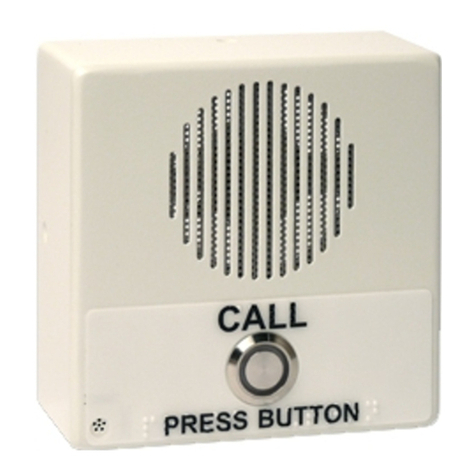

VoIP Intercom
SiP Compliant
010935
Quick Reference 930180P © 2011, CyberData Corporation, ALL RIGHTS RESERVED© 2011, CyberData Corporation, ALL RIGHTS RESERVED 930180P Quick Reference
Mounting
To mount the intercom, use methods compliant with local electrical codes.
Contacting CyberData
Security Torx Screw (4x)
Face Plate
and
PCB Assembly
2 Gang Box
(1) Tamper-resistant Torx Bit (T-15H)
(Requires 1/4-inch Driver Torx Bit Socket)
(Not Provided)
Mounting Screw
Flat Head Phillips
Machine Screw (2x)
Plate (2x)
Flush Mounting
1
2" Conduit
Not to Exceed 0.1"
OR
CONDUIT
HOLE PLUG
Apply good quality waterproof
sealant to all threads.
HOLE PLUG
CONDUIT (1/2”)
OR
The Intercom has three cable entries. If you are using the
center entry, refer to this drawing that shows the entry restrictions.
Caution
Equipment Hazard: Do not use an electric or power screwdriver to fasten the face
plate and PCB assembly to the gang box. To prevent over-torque damage to the
gasket, do not apply more than 10 inch-pounds force. Over-torquing will cause
the gasket to tear, risk moisture intrusion, and effectively void the manufacturer's
warranty.
GENERAL ALERT
Sales: [phone] ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.html
RMA Dept: [phone] ext. 136
Email: [e-mail]
RMA Status: http://www.cyberdata.net/support/rmastatus.html
Warranty and RMA information is available at the following website:
http://www.cyberdata.net/support/warranty/index.html
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: [phone]
Fax: [phone]
www.CyberData.net
Typical Intercom System Installation
Getting Started
•DownloadtheVoIP Intercom Operations Guide PDF file, from the VoIP Intercom product page at:
http://www.cyberdata.net/products/voip/digitalanalog/intercom/docs.html
• Create a plan for the locations of your Intercoms.
• Prior to installation, consult local building and electrical code requirements.
• WARNING: This enclosure is not rated for any AC voltages!
Intercom Parts
Parameter Factory Default Setting
IP Addressing DHCP
IP Addressa10.10.10.10
Web Access Username admin
Web Access Password admin
Subnet Maska255.0.0.0
Default Gatewaya10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Hub
VoIP Intercom IP Phone IP PBX Server
12 34 56
VoIP Intercom VoIP Intercom
(1) Intercom Assembly
(2) 8-32 x 1/4" Flat head
phillips machine screw
(1) 10-24 x 5/16" Pan head
phillips machine screw
(1) Wall Mounting Kit
(2) Outlet box plugs
(2) Flush mounting plate
(1) Tamper-resistant Torx Bit (T-15H)
(4) #6-32 x 5/8-inch Torx Security Flat
Head 82° Countersunk Machine Screw

© 2011, CyberData Corporation, ALL RIGHTS RESERVED 930180P Quick Reference Quick Reference 930180P © 2011, CyberData Corporation, ALL RIGHTS RESERVED
Dimensions
Intercom Connections
DIMENSIONS ARE IN INCHES [MILLIMETER]
5.00 [127.0] 2.36 [60.0] 4.64 [117.8]
4.70 [119.3]
5.00 [127.0]
WALL CUTOUT
654321
AlternatePower Input:
1 = +5V at 1000 mA
2=PowerGround
Re l ay Co n t ac t :
(2A at 30 VDCor 0.4A at 125 VAC
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
J3
Ter m i n al Bl o ck
Wire in,
34
up to 16 AWG
accept wire range
for continuous loads)
(1A at 30 VDC for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
Wire in,
accepts 16 AWG
gauge wire
Wall Cutout Template
4.64 [117.8]
4.70 [119.3]
WALL CUTOUT
