CYBEX 16150-999-4 B Instruction Manual

Cybex®Plate Loaded Squat Press
Owner’s and Service Manual
Strength Systems
Part Number 16150-999-4 B
www.cybexinternational.com

Cybex®Plate Loaded Squat Press
Owner’s and Service Manual
Strength Systems
Part Number 16150-999-4 B
Cybex®and the Cybex logo are registered trademarks of Cybex International, Inc.
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to
revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such
revisions or changes.
© Copyright 2010, Cybex International, Inc. All rights reserved.
Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX [phone]
www.cybexinternational.com • [email protected] • 16150-999-4 B • June 2010

1 Safety
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Guidelines and Practices . . . . . . .2
Warning/Caution Decals . . . . . . . . . . . . . 3
Regular Maintenance Activities . . . . . . . . 4
2 Exercise
Intended Use . . . . . . . . . . . . . . . . . . . . . . 4
Instructions. . . . . . . . . . . . . . . . . . . . . . . . 4
3 Customer Service
Contacting Service. . . . . . . . . . . . . . . . . . 5
Ordering parts . . . . . . . . . . . . . . . . . . . . . 5
Return Material Authorization (RMA). . . . 6
Damaged Parts . . . . . . . . . . . . . . . . . . . . 6
4 Assembly
Tools Required. . . . . . . . . . . . . . . . . . . . . 7
5 Maintenance
Daily Procedures . . . . . . . . . . . . . . . . . . . 8
Weekly Procedures . . . . . . . . . . . . . . . . . 8
6 Service
Parts Lists . . . . . . . . . . . . . . . . . . . . . . . 10
Exploded-View Diagram . . . . . . . . . . . . 11
Table of Contents
Page i

Page 1
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
1 - Safety
Safety
Read the Owner’s Manual carefully before assembling, servicing or using Cybex equipment.
WARNING: Serious injury could occur if these safety precautions are not observed:
User Safety Precautions
Obtain a medical exam before beginning any exercise program.•
Stop exercising if feeling faint, dizzy or experiencing pain and consult your physician.•
Obtain instructions before using. Lisez les instructions avant I’untilisation.•
Read and understand the owner’s manual and all warnings posted on the machine before using• .
Keep all children (12 and under) away. Teenagers (13 and over) and disabled must be supervised.•
Garder tous les enfants (de 12 ans et moins) éloignés. Les adolescents (de 13 ans et plus) et les
handicapés doivent être surveillés.
Use a spotter.•
Keep body and clothing free from and clear of all moving parts.•
Use the machine only for the intended use.• DO NOT modify the machine.
Inspect machine prior to use.• DO NOT use if it appears damaged or inoperable.
DO NOT• attempt to fix a broken or jammed machine.
Report any malfunctions, damage or repairs to the facility• .
Replace any warning labels if damaged, worn or illegible.•
Facility Safety Precautions
Read the Owner’s Manual carefully before assembling, servicing or using this equipment.•
Securely anchor machine to the floor using the anchor holes provided in each machine.•
NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor.
NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any leg or frame not in
contact with surface using flat washers.
Make sure that each machine is set up and operated on a solid level surface.• Do not install
equipment on an uneven surface.
Make sure that all users are properly trained on how to use this equipment.•
Make sure there is enough room for safe access and operation of this equipment.•
Perform regular maintenance checks on this equipment. Also pay close attention to• all areas most susceptible to wear.

Page 2
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Immediately replace worn or damaged components. If unable to immediately replace worn or• damaged components then remove from service until the repair is made.
NOTE: It is the sole responsibility of the user/owner or facility operator to ensure that regular
maintenance is performed.
Safety Guidelines And Practices
Cybex recommends that all fitness equipment be used in a supervised area. It is recommended that the equipment be
located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of
the owner.
It is the responsibility of the purchaser/user of Cybex products to read and understand the owner’s manual, and warning
labels; as well as instruct all individuals, whether end users or supervising personnel, on proper usage of the equipment.
PROPER USAGE:
Use machine only as described in the manual. Failing to follow proper instructions may result in injury.
Do Not Lean Against or Pull On the framework, weight stack, or any component, whether machine is at rest or in use.
Inappropriate or improper use may result in injury to users or third parties (bystanders).
Do not use machine if it is not located on a solid level surface or is improperly installed.
Provide an adequate safety perimeter between the machine, walls and other equipment to ensure that the facility has the
proper clearance for usage and training.
SECURING EQUIPMENT:
The machine has holes in the feet, which allow for ease in anchoring to the floor. Cybex strongly recommends that, to
eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface.
1. The solid, level surface should not deviate more than 1/8” over a 10’ distance or as defined and required by local
building and architectural codes.
2. Anchoring of equipment must be completed by a qualified licensed contractor.
3. Anchoring holes are provided on the feet of the frame. All anchoring locations must be used when anchoring the
equipment to the floor.
4. Due to the wide variation of flooring on which machines may be anchored or installed, verify anchoring method and
anchoring fasteners with a qualified and licensed contractor.
5. A minimum pull out force of 220 lbs/100 kgs is required for each anchor position..
6. Do not use machine until it is properly anchored.
MAINTENANCE:
Preventative maintenance allows proper equipment operation and reduces the risk of injury. Perform the maintenance
requirements as specified in the manual.
STANDARD COMPLIANCE:
Cybex products meet or exceed applicable ASTM and EN Standards.

Page 3
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Warning/Caution Decals
Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate
injury.
The following diagram shows where each decal is located.
WARNING A
A. Warning Decal..................5220-365
B. Caution Decal...................4000Y316
C. Warning Decal..................5220-337
D. Warning Decal..................5235-340
DESCRIPTION PART NO.
B
D
C
Squat Press 16150
Personal injury may occur.
CAUTION
4000Y316-4 A
Keep away from moving
parts to avoid injury.
C
(Both Sides)
A
B D

Page 4
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Regular Maintenance Activities
Preventative maintenance activities must be performed to maintain normal operation of this equipment.
Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative
maintenance activities.
WARNING: Equipment found to have worn or damaged components must be removed from
service until repair(s) is made. Failure to do so could result in injury.
Daily
1. Clean upholstery.
Weekly
1. Inspect all nuts and bolts for looseness. Tighten as required.
2. Check for worn handles, and worn warning labeling. Replace all worn parts immediately.
2 - Exercise
Intended Use
The intended use of this equipment is to aid or improve general physical fitness and exercise. For Comercial use.
Instructions
Read and understand all instructions and warnings prior to using this machine. See Chapter 1, Safety in Owner’s
Manual or consult with floor staff.
NOTE: Refer to next page for set up and movement.

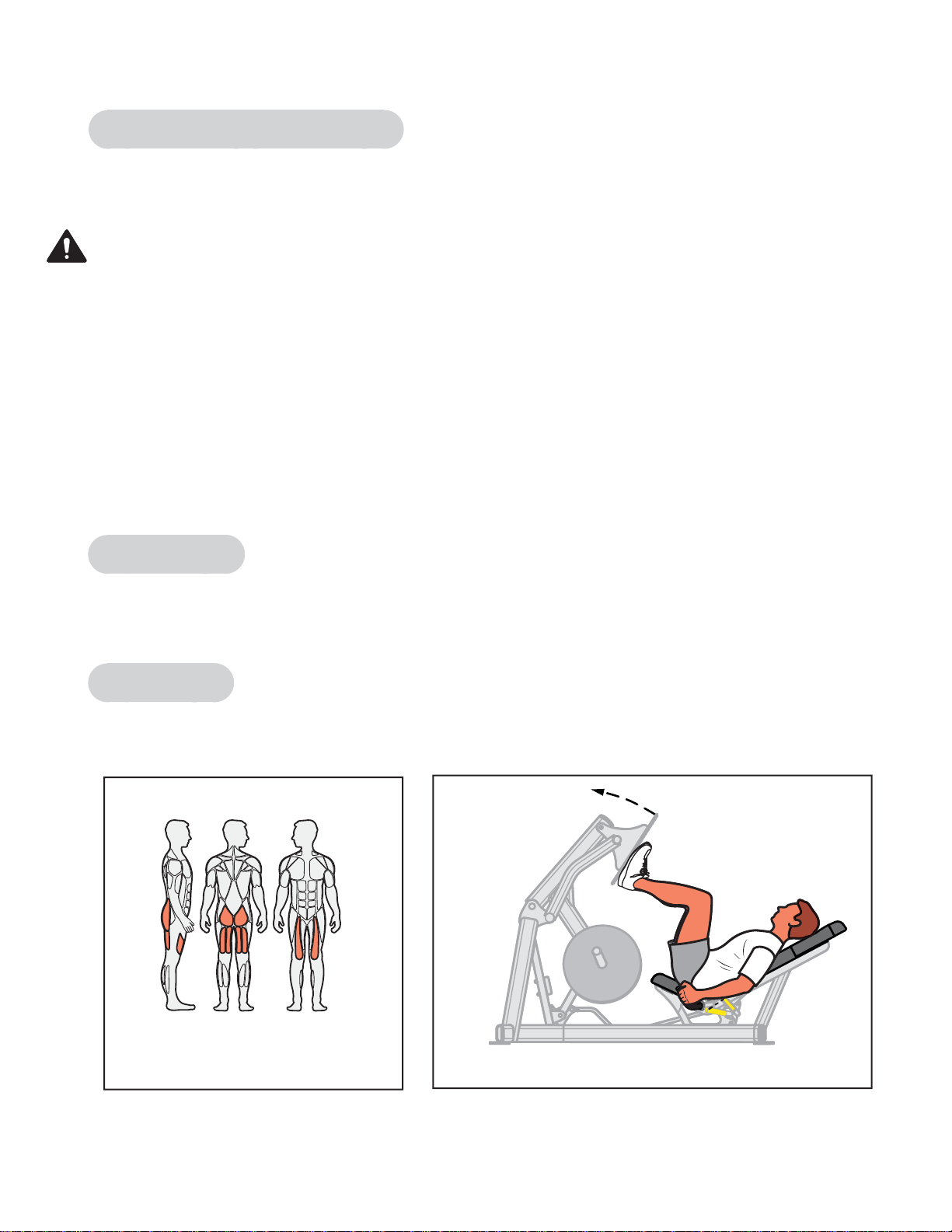

MUSCLES USED
Quadriceps,
Gluteus Maximus,
Hamstrings NOTE: Motions Developed: Knee Extension, Hip Extension

Page 5
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Set Up
1. Load evenly with appropriate resistance.
2. Push foot plate forward and release carriage support by pushing carriage release handles forward.
3. Grasp forward handles.
Movement
1. Push foot plate forward until legs are extended.
Before Exiting
1. With foot plate forward, pull carriage release handles up to lock carriage support.
2. Return carriage to support. 3 - Customer Service
Contacting Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m Eastern Standard Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax [phone].
Find information on the web at www.cybexintl.com or e-mail at [email protected].
Ordering Parts
Fax orders to 508-533-5183. To speak with a customer service representative, call 888-462-9239 (for customers living
within the USA) or 508-533-4300 (for customers outside the USA). You may also contact us through e-mail at
[email protected].
Having the following information ready when calling, will assist our Cybex representatives in serving you.
Unit Serial Number•
Product Name•
The unit serial number and product name can be found on the serial number decal. See Chapter 6 for exact location of
serial number decal.
Part Description•
Part Number•
Part descriptions and part numbers are located in Chapter 6 of this manual.
Shipping Address•
Contact Name•
In addition to your shipping address and contact name, your account number is helpful but not required.

Page 6
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system outlines the procedures to follow when returning
material for placement, repair or credit. The system assures that returned materials are properly handled and analyzed.
Follow the following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from
Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA
and an Automated Return Service (ARS) label.
1. Call the Customer Service Hot Line listed above for the return of any item that is defective.
2. Provide the technician with a detailed description of the problem you are having or the defect in the item
you wish to return.
3. Provide the model and serial number of your Cybex equipment.
4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for
evaluation and repair or replacement. The technician will assign you a RMAnumber and will send you an
ARS label. TheARS label and the RMAnumbers must be clearly displayed on the outside of the
package that contains the item(s) to be returned. Include the description of the problem, the serial
number of the equipment and the name and address of the owner in the package along with the part(s).
5. Forward the package through UPS to Cybex.
Attn: Customer Service Department
Cybex International, Inc.
1975 24th Ave SW
Owatonna, MN 55060
NOTE: Merchandise returned without an RMA number on the outside of the package or shipments sent COD
will not be accepted by the Cybex receiving department.
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier
(UPS, Federal Express, trucking companies, etc.)
Apparent Damage - Upon receipt of your shipment, check all items carefully.Any damage seen with a visual check must
be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers refusal to honor your
damage claim. The carrier will provide you with the required forms for filing such claims.
Concealed Damage - Damage not seen with a visual check upon receipt of a shipment but notices later must be reported
to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to the carrier asking them to
perform an inspection of the materials must be made within ten days of the delivery date. Keep all shipping containers and
packing materials as they will be needed in the inspection process. The carrier will provide you with an inspection report
and the necessary forms for filing a concealed damage claim. Concealed damage claim is the carrier’s responsibility.
Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA
and an Automated Return Service (ARS) label.

Page 7
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
4 - Assembly
Tools Required
• 5/16” Allen wrench
• 3/4” Wrench
NOTE: It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate clearance
around each machine to allow for safe use and passage.
NOTE: Refer to chapter 6 for reference diagrams.
1. Read and understand all instructions thoroughly before starting any of the procedures listed on this
instruction sheet.
2. Verify you have received the appropriate configuration.
Verify that you received the correct color machine that you ordered.A.
Verify you received the appropriate owner’s manual.B.
Verify you received the warranty sheet.C.
3. Move to desired location.
Note the diminsions of the machine:A. Machine Weight: 342 lbs. Size: 69 W” x 82” L x 53” H
Machine Weight 155 kg. Size: 175 cm W x 208 cm L x 135 cm H
Carefully remove foam and shrink wrap securing two weight tubes, rubber feet, and loctite.B.
Carefully remove each (standard) cone-shaped shipping support using a 3/4” socket or wrench.C.
Carefully place rubber feet (supplied with machine) on each foot of the frame.D.
4. Install weight tubes.
Remove SHCS (both sides). See Figure 1.A.
Place weight tube in frame. See Figure 1.B.
Align weight tube hole with threaded hole in frame.C. See Figure 1.
Place a drop of loctite (supplied with machine) onD. SHCS (removed in step 4A) and threaded hole of tube.
Using a 916” Allen wrench secure weight tube in place withE. SHCS (removed in step 4A).
Repeat steps 4B-4F for opposite weight tube.F.
Figure 1
SHCS
Weight Tube
Loctite
Threaded Hole
Threaded Weight Hole

Page 8
Cybex Plate Loaded 16150 Squat Press Owner’s Manual
5. Anchor machine to floor.
Securely anchor machine to the floor using the anchor holes provided in each machine.A.
NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor.
NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any leg or frame not in contact with
surface using flat washers.
6. Verify proper operation.
5 - Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive
maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment.
NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines.
Instruct all personnel in equipment inspection and maintenance actions and also in accident
reporting/recording. Cybex phone representatives are available to answer any questions or concerns
that you may have.
Daily Procedures
1. Upholstery - Wipe down all upholstery.
2. Frames - Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly.
AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or
damage the equipment.
3. Chrome - Clean chrome tubes, first using chrome polish and then using a car wax seal. Neutral cleaners
with a pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based
cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
Weekly Procedures
1. Inspect all nuts and bolts for looseness. Tighten as required.
2. Inspect all labeling for readability. This includes instructional placards, warning and caution decals. Replace all worn
labeling immediately.

Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Page 9
Please refer to the next pages for parts lists and exploded-view diagrams
6 - Service
Cybex will void warranty if
non-Cybex replacement parts
are used.
NOTE: All inspections
and repairs must be
performed by trained
service personnel only.
Plate Loaded Squat Press
PRODUCT NO. 16150
A. Placard................................ 16150-598-X
B. Warning Decal..................... 5220-365-X
C. Caution Decal..................... 4000Y316-X
D. Warning Decal..................... 5220-337-X
E. Warning Decal..................... 5235-340-X
DESCRIPTION PART NO.
A
G, H
E
J
NOTE: See exploded view for location of K (serial number decal).
F. Grips.................................... 4605-521
G. Back Pad W/Wear Cover.....4800-184
H. Wear Cover..........................4800-187
I. Seat Pad...............................4800-168
J. Non Slip................................16150-316
K. Serial Number Decal
DESCRIPTION PART NO.
F
B
I
F
C
D
(Both Sides)

Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Page 10
1 2 11090-374 END CAP 2 2 11090-376 RING, HANDLE GRIP 3 1 11130-327 PIVOT PIN 4 1 12090-303 SHAFT, PIVOT 5 4 16010-311 FOOT PAD 6 1 16150-200 MAIN FRAME 7 1 16150-201 FOOT PLATE 8 1 16150-202 FRAME 9 1 16150-203 UPPER LINKAGE 10 1 16150-204 PIVOT FRAME 11 1 16150-205 PIVOT HANDLE 12 1 16150-316 NON-SLIP 13 1 16150-345 SPACER 14 2 16150-346 WEIGHT TUBE 15 1 16150-355 SHAFT, LINKAGE 16 1 16150-361 PIVOT SHAFT 17 1 16150-362 SHAFT, PIVOT 18 2 16210-323 VINYL GRIP 19 2 3900-447 DECAL, CYBEX BLACK 19 2 3900-448 DECAL, CYBEX SILVER 20 2 4505-331 BUMPER, 1.50 DIA 21 2 4605-521 GRAB GRIP 8.25 22 1 51198 WARRANTY BOOK (NOT SHOWN) 23 7 5220-305 2.00 X 4.00 BUMPER 24 2 BR030226 RETAINING RING, 1.653 INTERNAL 25 2 FB030207 ROD END BEARING (MALE) .50-20 26 8 FB030232 BEARING, RADIAL 17 mm EXTENDED RACE 27 2 FB030253 BEARING, RADIAL 30 MM EXTENDED RACE 28 2 FC030003 TOLERANCE RING
ITEM QTY PART NO. DESCRIPTION
*Language Key 1-German , 2-French, 3-Spanish, 4-English, 6-Japanese, 7- Swedish, 8- Russian
29 8 FC030006 TOLERANCE RING 1.575 ID 30 6 HC700430 BHSCS .375-16 X 2.50 31 2 HC702815 SHCS .375-16 X .750 32 2 HF449064 INSERT 1.12 X .250-20 UNC 33 14 HN704901 LOCKNUT, .375-16 NYLON 34 2 HN784901 NYLON LOCKNUT .500-13 THIN 35 12 HS347600 WASHER, SAE .375 36 2 HS387500 .500 SAE FLAT WASHER 37 2 HX-60135 CAP ROUND PLASTIC 1.50 BLK ABS 38 2 JC620422 BHSCS .250-20 x 1.50 39 8 JC700412 BHSCS .375-16 X .50 40 12 JC700420 BHSCS .375-16 X 1.25 41 2 JC702812 SHCS .375-16 X .50 42 2 JC780417 BHSCS .500-13 X 1.00 43 2 JC780420 BHSCS .500-13 X 1.25 44 2 JN794400 JAM NUT .500-20 45 4 JS347400 LOCKWASHER, INT TOOTH .375 46 2 PP090208 INSERT, PLASTIC 1.75 DIA. RIBBED 47 2 PP090213 INSERT PLASTIC 48 4 PP130002 INSERT, DOMED PLASTIC 49 4 PP130004 INSERT, DOMED PLASTIC 50 2 PP130006 INSERT, PLASTIC END 51 1 4800-184 SEAT BACK/W WEAR COVER 52 1 4800-187 WEAR COVER 53 1 4800-168 SEAT PAD 54 1 5235-340-X* DECAL, WARNING 55 1 16150-598-X* PLACARD 56 2 5220-337-X* DECAL,WARNING 57 1 5220-365-X* DECAL, WARNING 58 1 4000Y316-X* DECAL, CAUTION 59 1 11040-790 DECAL. MADE IN USA 60 1 CM000250 DECAL. WEIGHT CAPACITY
ITEM QTY PART NO. DESCRIPTION

Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Page 11
59
51
SEE
LINKAGE
DETAIL
SEE PLATFORM DETAIL
36 36
33
23
30
35
35
23
39
42
42
39
49
49
38
38
1
32
21
2
40
45
39
40
35
35
49
45
40
39
45
45
40
49
1
32
21 247
6
SERIAL NUMBER
DECAL
43
34 25
25
43
29
26
40
23 35
33
20
4
26
29
10
34
44
44
18
29
11 29 26 3
18
15
26
41
37.98
LINKAGE DETAIL 4X
4X
55
5
54
53
54
60
DETAIL III

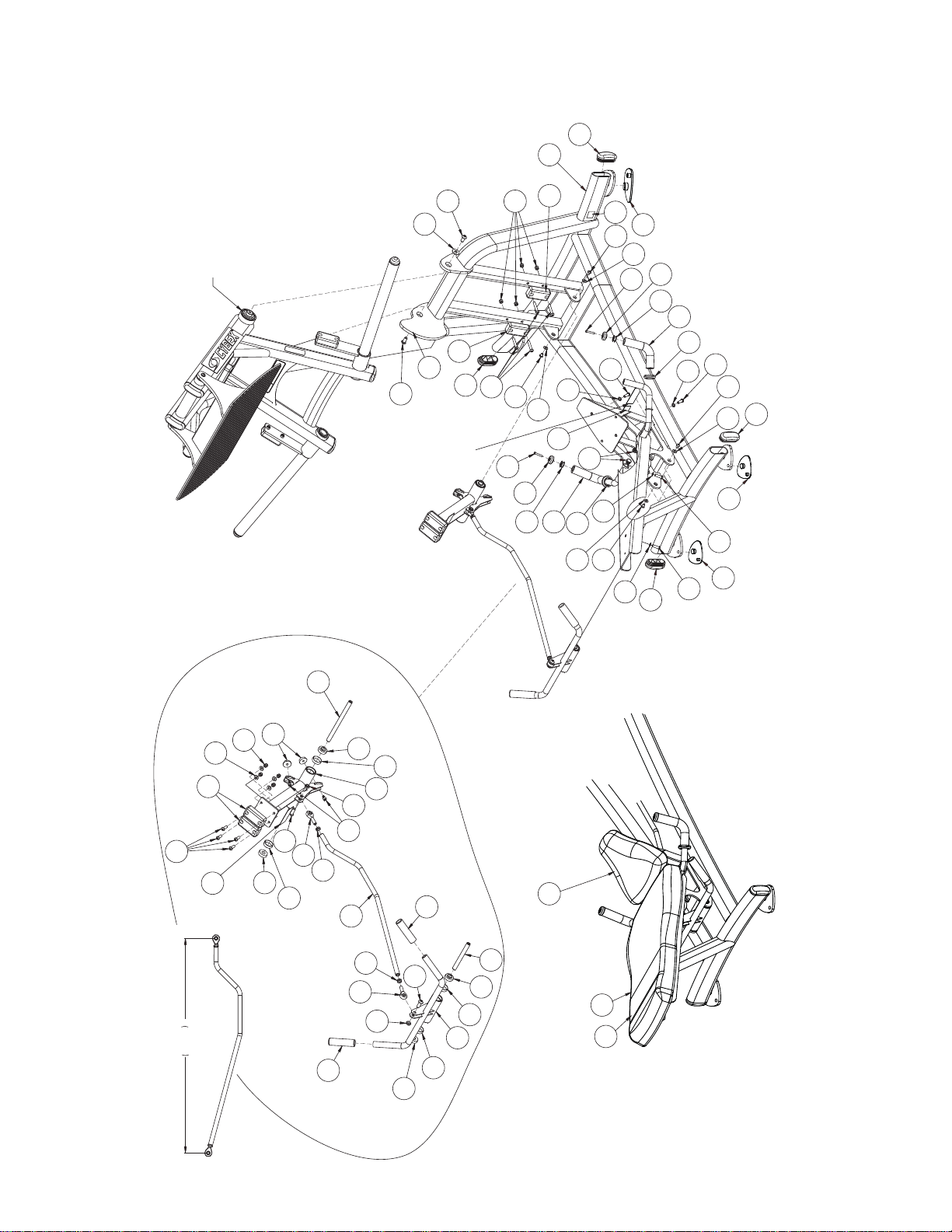

16150 SQUAT PRESS MAIN ASSEMBLY DETAIL

Cybex Plate Loaded 16150 Squat Press Owner’s Manual
Page 12
.75±.12
2X.13±.06.50±.25
SERIAL, CAPACITY DECAL DETAIL
±.12
12 7
WARNING DECAL
PLATFORM DETAIL
.25±.06
.25±.06
NON-SLIP DETAIL
1.15±.25
BOTH SIDES
DECAL DETAIL
CENTER ON TUBE
.58
.13 ±.06
WARNING DECAL
DETAIL I
CENTER DECAL
5.00 ±.25
BOTH SIDES
DETAIL II
19 CENTER
ON TUBE
SERIAL DECAL DETAIL
2.00±.25
WARNING DECAL
DETAIL III
10
CENTER ON TUBE
CENTER DECAL
1.50
LINK BAR DECAL DETAIL
CENTER ON TUBE
12
48
37
37
48
14
50
33
23
40
16
27
19
26
29
48
48
29
26 27
23
14
50
29
26
24
35
46
24
26
29
9
35
46
39
39
7
17
8
28
28
13
40 23
30
39
39
35
35
33
33
31
31
56
58
56
57
55 55
57
54
DETAIL I
DETAIL II
DETAIL I
58
SEE NON-SLIP DETAIL
56
60
16150 SQUAT PRESS PLATFORM DETAIL

10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX [phone]
www.cybexinternational.com • [email protected]
