CYBEX FT 360 Instruction Manual

FT 360 Functional Trainer
Owner’s and Service Manual
Strength Systems
Part Number 59100
www.cybexinternational.com

FT 360 Functional Trainer
Owner’s and Service Manual
Strength Systems
Part Number 59100
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to
revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of
such revisions or changes.
© Copyright 2000, 2001, 2002, 2003, 2004 Cybex International, Inc. All rights reserved.
Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX [phone]
www.cybexinternational.com • T[email protected] • [email protected] • 59100 • March 2004

iTable of Contents
1 Safety
Safety......................... 1-1
Warning/Caution Decals .......... 1-2
Regular Maintenance Activities ..... 1-7
Using Proper Form .............. 1-7
2 Technical Specifications
General Specifications............ 2-1
Machine Specifications ........... 2-4
3 General Exercise Guidelines
Training Suggestions ............. 3-1
Glossary ....................... 3-2
Exercise Charts
4 Exercises
FT 360 Overview ................ 4-2
Adjustment and Safety ........... 4-2
Weight Stack and Effective
Resistance ..................... 4-2
Exercise Opportunities............ 4-3
Lateral Step .................... 4-4
Overhead Squat................. 4-4
Single Leg Squat ................ 4-5
Split Squat Press ................ 4-5
Hip Extension................... 4-6
Hip Flexion..................... 4-6
Lunge Adduction ................ 4-7
Shoulder Adduction .............. 4-8
Chest Press .................... 4-9
Standing Chest Press ............ 4-9
Back and Shoulder Extension ...... 4-10
Shoulder Abduction .............. 4-10
Lat Pulldown ................... 4-11
Row.......................... 4-11
Standing Overhead Press ......... 4-12
Push Pull ...................... 4-12
Tricep Extension................. 4-13
Table of Contents
5 Customer Service
Contacting Service .............. 5-1
Ordering Parts .................. 5-1
RMA.......................... 5-2
Damaged Parts ................. 5-3
Cybex Limited Warranty .......... 5-5
6 Assembly
FT 360 Diagram ................. 6-1
Tools Required .................. 6-2
Unpacking ..................... 6-2
Installing Foot Pads .............. 6-4
Installing Snap Links ............. 6-5
Installing Weight Stack ........... 6-6
Installing Shroud ................ 6-13
Final Assembly.................. 6-14
7 Maintenance
Daily Procedures ................ 7-2
Weekly Procedures .............. 7-4
Yearly Procedures ............... 7-5
“As Required” Procedures......... 7-5
Weight Stack Cable Adjustment .... 7-6
Arm Cable Adjustment............ 7-7
8 Service
Parts Lists and Diagrams ......... 8-1

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-1
1 - Safety
Safety
Read the Owner’s Manual carefully before assembling, servicing or using the equipment.
It is the responsibility of the facility owner and/or owner of the equipment to instruct users on
proper operation of the equipment and review all labels.
! WARNING: Serious injury could occur if these safety precautions are not observed:
User Safety Precautions
• Obtain a medical exam prior to beginning an exercise program.
• Read all warnings and obtain proper instruction on use of the machine prior to using.
• Keep body and clothing free from and clear of all moving parts.
• Inspect machine prior to use. DO NOT use if it appears damaged or inoperable.
•DO NOT attempt to fix a broken or jammed machine. Notify floor staff.
• Use the machine only for the intended use. DO NOT modify the machine.
• Be sure that the weight pin is completely inserted. Use only the pin provided by the
manufacturer. If unsure seek assistance.
• Never pin the weights in an elevated position. DO NOT use the machine if found in this
condition. Seek assistance from floor staff.
• Children must not be allowed near this machine. Teenagers must be supervised.
•DO NOT use if guards are missing or damaged.
•DO NOT use dumbbells or other incremental weights, except those provided by the
manufacturer.
• Inspect all cables and belts and connections prior to use. DO NOT use if any components
are worn, frayed, or damaged.
•DO NOT remove this label. Replace if damaged.
• Stop exercising if you feel faint, dizzy or experience pain at any time while exercising and
consult your physician.

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-2
Facility Safety Precautions
• Read the Owner’s Manual carefully before assembling, servicing or using the equipment.
• Securely anchor each machine to the floor using the anchor holes provided in each
machine.
• Make sure that each machine is set up and operated on a solid level surface. Do not
install equipment on an uneven surface.
• Make sure that all users are properly trained on how to use the equipment.
• Make sure there is enough room for safe access and operation of the equipment.
• Perform regular maintenance checks on the equipment. Also pay close attention to all
areas most susceptible to wear, including (but not limited to) cables, pulleys, belts and
grips.
• Immediately replace worn or damaged components. If unable to immediately replace worn
or damaged components then remove from service until the repair is made.
• Use only Cybex supplied components to maintain/repair the equipment.
• Keep a repair log of all maintenance activities.
• Inspect all cables and belts and connections prior to use. DO NOT use if any components
are worn, frayed, or damaged.
NOTE: It is the sole responsibility of the user/owner or facility operator to ensure that regular
maintenance is performed.
Warning/Caution Decals
Warning decals indicate a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in
minor or moderate injury.
The warning and caution decals are shown on the following page. The diagrams following the
decals show where each decal is located.
NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult
with a professional contractor.
NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2
bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors.
Shim any leg or frame not in contact with surface using flat washers.

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-3
8500-311 C
Arm will drop when
knob is pulled.
Support arm while
adjusting arm position.
Be sure detent pin
is fully engaged
before use. Return
arm to storage position
when not in use.
Failure to do so could
result in personal injury.
WARNING
A
B
C
D

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-4
A. Warning Decal.................... 02521
B. Warning Decal ................... 4800-381
C. Caution Decal .................... 8500-025
D. Warning Decal.................... 8500-311
DESCRIPTION PART NO.
C
D
A
B
D
C

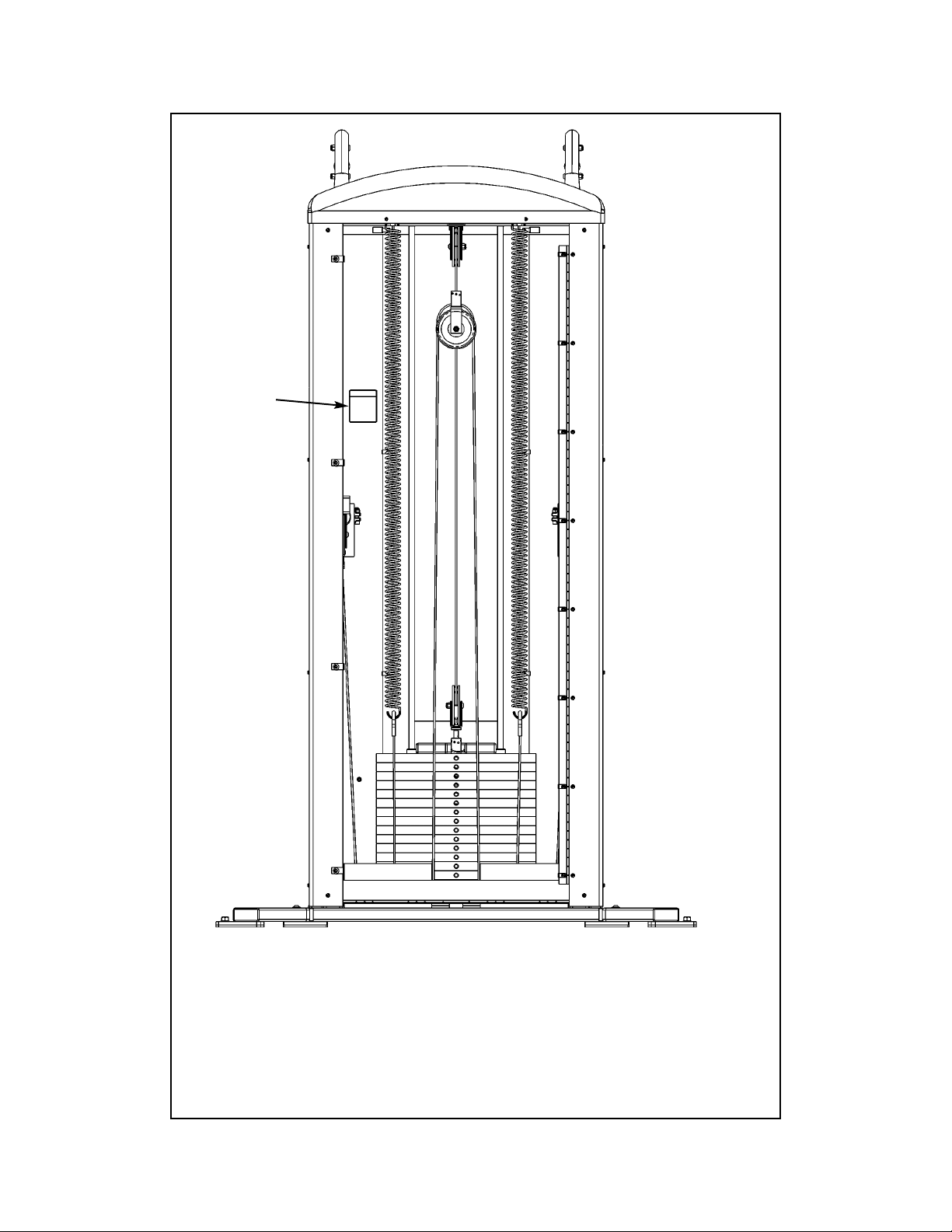

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-5
E

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-6
E
E. Caution Decal .................... 9100-348
DESCRIPTION PART NO.

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-7
Regular Maintenance Activities
Preventative maintenance activities must be performed to maintain normal operation of your
equipment. Keeping a log sheet of all maintenance actions will assist you in staying current
with all preventative maintenance activities. The preventative maintenance actions are
described in detail in Chapter 5. Briefly, they include:
Weekly
1. Inspect all nuts and bolts for looseness. Tighten as required.
2. Inspect all cables for damage or wear (see Chapter 7). Immediately discontinue use if a
cable is worn or damaged.
3. Check for worn handles, worn snap links, and worn warning labeling. Replace all worn
parts immediately.
4. Inspect weight stacks for proper alignment and operation. Correct all improper alignment
and operation issues immediately.
5. Lubricate guide rods using automotive engine oil only.
Yearly
1. Replace all cables at least annually.
As Required
1. Inspect grips and replace as necessary.
Using Proper Form
Before working out, read and understand the training suggestions listed in
Chapter 3. See Chapter 4 for proper form during exercise.

Cybex FT 360 Functional Trainer Owner’s Manual
Safety
Page 1-8
This page intentionally left blank

Cybex FT 360 Functional Trainer Owner’s Manual
Technical
Specifications
Page 2-1
2 - Technical Specifications
General Specifications
Frame Finish
• Shall be made of mechanical quality 11 gauge and 16 gauge steel purchased in mill run
quantities to assure the best consistency.
• Prior to applying finish, each part shall be put through a multi-stage wash to remove all
oils and to chemically prepare the surface for maximum adhesion. After the wash, the
frames shall be dried and coated with an Electrostatically applied powdercoat finish that
shall be applied in powder form and then baked until cured.
• The finish shall be textured and very hard, assuring a scratch and chip resistant finish.
Weight Selection
• Weights are to be selected by using a high quality selector pin that completely penetrates
the weight plate and locks in place to eliminate any chance of disengaging during use.
The pin shall be attached to the weightstack with a plastic lanyard in order that the pin
stays with the appropriate machine.
Weight Stacks Configuration
• All weight stacks shall have 4” x 18” x 1”, 20 pound weights.
Weight Plates
• Shall be made of solid cold-rolled steel with wrinkle black powder coat finish.
• Guide rod holes shall be machined to a tolerance of .006 inches.
Top Weight Plate Bushings
• Low-friction bushings shall surround the guide rods for smooth gliding motion.

Cybex FT 360 Functional Trainer Owner’s Manual
Technical
Specifications
Page 2-2
Pulleys
• Shall use Dupont Corp. fiberglass-reinforced nylon 70G33 material, tensile strength rated
at 22,500 PSI with 6203ZZ double sealed bearings dynamic load rated at 1600 lbs.
• Pulleys shall be 4.50 inches in diameter with a cable groove with a depth of .250 inches.
Swivel Pulley
• Shall be molded from glass reinforced nylon, with a tensile breaking strength of at
least 14,000 PSI.
Weight Transport
• Shall be lubricated, 7 x 19, 1/8” galvanized steel, nylon coated aircraft cable with
breaking strength rated at 2000 pounds.
• All cable ends shall be finished off with a swaged fitting with a breaking strength
equal to the cable itself.
Weight Stack Guide Rods
• Shall be solid ground and polished cold-drawn steel with minimum yield strength of
100,000 PSI with a hard chrome plated piston steel finish with an overall minimum
accuracy of .010.
Weight Stack Suspension
• Shall have heavy-duty neoprene bumpers with an 80-durometer rating under the weight
stacks to reduce shock and vibration stresses to the frame and facility.
Frame Construction
• Primarily 1 1/2 x 2” tubing with 11 gauge wall thickness, but different tubing sizes and
wall thickness shall be used as required through engineering stress analysis.
• Shielding shall be 16 gauge wall thickness sheet metal.
• Fully welded frames for maximum structural integrity and minimum maintenance.
• All machining and welding will be done utilizing jigs and fixtures to insure highest
quality and interchangabiliity of parts.
Pivot Adjustment
• Shall be cast from 1020 steel and black powder coated.
Clevis
•Shall be cast from 1020 steel and black powder coated.

Cybex FT 360 Functional Trainer Owner’s Manual
Technical
Specifications
Page 2-3
Adjustment Plate
• Shall be laser and plasma cut hot-rolled steel and nickel chromium electroplated.
Hardware
• All 3/8” socket head cap screws shall be of grade 8 (or equivalent). All bolts shall be either
chromed or zinc plated for additional corrosion resistance.
Adjustment Decals
• High contrast Lexan decals shall be used for adjustment arms and weight stack to ensure
maximum readability.
Instructional Placard
• Shall provide step-by-step instructions and a picture to illustrate use.
• Placard shall indicate proper positioning, and clearly describe the correct use of
machines.
Counter Balancing
• Rotational counter balancing shall be accomplished by the use of a class 2 extension
spring.
• Reach counterbalancing shall be accomplished by the use of a 13.35 inch, cylinder
dampner.
Shroud
• Front panel shall be made of shatter resistant PETG material and tinted Bronze #2370.

Technical
Specifications
Page 2-4
Cybex FT 360 Functional Trainer Owner’s Manual
FT 360 - Product No. 9100
Total Weight
(includes weight stack)
787 lbs.
358 kg
Weight Stack
300 lbs.
136 kg
Size
inches - 113 W x 54 L x 90 H (maximum in use)
cm - 287 cm W x 137 cm L x 229 cm H
54
Machine Specifications
113
NOTE: A minimum of three feet clearance is required around the machine during
exercise.

Cybex FT 360 Functional Trainer Owner’s Manual
General
Exercise
Guidelines
Page 3-1
3 - General Exercise Guidelines
Training Suggestions
Before you workout
Prior to starting a training program, get a complete physical exam to make sure your physician
agrees that you are ready. Always warm-up your muscles before a workout. A 5-10 minute
cardio warm-up followed by slow stretching (no bouncing) is recommended. Continue with a
lighter set (50% of normal of intended exercises. Proper breathing is very important. Exhale
during muscle exertion, and inhale while returning to the start position. Start your program
conservatively. Choose weights you can easily lift in the first weeks. Always perform the full
range of motion-unless you have an injury, then consult a professional trainer. Your Cybex
dealer can help you find one. Know the terms? A “repetition” (rep) is defined as one complete
movement through an exercise, returning to the start position. A “set” is a continuous series of
reps. usually between 6-15.
During your workout
The number of reps. you perform in a set depends on your goal. To build muscle and
strength, do fewer reps. (6-8) with heavier weight. To firm your muscles and build endurance,
do more reps. (12-15) with lighter weight. Never “cheat” by shortening the range of motion,
bouncing the weight, or shifting your posture. This may allow you to lift more weight, but it is
dangerous and less effective. Catch your breath between sets, then continue. When “circuit
training” move briskly to the next exercise; when doing multiple sets on one exercise, rest
45-90 seconds before the next set. Work up to three sets per exercise. When you can perform
the desired reps and sets for any exercise, increase the weight by a half or full plate.
Designing your workout
Circuit training is a good way to start. This involves doing one set per exercise, then moving to
the next exercise, pausing only briefly between them (to keep your heart and breath rate up)
until completing a balanced “circuit” of 8-10 exercises for your entire body. Then repeat the
circuit. After several weeks, you can move into multiple sets (3 in a row) per exercise if you
choose. For both of these, exercise the complete body every other day, up to three times a
week Note: A full day’s rest, plus proper nutrition and hydration are required for optimum
muscle-building or toning. Alternatively, work out half your body one day (e.g., the upper body)
and the other half the following day (e.g. the lower body). To reduce muscle soreness, end each
series of sets for a given muscle with a set of increased reps and lighter weights. At the end of
your workout, cool down in a similar way to your warm-up.

Cybex FT 360 Functional Trainer Owner’s Manual
General
Exercise
Guidelines
Page 3-2
Glossary
Abduction - movement away from the mid-line of the body.
Acceleration - the rate at which an object’s velocity changes with time; that is the change of
velocity divided by the time interval.
Accuracy - freedom from error. Degree of conformity of a measure to a standard or a true
value.
Action Line -the direction of pull created by the fibers or tendons of the muscle at the point of
application.
Active Insufficiency - a two joint muscle loses the ability to cross-bridge (generate force) due
to full shortening over its greatest anatomical length and tension created in an opposing muscle
(antagonist).
Active Range of Motion - the degree of motion that occurs between two adjacent segments
through voluntary contraction of the agonist.
Active Stabilization - provided by an internal force. Static stabilization is provided through an
isometric contraction where dynamic stabilization is a series of motions. Dynamic stabilizers
maintain the relative positions of the segments, preventing undesirable or unnecessary motions
due to external forces as well as artifacts of internal forces. May also refer to the
concentric/eccentric contractions of a muscle acting in a force couple to produce motion while
maintaining a relatively fixed axis of rotation.
Adipose tissue - fat tissue.
Adduction - movement towards the mid-line of the body.
Agonist - (prime mover) the muscle most involved in producing a movement.
Aerobic - utilizing oxygen.
Aerobic Endurance - the ability to persist in physical activities that rely heavily upon oxygen
for energy production.
Anabolic - pertaining to the synthesis of complex substances from simpler substances, especially
to the synthesis of body proteins from amino acids.
Anaerobic - without oxygen.
Anaerobic Endurance - the ability to persist in physical activities of short duration that require
high rates of energy expenditure. These high rates of energy expenditure cannot be met solely
by aerobic metabolism.
