CYP CS-801H User manual

CS-801H
Ultra High Resolution Scaler with 3D
Operation Manual
Operation Manual
DRAFT MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version VR1.0 January 2012
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 06/01/12 Preliminary Release
RDV2 07/02/12

CONTENTS
1. Introduction............................................1
2. Applications...........................................1
3. Package Contents ................................1
4. System Requirements............................1
5. Features..................................................1
6. Operation Controls and Functions.......2
6.1 Front Panel........................................2
6.2 Rear Panel.........................................4
7.OSD Menu and Function List..................5
8. Remote Control......................................6
8.1 RS-232 Protocols ...............................7
8.2 RS-232 Commands...........................7
9. Connection and Installation.................8
10. Specications ......................................9
10.1 PC, HDMI, DP Input Timing ..........10
10.2 Output Resolution ........................11
11. Acronyms...........................................12

1
1. INTRODUCTION
This high performance video processor which allows 3D movies to
be watched on a 2D display. Besides 3D manipulation on the HDMI
channel, the device can scale and switch HDMI, DisplayPort and PC
inputs to its HDMI output, with their associated audio signal processed
synchronously. The operation of both 3D-to-2D and scaling features
can be handled easily through on-panel buttons, IR remote control, or
RS-232 protocol.
2. APPLICATIONS
• Convert 3D signal to 2D signal for 2D display
• 3D source bypass to 3D display without scaling
• Scale HDMI, DisplayPort and PC inputs to HDMI output
3. PACKAGE CONTENTS
• Ultra High Resolution Scaler with 3D
• 5V/2.6A DC power adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• Input HDMI/DisplayPort/PC sources and output with 2D or 3D HDMI
display.
5. FEATURES
• Supports HDMI 3D processing on Frame Packing and Top-
and-Bottom of 720p@50/60Hz and 1080p@24Hz, Side-by-Side
Half signals of 720p@50/60Hz, 1080i@50/60Hz(input only) and
1080p@24/50/60Hz
• Supports HDMI / Component input timing up to 1080p@50/60Hz,
DisplayPort up to 2560 x 1600@60HzRB and PC up to 1920 x
1200@60/75Hz
• Supports digital and analog bidirectional conversion, extraction
and insertion for the audio signals from individual inputs or from the
HDMI source
• Supports component input when connected VGA to 3RCA
adaptor

2

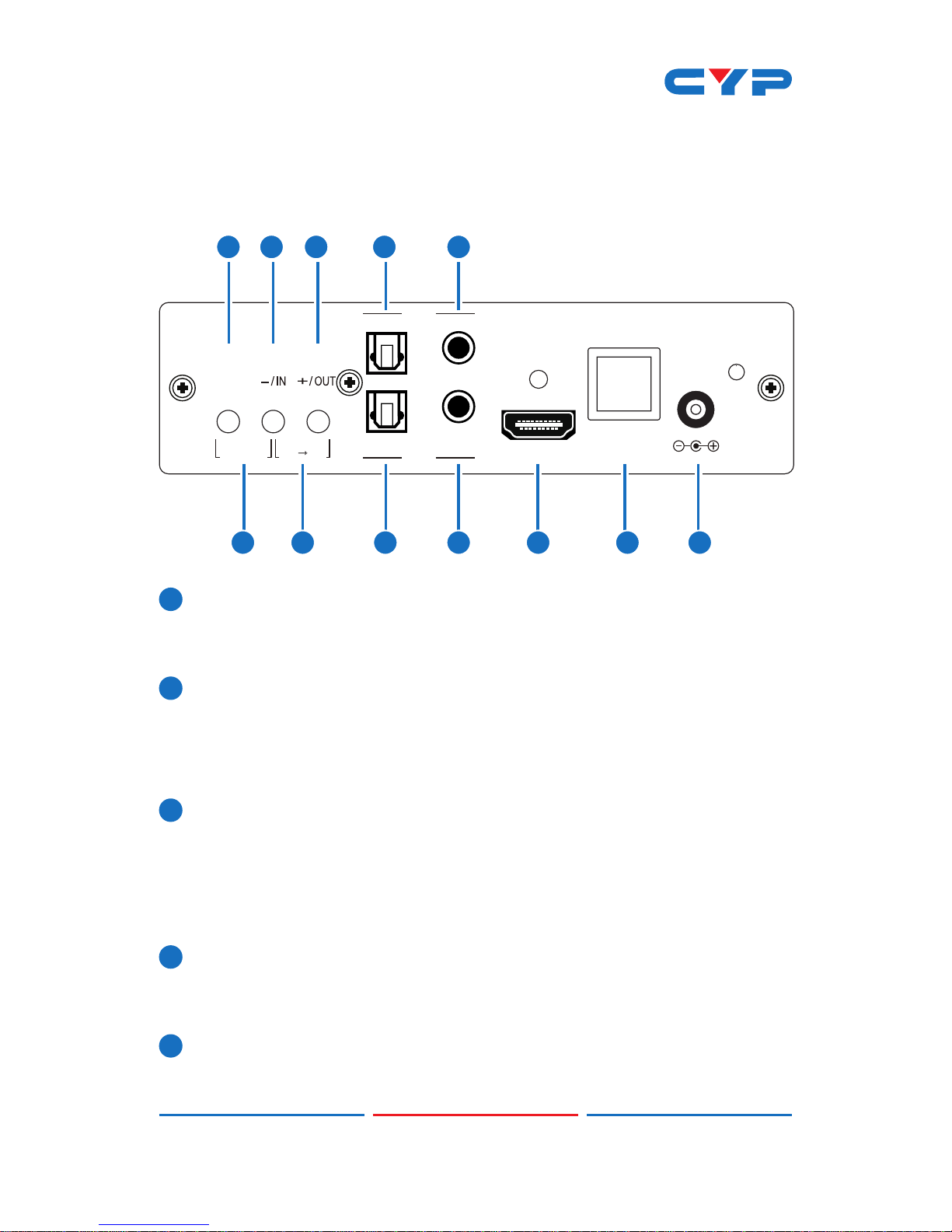

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
3D
BYPASS 3D
→
2D
ENTER
MENU/
OPTICAL
OUT
IN
AUDIO HDMI OUT
DC 5V
POWER
OPTICAL AUDIO
1
4 5 8 9 10 11 12
2 3 6 7
1MENU/ENTER
Press this button to ENTER the OSD menu. Press again to conrm
the selection.
2-/IN
a. “-“: When in OSD page, sequentially press this button to move
down the OSD selection.
b. “IN”: Press this button to quick enter the input port selection.
3+/OUT
a. “+”: When in OSD page, sequentially press this button to move
up the OSD selection.
b. “OUT”: Press this button to quick enter the output resolution
selection.
43D BYPASS
Press MENU/ENTER and -/IN buttons simultaneously to switch to 3D
bypass without scaling.
5 3D→2D
Press -/IN and +/OUT buttons simultaneously to switch from 3D to
2D.

3
6OPTICAL OUT
This slot is where you connect the amplier with OPTICAL cable
and from amplier to speaker.
7AUDIO L/R OUT
This slot is where you connect the speaker or amplier with audio
phone jack to the display.
8OPTICAL IN
This slot is where you connect the input OPTICAL audio source.
9AUDIO L/R IN
This slot is where you connect the L/R input audio source.
10 HDMI OUT
This slot is where you connect the HDMI display with HDMI cable.
11 IR sensor
12 DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet. Once the system turns on the LED will
turn RED.

4
6.2 Rear Panel
1
2 3 4 5
HDMI 1 HDMI 2 VGA
SERVICE DisplayPort
RS232
IN
1RS232
This slot is to connect with D-Sub 9pin cable from the PC/NB device
for RS-232 control.
2SERVICE
This slot is to connect with USB cable for manufacturers’ rmware
update only.
3DisplayPort IN
This slot is where you connect the DisplayPort source output for
DisplayPort signal sending.
4HDMI 1/2 IN
These slots are where you connect the HDMI sources output for
HDMI signal sending.
5VGA IN
This slot is where you connect the VGA source output for VGA
signal sending, when using component signal please have 3RCAto
D-sub 15pin adaptor.

5
7.OSD MENU AND FUNCTION LIST
Input Video PC
COMP
HDMI 1
HDMI 2
DP
Exit
Input Audio AUDIO
Optical
HDMI/DP
Mute
Exit
Output Resolution 720x480P
1280x720P
1920x1080P
640x480
800x600
1024x768
1280x1024
1600x1200
1920x1200
By Native
3D Bypass
Exit
Output Format 3D→2D
3D Bypass
Exit

6
Main Menu 2nd Layer 3rd Layer
Miscellany EDID Mode Internal / External / Exit
Info. OSD Mode Off / On / Exit
About CS-801H FW Ver.
Factory Reset System Reset
Exit
Exit

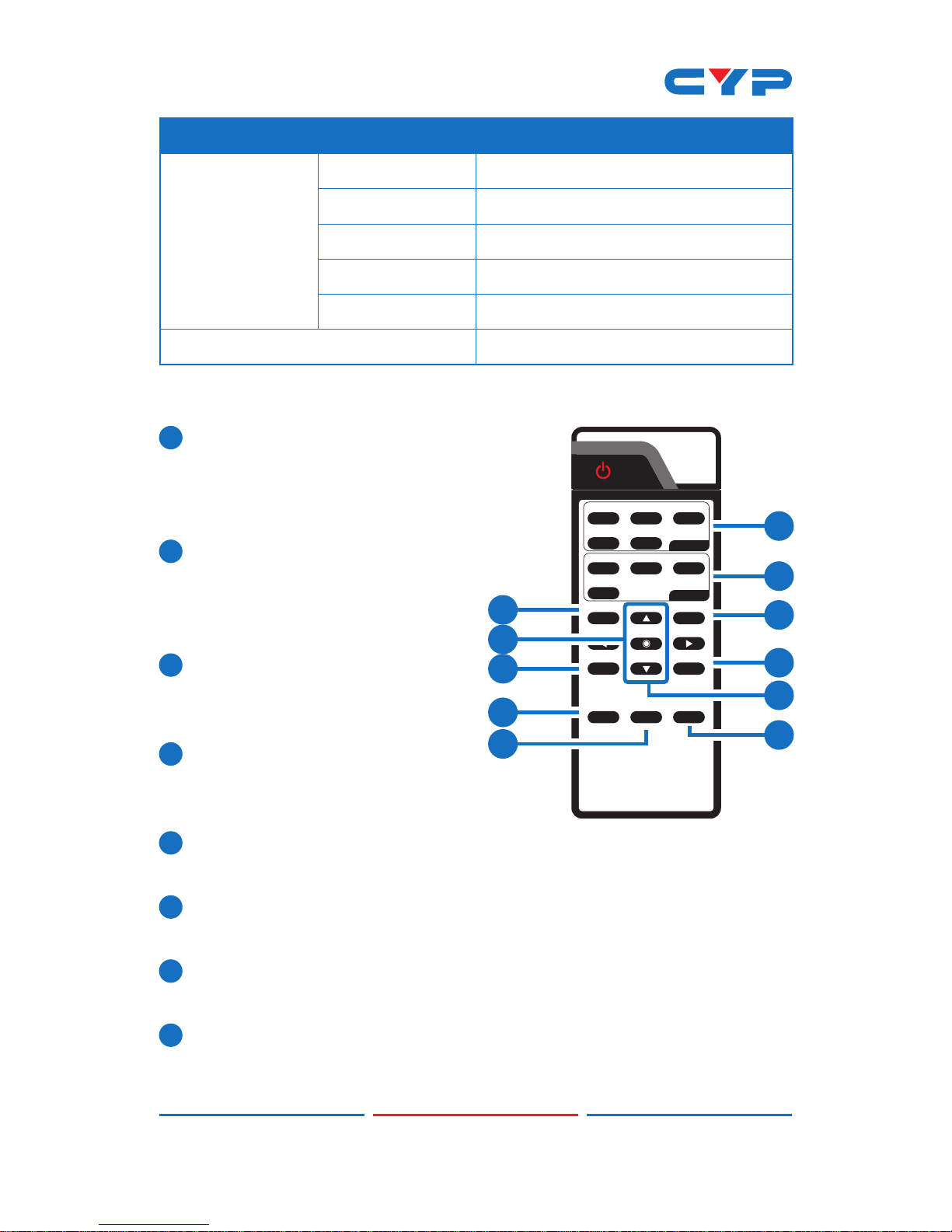

8. REMOTE CONTROL
1VIDEO IN
Press to select HDMI 1/HDMI
2/DP/PC/Component input
source.
2AUDIO IN
Press to select AUDIO/
OPTICAL/HDMI/DP input audio
or MUTE the system.
3EXIT
Press the EXIT the OSD
selection.
4MENU
Press this button to ENTER the
OSD menu.
5ENTER
Press to conrm the selection.
6INFO
To show input and output resolution information.
7OUTPUT
Press to show the output resolution table.
8 ▲/▼
Press up/down buttons to select OSD selection.
DP
HDMI/DP
MENU
OUTPUTINFO
HDMI 1
PC
AUDIO
MUTE
EXIT
NATIVE
3D →2D 3D BYPASS
HDMI 2
COMP
OPTICAL
ENTER
CR-111
AUDIO IN
VIDEO IN
1
2
4
7
11
8
3
6
9
10
5

7
9 3D→2D
Press to switch from 3D to 2D.
10 3D Bypass
Press to switch to 3D bypass.
11 Native
Press to switch to Native resolution.
8.1 RS-232 Protocols
8.2 RS-232 Commands

8

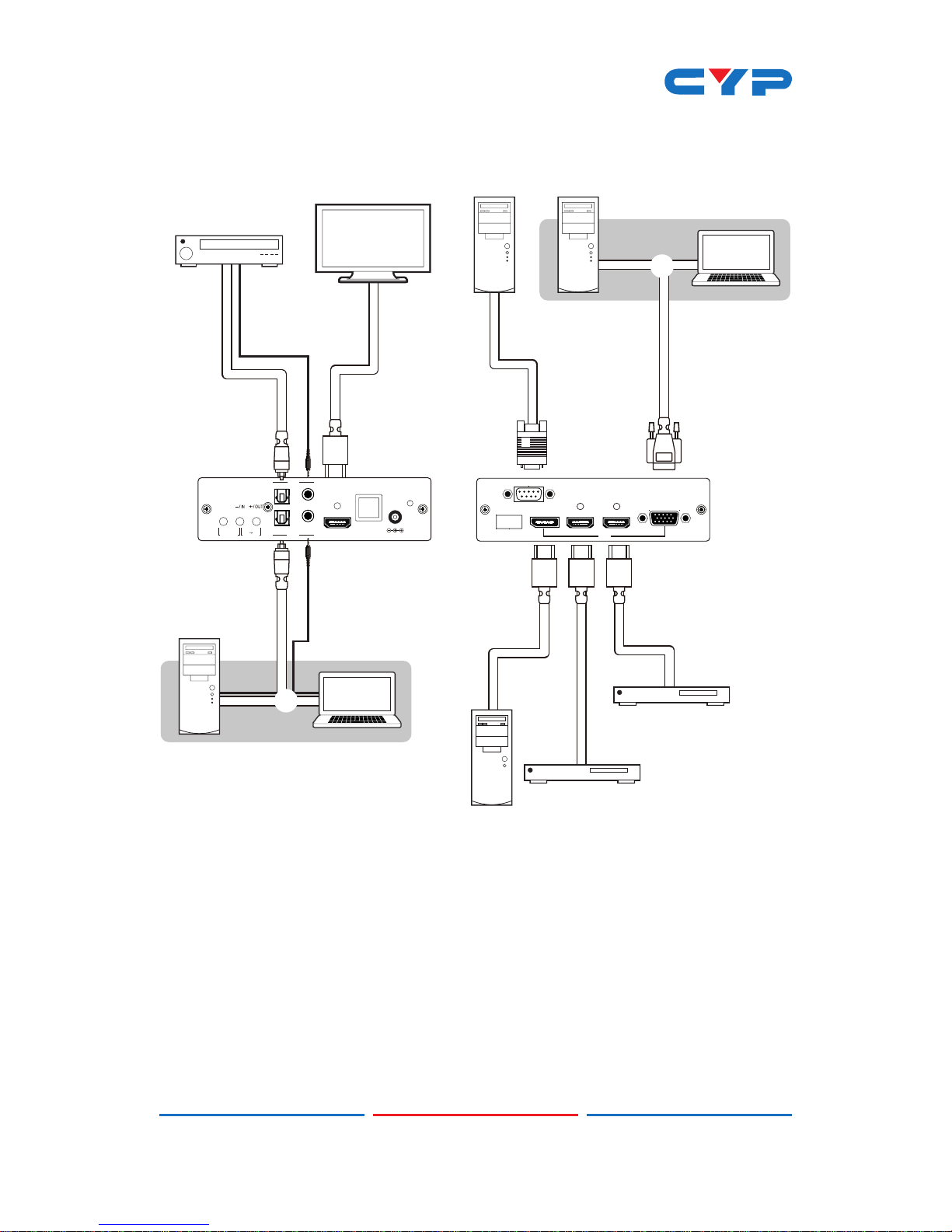

9. CONNECTION AND INSTALLATION
HDMI 1 HDMI 2 VGA
SERVICE DisplayPort
RS232
IN
OR
3D
BYPASS 3D
→
2D
ENTER
MENU/
OPTICAL
OUT
IN
AUDIO HDMI OUT
DC 5V
POWER
OPTICAL AUDIO
OR
PC PC NB
VGA
Optical HDMI
Optical 3.5Ø audio
D-Sub15pin
HDMI
HDMI
DP
Dell PC
Blu-ray
PC NB
DVD
Amplier
HD TV

9
10. SPECIFICATIONS
Frequency bandwidth 2.25Gbps (single link)
DP Input Frequency
Bandwidth
2.7Gbps & 1.62Gbps/Lane
Input Port 2 x HDMI (Female type), 1 x DisplayPort,
1 x VGA
Audio Input Port 1 x L/R, 1xOptical
Output Port 1 x HDMI, 1 x L/R, 1 x Optical
Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human body model: ±8kV (air-gap
discharge)
±4kV (contact
discharge)
Dimensions (mm) 142(W) x 180(D) x 43(H)
Weight(g) 700
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 9W

10
10.1 PC, HDMI, DP Input Timing
2D Input Resolution PC HDMI DP COMP Input
Resolution
640*400(@85) ˇ ˇ ˇ 480i, 576i
VGA640*480(@60/75/85Hz) ˇ ˇ ˇ 480p, 576p
SVGA800*600(@60/75/85Hz) ˇˇ ˇ 720p/50, 60
848*480@60Hz ˇ1080i/50, 60
XGA1024*768(@60/75/85Hz) ˇ ˇ ˇ 1080p/24,
30, 50, 60
XGA+1152*864@75 /85 ˇ ˇ ˇ /@75
1280*720@60/75 ˇ ˇ
1280*768@60 ˇ ˇ ˇ
1280*800@60 ˇ ˇ ˇ
1280*960@60/75/85 ˇ ˇ ˇ
1280*1024(@60.75.85Hz) ˇ ˇ ˇ
1366*768@60 ˇ ˇ ˇ
SXGA+1400*1050@60/75 ˇ ˇ ˇ
WXGA+1440*900@60/75/85 ˇ ˇ ˇ
UXGA1600*1200(@60/75/85Hz) ˇ ˇ ˇ @60/75
WSXGA1680*1050@60 ˇ ˇ
1792*1344@60 ˇ ˇ
1856*1392@60 ˇ ˇ
1920*1080@60 ˇ ˇ
1920*1200(@60/75Hz) ˇ ˇ ˇ
1920*1440@60 ˇ
720*480I/P ˇ ˇ
720*576I/P ˇ

11
720P ˇ ˇ
1080P ˇ ˇ
2560*1600@RB ˇ
3D Input Resolution HDMI
1080p@24Hz Frame packing ˇ
1080p@24Hz Top-and-Bottom ˇ
1080p@24Hz Side-by-Side ˇ
1080i@50/60Hz Side-by-Side ˇ
720p@50/60Hz Side-by-Side ˇ
720p@50 / 60Hz Frame packing ˇ
720p@50 /60Hz Top-and-Bottom ˇ
10.2 Output Resolution
HDMI 3D to 2D and 2D to 2D output Resolution@60Hz
640*480
800*600
1024*768
1280*1024
1600*1200
1920*1200RB
480P
720P
1080P
HDMI 3D to 3D Bypass Output Resolution
Frame Packing: 720p@50/60Hz, 1080p@24Hz
Top-and-Bottom: 720p@50/60Hz, 1080p@24Hz
Side-by-Side: 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/50/60Hz
Note: Some output display may not support 3D@50Hz and therefore,
some 3D 50Hz signal may not be display.

12
11. ACRONYMS
ACRONYM COMPLETE TERM
HDMI High-Denition Multimedia Interface

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
