CYP PU-507TX-CVGA Installation manual

PU-507TX-CVGA

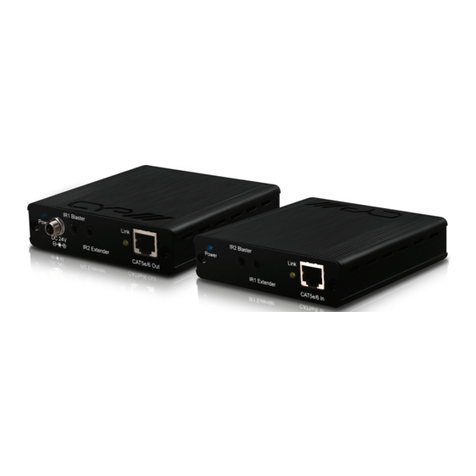

CV / PC over HDBaseT™ Transmitter with integrated video
scaling (5-Play™ inc. PoE & single LAN, up to 100m)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 06/11/2013 First release
v1.01 21/11/2013 Added RS-232 commands

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 IR Cable Pin Assignment.......................10
6.4 RS-232 Pin Denitions ...........................10
6.5 Remote Control........................................11
6.6 RS-232 Commands .................................12
6.7 OSD Menu..................................................14
6.8 Input Resolution Support.....................16
7. Connection Diagram .......................... 17
8. Specications...................................... 18
8.1 Technical Specications ........................18
8.2 CAT5e/6/7 Cable Specication ...........19
9. Acronyms............................................. 19

6
1. INTRODUCTION
The PU-507TX-CVGA is a HDBaseT™ Transmitter which allows transmission
of PC or Composite Video sources and audio over a single CAT5e/6/7 cable
to the receiver at a distance of up to 100m. The integrated scaler enables
the installer to maximise the output resolution and ensure compatibility
to the connected display. With full 5-Play convergence for uncompressed
high denition video and stereo audio, this transmitter also allows the
transfer of LAN serving, Bi-directional Power over Ethernet (PoE), RS-232,
and 2-way IR all simultaneously over a single CAT5e/6/7 cable. Control of
the transmitter is via IR remote or via selection buttons on the front panel
of the device allowing the user to navigate the On-Screen Display (OSD)
for selecting the required settings or system information.
2. APPLICATIONS
Analog to Digital video signal conversion
Up scale standard denition video to High-Denition TVs/displays
Extend the operating distance of a CV/PC video signal
Lecture room/Showroom/Meeting room/Classroom display and control
3. PACKAGE CONTENTS
CV/PC to CAT5e/6/7 with LAN/IR/RS-232/Bidirectional PoE Transmitter
1×IR Extender
1×IR Blaster
24V/2.7A DC Power Adaptor
Remote control (CR-128)
Operation Manual
4. SYSTEM REQUIREMENTS
CV/PC source equipment such as a DVD/Video player or PC/Laptop and
output to HDBaseT compatible Receiver.

7
5. FEATURES
Supports PC/CV scaling to a full range of HDTV or PC resolutions up to
1080p and WUXGA (Reduced Blanking)
Supports uncompressed video/audio up to 10.2Gbps
Supports Ethernet transmission rates up to 100 Mbps
Supports uncompressed data transfer over single CAT cable (100m -
CAT6/7; 80m - CAT5e)
5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
Supports bi-directional PoE when connected to a compatible Bi-
directional PoE Receiver
Supports OSD (On-screen Display) selection and system information display
Supports NTSC and PAL formats for Composite Video input
Control via IR remote and on-panel selection buttons
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with
cables of dierent specications.
2. The PoE function is designed for powering compatible Receiver units only—
non-PoE Receivers will need their own power supply. Receivers from other
brands may not be compatible.
3. DO NOT connect the LAN connection to the CAT5e/6/7 port. Doing so may
cause a power shutdown and may damage the device

8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PC CV XGA AUDIO
SERVICE
MEN
UE
NTER
- +
720P
INPUT CV/PC
INPUT
2 3 4 5 6 8 91
7
1SERVICE: Reserved for manufacturer use only.
2IR Receiver window: Receives only the IR signal from the supplied
remote control for this device only.
3PC: Connect to a PC/Laptop source device with a D-Sub 15pin cable.
4CV: Connect to a composite video source such as a DVD/Video player.
5AUDIO: Connect to an analog stereo (L/R) audio source with a 3.5mm
mini-jack cable.
6MENU: Press this button to enter the On-Screen Display (OSD) menu.
7INPUT (–) Button & CV/PC LED: Press the INPUT (−) button to toggle
between CV or PC inputs. When in CV mode the LED will be lit, o
when in PC mode.
8−/+: Use these buttons to navigate down and up in the on-screen menu.
9ENTER: Press this button to conrm the selection.
Note:
Pressing '−' (MINUS) and ENTER simultaneously will immediately switch
the output resolution of the device to 720p60.
Pressing '+' (PLUS) and ENTER simultaneously will immediately switch the
output resolution of the device to XGA (1024×768).

9
6.2 Rear Panel
IR
Blaster
IR
Extender
CAT5e/6 OUT
MODE LINK
LANRS232 IN
DC 24V
POWER
21 3 4 5 6 7
1Power LED: This LED will illuminate when the device is connected to
an active power supply.
2DC 24V: Connect the 24V DC power supply to the unit and plug the
adaptor into an AC outlet. Only one unit requires powering if both the
Transmitter and Receiver are both PoE compatible.
3RS-232 IN: Connect to a PC or RS-232 control system with a D-Sub 9
pin male cable for the transmission of RS-232 commands.
4LAN: Connect to an active network for LAN serving. When any compatible
LAN equipped receivers are connected, this allows the network access
(including internet access if available) to be shared between any
connected LAN equipped receivers. Connect any Ethernet equipped
device e.g. a Smart TV or games console to the LAN port of a receiver for
that device to share the network/internet access.
Warning: DO NOT connect the LAN connection to the CAT5e/6/7 port.
Doing so may cause a power shutdown and may damage the device.
5IR Blaster: Connect the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
6IR Extender: Connect the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct line-of-
sight of the IR Extender.
7CAT5e/6/7 Out: Connect to the Receiver unit with a single CAT5e/6/7
cable for transmission of all data signals.
MODE LED: This LED will illuminate when the power is connected.
Link LED: This LED will illuminate when connected to a Receiver unit
that is connected with a TV/monitor that is displaying the signal.

10
6.3 IR Cable Pin Assignment
3
1
3
2
2
1Power
IR Blaster Signal
NC
IR Signal
Power
Ground
IR Extender
IR Blaster
6.4 RS-232 Pin Denitions
Pin Dene TX / RX
1N/C
2TxD/RxD
3RxD/TxD
4NC
5GND
6NC
7NC
8NC
9NC
Baud Rate: 9600bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

11
6.5 Remote Control
1INPUT: Press this button to toggle
between the CV or PC input.
2EXIT: Press this button to exit the
menu or the current selection in the
on-screen menu.
3MENU: Press this button to enter into
the OSD menu.
4RESET: Press this button to return the
device to the factory default settings.
5AUTO ADJUST: Press this button
to optimize the positioning of the
picture (picture centering) on the
screen.
6ENTER & ▲▼◄►: Press ENTER
to conrm the selection or use the
directional buttons to navigate the
on-screen menus.
CR-128
OK
INPUT
EXIT MENU
RESET AUTO
ADJUST
1
2
4
6
3
5

12
6.6 RS-232 Commands
COMMAND DESCRIPTION
S SOURCE 1~2 1=VIDEO
2=PC
R SOURCE Reports the numerical equivalent for the
SOURCE setting (as listed above)
S OUTPUT 0~25 0=Native 12=1600×1200
1=640×480 13=1920×1080
2=800×600 16=1920×1200
3=1024×768 17=480p
5=1360×768 18=720p@60
6=1280×720 19=1080p@60
7=1280×800 20=1080i@60
8=1280×1024 22=576p
9=1440×900 23=720p@50
10=1400×1050 24=1080p@50
11=1680×1050 25=1080i@50
R OUTPUT Reports the numerical equivalent for the OUTPUT
setting (as listed above)
S SIZE 0~6 0=OVERSCAN 4=LETTER BOX
1=FULL 5=UNDER 2
2=BEST FIT 6=UNDER 1
3=PAN SCAN
R SIZE Reports the numerical equivalent for the SIZE
setting (as listed above)
S CONTRAST 0~60 Sets the numerical value for the
CONTRAST setting (0~60)
R CONTRAST Reports the numerical value for the
CONTRAST setting (0~60)
S BRIGHTNESS 0~60 Sets the numerical value for the
BRIGHTNESS setting (0~60)
R BRIGHTNESS Reports the numerical value for the
BRIGHTNESS setting (0~60)

13
COMMAND DESCRIPTION
S HUE 0~60 Sets the numerical value for the HUE
setting ((0~60)
R HUE Reports the numerical value for the HUE
setting (0~60)
S SATURATION 0~60 Sets the numerical value for the
SATURATION setting (0~60)
R SATURATION Reports the numerical value for the
SATURATION setting (0~60)
S SHARPNESS 0~30 Sets the numerical value for
SHARPNESS setting (0~30)
R SHARPNESS Reports the numerical value for the
SHARPNESS setting (0~30)
S NR 0~3 0=OFF 2=MIDDLE
1=LOW 3=HIGH
R NR Reports the numerical equivalent for the
NOISE REDUCTION setting (as listed above)
S AUDIO DELAY 0~3 0=OFF 2=110ms
1=40ms 3=150ms
R AUDIO DELAY Reports the numerical equivalent for the AUDIO
DELAY setting (as listed above)
S AUDIO MUTE 0/1 0=ON 1=MUTE
R AUDIO MUTE Reports the numerical equivalent for the AUDIO
MUTE setting (as above)
S KEY LOCK 0/1 0=ENABLE 1=DISABLE
R KEY LOCK Reports the numeric equivalent for the KEY
LOCK setting (as listed above)
FW Checks the FIRMWARE version
S RESET 1 Sets the numerical equivalent for the RESET
setting (as left)
Note:
1. RS-232 commands will not execute unless followed by a carriage return and
LF (Line Feed).
2. Commands are not case-sensitive.
3. Resolutions 1~16 are RGB encoded and 17~25 are YUV encoded.

14
6.7 OSD Menu
1st Layer 2nd layer 3rd Layer 4th Layer
DISPLAY OUTPUT Native
640x480 60
800x600 60
1024x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720x480P 60
1280x720P 60
1920x1080I 60
1920x1080P 60
720x576P 50
1280x720P 50
1920x1080I 50
1920x1080P 50
SIZE OVER SCAN
FULL
ASPECT RATIO
PAN SCAN
LETTER BOX

15
SIZE UNDER 2
UNDER 1
MODE INFO INFO
ON
OFF
PC(PC mode only) AUTO SETUP NO
YES
H_POSITION 0~60 (30)
V_POSITION 0~60 (30)
PHASE
CLOCK
WXGA/XGA XGA
WXGA
RESET NO
YES
R
G
COLOR B
R OFFSET
G OFFSET
B OFFSET
CONTRAST 0~60
COLOR BRIGHTNESS 0~60
HUE 0~600~60
SATURATION 0~60
SHARPNESS 0~60
OFF
NR. LOW
MIDDLE

16
HIGH
VOLUME 0~100
DELAY
OFF
40ms
AUDIO 110ms
150ms
SOUND
ON
MUTE
SETUP FACTORY RESET NO
YES
KEY LOCK OFF
ON
INFORMATION INPUT
OUTPUT
REVISION
Note: Items in Bold are the default settings.
6.8 Input Resolution Support
INPUT RESOLUTION CV PC
NTSC/PAL -
VGA@60/72/75 Hz -
SVGA@56/60/72/75 Hz -
XGA@60/70/75 Hz -
SXGA@60/75 Hz -
UXGA@60 Hz -
1280×800@60 Hz -
1680×1050RB@60 Hz -
1920×1080@60 Hz -

17
7. CONNECTION DIAGRAM
7m3m 3m
60°
m
m
3m
1.5m
60°
PC CV XGA AUDIO
SERVICE
MENUENTER
- +
720P
INPUT CV/PC
INPUT
IR
Blaster
IR
Extender
CAT5e/6 OUT
MODE LINK
LANRS232 IN
DC 24V
POWER
1.5m
60
°
7m3m 3m
60°
m
m
m
RS-232 Out
LAN
HDMI Out
CAT5e/6 to HDMI with LAN/IR/RS232
Receiver
PC/Laptop
RS-232
Control System
Power
Supply
VGA
Input
Composite
Video
Input
Analog
Stereo Input
CAT 5e/5/7
Up to 100m
IR Extender
IR Extender
IR Blaster
IR Blaster
Router with
Internet
Connection
Compatible
Receiver unit
with PoE
function
Smart TV
HDMI
Output
Video/DVD Player
RS-232
LAN
LAN

18
8. SPECIFICATIONS
8.1 Technical Specications
Output Video Bandwidth 300MHz / 10.2Gbps
Ethernet Speed 100 Mbps
Input Ports 1×CV, 1×PC, 1×3.5mm Mini-jack (L/R) ,
1×RS-232, 1×LAN, 1×IR Extender
Output Ports 1×CAT5e/6, 1×IR Blaster
CAT5e/6/7 Output Cable
Distance
Up to 100 Meters
CV Supported
Resolutions
NTSC/PAL
PC Supported
Resolutions
VGA ~ WUXGA(RB)
CAT5e/6/7 Output
Resolution
HD: Up to 1080p@60Hz
PC: Up to WUXGA(RB)
IR Frequency 30~50kHz
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 145 (W)×192 (D)×30(H)/Jacks Excluded
145 (W)×202 (D)×30(H)/Jacks Included
Weight (g) 606
Chassis Material Aluminum
Color Black
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature −20 ˚C ~ 60˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 16W

19
8.2 CAT5e/6/7 Cable Specication
Cable Type Range Pixel clock
rate
Video Data
Rate Supported Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz,
36 bits, 3D (data rates
lower than 5.3 Gbps
or below 225 MHz
TMDS clock).
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CAT7 Category 7 Cable
CV Composite Video
DVI Digital Visual Interface
HDMI High-Definition Multimedia Interface
IR Infrared
WUXGA (RB) Widescreen Ultra Extended Graphics Array
(Reduced blanking)

20
