CYP PUV-1630TXWP User manual

PUV-1630TXWP
2x HDMI, 1x VGA over Single CAT5e/6/7
HDBaseT™ Wall Plate Transmitter
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 11/02/2019 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................7
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions.......9
6.1 Front Panel................................................... 9
6.2 Rear Panel...................................................10

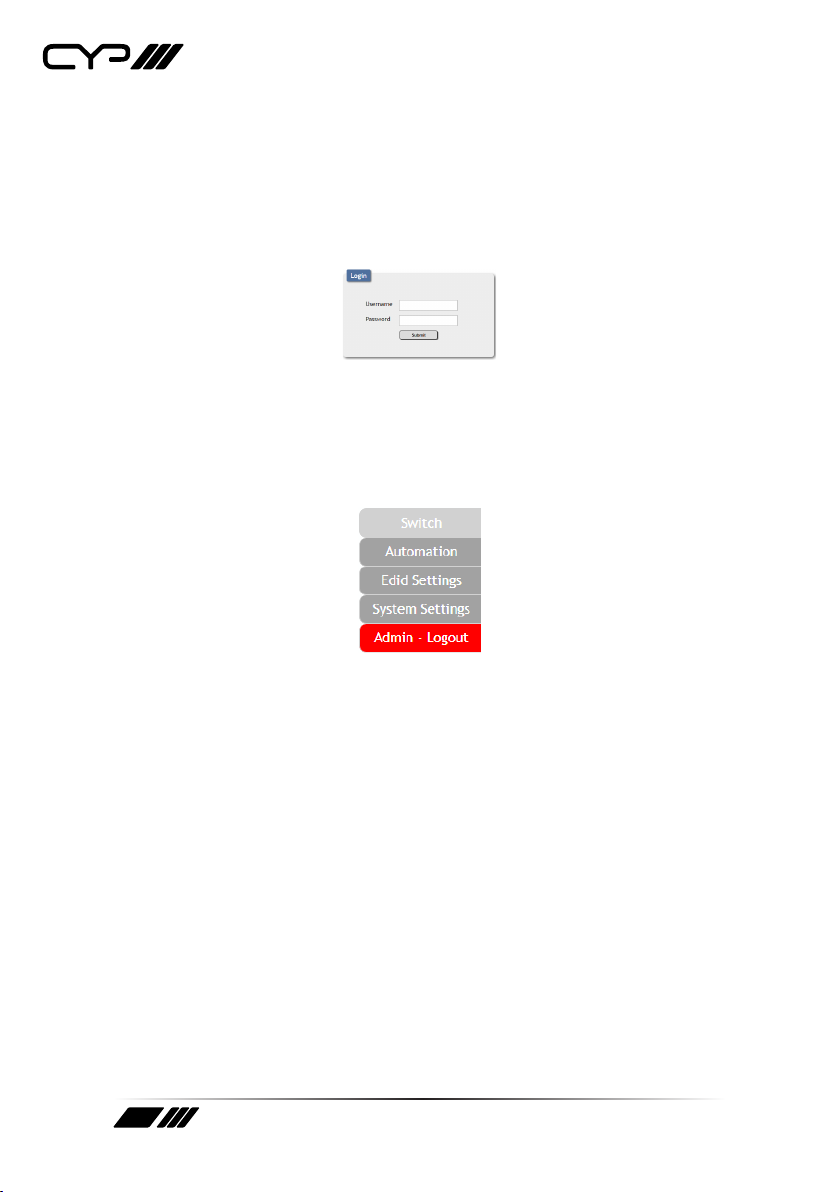

6.3 WebGUI Control .......................................11
6.4 Serial Control (Via Receiver).................20
6.5 Telnet Control............................................20
6.6 RS-232 and Telnet Commands............21
7. Connection Diagram .......................... 36
8. Specifications...................................... 37
8.1 Basic Specifications.................................37
8.2 Video Specifications................................38
8.3 Audio Specifications...............................40
8.4 Cable Specifications ...............................41
8.5 HDBaseT Features....................................42
9. Acronyms............................................. 42

6
1. INTRODUCTION
This HDBaseT Wall Plate Switch with Signal Management is an HDMI and
VGA switch with audio embedding and HDBaseT output. The wall plate
is designed for use with UK two-gang sized enclosures. This Transmitter
can send uncompressed high-denition video/audio over a single cable
up to a distance of 100 meters at 1080p@60Hz. The HDMI inputs support
resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports
resolutions up to WUXGA (RB). With the use of the 3.5mm audio input,
stereo audio may be embedded with VGA or DVI/HDMI sources as well.
Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K
UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can
be supported and will be automatically converted to 8-bit colour, or the
4:2:0 colour space when necessary.
Signal management features such as automatic switching based on input
signal and hot plug detection enable convenient hands-free operation.
A multi-function button on the face of the unit provides access to an
information OSD as well as allowing manual input selection. Additional
functionality such as EDID management, HDCP management and basic
signal event automation (which can send customised RS-232 or CEC
commands to external devices automatically) is also available.
This Transmitter may be powered locally or via 48V PoH from a compatible
HDBaseT Receiver, which allows for greater exibility in installations.
The unit can be controlled via the front panel button with OSD, WebGUI,
and Telnet. When paired with a compatible Receiver RS-232 control also
becomes available making it exceptionally versatile.
2. APPLICATIONS
Household entertainment sharing and control
Lecture halls, auditoriums and classroom
Houses of worship
Conference rooms and boardrooms
Hotel event spaces

7
3. PACKAGE CONTENTS
HDBaseT Wall Plate Switch (UK 2-Gang)
1×Operation Manual
4. SYSTEM REQUIREMENTS
HDMI or VGA source equipment such as media players, video game
consoles, PCs, or set-top boxes.
A compatible HDBaseT Receiver is required. An HDBaseT Receiver
capable of suppling 48V PoH is recommended.
The use of “Premium High Speed” HDMI cables, and industry standard
Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
2 HDMI inputs
1 VGA input with 3.5mm mini-jack audio input
Wall plate is designed for EU two-gang sized enclosures
Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
Supports VGA input resolutions up to WUXGA (RB)
Analogue stereo audio may be embedded with VGA or DVI/HDMI
sources
HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit)
with automatic colour space conversion of 4K@50/60Hz (4:4:4, 8-bit)
or 4K@any (10/12-bit) sources
Supports CEC bypass
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet,
and 48V PoH (PD)
HDBaseT output transmits video, audio and data over a single
Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K
when using Cat.6a/7
Supports pass-through of many audio formats including LPCM
2.0/5.1/7.1, Bitstream, and HD Bitstream

8
User activated information OSD
Supports manual input selection or automatic input selection with
hot plug detection
Basic signal event automation (via RS-232 or CEC w/ compatible
Receiver)
Front panel LEDs indicate HDCP mode, input source, link state, and
power
Unit may be powered locally or via 48V PoH from a compatible
HDBaseT Receiver
Controllable via a multi-function front panel button with OSD, or via
WebGUI, Telnet, and RS-232 (w/ compatible Receiver only)

9
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PUV-1630TXWP-EU
1
7 8 9
2 3 4 5 6
1PWR LED: This LED will illuminate to indicate the unit is on and
receiving power.
2LINK LED: This LED will illuminate when the unit is on, receiving
power, and has successfully linked to a compatible Receiver.
3HDCP LED: This LED indicates the HDCP mode of the current input.
Green indicates Follow Display mode, orange indicates Follow Source
mode, off indicates HDCP support is disabled.
4VGA IN LED: This LED will illuminate when the VGA input is selected.
5Input Select: A short press of this button will switch between the
available inputs. Pressing and holding this button for 2 seconds will
activate the information OSD.
6HDMI IN 2 & 3 Ports and LEDs: Connect to HDMI source equipment
such as a media player, game console or set-top box. The appropriate
LED will illuminate when that HDMI input is selected.
7VGA IN 1 Port: Connect to VGA source equipment such as a PC or
laptop.
Audio In Port: Connect to the stereo analogue output of a device
such as a CD player or PC for embedding into the HDBaseT output.

10
8FAC. RESET Pinhole: Press and hold for 5 seconds to reset the unit to
its factory defaults.
9LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection and to control the unit.
6.2 Rear Panel
DC 12V
+
−
CAT5e/6/7 OUT
31 2
1DC 12V Port: Plug the 12V DC power adapter into this terminal block
and connect it to an AC wall outlet for power. (Optional)
Note: This connection is not required if the unit is receiving power via 48V
PoH from the Receiver.
2SERVICE Port: This port is reserved for rmware update use only.
3CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT Receiver with
a single Cat.5e/6/7 cable for transmission of all data signals. 48V PoH
will also be supplied when connected to a compatible PSE Receiver.
Note: The 48V PoH function is designed to receive power from compatible
Receiver units only. Other brands of Receiver may not be compatible.
