D-Link DCH-B112A1 User manual

DCH-B112A1
User Manual
Door/Window Sensor
Hardware: A1
Manual Version: 1.00
07/17/2019

D-Link DCH-B112A1 User Manual i
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes. Information in this document may become obsolete as our services
and websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Overview
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2019 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from
D-Link Corporation, Inc.
Manual Revisions
Revision Date Description
1.00 July 17, 2019 Initial release

D-Link DCH-B112A1 User Manual ii
Table of Contents
Table of Contents
Product Overview..............................................................1
Package Contents.........................................................................1
Introduction ...................................................................................2
System Requirements.................................................................2
Hardware Overview.....................................................................3
Main Sensor Unit...................................................................3
Magnetic Trigger................................................................... 3
Installation.........................................................................4
Safety ................................................................................................4
Before you Begin...........................................................................4
Wireless Installation Considerations...................................... 5
mydlink App Device Setup........................................................6
Using the mydlink App....................................................10
Controlling Your Device ...........................................................10
Device.............................................................................................11
Troubleshooting..............................................................13
Technical Specications..................................................14
Regulatory Information ..................................................16

D-Link DCH-B112A1 User Manual 1
Section 1 - Product Overview
Product Overview

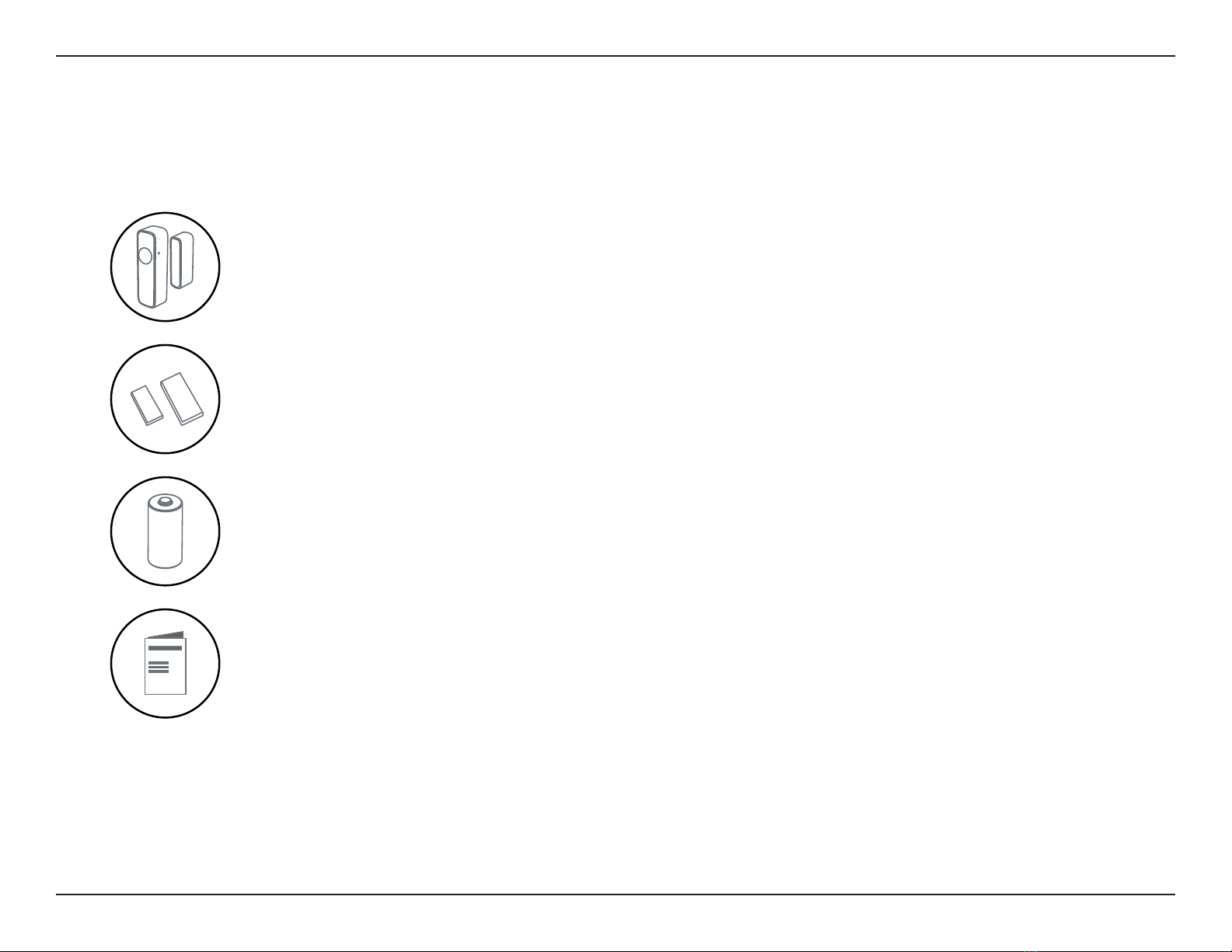

Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a battery with a dierent voltage rating than recommended for this product will cause damage and void the warranty
for this product.
Double-sided Tape Pieces
DCH-B112A1 || Door/Window Sensor
CR2 Battery
Quick Installation Guide

D-Link DCH-B112A1 User Manual 2
Section 1 - Product Overview
Introduction
The D-Link DCH-B112A1 Door/Window Sensor is a wireless sensor that connects to a DCS-8330LH Smart Full HD Wi-Fi Camera
with built-in smart home hub, as well as other mydlink Smart DIY devices with built-in hub functionality. You can install any-
where you want to detect the opening or closing of a door or window. If the sensor is triggered, it will send push
notications to your mobile device which helps you keep tabs on your home while you are away. You can also set it up an au-
tomation rule to trigger other devices such as the DCS-W118 Wi-Fi Smart Plug. Perfect for turning on/o a lamp or more when
entering/exiting a room.
Network Requirements
•A mydlink Smart DIY device that has
smart home hub functionality
•An Internet connection
•A router connected to your broadband
modem
mydlink™ App Requirements
• iPhone, iPad, Android smartphone or
tablet (please refer to the mobile app's
store page to check whether your device
is compatible)
• Email account (for mydlink™ service
registration)
System Requirements

D-Link DCH-B112A1 User Manual 3
Section 1 - Product Overview

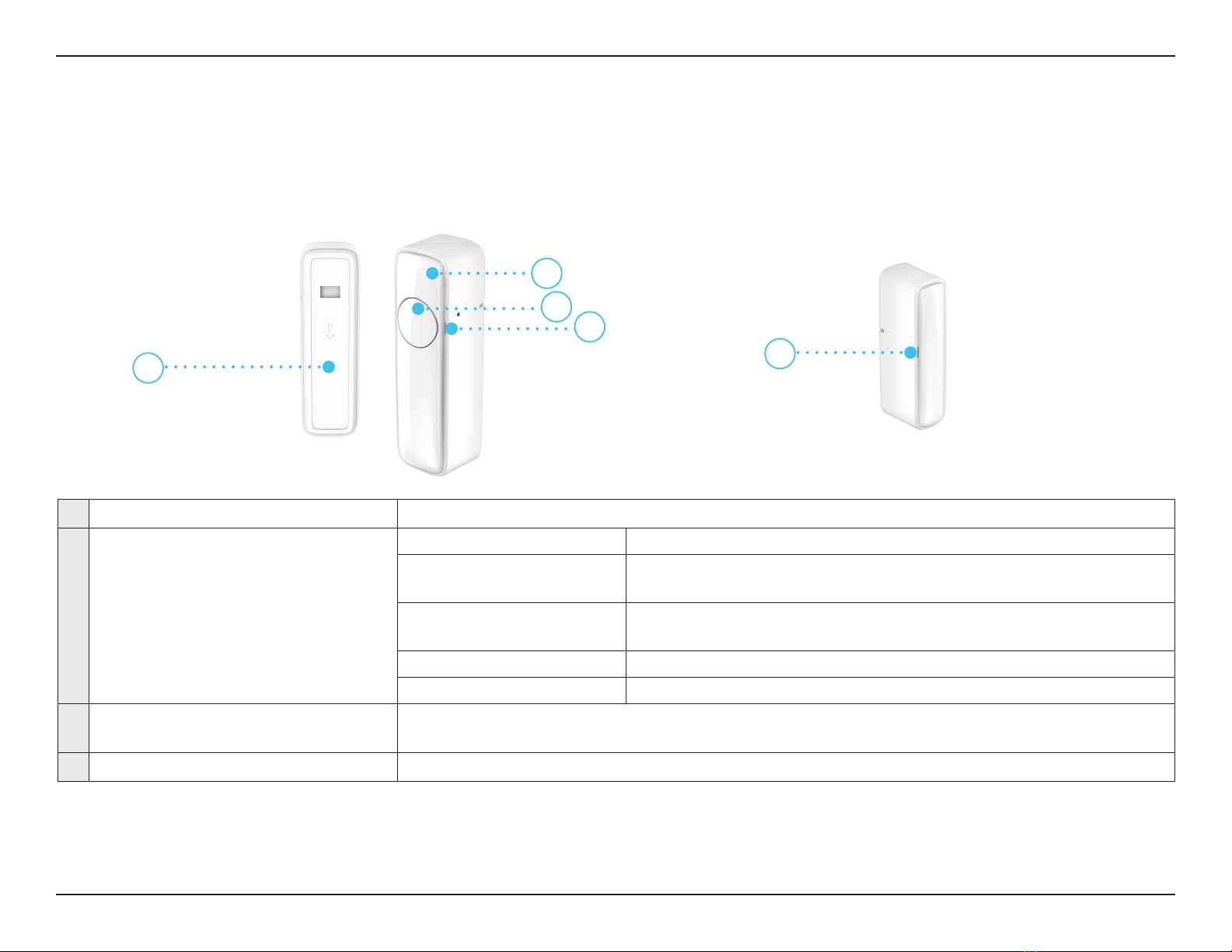

Hardware Overview
1 Battery Compartment Cover Slide up to reveal the battery compartment when replacing the battery.
2 Status LED
Blinking red every 1 second Waiting for pairing.
Rapidly blinking red every
0.2 second Sucessfully reset.
Blinking green every 1
second 3 times Sensor triggered.
Solid green for 10 seconds Successfully paired to the hub.
O Power saving mode. On standby, waiting to be triggered.
3 Reset / Bypass button Press this button to bypass the sensor triggering anything. Press and hold the Reset/Bypass button
until the LED blinks red in order to reset the sensor to factory default settings.
4 Alignment notch Use these notches to align both the Main Sensor Unit and the Magnetic Trigger during mounting.
Main Sensor Unit Magnetic Trigger
Back Front
1
2
3
4
4

D-Link DCH-B112A1 User Manual 4
Section 2 - Installation
Please read all of the safety and operating instructions before using your device:
• Do not open the device or attempt to repair or service it.
• Use the device in a dry location, and avoid placing it in a humid environment.
•Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect from
the power outlet and use a damp towel.
•This device should only be used indoors.
Before you Begin
Plan the location of your devices:
• Verify that your device is within wireless range of a mydlink Smart DIY hub device.
• Mount both the Main Sensor Unit and the Magnetic Trigger with the alignment notches aligned.
• Make sure that they are rmly mounted and won't fall o.
Installation
Safety

D-Link DCH-B112A1 User Manual 5
Section 2 - Installation
Wireless Installation Considerations
The DCH-B112A1 Door/Window Sensor connects to your network using a wireless connection from virtually anywhere within the
operating range of your mydlink Smart DIY hub device. Keep in mind that the number, thickness and location of walls, ceilings, or
other objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to fol-
low these basic guidelines:
1. Keep the number of walls and ceilings between the product and other network devices to a minimum - each
wall or ceiling can reduce your device's range from 1 to 30 meters (3 to 90 feet). Position your devices so that the
number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-degree
angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it looks over 14 meters (42 feet) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF
noise.

D-Link DCH-B112A1 User Manual 6
Section 2 - Installation

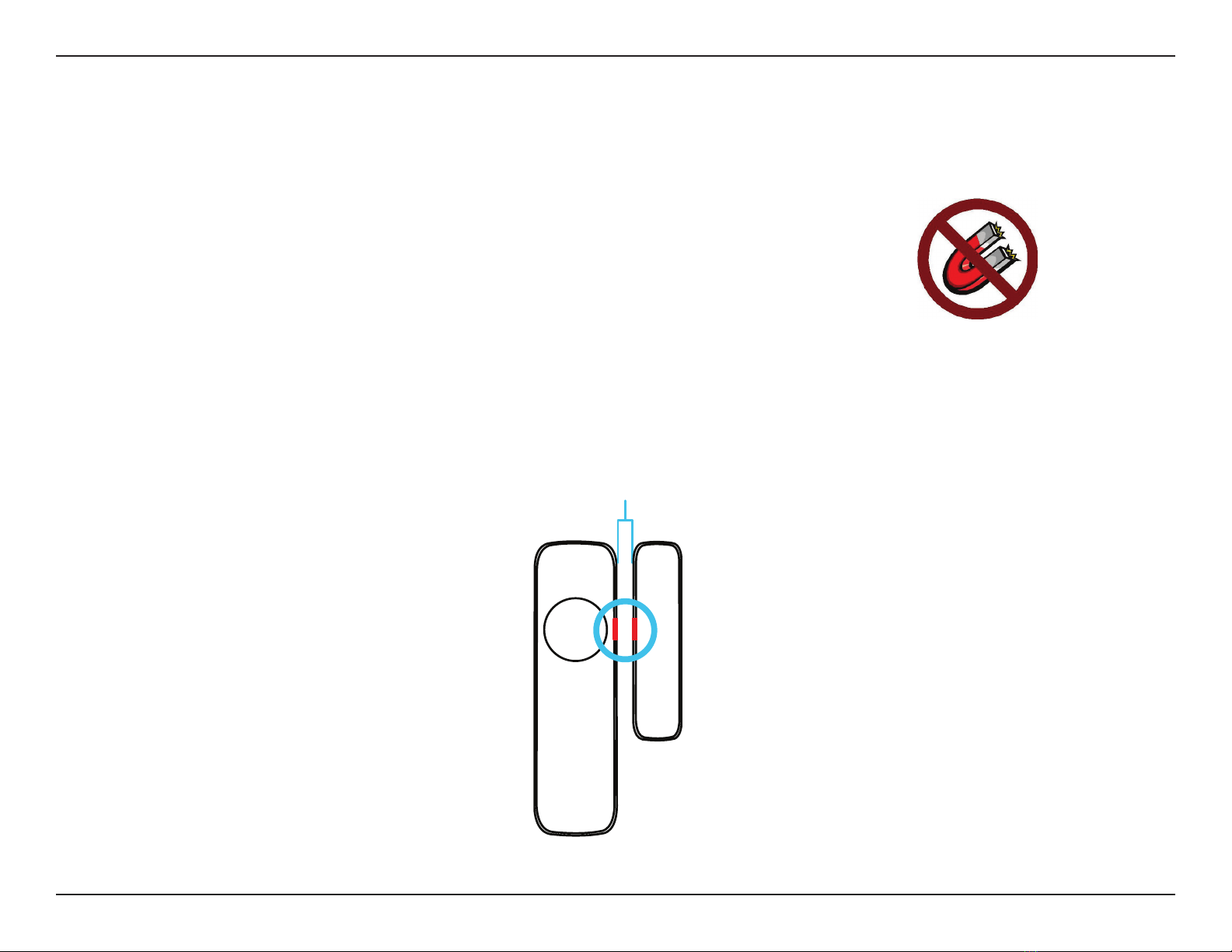

Precautions
Caution:
Please make sure that the sensor is not next to a magnetic area.
Proper Placement:
The Main Sensor Unit must be placed at most 0.79 in, approximately 3 / 4 in (20 mm), away from the Magnetic Trigger with
the alignment notches aligned.
0.79 in max

D-Link DCH-B112A1 User Manual 7
Section 2 - Installation
mydlink App Device Setup

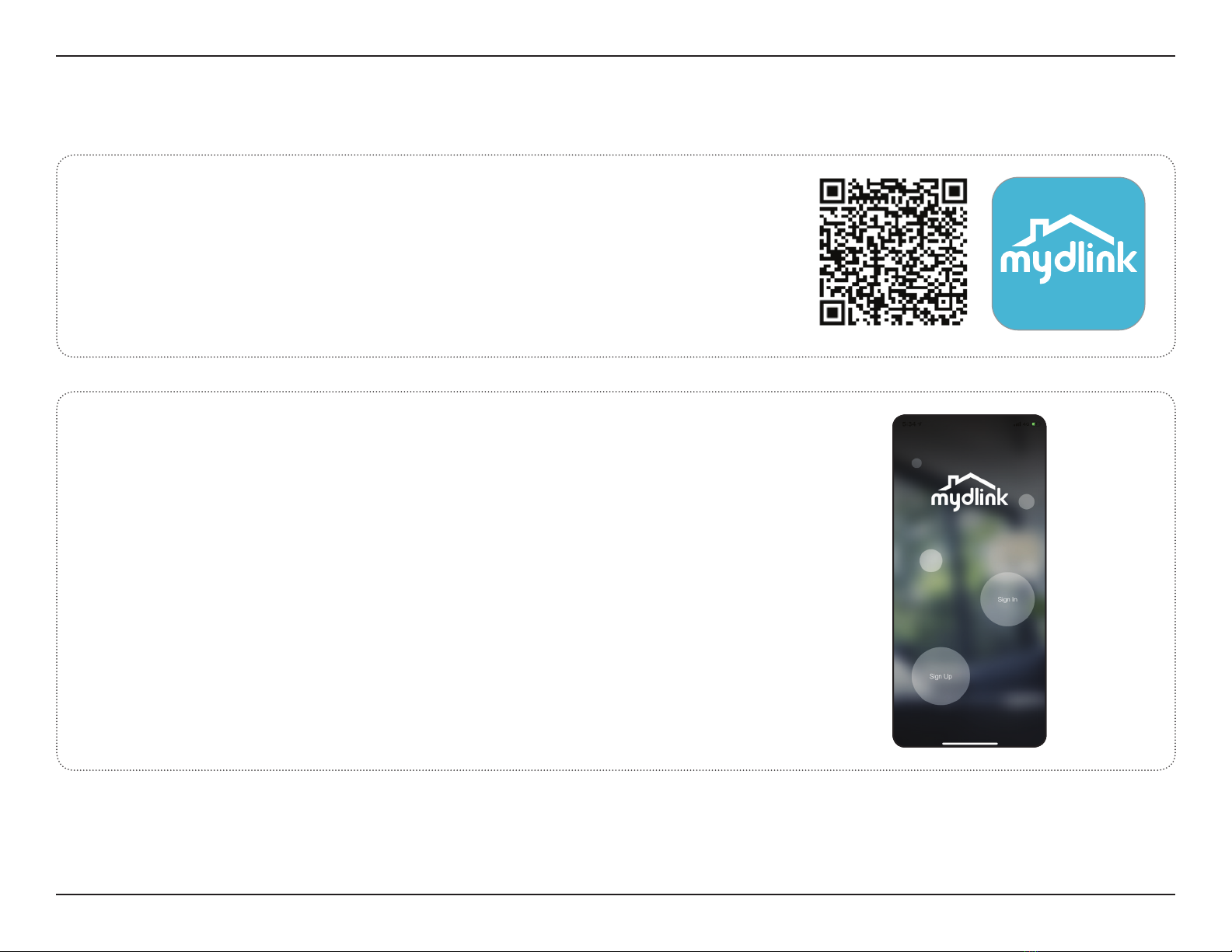

Launch the mydlink app and create a new account or sign in to your
existing account.
Note: On Android, if you are asked about allowing the app to access your location,
select Allow. Make sure location services are turned on in your phone’s settings.
2/
Download the mydlink app from the App Store (iOS) or Google Play
(Android) by scanning the QR code.
1/

D-Link DCH-B112A1 User Manual 8
Section 2 - Installation

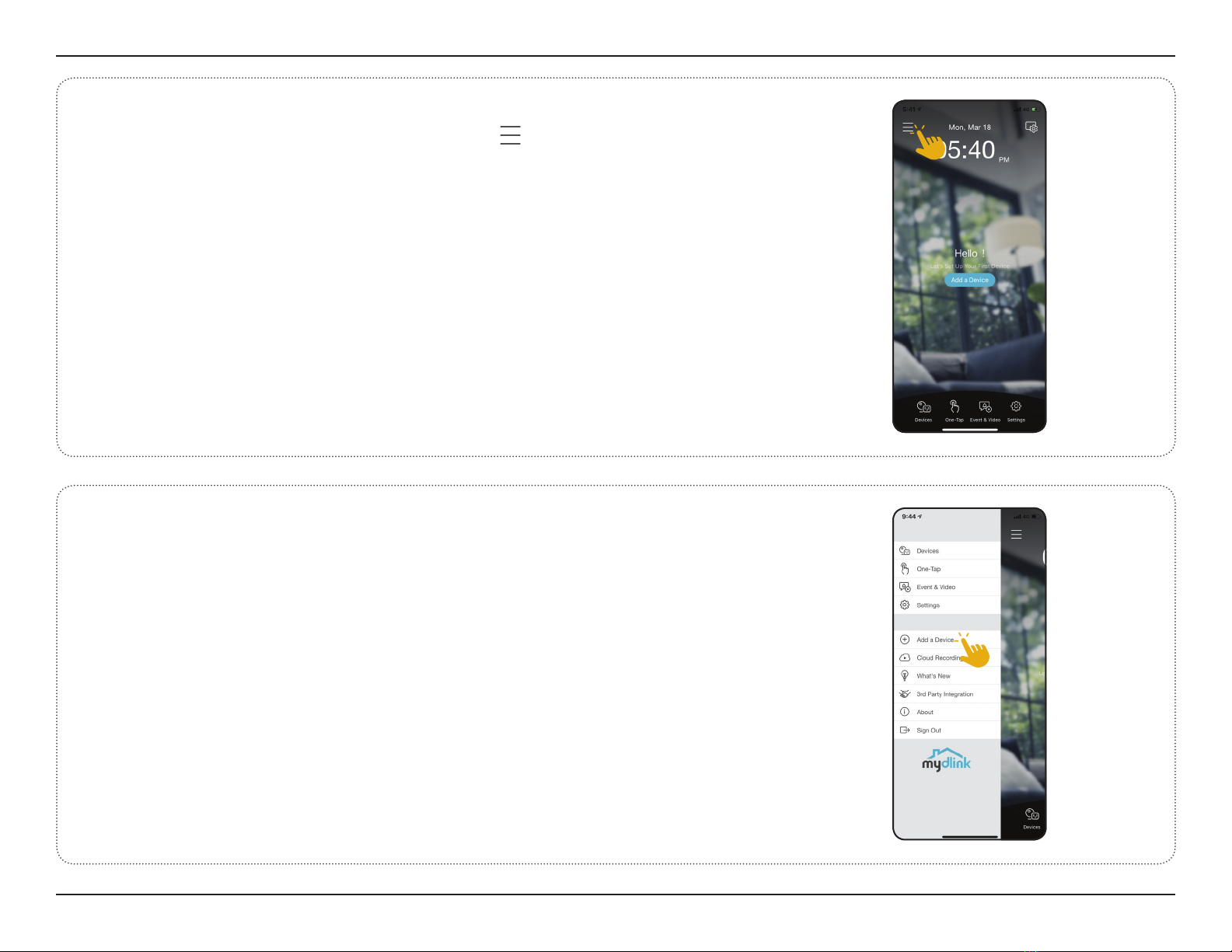

After logging in, tap the Menu button in the top-left corner.
3/
Select Add New Device.
Note: Ensure your mydlink smart DIY hub device is setup rst.
For more information on mydlink Smart DIY,please visit:
dlink.com/SmartDIY
4/

D-Link DCH-B112A1 User Manual 9
Section 2 - Installation

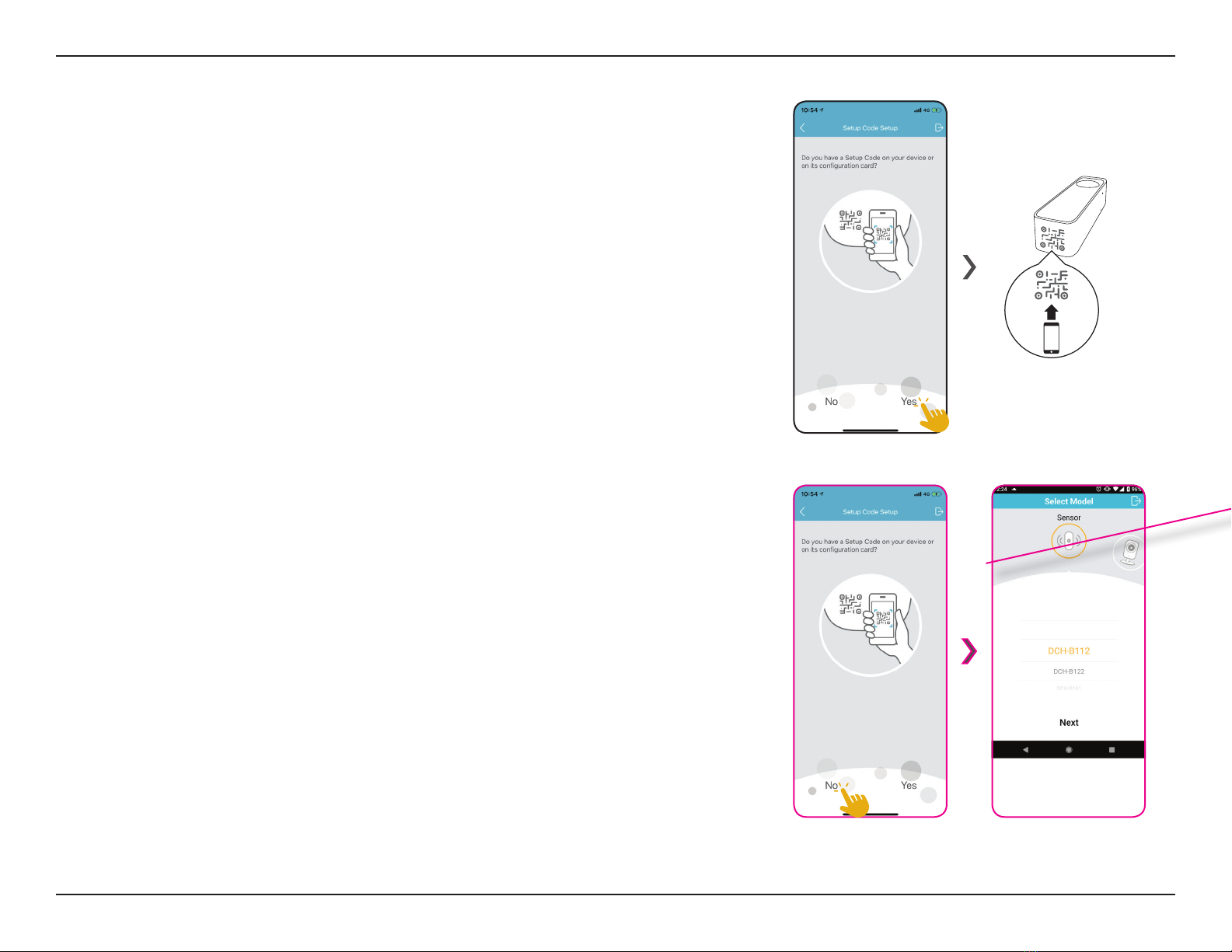

When asked to scan a Setup Code, select Yes or No.
If you selected Yes:
Scan the setup code on the bottom of the sensor.
5/
If you selected No:
Select DCH-B112 from the sensor list, then press Next.

D-Link DCH-B112A1 User Manual 10
Section 2 - Installation

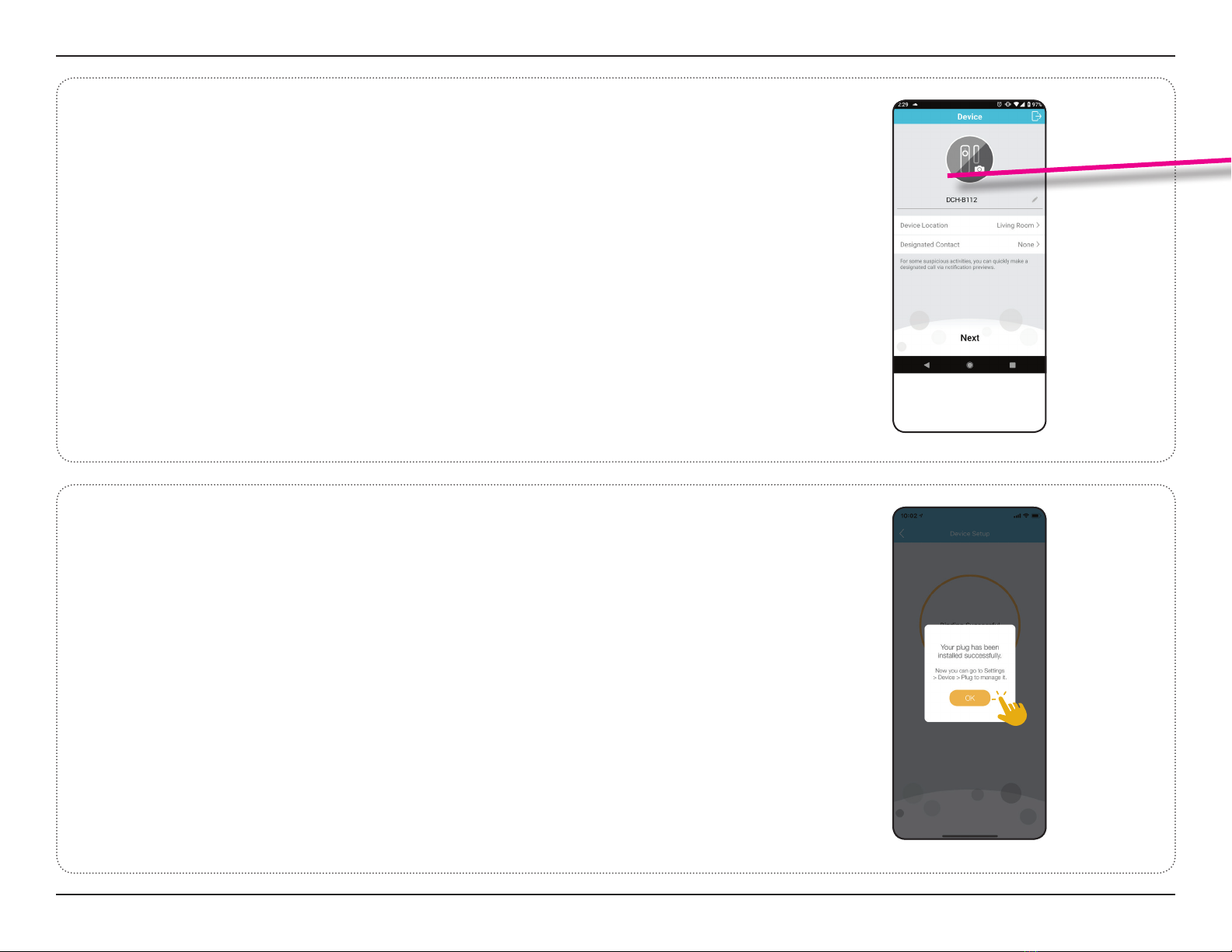

Follow the onscreen instructions to establish a connection to the
device.
Choose the Device Location of your device and (optionally) a
Designated Contact.
Tap Next when all items have been determined.
6/
Tap OK to conclude the setup process.
Congratulations, your DCH-B112 Door/Window Sensor is now ready
to use!
Note: If you experience issues registering this sensor with your mydlink account,
or if you purchased an open box or resold unit, perform a hard reset by pressing
and holding the reset button on the device until the status LED blinks red.
7/

D-Link DCH-B112A1 User Manual 11
Section 3 - mydlink

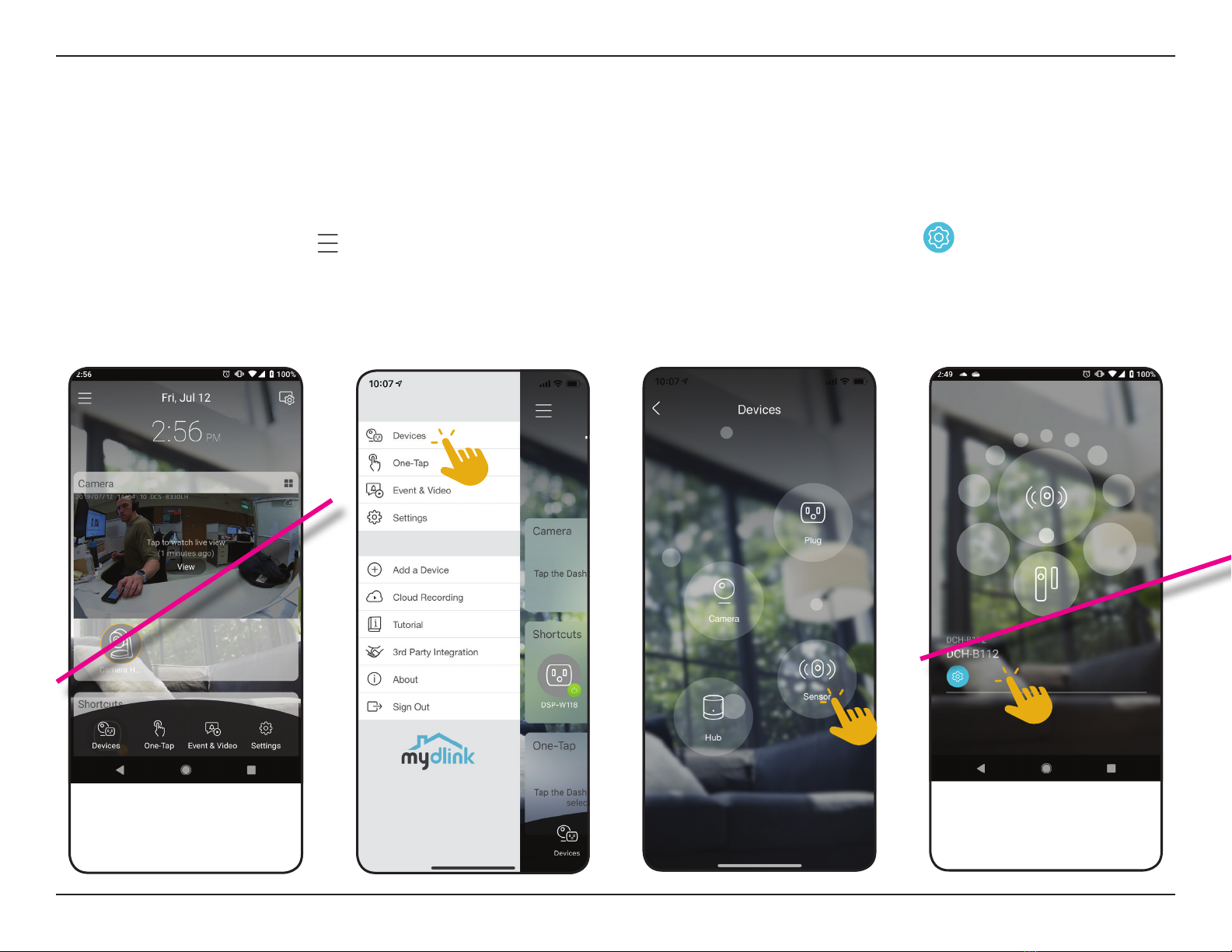

To access the device page:
•From the home page, tap > Devices > Sensor > navigate to your sensor on the carousel > or tap on the sensor's
icon.
The device page contains several options for you to congure your sensor.
Using the mydlink App
Controlling Your Device

D-Link DCH-B112A1 User Manual 12
Section 3 - mydlink

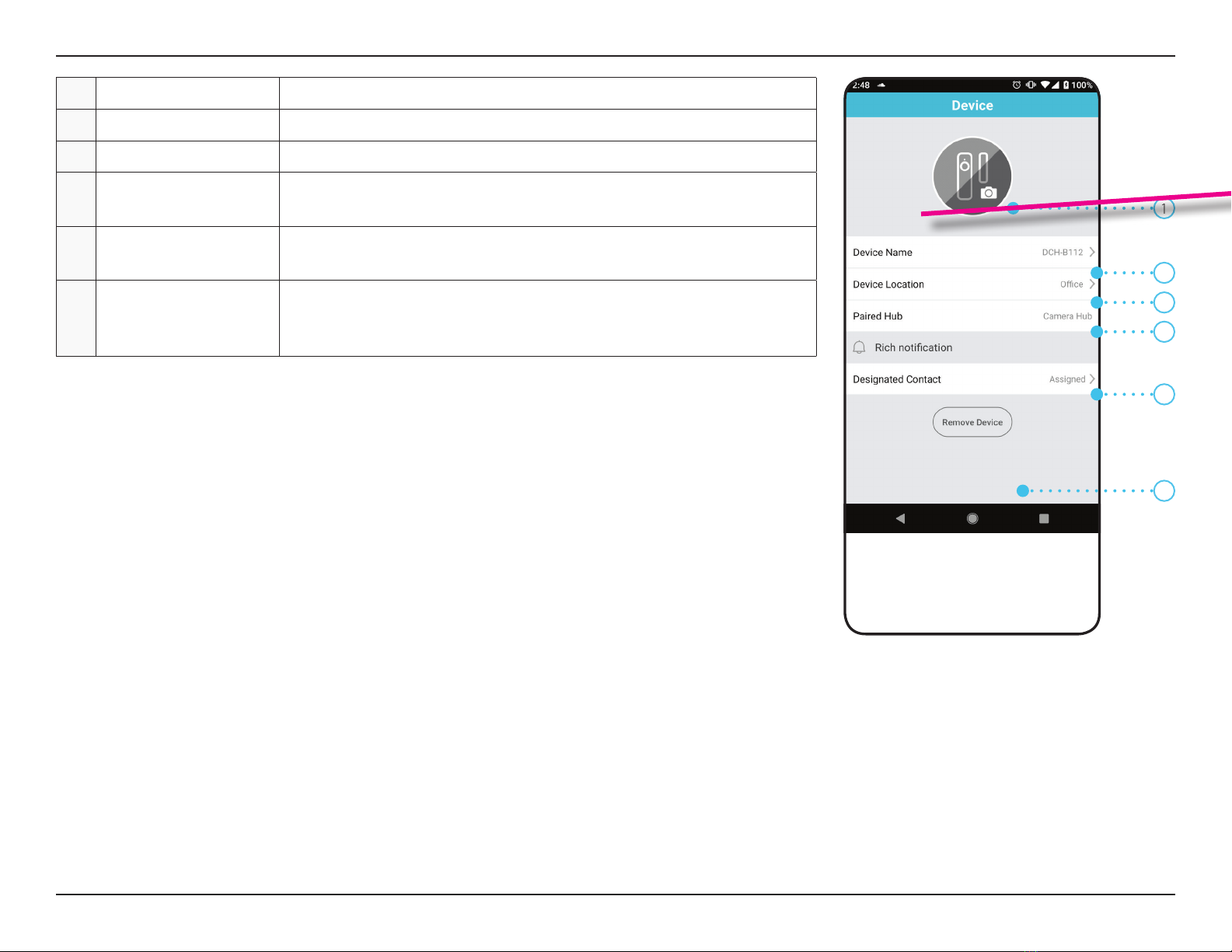

1 Device Photo Tap to add a customized photo of this device.
2 Device Name Tap to change the device’s name.
3 Device Location Tap to change or add a new location for this device.
4 Paired Hub Displays the hub that the sensor is currently connected to.To change
it, please factory reset the device.
5 Designated Contact Tap here to add, remove, or edit designated contacts that appear in
the rich notication.
6 Remove Device
Tap this button to remove this device from your mydlink account.
Note: To relink the device, reset it to factory default settings and run
the setup process again.
1
2
3
4
5
6

D-Link DCH-B112A1 User Manual 13
Section 4 - Troubleshooting
Troubleshooting
1. How can I access my device remotely through the Internet?
In order to use your device remotely through the Internet using the mydlink app, you must register your device
with a mydlink account. You can do this using the free mydlink app. Please go to Using the mydlink App on page 10
for more information.
2. Why is my sensor not being triggered?
The Main Sensor Unit must be placed at most 0.79 in, approximately 3 / 4 in (20 mm), away from the Magnetic Trigger
with the alignment notches aligned.

D-Link DCH-B112A1 User Manual 14
Appendix A - Technical Specications
Technical Specications
General
Device Interfaces • Zigbee
TM
wireless
• Bypass button
• Reset button
• Tamper key
Connectivity • Zigbee
TM
frequency: 2.4 Ghz
• Zigbee
TM
range: 40 m (line of sight)
• Proximity to secondary module detetion range: 0.79 in
approximatelyh 3 ⁄ 4 in (20 mm)
LED • Status
Standards • Zigbee
TM
3.0 • AES 128-bit encryption
Functionality
Supported Features • Push notification
• Google Assistant
• Amazon Alexa
•IFTTT
• Automation
• Tamper detection
Device Management • mydlink
TM
app
Physical
Dimensions • Main Sensor Unit: 2.64 x 0.79 x 0.79 in • Magnetic Trigger: 1.82 x 2.68 x 0.79 in
Weight • Main Sensor Unit 0.49 oz (not including battery) • Magnetic Trigger: 0.30 oz
Power • CR2 800 mAh Lithium battery x 1
• Battery Life: 3 years (15 triggers per day)
• DC 3V
Temperature • Operating: 32 to 104 °F • Storage: -4 to 149 °F
Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing
Certifications • FCC
• IC
• RoHS
• Zigbee
TM
3.0
• Amazon Echo Plus
TM
Power Consumption • < 3 W
Maximum Load • 1800 W
Temperature • Operating: 32 to 104 °F • Storage: -4 to 149 °F
Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing

D-Link DCH-B112A1 User Manual 15
Appendix A - Technical Specications
Certifications • FCC
• IC
• cUL
• RoHS Compliance
Order Information
Part Number Description
DCH-B112A1 Smart Door/Window Sensor

D-Link DCH-B112A1 User Manual 16
Appendix B - Regulatory Information
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Non-modications Statement:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance
with FCC multi-transmitter product procedures. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
Note
The country code selection is for non-USA models only and is not available to all USA models. Per FCC regulations, all WiFi product marketed in
the USA must be xed to USA operational channels only.

D-Link DCH-B112A1 User Manual 17
Appendix B - Regulatory Information
IMPORTANT NOTICE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your body.
Innovation, Science and Economic Development Canada (ISED) Statement:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Innovation, Science and Economic Development Canada (ISED) Statement:
This device complies with ISED licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Radiation Exposure Statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your body.
Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre
l'antenne de cet appareil ettoutes les personnes.
