D-Link MyDlink DCH-S150 User manual

UserManual
mydlinkTM Wi-
Fi Motion Sensor
Versio n 0.1 02/17/2013
UserManual
Fi Motion Sensor
DCH-S150

D-Link DCH-S150 User Manual 2
Table of Contents
Table of Contents
Product Overview ........................................................ 3
Package Contents ................................................... 3
System Requirements ............................................. 4
Introduction .............................................................. 5
Features .................................................................. 6
Hardware Overview ................................................. 7
Connections ....................................................... 7
Side.................................................................... 8
Installation .................................................................... 9
Connecting the Powerline AVAdapter .................... 9
Technical Specifications........................................... 10
.... Federal CommunicationCommission In terference
Statement .............................................................. 11

D
-
Link
DCH
-
S150
User
Manual
Section
1
-
Product
Overview
Package
D-Link D
CH
mydlink
TM
Wi-
Fi Motion
Sensor
Package
Contents
CH
-S150
Fi Motion
3

D-Link DCH-S150 User Manual 4
Section
1
-
Product
Overview
System Requirements
Network Requirements
• IEEE 802. 11b/g/n wi reless clients
App-based Configuration
Device Requirements
Operating System:
• iOS6/7 or above
• Android 4.0/4.2 or above.

D-Link DCH-S150 User Manual 5
Section
1
-
Product
Overview
Introduction
The DCH-S150 WiFi Motion Sensor is ideal for home or office wireless networks that require very fast Internet
connections. The DCH-S150 The motion sensor is powered by a 100-240V AC Power Supply and is designed to
detect movement up to 8M away with a cone coverage of approximately 84 degrees wide . The DCH-S150 supports
WiFi 802.11 b/g/n networking, and through a App which iOS or Android system for you can control at home or office.

D-Link DCH-S150 User Manual 6
Section
1
-
Product
Overview
Features
• Compatible with 802.11b/g and 802.11n Devices - The DCH-S150 i s s t ill fully co m p a t i b l e w i t h
t h e 802.11b/g/nstandards .
• WPS PBC - (Wi-Fi Protected Setup Push Button Configuration) Push Button Configuration is a button
that can be pressed to add the device to an existing network or to create a new network. A virtual button
can be used on the utilitywhile a physical button is placed on the side of the device.
This easy setup method allows you to form a secured wireless link between the DCH-S150 and another
WPS enabled device. A PC is no longer needed to log into the Web-based interface.
• User-friendly Setup Wizard - Through its easy-to-use App-based which iOS or Android system user
you can configure your access point to your specific settings within minutes.

D
-
Link
DCH
-
S150
User
Manual
Section
1
-
Product
Overview
Hardware
Motion Sensor
Hardware
Overview
Connections
7

D
-
Link
DCH
-
S150
User
Manual
Section
1
-
Product
Overview
Hardware
WPS Button
Hardware
Overview
Side
Power LED
Rest Button
8

D
-
Link
D
CH
-
S150
User
Manual
9
Section 2 - Installation
Installation
Connecting the W
WW
W iFi Motion Sensor
It i s easy to connect the DCH-S150 s i m p l y by performing the
following instructions:

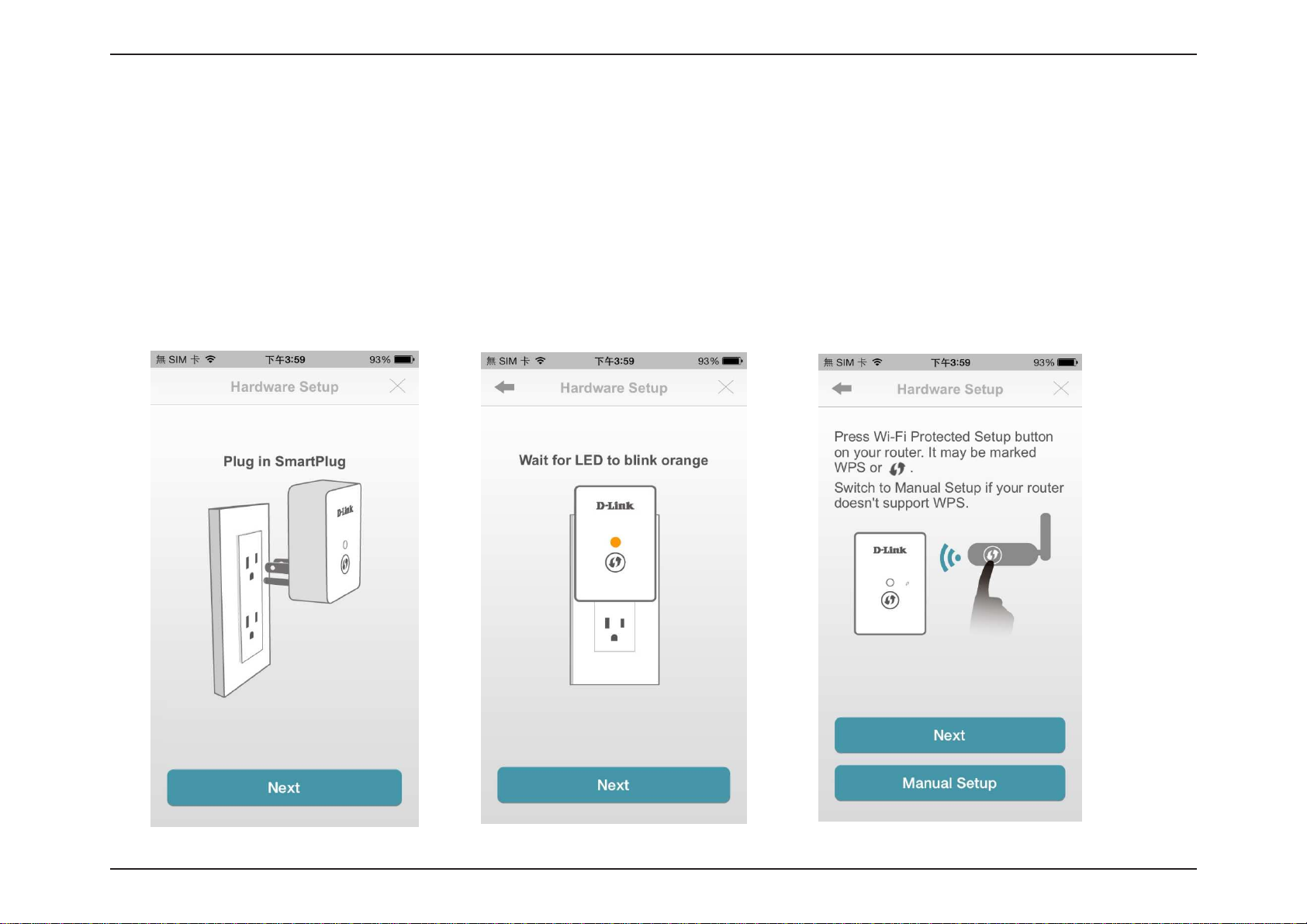

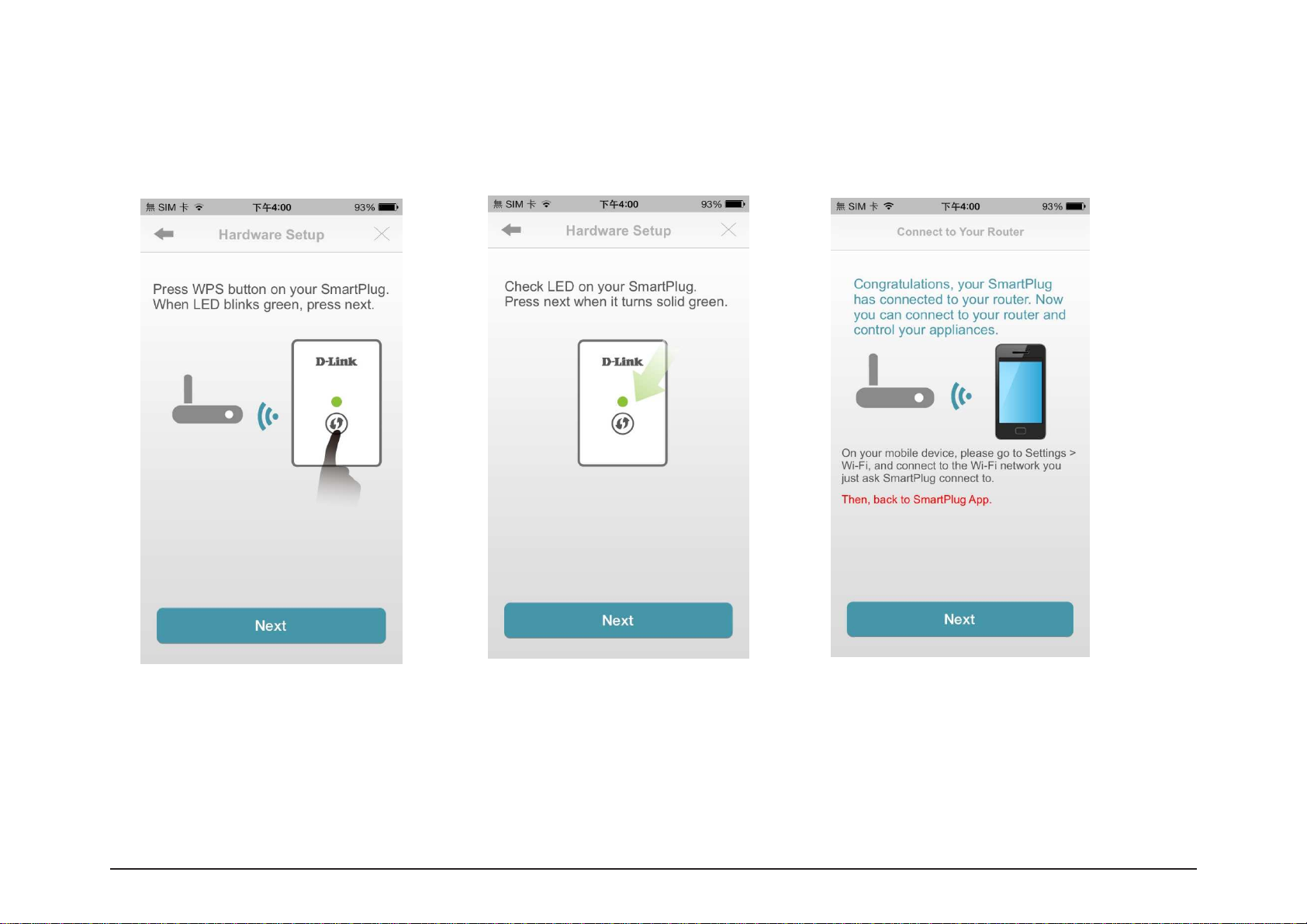

1. Plug the DCH-S150 into the wall outlet/socket, then follow App user guide.

D
-
Link
D
CH
-
S150
User
Manual
1
0

D-Link DCH-S150 User Manual
1
1
Appendix
C
-
Technical
Specifications
DEVICE INTERFACES
Technical Specifications
DIMENSIONS
• 802.11n WLAN(AP wireless connection to computers)
• Common connect button
• Reset button
WIRELESS LAN
• 802.11b/g standards
• 802.11nstandard
• Wirelessspeed: up to 300 Mbps (802.11n)
• 64/128-bit WEP data encryption
• WPA/WPA2 (Wi-Fi Protected Access)
ADVANCED FEATURES
• IPv6 support
OPERATIONMODES
• AP 2.4 GHz
• 58 x 54 x 42.85 mm
WEIGHT
• 80 grams (0.176 lb)
MAXIMUM POWER CONSUMPTION
• AC: 3 watts
TEMPERATURE
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)
HUMIDITY
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
CERTIFICATIONS
• FCC
• IC
• UL
1.
M a x i m u m w i r e l e ss s i gn a l rate d e r i v e d f r o m I EEE Standard 802.11g and 802.11n s p e c ifi c a t i on s . A c t u a l data throughput will vary. Network cond i t i on s and e n v i r on m e n t a l
factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions
will adversely affect wireless signal range.
2.
Range varies depending on country’s regulation.
3. Do not use for Live & Security, Remote Control, or Energy Management

D-Link DCH-S150 User Manual
1
2
Appendix
C
-
Technical
Specifications
Federal Communication C o mm i ss i o n I n t e r f e r e n ce S t a t e m e n t
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC R u l e s . These li m i t s are d e s i gn e d to p r o v i d e r ea s on a b l e p r o t e c t i on a g a i n s t h a r m f u l i n t e r f e r e nc e i n a r e s i d e n t i a l
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation,
all WiFi product marketed in US must fixed to US operation channels only.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.

D-Link DCH-S150 User Manual
1
3
Appendix
C
-
Technical
Specifications
Industry Canada statement:
This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Ce dispositif est conforme à la norme CNR-247 d'Industrie Canada applicable aux appareils radio exempts de licence. Son
fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Declarationd’exposition aux radiations:
Cet equipement est conforme aux limites d’exposition aux rayonnements IC etablies pour un environnement non
controle. Cet equipement doit etre installe et utilise avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
