DCH-S150
User Manual

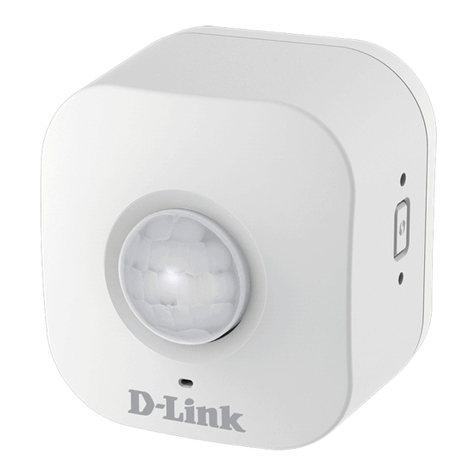

mydlink™ Wi-Fi Motion Sensor
Version 2.00| 12/29/2015

iD-Link DCH-S150 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Revision Date Description
1.12 October 27, 2015 • Initial Release
2.00 December 29, 2015 • Revision A2
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App
StoreSM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows®
and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2016 by D-Link Corporation, Inc. All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save
energy.
Network Standby: 1.34 watts
Preface

iiD-Link DCH-S150 User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Power Usage.................................................................................... i
Product Overview..............................................................1
Package Contents.........................................................................1
System Requirements.................................................................2
Introduction ...................................................................................3
Hardware Overview.....................................................................4
Front/Top.................................................................................4
Side and Bottom ................................................................... 5
Wireless Installation Factors .....................................................6
Setting Up Your Device............................................................... 7
mydlink™ Home .................................................................8
My Devices......................................................................................8
Schedule..........................................................................................9
Information...................................................................................11
My Actions ....................................................................................12
My Places.......................................................................................15
Connecting to a Wireless Router ....................................17
WPS Button...................................................................................17
Troubleshooting..............................................................18
Technical Specications..................................................19
Regulatory Information ..................................................20
Table of Contents

1D-Link DCH-S150 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing from your package, please contact your reseller.
Quick Install Card
DCH-S150 mydlink™ Wi-Fi Motion Sensor
Quick Install Card

2D-Link DCH-S150 User Manual
Section 1 - Product Overview
System Requirements
General Requirements • Wireless router with Internet Service
• An available power outlet
Mobile Requirements • iPhone, iPad, or Android smartphone or tablet1
mydlink Requirements • For mydlink and mydlink app requirements
refer to: http://www.mydlink.com
1Please refer to the mobile app’s store page to check whether your device is compatible.

3D-Link DCH-S150 User Manual
Section 1 - Product Overview
Introduction
Features
Use Motion Detection to Automatically Turn on Your Appliances
The DCH-S150 mydlink™Wi-Fi Motion Sensor is a portable plug-in PIR motion detection device that lets you automate appliances
such as desk lamps attached to Smart Plugs in your home network. Tiny yet powerful, the DCH-S150 introduces you to the
world of home automation in a device that ts in the palm of your hand.
Compact, Convenient Design
The DCH-S150‘s compact design is ideal for use at home or a small oce, as it saves space and is ready to use by simply plugging
it in. The device’s small form means it can easily be plugged into a power outlet without blocking other outlets while its case
design saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance means it blends easily into the
background.
mydlink™ Home
Manage your motion sensor and connected appliances by using the mydlink™ Home app available for iPhone®, iPad®, and
iPod touch® and Android™ devices. Its intuitive user interface and simple instructions lets you easily manage your automated
devices from wherever you are.
Simple Setup
Through its easy-to-use mydlink™ Home app, you can quickly and easily connect the DCH-S150 to an existing network. The
setup wizard will even guide you through the setup process, so you can get your home automation devices up and running
in no time.

4D-Link DCH-S150 User Manual
Section 1 - Product Overview

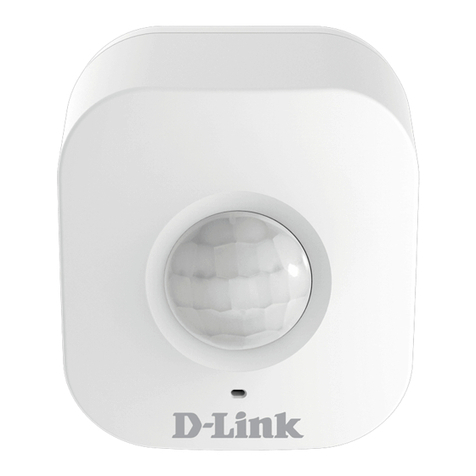

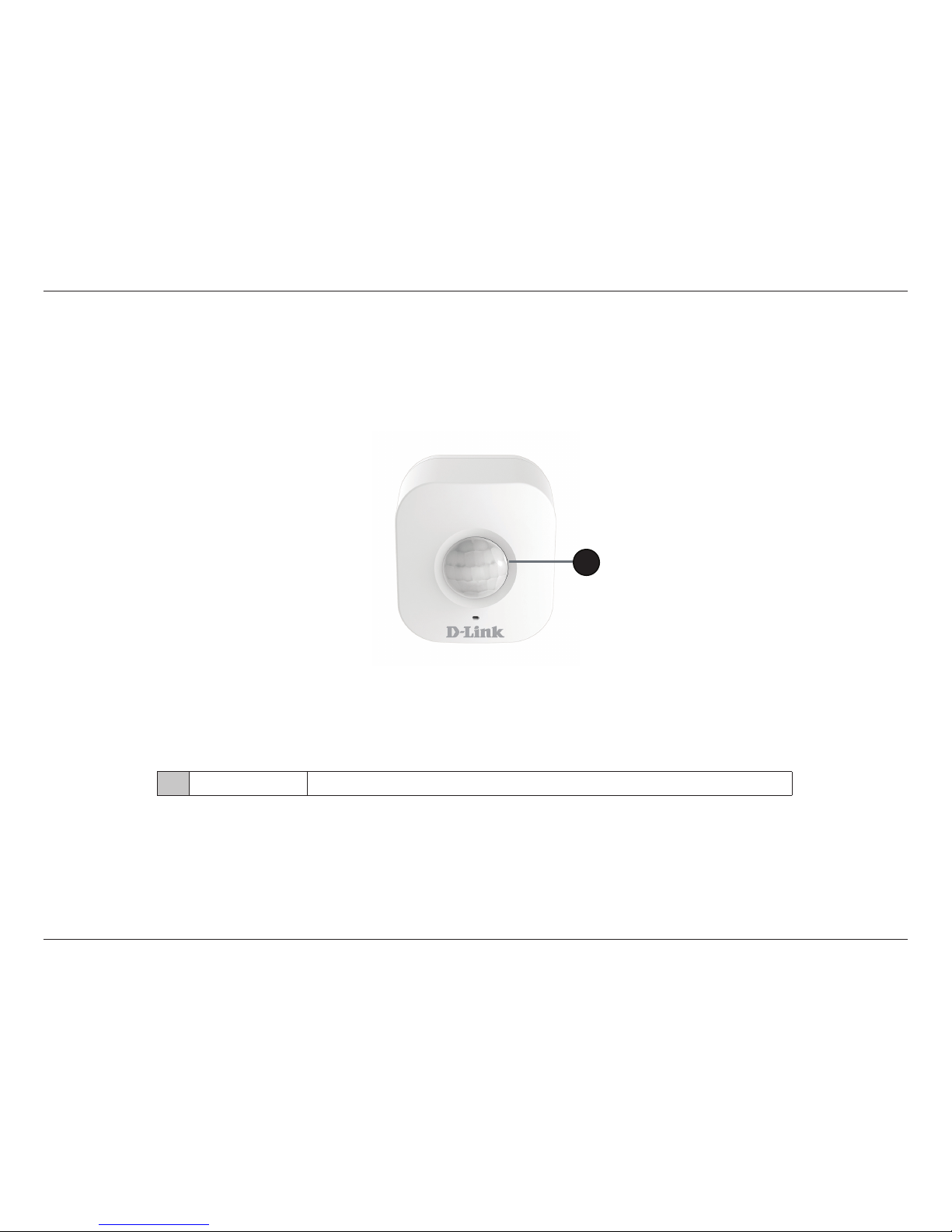

Hardware Overview
Front/Top
1Motion Sensor This sensor will detect motion and trigger actions to other devices.
1

5D-Link DCH-S150 User Manual
Section 1 - Product Overview
Hardware Overview

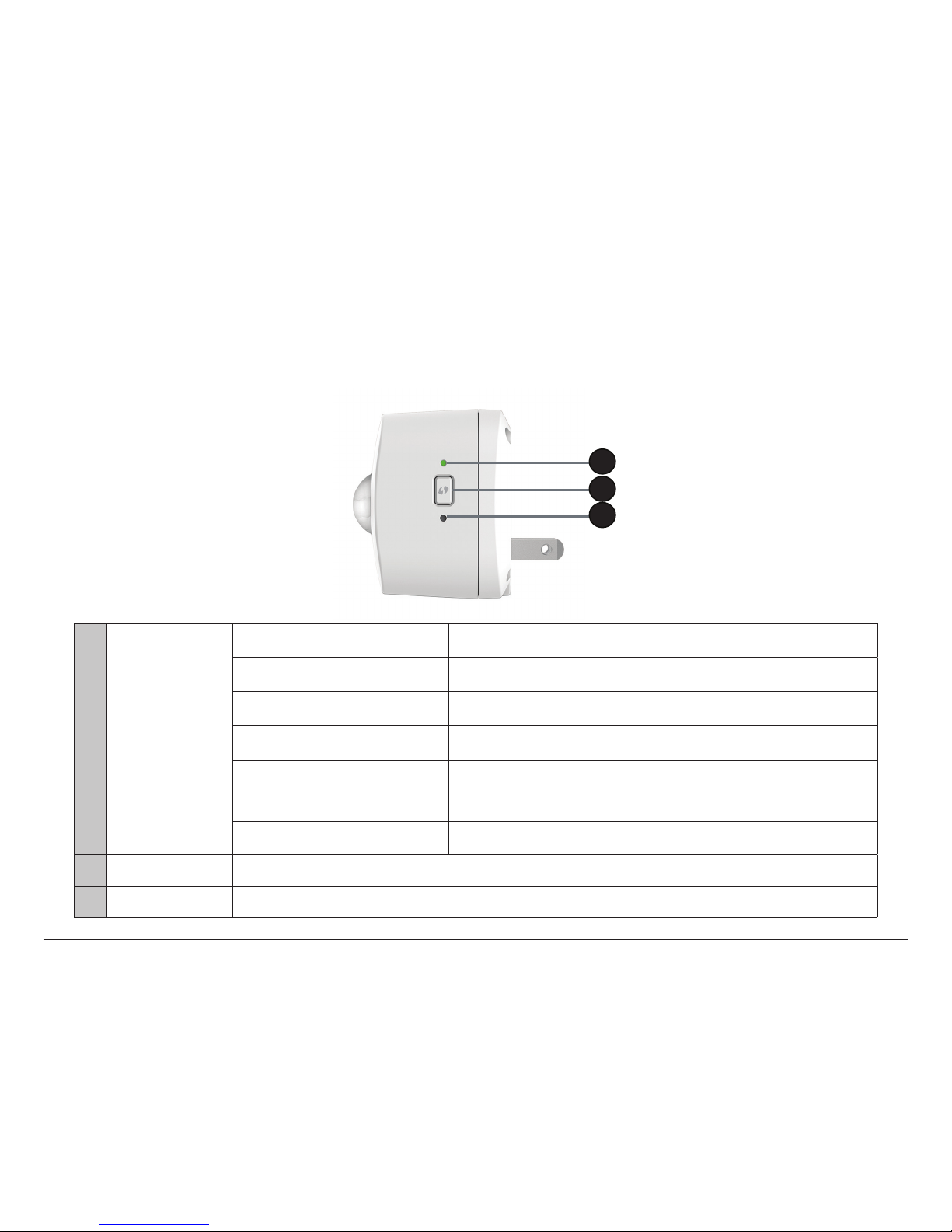

Side and Bottom
1 LED
Solid Green The device is connected to the network
Blinking Green (slow) WPS is working
Blinking Green (fast) PIR is detecting motion
Blinking Orange The device is not connected to the network
Solid Red
• The device is powering on
• The rmware is being upgraded
• The device is defective
Light O The device is powered o
2 WPS Button Pressing the WPS button for 1 second allows you to connect with Wi-Fi clients using Wi-Fi Protected Setup
3 Reset Button Pressing the reset button for 10 seconds will reset the DCH-S150 to the factory default settings
2
1
3

6D-Link DCH-S150 User Manual
Section 2 - Installation
Wireless Installation Factors
The mydlink™Wi-Fi Motion Sensor lets you automate appliances using your existing wireless network. Keep in mind, however,
that the number, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through, may
limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the extender and other network devices to a minimum - each wall or ceiling can
reduceyouradapter’srangebyupto98feet(30 meters). Positionyourdevicesso that the number ofwallsorceilingsisminimized.
2. Be aware of the direct line between network devices. At a 45-degree angle, a wall that is 0.5 meters thick (1.5 feet)
appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it can appear over 14 meters (45 feet) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Buildingmaterialsmakeadierence.Asolidmetaldoororaluminumstudsmayhaveanegativeeectonrange.Trytopositionaccess
points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as
glass,steel,metal,wallswithinsulation,water(shtanks),mirrors,lecabinets,brick, andconcretecandegradeyourwirelesssignal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems),
your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away
from your wireless devices as possible. The base transmits a signal even if the phone in not in use.

7D-Link DCH-S150 User Manual
Section 2 - Installation

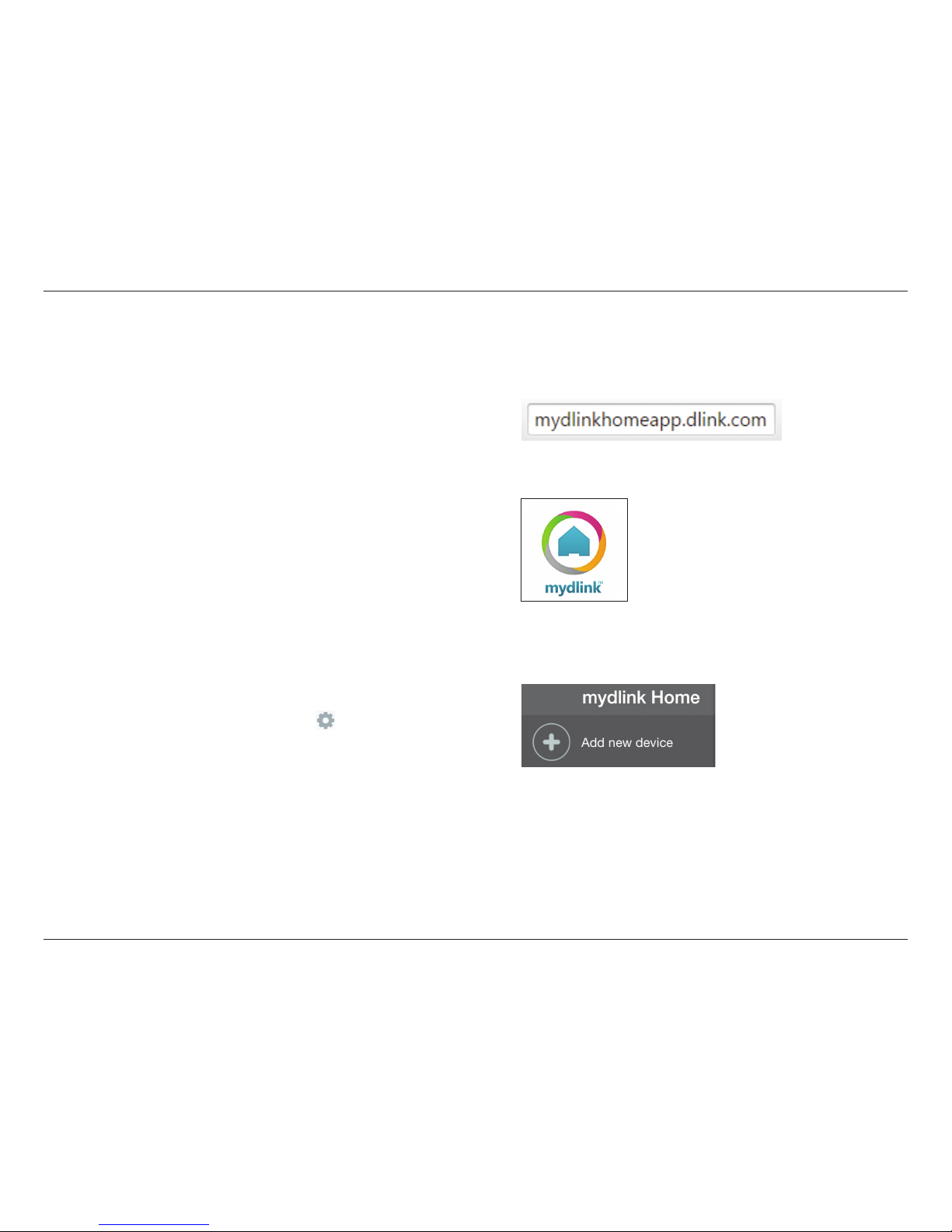

To install your DCH-S150, rst download and install the mydlink™ Home app on your mobile device.This app will walk you through
installing and conguring your DCH-S150.
Step 2:
Launch the mydlink Home app and create a new account or sign
in to your existing account.
Step 1:
On your mobile device, download mydlink Home by going to
mydlinkhomeapp.dlink.com, or by searching for mydlink Home
in the iTunes App Store or Google Play.
Step 3:
After logging in, tap the Settings icon in the top-left corner,
select Add New Device, and follow the instructions.
Step 4:
When you are asked to scan a QR code, use the code on the Quick
Install Card in your package.
Congratulations, your DCH-S150 is now ready to use!
Setting Up Your Device
Note:
iOS: If you are asked about allowing the app to access your location, select
Allow.
Android: Make sure location services are turned on in your phone’s
settings.

8D-Link DCH-S150 User Manual
Section 3 - Usage
mydlink™ Home
My Devices

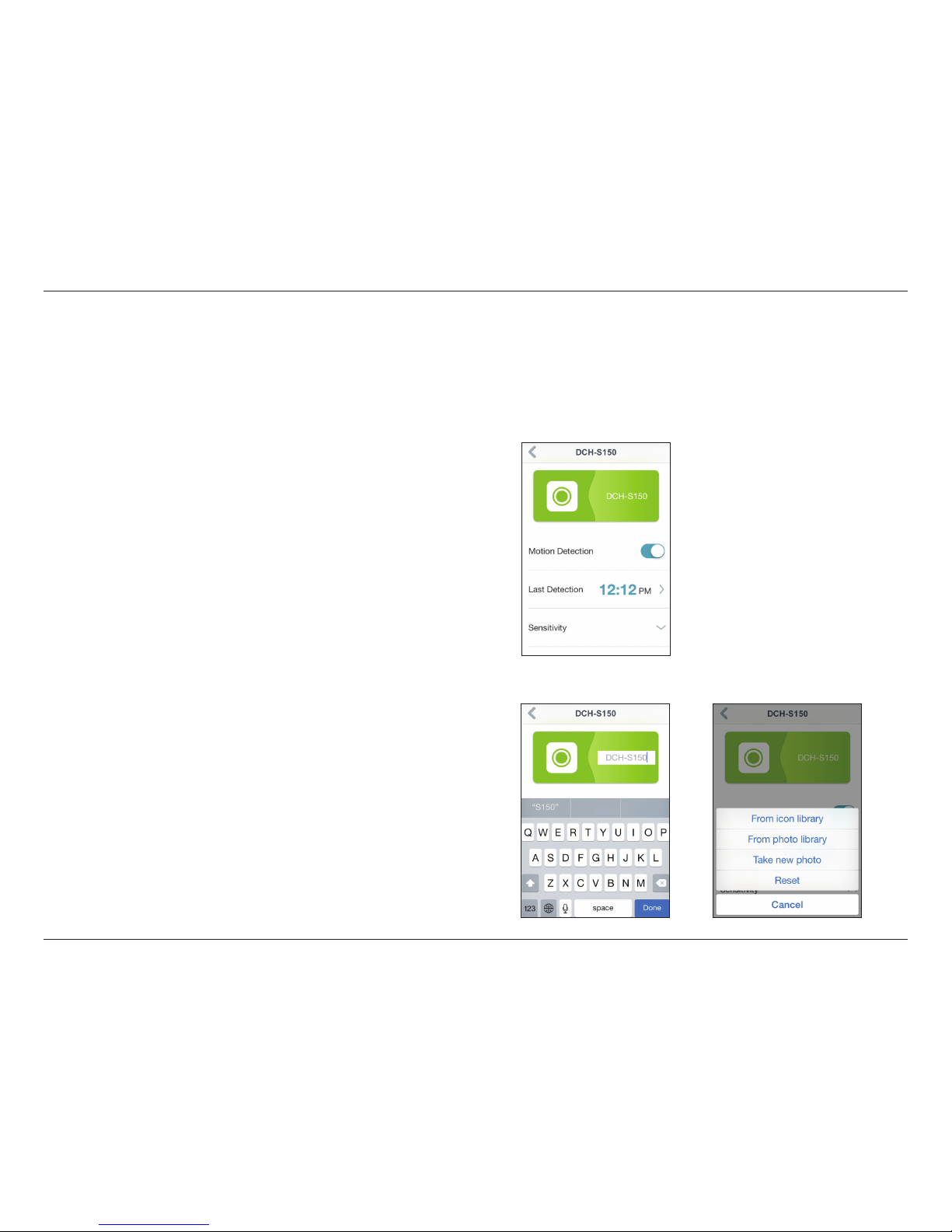

Tapping the DCH-S150 under the My Devices page will take you to the device’s settings.
Motion
Detection:
Last Detection:
Sensitivity:
Information:
Enable or disable motion detection.
Displays the last time the sensor detected motion.
Adjust the sensitivity of the sensor to motion.
This page will show detailed information about the
product and your network. You can also perform a
factory reset here by tapping Reset.
To change the device name or associated icon, tap the name
or the icon respectively, and enter the new name or use the
menu to select the new icon.

9D-Link DCH-S150 User Manual
Section 3 - Usage

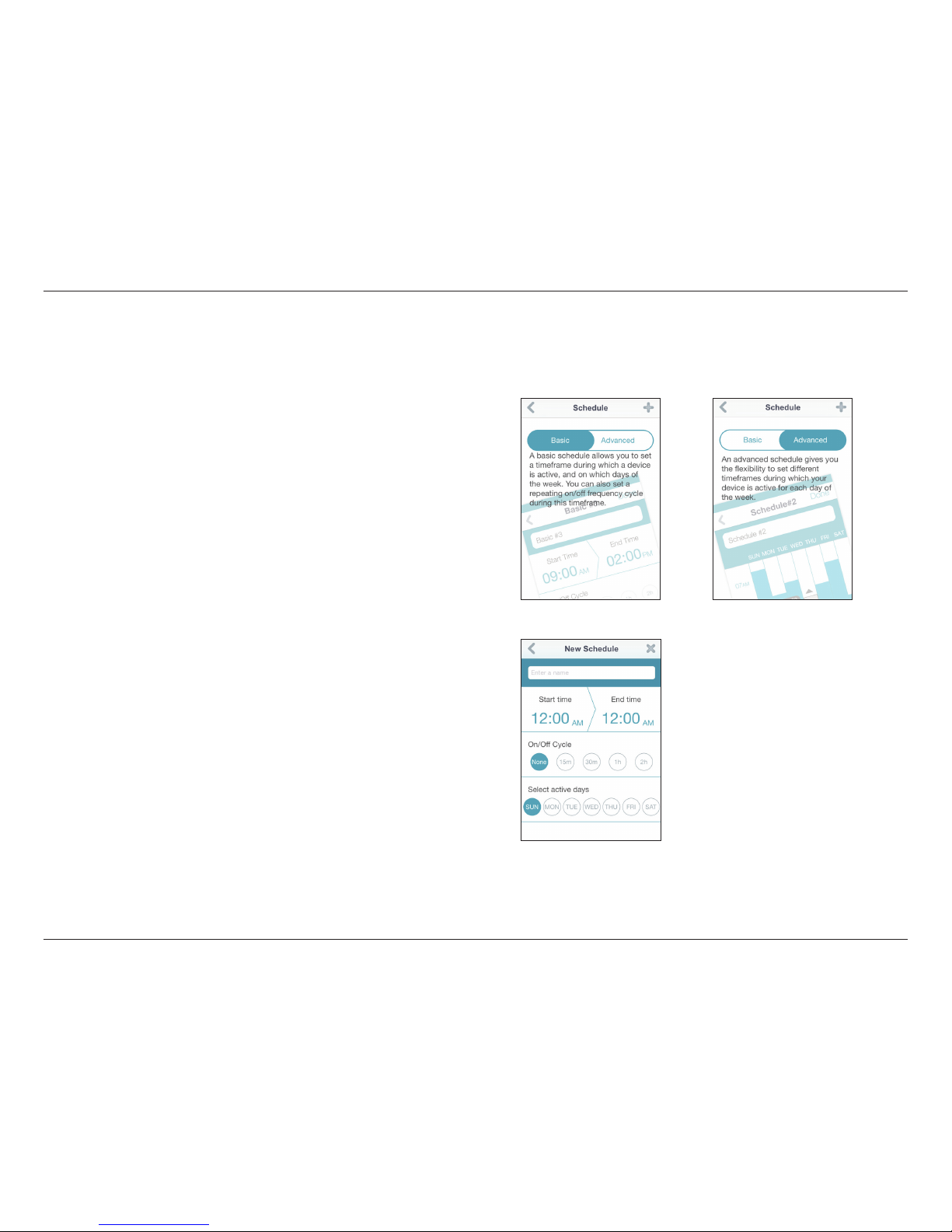

Schedule
You can customize schedules for when your DCH-S150 will be active in this section.
There are two types of schedules you can congure: Basic and
Advanced.
The Basic type lets you set a specic time and cycle for select days.
The Advanced type lets you specify dierent timeframes for each
day of the week.
Tapping + on the top right corner of the Basic schedule page will
take you to the next page where you can select the active days,
Start and End time, and Cycle (or duration) that the device will
be active. This type of schedule is suited for schedules using the
same Start and End times and Cycle for each day.

10D-Link DCH-S150 User Manual
Section 3 - Usage

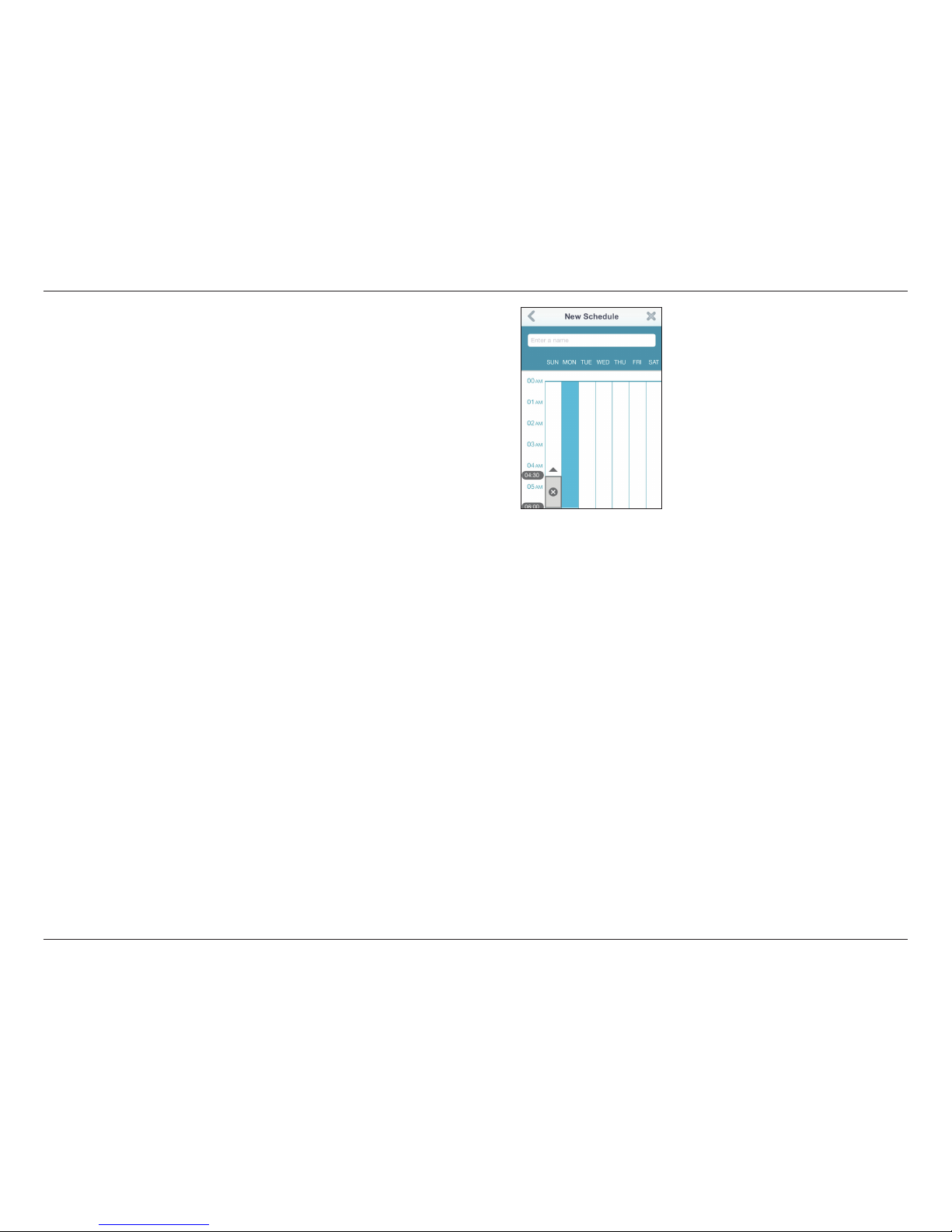

Tapping + on the top right corner of the Advanced schedule page
will take you to the page where you can select dierent days and
times that the device will be active in a table. Simply tap and drag
the bars in the table to adjust the times.Tap xto delete a specic
time.
After the schedule is set, go back to the previous page and tick
the radio button next to the rule to activate it.

11D-Link DCH-S150 User Manual
Section 3 - Usage
Information
This page shows your product and related network details.
Product Name:
Firmware
Version:
MAC Address:
Time Zone:
Factory Reset:
Displays the product model.
Displays the version of the rmware.
Displays the MAC address of the device.
Displays the time zone of the device.
Tap Reset to perform a factory reset.

12D-Link DCH-S150 User Manual
Section 3 - Usage

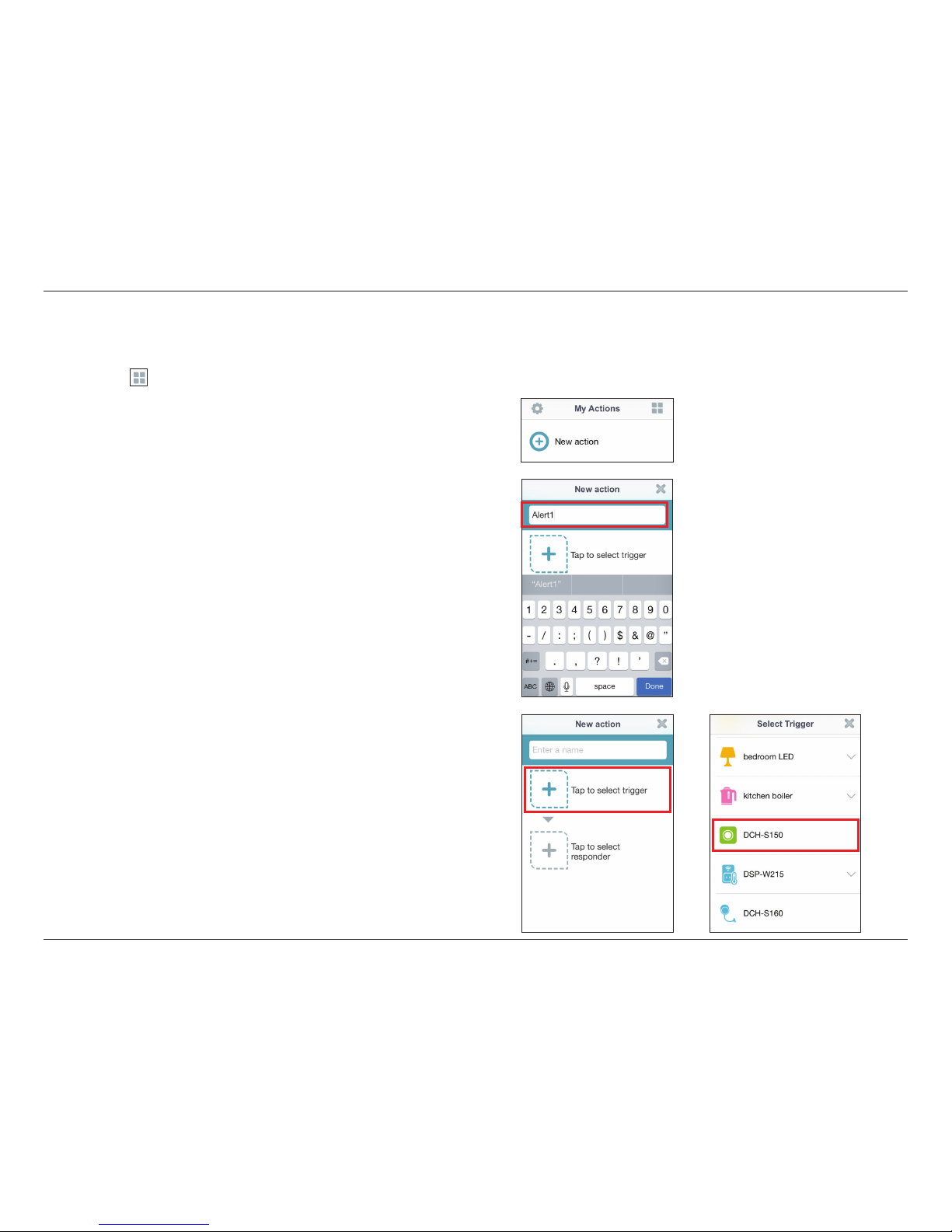

My Actions
This page lets you add and enable/disable rules which execute actions such as notications when your DCH-S150 detects
motion. Tap to switch between pages.
1. To add a new action for you device, tap on New action.
2. Type in a name for this action. Tap Done when you’ve nished
inputting the name.
3.To select the device you want to use as the trigger for this action,
tap + then choose from the list of devices.

13D-Link DCH-S150 User Manual
Section 3 - Usage

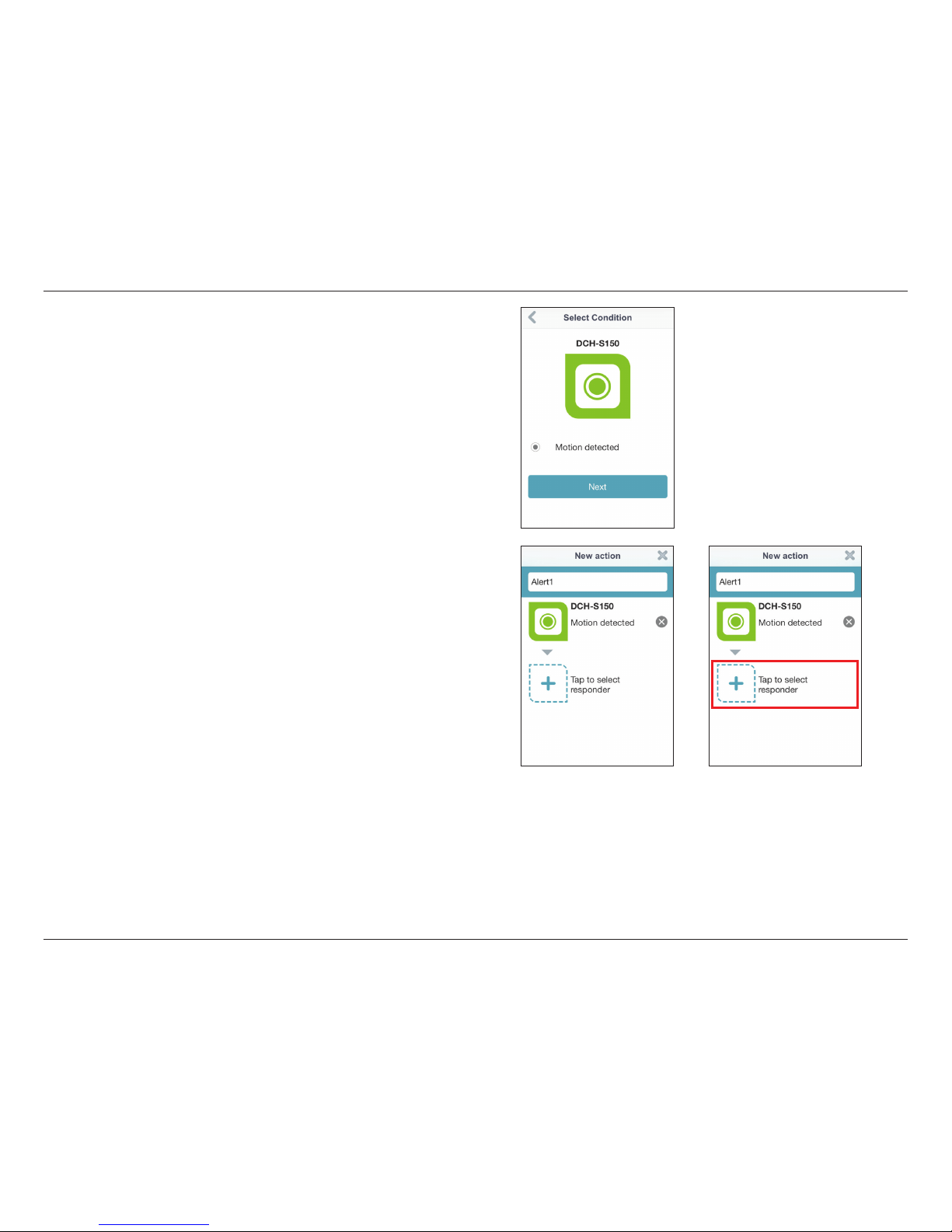

4. Select from the available conditions for this device and tap
Next.
5. Tap + to select from the available responders for this device.

14D-Link DCH-S150 User Manual
Section 3 - Usage

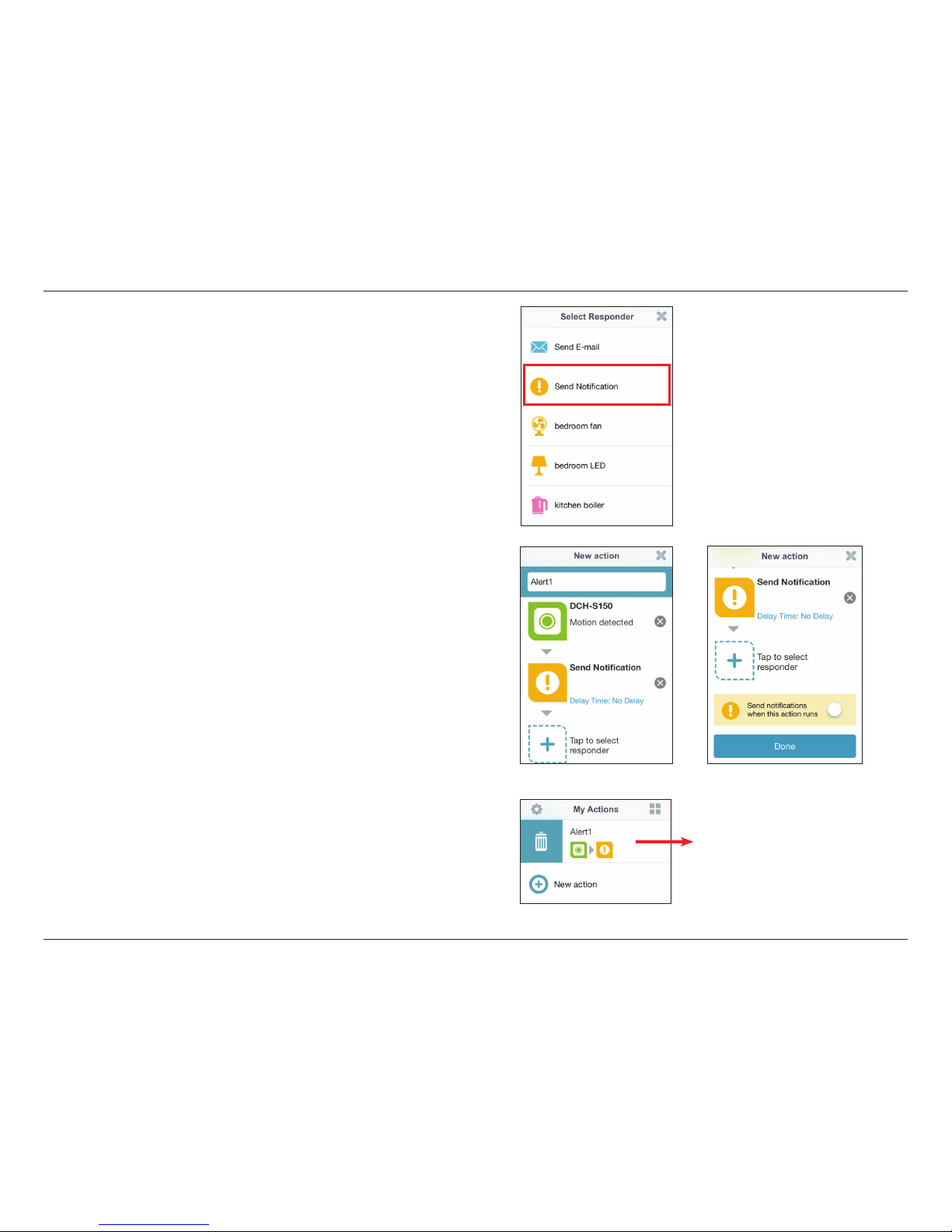

6. Select from the available responders for this device. In this
example we have chosen to send a notication.
7. Check the action settings and tap Done to nish.
8. To delete the rule, simply swipe right on the rule to show the
trash icon. Tap on the icon to delete it.

15D-Link DCH-S150 User Manual
Section 3 - Usage

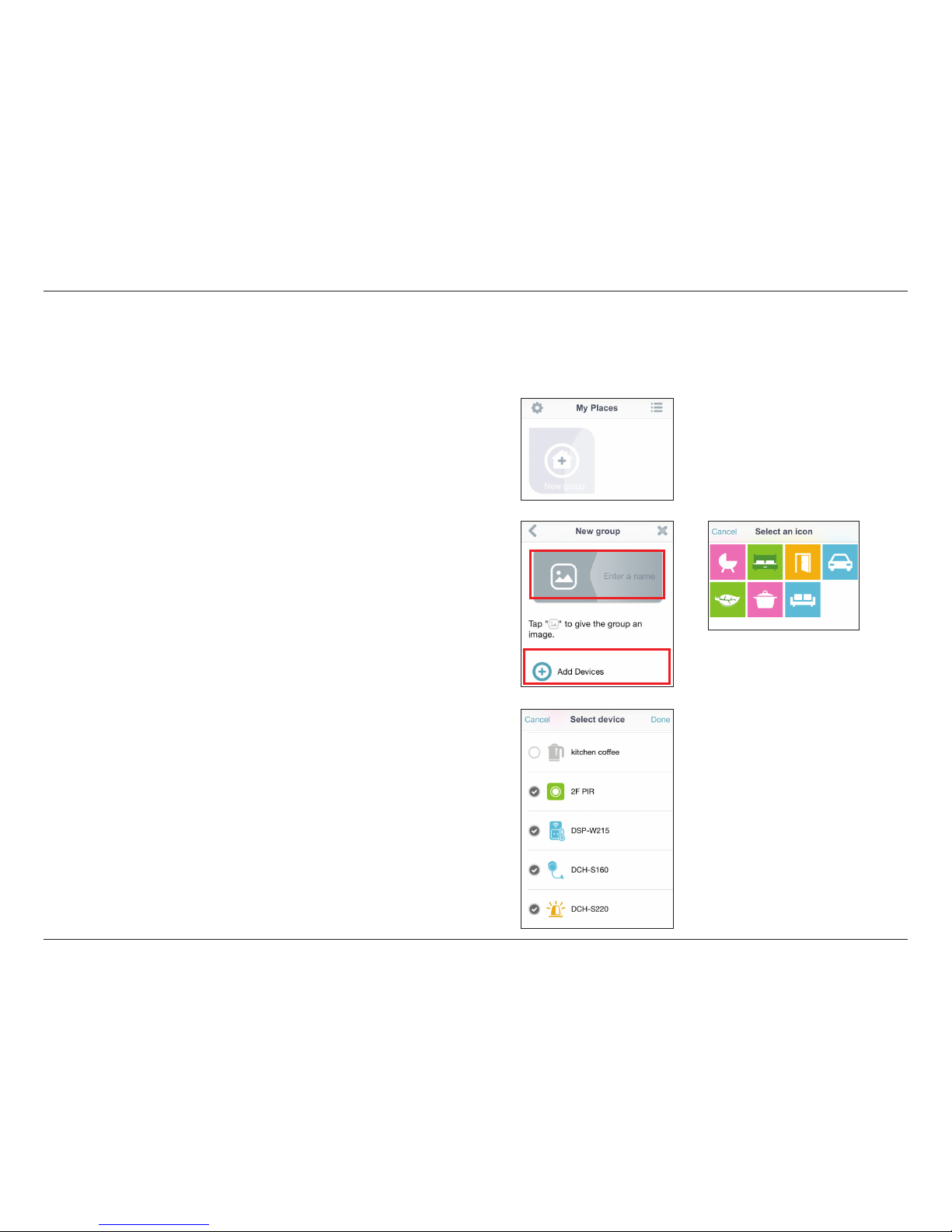

My Places
This page lets you add devices into a group so you can easily see which devices are in a particular location.
1. To create a group, tap New group.

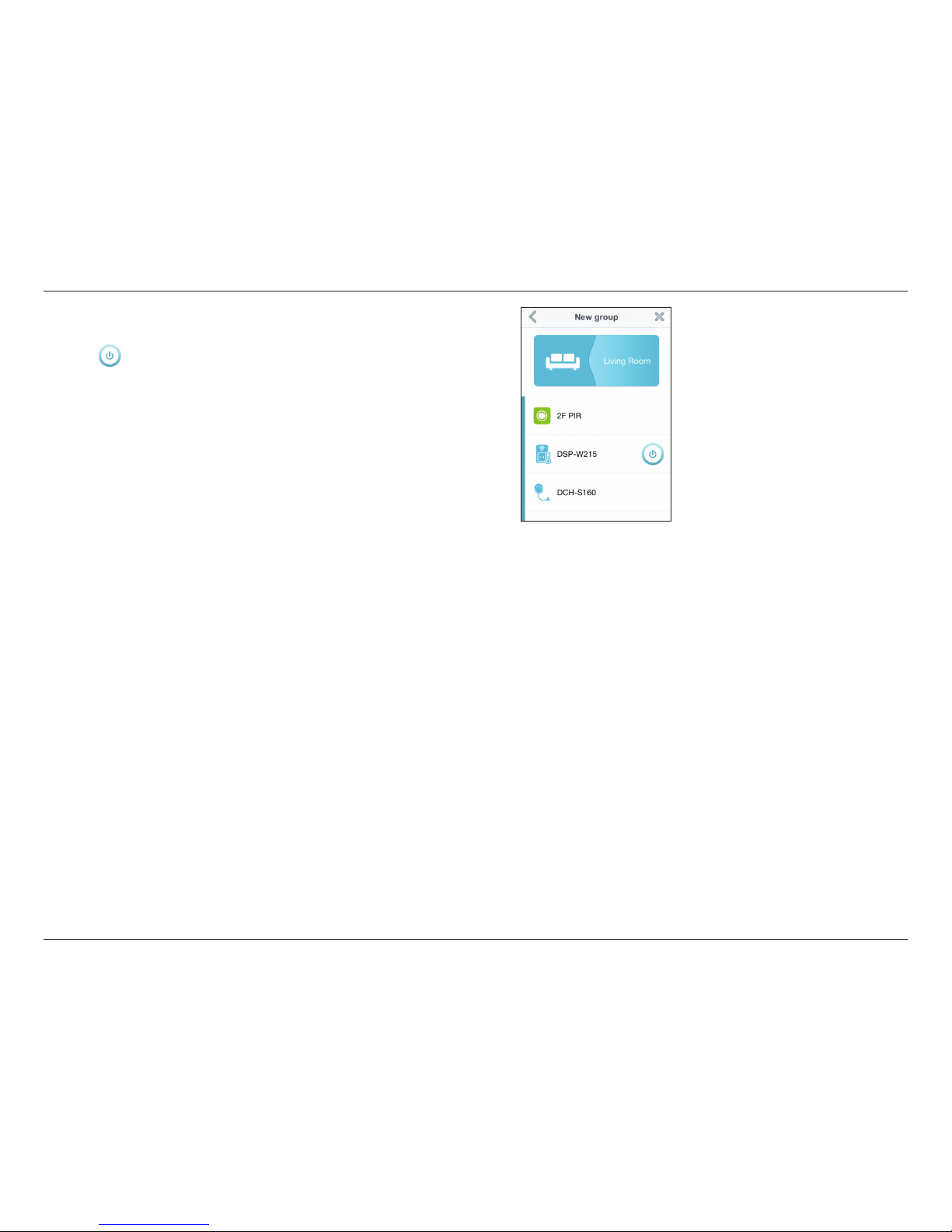

2. On the New Group page, tap the icon to choose an icon or
photo for the group. Tap next to it to enter a name for the group.
Then tap the +icon to add devices.
3. Tick the devices to be included in this group and tap Done.

16D-Link DCH-S150 User Manual
Section 3 - Usage
4. Your group is created and will show up in My Places. Tapping
each device in the group will take you to their settings. You can
tap the icon to activate/deactivate the device.

17D-Link DCH-S150 User Manual
Section 4 - Connecting a Wireless Client
Connecting to a Wireless Router

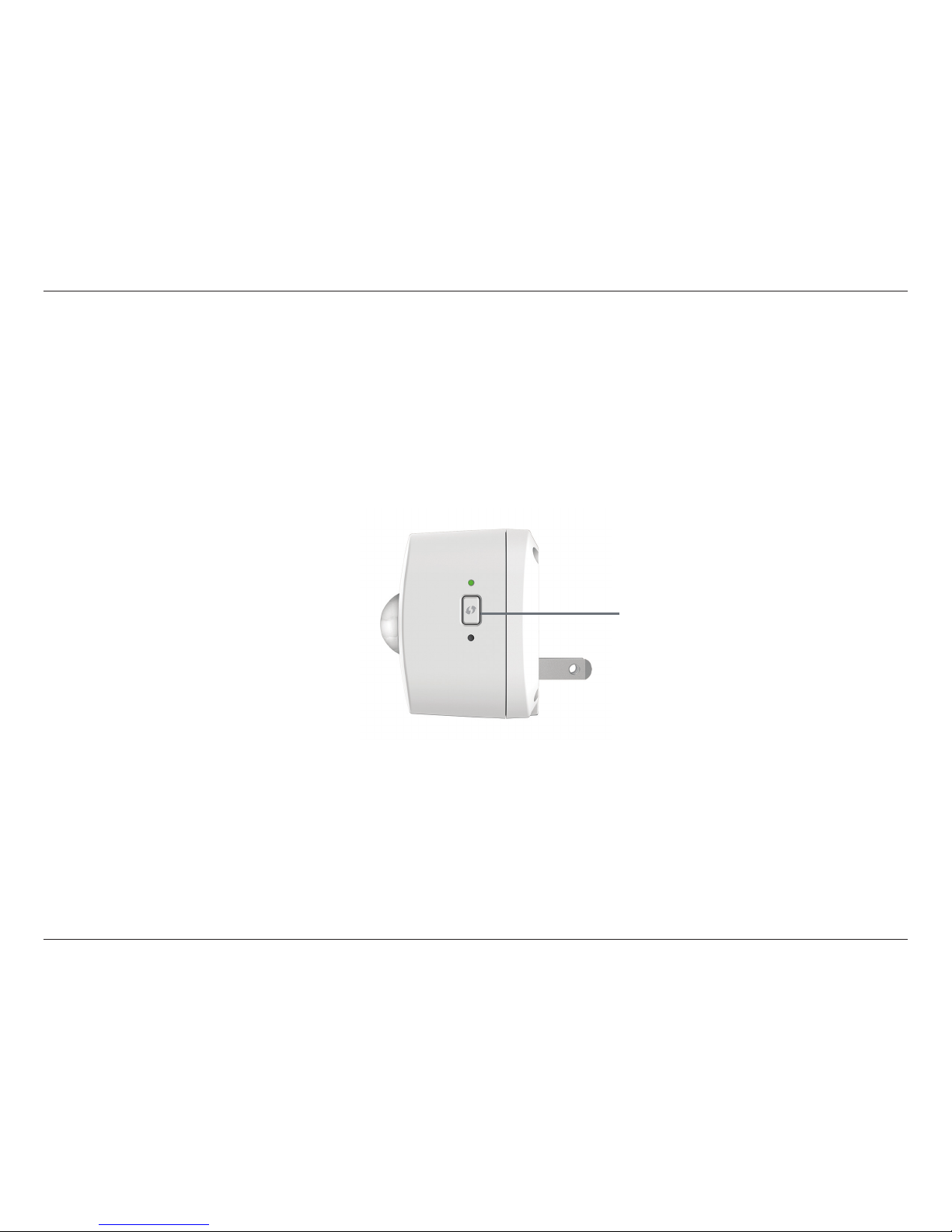

WPS Button
WPS (Wi-Fi Protected Setup) is a simple and secure way to connect your DCH-S150 to your network. Please refer to the user
manual for the wireless router you want to connect to make sure you understand how to enable WPS. Once you know, follow
the steps below:
Step 1 - Press the WPS button on the DCH-S150 for about 1 second. The LED on the device will start to blink.
Step 2 - Within 120 seconds, press the WPS button on your wireless device.
Step 3 - Allow up to 1 minute to congure. Once the LED light stops blinking and turns solid green, you will be connected and
your wireless connection will be secured with WPA2.
WPS Button
