D-Link DWC-1000 User manual

User Manual
Wireless Controller
D-Link Corporation
Copyright © 2011.
http://www.dlink.com

Wireless Controller User Manual
1
User Manual
DWC-1000
Wireless Controller
Version 1.3
Copyright © 2011
Copyright Notice
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this manual, nor any of the
material contained herein, may be reproduced without written consent of the author.
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes
no representations or warranties with respect to the contents hereof and specifically disclaim
any implied warranties of merchantability or fitness for any particular purpose. The
manufacturer reserves the right to revise this publication and to make changes from time to
time in the content hereof without obligation of the manufacturer to notify any person of such
revision or changes.
Limitations of Liability
UNDER NO CIRCUMSTANCES SHALL D-LINK OR ITS SUPPLIERS BE LIABLE FOR
DAMAGES OF ANY CHARACTER (E.G. DAMAGES FOR LOSS OF PROFIT, SOFTWARE
RESTORATION, WORK STOPPAGE, LOSS OF SAVED DATA OR ANY OTHER
COMMERCIAL DAMAGES OR LOSSES) RESULTING FROM THE APPLICATION OR
IMPROPER USE OF THE D-LINK PRODUCT OR FAILURE OF THE PRODUCT, EVEN IF
D-LINK IS INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. FURTHERMORE, D-
LINK WILL NOT BE LIABLE FOR THIRD-PARTY CLAIMS AGAINST CUSTOMER FOR
LOSSES OR DAMAGES. D-LINK WILL IN NO EVENT BE LIABLE FOR ANY DAMAGES
IN EXCESS OF THE AMOUNT D-LINK RECEIVED FROM THE END-USER FOR THE
PRODUCT.

Wireless Controller User Manual
2
Table of Contents
Chapter 1. Introduction.............................................................................................................................9
1.1 About this User Manual............................................................................................9
1.2 Typographical Conventions...................................................................................10
Chapter 2. Configuring Your Network:.................................................................................................11
2.1 LAN Configuration...................................................................................................11
2.1.1 LAN Configuration in an IPv6 Network................................................................14
2.1.2 Configuring IPv6 Router Advertisements............................................................17
2.2 VLAN Configuration................................................................................................19
2.2.1 Associating VLANs to ports...................................................................................20
2.3 Configurable Port: DMZ Setup..............................................................................22
2.4 Universal Plug and Play (UPnP)...........................................................................23
2.5 Captive Portal..........................................................................................................25
2.6 WLAN global configuration....................................................................................25
2.6.1 Wireless Discovery configuration .........................................................................28
2.6.2 AP Profile Global Configuration............................................................................31
Chapter 3. Connecting to the Internet: WAN Setup...........................................................................35
3.1 Internet Setup Wizard.............................................................................................35
3.2 WAN Configuration.................................................................................................36
3.2.1 WAN Port IP address.............................................................................................37
3.2.2 WAN DNS Servers .................................................................................................37
3.2.3 DHCP WAN.............................................................................................................37
3.2.4 PPPoE......................................................................................................................38
3.2.5 Russia L2TP and PPTP WAN...............................................................................41
3.2.6 WAN Configuration in an IPv6 Network...............................................................42
3.2.7 Checking WAN Status............................................................................................44
3.3 Features with Multiple WAN Links........................................................................45
3.3.1 Auto Failover............................................................................................................46
3.3.2 Load Balancing........................................................................................................46
3.3.3 Protocol Bindings....................................................................................................48
3.4 Routing Configuration.............................................................................................49
3.4.1 Routing Mode..........................................................................................................49
3.4.2 Dynamic Routing (RIP) ..........................................................................................52
3.4.3 Static Routing..........................................................................................................53
3.5 WAN Port Settings..................................................................................................54
Chapter 4. Monitoring Status and Statistics........................................................................................56
4.1 System Overview....................................................................................................56
4.1.1 Device Status ..........................................................................................................56
4.1.2 Resource Utilization................................................................................................58
4.2 Traffic Statistics.......................................................................................................60
4.2.1 Wired Port Statistics...............................................................................................60
4.3 Active Connections.................................................................................................61
4.3.1 Sessions through the controller............................................................................61
4.3.2 LAN Clients..............................................................................................................63
4.3.3 Active VPN Tunnels................................................................................................63

Wireless Controller User Manual
3
4.4 Access Point status ................................................................................................64
4.5 Global Status...........................................................................................................69
4.6 Wireless Client Status............................................................................................75
4.7 AP Management .....................................................................................................83
4.8 Associated Client Status/Statistics.......................................................................95
Chapter 5. Securing the Private Network ............................................................................................97
5.1 Firewall Rules..........................................................................................................97
5.2 Defining Rule Schedules .......................................................................................98
5.3 Configuring Firewall Rules.....................................................................................99
5.3.1 Firewall Rule Configuration Examples...............................................................103
5.4 Security on Custom Services..............................................................................107
5.5 ALG support...........................................................................................................107
5.6 VPN Passthrough for Firewall.............................................................................108
5.7 Application Rules ..................................................................................................109
5.8 Web Content Filtering...........................................................................................110
5.8.1 Content Filtering....................................................................................................110
5.8.2 Approved URLs.....................................................................................................111
5.8.3 Blocked Keywords ................................................................................................112
5.8.4 Export Web Filter..................................................................................................113
5.9 IP/MAC Binding.....................................................................................................114
5.10 Protecting from Internet Attacks .........................................................................115
Chapter 6. IPsec / PPTP / L2TP VPN................................................................................................117
6.1 VPN Wizard ...........................................................................................................119
6.2 Configuring IPsec Policies...................................................................................121
6.2.1 Extended Authentication (XAUTH).....................................................................124
6.2.2 Internet over IPSec tunnel...................................................................................124
6.3 Configuring VPN clients.......................................................................................125
6.4 PPTP / L2TP Tunnels...........................................................................................125
6.4.1 PPTP Tunnel Support ..........................................................................................125
6.4.2 L2TP Tunnel Support...........................................................................................127
6.4.3 OpenVPN Support................................................................................................128
Chapter 7. SSL VPN.............................................................................................................................131
7.1 Groups and Users.................................................................................................133
7.1.1 Users and Passwords ..........................................................................................139
7.2 Using SSL VPN Policies......................................................................................140
7.2.1 Using Network Resources...................................................................................143
7.3 Application Port Forwarding................................................................................144
7.4 SSL VPN Client Configuration............................................................................146
7.4.1 Creating Portal Layouts .......................................................................................148
Chapter 8. Advanced Configuration Tools.........................................................................................151
8.1 USB Device Setup................................................................................................151
8.2 Authentication Certificates...................................................................................152
8.3 WIDS Security.......................................................................................................154

Wireless Controller User Manual
4
8.3.1 WIDS AP configration............................................................................................154
8.3.2 WIDS Client Configuration.....................................................................................157
Chapter 9. Administration & Management.........................................................................................161
9.1 Remote Management...........................................................................................161
9.2 CLI Access.............................................................................................................161
9.3 SNMP Configuration.............................................................................................162
9.4 Configuring Time Zone and NTP........................................................................163
9.5 Log Configuration..................................................................................................164
9.5.1 Defining What to Log............................................................................................165
9.5.2 Sending Logs to E-mail or Syslog ......................................................................168
9.5.3 Event Log Viewer in GUI .....................................................................................171
9.6 Backing up and Restoring Configuration Settings ...........................................172
9.7 Upgrading wirelesss controller Firmware..........................................................173
9.8 Dynamic DNS Setup.............................................................................................174
9.9Using Diagnostic Tools ........................................................................................175
9.9.1 Ping.........................................................................................................................176
9.9.2 Trace Route...........................................................................................................176
9.9.3 DNS Lookup ..........................................................................................................176
9.9.4 Router Options ......................................................................................................177
9.10 License...................................................................................................................177
Appendix A. Glossary..............................................................................................................................178
Appendix B. Factory Default Settings ...................................................................................................180

Wireless Controller User Manual
5
List of Figures

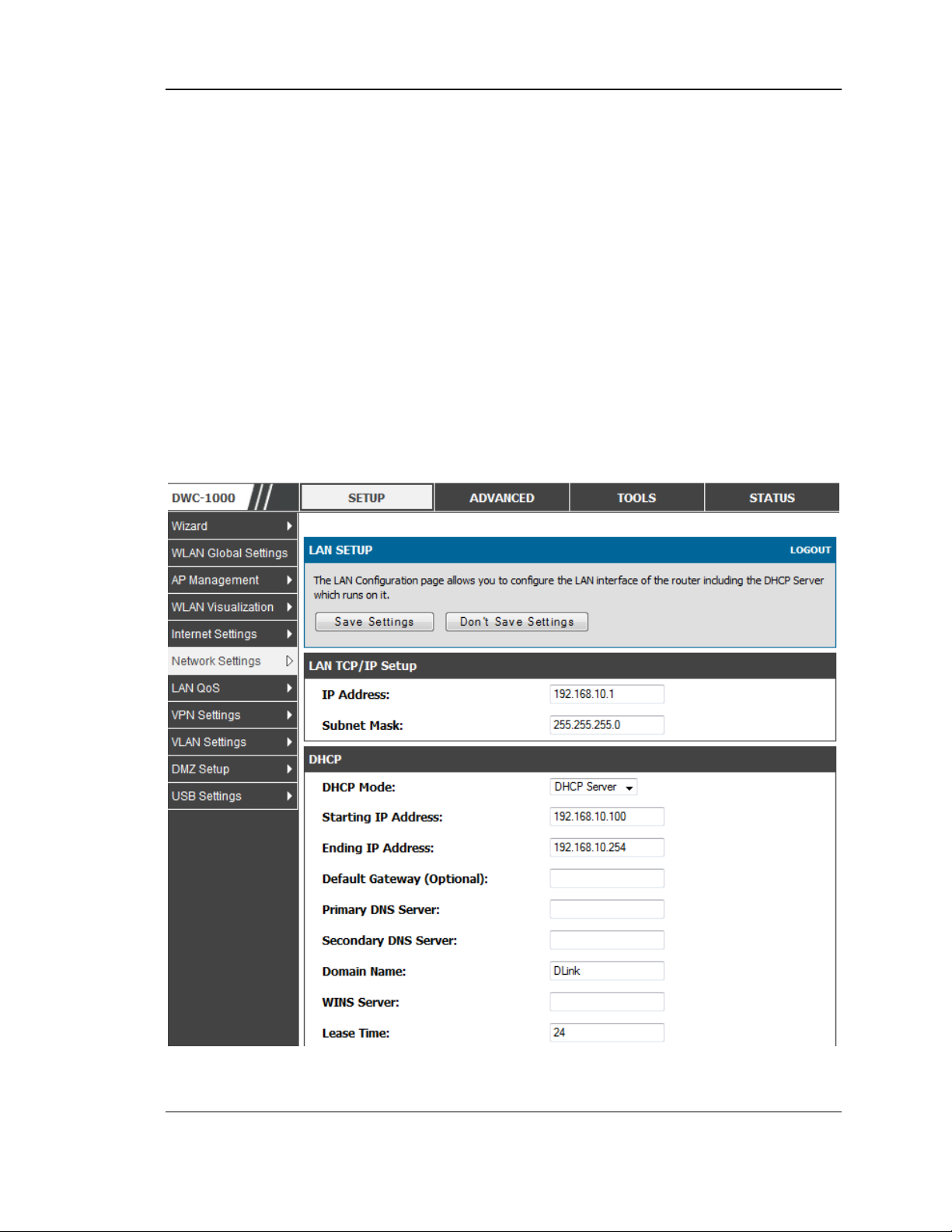

Figure 1: Setup page for LAN TCP/IP settings ......................................................................................13

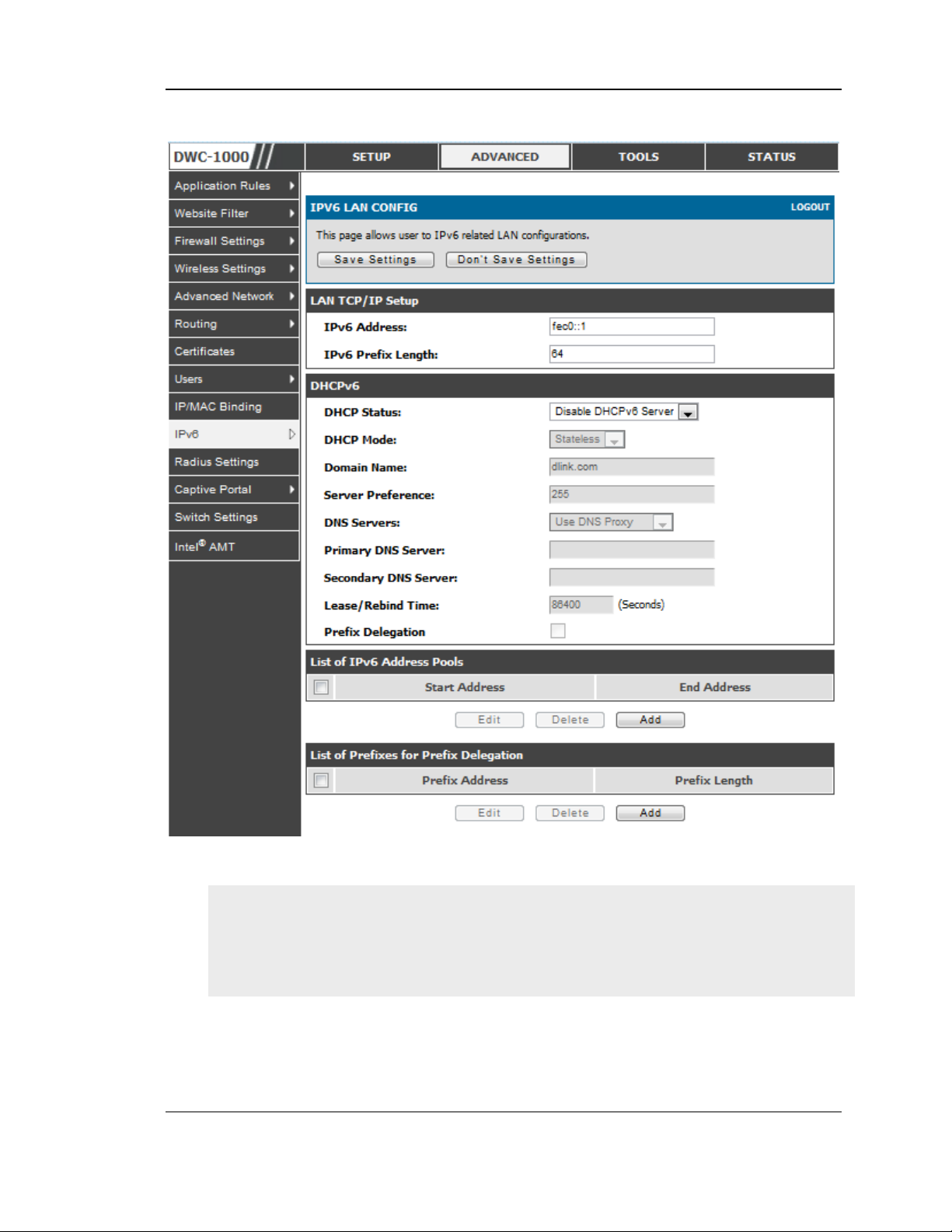

Figure 2: IPv6 LAN and DHCPv6 configuration.....................................................................................15

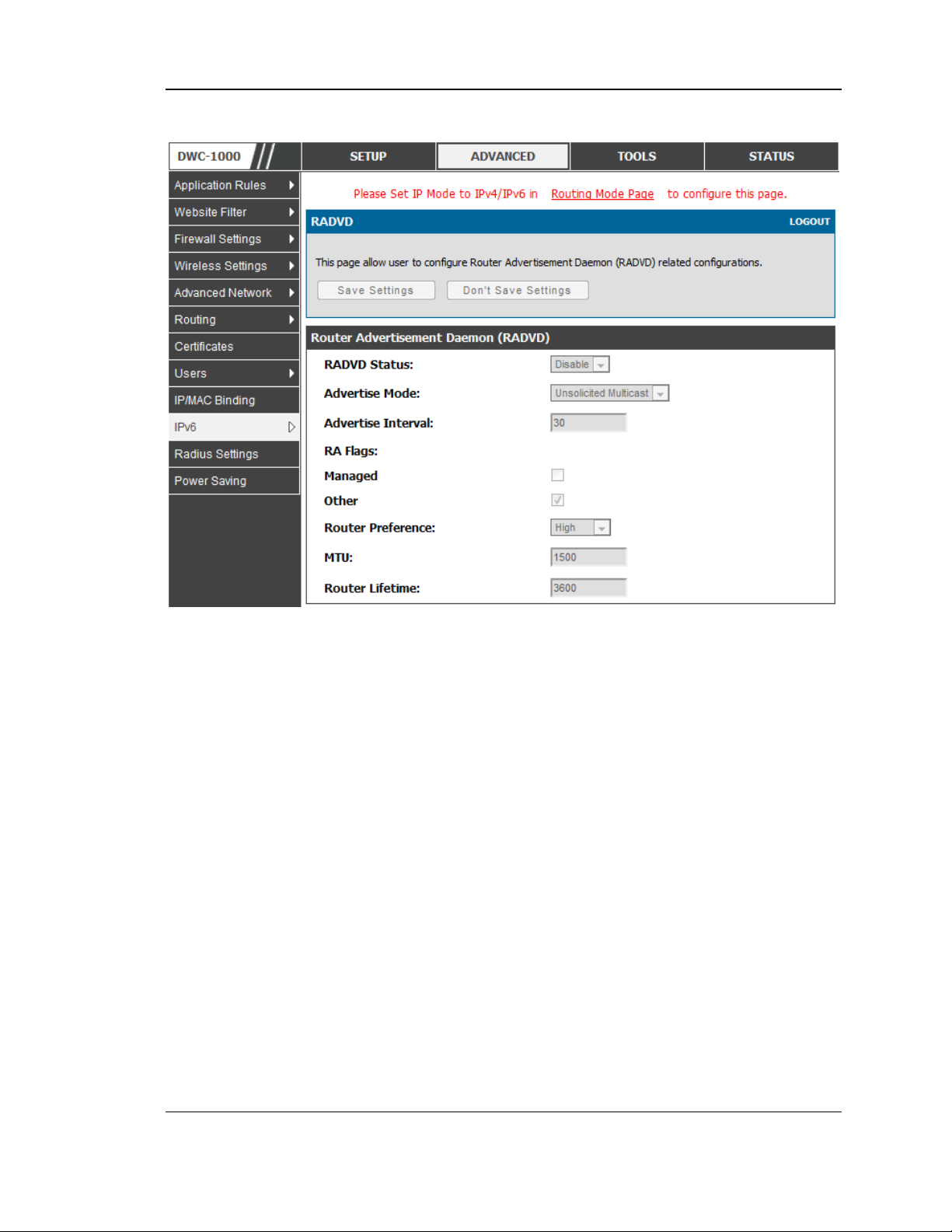

Figure 3: Configuring the Router Advertisement Daemon ...................................................................18
Figure 4: IPv6 Advertisement Prefix settings .........................................................................................19
Figure 5: Adding VLAN memberships to the LAN .................................................................................20
Figure 6: Port VLAN list.............................................................................................................................21
Figure 7: Configuring VLAN membership for a port ..............................................................................22
Figure 8: DMZ configuration .....................................................................................................................23
Figure 9: UPnP Configuration...................................................................................................................24
Figure 10: Active Runtime sessions ........................................................................................................25
Figure 11: WLAN global configuration.....................................................................................................26
Figure 12: Configuring the Wireless Discovery......................................................................................29
Figure 13: Wireless Discovery status ......................................................................................................30
Figure 14: AP Profile Global Configuration.............................................................................................31
Figure 15: AP Profile List...........................................................................................................................33
Figure 16: Internet Connection Setup Wizard........................................................................................35
Figure 17: Manual Option1 configuration................................................................................................38
Figure 18: PPPoE configuration for standard ISPs ...............................................................................39
Figure 19: Option1 configuration for Japanese Multiple PPPoE (part 1) ...........................................40
Figure 20: Option1 configuration for Multiple PPPoE (part 2)..............................................................41
Figure 21: Russia L2TP ISP configuration..............................................................................................42
Figure 22: IPv6 WAN Setup page............................................................................................................43
Figure 23: Connection Status information of Option1...........................................................................45
Figure 24: Load Balancing is available when multiple WAN ports are configured and Protocol
Bindings have been defined...................................................................................................48
Figure 25: Protocol binding setup to associate a service and/or LAN source to a WAN and/or
destination network..................................................................................................................49
Figure 26: Routing Mode is used to configure traffic routing between WAN and LAN, as well as
Dynamic routing (RIP).............................................................................................................51
Figure 27: Static route configuration fields .............................................................................................54
Figure 28: Physical WAN port settings....................................................................................................55
Figure 29: Device Status display..............................................................................................................57
Figure 30: Device Status display (continued).........................................................................................58
Figure 31: Resource Utilization statistics................................................................................................59
Figure 32: Resource Utilization data (continued)...................................................................................59

Wireless Controller User Manual
6
Figure 33: Physical port statistics.............................................................................................................61
Figure 34: List of current Active Firewall Sessions................................................................................62
Figure 35: List of LAN hosts......................................................................................................................63
Figure 36: List of current Active VPN Sessions .....................................................................................64
Figure 37: AP status...................................................................................................................................65
Figure 38: Managed AP status.................................................................................................................67
Figure 39: AP RF Scan Status..................................................................................................................69
Figure 40: Peer Controller Status.............................................................................................................70
Figure 41: Peer Controller Configuration Status....................................................................................71
Figure 42: Peer Controller Managed AP Status.....................................................................................72
Figure 43: Configuration Receive Status ................................................................................................74
Figure 44: Associated Client Status.........................................................................................................75
Figure 45: Associated Client SSID Status ..............................................................................................76
Figure 46: Associated Client VAP Status................................................................................................77
Figure 47: Controller Associated Client Status ......................................................................................78
Figure 48: Detected Client Status............................................................................................................79
Figure 49: Pre-Auth History.......................................................................................................................81
Figure 50: Detected Client Roam History ...............................................................................................82
Figure 51: Valid Access Point Configuration..........................................................................................83
Figure 52: Add a Valid Access Point .......................................................................................................84
Figure 53: RF configuration.......................................................................................................................87
Figure 54: Channel Plan History ..............................................................................................................89
Figure 55: Manual Channel Plan..............................................................................................................90
Figure 56: Manual Power Adjustment Plan ............................................................................................92
Figure 57: Access Point Software Download.........................................................................................93
Figure 58: Local OUI Database................................................................................................................94
Figure 59: Managed AP Statistics ...............................................................................................95
Figure 60: WLAN Associated Clients ......................................................................................................96
Figure 61: List of Available Firewall Rules..............................................................................................98
Figure 62: List of Available Schedules to bind to a firewall rule ..........................................................99
Figure 63: Example where an outbound SNAT rule is used to map an external IP address
(209.156.200.225) to a private DMZ IP address (10.30.30.30) ......................................102
Figure 64: The firewall rule configuration page allows you to define the To/From zone, service,
action, schedules, and specify source/destination IP addresses as needed................103
Figure 65: Schedule configuration for the above example.................................................................106
Figure 66: List of user defined services. ...............................................................................................107

Wireless Controller User Manual
7
Figure 67: Available ALG support on the controller.............................................................................108
Figure 68: Passthrough options for VPN tunnels.................................................................................109
Figure 69: List of Available Application Rules showing 4 unique rules ............................................110
Figure 70: Content Filtering used to block access to proxy servers and prevent ActiveX controls
from being downloaded.........................................................................................................111
Figure 71: Two trusted domains added to the Approved URLs List .................................................112
Figure 72: One keyword added to the block list...................................................................................113
Figure 73: Export Approved URL list.....................................................................................................114
Figure 74: The following example binds a LAN host’s MAC Address to an IP address served by
DWC-1000. If there is an IP/MAC Binding violation, the violating packet will be dropped
and logs will be captured ......................................................................................................115
Figure 75: Protecting the controller and LAN from internet attacks..................................................116
Figure 76: Example of Gateway-to-Gateway IPsec VPN tunnel using two DWC controllers
connected to the Internet......................................................................................................117
Figure 77: Example of three IPsec client connections to the internal network through the DWC
IPsec gateway ........................................................................................................................118
Figure 78: VPN Wizard launch screen..................................................................................................119
Figure 79: IPsec policy configuration.....................................................................................................122
Figure 80: IPsec policy configuration continued (Auto policy via IKE)..............................................123
Figure 81: IPsec policy configuration continued (Auto / Manual Phase 2) ......................................124
Figure 82: PPTP tunnel configuration –PPTP Client..........................................................................126
Figure 83: PPTP VPN connection status..............................................................................................126
Figure 84: PPTP tunnel configuration –PPTP Server........................................................................127
Figure 85: L2TP tunnel configuration –L2TP Server..........................................................................128
Figure 86: OpenVPN configuration........................................................................................................130
Figure 87: Example of clientless SSL VPN connections to the DWC-1000.....................................132
Figure 88: List of groups..........................................................................................................................133
Figure 89: User group configuration......................................................................................................134
Figure 90: SSLVPN Settings...................................................................................................................135
Figure 91: Group login policies options.................................................................................................136
Figure 92: Browser policies options.......................................................................................................137
Figure 93: IP policies options..................................................................................................................138
Figure 94: Available Users with login status and associated Group.................................................139
Figure 95: User configuration options....................................................................................................140
Figure 96: List of SSL VPN polices (Global filter)................................................................................141
Figure 97: SSL VPN policy configuration..............................................................................................142
Figure 98: List of configured resources, which are available to assign to SSL VPN policies .......144

Wireless Controller User Manual
8
Figure 99: List of Available Applications for SSL Port Forwarding....................................................146
Figure 100: SSL VPN client adapter and access configuration.........................................................147
Figure 101: Configured client routes only apply in split tunnel mode ...............................................148
Figure 102: SSL VPN Portal configuration ...........................................................................................150
Figure 103: USB Device Detection ........................................................................................................152
Figure 104: Certificate summary for IPsec and HTTPS management .............................................154
Figure 105: WIDS AP Configuration .........................................................................................157
Figure 106: WIDS Client Configuration.................................................................................................160
Figure 107: Remote Management.........................................................................................................161
Figure 108: SNMP Users, Traps, and Access Control........................................................................162
Figure 109: SNMP system information for this controller...................................................................163
Figure 110: Date, Time, and NTP server setup ...................................................................................164
Figure 111: Facility settings for Logging ...............................................................................................166
Figure 112: Log configuration options for traffic through controller...................................................168
Figure 113: E-mail configuration as a Remote Logging option..........................................................170
Figure 114: Syslog server configuration for Remote Logging (continued).......................................171
Figure 115: VPN logs displayed in GUI event viewer .........................................................................172
Figure 116: Restoring configuration from a saved file will result in the current configuration being
overwritten and a reboot .......................................................................................................173
Figure 117: Firmware version information and upgrade option.........................................................174
Figure 118: Dynamic DNS configuration...............................................................................................175
Figure 119: Controller diagnostics tools available in the GUI............................................................176
Figure 120: Install License ......................................................................................................................177
. Figure 121: After activating the License..............................................................................................177

Wireless Controller User Manual
9
Chapter 1. Introduction
D-Link Wireless Controller (DWC), DWC-1000, is a full-featured wireless LAN
controller designing for small network environment. The centralized control function
contains various access point management functions, such as fast-roaming, inter-subnet
roaming, automatic channel and power adjustment, self-healing etc. The advanced
wireless security function, including rouge AP detection, captive portal, wireless
intrusion detection system (WIDS), offers a strong wireless network protection
avoiding attacks from hackers. Optimal network security is provided via features such
as virtual private network (VPN) tunnels, IP Security (IPsec), Point-to-Point Tunneling
Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP), and Secure Sockets Layer (SSL).
Empower your road warriors with clientless remote access anywhere and anytime using
SSL VPN tunnels.
Comprehensive Management Capabilities
The DWC include dual-WAN Gigabit Ethernet which provides policy-based
service management ensuring maximum productivity for your business
operations. The failover feature maintains data traffic without disconnecting
when a landline connection is lost. The Outbound Load Balancing feature
adjusts outgoing traffic across two WAN interfaces and optimizes the system
performance resulting in high availability. The second WAN port can be
configured as a DMZ port allowing you to isolate servers from your LAN.
Robust VPN features
A fully featured virtual private network (VPN) provides your mobile workers
and branch offices with a secure link to your network. DWC is capable of
simultaneously managing 20 Secure Sockets Layer (SSL) VPN tunnels
respectively, empowering your mobile users by providing remote access to a
central corporate database. Site-to-site VPN tunnels use IP Security (IPsec)
Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling
Protocol (L2TP) to facilitate branch office connectivity through encrypted
virtual links. The DWC support 75 simultaneous IPSec VPN tunnels
respectively.
1.1 About this User Manual
This document is a high level manual to allow new D-Link Wireless Controller users
to configure connectivity, WLAN configuration, setup VPN tunnels, establish firewall
rules and AP management and perform general administrative tasks. Typical
deployment and use case scenarios are described in each section. For more detailed
setup instructions and explanations of each configuration parameter, refer to the
online help that can be accessed from each page in the controller GUI.

Wireless Controller User Manual
10
1.2 Typographical Conventions
The following is a list of the various terms, followed by an example of how that term
is represented in this document:
Product Name –D-Link Wireless Controller.
oModel numbers DWC-1000
GUI Menu Path/GUI Navigation –Monitoring > Controller Status
Important note –

Chapter 2. Configuring Your Network:
It is assumed that the user has a machine for management connected to the LAN to the
controller. The LAN connection may be through the wired Ethernet ports available on
the controller, or once the initial setup is complete, the DWC may also be managed
through its wireless interface as it is bridged with the LAN. Access the controller‘s
graphical user interface (GUI) for management by using any web browser, such as
Microsoft Internet Explorer or Mozilla Firefox:
Go to http://192.168.10.1 (default IP address) to display the controller‘s
management login screen.
Default login credentials for the management GUI:
Username: admin
Password: admin
If the controller‘s LAN IP address was changed, use that IP address in the
navigation bar of the browser to access the controller‘s management UI.
2.1 LAN Configuration
Setup > Network Settings > LAN Setup Configuration
By default, the controller functions as a Dynamic Host Configuration Protocol
(DHCP) server to the hosts on the WLAN or LAN network. With DHCP, PCs and
other LAN devices can be assigned IP addresses as well as addresses for DNS servers,
Windows Internet Name Service (WINS) servers, and the default gateway. With the
DHCP server enabled the controller‘s IP address serves as the gateway address for
LAN and WLAN clients. The PCs in the LAN are assigned IP addresses from a pool
of addresses specified in this procedure. Each pool address is tested before it is
assigned to avoid duplicate addresses on the LAN.
For most applications the default DHCP and TCP/IP settings are satisfactory. If you
want another PC on your network to be the DHCP server or if you are manually
configuring the network settings of all of your PCs, set the DHCP mode to ‗none‘.
DHCP relay can be used to forward DHCP lease information from another LAN
device that is the network‘s DHCP server; this is particularly useful for wireless
clients.
Instead of using a DNS server, you can use a Windows Internet Naming Service
(WINS) server. A WINS server is the equivalent of a DNS server but uses the
NetBIOS protocol to resolve hostnames. The controller includes the WINS server IP
address in the DHCP configuration when acknowledging a DHCP request from a
DHCP client.
You can also enable DNS proxy for the LAN. When this is enabled the controller then
as a proxy for all DNS requests and communicates with the ISP‘s DNS servers. When
disabled all DHCP clients receive the DNS IP addresses of the ISP.

Wireless Controller User Manual
12
To configure LAN Connectivity, please follow the steps below:
1. In the LAN Setup page, enter the following information for your controller:
IP address: (factory default: 192.168.10.1).
If you change the IP address and click Save Settings, the GUI will not
respond. Open a new connection to the new IP address and log in again. Be
sure the LAN host (the machine used to manage the controller) has obtained
IP address from newly assigned pool (or has a static IP address in the
controller‘s LAN subnet) before accessing the controller via changed IP
address.
Subnet mask: (factory default: 255.255.255.0).
2. In the DHCP section, select the DHCP mode:
None: the controller‘s DHCP server is disabled for the LAN
DHCP Server. With this option the controller assigns an IP address within
the specified range plus additional specified information to any LAN device
that requests DHCP served addresses.
DHCP Relay: With this option enabled, DHCP clients on the LAN can
receive IP address leases and corresponding information from a DHCP
server on a different subnet. Specify the Relay Gateway, and when LAN
clients make a DHCP request it will be passed along to the server
accessible via the Relay Gateway IP address.
If DHCP is being enabled, enter the following DHCP server parameters:
Starting and Ending IP Addresses: Enter the first and last continuous
addresses in the IP address pool. Any new DHCP client joining the LAN is
assigned an IP address in this range. The default starting address is
192.168.10.100. The default ending address is 192.168.10.254. These
addresses should be in the same IP address subnet as the controller‘s LAN
IP address. You may wish to save part of the subnet range for devices with
statically assigned IP addresses in the LAN.
Default Gateway (Optional): Enter the IP address of the controller which
you want to make it as a default other than DWC-1000
Primary and Secondary DNS servers: If configured domain name system
(DNS) servers are available on the LAN enter their IP addresses here.

Wireless Controller User Manual
13
Domain Name: Enter domain name
WINS Server (optional): Enter the IP address for the WINS server or, if
present in your network, the Windows NetBios server.
Lease Time: Enter the time, in hours, for which IP addresses are leased to
clients.
Enable DNS Proxy: To enable the controller to act as a proxy for all DNS
requests and communicate with the ISP‘s DNS servers, click the checkbox.
Relay Gateway: Enter the gateway address. This is the only configuration
parameter required in this section when DHCP Relay is selected as its
DHCP mode
3. Click Save Settings to apply all changes.
Figure 1: Setup page for LAN TCP/IP settings

Wireless Controller User Manual
14
2.1.1 LAN Configuration in an IPv6 Network
Advanced > IPv6 > IPv6 LAN > IPv6 LAN Config
In IPv6 mode, the LAN DHCP server is enabled by default (similar to IPv4 mode).
The DHCPv6 server will serve IPv6 addresses from configured address pools with
the IPv6 Prefix Length assigned to the LAN.
IPv4 / IPv6 mode must be enabled in the Advanced > IPv6 > Routing mode to
enable IPv6 configuration options.
LAN Settings
The default IPv6 LAN address for the router is fec0::1. You can change this 128 bit
IPv6 address based on your network requirements. The other field that defines the
LAN settings for the router is the prefix length. The IPv6 network (subnet) is
identified by the initial bits of the address called the prefix. By default this is 64
bits long. All hosts in the network have common initial bits for their IPv6 address;
the number of common initial bits in the network‘s addresses is set by the prefix
length field.

Wireless Controller User Manual
15
Figure 2: IPv6 LAN and DHCPv6 configuration
If you change the IP address and click Save Settings, the GUI will not respond.
Open a new connection to the new IP address and log in again. Be sure the LAN
host (the machine used to manage the router) has obtained IP address from newly
assigned pool (or has a static IP address in the router‘s LAN subnet) before
accessing the router via changed IP address.
As with an IPv4 LAN network, the router has a DHCPv6 server. If enabled, the
router assigns an IP address within the specified range plus additional specified
information to any LAN PC that requests DHCP served addresses.

Wireless Controller User Manual
16
The following settings are used to configure the DHCPv6 server:
DHCP Mode: The IPv6 DHCP server is either stateless or stateful. If stateless is
selected an external IPv6 DHCP server is not required as the IPv6 LAN hosts
are auto-configured by this controller. In this case the controller advertisement
daemon (RADVD) must be configured on this device and ICMPv6 controller
discovery messages are used by the host for auto-configuration. There are no
managed addresses to serve the LAN nodes. If stateful is selected the IPv6 LAN
host will rely on an external DHCPv6 server to provide required configuration
settings
The domain name of the DHCPv6 server is an optional setting
Server Preference is used to indicate the preference level of this DHCP server.
DHCP advertise messages with the highest server preference value to a LAN
host are preferred over other DHCP server advertise messages. The default is
255.
The DNS server details can be manually entered here (primary/secondary
options. An alternative is to allow the LAN DHCP client to receive the DNS
server details from the ISP directly. By selecting Use DNS proxy, this router
acts as a proxy for all DNS requests and communicates with the ISP‘s DNS
servers (a WAN configuration parameter).
Primary and Secondary DNS servers: If there are configured domain name
system (DNS) servers available on the LAN enter the IP addresses here.
Lease/Rebind time sets the duration of the DHCPv6 lease from this router to the
LAN client.
IPv6 Address Pools
This feature allows you to define the IPv6 delegation prefix for a range of IP
addresses to be served by the gateway‘s DHCPv6 server. Using a delegation p refix
you can automate the process of informing other networking equipment on the LAN
of DHCP information specific for the assigned prefix.
Prefix Delegation
The following settings are used to configure the Prefix Delegation:
Prefix Delegation: Select this option to enable prefix delegation in DHCPv6
server. This option can be selected only in Stateless Address Auto
Configuration mode of DHCPv6 server.
Prefix Address: IPv6 prefix address in the DHCPv6 server prefix pool
Prefix Length: Length prefix address

Wireless Controller User Manual
17
2.1.2 Configuring IPv6 Router Advertisements
Router Advertisements are analogous to IPv4 DHCP assignments for LAN clients, in
that the router will assign an IP address and supporting network information to
devices that are configured to accept such details. Router Advertisement is required
in an IPv6 network is required for stateless auto configuration of the IPv6 LAN. By
configuring the Router Advertisement Daemon on this router, the DWC-1000 will
listen on the LAN for router solicitations and respond to these LAN hosts with
router advisements.
RADVD
Advanced > IPv6 > IPv6 LAN > Router Advertisement
To support stateless IPv6 auto configuration on the LAN, set the RADVD status to
Enable. The following settings are used to configure RADVD:
Advertise Mode: Select Unsolicited Multicast to send router advertisements
(RA‘s) to all interfaces in the multicast group. To restrict RA‘s to well
known IPv6 addresses on the LAN, and thereby reduce overall network
traffic, select Unicast only.
Advertise Interval: When advertisements are unsolicited multicast packets,
this interval sets the maximum time between advertisements from the
interface. The actual duration between advertisements is a random value
between one third of this field and this field. The default is 30 seconds.
RA Flags: The router advertisements (RA‘s) can be sent with one or both of
these flags. Chose Managed to use the administered /stateful protocol for
address auto configuration. If the Other flag is selected the host uses
administered/stateful protocol for non-address auto configuration.
Router Preference: this low/medium/high parameter determines the
preference associated with the RADVD process of the router. This is useful
if there are other RADVD enabled devices on the LAN as it helps avoid
conflicts for IPv6 clients.
MTU: The router advertisement will set this maximum transmission unit
(MTU) value for all nodes in the LAN that are autoconfigured by the router.
The default is 1500.
Router Lifetime: This value is present in RA‘s and indicates the usefulnes s
of this router as a default router for the interface. The default is 3600
seconds. Upon expiration of this value, a new RADVD exchange must take
place between the host and this router.

Wireless Controller User Manual
18
Figure 3: Configuring the Router Advertisement Daemon
Advertisement Prefixes
Advanced > IPv6 > IPv6 LAN > Advertisement Prefixes
The router advertisements configured with advertisement prefixes allow this router
to inform hosts how to perform stateless address auto configuration. Router
advertisements contain a list of subnet prefixes that allow the router to determine
neighbors and whether the host is on the same link as the router.
The following prefix options are available for the router advertisements:
IPv6 Prefix Type: To ensure hosts support IPv6 to IPv4 tunnel select the
6to4 prefix type. Selecting Global/Local/ISATAP will allow the nodes to
support all other IPv6 routing options
SLA ID: The SLA ID (Site-Level Aggregation Identifier) is available when
6to4 Prefixes are selected. This should be the interface ID of the router‘s
LAN interface used for router advertisements.
IPv6 Prefix: When using Global/Local/ISATAP prefixes, this field is used to
define the IPv6 network advertised by this router.

Wireless Controller User Manual
19
IPv6 Prefix Length: This value indicates the number contiguous, higher
order bits of the IPv6 address that define up the network portion of the
address. Typically this is 64.
Prefix Lifetime: This defines the duration (in seconds) that the requesting
node is allowed to use the advertised prefix. It is analogous to DHCP lease
time in an IPv4 network.

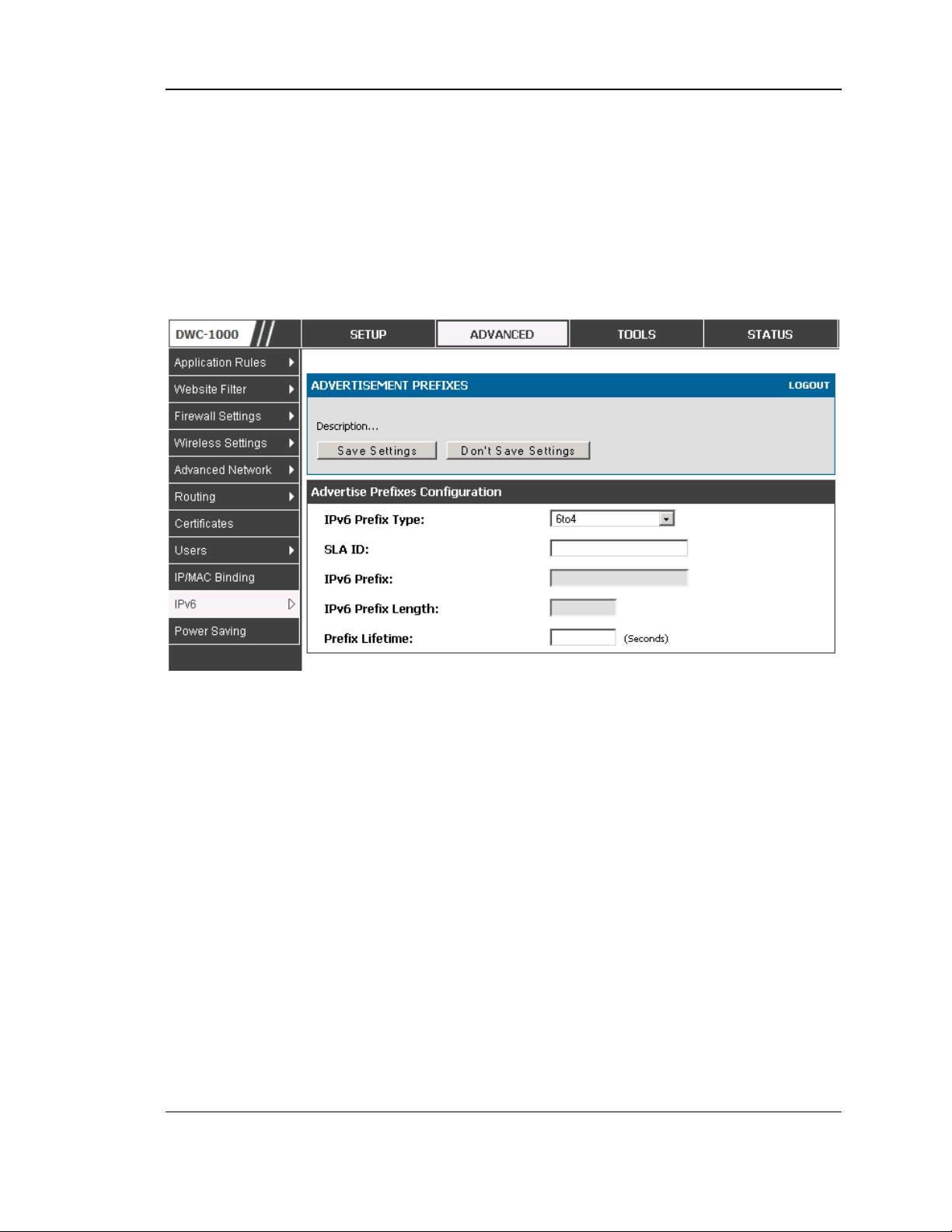

Figure 4: IPv6 Advertisement Prefix settings
2.2 VLAN Configuration
The controller supports virtual network isolation on the LAN with the use of VLANs.
LAN devices can be configured to communicate in a subnetwork defined by VLAN
identifiers. LAN ports can be assigned unique VLAN IDs so that traffic to and from
that physical port can be isolated from the general LAN. VLAN filtering is
particularly useful to limit broadcast packets of a device in a large network
VLAN support is disabled by default in the controller. In the VLAN Configuration
page, enable VLAN support on the controller and then proceed to the next section to
define the virtual network.
Setup > VLAN Settings > Available VLAN
The Available VLAN page shows a list of configured VLANs by name and VLAN ID.
A VLAN membership can be created by clicking the Add button below the List of
Available VLANs.
A VLAN membership entry consists of a VLAN identifier and the numerical VLAN
ID which is assigned to the VLAN membership. The VLAN ID value can be any
number from 2 to 4091. VLAN ID 1 is reserved for the default VLAN, which is used
for untagged frames received on the interface. By enabling Inter VLAN Routing, you
