D-Link PowerLine DHP-W611AV User manual

DHP-W611AV (DHP-P610AV & DHP-W610AV)
User Manual
Version 1.00 | 10/23/2016
PowerLine AV2 1000 Wi-Fi AC1200 Starter Kit

iD-Link DHP-W611AV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes. Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2016 by D-Link Corporation, Inc. All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
DHP-W610AV:
Network Standby: 6.15 watts
Switched O: 0.1 watts
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save
energy.
DHP-P610AV:
Network Standby: 2.23 watts
Preface
Revision Date Description
1.00 23 October, 2016 • Initial release

iiD-Link DHP-W611AV User Manual
Table of Contents
Preface.................................................................................................i
Manual Revisions...............................................................................................i
Trademarks..........................................................................................................i
Power Usage .......................................................................................................i
Product Overview..............................................................................1
Package Contents ...........................................................................................1
System Requirements....................................................................................2
Introduction...................................................................................................... 3
Features ..............................................................................................................4
DHP-W610AV........................................................................................... 5
Connections ....................................................................................... 5
LEDs.......................................................................................................6
DHP-P610AV.............................................................................................7
Connections ....................................................................................... 7
LEDs.......................................................................................................8
Hardware Installation .......................................................................9
Wireless Installation Considerations ......................................................10
Powerline Installation Considerations...................................................11
Important Safety Notes...............................................................................12
DHP-W610AV Conguration...........................................................13
Setup..................................................................................................................13
Setup Wizard..........................................................................................14
Wireless Settings ..................................................................................15
Network Settings..................................................................................16
LAN Settings - Static IP .................................................................17
PLC Settings ..........................................................................................18
Advanced .........................................................................................................19
MAC Address Filter...............................................................................19
Advanced Wireless...............................................................................20
User Limit................................................................................................21
Tools...................................................................................................................22
Admin.......................................................................................................22
System......................................................................................................23
Firmware..................................................................................................24
Time ..........................................................................................................25
System Check ........................................................................................26
Status.................................................................................................................27
Device Info..............................................................................................27
Logs...........................................................................................................28
Statistics...................................................................................................29
Wireless....................................................................................................30
IPv6............................................................................................................31
Help....................................................................................................................32
Connecting to a Wireless Network .................................................33
Using Mac OS..................................................................................................33
Using Windows®10 ......................................................................................35
Using Windows® 8.........................................................................................37
Using Windows®7..........................................................................................41
Using Windows Vista®..................................................................................43
Conguring Wireless Security..........................................................45
Table of Contents

iiiD-Link DHP-W611AV User Manual
Table of Contents
Troubleshooting ..............................................................................47
Wireless Basics ................................................................................49
What is Wireless? ...........................................................................................49
How does wireless work? ..................................................................49
Wireless Local Area Network (WLAN)...........................................49
Wireless Security .............................................................................52
What is WPA?...................................................................................................52
Conguring WPA/WPA2 Personal............................................................53
Technical Specications..................................................................54
(DHP-W610AV) ...............................................................................................54
(DHP-P610AV).................................................................................................56
Regulatory Information ..................................................................57
(DHP-W610AV) ...............................................................................................57
(DHP-P610AV).................................................................................................66

1D-Link DHP-W611AV User Manual
Section 1 - Product Overview
D-Link DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200 Adapter
D-Link DHP-P610AV PowerLine AV2 1000 Gigabit Passthrough Adapter
CAT5 Ethernet Cable (x2)
Wi-Fi Conguration Card
Quick Installation Guide
Package Contents
Product Overview
Wi-Fi Conguration Note

2D-Link DHP-W611AV User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet broadband connection
• 10/100/1000 Ethernet clients OR
• 802.11ac/n/g/a wireless clients
Browser Requirements
• Internet Explorer 7.0 or higher
• Firefox 3.5 or higher
• Safari 4.0 or higher
• Chrome 8.0 or higher

3D-Link DHP-W611AV User Manual
Section 1 - Product Overview
The DHP-W610AV allows you to connect both wired and wireless computers, high-denition TVs, networking devices, and gaming consoles using
the most pervasive medium in your home - the electrical wiring. Share Internet connections and experience smooth le transfers, streaming
multimedia, online gaming, and more.The DHP-W611AV is a complete solution that consists of the DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200
Adapter and the DHP-P610AV PowerLine AV2 1000 Gigabit Passthrough Adapter, giving you everything you need to create a high-speed Powerline
network in your home. Simply plug the devices into your home’s electrical outlets and you’ll be able to use your existing wiring to expand your
Internet access and wireless network.
The PowerLine AV2 1000 Wi-Fi AC1200 Adapter incorporates the latest technology to improve on AV data speeds over a home’s existing electrical
wiring. This faster transmission speed provides ample bandwidth suitable for streaming HD video while simultaneously providing high-speed
Internet access throughout the home. With Quality of Service (QoS) support, you can prioritize and allocate bandwidth based on media type. This
feature ensures that applications that require real-time communication (such as VoIP calling and online gaming) stay uninterrupted even while
streaming Internet TV and music.
A D-Link exclusive, the Clone My Wi-Fi feature lets you quickly and easily set up your Powerline devices in your existing network if you are using
a compatible router. Simply choose the Clone My Wi-Fi option in the setup wizard and the extender will automatically copy your current network
settings to your new Powerline devices. Gigabit Ethernet and Wireless AC provide high speed data transfers so you can enjoy speedy performance
no matter how you are connected. Plug and Play completes the package, so you can expand your home network and share your Internet connection
with other devices at the touch of a button.
Introduction

4D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Features
Data Transmission Over Electrical Wiring
The D-Link DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200 Adapter, compliant with the HomePlug AV2 standard, uses your home’s existing electrical
wiring1to create or extend your network. It turns every power outlet into a potential network connection to access digital media devices, game
consoles, print servers, computers, and network storage devices throughout your home. Additionally, Wireless AC provides high speed transfers
without the need for unsightly network cables.
Faster Wireless Speeds & Wider Operational Range
The Wireless AC technology incorporated into the DHP-W610AV oers increased speed and range beyond standard 802.11n technology. Initial
wireless setup can be accomplished quickly, thanks to a convenient setup wizard.WPA/WPA2 encryption keeps your network trac safe and secure.
Ideal For Bandwidth-Intensive Applications
The DHP-W610AV is capable of delivering Powerline AV data transfer rates even higher than the old AV standard.This rapid transmission speed makes
it ideal for bandwidth-intensive applications, guaranteeing smooth HD video streaming, clear VoIP calls, and lag-free online gaming experiences.
In addition, it prioritizes Internet trac, ensuring that multimedia applications do not experience glitches while web surng and downloads are in
progress. This device provides ample network bandwidth, enabling digital home consumers to tap into existing electrical wiring for high-quality
multimedia streaming.
Convenient Setup and Secure Operation
The DHP-W611AV devices plug directly into a power outlet, and do not require any additional power cables. Extend your home network by connecting
multiple devices in the farthest corners of your home via Ethernet cable or Wireless AC. For convenient setup, wired or wireless encryption keys
can be quickly congured with the push of a button on top of the device. The adapter implements 128-bit AES data encryption to protect the
network from unauthorized wiretapping. With hassle-free plug and play installation, the DHP-W611AV is an ideal solution to create a wall-to-wall
home network.
1Power outlets and electrical wiring must all be part of the same electrical circuit. Certain electrical conditions in your home, such as wiring condition and conguration, may aect the performance of this product.
Additional D-Link PowerLine AV adapters are required to add new devices to the network. A minimum of two D-Link PowerLine AV Network Adapters are required to create a network. Connecting this product to a power
strip with a surge protector may adversely aect the performance of this product. For best results, plug the adapter directly into a wall outlet.

5D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Hardware Overview
DHP-W610AV
Connections
1RJ-45 10/100BASE-TX Ethernet Port Connects to Digital Media Devices, PCs, Game Consoles, Network Storage Devices
2Reset Button Press and hold the button for 5 seconds to reset to factory defaults.
3Simple Connect/WPS Button
Push this button to create a secure Powerline connection with another adapter. More
on this connection is available at Hardware Installation on page 9. It can also
be used to connect using Wi-Fi Protected Setup (WPS). To connect using WPS, press
this button, then press the WPS button on your wireless client.
4On/O Switch Slide this switch to power on or o the device.
1
4
3
1
2

6D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1Power LED A solid light indicates a proper connection to the power supply. A blinking light indicates it is in sleep
mode or seeking a Powerline connection.
2Powerline LED A solid light indicates that a Powerline connection is established.
3Ethernet LED A solid light indicates a connection to an Ethernet-enabled device.
4Wireless LED A solid light indicates that the wireless network is ready.
2
4
3
1

7D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Hardware Overview
DHP-P610AV
Connections
1RJ-45 10/100BASE-TX Ethernet Port Connects to digital media devices, PCs, game consoles, network storage devices.
2Simple Connect Button Press this button for 3-5 seconds to set up a Powerline network or press it for 10
seconds to perform a factory reset.
1
2

8D-Link DHP-W611AV User Manual
Section 1 - Product Overview
1Power LED A solid light indicates a proper connection to the power supply. A blinking light indicates it is in sleep
mode (after 5 minutes of inactivity) or seeking a Powerline connection.
2Powerline LED A solid light indicates that a Powerline connection is established.
3Ethernet LED A solid light indicates a connection to an Ethernet-enabled device.
Hardware Overview
DHP-P610AV
LEDs
2
1
3

9D-Link DHP-W611AV User Manual
Section 2 - Installation
Hardware Installation
Power
Plug the DHP-P610AV into a wall outlet near your router. Fully extend the antennas and plug the DHP-W610AV into a wall outlet where you want
to extend your network. Slide the power switch on the side of the device to the ON position. The Power LED will light to indicate the devices are
receiving power.
Connect the Devices
Press the Simple Connect Button on the DHP-P610AV for 3 seconds.Then, press the Simple Connect Button on the DHP-W610AV for 3 seconds.This
must be done within two minutes after pressing the Simple Connect Button on the DHP-P610AV.
Note: Network connectivity is conrmed when the Powerline LEDs on both Powerline devices are steadily lit. This will indicate that your network
is now secure.
Plug in the Ethernet Cable
You should already own a router connected to a modem. Connect one of the supplied Ethernet cables between your router and the DHP-P610AV.
Connect the other Ethernet cable between your DHP-W610AV and your computer. Read the guidelines on the following pages, and continue to
DHP-W610AV Conguration on page 13.
Adding More Devices (optional)
If you have more Powerline devices now or in the future, you may add them to your network in the same way as above. Be sure to press the Simple
Connect Button on the new device, then the Simple Connect Button on the existing network.
4ROOM A ROOM B
DHP-P610AV DHP-W610AV
RouterInternet
PC

10D-Link DHP-W611AV User Manual
Section 2 - Installation
Wireless Installation Considerations
The DHP-W610AV lets you access your network using a wireless connection from anywhere within the operating range of your wireless network.
Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the
range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to
maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the DHP-W610AV and other network devices to a minimum. Each wall or ceiling can reduce your
adapter’s range by 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters) at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position the wireless
DHP-W610AV and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls
with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or wireless products such as ceiling fans, lights, and home security systems, your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as possible. The base
transmits a signal even if the phone is not in use.

11D-Link DHP-W611AV User Manual
Section 2 - Installation
Plan the location of your Powerline devices:
1. Connect Powerline devices to electrical outlets that are not controlled by a wall switch to avoid accidentally turning o power to the device.
2. Do not connect the Powerline devices to an extension cord, surge protector, or power strip as
this might prevent it from working correctly, or negatively impact network performance.
3. Avoid using the Powerline devices in an electrical outlet that is located near an appliance that
uses a lot of power, such as a washer or dryer, or a refrigerator. This may prevent the adapter from
working correctly, or negatively impact network performance.
4. Verify that your Powerline devices are electrically rated to operate with the power available in
your location.
5. To help prevent against electrical shock, be sure to plug the power cables into properly
grounded electrical outlets.
6. The Powerline device is designed to help ensure proper grounding. Do not use adapter plugs or
remove the grounding prong from the device.
Powerline Installation Considerations

12D-Link DHP-W611AV User Manual
Section 2 - Installation
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service the device.
2. Ensure that the device is plugged into the wall in a vertical position.
3. Use the device in a dry location, and avoid placing it in humid environments.
4. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it from the power outlet
and use a damp towel.
5. Keep the device out of direct sunlight.
6. Do not cover or block the vents on the device.
7. Make sure that the device has adequate room for ventilation.
8. Avoid placing the device near a heater or radiator.
Important Safety Notes

13D-Link DHP-W611AV User Manual
Section 3 - Conguration
DHP-W610AV Conguration
Setup
If you wish to change the default settings or optimize the performance of the
DHP-W610AV, you may use the web-based conguration utility.
To access the conguration utility, open a web browser such as Internet Explorer
and enter either http://dlinkapWXYZ.local. (this is on the Wi-Fi Conguration
Card) or http://dlinkapWXYZ in the address eld.
By default, Admin will be the User Name. Leave the password blank to log in.
If you receive a“Page Cannot be Displayed”error, please refer to Troubleshooting
on page 47 for assistance.
You will automatically proceed to the Setup heading after logging in.
This section covers conguration of your DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200 Adapter. The DHP-P610AV PowerLine AV2 1000 Gigabit
Passthrough Adapter does not require conguration other than the initial Powerline connection.

14D-Link DHP-W611AV User Manual
Section 3 - Conguration

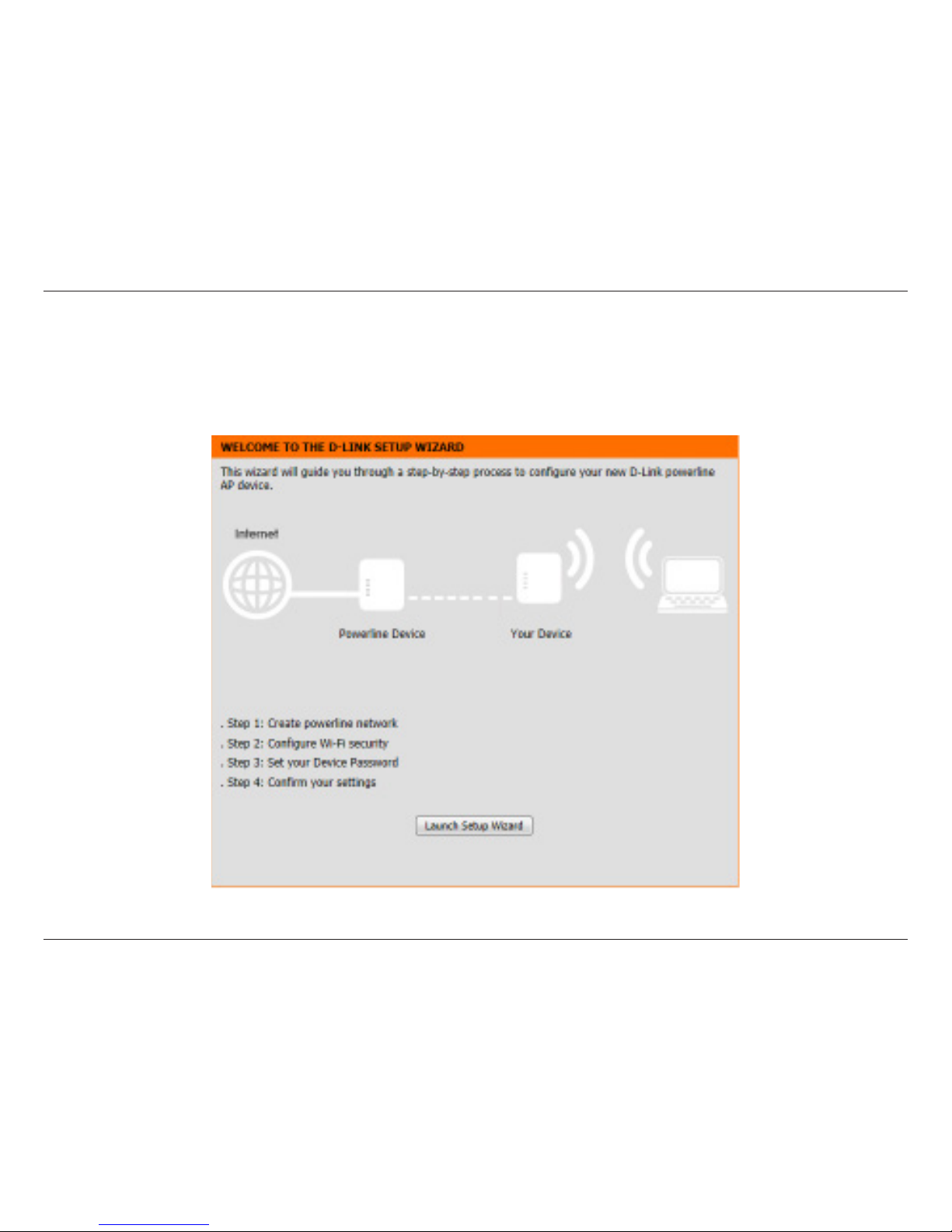

Setup Wizard
Use the wizard’s on-screen instructions to conveniently set up your network if you have not done so already. You can also manually congure your
network by going to Settings from the main page. Wi-Fi settings are covered in Wireless Settings on page 15 and Powerline settings are under
PLC Settings on page 18.

15D-Link DHP-W611AV User Manual
Section 3 - Conguration
Wireless Settings
You can choose to use WPA/WPA2 encryption or copy the
settings from your current router if you have a router that
supports Clone My Wi-Fi.
The Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The SSID
is case-sensitive.
The auto channel selection setting can be selected to allow
this device to choose the channel with the least amount of
interference.
By default the channel is set to 1.The channel can be changed
to match the channel setting for an existing wireless network
or to customize the wireless network. If you enable Auto
Channel Scan, this option will be greyed out.
Use of TKIP/AES security framework provides the optimum
mix of security and compatibility. Choose a password that
is strong. A good password uses both letters and numbers
in unpredictable places. Example bad passwords could be
password or 12345678.
Click Save Settings for the changes to take eect.
WiFi Security
Mode:
Wi-Fi Network
Name:
Enable Auto
Channel Scan:
Wireless Channel:
WPA/WPA2
Network Key:
The DHP-W610AV lets you customize your wireless settings for your access point.This device allows you to extend your current network so you can
roam about the house while staying connected to the Internet. The following settings apply to both 2.4G and 5G modes.

16D-Link DHP-W611AV User Manual
Section 3 - Conguration
Network Settings
This section will allow you to change the local network settings of the DHP-W610AV and to congure the DHCP settings.
You can customize the Device Name of your DHP-W610AV.
You will use this name to connect to it through a web browser.
The default name is listed on your Wi-Fi Conguration Card.
Use the drop-down menu to select Static IP or Dynamic IP
(DHCP) to automatically obtain an IP address on the LAN/
private network. For Static IP setup, please see the next page.
Your Internet Service Provider (ISP) may require this to be set
a certain way for Internet access.You can choose from Static
IPv6, Autoconguration, or Link-local Only. Contact your
ISP for more help on the above requirements.
This shows the current IPv6 address of the DHP-W610AV on
your network.
Click Save Settings for the changes to take eect.
Device Name:
LAN Connection
Type:
IPv6 Connection
Type:
IPv6 DNS
Settings:
