iD-Link DNS-722-4/DNS-726-4 User Manual
Table of Contents
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the
United States or other countries. All other company or product names mentioned herein are trademarks or registered
trademarks of their respective companies.
Copyright © 2009 by D-Link Systems, Inc.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 November 21, 2008 DNS-722-4/DNS-726-4 revision A1
Preface

iiD-Link DNS-722-4/DNS-726-4 User Manual
Table of Contents
Preface...........................................................................i
Manual Revisions ..................................................... i
Trademarks ............................................................... i
Product Overview ........................................................1
Package Contents....................................................1
System Requirements .............................................2
Introduction.............................................................. 3
Features................................................................... 4
Hardware Overview .................................................8
Front View ..........................................................8
Bottom View....................................................... 9

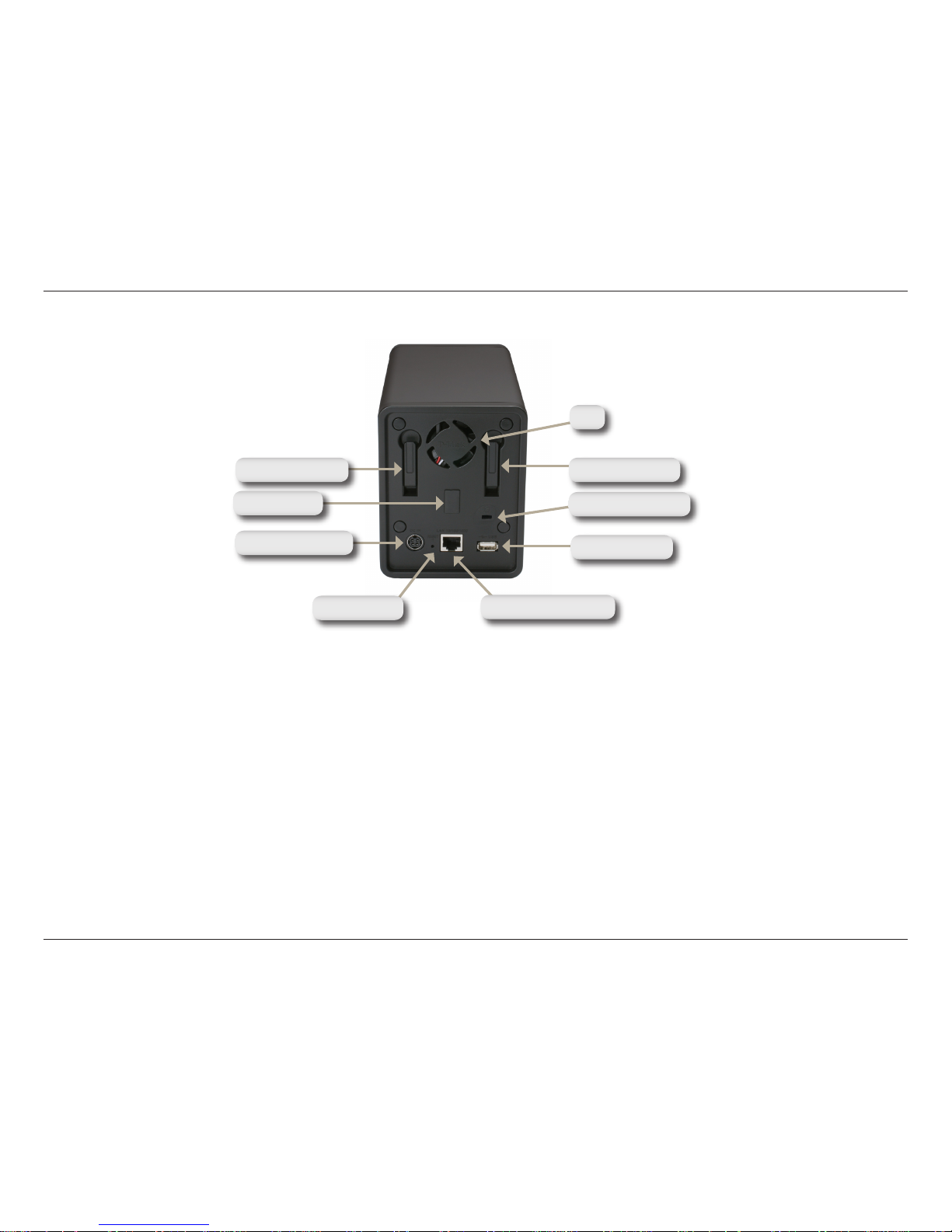

Rear Panel (Connections)................................ 10
Hardware Installation ................................................11

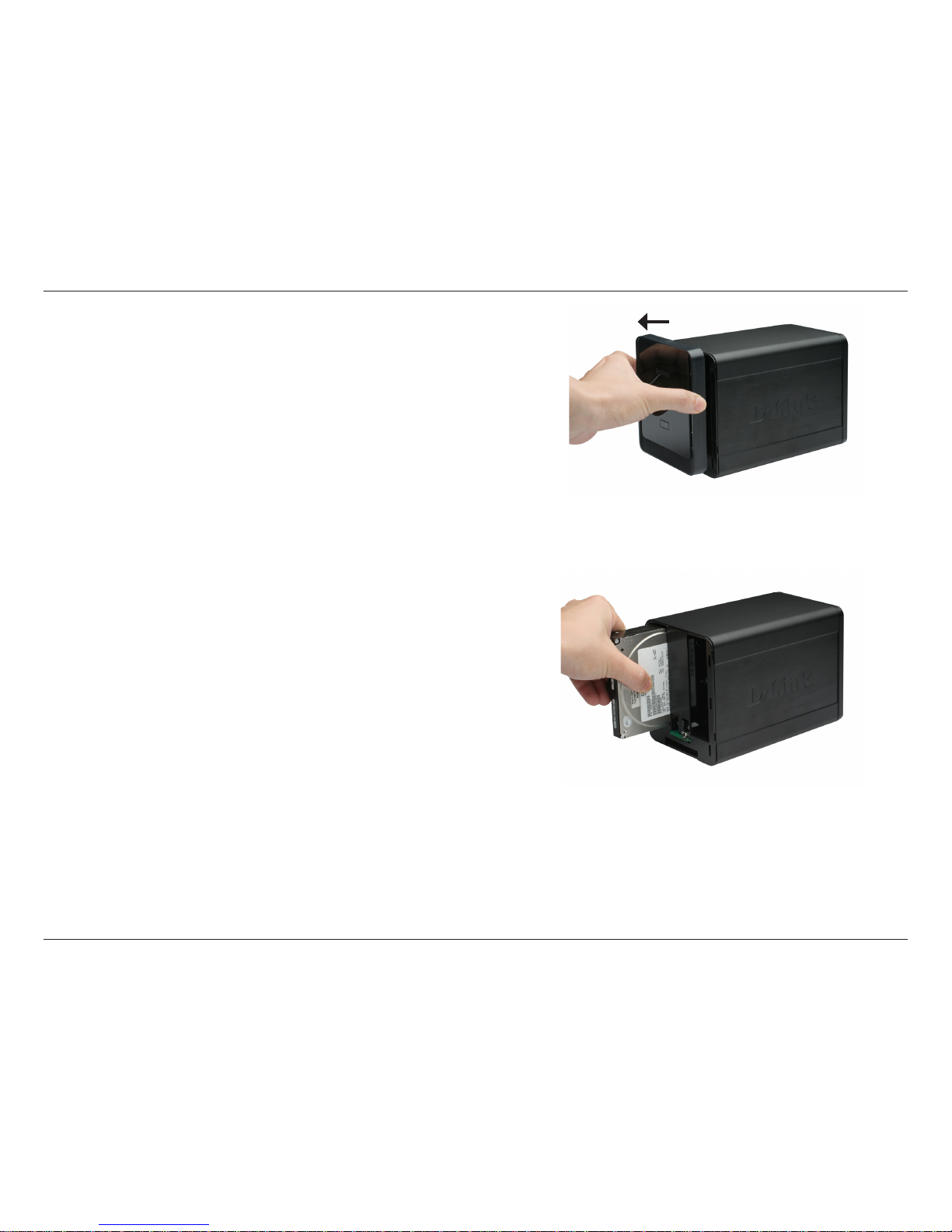

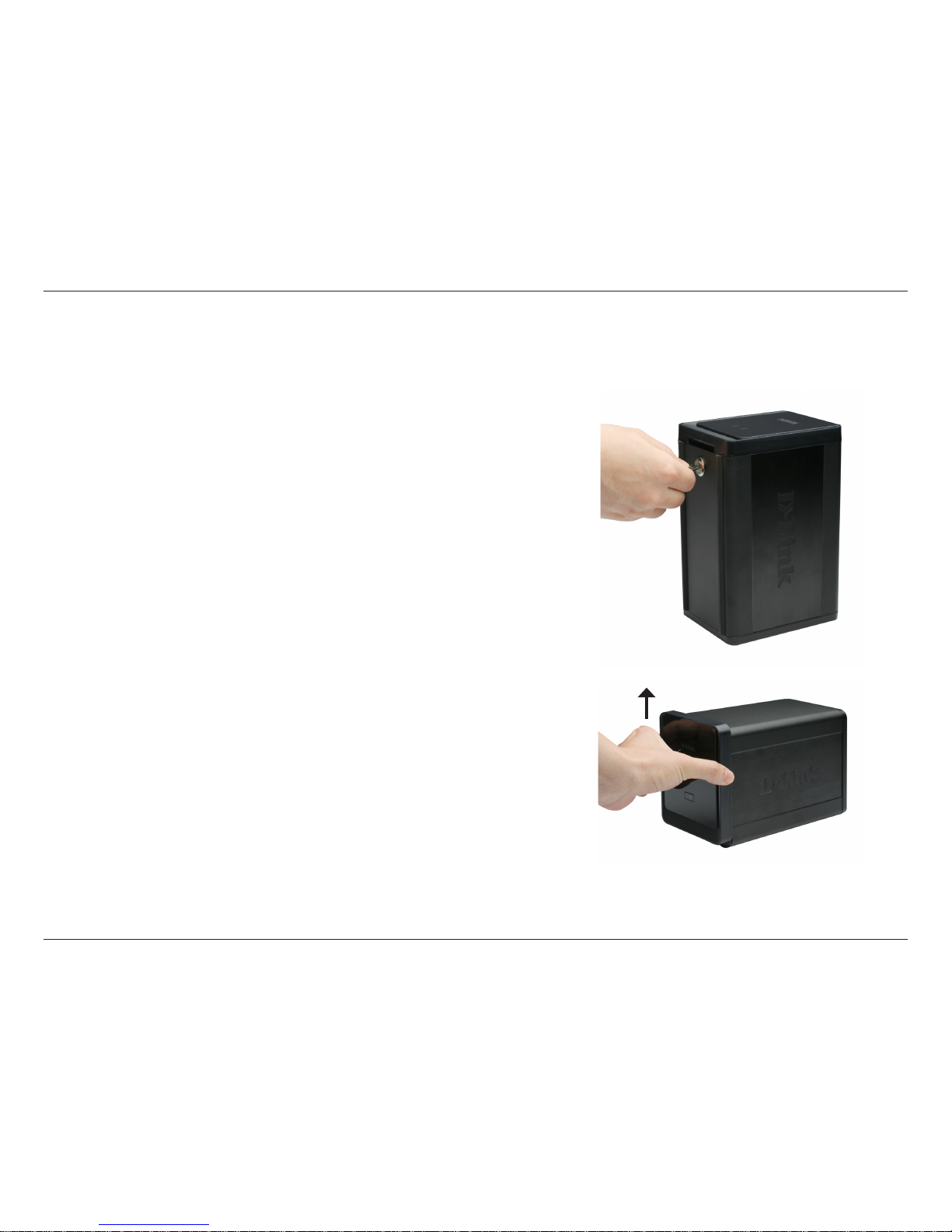

Install New Hard Disk Drive ................................... 11

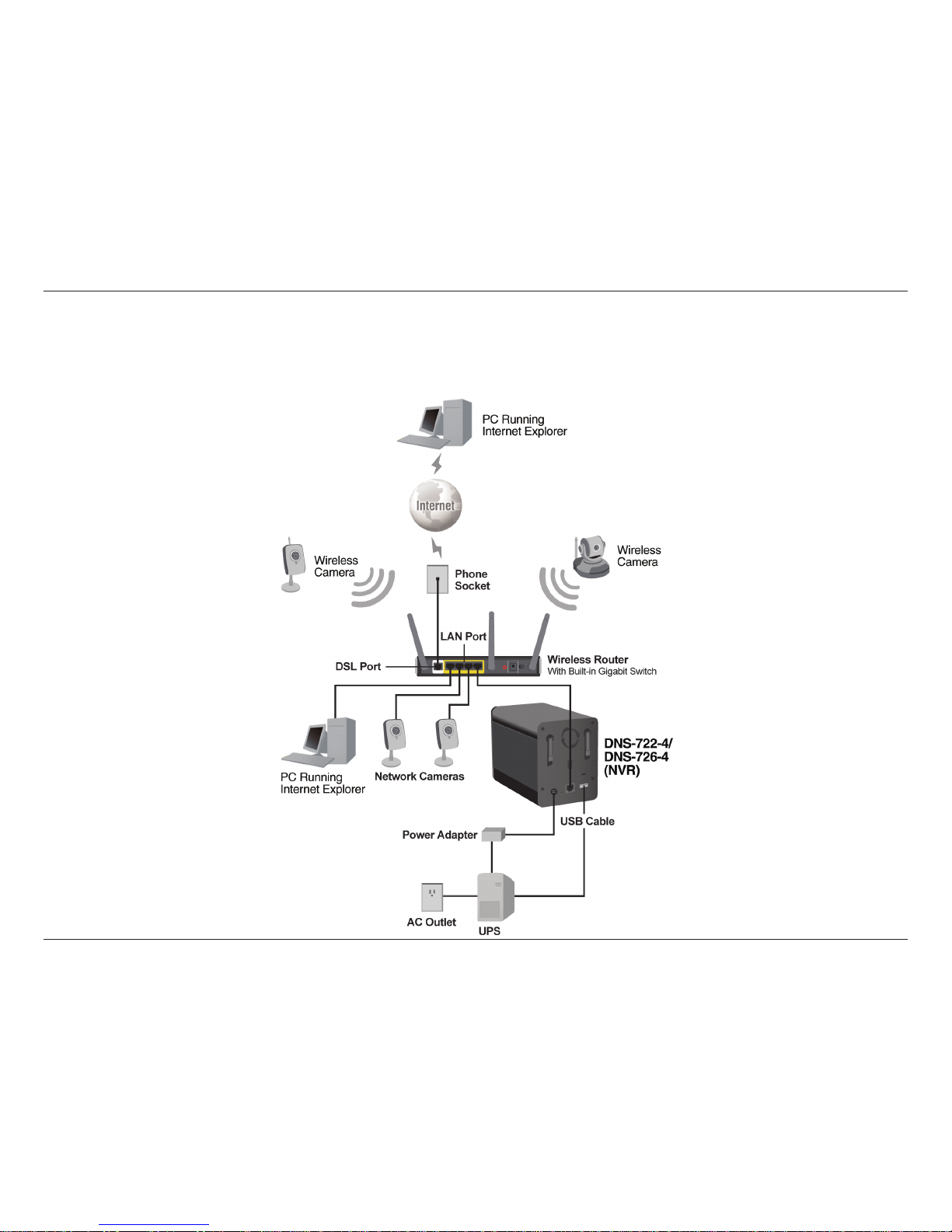

Connecting Your NVR to the Network......................16
Network Setup .......................................................16
Configuration.............................................................17
Getting Started ...................................................... 17
NVR Search Utility ...........................................18
Login ................................................................19
Configure Hard Drive .......................................20
Web UI...................................................................23
Setup .....................................................................24
Wizard.............................................................. 24
Configuring the NVR........................................ 28
Network Setup .................................................29
Camera Search................................................ 30
Camera Setup.................................................. 31
Audio and Video...............................................32
Live and Playback Setup.................................. 33
Recording Schedule ........................................ 34
Event Setup (DNS-726-4 Only)........................ 37
E-mail Setup ....................................................38
Dynamic DNS ..................................................39
Time and Date Setup....................................... 40
Maintenance...............................................................41
User Management ...........................................41
RAID ................................................................43
Backup and Restore ........................................45
Firmware Update ............................................. 46
Status..........................................................................47
Camera Status................................................. 47
Device Info .......................................................48
System Log...................................................... 49
NVR Log ..........................................................50
Help .................................................................51
Live Video...................................................................52
Table of Contents

iiiD-Link DNS-722-4/DNS-726-4 User Manual
Table of Contents
Playback .....................................................................55
Open Record and Setting ................................58
Search the Recorded Video to Playback .........60
Smart Search from the Recorded Video..........62
Recorded Video Enhancement ........................ 64
Save Video....................................................... 65
Save Image......................................................66
Print Image ...................................................... 67
Page Setting .................................................... 67
Backup the Recorded Video ............................ 68
Multi-NVR Viewer Application................................... 69
Playback Manager Application.................................72
Set Connections to the Units ...........................73
Backup and File Manager Application..................... 74
Troubleshooting.........................................................76
Choose a RAID Level ................................................ 79
Replacing or Adding a New Hard Drive................... 80
Technical Specifications........................................... 81
Firmware Specification .............................................81
Hardware Specification.............................................82
Warranty .....................................................................84
Registration................................................................89

1D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
Product Overview
 D-Link DNS-722-4/ DNS-726-4 Network Video Recorder (NVR)
 CAT5 Ethernet Cable
 Power Adapter
 Cable Holder
 Keys
 Manual and Software on CD
 Quick Install Guide
Package Contents
Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.

2D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
System Requirements
Hardware Requirements • One or two 3.5” SATA hard disk drive(s)*
Network Requirements
• Broadband Internet connection (for remote access)
• IP Camera(s) (refer to the D-Link website for a list of supported cameras)
• Gigabit Ethernet switch or router
Web-based Configuration
Utility Requirements/Remote
PC Minimum Requirements
Computer with the following:
• Windows®2000/XP/2003/Vista®
• Pentium 4 - 2.4GHz or higher
• 512MB or higher
Browser Requirements:
• Internet Explorer 6.0 or higher
Make sure you have the latest version of Java installed. Visit www.java.com to
download the latest version.
Optional UPS with USB interface
*Hard disk drives should be from the same manufacturer. To ensure maximum performance, identical drives are recommended for RAID 1
configurations.

3D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview

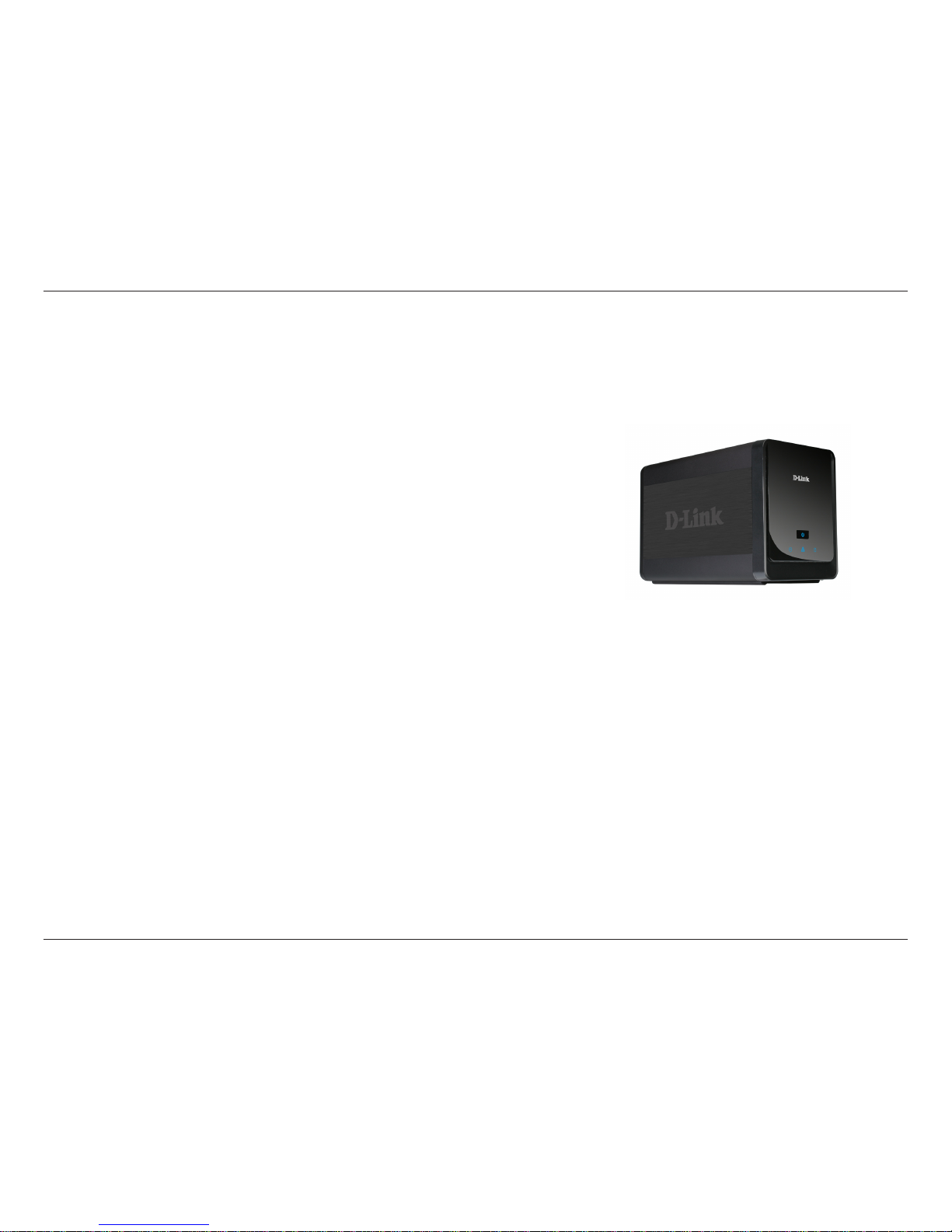

DNS-722-4/DNS-726-4 is a standalone wired NVR (Network Video Recorder) which supports multi-channel network
cameras with M-JPEG or MPEG4 recording using two high-speed 3.5-inch SATA hard disks (up to 3TB total capacity
for extended recording). The NVR can record video directly sent from local and remote network cameras without the
need for a dedicated PC.
DNS-722-4 supports D-Link network cameras only.
DNS-726-4 supports D-Link, Sony, Panasonic, and Axis network cameras.
The bundled 16-channel (DNS-726-4 only) recording software can connect to multiple NVRs and manage them as a
group. The DViewCam NVR software provides a total solution for high quality remote monitoring with reliable network
functionality.
Introduction

4D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
Features
Comprehensive IP Surveillance Solution
• Total Solution: The D-Link NVR is a standalone SATA RAID network video recorder capable of 24/7 recording
without a PC. The NVR can manage multiple network cameras, providing direct access to view live video
and play recorded data through the Internet from anywhere anytime. The device itself is compact in size and
incorporates a physical security lock.
• Easy to Use: A user-friendly GUI simplifies network and camera setup, allowing users to easily access multiple
cameras for viewing, recording, playback, and configuration.
• Centralized Interface for Configuration: NVR provides a flexible and economic alternative to manage and
configure multiple IP cameras on a centralized web interface.
• Megapixel Resolution Support: The major advantage of digital over analog video is its higher resolution
support. The NVR supports high resolution megapixel recording for vivid video with high clarity.
Complete Network Functionality
• PPPoE Support: The D-Link NVR utilizes ADSL services. It can connect to the Internet via an ADSL modem
over Ethernet.
• DDNS Support: Dynamic DNS is a solution for users without a fixed IP address. With DDNS service, users
can connect to the NVR from the Internet using an easy-to-remember domain name.
• NTP Support: Maintaining an accurate record of time is essential if recorded data is to be used as evidence.
To ensure that the time recording is always accurate, the NVR can update the system clock from an Internet
server using the Network Time Protocol (NTP).
• DHCP Client: The NVR can acquire an IP address from a DHCP server, making it easy to locate during
installation.

5D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
Fully Functional Recording
1. Flexible Recording Schedule: Once cameras have been set up, a highly configurable scheduling system
allows for continuous recording or recording during specifically allotted time frames. Each camera can be set
to record independently at preset intervals. The DNS-726-4 also provides event recording based on specific
triggers.
2. Recording Automatic Overwrite: The NVR can be configured to overwrite the oldest data automatically when
Hard Disk space runs out, allowing for continuous and uninterrupted recording. Users can specify the number
of days the recording should be kept (within the limits of the Hard Disk capacity). For example, if the NVR has
the capacity to store 7 days of recording, using the overwrite option, the NVR will record the 8th day and delete
the 1st day.
3. Recording Stop Alert: The NVR also provides the option to stop recording when the Hard Disk is full. Should
the disk reach capacity, a notification can be sent via E-mail or to an external device such as an audible alarm
or LED display.
Comprehensive Data and Hardware Security
1. Secure Data: RAID 1 duplicates the recordings database onto two separate drives. In the event of an Hard
Disk failure, data integrity is maintained on the secondary Hard Disk.
2. Auto Boot after Power Recovery: The NVR will boot up automatically once the power is recovered after a
power outage.
3. Access List Control: User can specify safe and blocked IP addresses to filter the external connections; this
feature increases data security.
4. Physical Security: NVR enclosure is compact and easy to conceal in a secure remote location. A front panel
lock protects the Hard Disk and a rear panel lock can be used to secure the NVR with a cable.
5. Multiple User Privilege Control: Administrators may also choose access privileges for users by specifying
the cameras they may have access to live view, playback, audio, and PTZ functions.
6. UPS Status Monitor: A UPS can be used as emergency power supply for the NVR. The UPS uses a USB
interface to notify the NVR to perform a proper shutdown before battery power runs out.
7. Backup Recording Data: Recorded data is stored in a secure database. This recorded data can be backed
up to additional storage locations periodically or whenever needed.

6D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
Powerful Event Management
1. Camera Status: The camera status page will show connection, recording, frame rate and bit rate information
of each camera. Meanwhile, the estimated available recording time is also displayed for quick reference.
2. Flexible Event Management: Event setup is another key configuration of the NVR. The NVR can monitor all
of the camera triggers from motion detection or digital input interface. One of the most powerful functions is
notification application.The NVR centrally controls the digital output, E-mail and recording of all the connected
cameras. For example, if camera 1 detects motion, the NVR can trigger camera 2 to record, camera 3 to output
a light and camera 4 to turn to the preset position. (DNS-726-4 only)
3. Event Log: With the simple event log, the log pages are organized by date for easy look up.
4. Multiple Mailing Lists: Administrators can setup multiple contact lists for event notification.
Instant Live View
1. Full Screen: Enlarge the display to full screen of live view and recorded video.
2. Drag and Drop GUI: With multiple channels enabled, users can change channel by drag and drop.
3. Camera Name and Status on OSD: Camera name and recording status are displayed via OSD to aid in
identification.
4. PTZ/Audio Support: Users can control pan/tilt/zoom (PTZ) functions from within the interface using the
provided interface buttons or by directly clicking on the video. A single camera may be viewed full-screen with
optional two-way audio.
5. Preset Point: Presets from within the interface can be set to instantly restore a previously saved view.
6. Digital Zoom: Videos can be enlarged by digital zoom.

7D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
Intelligent Playback
1. Smart Search: (DNS-726-4 only). Searching through recorded data can be tedious and frustrating. However,
the NVR’s smart search function makes detecting notable events effortless. By selecting a target area on the
video and setting search sensitivity, the smart search will traverse the video database based on specified
search criteria to locate noteworthy events. Search criteria include options such as motion detection, missing
or abandoned object, lost focus or camera occlusion.
2. Multiple Channel Playback: Multiple channels can be selected for playback or monitored live.
3. Quad View: The DNS-726-4 supports 4 channel simultaneous playback and the DNS-722-4 supports 1 channel
playback.
4. AVI/ASF Outputs: During playback, if a user uncovers video that needs to be exported, two formats are available.
The AVI format will export raw video. The ASF format will transpose a timestamp on the exported video.
5. Playback Speed Control: Playback speed control allows for up to 16x speed fast forward or reverse play. The
step playback option displays one frame at a time.
6. Video Enhancement: Users can enhance the recorded video with controls such as brightness, contrast, and
sharpness.
7. Print Picture: If a printer is connected to the user’s PC, the NVR can also print the selected still image.

8D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
Hardware Overview

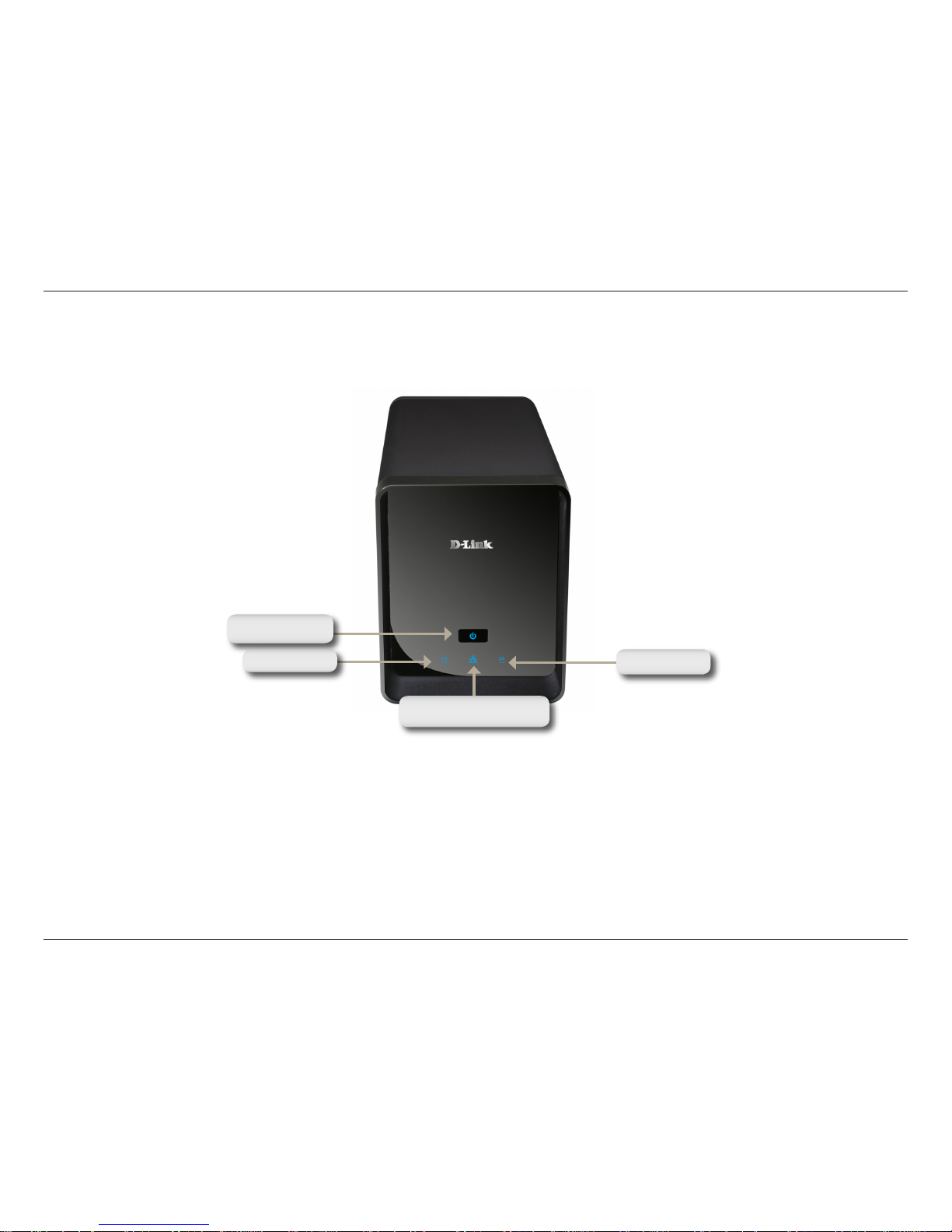

Front View
Power Button:
Press once to power on the NVR. Press and hold the button until the LED begins to blink to power down the NVR.
Drive LEDs:
These LEDs will be solid BLUE when the drives are connected but inactive. The LEDs will blink when the drives are
being accessed, formatted or synchronized. They will illuminate AMBER if a drive has failed.
Activity LED:
The LED will be solid BLUE when there is an Ethernet connection. It will blink to indicate LAN traffic.
Power Button
Drive LED Drive LED
Network Activity LED

9D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview

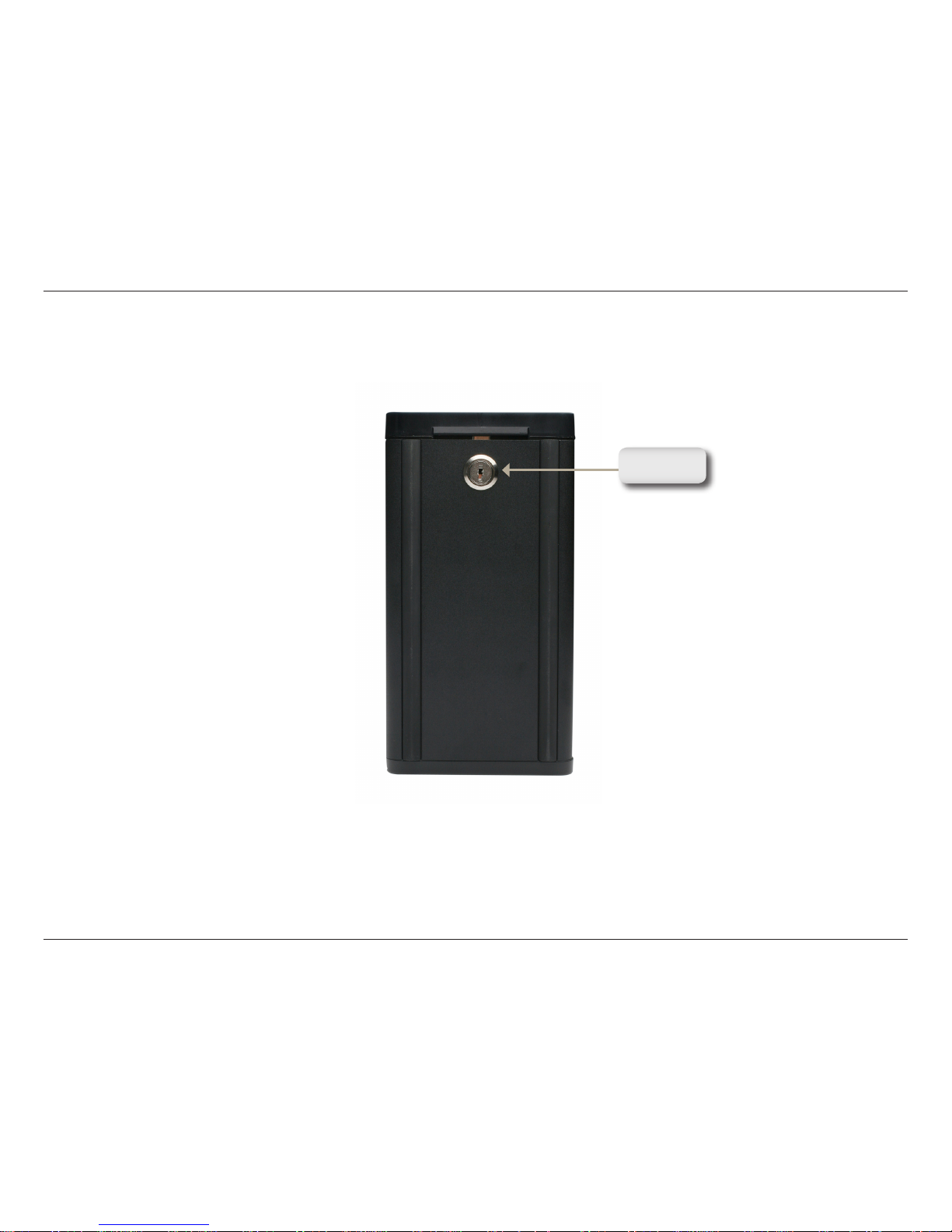

Bottom View
Key lock
Key lock:
Use this lock to secure the front panel of the NVR.
The panel can be unlocked with the provided key for initial installation.

10D-Link DNS-722-4/DNS-726-4 User Manual
Section 1 - Product Overview
Power Receptacle:
The supplied power adapter connects here.
Gigabit Ethernet Port:
The Gigabit Ethernet port connects the NVR to a network.
Drive Eject Lever:
Use these levers to eject the hard drives. The front panel
must be removed before ejecting the drives. Make sure to
reset the ejector before installing the new hard drive.
Reset Button:
A pinhole button located beside the Ethernet socket is used
to reset the system or restore the factory default settings.
To reset, simply press and hold the button until the power
LED flashes.
Rear Panel (Connections)
Drive Eject Lever Drive Eject Lever
Cable Holder
Power Receptacle
Fan
Security Cable Slot
USB Connector
Reset Button Gigabit Ethernet Port
USB Connector:
A UPS can be used as an emergency power supply for the
NVR.The UPS can use the USB interface to notify the NVR to
perform a proper shutdown before battery power runs out.
Security Cable Slot:
An external lock can be affixed to this slot to prevent theft.
Fan:
The NVR will adjust the system temperature automatically
by turning the fan on/off.
Cable Holder:
Holds the power cable to ensure a safe operating
environment.
Note: After resetting the unit, you will still be able to access the recorded data on
your hard drives.

11D-Link DNS-722-4/DNS-726-4 User Manual
Section 2 - Installation
Hardware Installation
Install the Hard Drives:
1. Please install at least one 3.5” SATA hard drive before turning
on the NVR.Use the key to unlock the faceplate from the bottom
of the NVR.
2. Slide the faceplate up until it unlatches from the device.
Install New Hard Disk Drive

12D-Link DNS-722-4/DNS-726-4 User Manual
Section 2 - Installation
3. Once the faceplate is unlatched, pull it off the device,
exposing the drive bays.
4. Insert a 3.5” SATA hard drive into an available drive bay.
Make sure to align the drive connector to the SATA
connector on the bottom edge inside the drive bay of the
NVR. Gently push the drive in until it connects. When a
drive is inserted properly, you will feel it “seat” into the
connector. Some hard drives that are thin or oddly shaped
may need to be guided carefully into position. If a drive is
not properly seated, the LED will not illuminate once the
device has been powered on.
Optional: When installing an optional second Hard Disk,
please repeat Step 4. To avoid data incompatibility in
RAID 1 operation, use identical SATA drives from the
same manufacturer. Formatted drive capacity for RAID 1
operation is dependant on the Hard Disk with the lowest
capacity.

13D-Link DNS-722-4/DNS-726-4 User Manual
Section 2 - Installation

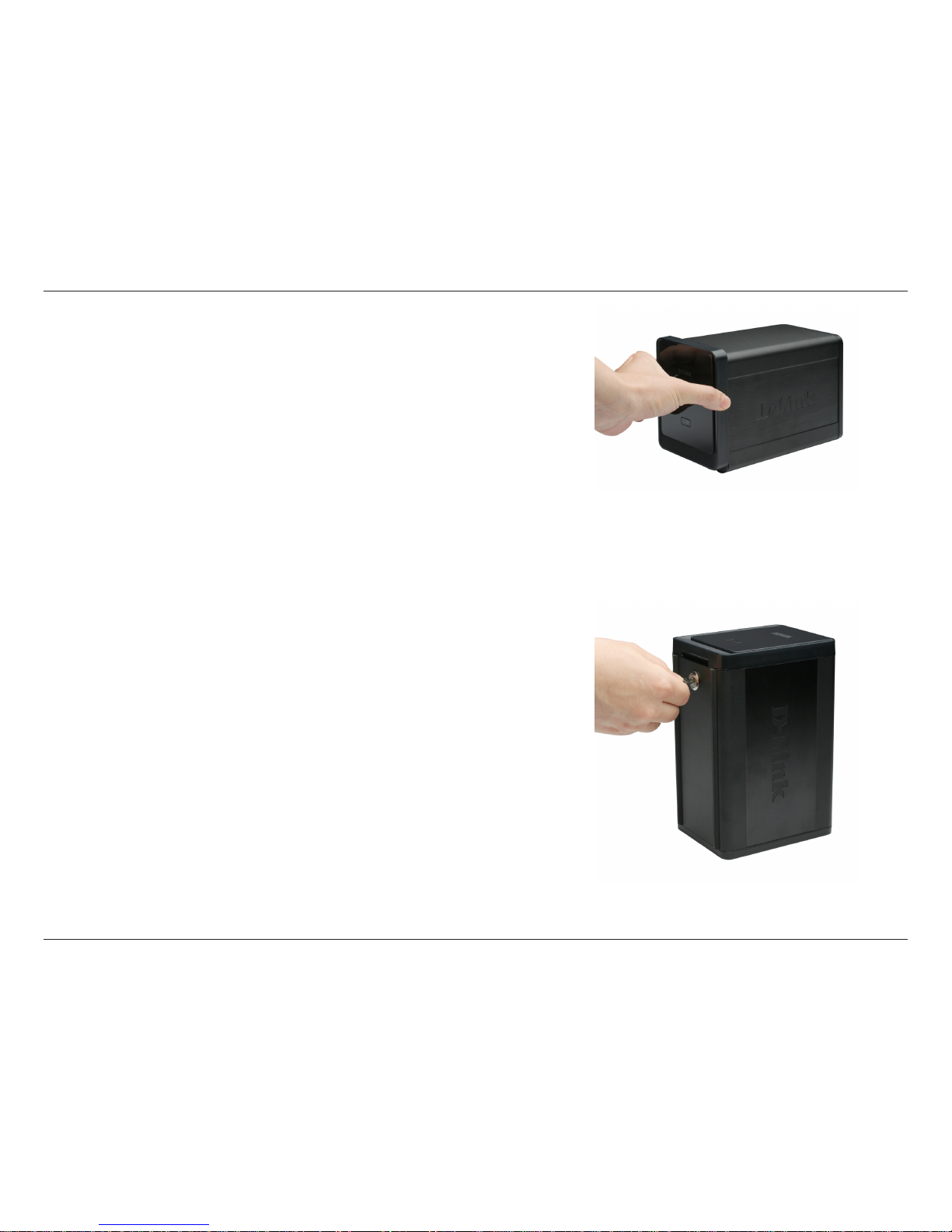

5. Attach the faceplate to the front of the device.
6. Lock the faceplate to secure the Hard Disks.

14D-Link DNS-722-4/DNS-726-4 User Manual
Section 2 - Installation

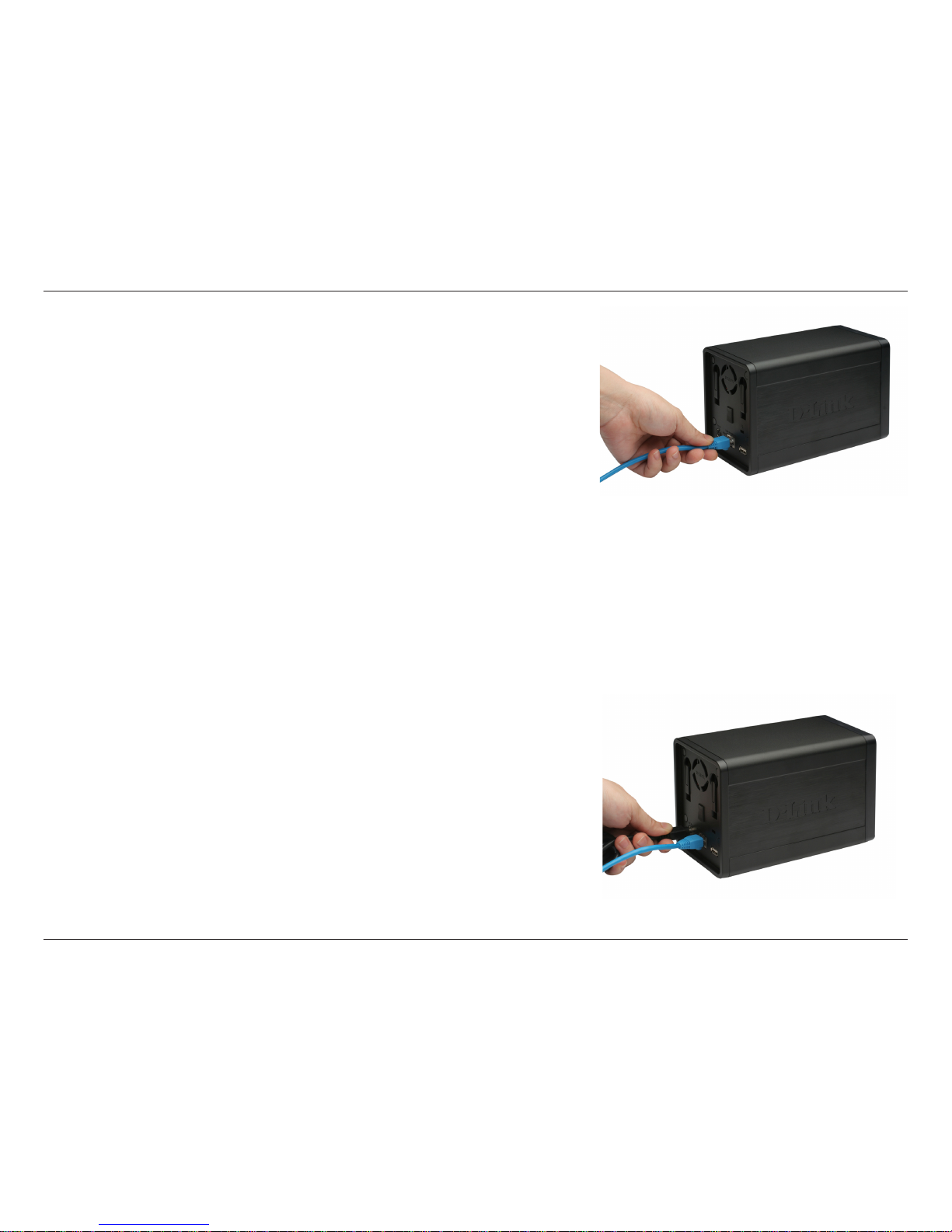

Connect the Ethernet Cable
Connect an Ethernet cable to the Ethernet port. Connect one end
of the Ethernet cable to the NVR. Connect the opposite end of
this cable to a Gigabit Ethernet LAN port of a router or a switch,
or directly to a computer.
Connect the UPS (Optional)
If you have a Universal Power Supply (UPS) that you would like
to use with the NVR, you may connect it before powering the
unit on.
1. Connect the USB cable from the UPS to the port on the back of the NVR.
2. Connect the power cable to the UPS. (Ensure that the UPS is plugged in and receiving power.)
Note:
To turn off the NVR, simply push the power button for 5 seconds. The power LED will blink and the NVR will turn off after a moment.
Attach the External Power Supply
Attach the external power supply to the DC power receptacle
located on the NVR’s rear panel (labeled DC12V) and connect
the other end to an AC power outlet.

15D-Link DNS-722-4/DNS-726-4 User Manual
Section 2 - Installation
Turn on the Power and Initialize the Hard Disk
Push the power button at the front panel. The LED on the NVR
will begin to blink. When you have a proper connection, wait
about 60 seconds, the NVR power LED will stay steady and
the Hard Disk and network LEDs will begin to blink. The NVR
will initialize the Hard Disk to default settings. To change Hard
Disk settings, please visit the SETUP page in the web-based
configuration utility.
Supported Cameras
DNS-722-4: Supports all D-Link network cameras. Includes
support for auto-discovery, and up to 1.3 megapixel resolution.
DNS-726-4: Supports known-brand network cameras including
D-Link, Axis, Panasonic, and Sony. Specific feature support
depends on software.

16D-Link DNS-722-4/DNS-726-4 User Manual
Section 2 - Installation
Connecting Your NVR to the Network
Network Setup
