D-Link JustConnect DNR-4020-16P User manual

DNR-4020-16P
User Manual
JustConnect 16-Channel PoE Network Video Recorder
Version 1.00 | 2021/01/20

iD-Link DNR-4020-16P User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change.
Manual Revision
Revision Date Description
1.00 October 8, 2020 • A1 Initial version
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2021 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Apple®, Apple logo®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App
StoreSM is a service mark of Apple Inc. Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Preface

iiD-Link DNR-4020-16P User Manual
Table of Contents
Product Overview......................................................................1
Package Contents......................................................................... 1
System Requirements.................................................................2
Introduction ................................................................................... 3
Hardware Overview.....................................................................4
Front View................................................................................ 4
Rear Panel (Connections)................................................... 5
Installation..................................................................................6

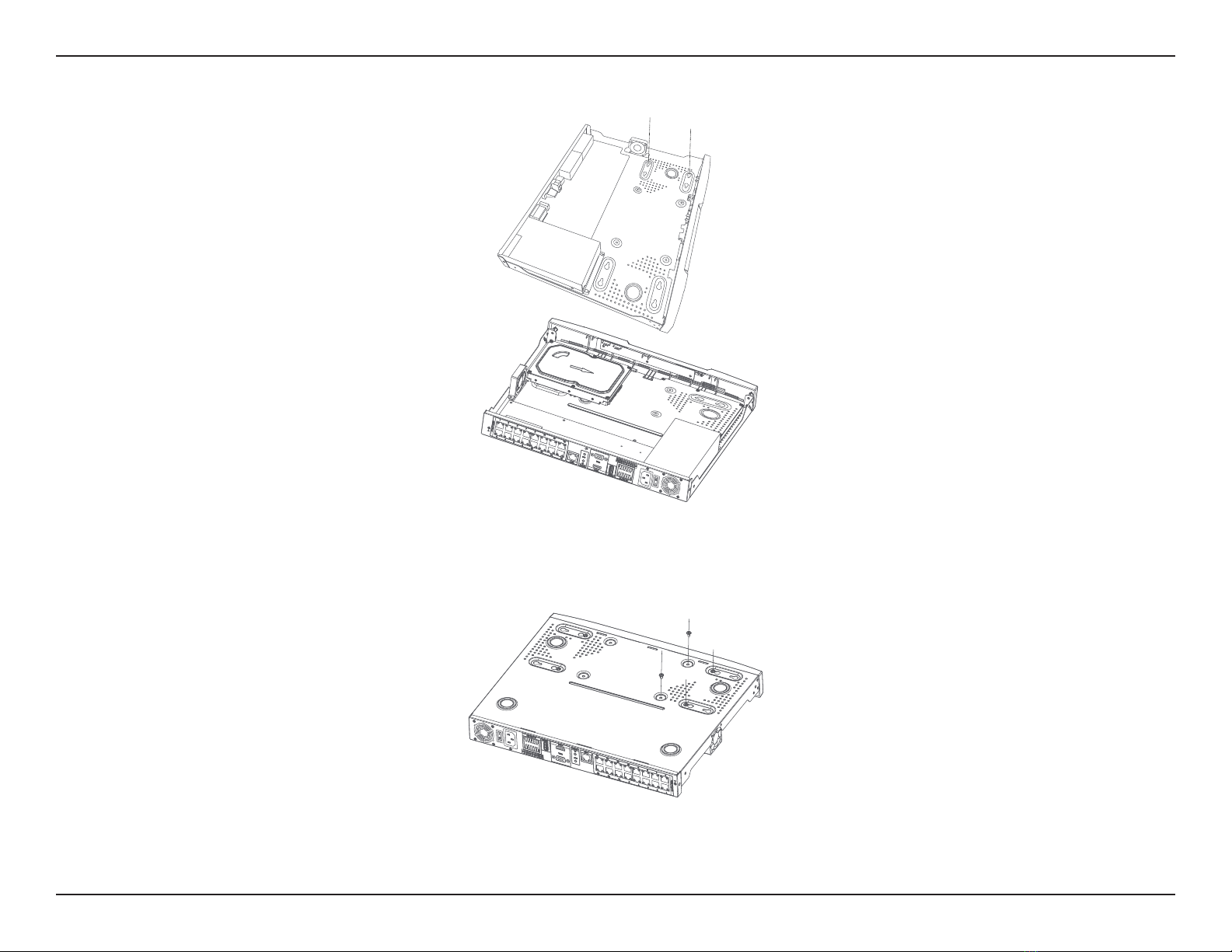

Hard Drive Installation................................................................6
Setting Up Your DNR-4020-16P (HDMI / VGA) ...................8
Initial Configuration.....................................................................9
Live View........................................................................................11
Setup...............................................................................................12
Channel..................................................................................12
Camera...............................................................................12
RTSP Connection............................................................14
Encode...............................................................................15
Sensor Settings...............................................................17
OSD.....................................................................................25
Privacy Zone ....................................................................26
Microphone .....................................................................27
Human Thermometer...................................................28
Record.............................................................................................33
Record Schedule.................................................................33
Disk ..........................................................................................34
Storage Mode.......................................................................35
S.M.A.R.T.................................................................................36
Disk Calculation...................................................................37
FTP............................................................................................38
Alarm...............................................................................................39
General ...................................................................................39
Motion Detection ...............................................................40
Video Loss..............................................................................41
Alarm In..................................................................................42
Abnormal Alarm..................................................................43
Alarm Out ..............................................................................44
Network .........................................................................................45
Network..................................................................................45
DDNS.......................................................................................48
Port Mapping .......................................................................49
Email........................................................................................50
IP Filter....................................................................................51
SNMP.......................................................................................52
Network Status....................................................................53
PPPoE ......................................................................................54
Network Traffic.....................................................................55
System ............................................................................................56
Information...........................................................................56
General ...................................................................................61
User Account........................................................................66
Security Center....................................................................68
Table of Contents

iiiD-Link DNR-4020-16P User Manual
Table of Contents
Auto Sequence ....................................................................69
Auxiliary Sequence ............................................................70
Logs .........................................................................................71
Maintenance.........................................................................73
Auto Reboot .........................................................................75
Playback ........................................................................................76
Time Search ..........................................................................76
Picture Grid ...........................................................................77
Event Recording..................................................................78
Backup List............................................................................79
Setting Up Your DNR-4020-16P (Web GUI) .......................80
Initial Configuration...................................................................82
Live View / Home Screen .........................................................83
Playback.........................................................................................85
Alarm Search................................................................................86
System ............................................................................................87
Channel..................................................................................87
Camera...............................................................................87
RTSP Connection............................................................89
Encode...............................................................................90
Sensor Settings...............................................................92
OSD.................................................................................. 100
Privacy Zone ................................................................. 101
Microphone .................................................................. 102
Human Thermometer................................................ 103
Record.......................................................................................... 108
Record Schedule.............................................................. 108
Disk ....................................................................................... 109
Storage Mode.................................................................... 110
S.M.A.R.T.............................................................................. 111
Disk Calculation................................................................ 112
FTP......................................................................................... 113
Alarm............................................................................................ 114
General ................................................................................ 114
Motion Detection ............................................................ 115
Video Loss........................................................................... 116
Alarm In............................................................................... 117
Abnormal Alarm............................................................... 118
Alarm Out ........................................................................... 119
Network ...................................................................................... 120
Network............................................................................... 120
DDNS.................................................................................... 123
Port Mapping .................................................................... 124
Email..................................................................................... 125
IP Filter................................................................................. 126
SNMP.................................................................................... 127
Web Mode.......................................................................... 128
PPPoE ................................................................................... 129
Network Status................................................................. 130
System ......................................................................................... 131
Information........................................................................ 131
System ................................................................................. 132
User Account..................................................................... 137
Security Center................................................................. 139

ivD-Link DNR-4020-16P User Manual
Table of Contents
Logs ...................................................................................... 140
Maintenance...................................................................... 142
Auto Reboot ...................................................................... 144
Password Reset......................................................................... 145
Designate E-mail Address............................................. 145
Obtain Verification Code............................................... 146
Resetting User Password............................................... 147
Troubleshooting ...................................................................148
Technical Specifications ......................................................149
Regulatory Information....................................................... 152

1D-Link DNR-4020-16P User Manual
Section 1 - Product Overview
• DNR-4020-16P JustConnect 16-Channel PoE Network Video Recorder
• Power cord
• 8 x hard disk screw
• 2 x rack mount bracket
• 6 x rack mount bracket screw
• 2 x terminal block
• Documentation
Product Overview
Package Contents
Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.

2D-Link DNR-4020-16P User Manual
Section 1 - Product Overview
Hardware Requirements • Two 3.5”SATA hard disk drives (not included)
Network Requirements
• Broadband Internet connection (for remote access)
• Network camera(s) (refer to the D-Link website for a list of supported cameras)
• 10/100/1000 Mbps Ethernet switch or router
Web-based Configuration
Utility / Remote PC
Minimum Requirements
Computer with the following:
• Microsoft Windows
• Microsoft Edge, Internet Explorer, Firefox, Chrome or Safari
System Requirements

3D-Link DNR-4020-16P User Manual
Section 1 - Product Overview
Introduction
The DNR-4020-16P is a standalone wired Network Video Recorder (NVR) which supports multi-channel network cameras with
H.265 and H.264 recording and two SATA hard disks for backup. Thanks to a powerful embedded system, the NVR can record
video from network cameras located in local or remote sites into a dedicated HDD storage without having to turn on a PC.The
DNR-4020-16P NVR supports real-time monitoring and playback from everywhere via browser, HDMI or VGA port. The triplex
function enables the device to continue recording while allowing the user to watch the live view and search for playback videos.
Automated Surveillance
Users are provided with a variety of options for viewing live streams and camera footage on-screen as well as automatically
recording events as they happen, with or without an operator on-site. Event-based recording is available for cameras with
motion detection and Alarm In connections are supported for triggers such as door and window sensors for automated
recording during unusual events. User-defined scheduled recording and continuous recording with automatic overwriting
options help to ensure the surveillance system is running reliably, even when no one is around.
Extensive Monitoring and Recording Features
The DNR-4020-16P’s intuitive interface allows for easy configuration of many functions, including compression, resolution, and
frame rate. Support for multiple encoding formats provides administrators the flexibility to prioritize storage space and video
quality. Featuring live viewing of multiple channels, users can simply drag and drop selected cameras to the viewing area.
Smooth Streaming from Anywhere
The DNR-4020-16P also enables users to remotely view and manage the NVR from anywhere via a web browser. The Gigabit
Ethernet port provides superior bandwidth for viewing 16 camera streams simultaneously, so critical moments can be monitored
and captured at all times. Rounding out the features is the JustConnect+ mobile app that lets administrators easily and remotely
access and monitor the DNR-4020-16P on a mobile device — making the JustConnect H.265 PoE Network Video Recorder a
complete, easy-to-use enterprise surveillance solution.

4D-Link DNR-4020-16P User Manual
Section 1 - Product Overview
Hardware Overview
Front View
1Power Indicator Lights up when the device is receiving power and the power switch is turned on.
2HDD Indicator Hard disk status indicator. This indicator flashes when data is being transmitted.
3KB/Mouse Port USB port for a mouse or keyboard.
4Backup Port USB port for a flash drive.
1 2 3 4

5D-Link DNR-4020-16P User Manual
Section 1 - Product Overview
Rear Panel (Connections)
1PoE Ports PoE ports that offer direct connection to up to 16 cameras.
2LAN Uses a standard Ethernet cable to connect to a switch or router.
3Audio OUT Connect external speakers for live audio or audio playback.
4VGA Output Output connector for a VGA monitor.
5USB 2.0 Port Connect a USB storage device such as a flash drive.
6Power Connect the supplied power cord to the input port.
7Audio IN Connect a microphone to use 2-way communication with your camera(s).
8HDMI Output Output connector for an HDMI monitor.
9Alarm I/O Alarm I/O ports for connecting to sensors or other devices.
10 Power Switch Press“1” to turn the device on, “0”to turn it off.
1 2 3 4 5 6
7 8 9 10

6D-Link DNR-4020-16P User Manual
Section 2 - Installation
Installation
Hard Drive Installation
1. First, make sure the power cable is not plugged into a power outlet. Remove the fixing screws from the top cover of the
DNR-4020-16P, then remove the top cover from the device.
2. Insert two screws into the holes near the rear panel of the hard drive. Turn the screws twice, so that they protrude slightly.

7D-Link DNR-4020-16P User Manual
Section 2 - Installation
3. Insert the hard drive into the drive bay of the DNR-4020-16P, fitting the heads of the two screws into the slots on the
bottom of the device. Slide the hard drive toward the center of the DNR-4020-16P so that it locks into position.
4. Turn the device over and secure the hard drive inside the device by screwing the provided screws into the four remaining
holes on the bottom of the DNR-4020-16P. If desired, install a second hard drive by repeating steps 1-4. Attach the hard
disk data cable and power cable to the device, then reattach the top cover and fasten the fixing screws..
5. Re-attach the top cover by sliding it over the device. Re-insert the shorter screws in the rear and the longer screws in the
sides of the cover to secure it.

8D-Link DNR-4020-16P User Manual
Section 2 - Installation
Setting Up Your DNR-4020-16P (HDMI / VGA)
You can connect PoE network cameras directly to your DNR-4020-16P using the 16 PoE ports on the rear panel.
For non-PoE network cameras, you will need to locate power outlets in the on-site environment then run a CAT5 UTP cable to
the LAN ports on the NVR.
You can set up your NVR without using a PC by connecting a VGA or HDMI display to the respective port on the back of the
device. To control the Graphical User Interface (GUI), connect a USB mouse to the USB port on the front panel.

9D-Link DNR-4020-16P User Manual
Section 2 - Installation
Initial Conguration
1. You can set up your NVR without using a PC by connecting aVGA or HDMI
display to the respective port on the back of the device. To control the
Graphical User Interface (GUI), connect a USB mouse to the USB port on
the front panel. After powering on the DNR-4020-16P for the first time,
the Login window will appear in the center of the screen.
2. Select your preferred language, and enter a user name and password that
will be used to access the management interface. Confirm the password
by retyping it.
3. In the Default channel password field, enter the password that will be
used to view and configure the device’s channels. Click OK to continue.
4. On the next screen, reenter the admin password and click Login to access
the management interface.

10D-Link DNR-4020-16P User Manual
Section 2 - Installation
You can set up the NVR and add cameras by using the setup wizard that will
automatically load after logging in. Click Start Wizard to begin.
Configure the DNR-4020-16P’s settings on the subsequent pages. For more
detail, refer to the corresponding pages:
• Network: Refer to page 44
• Date and Time: Refer to page 61
• Camera: Refer to page 12
• Disk: Refer to page 33
• Resolution: Refer to page 15

11D-Link DNR-4020-16P User Manual
Section 2 - Installation
Live View
On this screen you can view the DNR-4020-16P’s channels and access its
various configuration options. Click the plus (+) icon in the top right corner
of an unconfigured channel window to add a new camera and configure it.
For more in-depth configuration options, hover the mouse over the bottom
left corner of the screen and click System or click the right mouse button.
To view recordings, click Playback.
Other options are also available on the bottom taskbar. From left to right:
• Split Screen: Set how many channels should be displayed on the home
screen
• Previous/Next Page: Step forward or backwards through the channels
• Auto Sequence: Automatically configure the channel display and begin
cycling through channels
• Volume: Increase or decrease the NVR’s volume
• Playback: Quickly access the Playback screen
• Channel Information: Determine what channel information to display
on this page
• Manual Alarm: Quickly configure the alarm interfaces on the NVR and
its connected cameras
• Event List: Display a list of recent events, such as motion detection and
triggered alarms
• Stop Alarm: Stop an alarm that is currently in progress
• Information: Display information about the DNR-4020-16P, such as its
operational status and IP address

12D-Link DNR-4020-16P User Manual
Section 3 - Configuration
Channel
IP
Model
Protocol
Firmware
Version
Operate
The channel the specified camera is on.
The camera’s IP address.
The camera’s model number.
The protocol used to communicate with the camera.
The firmware the specified camera is running.
Click this to set or update the camera’s settings.
Setup
Channel
Camera
On this page, you can configure the DNR-4020-16P’s 16 channels and add cameras to them. To search for available cameras,
click Start Search. To add cameras to a channel, enter the username and password in the fields at the bottom of the
screen and click Add.

13D-Link DNR-4020-16P User Manual
Section 3 - Configuration
Channel
Name
IP Address
Protocol
Port
Username:
Password:
Remote
Channel
Enter a name to identify the channel.
Enter the IP address of the camera. If the camera is connected
to one of the NVR’s PoE ports, it will attempt to detect the IP
address automatically.
Select the protocol to use (e.g. ONVIF).
Enter the port used to connect to the camera.
Enter the username used to access the camera.
Enter the password associated with the username above.
Designate a channel for the camera’s display.
Configuring a Channel
Click the pencil icon under Operate to add a camera on a channel or to configure an existing channel.

14D-Link DNR-4020-16P User Manual
Section 3 - Configuration
Custom
Protocol
Protocol
Name
Stream Type
Protocol Type
Port
Abs Path
Designate the custom protocol to use (select 1-16 from the
drop-down menu).
Specify a protocol name to use.
Select Main Stream or Sub Stream. If you select Sub Stream, the
options on the right will be enabled.
Select the protocol type to use for the stream. This is set to
RTSP by default.
Select the RTSP port to use. This is set to 554 by default.
Enter the absolute path for the RTSP connection to use.
RTSP Connection
Use this page to configure your Real Time Streaming Protocol (RTSP) connection settings.

15D-Link DNR-4020-16P User Manual
Section 3 - Configuration
Channel
Stream
Information
Video Format
Audio Encode
Type
Resolution
Frame Rate
(fps)
Bitrate Type
Specify the channel to modify.
Indicates which stream the following information pertains to
(i.e. Main Stream or Sub Stream).
Select the video encoding format to use for the channel (e.g.
H.265, H.264, etc).
Select the audio encoding format to use for the channel (e.g.
G711A, G711U, etc).
The resolution to use for the channel’s display.
The frame rate at which to display the video.
Select the bitrate type (e.g. CBR, VBR, etc)
Encode
On this page, you can change the encoding settings for the video and audio streams on a particular channel.
