DSL-100D Installation Guide
Model: DSL-100D PCI ADSL Modem
Driver Version dslhamgm.inf 29 12 00 dslhw9x.inf 29 12 00
OS Supported: Windows 95, Windows 98, Windows 98SE, Windows Me, Windows
NT 4.0 and Windows 2000.
Installation
To install the DSL-100D, please unzip the drivers onto the hard disk first, the NIC must be
inserted in a empty 2.1 or 2.2 PCI slot. Once the PCI card is installed boot up the OS. There
are separate drivers for Windows 95 98 98SE, Windows Me and Windows NT 4.0 2000 and the
configuration procedure is the same for all the operating systems.

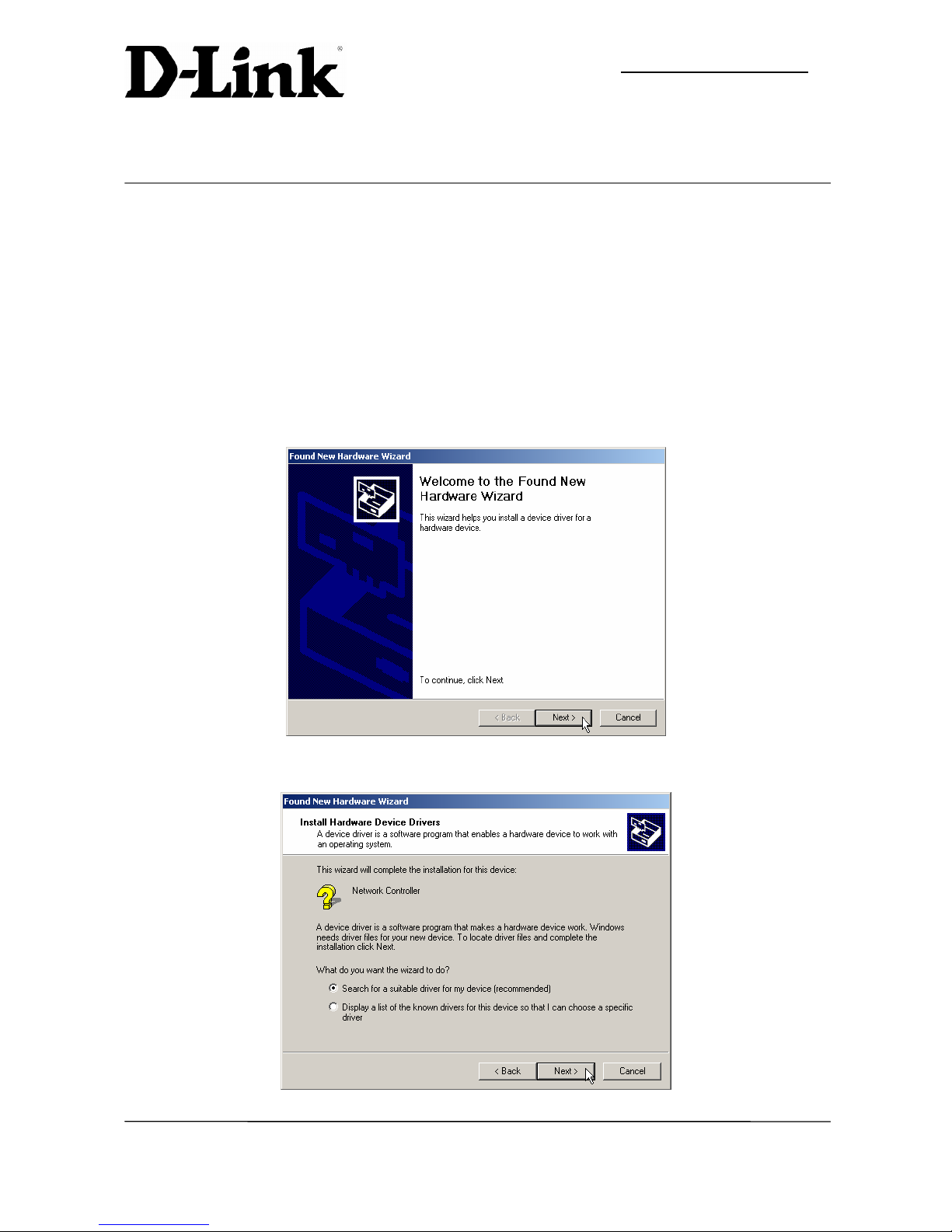

Once the Windows 2000 is booted the New Hardware Wizard will discover the device.
Fig.1 New Hardware Wizard
Please notice the device is found as a Network Controller, this is normal.
Fig.2 Network Controller

Copyright D-Link Europe Technical Support
All trademarks acknowledged
Page 2

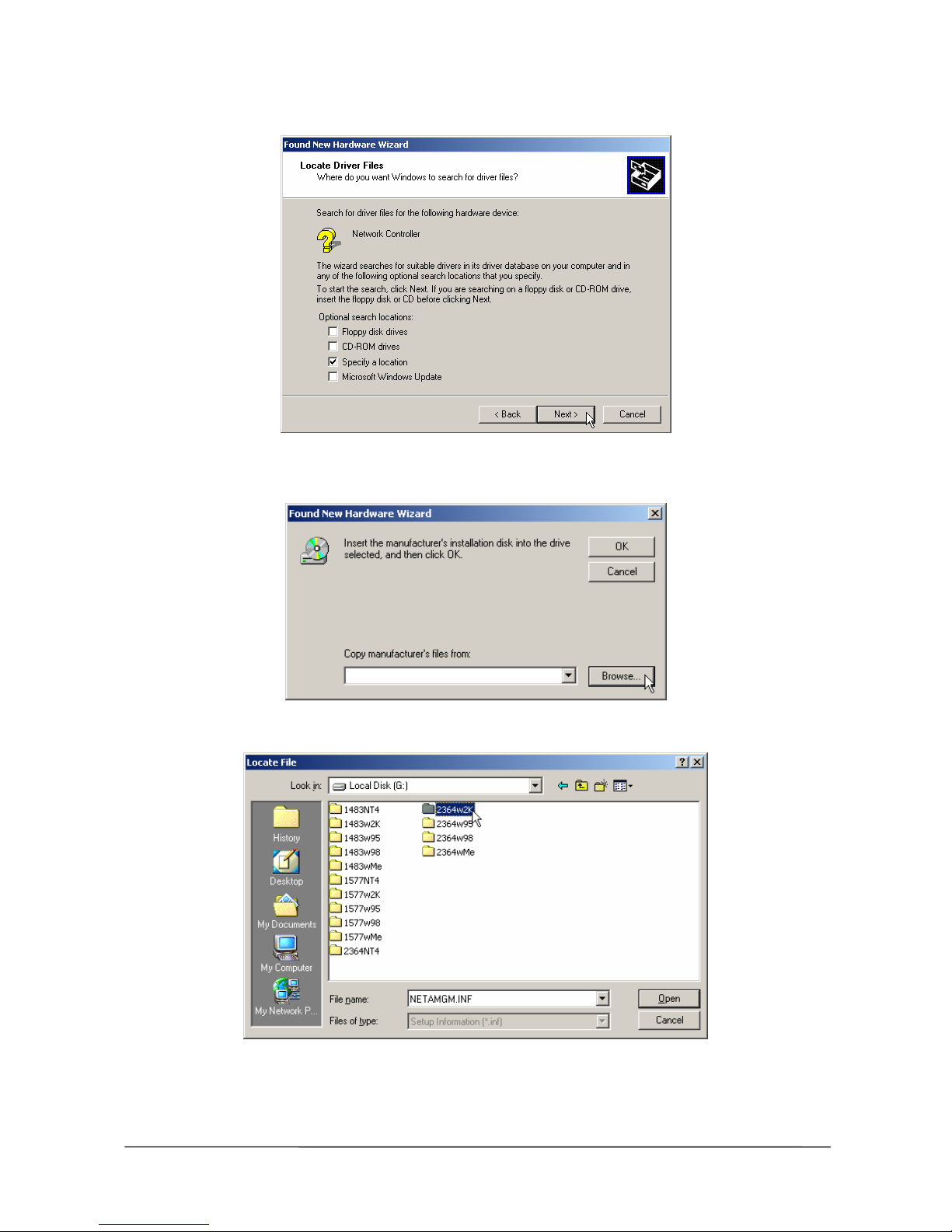

Chose the option “Specify a Location”.
Fig.3 Specify Driver Files
Please browse the path for the driver location on the hard disk or where you have extracted the
zip.
Fig.4 Driver location
Please select the netamgm.inf file
Fig.5 Locate File

Copyright D-Link Europe Technical Support
All trademarks acknowledged
Page 3
The operating system will automaticly select the correct INF file.
Fig.6 File selection
The location confirms if the driver location.
Fig.7 Confirm location
The OS confirms the product loaded.
Fig.8 Drivers are confirmed

Copyright D-Link Europe Technical Support
All trademarks acknowledged
Page 4

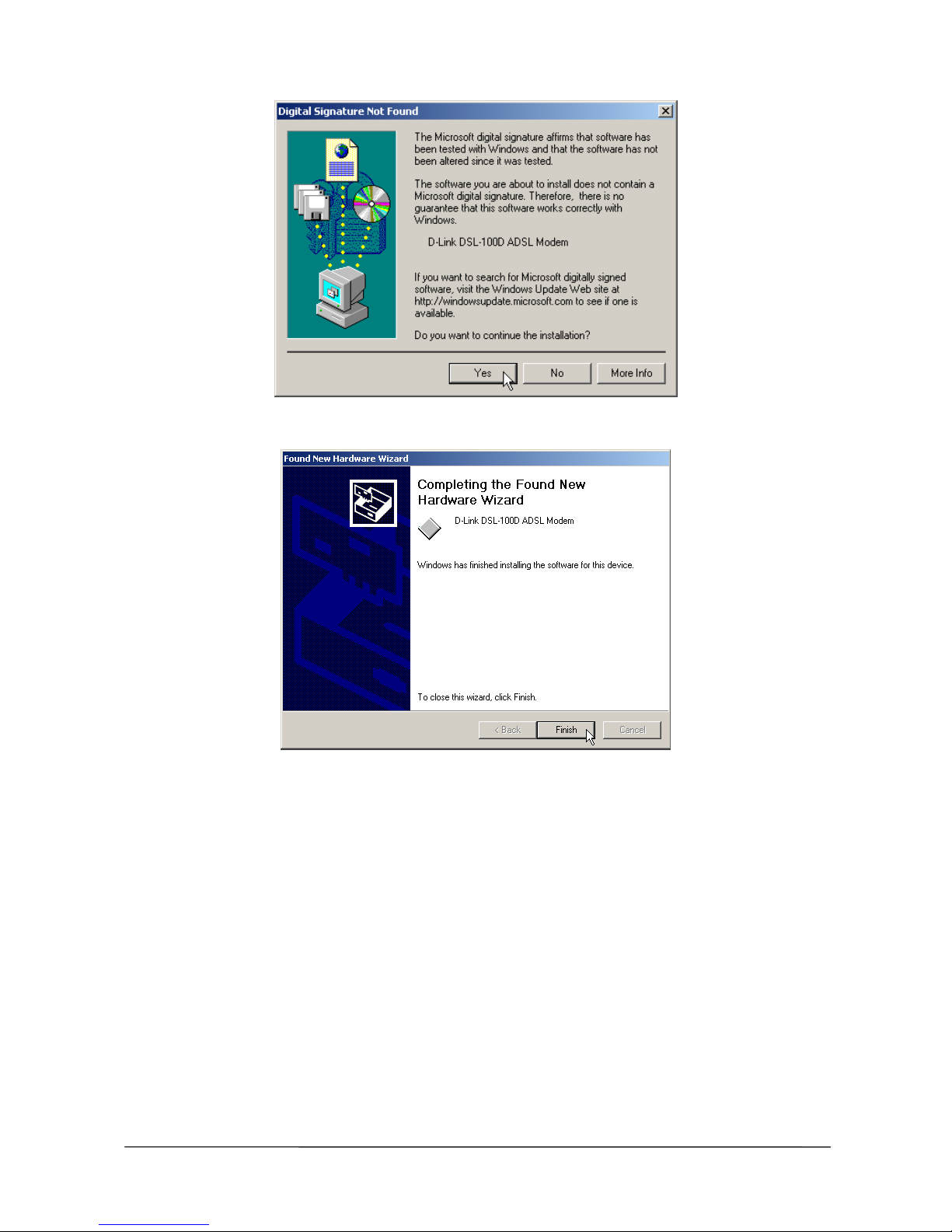

The OS states that there is no digital signature, please continue.
Fig.9 Digital Signature
The wizard has finish please restart your PC.
Fig.10 Wizard completed

Copyright D-Link Europe Technical Support
All trademarks acknowledged
Page 5

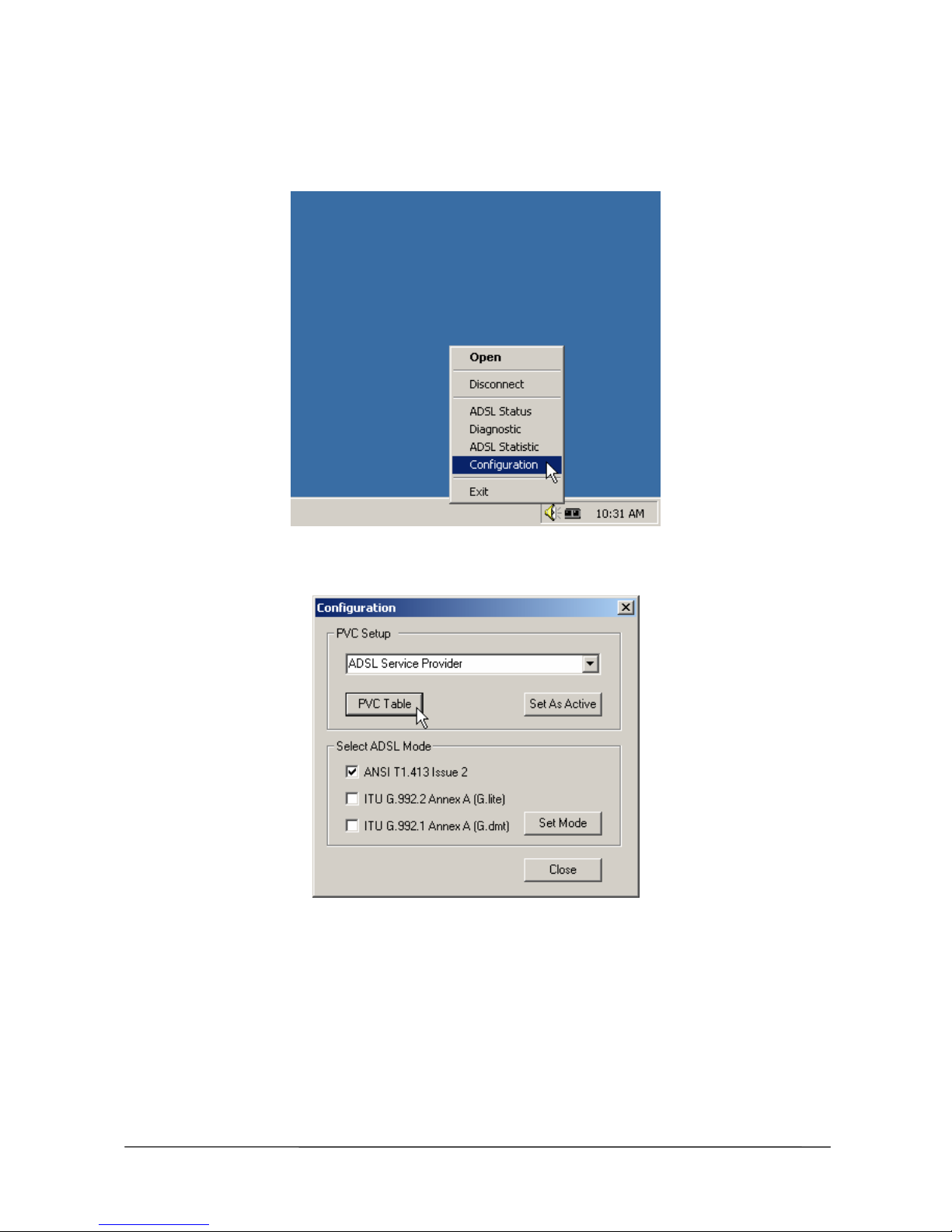

Configuration Utility
The following screenshots are for the DSL-100D DSL configuration. Which is the same for all
the Operating Systems that the DSL-100D supports. The service in the United Kingdom is
currently only provided by BT via various vendors to busniess and end-users.
Fig.11 DSL Configuration
For BT Openworld the ADSL mode should be ANSI T1.413 Issue 2 only.
Fig.12 Main Menu

Copyright D-Link Europe Technical Support
All trademarks acknowledged
Page 6

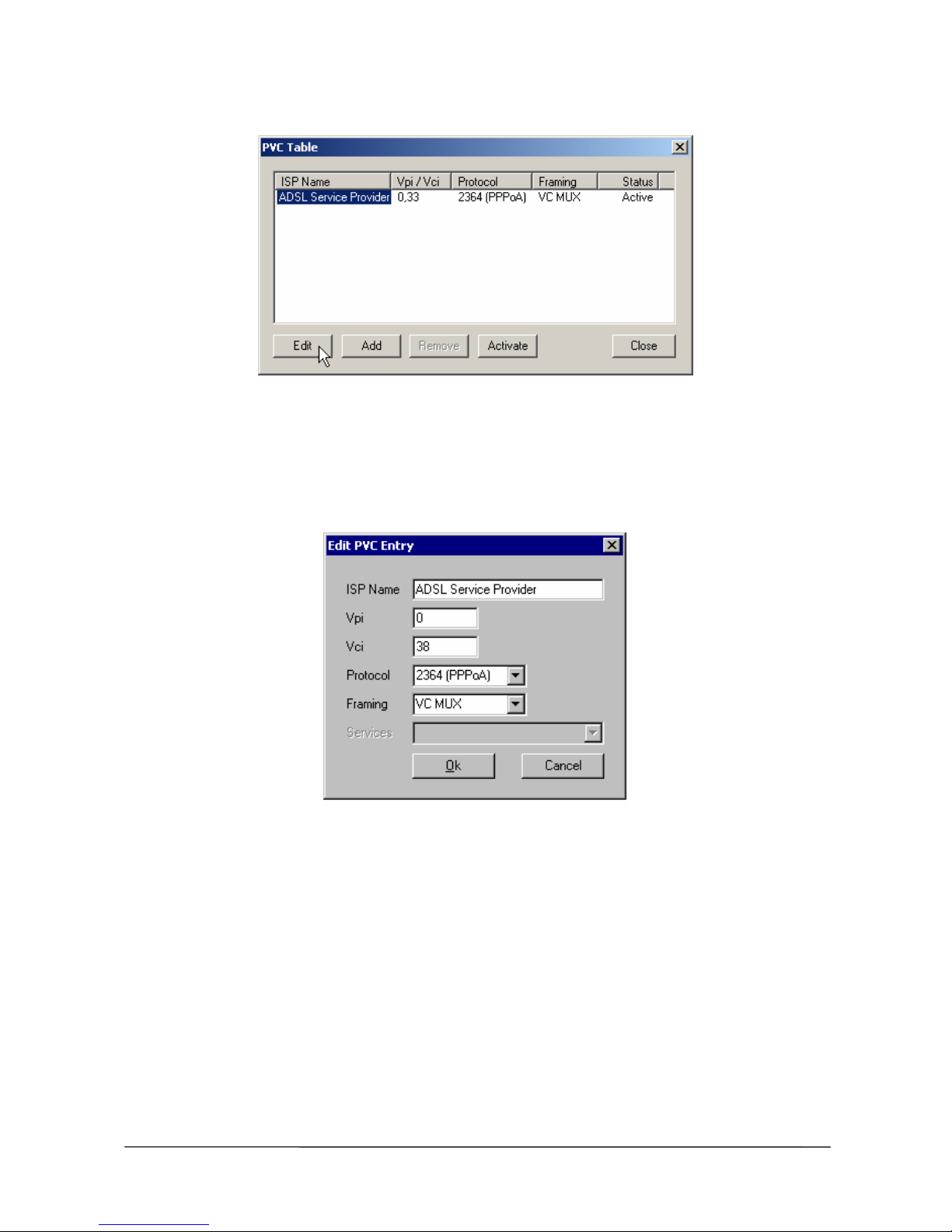

The Private Virtual Channel (PVC) entry is required for the ATM link with the PPPoA protocol
set.
Fig.13 PVC Table
For the United Kingdom with BT please enter the following details, other countries please check
with your ISP or local D-Link office for the particular settings.
ISP Name; Name your DSL ISP
Virtual Path Identifier (VPI): set to 0
Virtual Channel Identifier (VCI): set to 38
Protocol Framing: set to VC MUX
Fig.14

Copyright D-Link Europe Technical Support
All trademarks acknowledged
Page 7

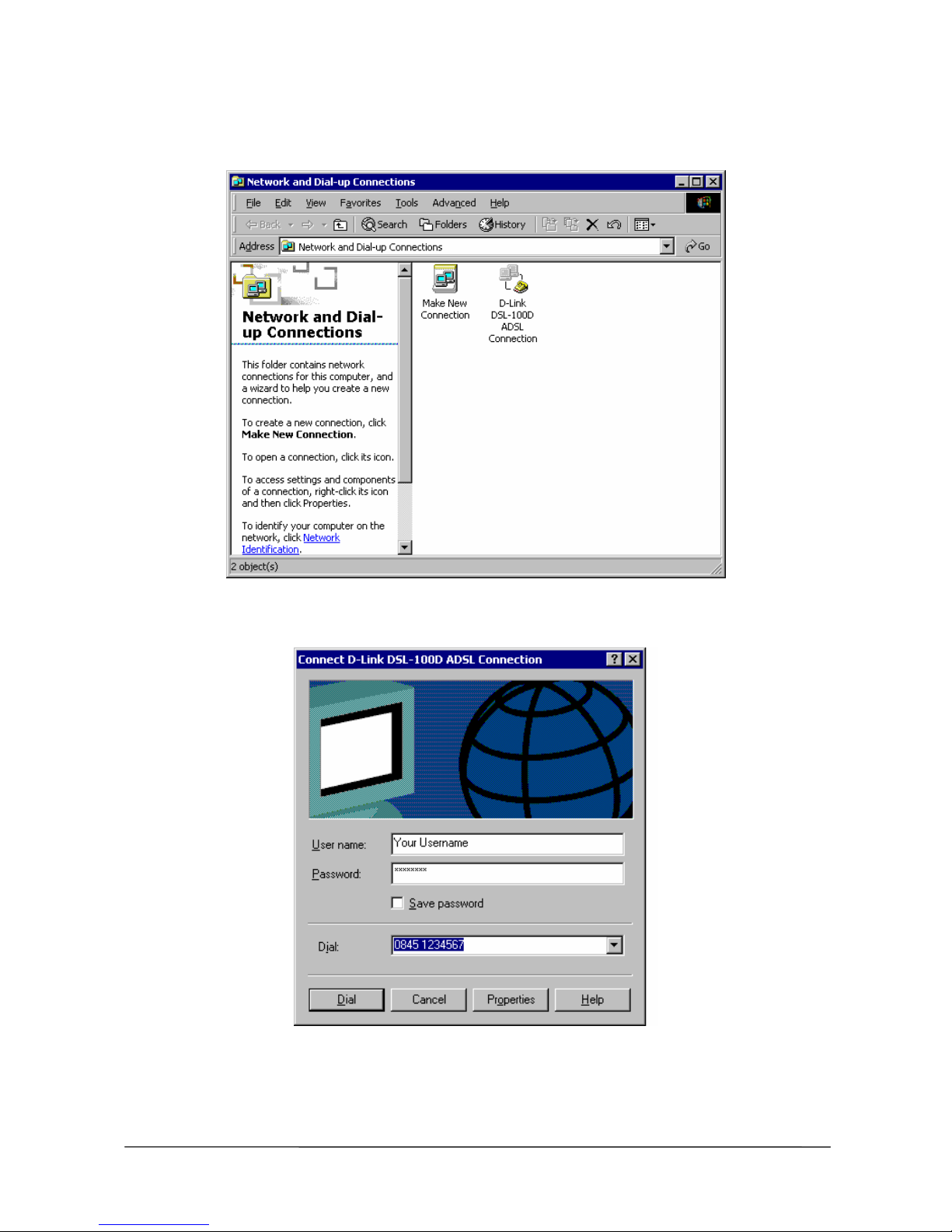

After the DSL-100D has been installed, please double-click on the “D-Link DSL-100D ADSL
Connection” Icon that is located in the “Network and Dial-up Connections” This will allow you
to start the logon for the DSL ISP.
Fig.15 Network and Dial-up Connections
Please enter the user details for you account.
Fig.16 Connection Wizard

Copyright D-Link Europe Technical Support
All trademarks acknowledged
Page 8

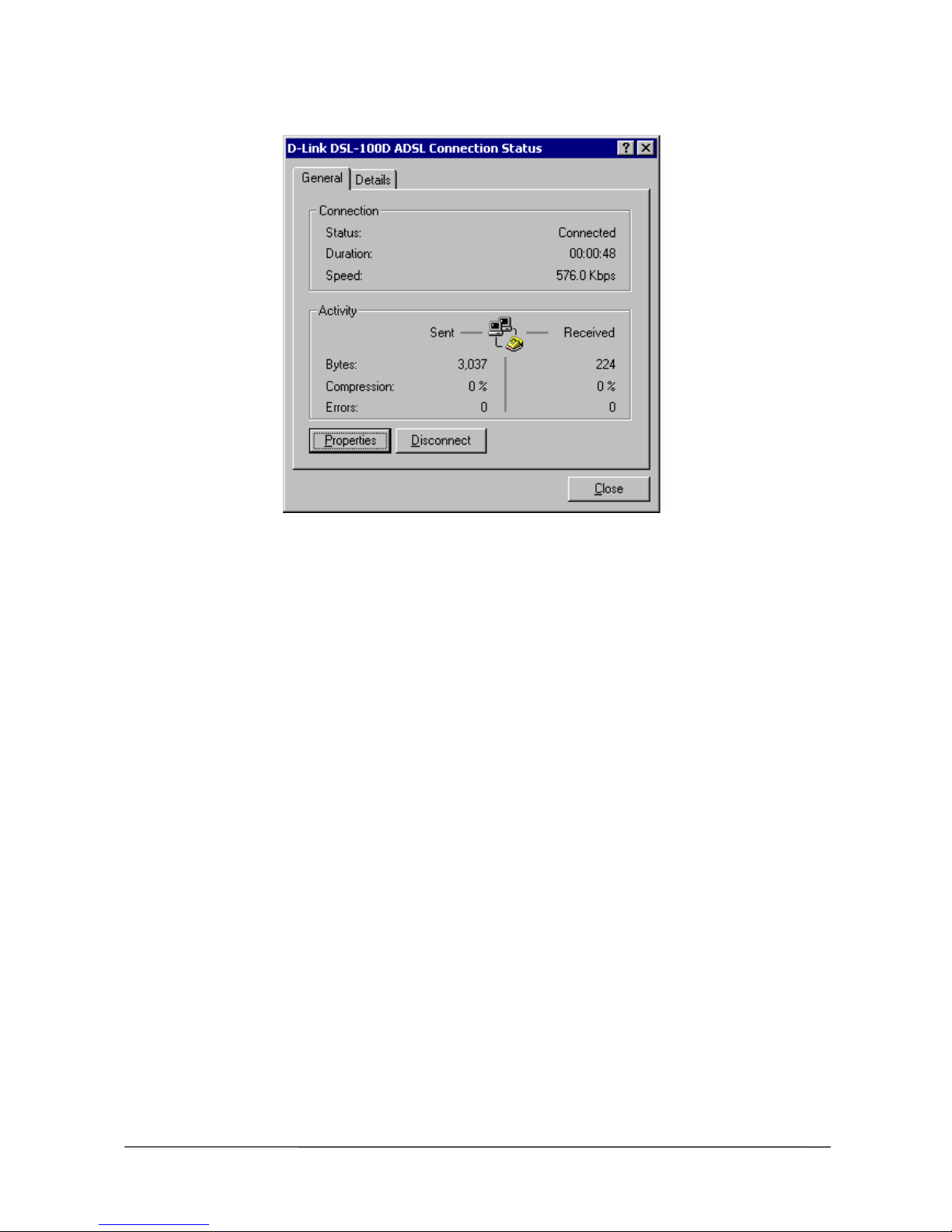

Once you have succesfully connect the connection status will show the connection speed and
activity.
Fig.17 Connection Status
~End of Document~
