This User’s Guide tells you how to use the D-View network management system
(version 4.1 or later) to manage your DGS-3204 intelligent Gigabit Ethernet
switch, including how to install the D-View management module for the switch,
and how to use the module to control and monitor the switch. Additional
information on installing your switch and configuring it for management can be
found in the DGS-3204 User’s Guide.

DGS-3204 Ethernet Switch Management User’s Guide
Introduction 3
Introduction
DGS-3204 Intelligent Ethernet Switch
This guide discusses how to manage the DGS-3204 switch using the D-View
network management system. The DGS-3204 combines conventional Ethernet,
Gigabit Ethernet and switching technologies into one package. This device
features four ultra high-speed 1000BASE-SX Gigabit Ethernet switching ports
supporting.
Additional information about configuring the DGS-3204 Ethernet switch may be
found in the Ethernet switch’s hardware User’s Guide.
Network Management
As networks grow larger, network management becomes more and more of a
necessity. A large network requires a considerable amount of work to keep it
running smoothly, including time and effort spent on user support,
troubleshooting, network planning, and performance monitoring. The intent of a
network management system (NMS) is to make it possible to monitor a widely
spread-out network (possibly spanning many different sites) from a centralized
location.
Network management works by placing a small degree of “intelligence” in the
network elements (routers, switches, hubs, hosts, etc.) to be managed. This
intelligence takes the form of an agent that is capable of collecting statistics and
status information, as well as performing control operations that affect the
operation of the network. The agent responds to commands and requests for
information from the centralized network management system, allowing the
health and performance of the network to be monitored and adjusted.

DGS-3204 Ethernet Switch Management User’s Guide
4Introduction
A network protocol known as the Simple Network Management Protocol
(SNMP) is generally used to communicate between network management
stations and the devices they manage. SNMP was originally developed for
controlling the devices that made up the infrastructure of the Internet, and has
become the primary standard for network management. SNMP commonly runs
“on top of” the TCP/IP Internet Protocol, though other transmission methods are
possible.
Because a network management station can be used to manage a wide range of
devices, network management software is generally divided into two different
parts: a base platform consisting of software common to the management of all
devices; and a set of modules, each of which can communicate with a narrow
range of devices by way of their SNMP-based agents. If a new device type is
added to the network, then a new module (compatible with the particular
platform being used) needs to be added to facilitate its management.
This manual describes the module used on the D-View platform for controlling
DGS-3204 intelligent Gigabit Ethernet switches.

DGS-3204 Ethernet Switch Management User’s Guide
Installing the Management Module 5
Installing the Management Module
This section describes the requirements and procedures for installing the DGS-
3204 management module on your network management system.
Requirements
We recommend that your system meet the following requirements to be able to
use the DGS-3204 switch management module:
♦A PC-compatible computer with a 486DX2-66 or faster processor
♦Microsoft Windows version 3.1xor Microsoft Windows 95 or later
operating system.
♦D-View SNMP Network Management Program, version 4.1 or later.
♦8 megabytes (16M preferred) of main memory (RAM)
♦At least 10 megabytes of free hard disk space
♦A Windows-compatible mouse or other pointing device
♦An Ethernet network card with appropriate drivers
♦CD-ROM drive

DGS-3204 Ethernet Switch Management User’s Guide
6 Installing the Management Module
Installing the Module Software
Note: Please ensure that the D-View platform program has been installed
on the computer you are using for network management before proceeding.
Take the following steps to install the module on your network management
system:
1. Exit D-View if you are running it.
2. Insert the Setup/Application CD-ROM containing the module into your
CD-ROM drive (E: will be used in this manual although your CD-ROM
drive letter may be different).

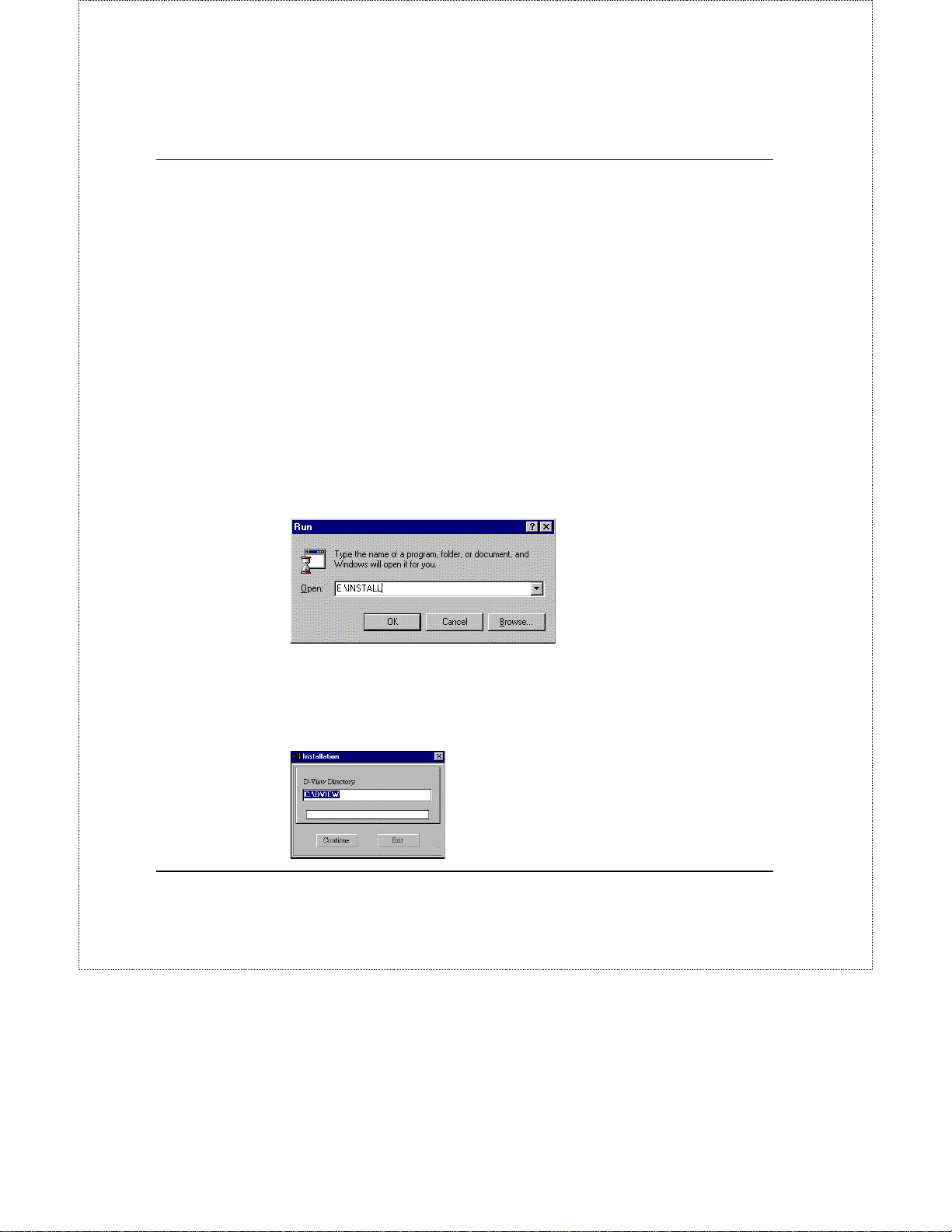

3. If you are using Windows 3.1, choose Run… from the Program
Manager’s File menu. Under Windows 95, choose Run… from the
Start menu on the taskbar. When the dialog box appears, type the
pathname of the Install program on the CD-ROM drive
(E:\INSTALL)
4. Click OK. The installation program will start.
5. When the program prompts for your D-View Directory, enter the
pathname of the directory where you installed D-View, and click
Continue.

DGS-3204 Ethernet Switch Management User’s Guide
Installing the Management Module 7
6. The installation program will install all of the necessary files onto your

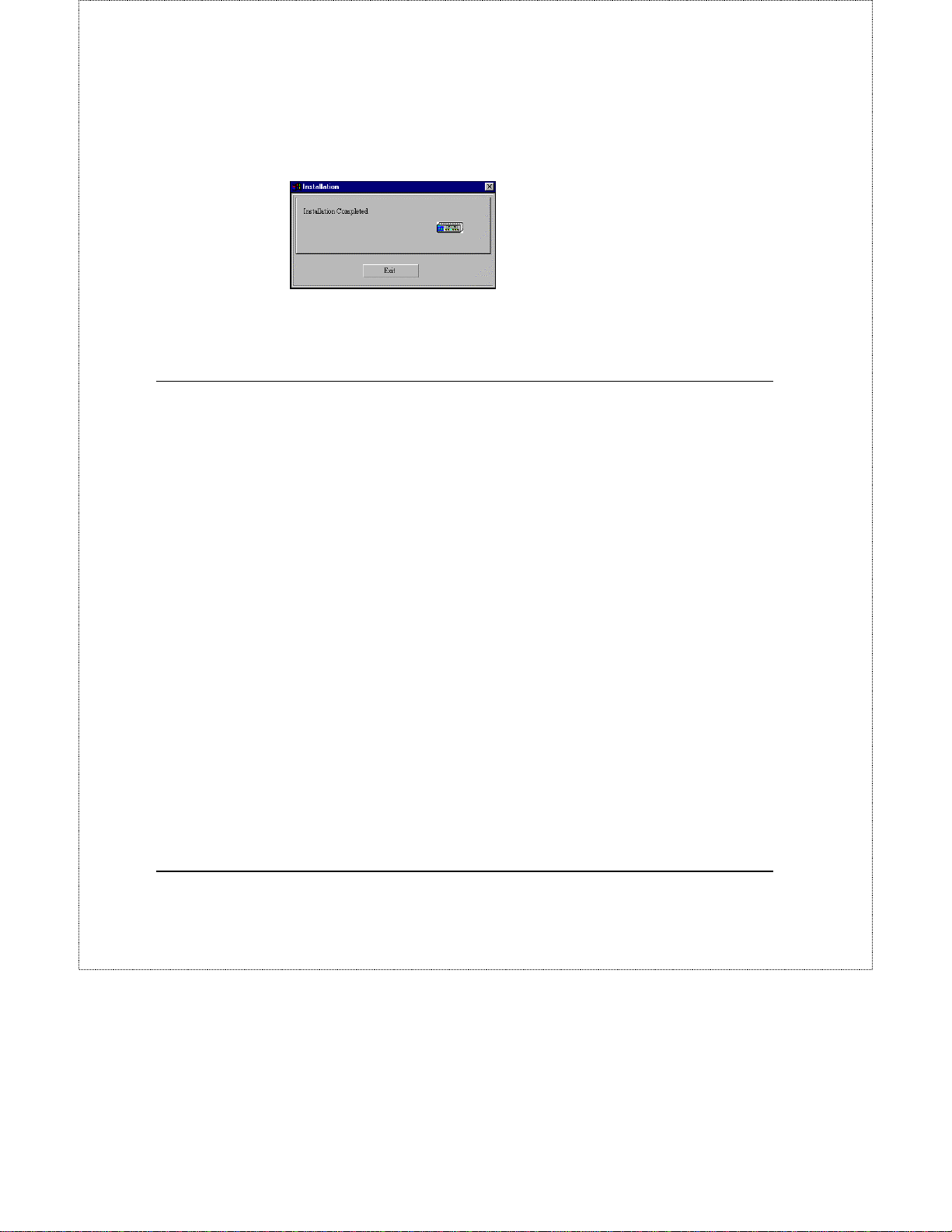

system. When it is finished, it will display the following dialog:
Click on the Exit button. The D-View network management system is now ready
to manage DGS-3204 Ethernet switches.
Preparing the Switch for Management
You will need to make sure that your switch is properly set up before you can
use the management module:
♦Ensure that the switch is connected to the same network as the network
management station.
♦Ensure that the switch’s TCP/IP settings are set properly. If the switch is
on the same local network, the network portion of the switch’s IP address
needs to be the same as that of the network management station. If they
are on separate LANs, the TCP/IP gateway (router) field of both the
switch and the router need to be set properly so that information can be
routed properly between the switch and the management station.
For more information about these and other items, consult the DGS-3204
hardware User’s Guide.

DGS-3204 Ethernet Switch Management User’s Guide
8 DGS-3204 Management
DGS-3204 Management
Adding your DGS-3204 Switch to the Map
Before you can manage individual DGS-3204 Ethernet switches, you need to
add them to your D-View network map. You can do this either by:
♦Using D-View’s Auto Discover capability to add all new SNMP-
manageable devices to the map.
♦Using the Add-Modify Map Device command to place each switch on the
map.
To use the second method:

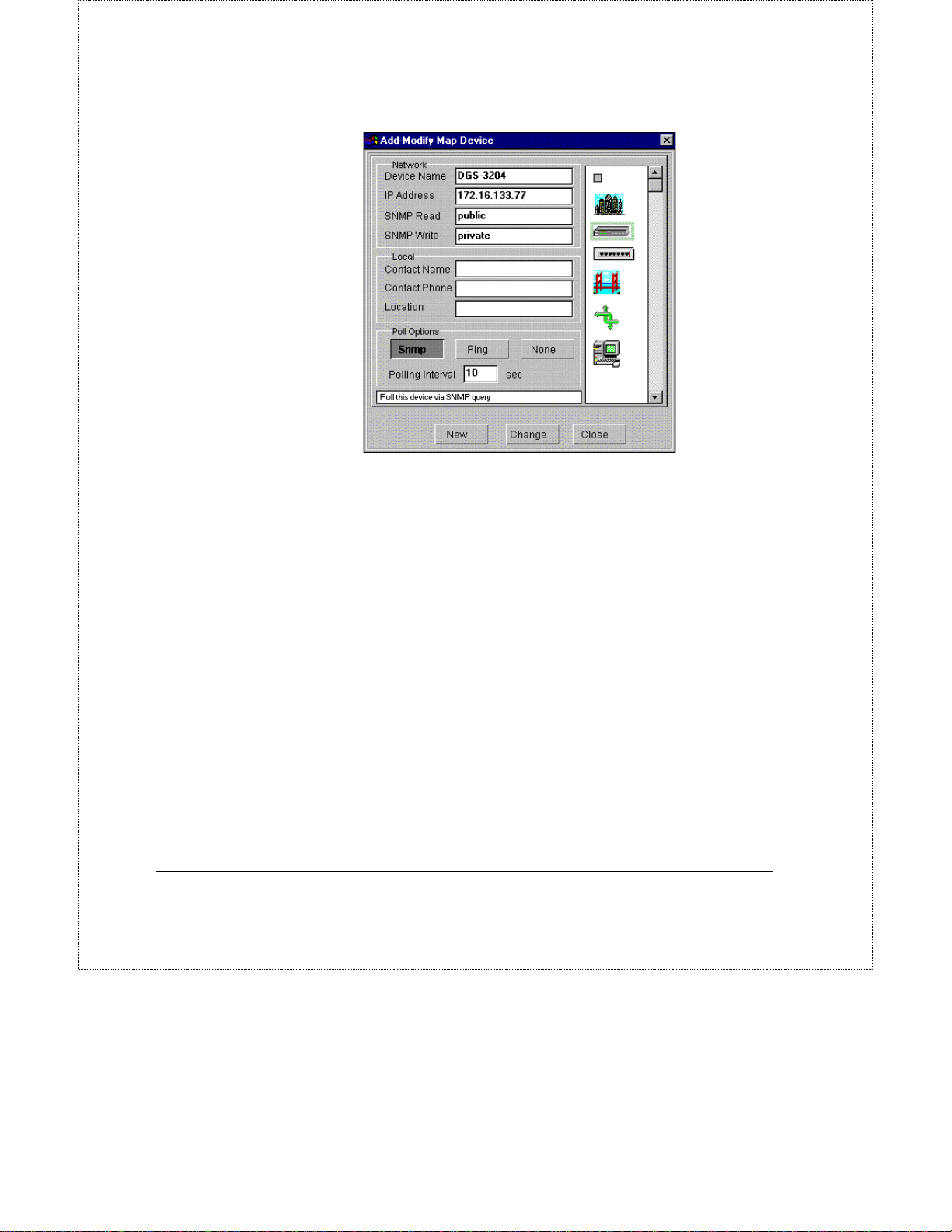

1. Press the Add/Modify a device on the map button shown below.
2. Select the DGS-3204 from the icon list at the right of the Add-Modify
Map Device dialog.

DGS-3204 Ethernet Switch Management User’s Guide
DGS-3204 Management 9
3. Give the switch a name, and enter its IP address and SNMP community
names.
4. Click on New.

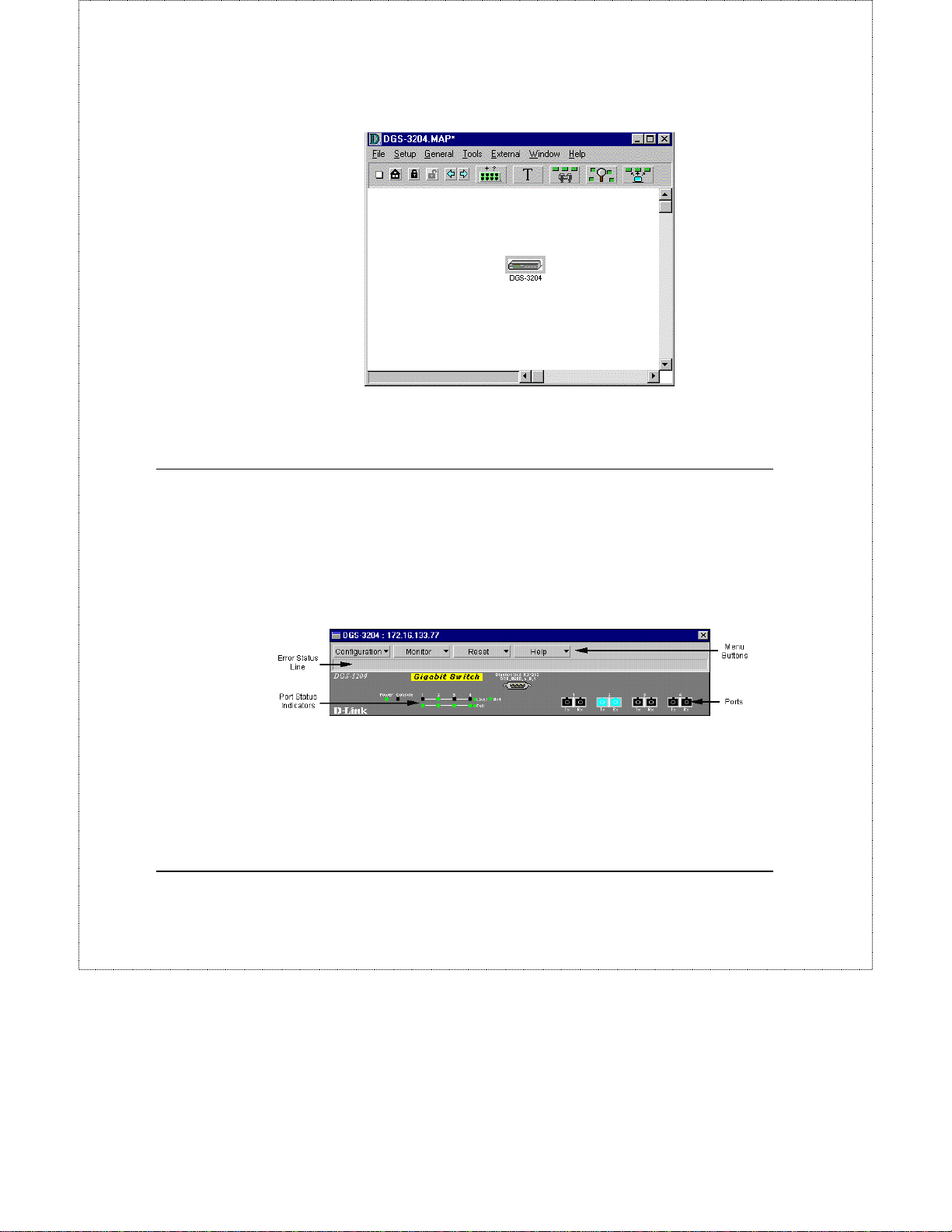

The DGS-3204 switch icon should now be displayed on your network map as
shown below.

DGS-3204 Ethernet Switch Management User’s Guide
10 DGS-3204 Management
The Module Display
Double-clicking on the icon in the network map causes the module display to
open. The module display is used to monitor and perform network management
functions on the selected device. The module display for the DGS-3204 appears
as follows:
♦Menu Buttons The Configuration, Monitor, Reset, and Help buttons
display their respective pull-down menus. The items listed in these
menus are described later on in this manual.

DGS-3204 Ethernet Switch Management User’s Guide
DGS-3204 Management 11
♦Error Status Line This line displays messages describing errors that
occur when the module is unable to obtain information it needs. When an
error occurs, a red border appears around the error status line.
♦Ports Each of the 1000BASE-SX ports on the front panel are depicted.
You can select individual ports to perform operations on them. Clicking
on the gray area immediately surrounding the ports will deselect the port
and select the switch as a whole.
♦Port Status Indicators There are corresponding port status indicators
for each of the ports on the switch. Each port indicator can be interpreted
as follows:
◊Link Lights green when the port is connected to a powered-on
Gigabit Ethernet device.
◊Act Lights blink off briefly when information is transmitted or
received on the port.
◊Full Lights green when the port is operating in full-duplex.

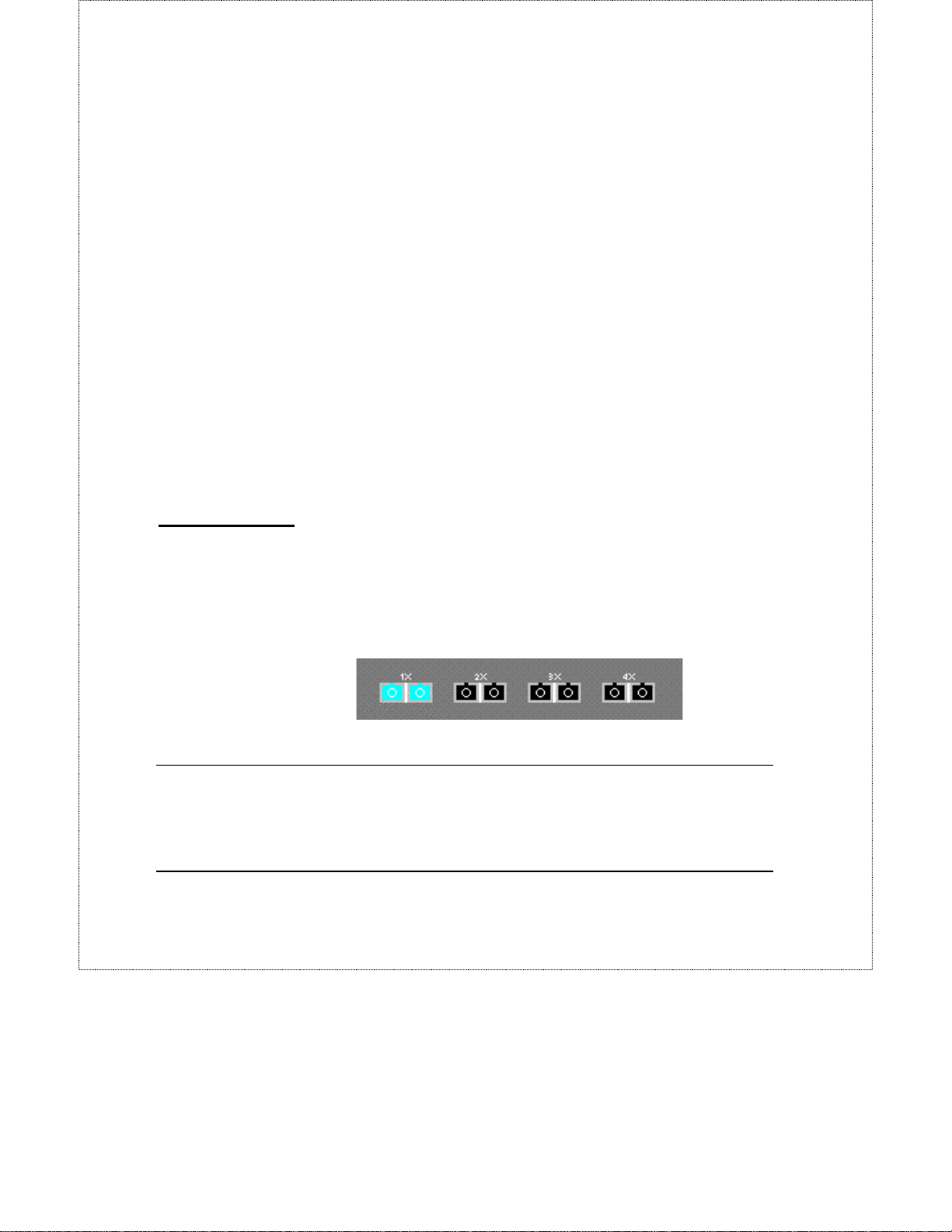

Selecting Ports
Many of the switch management functions can be applied to the switch itself, or
to a particular port. You can select an individual port by clicking on the port
itself. The color of the port will change to indicate that you have selected it (as
shown below). You can select the switch itself by clicking in the gray area
surrounding the ports, so that none of the ports are selected.
Menu Buttons
The menu buttons on the module - Configuration, Monitor, Reset, and Help –
are used to access all the configuration settings, polling parameters and viewing

DGS-3204 Ethernet Switch Management User’s Guide
12 DGS-3204 Management
tables used in management. The section below addresses the function and use of
each item in the menu button’s drop-down menus.
Configuration Menu Button
The Configuration menu contains options that allow you to get information
about current settings, configure switch parameters and setup the switch for

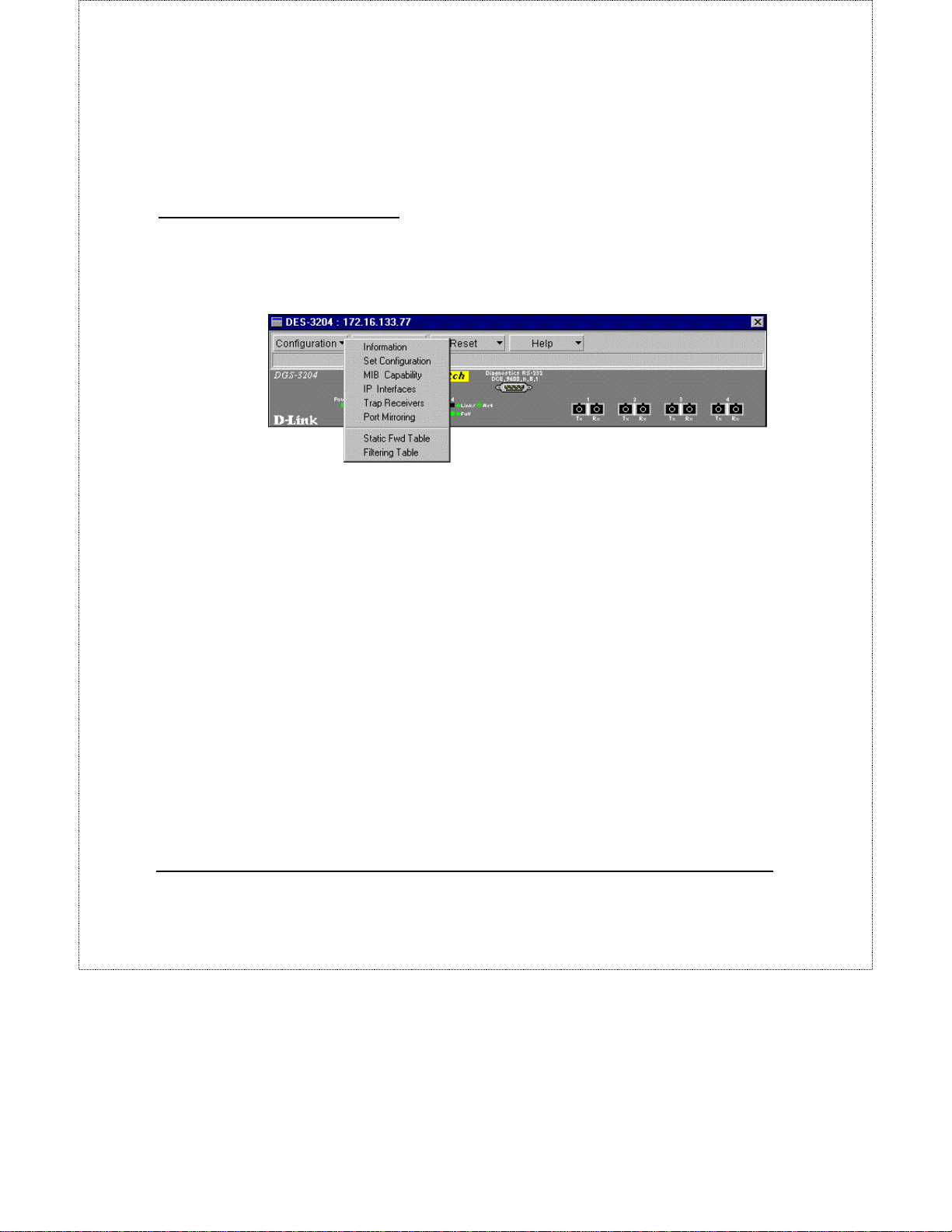

monitoring. The configuration menu appears as follows:
Information
There are two Information windows; one for the switch as a whole, and one for
the individual ports.
Switch Information

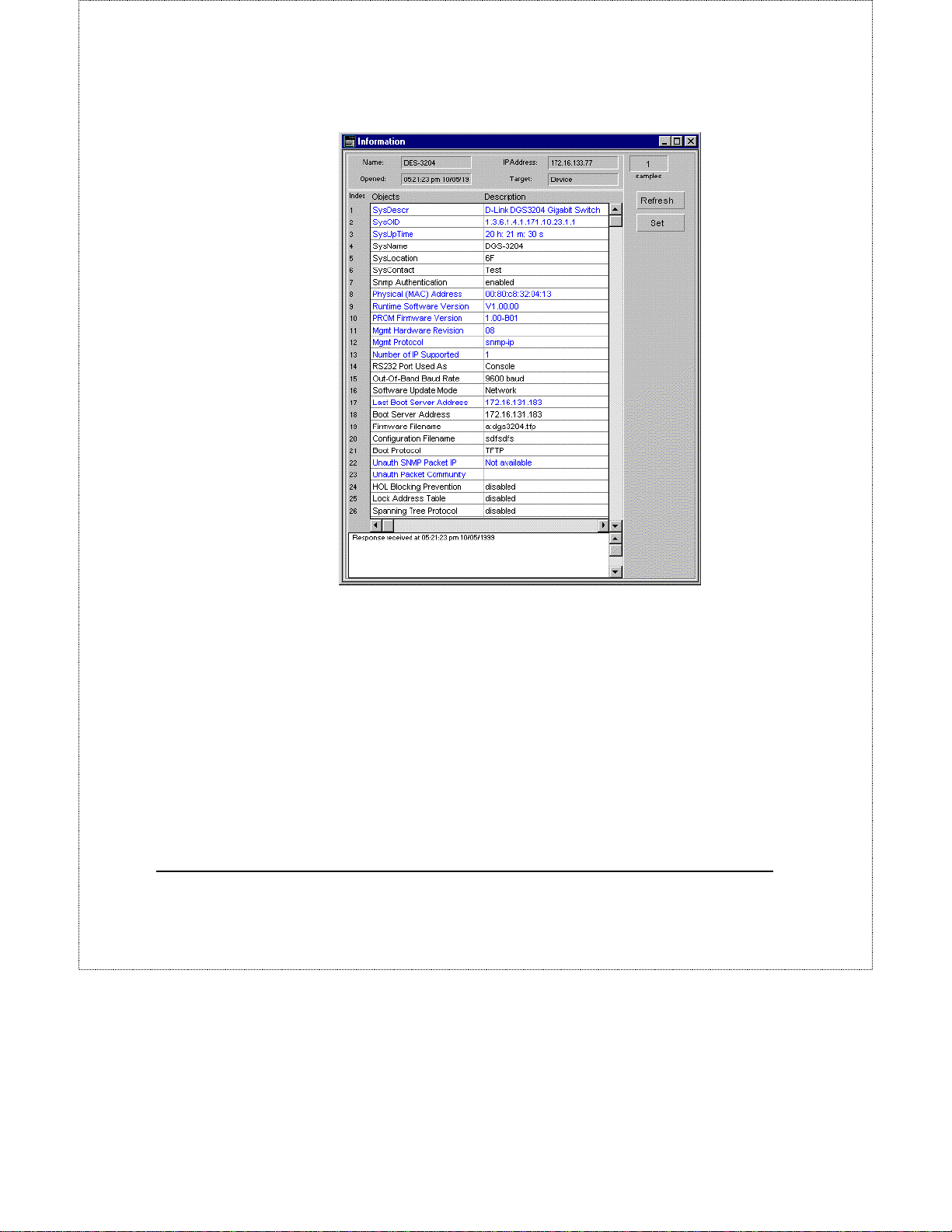

Choosing the first item – Information - in the Configuration menu when the
switch is selected (an individual port is not selected) causes the following
window to open:

DGS-3204 Ethernet Switch Management User’s Guide
DGS-3204 Management 13
The values in the window that are displayed in black can be changed either in
the D-View management module or by using the console program; values in blue
are fixed either by the hardware or by the switch’s firmware.
Clicking on the Set button allows you to configure settings for the switch, and
opens the Set Configuration window described later in this manual.
The items displayed in the Switch Information table are described as follows:
♦SysDescr A description of the switch type.
♦SysOID The SNMP Object Identifier for this switch model.

DGS-3204 Ethernet Switch Management User’s Guide
14 DGS-3204 Management
♦SysUpTime The amount of time that the switch has been powered on,
or since the last time the switch was reset.
♦SysName A user-assigned name for the switch. Information on
changing this setting can be found in the Set Configuration section below.
♦SysLocation A user-assigned description for the physical location
of the switch. Information on changing this setting can be found in the Set
Configuration section below.
♦SysContact User-defined contact information describing how to
find the person responsible for the switch. Information on changing this
setting can be found in the Set Configuration section below.
♦Snmp Authentication Enables a trap to be sent to the network
manager whenever an attempt is made to access the switch using an
invalid SNMP login password.
♦Physical (MAC) Address The physical (MAC) address of the
switch.
♦Runtime Software Version Version number for the
switching software that drives the switch.
♦PROM Firmware Version Version number for the software
stored in a PROM chip that takes the switch through that startup
sequence.
♦Mgmt Hardware Revision Version number for the switch’s
management hardware.
♦Mgmt Protocol Protocols supported by the switch’s management
hardware.
♦Number of IP Supported The number of TCP/IP channels
available for use for switch management. This will be 2 if the SLIP (Out-
of-Band) interface is enabled, and 1 if only the in-band Gigabit Ethernet
interface is available.
♦RS232 Port Used As Displays whether the RS232 port is
configured to support a console terminal connection or a SLIP
connection.

DGS-3204 Ethernet Switch Management User’s Guide
DGS-3204 Management 15
♦Out-Of-Band Baud Rate Displays the baud the RS232 port
is set to operate at.
♦Software Update Mode Displays whether the switch is
setup to download new software from a TFTP server on the Network, or
directly from a SLIP server.
♦Last Boot Server address Displays the last IP Address
used when using BootP or TFTP to boot up the server.
♦Boot Server Address Displays the IP Address of the server
currently used to boot up the switch.
♦Firmware Filename Displays the complete path and filename
of the firmware image file. This file is switching software used to replace
(upgrade) the existing switching software in the switch.
♦Configuration Filename Displays the filename of the
configuration file, which contains all settings in the switch.
♦Boot Protocol Displays the protocol – BootP or TFTP - that
will be used to boot the switch.
♦Unauth SNMP Packet IP When a request with an unknown
(unauthorized) SNMP community name is received, this entry shows the
source IP address of the most recent unauthorized packet.
♦Unauth packet community When a request with an unknown
(unauthorized) SNMP community name is received, this entry shows the
community name the most recent unauthorized packet was using.
♦HOL State Displays whether Head-Of-Line blocking is enabled or
disabled.
♦Lock Address Table Displays whether the Forwarding Table is
locked or unlocked.
♦Spanning Tree Protocol Displays whether the Spanning
Tree Protocol is enabled or disabled on the switch.
For more detailed explanations on the function and use of the above items,
please refer to the DGE-3204 User’s Guide.

DGS-3204 Ethernet Switch Management User’s Guide
16 DGS-3204 Management
Port Information

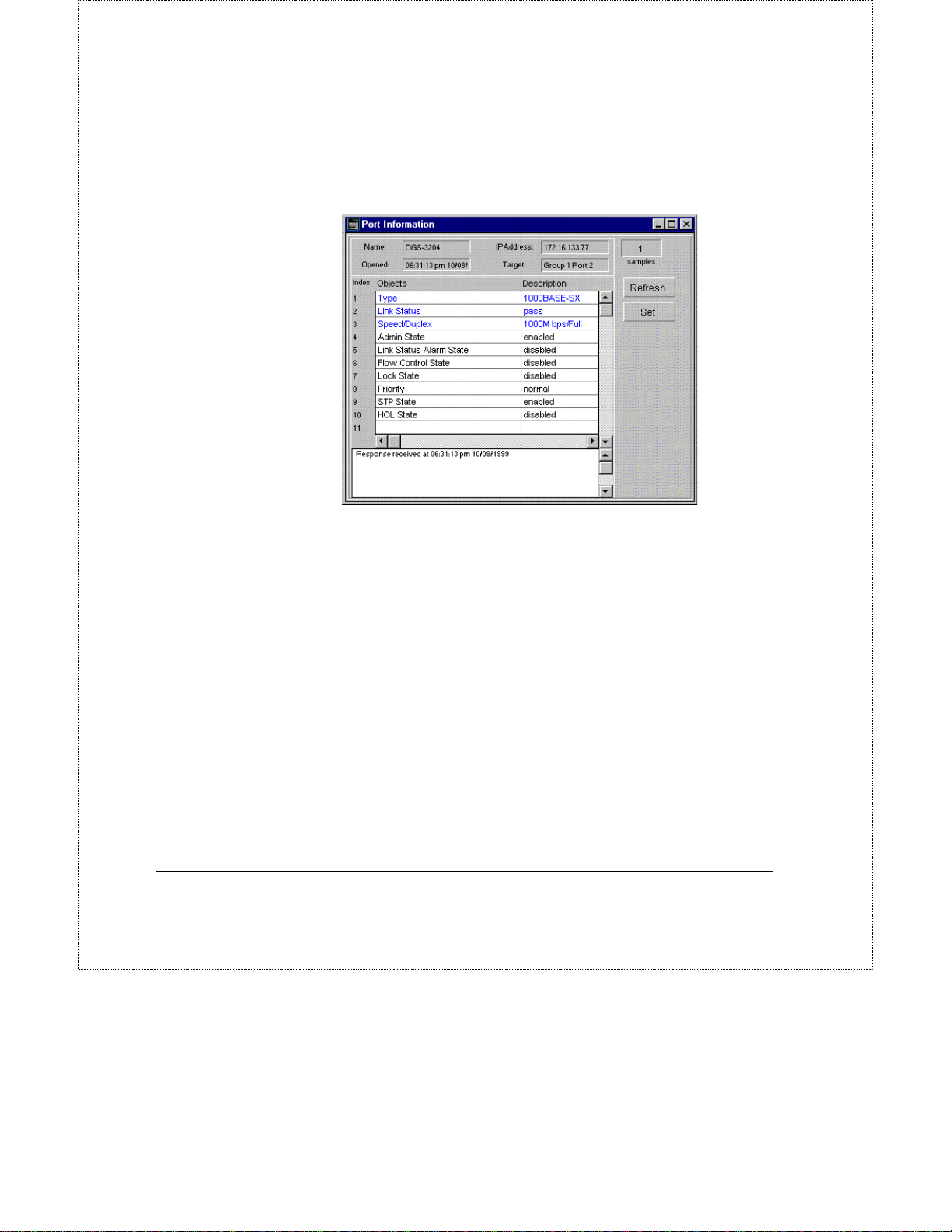

Choosing the first item – Information - in the Configuration menu when an
individual port is selected (colored blue) causes the following window to open:
Tip: Double-clicking on the port will also cause the above window to open.
The values in the window that are displayed in black can be changed either in
the D-View management module or by using the console program; values in blue
are fixed either by the hardware or by the switch’s firmware.
Clicking on the Set button allows you to configure settings for the selected port,
and opens the Port Configuration window described later in this manual.
The items displayed in the Port Information table are described below
♦Type The type of connection supported by the port.
♦Link Status Displays Pass when the port has a connection to
another Gigabit Ethernet device that is powered on. If no such connection
exists, it will display Fail.

DGS-3204 Ethernet Switch Management User’s Guide
DGS-3204 Management 17
♦Speed/Duplex Displays the current speed and duplex settings for
the port. All ports on the DGS-3204 can only be set to run at 1Gbps
(1000Mbps) at Full duplex.
♦Admin State When you disable the Admin State, the port will be
partitioned from the rest of the network. In this partitioned state, it will
only be able to accept management packets. All other packets will be
dropped.
♦Link Status Alarm State Displays whether the Link Status
Alarm, which sends a trap to the network manager whenever the Link
Status changes, is enabled or disabled.
♦Flow Control State Displays whether IEEE 802.3x flow
control is enabled or disabled on the port.
♦Lock State Displays whether the Forwarding Table for this port is
locked or not. When locked, automatic learning for all stations connected
to this port will stop and entries in the Forwarding Table for all devices
residing on this port will age out. The only traffic this port will allow is
traffic from machines manually entered in the Static Forwarding Table.
♦Priority Displays the whether traffic arriving at this port will be
given a high, normal or low priority in the switch’s packet queuing.
♦STP State Displays whether Spanning Tree Protocol is enabled or
disabled on this port.
♦HOL State Displays whether Head-Of-Line Blocking Prevention is
enabled or disabled on this port.
For more detailed explanations on the function and use of the above items,
please refer to the DGE-3204 User’s Guide.
Set Configuration
There are two Configuration windows; one for the switch as a whole, and one
for the individual ports.

DGS-3204 Ethernet Switch Management User’s Guide
18 DGS-3204 Management
Switch Configuration
Choosing the second item – Set Configuration - in the Configuration menu
when the switch is selected (an individual port is not selected) causes the
following window to open.
There are four tabs running along the top – General, Console, Servers,
Advanced – which allow you to configure a number of settings for the switch.
General
As shown in the Information window, the switch maintains the SysName,
SysLocation, and SysContact variables to assist with tracking and
accounting. You can set these fields in the Network Configurations dialog box
in this window.
The Send Authentication Fail Trap setting, if checked, enables a trap to be sent
to the network manager whenever an attempt is made to access the switch using
an invalid SNMP login password.
After making changes in the window, be sure to click on the Apply button to
activate them on the switch before clicking on another tab or closing the
window.
