D-Link DAP-1160 User manual

QUICK
INSTALLATION
GUIDE
WIRELESS N150 BRIDGE/ACCESS POINT
DA P -116 0
КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ
GUÍA DE INSTALACIÓN RÁPIDA
GUIA DE INSTALAÇÃO RÁPIDA
快速安裝指南
PETUNJUK PEMASANGAN CEPAT

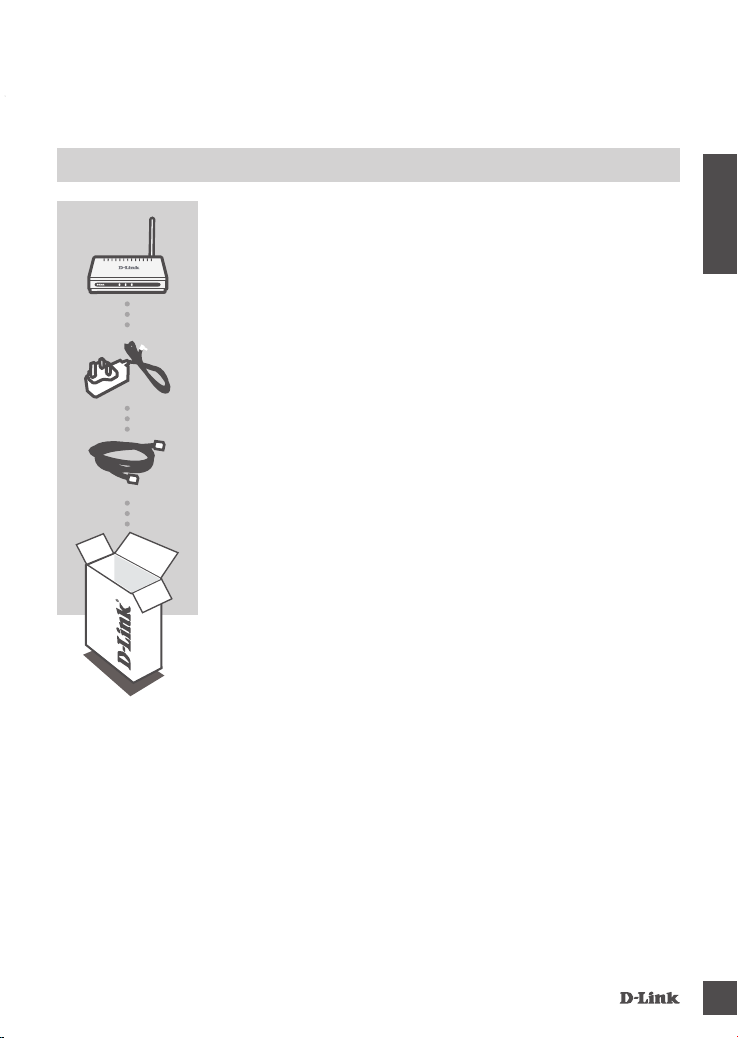

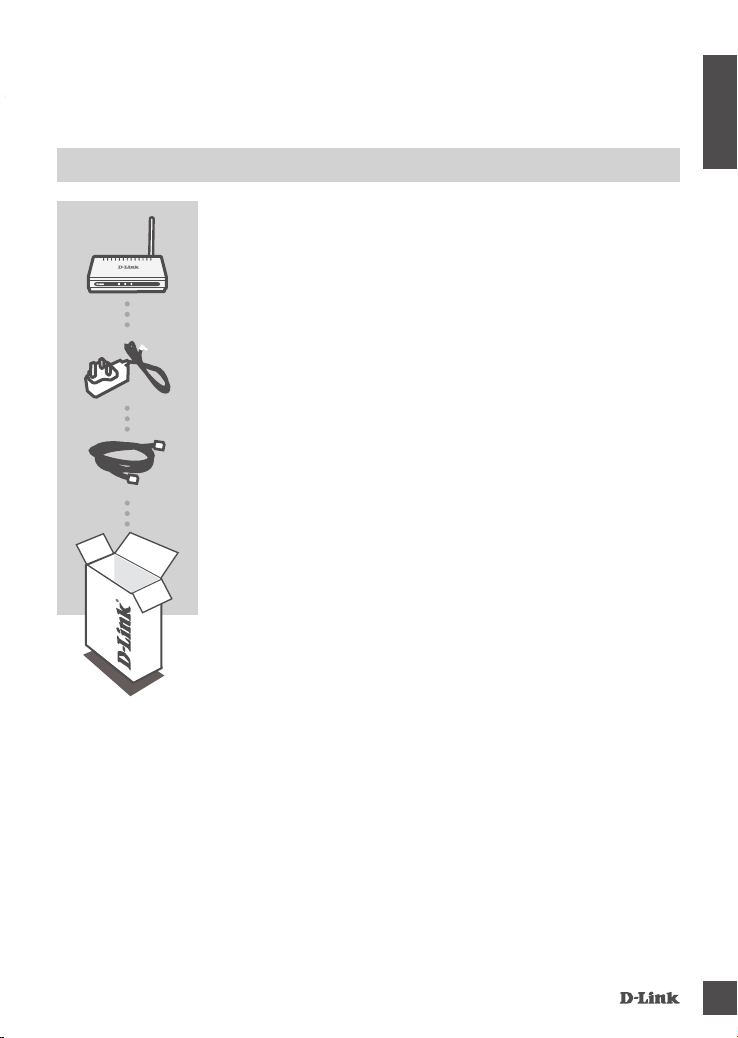

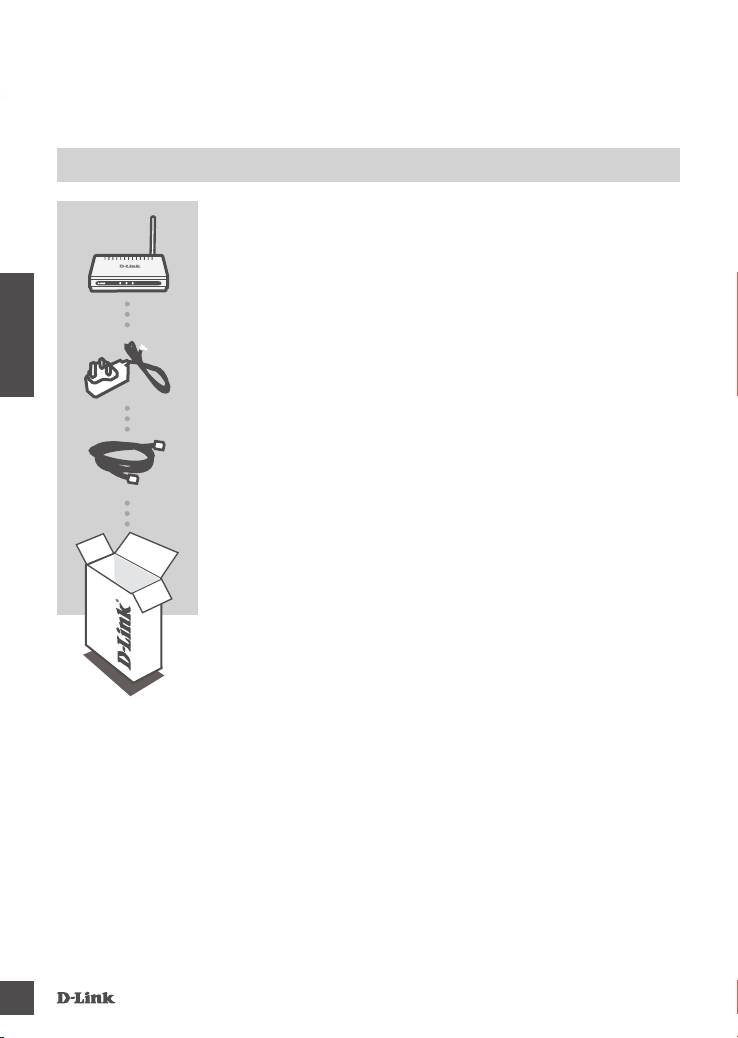

CONTENTS OF
PACKAGING
CAT. 5 ETHERNET CABLE
POWER ADAPTER
12V / 0.5A
If any of these items are missing from your packaging, contact
your reseller.
WIRELESS N 150 BRIDGE/ACCESS POINT
DAP-1160
CONTENTS
DAP-1160
DAP-1160 1
ENGLISH

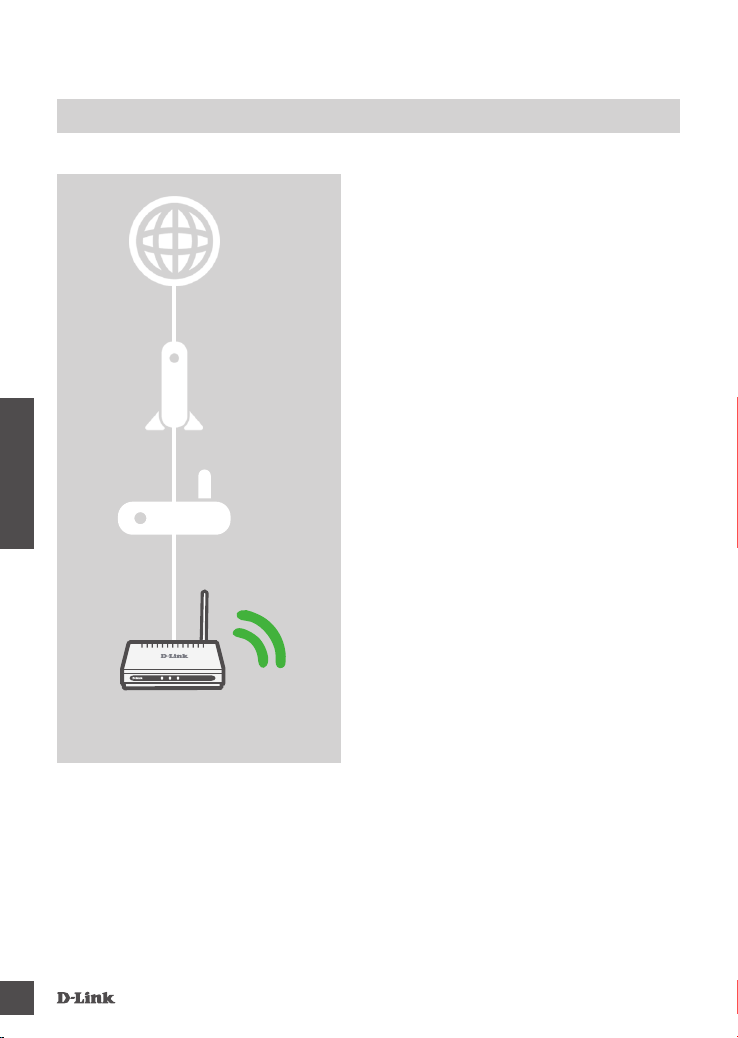

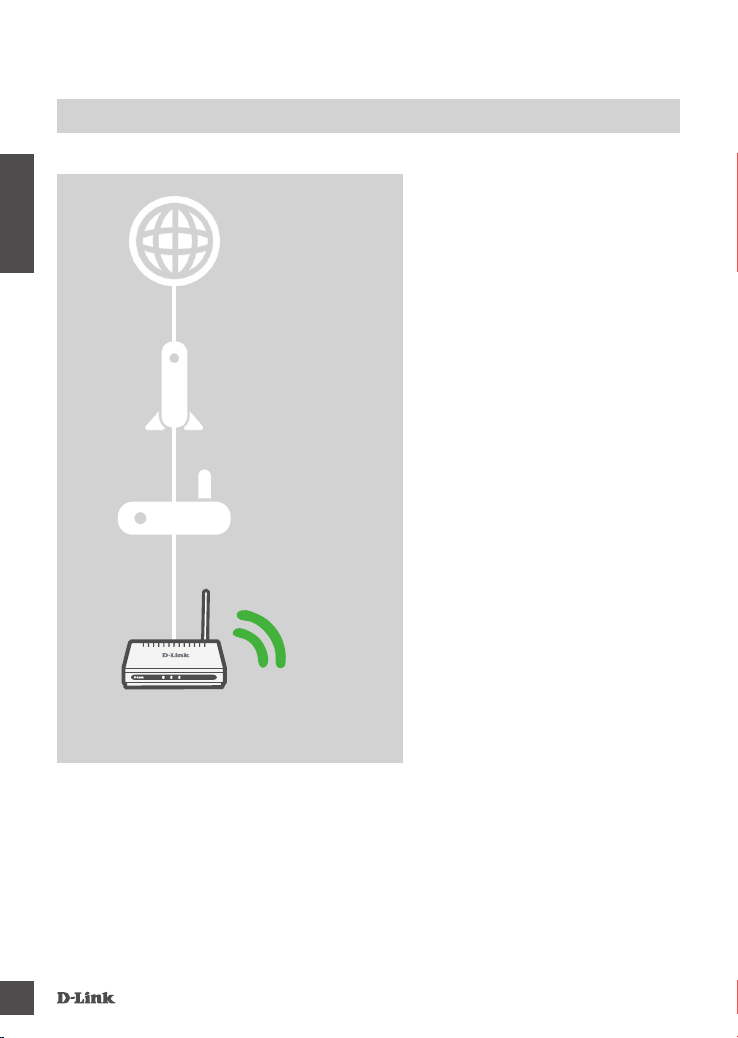

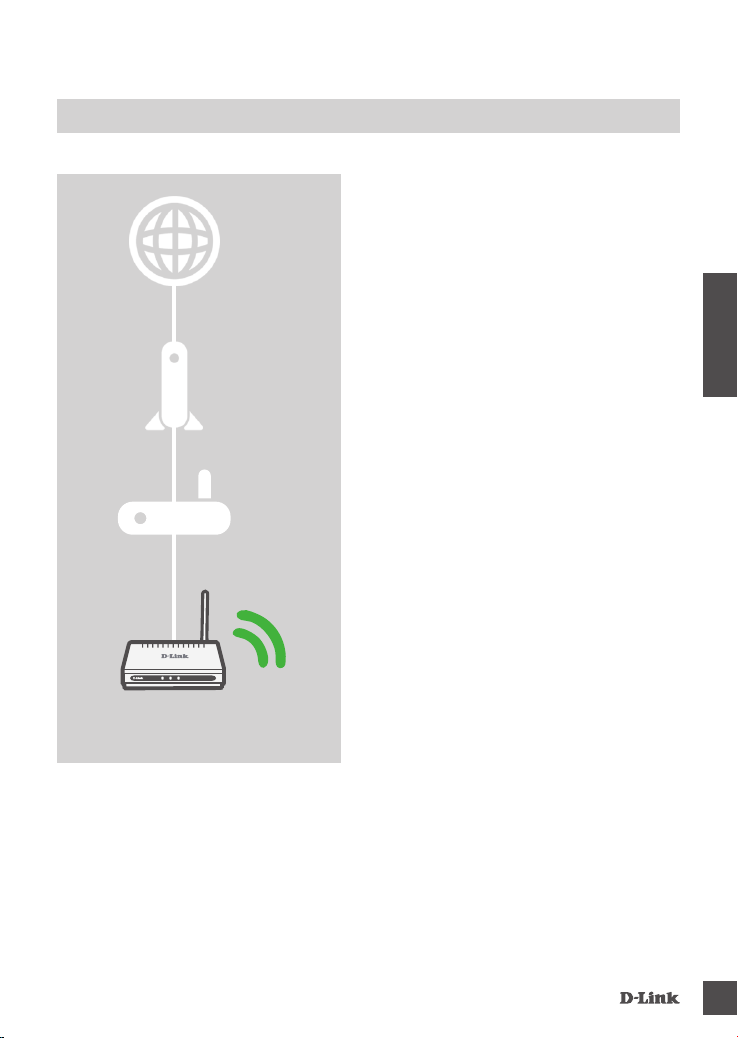

YOUR NETWORK SETUP
Modem
Router
Internet
DAP-1160
DAP-1160
DAP-1160
2
ENGLISH

PRODUCT
SETUP

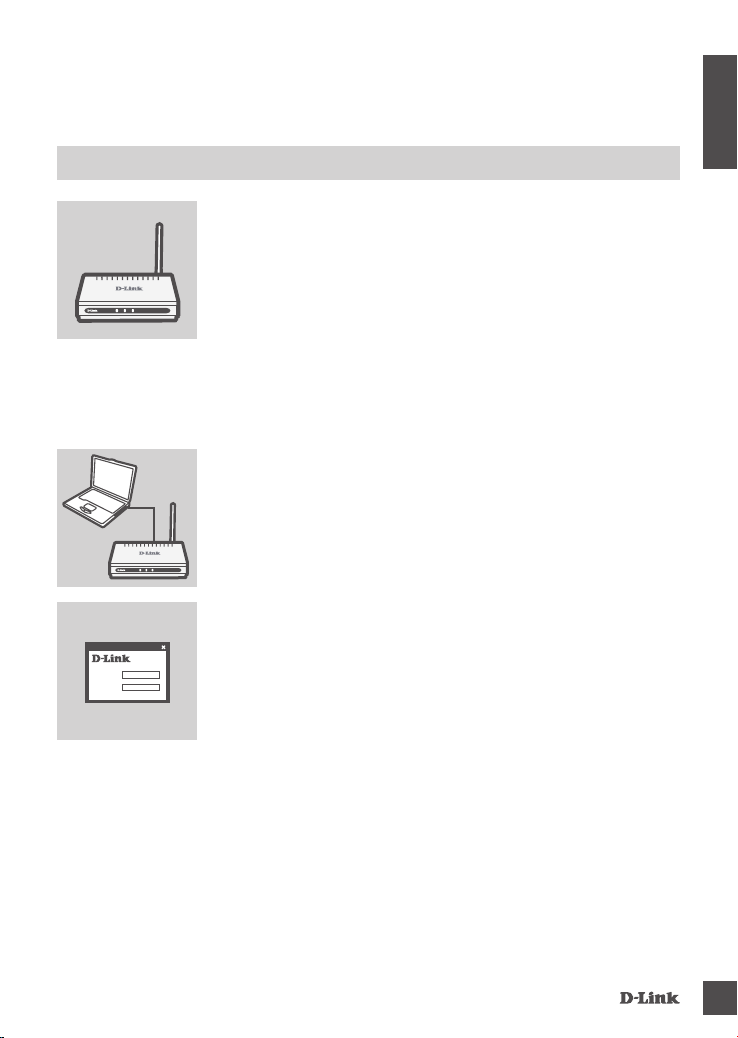

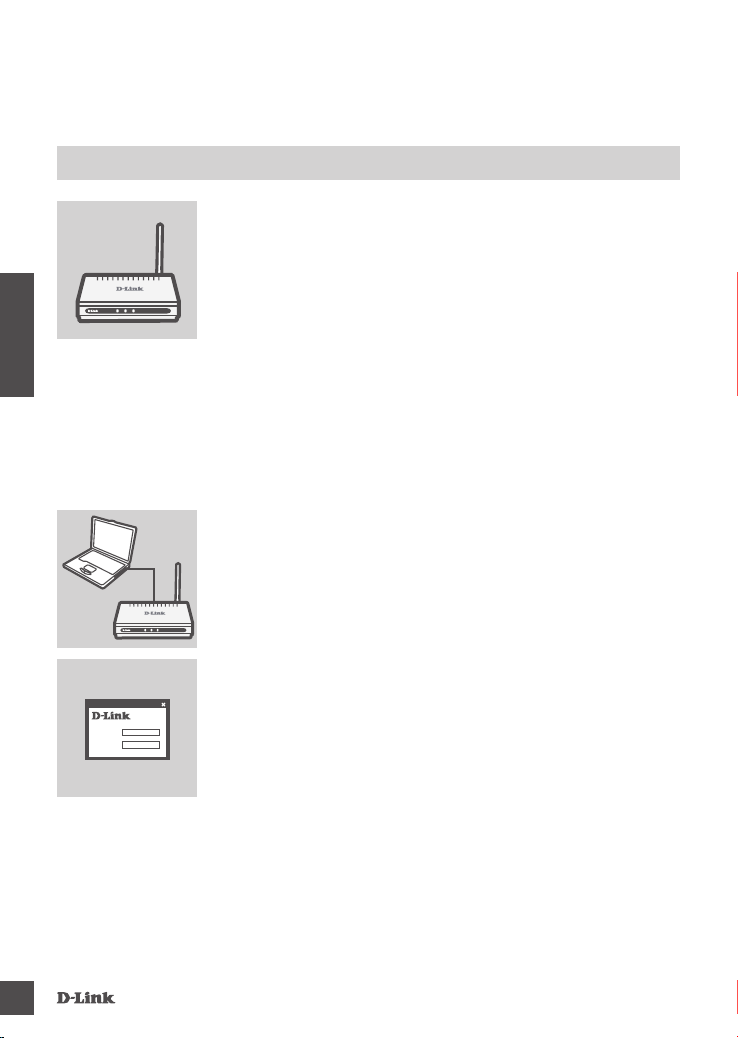

EASY SETUP

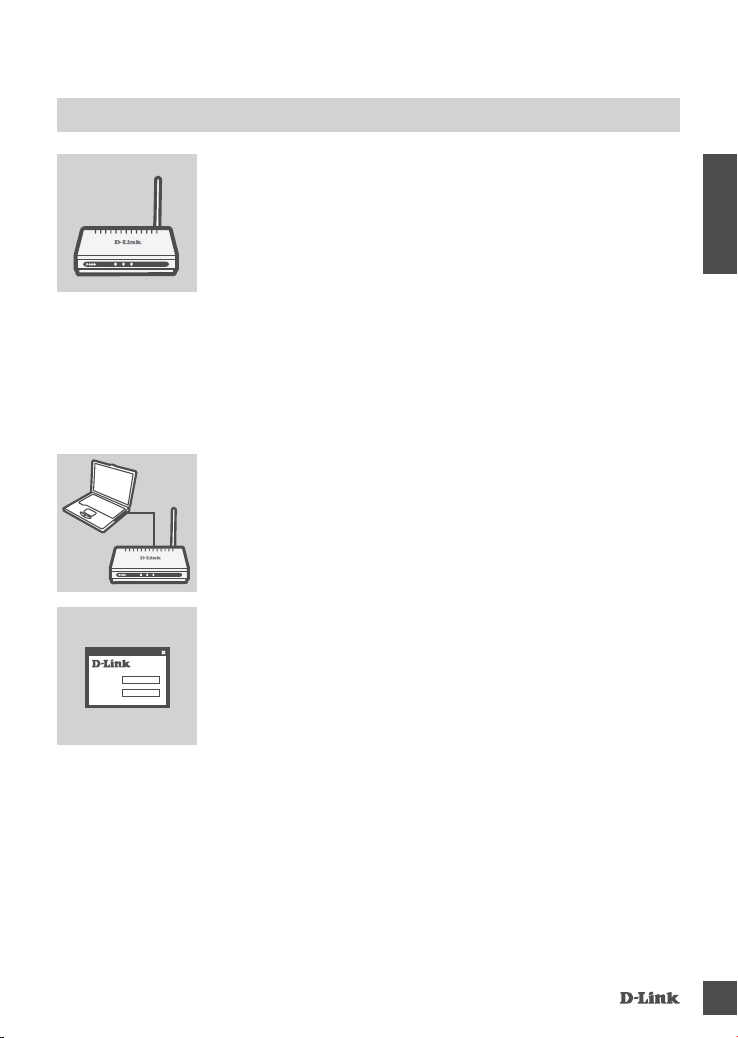

CONNECT THE ETHERNET CABLE
Connect one end of the Ethernet cable to the LAN port on the
back panel of the DAP-1160, and the other end of this cable to
your computer’s Ethernet port. If your computer is connected to
an Ethernet network via an Ethernet switch, connect this end of
the cable to the switch’s port.
CONFIGURE THE DAP-1160
Open a web browser and go to http://dlinkap
(or http://192.168.0.50). Enter admin as the User name, and
leave the Password blank. Now you can use the Setup Wizard
to congure your DAP-1160.
CONNECT THE POWER ADAPTER
Check the AC voltage of your AC power outlet against the AC power
input of the power adapter. Connect the power adapter supplied with
the DAP-1160 to the power socket on the back of this device rst,
then plug it to your AC power outlet. Check to see that the Power
LED on the front panel of the DAP-1160 is turned ON.
WARNING! The DAP-1160’s power output is 12 volts DC, 0.5
Ampere. Use only the power adapter supplied with this DAP-1160 or
one with the same power specications. Using a power adapter with
a different voltage or plugging your DAP-1160 to a wrong AC voltage
outlet will damage this device and will void the warranty for this
product.
User Name xxxx
Password
Login
DAP-1160
DAP-1160
DAP-1160 3
ENGLISH

TROUBLESHOOTING
SETUP AND CONFIGURATION PROBLEMS
1. HOW DO I CONFIGURE MY DAP-1160 WIRELESS N 150 BRIDGE/ACCESS POINT
WITHOUT THE CD, OR CHECK MY WIRELESS NETWORK NAME (SSID) AND WIRLESS
ENCRYPTION KEY?
- Connect your PC to DAP-1160 using an Ethernet cable.
- Open a web browser and enter the address http://dlinkap
- The default username is admin. The default password is blank (leave this box empty).
- If you have changed the password and cannot remember it, you will need to reset the product
to set the password back to default.
2. HOW DO I RESET MY DAP-1160 WIRELESS N 150 BRIDGE/ACCESS POINT TO
FACTORY DEFAULT SETTINGS?
- Ensure the product is powered on.
- Press and hold the reset button on the rear of the device for 5 seconds.
Note: Resetting the product to the factory default will erase the current conguration settings.
To recongure your settings, log into the DAP-1160 as outlined in question 1, then run the
Setup Wizard.
3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY
WIRELESS NETWORK NAME (SSID) OR WIRELESS ENCRYPTION KEY?
- For every PC that needs to connect to the DAP-1160 wirelessly, you will need to ensure you
use the correct Wireless Network Name (SSID) and encryption key.
- Use the web based user interface (as described in question 1 above) to check or choose your
wireless settings.
- Make sure you write down these settings so that you can enter them into each wirelessly
connected PC. You will nd a dedicated area on the back of this document to write down this
important information for future use.
4. WHY CAN I NOT GET AN INTERNET CONNECTION?
- For Cable users, make sure that the Clone MAC address option is ticked during Wizard
installation (or enter the registered MAC) and that your ISP username and password is correct.
DAP-1160
4
ENGLISH

TECHNICAL SUPPORT
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: [phone]
Toll Free 1800-233-0000
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
Korea:
Tel : [phone]
Monday to Friday 9:00am to 6:00pm
Web : http://d-link.co.kr
E-mail : [email protected]
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
South Africa and Sub Sahara
Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South
Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected]
Saudi Arabia (KSA):
Tel: [phone]
Fax: [phone]
Saturday to Wednesday 9.30AM to 6.30PM
Thursdays 9.30AM to 2.00 PM
E-mail: [email protected]
D-Link Middle East - Dubai, U.A.E.
Plot No. S31102,
Jebel Ali Free Zone South,
P.O.Box 18224, Dubai, U.A.E.
Tel: [phone]
Fax: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Egypt
1, Makram Ebeid Street - City Lights Building
Nasrcity - Cairo, Egypt
Floor 6, ofce C2
Tel.: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Kingdom of Saudi Arabia
Ofce # 84 ,
Al Khaleej Building ( Mujamathu Al-Khaleej)
Opp. King Fahd Road, Olaya
Riyadh - Saudi Arabia
Tel: [phone]
Technical Support:
[phone] / [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Pakistan
Islamabad Ofce:
61-A, Jinnah Avenue, Blue Area,
Suite # 11, EBC, Saudi Pak Tower,
Islamabad - Pakistan
Tel.: [phone]
Fax: [phone]
Karachi Ofce:
D-147/1, KDA Scheme # 1,
Opposite Mudassir Park, Karsaz Road,
Karachi – Pakistan
Phone: [phone]
Fax: [phone]
Technical Support: [phone], 34305069
General Inquiries: [email protected]
Tech Support: [email protected]
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in

TECHNICAL SUPPORT
Iran
Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest
St. , Argentine Sq. ,
Tehran IRAN
Postal Code : 1513833817
Tel: [phone],19
+98-21-88706653,54
General Inquiries: [email protected]
Tech Support: [email protected]
Morocco
M.I.T.C
Route de Nouaceur angle RS et CT 1029
Bureau N° 312 ET 337
Casablanca , Maroc
Phone : [phone]
Email: [email protected]
Lebanon RMA center
Dbayeh/Lebanon
PO Box:901589
Tel: [phone] Ext:14
Fax: [phone] Ext:12
Email: [email protected]
Bahrain
Technical Support: [phone]
Kuwait:
Technical Support: + 965 22453939 / +965
22453949
Türkiye Merkez İrtibat Ofisi
Ayazağa Maslak yolu
Erdebil Cevahir İş Merkezi No: 5/A Ayazağa /
Maslak İstanbul
Tel: [phone]
Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65
Web:www.dlink.com.tr
Teknik Destek: [email protected]
073-796-2797

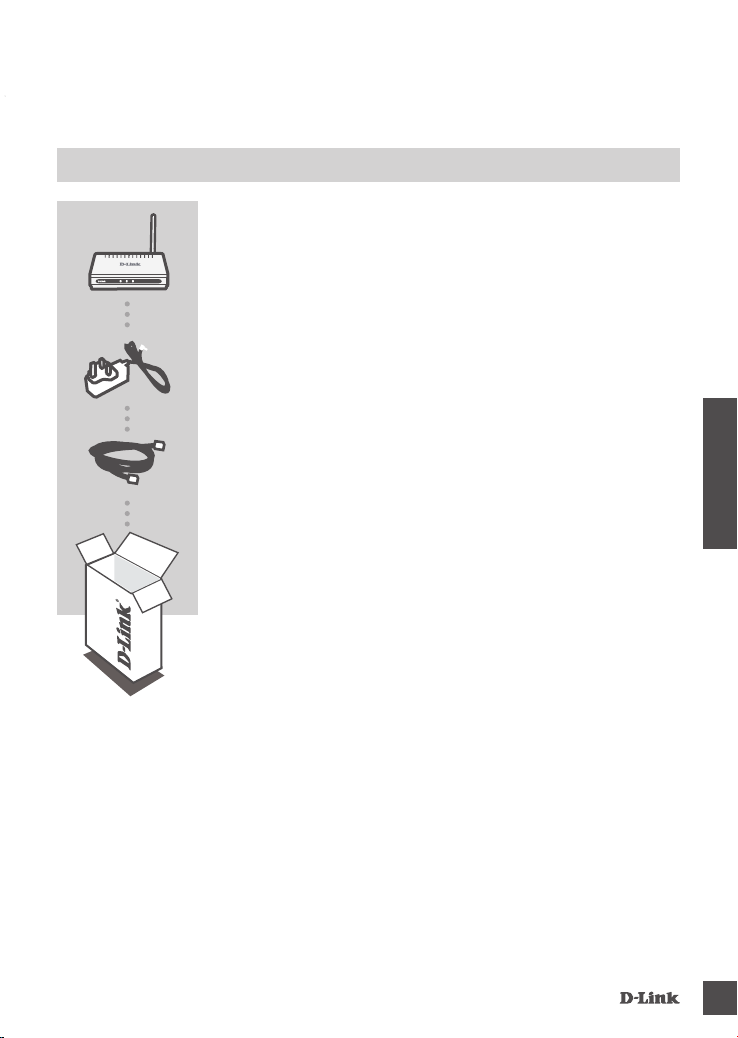

КОМПЛЕКТ
ПОСТАВКИ
ETHERNET-КАБЕЛЬ 5 КАТЕГОРИИ
АДАПТЕР ПИТАНИЯ
12 В, 0,5 А
Если что-либо из перечисленного отсутствует, обратитесь к
поставщику.
БЕСПРОВОДНАЯ ТОЧКА ДОСТУПА/МОСТ
WIRELESS N150
DAP-1160
СОДЕРЖИМОЕ
DAP-1160
DAP-1160 7
PYCCКИЙ

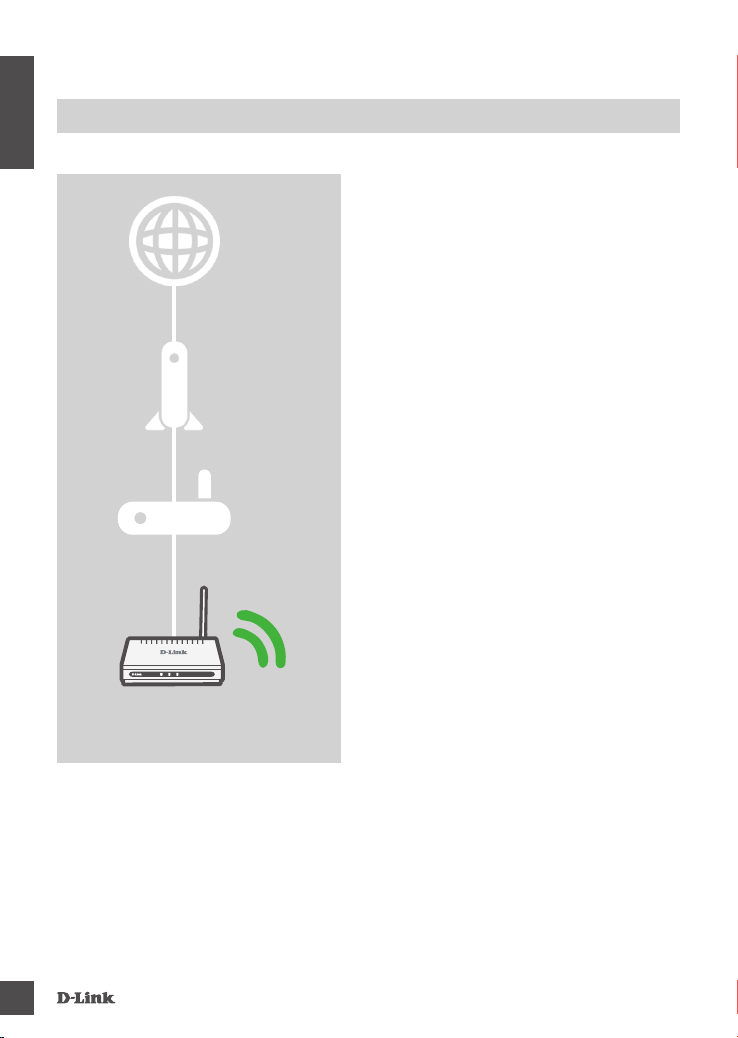

НАСТРОЙКА СЕТИ
