D-Link DAP-1365 Manual

Technical Support Setup Procedure
Page | 1
How to configure DAP-1365 as Access Point with non-
default wireless SSID?
(Note: Please ensure the device LED is blinking orange colour before you do setup.
If it is not blinking in orange colour, follow the guide on page 4 on how to reset the device
before follow the guide to setup.)

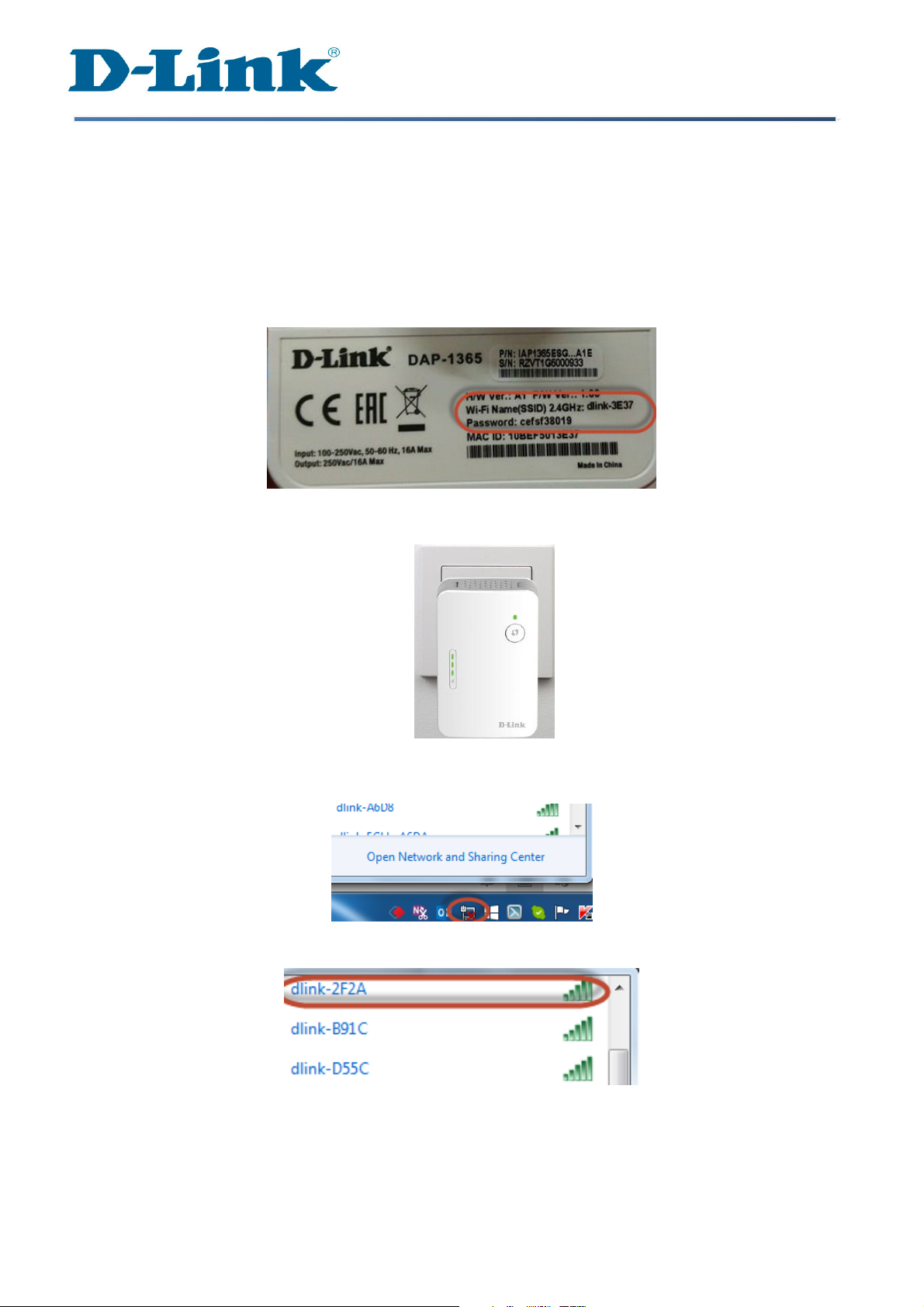

Step 1: Copy down the wireless name and password that was on the sticker of the device.
Step 2: Plug DAP-1365 direct to power outlet.
Step 3: Click on the Computer Icon on the right bottom side of the Windows.
Step 4: Select the Wireless network name that was copy down.

Technical Support Setup Procedure
Page | 2

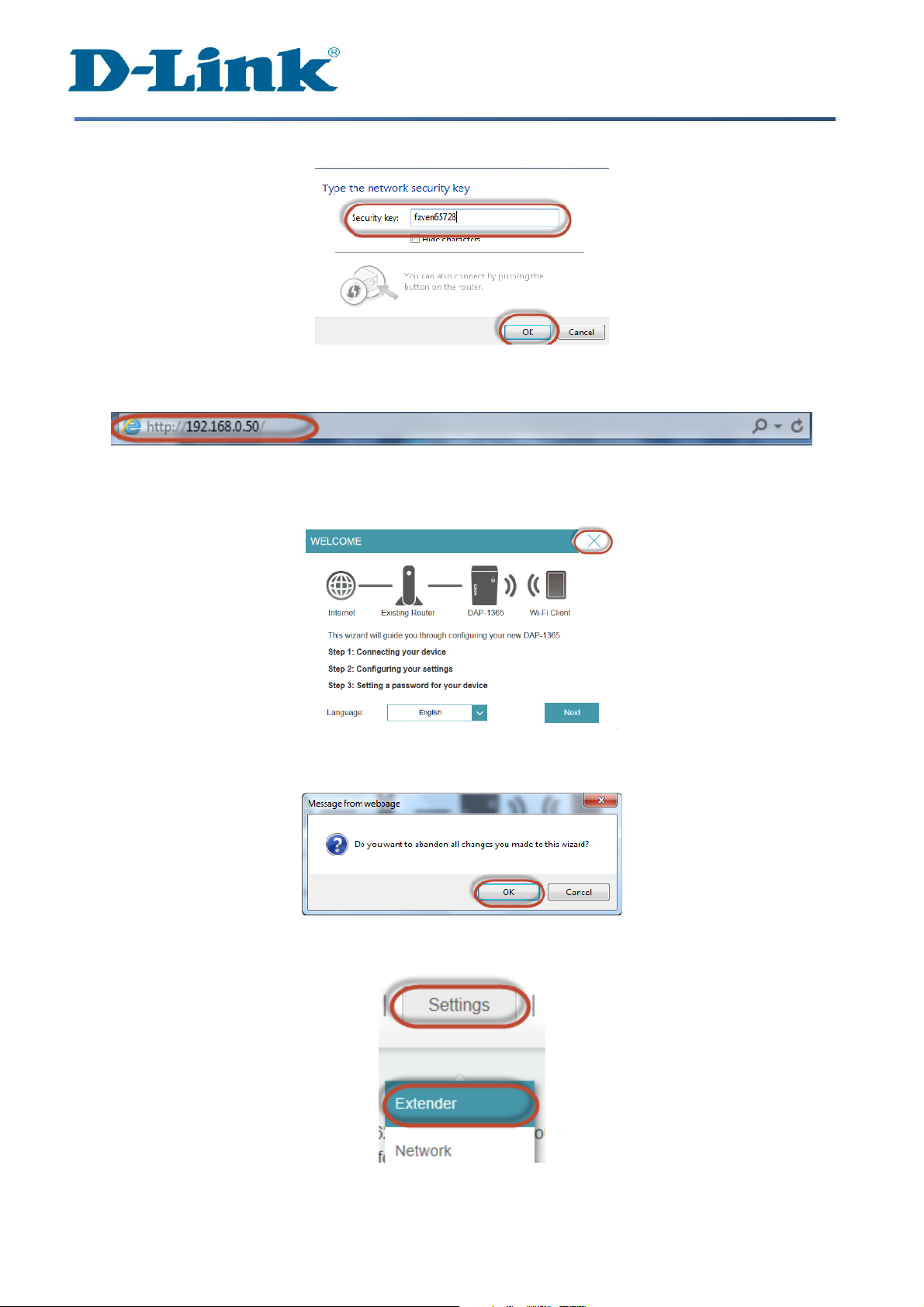

Step 5: Enter the Wifi Password which had copy down earlier on. Click on OK.
Step 6: Open Internet Explorer and enter http://192.168.0.50 on the URL bar.
Step 7: Click on X.
Step 8: Click on OK.
Step 9: Click on Settings and select Extender.

Technical Support Setup Procedure
Page | 3

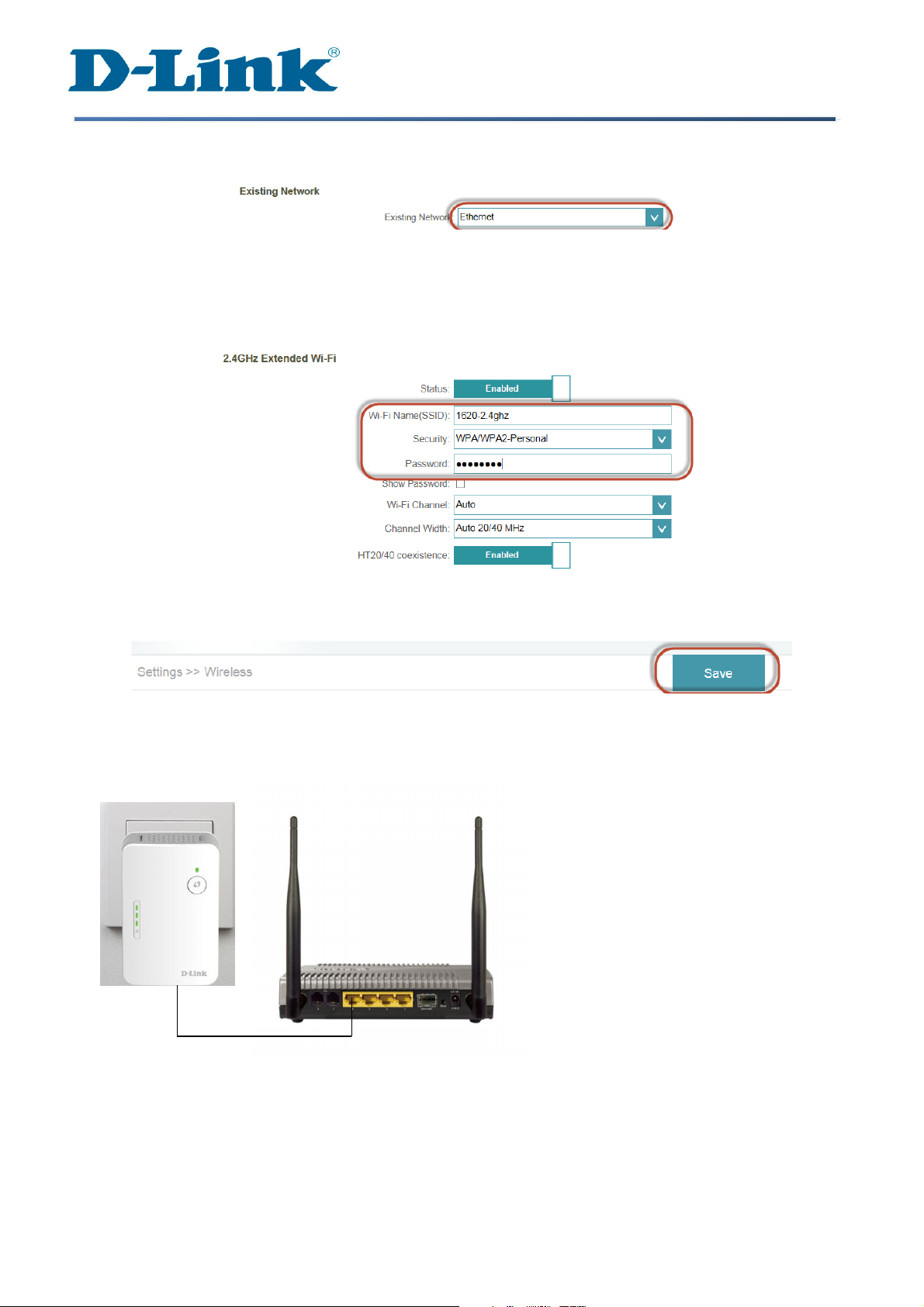

Step 10: Select Ethernet for Existing Network.
Step 11: 2.4Ghz Extended Wi-Fi
a) Give a different Wi-Fi Name in the box beside Wi-fi Name (SSID).
b) Give a different Wi-Fi Password in the box beside Password
Step 12: Click on Save.
Step 13 a) Plug DAP-1365 direct to power outlet.
b) Connect LAN Cable from DAP-1365 to LAN port of the Router.
Step 14: Use computer to connect to the wireless you had setup.
--- END ---

Technical Support Setup Procedure
Page | 4

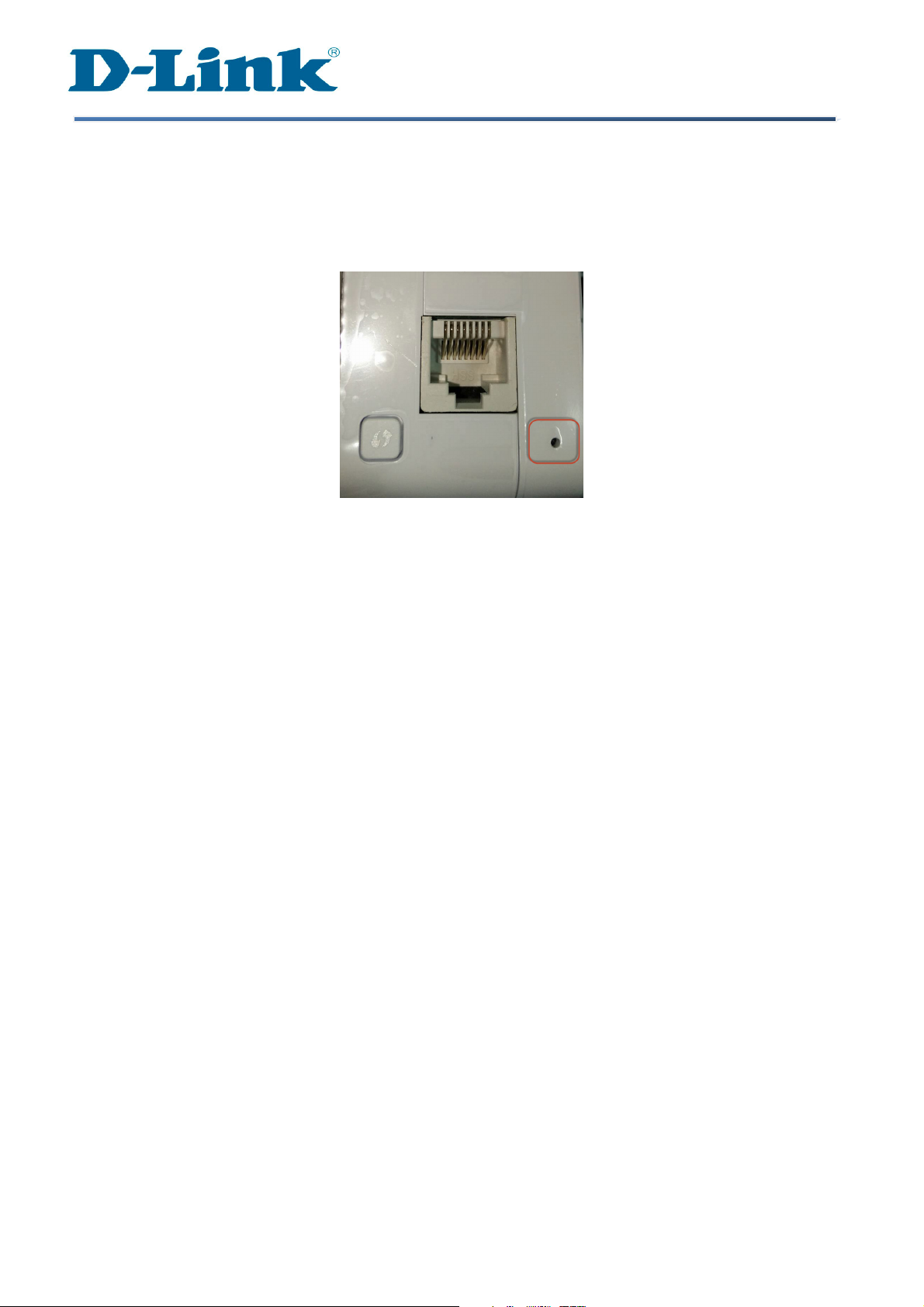

How to reset DAP-1365.
Step 1: Plug DAP-1365 direct to power outlet.
Step 2: Power on DAP-1365 and wait for 1 min.
Step 3: Use a paper clip to press and hold the Reset Button for 30 second.
Step 4: Wait for 2 min for the device to fully power on after reset.
--- END ---
